• Installer: In the interest of safety and to minimize problems, read these installation instructions completely and care-
fully before you begin the installation process. Leave these installation instructions with the customer.
• Customer: Keep these installation instructions for future reference and the local electrical inspector’s use.
Important Safety Instructions
Important Information About
Safety Instructions
• The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or operating this or any other appliance.
• Always contact the Dacor Customer Service Team
about problems and conditions that you don’t understand. See Customer Service Information.
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
DANGER
IMPORTANT: Do not store or use combustible, flam-
mable, or explosive vapors and liquids (such as gasoline)
inside or in the vicinity of this or any other appliance. Also
keep items that could explode, such as aerosol cans,
away from the oven. Do not store flammable or explosive
materials in adjacent cabinets or areas.
WARNING
WARNING – NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
overheating of the appliance.
WARNING
WARNING – NEVER cover any slots, holes or passages
in the oven bottom or cover an entire rack with materials
such as aluminum foil. Doing so blocks air flow through
the oven and may cause a fire hazard.
WARNING
Do not install this appliance outdoors and/or near water,
for example, near a pool.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
READ AND SAVE
THESE INSTRUCTIONS
WARNING
When using the BROIL and CONVECTION BROIL settings, the oven door must be completely shut.
1
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, serious injury or death when using your appliance, follow basic safety precautions, including the following:
WARNING
• Read the accompanying use and care manual completely before operating this appliance.
• Keep packaging materials away from children.
Plastic sheets and bags can cause suffocation.
• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a
damaged appliance. Do not install or use the appliance if the conduit is damaged.
• This oven must be properly installed and grounded
by a qualified installer according to these installation instructions prior to use. The installer must
show the customer the location of the circuit
breaker panel or fuse box so that they know where
and how to turn off power to the oven. Dacor is not
responsible for service required to correct a faulty
installation. The owner is responsible to make sure
this appliance is properly installed.
• Do not use the door handle(s) to lift or move the
oven.
• A minimum of two people are required to safely
install this appliance.
• To avoid an electric shock hazard, do not install this
appliance outside or near water. Do not install or
use this appliance if it has been exposed to water.
• Do not install, repair or replace any part of the oven
unless specifically recommended in the literature
accompanying it. A qualified service technician
must perform all other service.
• Before performing any type of service or installation, make sure that power to the oven is turned off
at the circuit breaker or fuse box.
• Only use the oven for cooking tasks expected of a
home appliance as outlined in the literature accompanying it. This oven is not intended for commercial
use.
• Do not climb on any part of the appliance.
• Do not leave children alone or unattended in the
area around the oven. Do not allow children to play
with the controls, pull on the handle or touch other
parts of the oven.
• Do not store items of interest to children above the
oven. Children could be burned or injured while
climbing on the appliance.
• Do not tamper with the controls. Do not adjust
or alter any part of the oven unless specifically
instructed to do so in this manual.
WARNING
• To prevent injury due to the unit tipping forward,
secure the oven to the cabinet using the supplied
mounting screws.
• Keep flammable items, such as paper, cardboard,
plastic and cloth away from hot surfaces. Do not put
such items in the oven. Do not allow pot holders to
touch hot surfaces.
• Do not wear loose or hanging apparel while using
the oven. Do not allow clothing to come into contact
with the interior of the oven and the surrounding
areas during and immediately after use.
• Do not use the oven for storage.
• Do not touch the interior surfaces of the oven during
use. After use, make sure these surfaces have had
sufficient time to cool before touching them.
• Do not touch the outside surfaces of the oven during the self-clean cycle. They will be hot. Venting
from the oven may cause the trim to become hot.
• For your safety, do not use the oven to cook without
the convection filter installed. When the filter is not
installed, the spinning fan blades at the back of the
oven are exposed.
• Non-stick coatings, when heated, can be harmful to
birds. Remove birds to a separate, well-ventilated
room during cooking.
• To prevent damage, remove the meat probe from
the oven when it is not being used.
• Do not line the oven with aluminum foil or other
materials. These items can melt or burn up during
self-cleaning and cause permanent damage to the
oven.
• Do not leave objects, such as aluminum foil, the
meat probe, cookie sheets, etc. on the bottom of
the oven. Objects left on the bottom of the oven
could damage the oven. In addition, the objects
themselves could be damaged.
• Do not allow heating elements in the top of the oven
chamber to become covered up by cookie sheets,
aluminum foil, pots, pans, etc. Covering the heating
elements could cause them to over-heat, damaging
the oven.
• Always ensure that the light fixture lens covers are
in place when using the oven. The lens covers protect the light bulbs from breakage caused by high
oven temperatures or mechanical shock.
2
Customer Service Information
Model IdentificationIf You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have the
model and serial number of the appliance ready. The model
and serial number are printed on the appliance data plate.
Dacor Customer Service
Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: (800) 793-0093 ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time

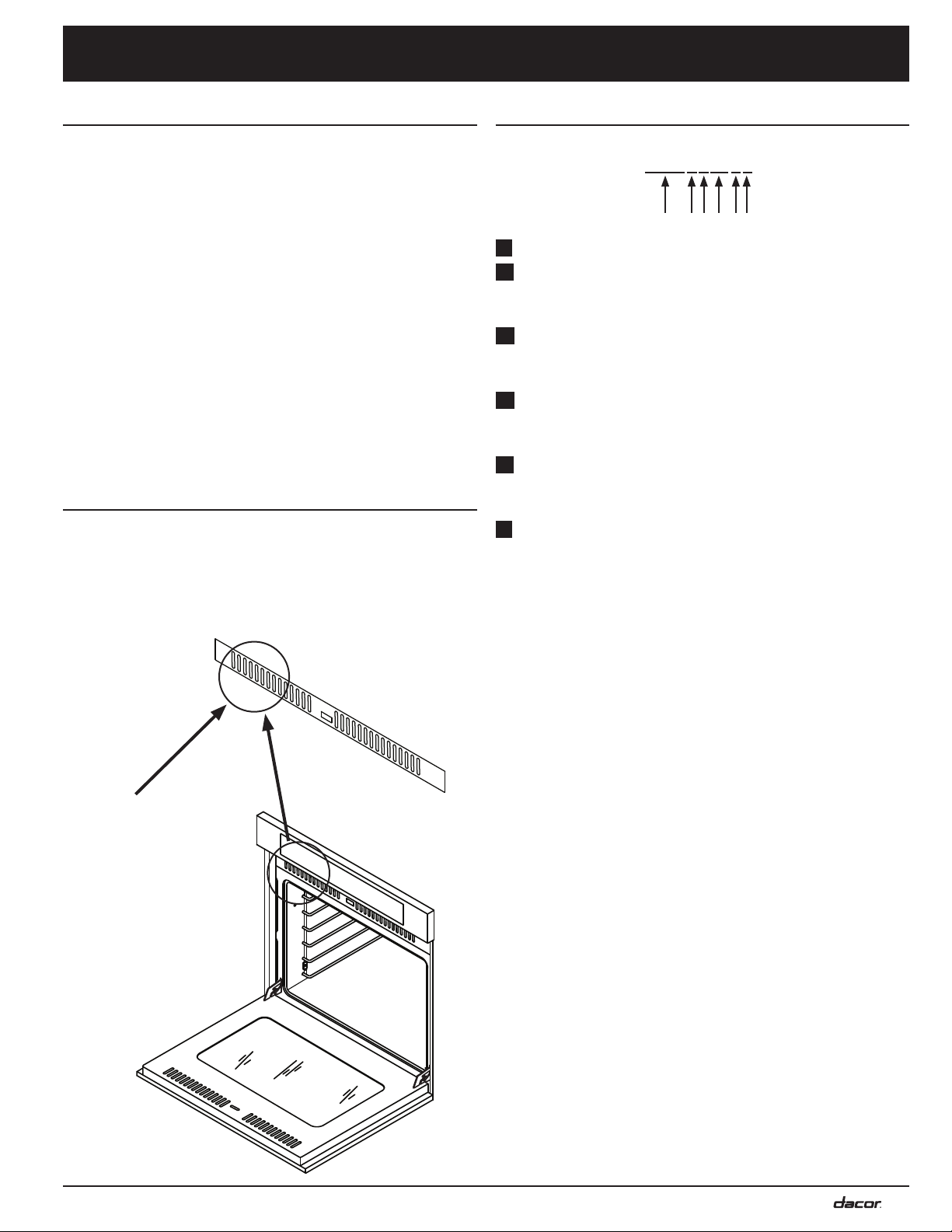

Product Data Label
• The product data label contains the model and serial
number information and the electrical requirements.
• It can be seen through the grill located below the control panel. Open the door to expose the grill. On double
ovens, the label is located behind the top grill.
DTOV230FS
ABC D E F
A MODEL SERIES
B VERTICAL TRIM
V = Equipped with vertical trim
No character = No vertical trim
C NUMBER OF OVENS:
1 = Single
2 = Double
D WIDTH IN INCHES
E DOOR STYLE
F = Flush handle
No character = External handle
F COLOR
B = Black
S = Stainless
W = White
View data plate
through grate
3
Product Specifications
Electrical Specifications
• It is the owner’s responsibility to ensure that a licensed
electrician performs the installation of the electrical supply for this appliance. The electrical installation, including minimum supply wire size, must comply with the
National Electric Code ANSI/NFPA 70 (latest revision)
and local codes and ordinances.
A copy of this standard may be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, Massachusetts 02269-9101
• The correct voltage, frequency and amperage must be
supplied to the appliance from a dedicated, grounded,
single phase circuit that is protected by a properly sized
circuit breaker or time-delay fuse. If a time-delay fuse is
utilized, fuse both sides of the line (L1 and L2).
• Preheat times and cavity temperature recovery times
will be increased slightly if operating the unit with less
than a 240 Vac circuit.
• This appliance is provided with electrical wiring in a
flexible metal conduit.
Product Dimensions
Model
Number
DTO(V)127
DTO(V)130
DTO(V)227
DTO(V)230
* This specification is for reference only. See the product
data label (page 3) for exact specifications.
** Two 120 Vac hot (L1 and L2), one neutral, one ground.
Total Connected
Load*
240 Vac 60 Hz,
23.3 Amp., 5.6 kW
240 Vac 60 Hz,
24.9 Amp., 6.0 kW
240 Vac 60 Hz,
26.6 Amp., 6.4 kW
240 Vac 60 Hz,
26.6 Amp., 6.4 kW
Dedicated Circuit
Requirements
240 Vac 60 Hz,
4 wire**, 30 Amp.
240 Vac 60 Hz,
4 wire**, 30 Amp.
240 Vac 60 Hz,
4 wire**, 40 Amp.
240 Vac 60 Hz,
4 wire**, 40 Amp.
All tolerances: ±1/16 (±1.6 mm), unless otherwise stated.
Model(A)(B)(C)(D)(E)
DTO(V)127
DTO(V)130
DTO(V)227
DTO(V)230
All models
26 7/8”
(68.3 cm)
29 7/8”
(75.9 cm)
26 7/8”
(68.3 cm)
29 7/8”
(75.9 cm)
(F)(G) (H) (J) (K)
6 1/2”
(16.5 cm)
25 3/8”
(64.5 cm)
28 3/8”
(72.1 cm)
25 3/8”
(64.5 cm)
28 3/8”
(72.1 cm)
5”
(12.7 cm)
27 3/4”
(70.5 cm)
27 3/4”
(70.5 cm)
50 1/8”
(127.3 cm)
50 1/8”
(127.3 cm)
7 7/8”
(20.0 cm)
26 5/8”
(67.6 cm)
26 5/8”
(67.6 cm)
49”
(124.5 cm)
49”
(124.5 cm)
1 1/4”
(3.2 cm)
1 1/8”
(2.9 cm)
1 1/8”
(2.9 cm)
1 1/8”
(2.9 cm)
1 1/8”
(2.9 cm)
23 1/2”
(59.7 cm)
4

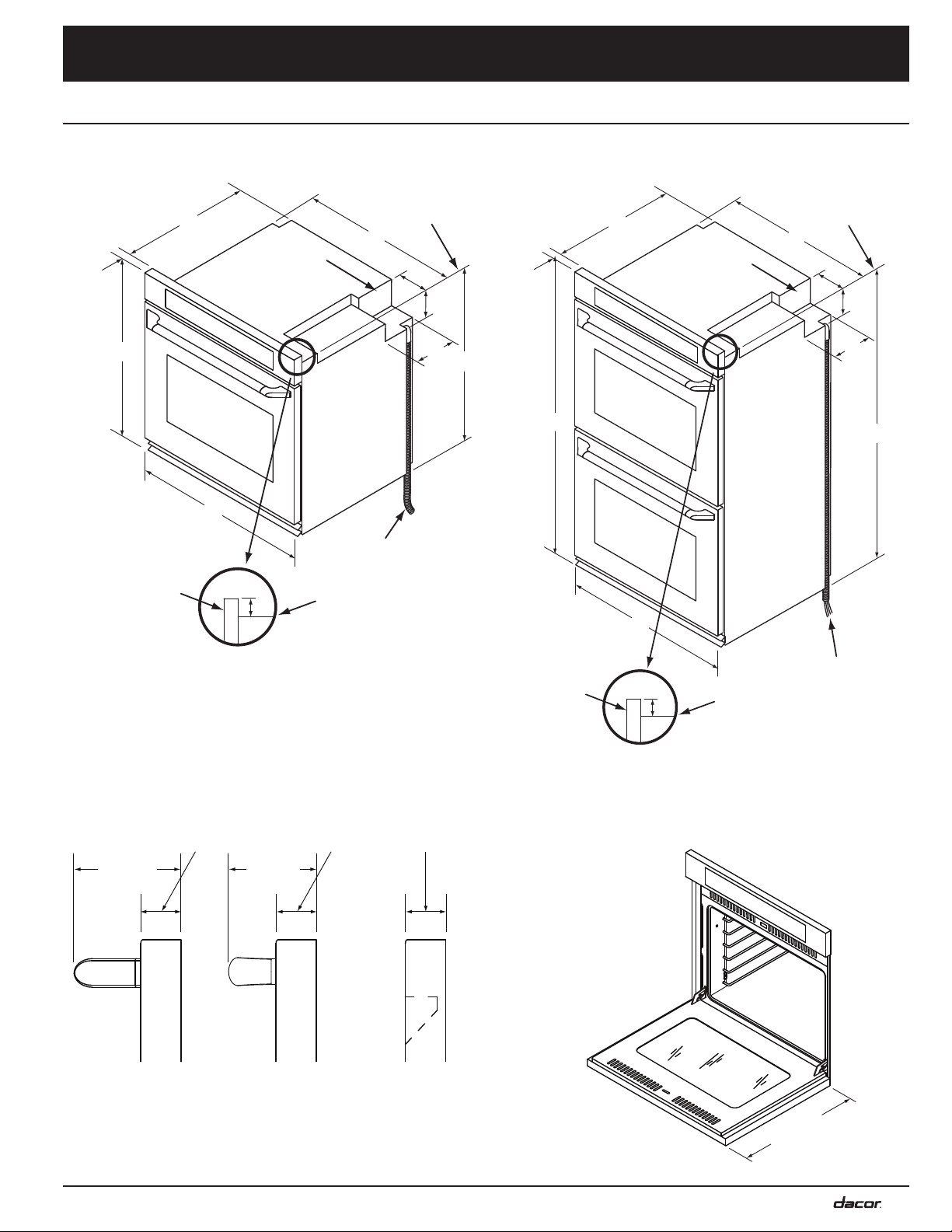

Design Specifications
Product Dimensions
All tolerances: ±1/16 (±1.6 mm), unless otherwise stated.
J
C
Control panel
front
Control panel
side view
Top of
K
Utility
cutout
A
E
Top of
chassis
chassis
B
F
G
Conduit:
60” (152 cm)
long
J
H
D
C
K
Utility
cutout
A
Top of
chassis
B
F
G
H
D
3 1/2”
(8.9 cm)
Epicure
Single Oven
1 1/8”
(2.9 cm)
3 3/16”
(8.1 cm)
Millennia
(Order kit #AROVH30S)
1 1/8”
(2.9 cm)
Handle Dimensions
1 1/8”
(2.9 cm)
Flush
Control panel
front
Control panel
side view
Conduit:
60” (152 cm)
E
Top of
chassis
long
Double Oven
21 7/8”
(55.6) cm
5
Installation Specifications
Installation Planning
WARNING
Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information.
IMPORTANT
• Locate the junction box so that the oven may be easily
disconnected in the event that it needs to be removed
from the wall completely for service.
• If the oven is not installed level it may deliver poor or
inconsistent baking results.
• Carefully check the location where the oven is to be
installed. The oven should be placed for convenient
access. Make certain that electrical power, meeting the
specifications on page 4, can be provided in the
selected location.

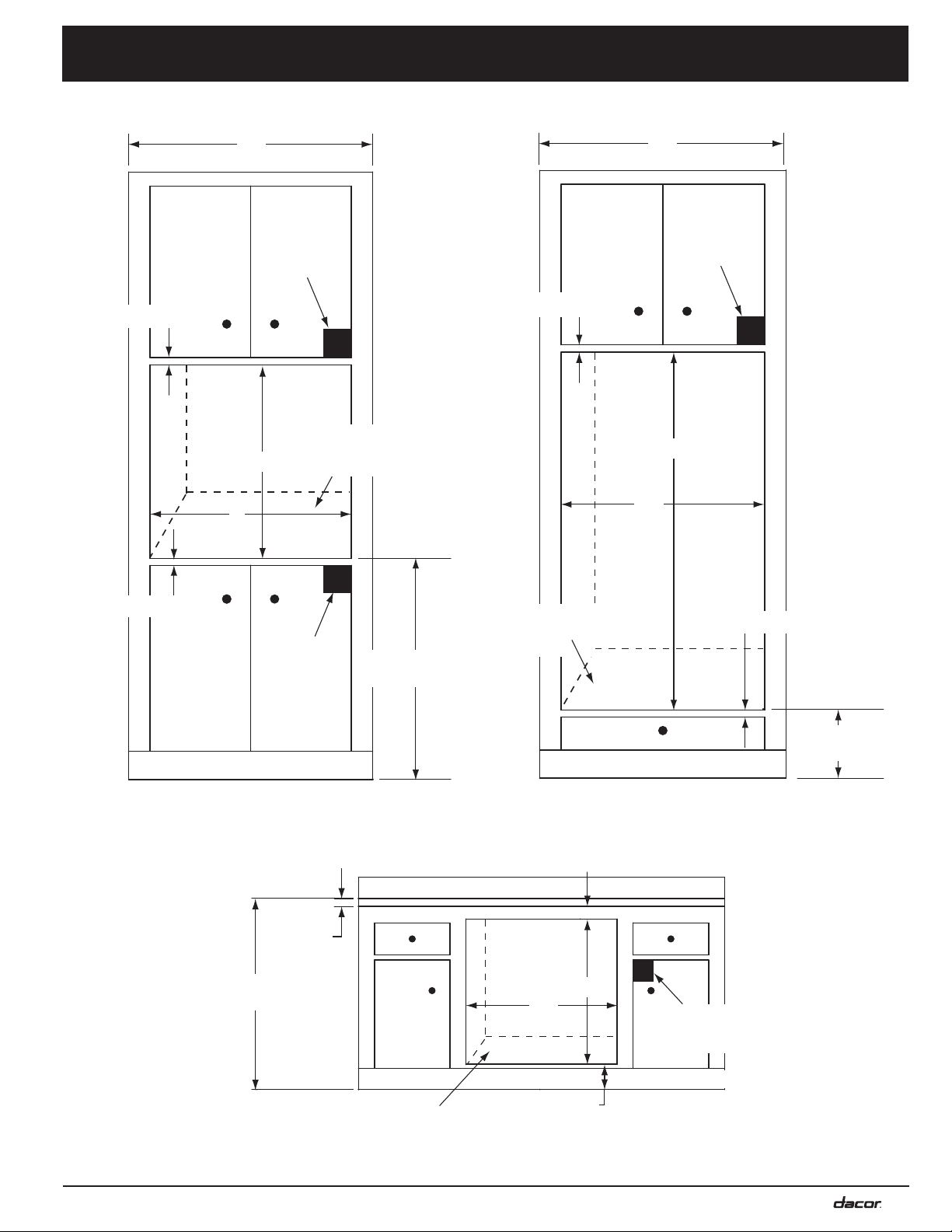

• Dacor recommends installing the junction box in the
one of the locations shown on the facing page.
• Install the junction box in a location that allows the
oven to be removed from the cutout for service without
being disconnected.
• Plan the installation so that all minimum clearances
are met or exceeded. Dimensions shown provide minimum clearances, unless otherwise noted. Be certain
that proper clearance is provided for the oven door
when it is in the open position according the Product Dimensions.
• Cabinet cutout dimensions must be used as indicated.
The specified minimum cabinet depth and width must
be provided. The cabinet depth and width must completely enclose the recessed portion of the oven.
• All contact surfaces between the appliance and the
cabinet must be solid and level.
• Provide a platform within the cabinet to support the
oven. It must be installed level and straight. The top
edge of the platform must be flush with the cutout at
the front of the cabinet. There are no provisions to level
the oven after it has been installed. 3/4” (1.9 cm) thick
plywood is recommended.
Verify that all the components below have been provided. If any item is missing or damaged, please contact your dealer
immediately. Do not install a damaged or incomplete appliance. Make sure that you have everything necessary to ensure
proper installation before proceeding.
• Use and care manual
• Mounting screws, wood, #6 X ¾, Dacor PN 83331,
4 for single ovens, 6 for double ovens
• Standard oven racks (single ovens come with 2,
double ovens come with 4)
• GlideRack™ oven rack (single ovens come with 1,
double ovens come with 2)
Remove the oven door(s)
Remove the door(s) to reduce weight and make the
oven easier to lift:
WARNING
• Do not attempt to disengage the hinge catches with
the door removed from the oven. The hinge springs
could release, causing personal injury.
• Do not lift or carry the oven door by the door handle.
• On double ovens, remove the bottom door first to
reduce the chance of damage.

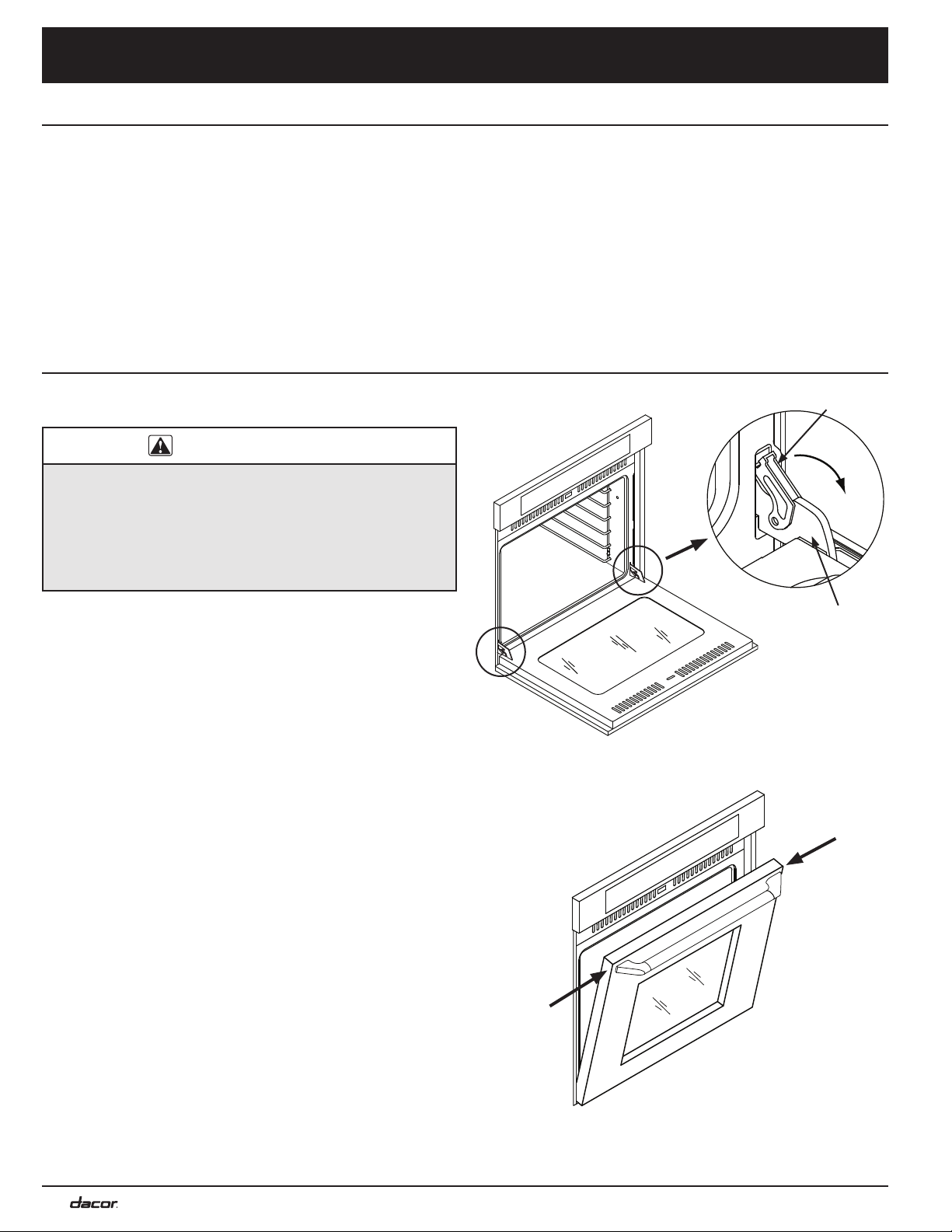

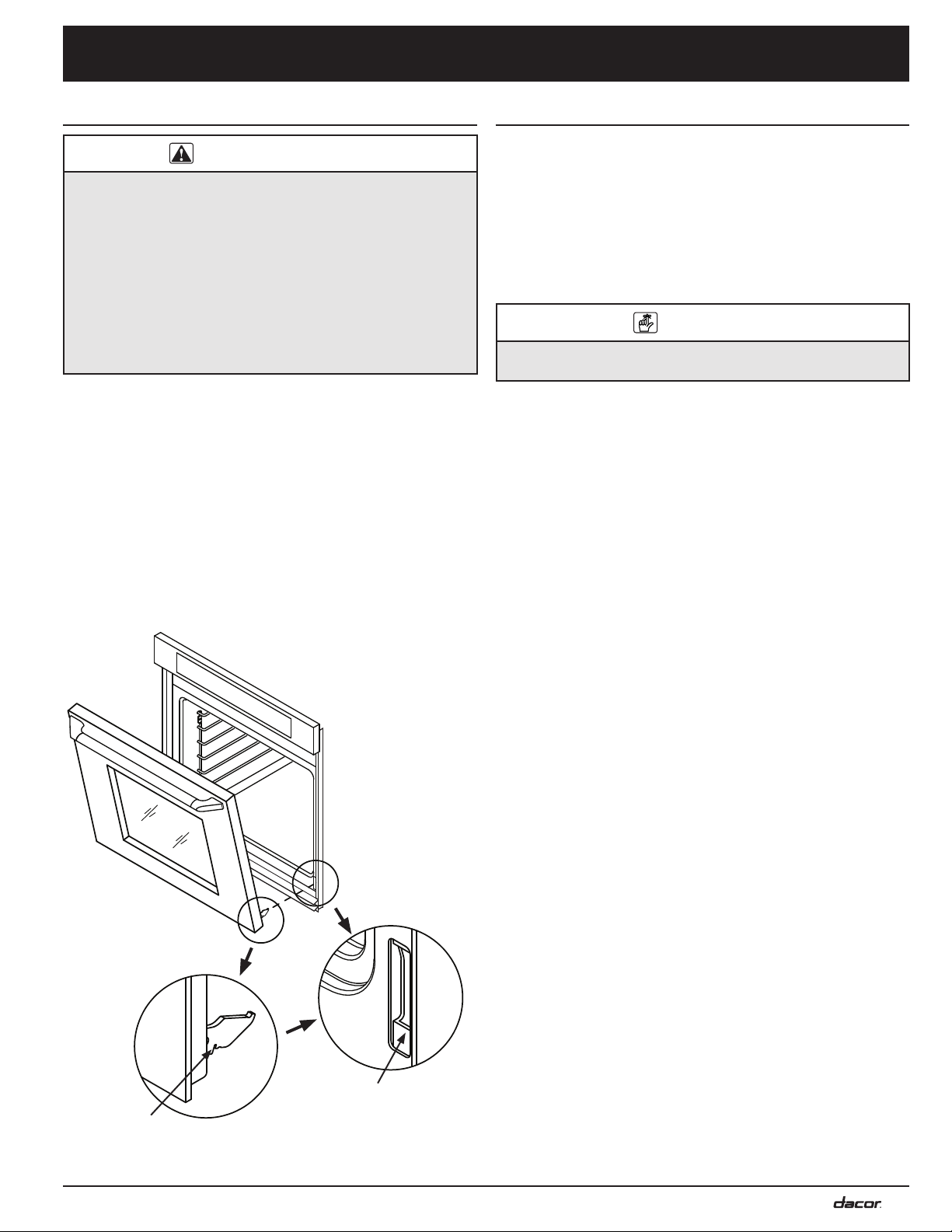

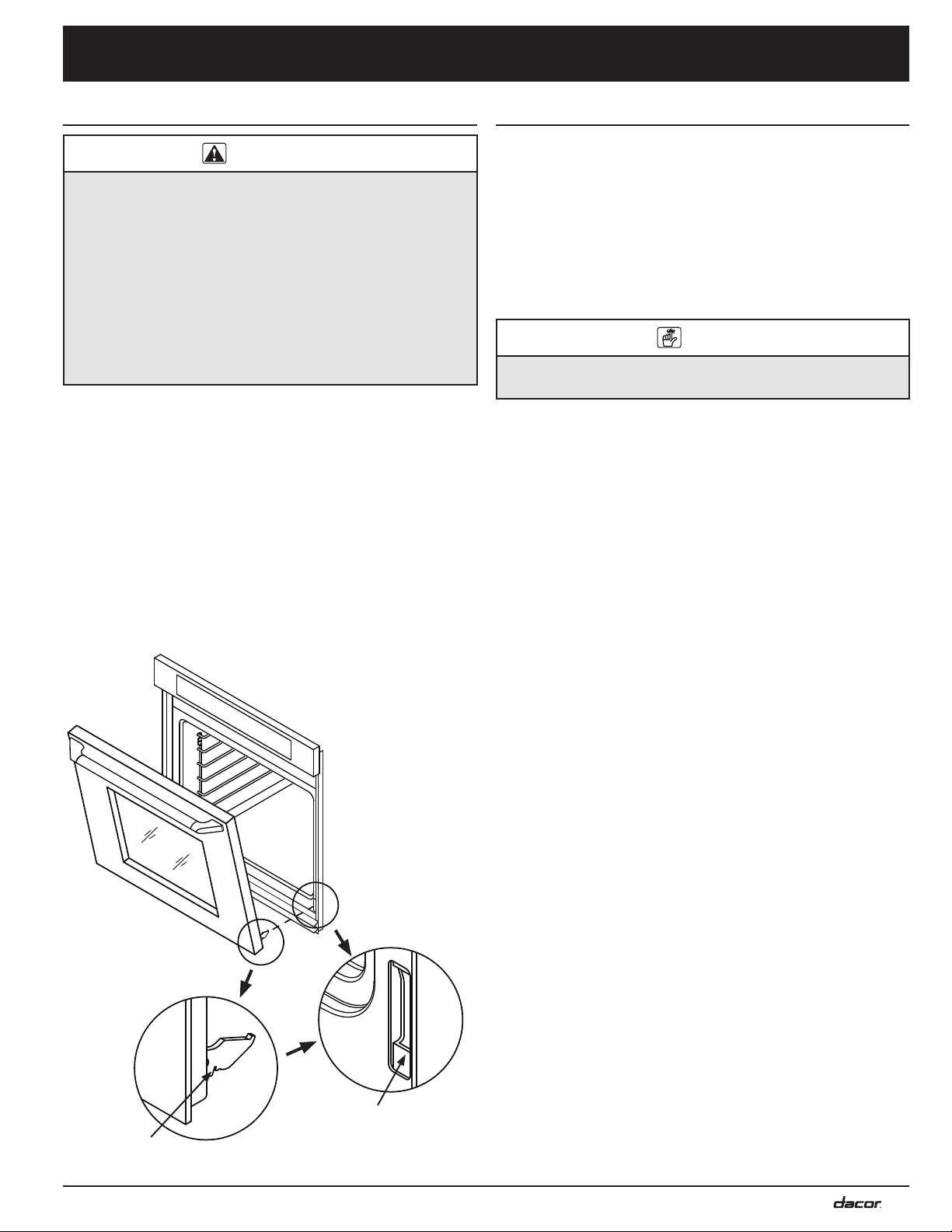

Removing the Oven Door(s)
1. Open the door to its fully opened position.
2. Using a flat blade screwdriver, rotate the catch over the
retaining arm on each hinge.
3. Lift the oven door to about a 15° angle from the vertical
position.
4. Hold the door with both hands just below the handle
and pull it away from the oven while continuing to lift.
• If the electrical service provided does not meet the
Electrical Specifications (see page 4), do not
proceed with the installation. Call a licensed electrician
to correctly install the required wiring.
• Failure to disconnect power prior to installation may
result in an electric shock or fire hazard.
• Do not turn on power to the appliance until the oven is
properly grounded according to these instructions.
• The installer must connect the ground terminal (or
lead) on the appliance to a grounded, metallic, permanent wiring system or grounding conductor. Failure to
do so may result in an electric shock hazard.
• Do not use an extension cord with this appliance. Such
use may result in fire, electric shock or personal injury.
• Do not install a fuse in the neutral or ground circuit. A
fuse in the neutral or ground circuit may result in an
electric shock hazard.
• The appliance must be connected to the power supply
with copper wire only. The use of aluminum wire may
result in unsatisfactory conditions.
IMPORTANT

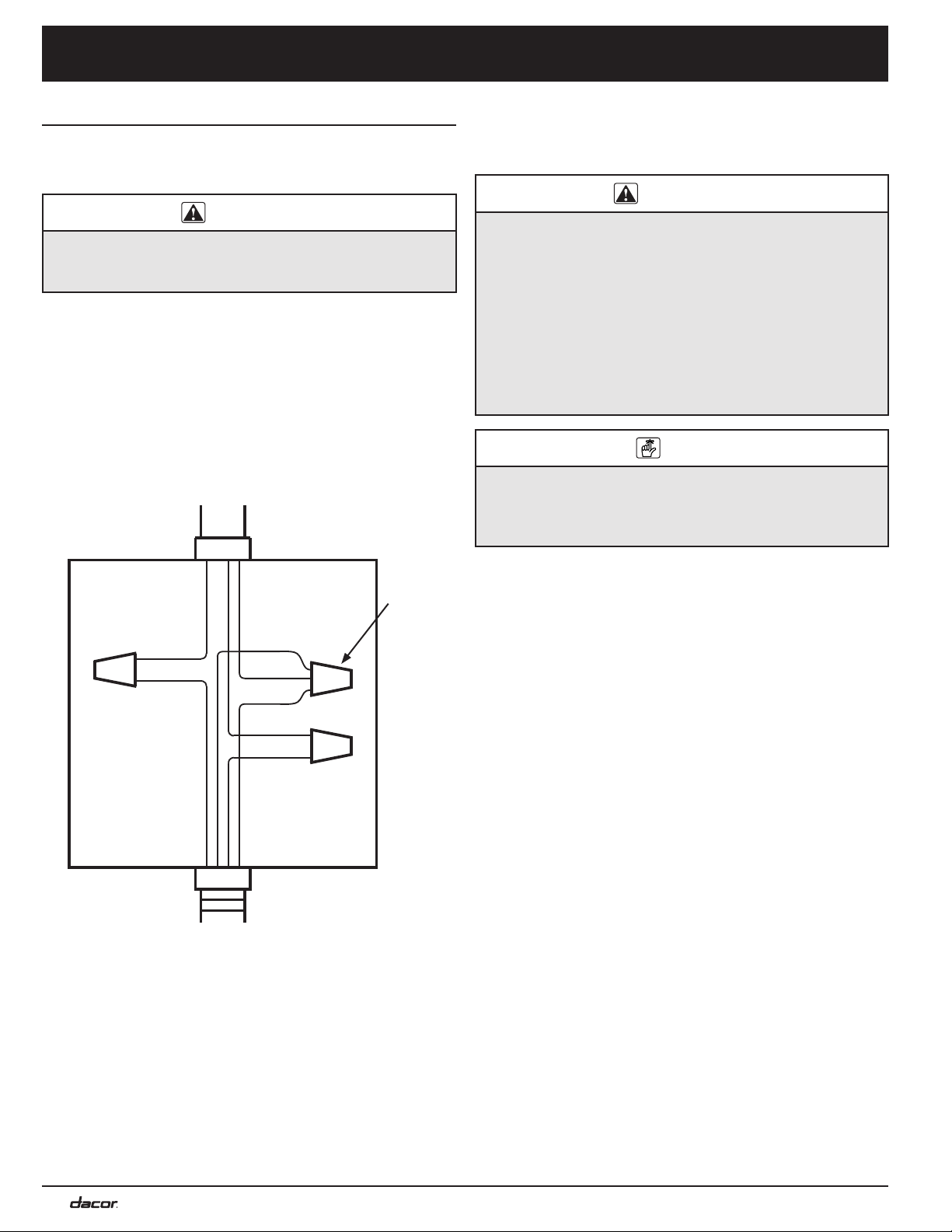

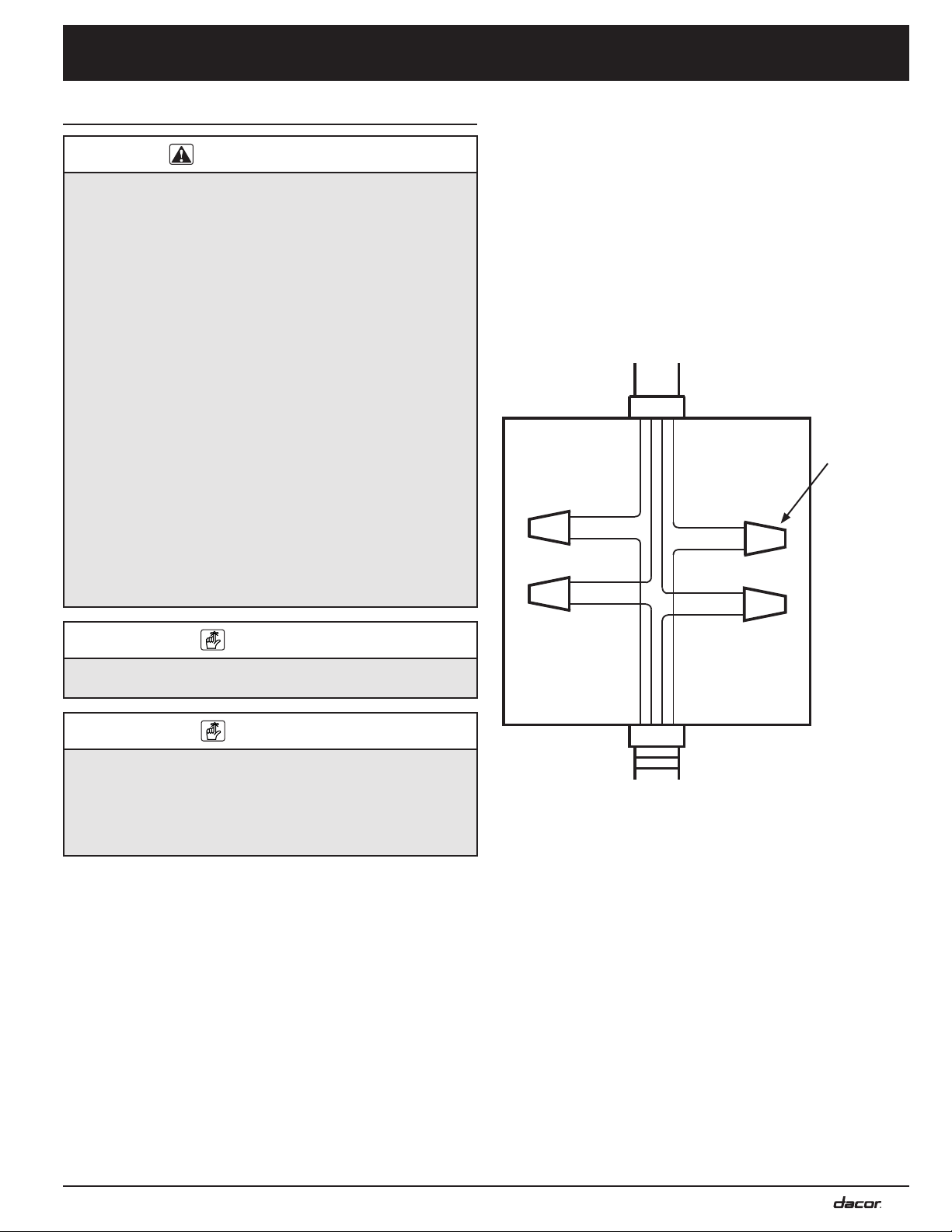

Connecting to a Four Wire Electrical
System
1. Separate the wires coming out of the appliance conduit.
2. Connect the white wire from the appliance conduit to
the white (neutral) supply wire in the junction box.
3. Connect the black wire from the appliance conduit to
the black (L1) supply wire in the junction box.
4. Connect the red wire from the appliance conduit to the
red (L2) supply wire in the junction box.
5. Connect the green wire from the appliance conduit to
the green (ground) wire in the junction box.
Incoming power
Junction box
RED
RED
GREEN
GREEN
WHITE
WHITE
BLACK
BLACK
Wire nut,
4 places
Provide slack in the conduit to allow the oven to slide forward for servicing.
NOTE
The electrical connection leads from the supplied appliance conduit may be a smaller gage than the standard
household wiring of the dedicated supply circuit. They
are suitable for connection to household wiring under the
jurisdiction of the National Electric Code, and/or the local
inspection authority.
1. Before proceeding, turn off power to the circuit to which
the oven will be connected at the circuit breaker or fuse
box.
2. Position the oven directly in front of the cabinet cutout.
3. Feed the appliance conduit into the junction box and
attach it using a UL approved strain relief.
4. Depending upon local codes, utilize one of three methods to connect the appliance to power:
◊ Connect to a four wire electrical system
◊ Connect to a three wire electrical system, where
local codes permit
◊ Connect to a three wire electrical system with
external ground, according to local codes.
See pages 9 to 11 for detailed directions.
Conduit to
oven
Four Wire Connection
continued...
9
Loading...
+ 25 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
