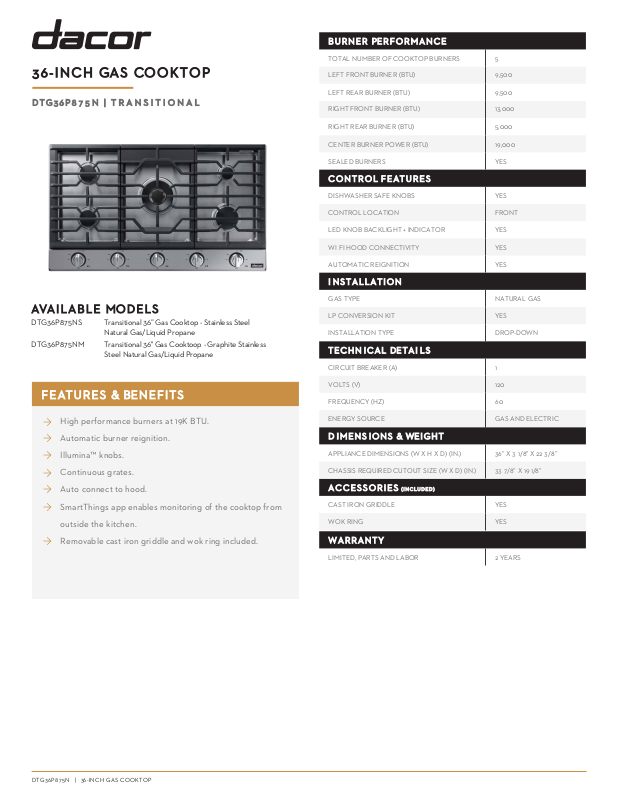

Dacor DTG36P875NS Specifications

DTG36P875N | 36-INCH GAS COOKTOP

36-INCH GAS CO OKTOP

DTG36P875N | TRANSITIONAL

AVAILABLE MODELS

DTG36P875NS

DTG36P875NM

FEATURES & BENEFITS

High performance burners at 19K BTU.

◊

Automatic burner reignition.

◊

Illumina™ knobs.

◊

Continuous grates.

◊

Auto connect to hood.

◊

SmartThings app enables monitoring of the cooktop from

◊

outside the kitchen.

Removable cast iron griddle and wok ring included.

◊

Transitional 36” Gas Cooktop - Stainless Steel
Natural Gas/Liquid Propane

Transitional 36" Gas Cooktoop - Graphite Stainless
Steel Natural Gas/Liquid Propane

BURNER PERFORMANCE

TOTAL NUMBER OF COOKTOP BURNERS 5

LEFT FRONT BURNER (BTU) 9,500

LEFT REAR BURNER (BTU) 9,500

RIGHT FRONT BURNER (BTU) 13,000

RIGHT REAR BURNER (BTU) 5,000

CENTER BURNER POWER (BTU) 19,0

SEALED BURNERS YES

C

ONTROL FEATURES

DISHWASHER SAFE KNOBS YES

CONTROL LOCATION

LED KNOB BACKLIGHT + INDICATOR YES

WI FI HOOD CONNECTIVITY YES

AUTOMATIC REIGNITION YES

00

FRONT

I NSTALLATION

GAS TYPE NATURAL GAS

LP CONVERSION KIT YES

INSTALLATION TYPE

DROP-DOWN

TECHN ICAL DETAI LS

CIRCUIT BREAKER (A)

VOLTS (V) 120

FREQUENCY (HZ) 60

ENERGY SOURCE GAS AND ELECTRIC

1

D IMENS IONS & WEIGHT

APPLIANCE DIMENSIONS (W X H X D) (IN.)

CHASSIS REQUIRED CUTOUT SIZE (W X D) (IN.)

36” X 3 1/8" X 22 3/8”

” X 19 1/8”

33 7/8

ACCESSORIES (INCLUDED)

CAST IRON GRIDDLE

WOK RING

YES

YES

WARRANTY

LIMITED, PARTS AND LABOR 2 YEARS

DTG36P875N | 36-INCH GAS COOKTOP

APPLIANCE D IMENS IONS

36-INCH GAS COOKTOP

PLIANCE D

AP

36”

A (WIDTH) 36

B (CHASSIS WIDTH) 33 11/16" (855MM)

C (CHASSIS DEPTH)

IMENS IONS

” (914.4MM)

18 7/8” (479MM)

I NSTALLATION CUTOUT D IMENS IONS

36”

E (MIN) 2 7/8” (73MM)

F (MIN) 19 1/8” (485.8MM)

G (MIN) 33 7/8” (860.4MM)

H (MIN) 12” (304

VERTICAL

COMBUSTIBLE

SURFACE

E

.8MM)

REAR WALL

G

F

H

MINIMUM DISTANCE TO

COMBUSTIBLE SIDE WALL

ABOVE COUNTERTOP (BOTH

SIDES)

I NSTALLATION CUTOUT D IMENS IONS

36”

13” MAX

(330MM)

18” MIN.

(457MM)

30” MIN.
(762MM)

12” MIN.

H

2 7/8” MIN.
(73.0MM)

12” MIN.

(304.8MM)

(304.8MM)

NOTE: All horizontal clearances must be maintained for a minimum of 18” (457mm) above the cooking surface.

I NSTALLATION CUTOUT D IMENS IONS

36” DOWNDRAFT | DTG36P875N

COMMING SOON
