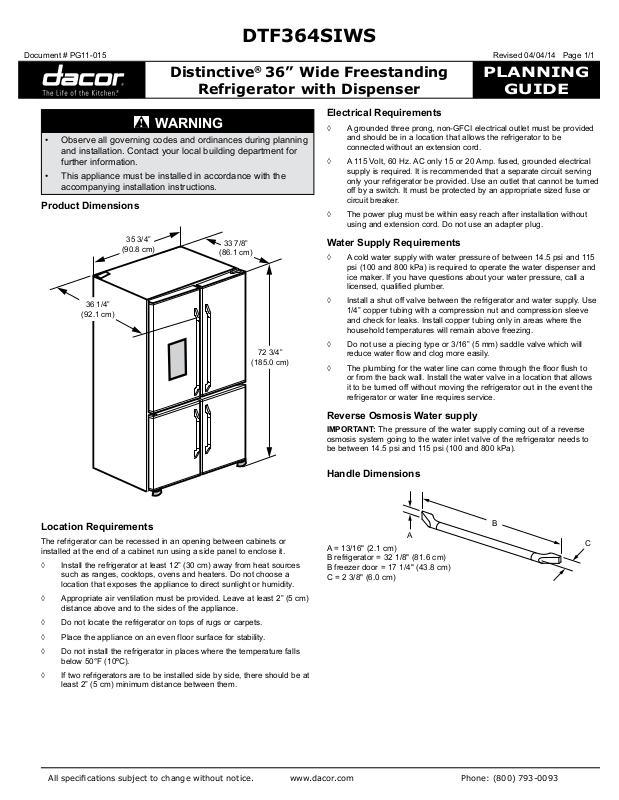

Dacor DTF364SIWS Specification Sheet

Document # PG11-015

DTF364SIWS

Revised 04/04/14 Page 1/1

Distinctive® 36” Wide Freestanding

Refrigerator with Dispenser

WARNING

• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.

• This appliance must be installed in accordance with the
accompanying installation instructions.

Product Dimensions

35 3/4”

(90.8 cm)

36 1/4”

(92.1 cm)

33 7/8”

(86.1 cm)

72 3/4”

(185.0 cm)

PLANNING

GUIDE

Electrical Requirements

◊ A grounded three prong, non-GFCI electrical outlet must be provided

and should be in a location that allows the refrigerator to be
connected without an extension cord.

◊ A 115 Volt, 60 Hz. AC only 15 or 20 Amp. fused, grounded electrical

supply is required. It is recommended that a separate circuit serving
only your refrigerator be provided. Use an outlet that cannot be turned
off by a switch. It must be protected by an appropriate sized fuse or
circuit breaker.

◊ The power plug must be within easy reach after installation without

using and extension cord. Do not use an adapter plug.

Water Supply Requirements

◊ A cold water supply with water pressure of between 14.5 psi and 115

psi (100 and 800 kPa) is required to operate the water dispenser and
ice maker. If you have questions about your water pressure, call a
licensed, qualified plumber.

◊ Install a shut off valve between the refrigerator and water supply. Use

1/4” copper tubing with a compression nut and compression sleeve
and check for leaks. Install copper tubing only in areas where the
household temperatures will remain above freezing.

◊ Do not use a piecing type or 3/16” (5 mm) saddle valve which will

reduce water flow and clog more easily.

◊ The plumbing for the water line can come through the floor flush to

or from the back wall. Install the water valve in a location that allows
it to be turned off without moving the refrigerator out in the event the
refrigerator or water line requires service.

Location Requirements

The refrigerator can be recessed in an opening between cabinets or
installed at the end of a cabinet run using a side panel to enclose it.

◊ Install the refrigerator at least 12” (30 cm) away from heat sources

such as ranges, cooktops, ovens and heaters. Do not choose a
location that exposes the appliance to direct sunlight or humidity.

◊ Appropriate air ventilation must be provided. Leave at least 2” (5 cm)

distance above and to the sides of the appliance.

◊ Do not locate the refrigerator on tops of rugs or carpets.

◊ Place the appliance on an even floor surface for stability.

◊ Do not install the refrigerator in places where the temperature falls

below 50°F (10ºC).

◊ If two refrigerators are to be installed side by side, there should be at

least 2” (5 cm) minimum distance between them.

Reverse Osmosis Water supply

IMPORTANT: The pressure of the water supply coming out of a reverse

osmosis system going to the water inlet valve of the refrigerator needs to
be between 14.5 psi and 115 psi (100 and 800 kPa).

Handle Dimensions

B

A

A = 13/16" (2.1 cm)
B refrigerator = 32 1/8" (81.6 cm)
B freezer door = 17 1/4" (43.8 cm)
C = 2 3/8" (6.0 cm)

C

All specications subject to change without notice.
