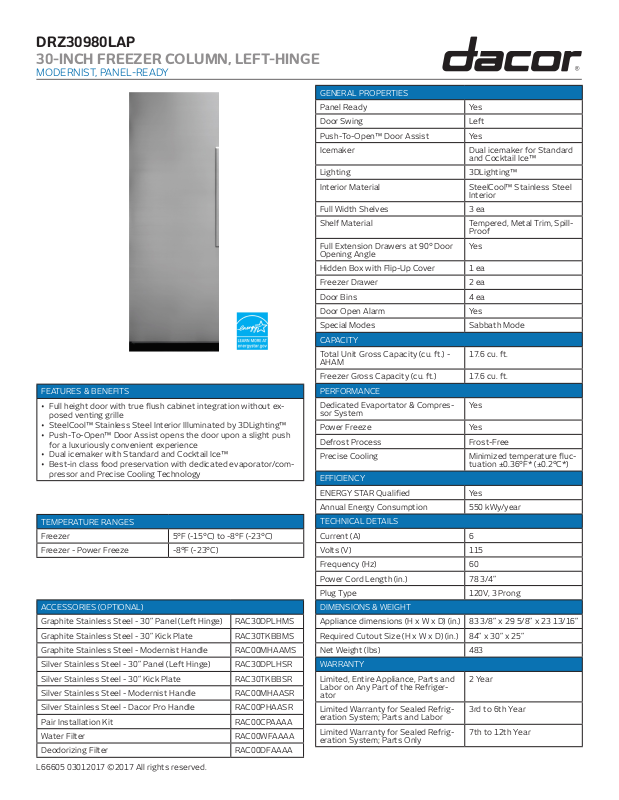

Dacor DRZ30980LAP Specification Sheet
DRZ30980LAP
30-INCH FREEZER COLUMN, LEFT-HINGE
MODERNIST, PANEL-READY
FEATURES & BENEFITS
• Full height door with true flush cabinet integration without exposed venting grille
• SteelCool™ Stainless Steel Interior Illuminated by 3DLighting™
• Push-To-Open™ Door Assist opens the door upon a slight push
for a luxuriously convenient experience
• Dual icemaker with Standard and Cocktail Ice™
• Best-in class food preservation with dedicated evaporator/compressor and Precise Cooling Technology
TEMPERATURE RANGES
Freezer 5°F (-15°C) to -8°F (-23°C)
Freezer - Power Freeze -8°F (-23°C)
ACCESSORIES (OPTIONAL)
Graphite Stainless Steel - 30” Panel (Left Hinge) RAC30DPLHMS
Graphite Stainless Steel - 30” Kick Plate RAC30TKBBMS
Graphite Stainless Steel - Modernist Handle RAC00MHAAMS
Silver Stainless Steel - 30” Panel (Left Hinge) RAC30DPLHSR
Silver Stainless Steel - 30” Kick Plate RAC30TKBBSR
Silver Stainless Steel - Modernist Handle RAC00MHAASR
Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
Pair Installation Kit RAC00CPAAAA
Water Filter RAC00WFAAAA
Deodorizing Filter RAC00DFAAAA
L66605 03012017 ©2017 All rights reserved.
GENERAL PROPERTIES
Panel Ready Yes
Door Swing Left
Push-To-Open™ Door Assist Yes
Icemaker Dual icemaker for Standard
Lighting 3DLighting™
Interior Material SteelCool™ Stainless Steel
Full Width Shelves 3 ea
Shelf Material Tempered, Metal Trim, Spill-
Full Extension Drawers at 90° Door
Opening Angle
Hidden Box with Flip-Up Cover 1 ea
Freezer Drawer 2 ea
Door Bins 4 ea
Door Open Alarm Yes
Special Modes Sabbath Mode
CAPACITY
Total Unit Gross Capacity (cu. ft.) AHAM
Freezer Gross Capacity (cu. ft.) 17.6 cu. ft.
PERFORMANCE
Dedicated Evaportator & Compressor System
Power Freeze Ye s
Defrost Process Frost-Free
Precise Cooling Minimized temperature fluc-
EFFICIENCY
ENERGY STAR Qualified Yes
Annual Energy Consumption 550 kWy/year
TECHNICAL DETAILS
Current (A) 6
Volts (V) 115
Frequency (Hz) 60
Power Cord Length (in.) 78 3/4”
Plug Type 120V, 3 Prong
DIMENSIONS & WEIGHT
Appliance dimensions (H x W x D) (in.) 83 3/8” x 29 5/8” x 23 13/16”
Required Cutout Size (H x W x D) (in.) 84” x 30” x 25”
Net Weight (lbs) 483
WARRANTY
Limited, Entire Appliance, Parts and
Labor on Any Part of the Refrigerator
Limited Warranty for Sealed Refrigeration System; Parts and Labor
Limited Warranty for Sealed Refrigeration System; Parts Only
and Cocktail Ice™
Interior
Proof
Yes
17.6 cu. ft.
Yes
tuation ±0.36°F* (±0.2°C*)
2 Year
3rd to 6th Year
7th to 12th Year
DRZ30980LAP
30-INCH REFRIGERATOR COLUMN, LEFT-HINGE
MODERNIST, PANEL-READY
APPLIANCE DIMENSIONS
30”
A (Width) 29 5/8” (752mm)
B (Depth) 23 13/16” (605mm)
C (Height) 83 3/8”” (2118mm)
INSTALLATION CUTOUT DIMENSIONS
30”
A (Width) 30” (762mm)
B (Depth) 25” (635mm)
C (Height) 84” (2134mm)
A’ 6” (152mm)
B’ 20” (508mm)
C’ 80” (2032mm)
CUSTOM PANEL DIMENSIONS
A-1
(Width)
A-2
(Height)
A-3
(Depth)
Max
Weight
30”
29 3/4” (756mm)
79 7/8” (2029mm)
3/4” (19mm)
88.0 lbs. (40kg)
