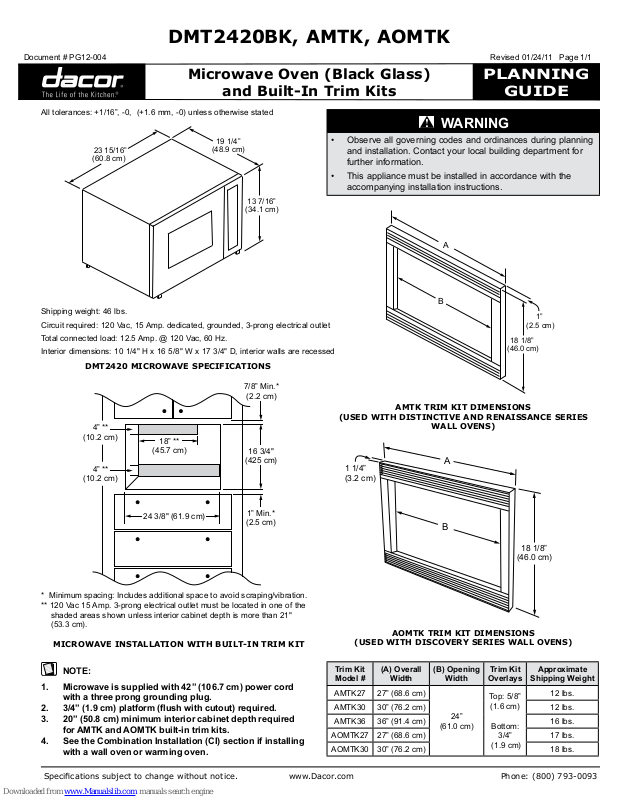

DMT2420BK, AMTK, AOMTK
Document # PG12-004 Revised 01/24/11 Page 1/1
Microwave Oven (Black Glass)
and Built-In Trim Kits
All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
19 1/4”
23 15/16”
(60.8 cm)
Shipping weight: 46 lbs.
Circuit required: 120 Vac, 15 Amp. dedicated, grounded, 3-prong electrical outlet
Total connected load: 12.5 Amp. @ 120 Vac, 60 Hz.
Interior dimensions: 10 1/4" H x 16 5/8" W x 17 3/4" D, interior walls are recessed

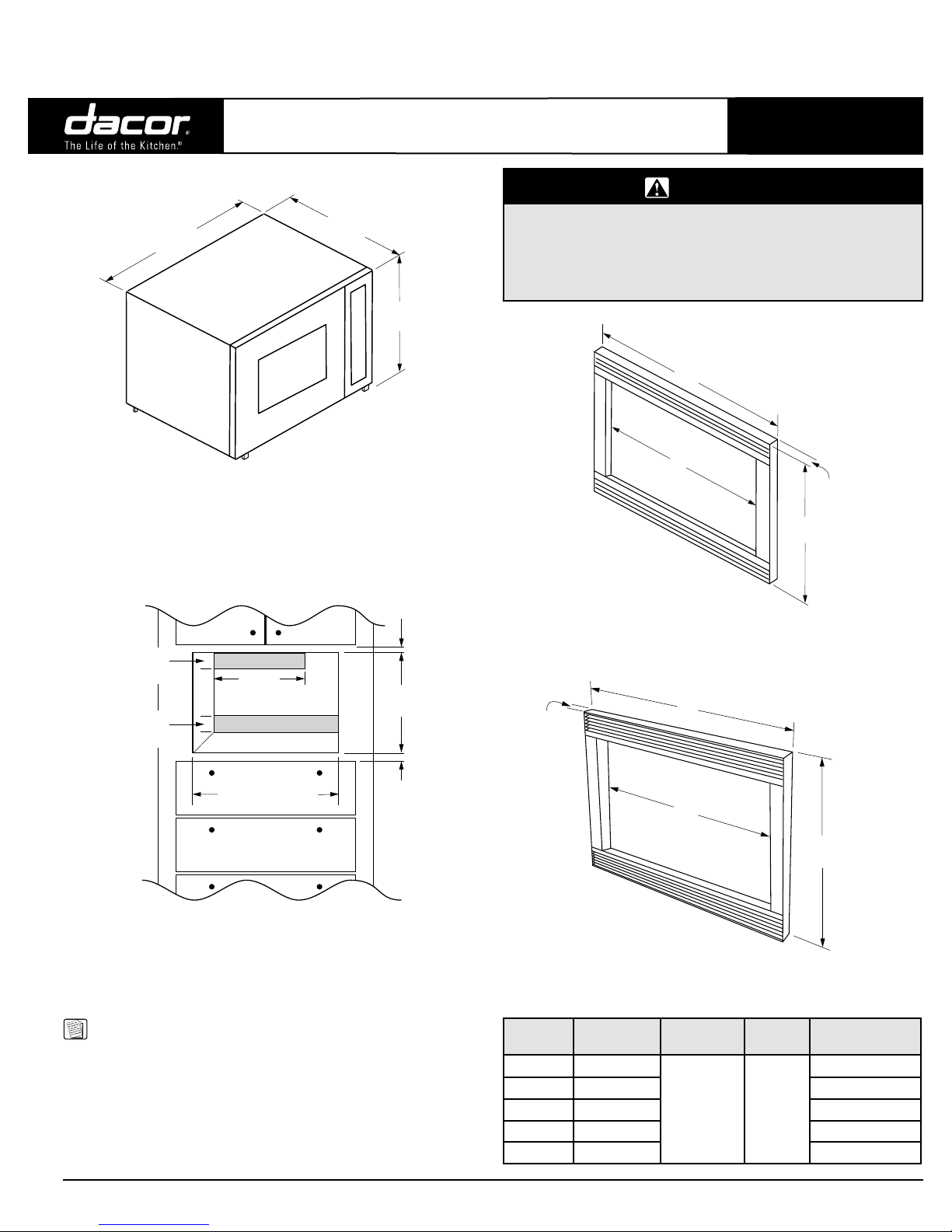

DMT2420 MICROWAVE SPECIFICATIONS
(48.9 cm)
13 7/16”
(34.1 cm)
PLANNING
GUIDE
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
A
B
1”
(2.5 cm)
18 1/8”
(46.0 cm)
7/8” Min.*
(2.2 cm)
4” **
(10.2 cm)
4” **
(10.2 cm)
* Minimum spacing: Includes additional space to avoid scraping/vibration.
** 120 Vac 15 Amp. 3-prong electrical outlet must be located in one of the
shaded areas shown unless interior cabinet depth is more than 21"
(53.3 cm).
MICROWAVE INSTALLATION WITH BUILT-IN TRIM KIT
18” **
(45.7 cm)
24 3/8" (61.9 cm)
16 3/4"
(425 cm)
1” Min.*
(2.5 cm)
NOTE:
1. Microwave is supplied with 42” (106.7 cm) power cord
with a three prong grounding plug.
2. 3/4” (1.9 cm) platform (flush with cutout) required.
3. 20” (50.8 cm) minimum interior cabinet depth required
for AMTK and AOMTK built-in trim kits.
4. See the Combination Installation (CI) section if installing
with a wall oven or warming oven.
(USED WITH DISTINCTIVE AND RENAISSANCE SERIES
1 1/4”
(3.2 cm)
AMTK TRIM KIT DIMENSIONS
WALL OVENS)
A
B
18 1/8”
(46.0 cm)
(USED WITH DISCOVERY SERIES WALL OVENS)
Trim Kit
Model #
AMTK27 27” (68.6 cm)
AMTK30 30” (76.2 cm) 12 lbs.
AMTK36 36” (91.4 cm) 16 lbs.
AOMTK27 27” (68.6 cm) 17 lbs.
AOMTK30 30” (76.2 cm) 18 lbs.
AOMTK TRIM KIT DIMENSIONS
(A) Overall
Width
(B) Opening
Width
24”
(61.0 cm)
Trim Kit
Overlays
Top: 5/8”
(1.6 cm)
Bottom:
3/4”
(1.9 cm)
Approximate
Shipping Weight
12 lbs.
Specications subject to change without notice. Phone: (800) 793-0093www.Dacor.com
12.2
