OPERATING INSTRUCTIONS

2000/04

DÜRR PERIOMAT PLUS 1307 / 1308

CONTENTSCONTENTS

CONTENTS

CONTENTSCONTENTS

Important information

1. Advice..................................................... 28

1.1 Safety advice ...................................28

1.2 Electrical safety checks .................. 28

1.3 Safety advice and symbols .............28

2. Product information .............................. 29

2.1 Correct usage .................................. 29

2.2 Incorrect usage ............................... 29

3. Model overview...................................... 29

4. Delivery contents ..................................31

4.1 Accessories ..................................... 31

4.2 Special accessories ........................31

5. Technical Data ....................................... 31

5.1 Recommended film sizes and

adapters .......................................... 32

6. Operating functions .............................. 33

6.1 Indicators ......................................... 33

Mounting

7. Installation ............................................. 34

7.1 Installation - room ............................34

7.2 Installation ....................................... 34

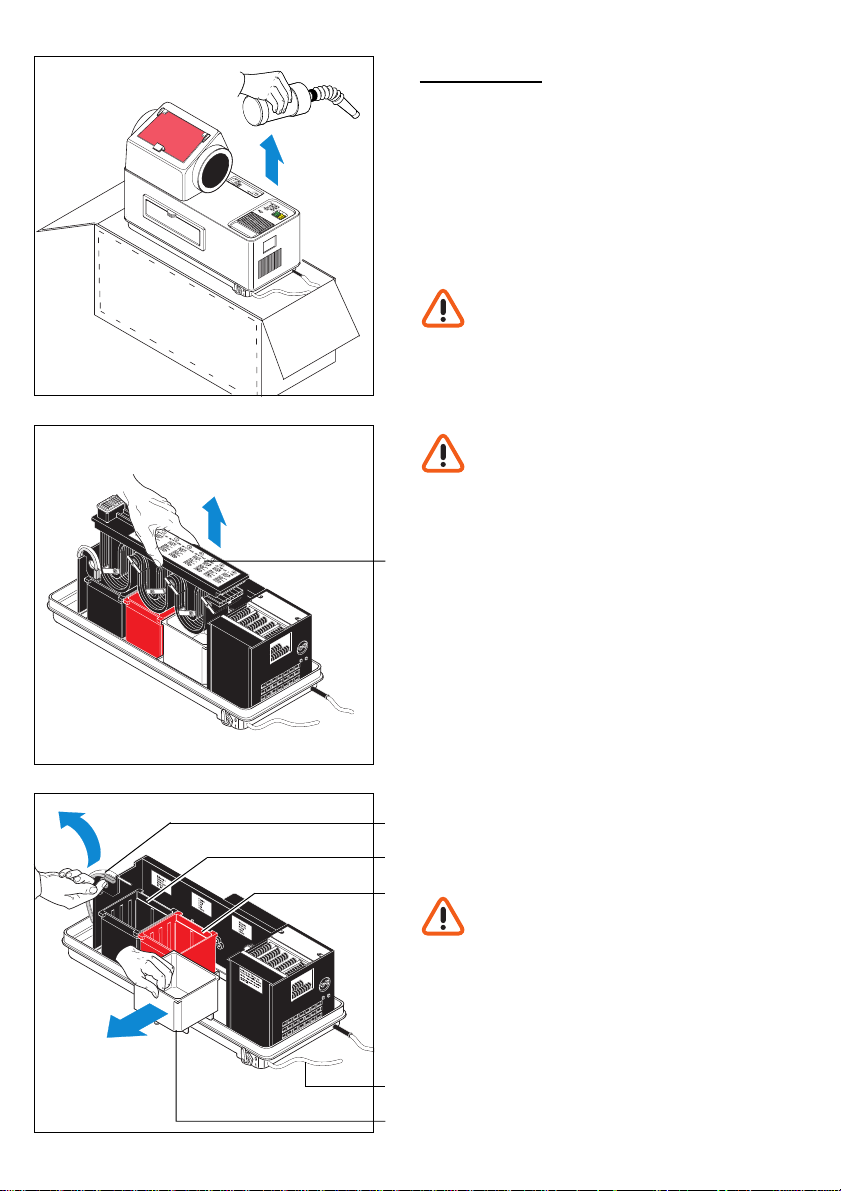

8. Commissioning ..................................... 35

9. Circuit diagram ...................................... 37

9.1 Description ...................................... 38

9.2 Cable coloring .................................38

Use

10.10.

Filling ChemicalsFilling Chemicals

10.

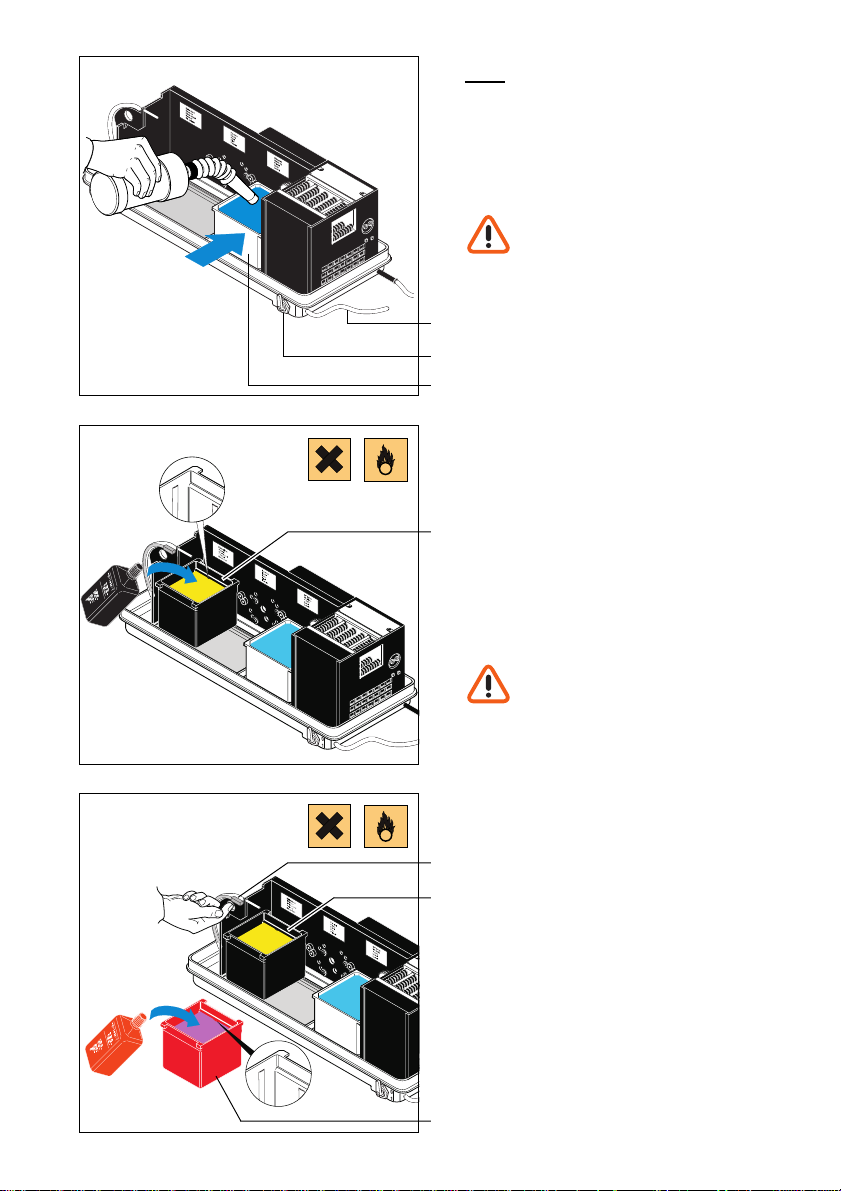

Filling Chemicals ..................................... 39

10.10.

Filling ChemicalsFilling Chemicals

11. Operation ............................................... 40

11.1 Film insertion WITHOUT adapter .... 40

11.2 Film insertion WITH adapter ............ 42

11.3 Miscellaneous ..................................45

12. Maintenance........................................... 46

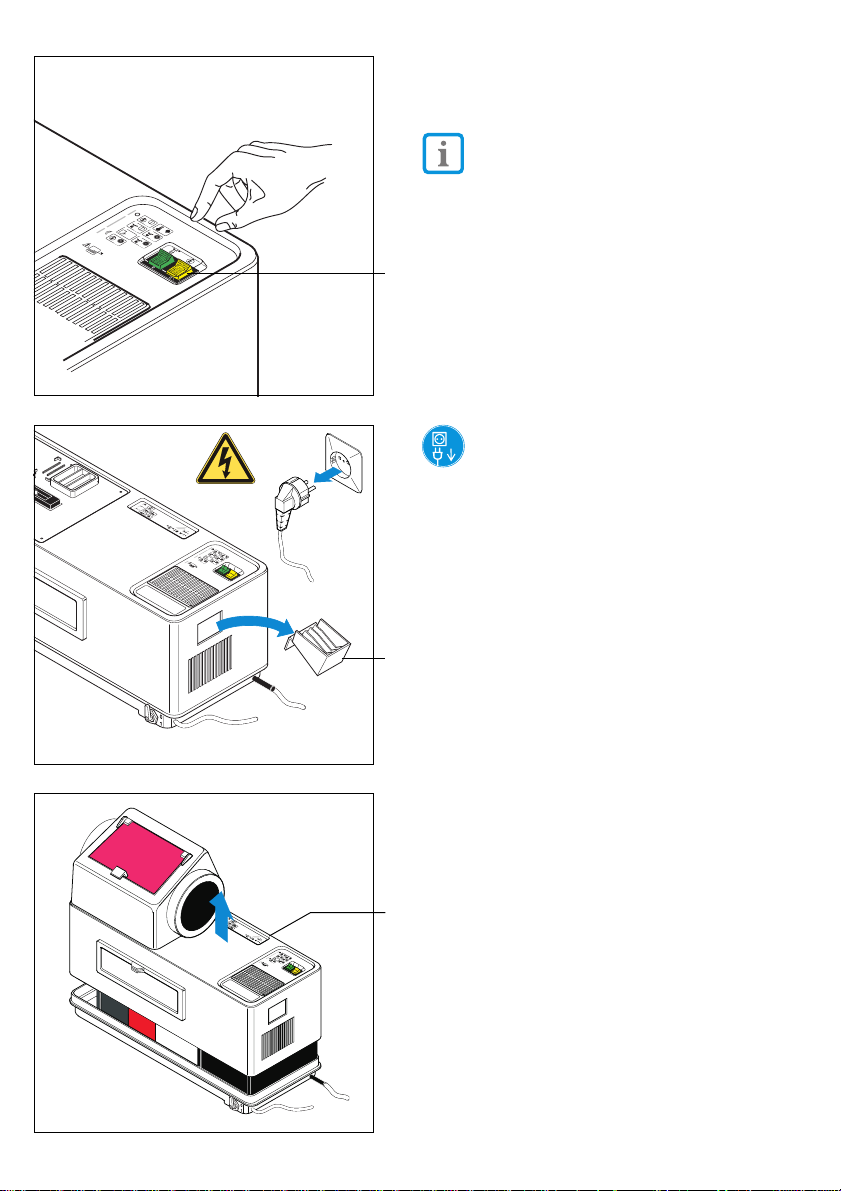

12.1 Changing the water ......................... 46

12.2 Changing chemicals ....................... 48

12.3 Chemical cleaning ..........................49

Spare parts list

Base ............................................................... 50

Cover ............................................................. 52

Film transport ................................................. 54

Heater ............................................................ 55

27

IMPORTANT INFORMATION

1. ADVICE

1.1 Safety advice

Work on electrical equipment may only be
carried out by qualified electricians (per
VBG 4) or by our service personnel!

Only use original spare parts for repairs,
otherwise the guarantee will be invalidated.

When combining pieces of equipment, or
during repairs to electrical parts, the
relevant safety and testing regulations
must be observed:

• IEC 364-.-.., prEN 50110-1, IEC 64 (Sec)
629,VDE 0702 Part 1

• Accident protection regulations UVV VBG 1,
4, 121.

• Regulations concerning X-rays DIN 6868,
T5 / T51

1.2 Electrical safety checks

As per VDE 0701 after installation and
commissioning, service, maintenance and
repair of an electrical device an electrical
safety check is mandatory.

28

1.3 Safety advice and symbols

The operating instructions employ certain
terms and symbols for especially important
applications:

Instructions relating to efficient use of
the appliance and other instructions

Instructions and regulations relating
to the avoidance of injury and / or
serious damage

Unplug the appliance.

2. PRODUCT INFORMATION

2.1 Correct usage

The Periomat Plus must only be used to
develop intra-oral X-ray films in dental
surgeries and dental clinics.
The size of film to be developed must lie in the
range 2 x 3 to 5.7 x 7.6 cm.
Film of the size 3 x 4 cm can be placed
directly into the film feed, for films of other
sizes the appropriate adapter must be used.
Perfect archive-ready results can best be
achieved by using the specially developed
DÜRR Periomat Intra Chemicals at 25°C.

In the FRG, as well as in a number of
other countries, used X-ray chemicals
are classified as Special Waste and
must be separated and disposed of
appropriately.

2.2 Incorrect usage

The Periomat Plus cannot be used for OPG or
panorama views.

3. MODEL OVERVIEW

Periomat Plus with Daylight Attachment,
Heater and Front Flap

1307-01 (230V, 50Hz)

Periomat Plus without Daylight
Attachment, Heater and Front Flap

1308-01 (230V, 50Hz)

29

1

11

12

3

2

4

5

8

7

6

10

16

13

15

14

17

30

9

1

19

2

18

3

4. DELIVERY CONTENTS

5. TECHNICAL DATA

Fig. 1

(1) Daylight attachment

Model 1307-01, -02, -03 ..... 1307-700-00

(2) Lid ........................................ 1307-981-00

(3) Waste receptacle ................ 1303-000-06

(4) Film feed frame ................... 1303-000-05

(5) Film transport ...................... 1307-300-00

(6) Water bath ........................... 1307-007-00

(7) Fixer bath ............................ 1303-000-09

(8) Developer bath ................... 1303-000-08

(9) Base

Operating instructions D/GB ..9000-600-11/01

4.1 Accessories

Fig. 2

(10) 1 Set of chemicals

Periomat Intra ......................1307-080-00

(11) Adapters for films

3 Pcs. 2x3.5 cm .................. 1303-000-01

2 Pcs. 4x5 and 2.7x5.4 cm .1303-000-02

3 Pcs. 2.4x4 cm .................. 1303-000-18

1 Pcs. 5.7x7.6 cm ............... 1303-000-22

(12) 1 Film collector ....................1303-001-00

(13) 1 Draining rack .................... 1303-000-13

(14) Sponges

2 Pcs. grey .......................... 1330-000-06

1 Pcs. red ............................ 1330-000-05

(15) 1 Lightproof cap

for film entry ....................... 1303-000-14

(16) 1 Water bottle ...................... 1307-001-00

(17) 1 Drain hose ........................ 1307-000-07

4.2 Special accessories

Fig. 3

(18) Cleaning Set

“Perio-Clean” ....................... 1304-070-00

(19) Bath, dual-walled ................ 1303-000-16

Model 1308- 1307-

Voltage (V) 230 230

Frequency(Hz) 50 50
Current (A) 1,8 1,8
Output (W) 400 400
Duty

cycle (%ED) 100
Film run

through
time (min)

50 Hz 5

Developing
tem­perature (°C) 25

Heating up
time (min/°C) ~7

Heating (V) 24
Fuse (A) T 2,5
Container (l)

Developer 1
Fixer 1
Water 1,25

Weight (kg) 10,2 11,2
Size (HxBxT)

01 01

22x63x25

40x63x25

31

5.1 Recommended film sizes and
adapters

1303-000-22

5,7 x 7,6 cm

1303-000-02

2,7 x 5,4 cm

4 x 5 cm

1303-000-01

WITHOUT Adapter:

• 3 x 4 cm (max. 8 films)

WITH Adapter:

• 5.7 x 7.6 cm (max. 1 film)

• 2.7 x 5.4 cm (max. 2 films)

• 4 x 5 cm (max. 1 film)

• 2 x 3.5 cm (max. 6 films)

• 2.4 x 4 cm (max. 6 films)

The film applications together with the
relevant order numbers can be seen in Fig. 4.

32

2 x 3,5 cm

1303-000-18

2,4 x 4 cm
