CZE.com FM Transmitter User's Guide
_________________________________________________________________________________________________________________

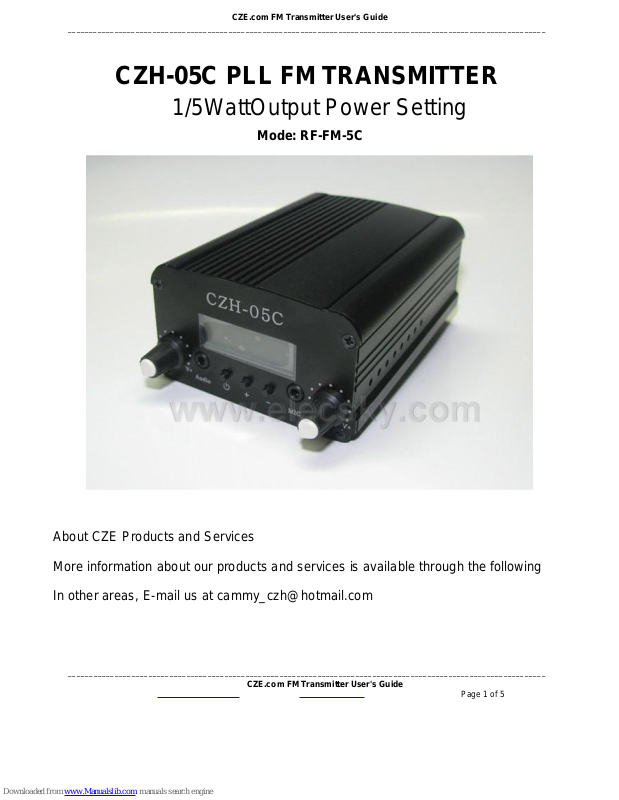

CZH-05C PLL FM TRANSMITTER
1/5WattOutput Power Setting
Mode: RF-FM-5C
About CZE Products and Services
More information about our products and services is available through the following
In other areas, E-mail us at [email protected]
_________________________________________________________________________________________________________________
CZE.com FM Transmitter User's Guide
Page 1 of 5
Page 2
CZE.com FM Transmitter User's Guide
_________________________________________________________________________________________________________________

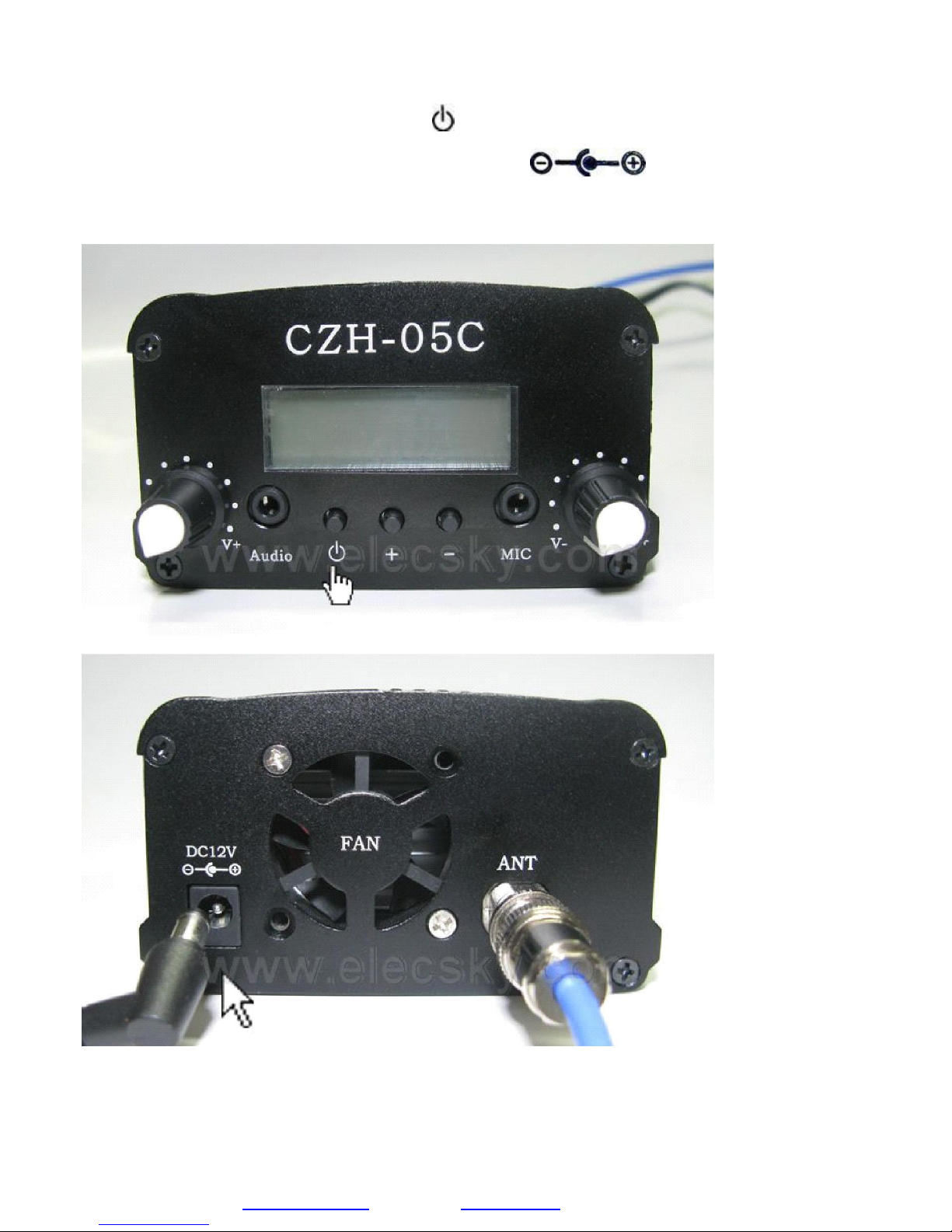

Step 1:
First press and hold the power switch " " ,
and then insert the power plug to the power jack " " .
_________________________________________________________________________________________________________________
CZE.com FM Transmitter User's Guide
Page 2 of 5
Page 3
CZE.com FM Transmitter User's Guide
_________________________________________________________________________________________________________________

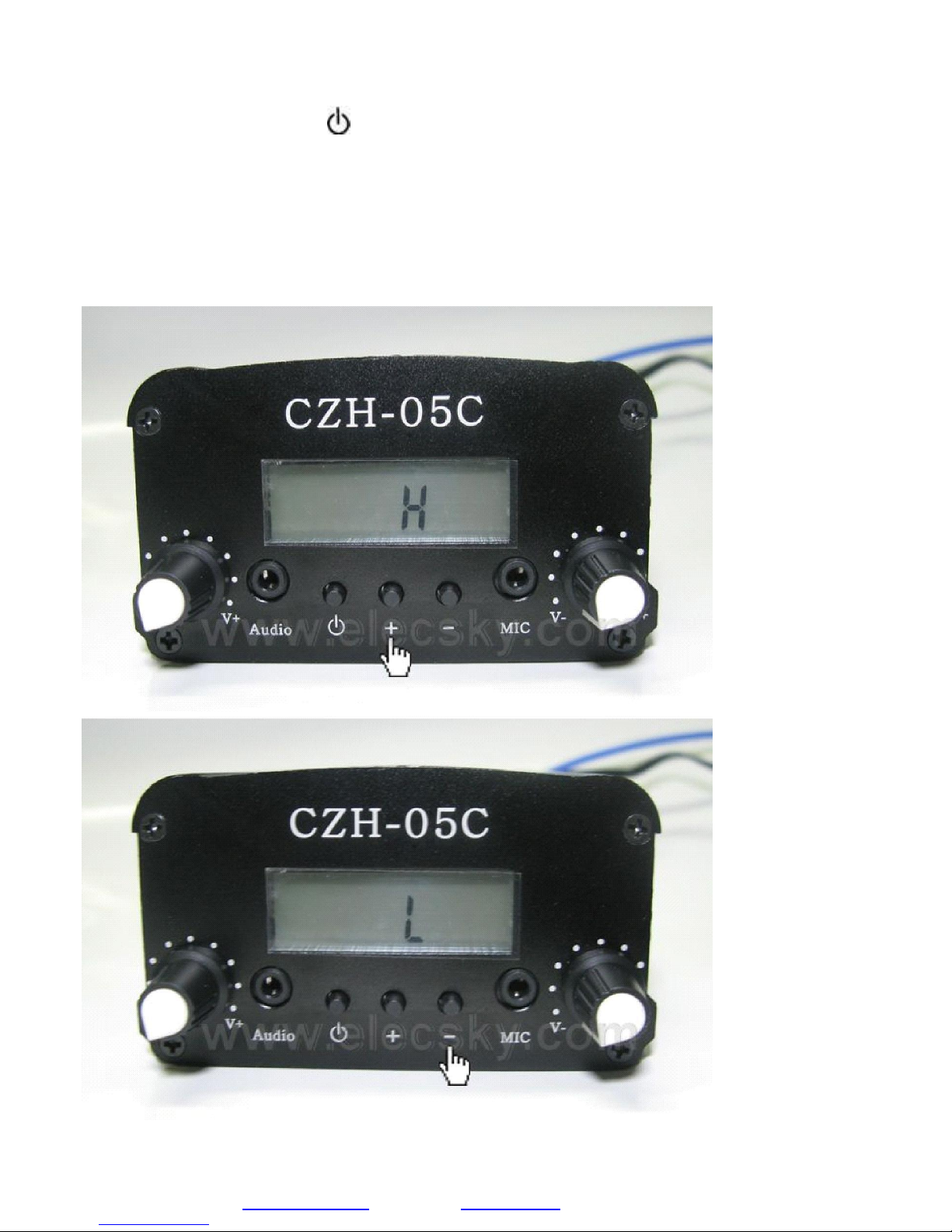

Step 2:
Release the power switch " " after 3 seconds , LCD screen shows the "H" or "L".
Through the "+/_" switch "H/L".
Press "+", LCD screen display "H", Press " -" LCD screen display "L".
"H" is the output power 5-6Watt,"L" is the output power 1-1.5Watt.
_________________________________________________________________________________________________________________
CZE.com FM Transmitter User's Guide
Page 3 of 5
Page 4
CZE.com FM Transmitter User's Guide
_________________________________________________________________________________________________________________

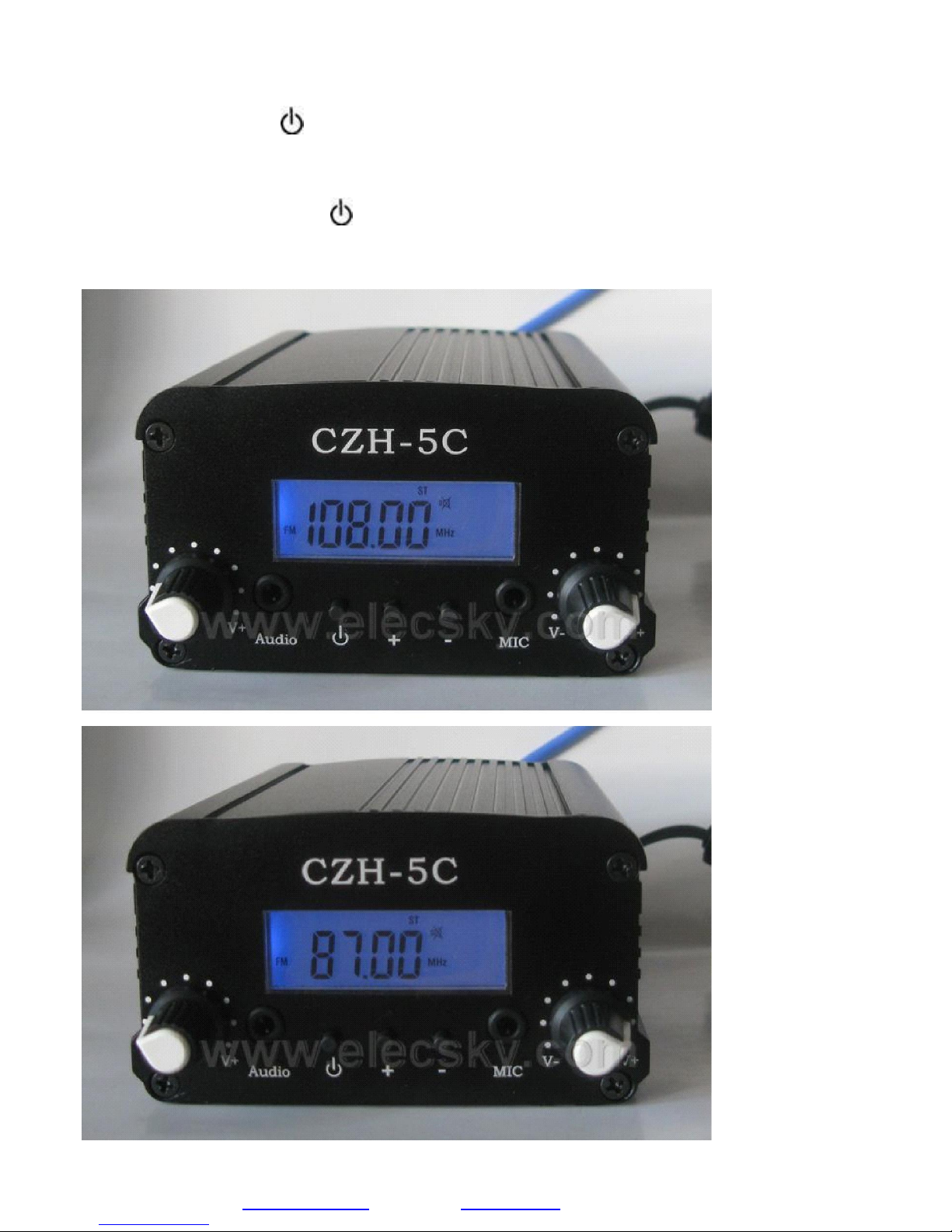

Step 3:
Press the power switch " " confirm settings, The LCD screen display "108.00MHz". This is
the highest frequency of use, Through the "+/_" can be changed it. Don't arbitrarily adjust.
Again press the power switch " " confirm settings, The LCD screen display "87.00MHz". This is
the lowest frequency of use, Through the "+/_" can be changed it. Don't arbitrarily adjust.
_________________________________________________________________________________________________________________
CZE.com FM Transmitter User's Guide
Page 4 of 5
Page 5
CZE.com FM Transmitter User's Guide
_________________________________________________________________________________________________________________

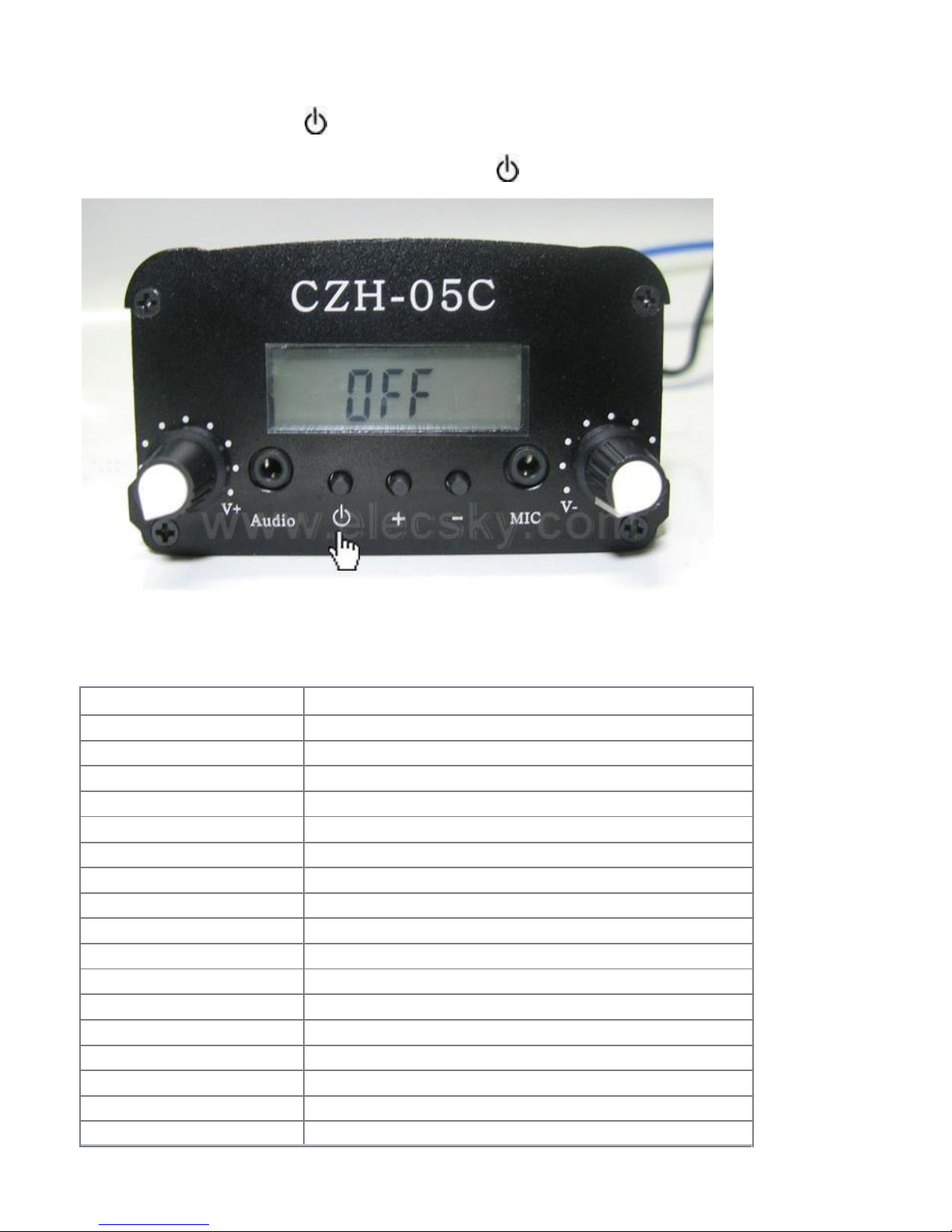

Step 4:
Press the power switch " " confirm settings, after 3 seconds , The LCD screen
display "OFF". Again press the power switch " " , The transmitter Start working.
________________________________________________________________________________________________
Technical target:
Power Output:
1 -1.5Watt/5-6Watt
FM Transmitter Frequencies:
87-108Mhz
Tuning Step:
100Khz/0.1Mhz
Power Supply:
12V DC (The current load of power supply should over 2 A)
Stability of Frequency:
±0ppm（-10℃~+50℃）
Frequency Response:
100 - 15000Hz
Signal to Noise Ratio:
>70dB
Distortion:
< 0 .5%
Operation Time:
True 24/7
Antenna Design:
Rubber Antenna(1Watt) / GP Antenna(1Watt/5Watt)
Antenna Connector:
BNC type
Output Impedance:
50 ohm
Audio Input Connector:
3 .5mm headphone connector
Mic Input Connector:
3 .5mm headphone connector (Use condenser microphone)
Tuning Design:
Stable PLL Technology
Size of Transmitter Unit:
L:129mm, W:96mm, H:55mm
Weight of Transmitter Unit:
450g
Transmission Signal:
FM Stereo
_________________________________________________________________________________________________________________
