Cyrus AVRS7.2 with DAB User Instruction Supplement
A
A
A
Remote control upgrade
Your Cyrus product includes a new, upgraded remote control, the
AVRS7.2. This is a new design, replacing the remote control illustrated in
the handbook. The AVRS7.2 has additional features and now controls a
wider range of products from the Cyrus range, sending commands to DAB
radios as well as FM tuners, and with additional commands in place for
new audio-visual products. Please refer to this instruction sheet for remote
control operation in place of those in the user instructions for your product.
AVRS7.2 System select keys
System select keys
Commands may be sent to different system components by selecting the
appropriate system select key on the handset. These keys are marked
CD, TU/DAB, AV, AV-S and SETUP. The CD, TU/DAB, AV, AV-S keys
will flash when any command is transmitted to show which type of product
is under control. Commands to a Surround Decoder from the SETUP
system will flash the AV-S indicator.
TU/DAB key
The TU/DAB key of the AVRS7.2 has two modes of operation and may be
switched to control a Cyrus DAB radio or a Cyrus FM tuner. To change
between DAB or FM operation, hold down the TU/DAB key for 3 seconds
until the light changes colour. The key will light yellow when set for DAB
commands or red when set for FM tuner commands.
NOTE:- The FM band of a DAB radio is not selected in this way, the
BAND key is used for this purpose.
Stereo or Surround Sound systems
The AVRS7.2 will send commands to most products within the Cyrus
range and is compatible for use within the 3 types of Cyrus system -
1. Stereo systems with a stereo amplifier
2. Multi-channel Surround Sound systems with surround decoder
3. Systems with both a stereo amplifier and surround decoder
Refer to section 1 on this page for operation of stereo systems, or section
2 or 3 overleaf as appropriate for the configuration of your system.
1. Stereo system with a stereo amplifier
A stereo system may include a Stereo Amplifier, CD player, DAB radio,
FM Tuner or DVD player connected in stereo from the analogue outputs.
The following commands may be sent -
• Press CD to send commands to CD players. This key will also switch
on a CD player and select the CD input of a stereo amplifier.
• Press TU/DAB to send commands to DAB or FM Tuners. This key will
also switch on the Tuner and select the TU input of a stereo amplifier.
• Press AV to send commands to a DVD player. This key will also
switch on a DVD player and select the AV input of a stereo amplifier.
The Stereo Amplifier will respond to the volume, balance, mute and input
keys when any of the above systems are selected.
NOTE - The AV-S and SETUP keys are not used to control this system
which only has stereo components.
b
d
h
i
1$
1%
1^
1*
1(
2)
2@
2$
2%
CD TU/DAB AV
MPLIFIER DVD
IN
ZOOM
NGLE
OK
ADJ- ADJ+
DISP
12
456
789
0
SETUP
V
SETUP
LIPSYNC NOISEMODE
MENU
TREBLEBASS

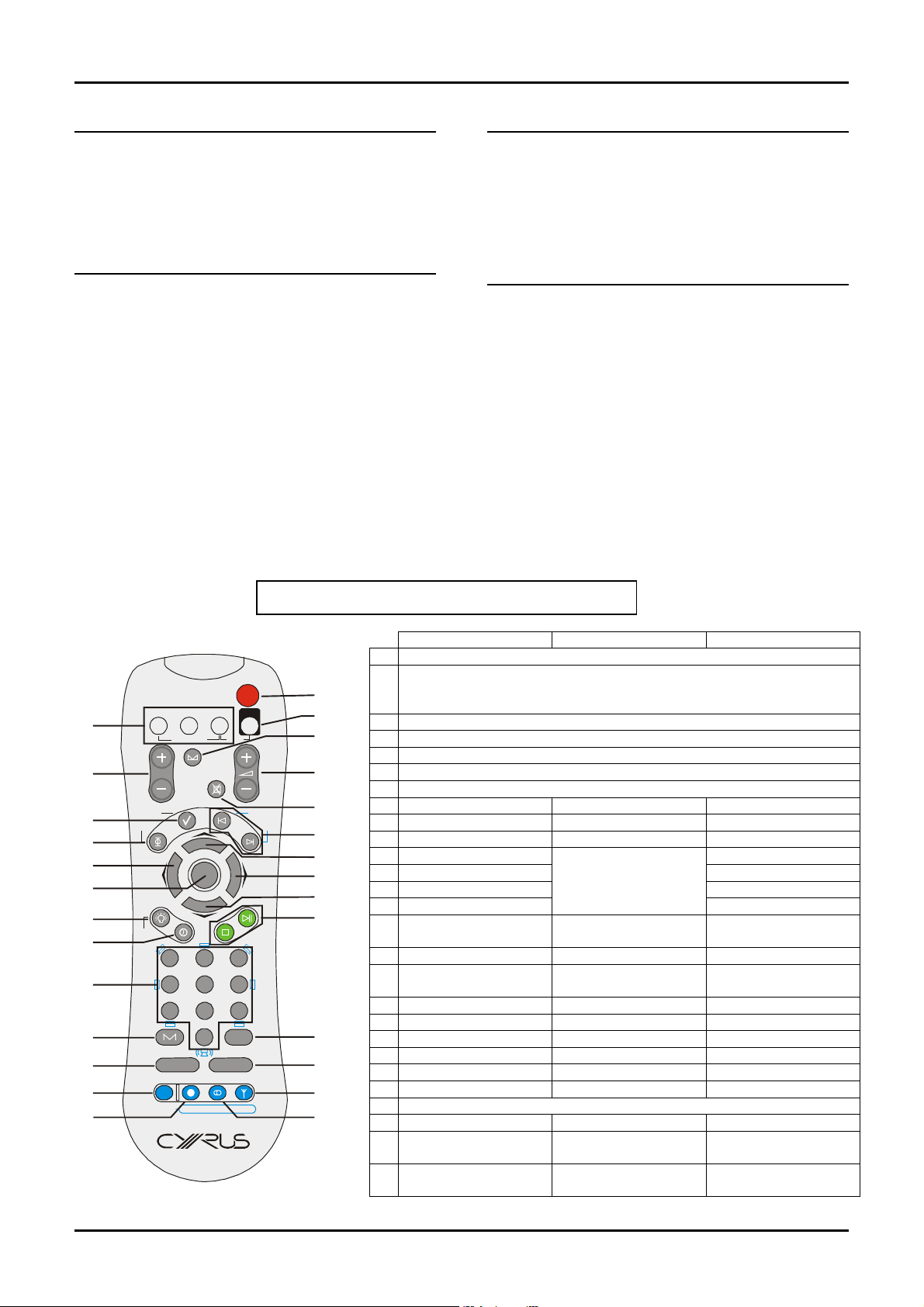

TABLE FOR CD, DAB & TUNER COMMANDS
CD MODE DAB MODE TU MODE (FM)
1 Power off all systems
CD, DAB, TU or AV COMMAND MODE SELECT
OFF
AV-S
a
c
e
f
NIGHT
DSP
g
1)
1!
1@
1#
1&
3
T- C
2!
2#
2^
2&
2
3 AV SURROUND COMMAND MODE SELECT – see table overleaf
4 Stereo amp/preamp input select
5 Stereo amp/preamp balance select
6 Stereo amp/preamp volume control
7 Stereo amp/preamp mute
8 - Select station on display -
9 Audio phase invert - 10 Next/previous track Display next/previous station Next/previous preset
11 Next track Next preset
12 Search forward Scan up
13 Previous track Previous preset
14 Search reverse
15 -
16 Display off Display mode Display off
17 Play/pause/stop*
18 Display mode Timer record mode 19 Numeric keypad Numeric keypad Preset select
20 Memory store Preset information Preset store
21--22--23 - Menu select 24 AV SETUP MODE SELECT – see table overleaf
25 - Record to memory card -
26 -
27 -
Amplifier, CD, DAB, FM tuner, DVD power on
Amplifier input select
Cursor keys for navigating
the on-screen menu options
OK key to select menu
options
Play/pause for replay from
memory card
DAB/FM/Memory card band
select
Mono/stereo when playing
FM
*early Cyrus CD players will respond to Play/Stop only
Scan down
-
-
-
Stereo/mono
Cyrus AVRS7.2 with DAB User Instruction Supplement
A
A
A
2. Multi-channel surround sound system
A Surround Sound system may include a Surround Decoder, CD player,
DAB Radio, FM Tuner or DVD player. The following commands may be
sent -
• Press CD to send commands to CD players. This key will also switch
on a CD player.
• Press TU/DAB to send commands to DAB radios or FM Tuners. This
key will also switch on the DAB radio/FM Tuner.
• Press AV-S to send commands to a DVD player. This key will also
switch on a DVD player and Surround Decoder.
• Press SETUP to activate the blue keys and those with additional blue
legends to send setup commands to a Surround Decoder, such as
speaker balance settings, mode settings and input naming.
The Surround Decoder will respond to the volume, mute and input keys
when the AV-S or SETUP systems are selected.
NOTE - A Surround Decoder will not respond to commands sent from the
CD, TU/DAB or AV command systems.
3. System including both a Cyrus stereo amplifier
and a surround sound decoder
This system will include both a Stereo Amplifier and a Surround Decoder
with a CD player, DAB Radio, FM Tuner or DVD player. In such a system
it is expected that -
• Stereo sources will be connected directly to the inputs of the Stereo
Amplifier.
• The DVD player will connect directly to the Surround Decoder and the
front channel outputs of the Surround Decoder will connect to the AV
input of the Stereo Amplifier.
• An MC-Bus connection loop will also be set up between at least the
Stereo Amplifier and the Surround Decoder.
Sending commands
• Press CD to send commands to CD players. This key will also switch
on a CD player and select the CD input of the stereo amplifier.
Volume, balance, input and mute commands will be sent to the stereo
amplifier.
• Press TU/DAB to send commands to DAB Radios or FM Tuners. This
key will also switch on the Tuner and select the TU input of a stereo
amplifier. Volume, balance, input and mute commands will be sent to
the stereo amplifier.
• Press AV-S to send commands to a DVD player. This key will also
switch on a DVD player and select the Surround decoder via the AV
input of the stereo amplifier. Volume, balance, input and mute
commands will be sent to the Surround Decoder.
• Press SETUP to activate the blue keys and those with additional blue
legends to send setup commands to a Surround Decoder, such as
speaker balance settings, mode settings and input naming.
NOTE - The AV key is not used to control this system.
Advanced functionality
A further option with this system is when using a DVD player with high-
quality analogue output (for example, a Cyrus player equipped with ‘Q’
module). Two connections should then be made from the DVD player to
the system, digital output to Surround Decoder and analogue output to
stereo amplifier.
In this system stereo audio playback from the DVD player is possible by
selecting the ‘AV’ command system, then using the AVRS7.2 input select
keys to select the appropriate input of the amplifier. The AVRS7.2 volume
controls will then operate the amplifier with the DVD player functions also
being available. By selecting the ‘AV-S’ command system the Surround
Decoder and DVD player may be controlled
.
TABLE FOR DVD & AV COMMANDS
OFF
b
d
h
CD TU/DAB AV
MPLIFIER DVD
IN
ZOOM
NGLE
AV-S
NIGHT
i
1$
1%
1^
1*
1(
2)
2@
2$
DISP
OK
ADJ- ADJ+
12
456
789
SETUP
V
SETUP
3
T- C
0
MENU
TREBLEBASS
LIPSYNC NOISEMODE
2%
DSP
a
c
e
f
g
1)
1!
1@
1#
1&
2!
2#
2^
2&
AV (DVD & amp) MODE AV-S (DVD & decoder)
MODE
1 Power off all systems
CD, DAB, TU or AV COMMAND MODE SELECT
2
3
4 Amplifier input select +/- Surround decoder input select +/5 Amplifier balance mode 6 Amplifier volume control Surround decoder volume control
7 Amplifier mute Surround decoder mute
8 DVD Quick access zoom 9 DVD Quick access angle -
10 DVD Next/previous chapter/title
11 12 Adj +
Cursor keys for navigating the DVD on-screen menu
13 14
15 OK key to select DVD menu options 16 DVD On-screen display 17 DVD transport functions 18 - 19 DVD Chapter/title direct access Speaker select keys
20 DVD Program store 21 DVD Title or Chapter mode 22 DVD Player setup Bass control select
23 DVD Disc menu Treble control select
24
25 - Mode select
26 - Lipsync adjust
27 - Decoder noise mode
Amplifier, CD, DAB, FM tuner, DVD power on
Amplifier input select
AV-S COMMAND MODE SELECT
DVD and Surround decoder power on
options
AV SETUP MODE SELECT
Surround decoder power on
AV-SETUP MODE
Decoder Night & DSP
functions
Adj -
