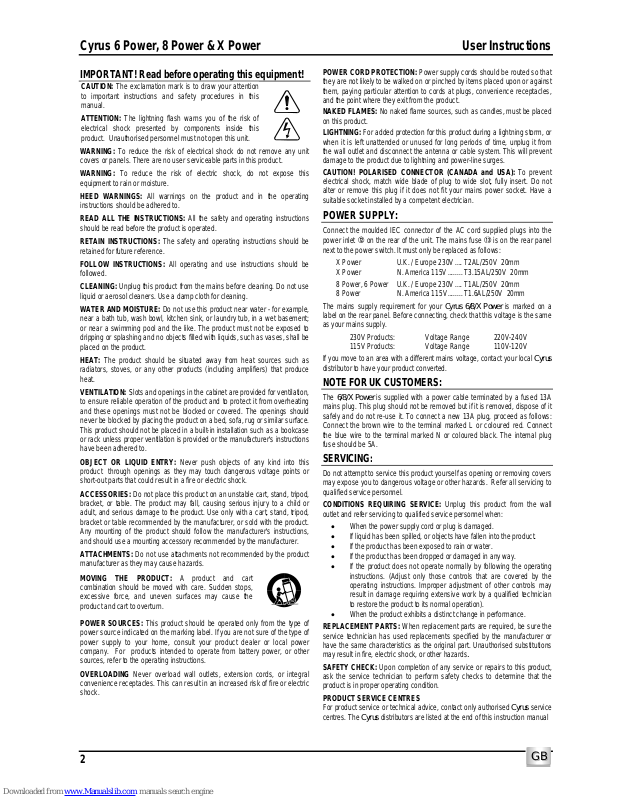

Cyrus 6 Power, 8 Power & X Power User Instructions
2
GB
GB
IMPORTANT! Read before operating this equipment!
WARNING: To reduce the risk of electrical shock do not remove any unit
covers or panels. There are no user serviceable parts in this product.
WARNING: To reduce the risk of electric shock, do not expose this
equipment to rain or moisture.
HEED WARNINGS: All warnings on the product and in the operating
instructions should be adhered to.
READ ALL THE INSTRUCTIONS: All the safety and operating instructions
should be read before the product is operated.
RETAIN INSTRUCTIONS: The safety and operating instructions should be
retained for future reference.
FOLLOW INSTRUCTIONS: All operating and use instructions should be
followed.
CLEANING: Unplug this product from the mains before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning.
WATER AND MOISTURE: Do not use this product near water - for example,
near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement;
or near a swimming pool and the like. The product must not be exposed to
dripping or splashing and no objects filled with liquids, such as vases, shall be
placed on the product.
HEAT: The product should be situated away from heat sources such as
radiators, stoves, or any other products (including amplifiers) that produce
heat.
VENTILATION: Slots and openings in the cabinet are provided for ventilation,
to ensure reliable operation of the product and to protect it from overheating
and these openings must not be blocked or covered. The openings should
never be blocked by placing the product on a bed, sofa, rug or similar surface.
This product should not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the manufacturer's instructions
have been adhered to.
OBJECT OR LIQUID ENTRY: Never push objects of any kind into this
product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
ACCESSORIES: Do not place this product on an unstable cart, stand, tripod,
bracket, or table. The product may fall, causing serious injury to a child or
adult, and serious damage to the product. Use only with a cart, stand, tripod,
bracket or table recommended by the manufacturer, or sold with the product.
Any mounting of the product should follow the manufacturer's instructions,
and should use a mounting accessory recommended by the manufacturer.
ATTACHMENTS: Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
POWER SOURCES: This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type of
power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other
sources, refer to the operating instructions.
OVERLOADING Never overload wall outlets, extension cords, or integral
convenience receptacles. This can result in an increased risk of fire or electric
shock.
POWER CORD PROTECTION: Power supply cords should be routed so that
they are not likely to be walked on or pinched by items placed upon
or against
them, paying particular attention to cords at plugs, convenience receptacles,
and the point where they exit from the product.
NAKED FLAMES: No naked flame sources, such as candles, must be placed
on this product.
LIGHTNING: For added protection for this product during a lightning storm, or
when it is left unattended or unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
CAUTION! POLARISED CONNECTOR (CANADA and USA): To prevent
electrical shock, match wide blade of plug to wide slot, fully insert. Do not
alter or remove this plug if it does not fit your mains power socket. Have a
suitable socket installed by a competent electrician.
POWER SUPPLY:
Connect the moulded IEC connector of the AC cord supplied plugs into the
power inlet
1@ on the rear of the unit. The mains fuse 1# is on the rear panel
next to the power switch. It must only be replaced as follows:
X Power U.K. / Europe 230V .... T2AL/250V 20mm
X Power N. America 115V ........ T3.15AL/250V 20mm
8 Power, 6 Power U.K. / Europe 230V .... T1AL/250V 20mm
8 Power N. America 115V ........ T1.6AL/250V 20mm
The mains supply requirement for your Cyrus 6/8/X Power is marked on a
label on the rear panel. Before connecting, check that this voltage is the same
as your mains supply.
230V Products: Voltage Range 220V-240V
115V Products: Voltage Range 110V-120V
If you move to an area with a different mains voltage, contact your local Cyrus
distributor to have your product converted.
NOTE FOR UK CUSTOMERS:
The 6/8/X Power is supplied with a power cable terminated by a fused 13A
mains plug. This plug should not be removed but if it is removed, dispose of it
safely and do not re-use it. To connect a new 13A plug, proceed as follows:
Connect the brown wire to the terminal marked L or coloured red. Connect
the blue wire to the terminal marked N or coloured black. The internal plug
fuse should be 5A.
SERVICING
:
Do not attempt to service this product yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
CONDITIONS REQUIRING SERVICE: Unplug this product from the wall
outlet and refer servicing to qualified service personnel when:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the product.
• If the product has been exposed to rain or water.
• If the product has been dropped or damaged in any way.
• If the product does not operate normally by following the operating
instructions. (Adjust only those controls that are covered by the
operating instructions. Improper adjustment of other controls may
result in damage requiring extensive work by a qualified technician
to restore the product to its normal operation).
• When the product exhibits a distinct change in performance.
REPLACEMENT PARTS: When replacement parts are required, be sure the
service technician has used replacements specified by the manufacturer or
have the same characteristics as the original part. Unauthorised substitutions
may result in fire, electric shock, or other hazards.
SAFETY CHECK: Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to determine that the
product is in proper operating condition.
PRODUCT SERVICE CENTRES
For product service or technical advice, contact only authorised Cyrus service
centres. The Cyrus distributors are listed at the end of this instruction manual
MOVING THE PRODUCT: A product and cart
combination should be moved with care. Sudden stops,
excessive force, and uneven surfaces may cause the
product and cart to overturn.
CAUTION: The exclamation mark is to draw your attention
to important instructions and safety procedures in this
manual.
ATTENTION: The lightning flash warns you of the risk o
f
electrical shock presented by components inside this
product. Unauthorised personnel must not open this unit
.
User Instructions Cyrus 6 Power, 8 Power & X Power
3
GB
GB
Welcome to the world of Cyrus!
Congratulations on your choice of Cyrus Hi-fi products. Our state-of-the-art
design technology and outstanding quality of manufacture has won countless
awards around the world. We are confident that you will derive great
pleasure from owning a product from one of the most recognised and
respected manufacturers of hi-fi equipment.
Please read these instructions carefully before commencing installation. They
provide full guidance to help you install your Cyrus 6 Power, 8 Power or X
Power safely and correctly.
Cyrus 6 Power, 8 Power & X Power model differences
These user instructions refer to the Cyrus 6 Power, Cyrus 8 Power and Cyrus
X Power amplifiers. Model differences are indicated in the text where they
occur.
Preparations for Installation
Before installing the Cyrus 6/8/X Power check that the following items are
included in the accessory box.
• Guarantee Card (back page of instruction manual)
• Power Cable
• 2 MC-Bus phono cables
• 4 speaker plugs (certain markets only)
After removing these items, please retain the packing.
Install the Cyrus6/8/X Power in a well ventilated location away from sources
of high temperature, dust or humidity. Never stand the 6/8/X Power under
another unit or on any surface likely to hamper its cooling or ventilation.
INSTALLATION - 6 Power
Key to the 6 Power rear panel drawing (Fig.1b)
1. Right speaker output + 8. -
2. Right speaker output - 9. Left speaker output -
3. MC-Bus Connection 10. Left speaker output +
4 Right Chain Output 11. -
5. Left Chain Output 12. Power Inlet
6. Left Input 13. Mains Fuse
7. Right Input 14. Power Switch
Connecting to the AC Mains Supply
Connect the socket on the AC Power cable to the Power inlet 1@ on the rear panel
of the 6 Power. Now connect the cable to a suitable AC power point.
The mains power switch
1$ on the rear panel of the 6 Power should be left on
for normal operation, except when left unattended for a long period when it
should be switched off or disconnected from the AC supply.
Input Connection
Connect a stereo phono interconnect from the output of the preamplifier to the
6 Power’s left and right inputs
f, g. Be sure to observe colour coding of the
plugs to keep left and right channels correctly ordered.
Loudspeaker Connection
Fitting the speaker plugs
Check for polarity indicators (+ and -) on the loudspeaker cable and fit the
plugs provided. Observe any signal directionality markings indicated on the
cable. If an arrow is printed on the cable it should point toward the
loudspeaker. If additional or replacement speaker plugs are required for the 6
Power ensure that the correct ‘BFA’ type are purchased.
Loudspeaker connection
Connect the left loudspeaker to the rear panel sockets
1) (red speaker plug)
and
i
(black speaker plug) of the 6 Power. Connect the right loudspeaker to
the rear panel sockets
a (red speaker plug) and b
(black speaker plug) of
the 6 Power.
Dual outputs are provided for the convenient connection of bi-wiring speaker
cables. Fig. 4a shows a wiring schematic for a bi-wired system.
Bi-amplification
For convenience of connection in applications such as Bi-Amplification the
Chain outputs
d, e allow more than one 6 Power to be connected to a Pre-
Amplifier.
The Chain facility can be used with two or more 6 Powers for Bi/Tri-amping by
connecting the Chain output of the first 6 Power to the inputs of the next 6
Power. Such a system provides the sonic benefits of totally separate power
amplification for the bass and treble units of the loudspeakers.
When adding additional 6 Powers to a system, connect a quality RCA phono
interconnect from the Chain output RCA jacks
d, e to the inputs f, g of
the new 6 Power.
When the input connections to the new amplifier are complete, separate
connections may be made to the bass and treble units of the system
speakers. Fig. 4c shows a wiring schematic for a bi-amped system.
MC-Bus connection
Connecting the MC-BUS sockets c of the 6 Power in an MC-BUS system
provides unified system power control. An MC-BUS loop is established by
connecting single phono cables from the MC-BUS output of one unit to the
MC-BUS input of another in a daisy-chain. Complete the loop by returning the
MC-BUS output of the final component to the MC-BUS input of the first (see
example system connections in Fig. 3).
With MC-BUS established you can control the power function of the system
from the front panel or remote control of the main Cyrus amplifier or Surround
Processor.
Loading...
