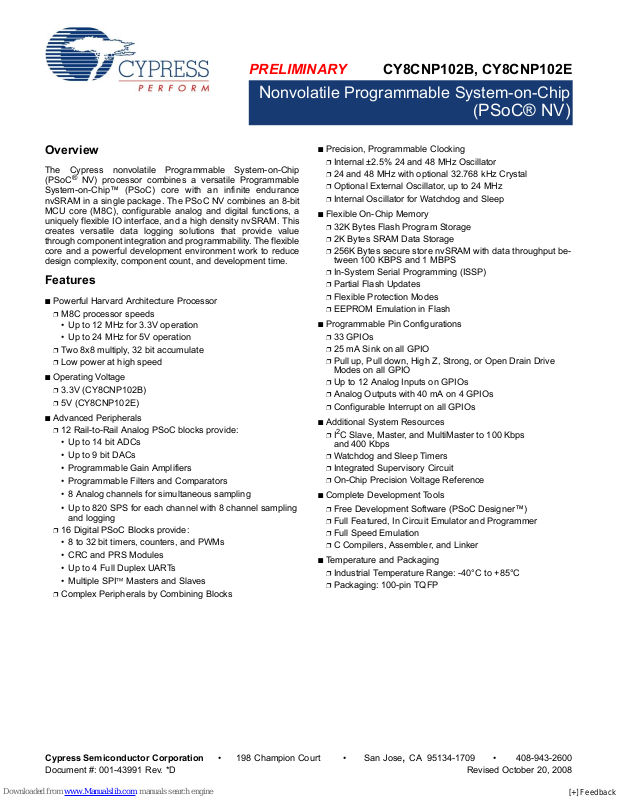

PRELIMINARY

CY8CNP102B, CY8CNP102E

Nonvolatile Programmable System-on-Chip

(

PSoC® NV)

Overview

The Cypress nonvolatile Programmable System-on-Chip

(PSoC

NV) processor combines a versatile Programmable System-on-Chip™ (PSoC) core with an infinite endurance nvSRAM in a single package. The PSoC NV combines an 8-bit MCU core (M8C), configurable analog and digital functions, a uniquely flexible IO interface, and a high density nvSRAM. This creates versatile data logging solutions that provide value through component integration and programmability. The flexible core and a powerful development environment work to reduce design complexity, component count, and development time.

Features

■ Powerful Harvard Architecture Processor

❐ M8C processor speeds

• Up to 12 MHz for 3.3V operation

• Up to 24 MHz for 5V operation

❐ Two 8x8 multiply, 32 bit accumulate ❐ Low power at high speed

■ Operating Voltage

❐ 3.3V (CY8CNP102B) ❐ 5V (CY8CNP102E)

■ Advanced Peripherals

❐ 12 Rail-to-Rail Analog PSoC blocks provide:

• Up to 14 bit ADCs

• Up to 9 bit DACs

• Programmable Gain Amplifiers

• Programmable Filters and Comparators

• 8 Analog channels for simultaneous sampling

• Up to 820 SPS for each channel with 8 channel sampling and logging

❐ 16 Digital PSoC Blocks provide:

• 8 to 32 bit timers, counters, and PWMs

• CRC and PRS Modules

• Up to 4 Full Duplex UARTs

• Multiple SPI™ Masters and Slaves

❐ Complex Peripherals by Combining Blocks

■ Precision, Programmable Clocking ❐ Internal ±2.5% 24 and 48 MHz Oscillator

❐ 24 and 48 MHz with optional 32.768 kHz Crystal ❐ Optional External Oscillator, up to 24 MHz ❐ Internal Oscillator for Watchdog and Sleep

■ Flexible On-Chip Memory ❐ 32K Bytes Flash Program Storage

❐ 2K Bytes SRAM Data Storage ❐ 256K Bytes secure store nvSRAM with data throughput be-

tween 100 KBPS and 1 MBPS

❐ In-System Serial Programming (ISSP) ❐ Partial Flash Updates ❐ Flexible Protection Modes ❐ EEPROM Emulation in Flash

■ Programmable Pin Configurations ❐ 33 GPIOs ❐ 25 mA Sink on all GPIO ❐ Pull up, Pull down, High Z, Strong, or Open Drain Drive

Modes on all GPIO

❐ Up to 12 Analog Inputs on GPIOs ❐ Analog Outputs with 40 mA on 4 GPIOs ❐ Configurable Interrupt on all GPIOs

■ Additional System Resources

❐ I

C Slave, Master, and MultiMaster to 100 Kbps

and 400 Kbps

❐ Watchdog and Sleep Timers ❐ Integrated Supervisory Circuit ❐ On-Chip Precision Voltage Reference

■ Complete Development Tools ❐ Free Development Software (PSoC Designer™)

❐ Full Featured, In Circuit Emulator and Programmer ❐ Full Speed Emulation ❐ C Compilers, Assembler, and Linker

■ Temperature and Packaging ❐ Industrial Temperature Range: -40°C to +85°C ❐ Packaging: 100-pin TQFP

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Document #: 001-43991 Rev. *D Revised October 20, 2008

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Logic Block Diagram

Document #: 001-43991 Rev. *D Page 2 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Pinouts

Figure 1. Pin Diagram - 100-Pin TQFP Package (14 x 14 x 1.4 mm)

Table 1. Pin Definitions - 100-Pin TQFP

Pin Number Pin Name

1 P0_5 IO IO Analog Column Mux Input and Column Output

2 P0_3 IO IO Analog Column Mux Input and Column Output

3 P0_1 IO I Analog Column Mux Input, GPIO

4P2_7IO GPIO

5P2_5IO GPIO

6 P2_3 IO I Direct Switched Capacitor Block Input

7 P2_1 IO I Direct Switched Capacitor Block Input

8 Vcc Power Supply Voltage

9 DNU Reserved for test modes - Do Not Use

10 DNU Reserved for test modes - Do Not Use

11 DNU Reserved for test modes - Do Not Use

12 DNU Reserved for test modes - Do Not Use

13 DNU Reserved for test modes - Do Not Use

14 NC

15 P3_5 IO GPIO

16 EN_W Connect to Pin 26 (EN_W to NV_W)

17 P3_1 IO GPIO

Digital Analog

Typ e

Pin Definition

Not connected on the die

Document #: 001-43991 Rev. *D Page 3 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Table 1. Pin Definitions - 100-Pin TQFP (continued)

Pin Number Pin Name

18 P5_7 IO GPIO

19 P5_5 IO GPIO

20 P5_3 IO GPIO

21 P5_1 IO GPIO

22 P1_7 IO I2C Serial Clock (SCL), GPIO

23 P1_5 IO I2C Serial Data (SDA), GPIO

24 P1_3 IO GPIO

25 P1_1 IO Serial Clock (SCL), Crystal (XTALin), GPIO

26 NV_W Connect to pin 16 (NV_W to EN_W)

27 - 34 NC

35 - 39 Vss Power Ground

40 - 47 NC

48 DNU Reserved for test modes - Do Not Use

49 NV_A1 Connect to pin 58 (NV_A1 to EN_A1)

50 NV_A2 Connect to pin 59 (NV_A2 to EN_A2)

51 P1_0 IO Serial Data (SDA), Crystal (XTALout), GPIO

52 P1_2 IO GPIO

53 P1_6 IO GPIO

54 P5_0 IO GPIO

55 P5_2 IO GPIO

56 P5_4 IO GPIO

57 P5_6 IO GPIO

58 EN_A1 Connect to Pin 49 (EN_A1 to NV_A1)

59 EN_A2 Connect to Pin 50 (EN_A2 to NV_A2)

60 EN_O Connect to Pin 76 (EN_O to NV_O)

61 EN_C Connect to Pin 99 (EN_C to NV_C)

62 XRES Input Active high external reset (Internal Pull down)

63 VCAP Power External Capacitor connection for nvSRAM

64 Vcc Power Supply Voltage

65 P2_0 IO I Direct Switched Capacitor Block Input, GPIO

66 P2_2 IO I Direct Switched Capacitor Block Input, GPIO

67 P2_4 IO External Analog GND, GPIO

68 P2_6 IO External Voltage Ref, GPIO

69 P0_0 IO I Analog Column Mux Input, GPIO

70 P0_2 IO IO Analog Column Mux Input and Column Output

71 P0_4 IO IO Analog Column Mux Input and Column Output

72-73 NC

74 P0_6 IO I Analog Column Mux Input, GPIO

75 Vcc Power Supply Voltage

76 NV_O Connect to Pin 60 (NV_O to EN_O)

77 DNU Reserved for test modes - Do Not Use

78 NC

Digital Analog

Typ e

Pin Definition

Not connected on the die

Document #: 001-43991 Rev. *D Page 4 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Table 1. Pin Definitions - 100-Pin TQFP (continued)

Pin Number Pin Name

79 HSB# Weak Pull up. Connect 10kΩ to Vcc.

80 Vcc Power Supply Voltage

81 - 85 NC

86 - 90 Vss Power Ground

91 - 98 NC

99 NV_C Connect to Pin 61 (NV_C to EN_C).Weak Pull up. Connect 10kΩ to Vcc.

100 P0_7 IO I Analog Column Mux Input, GPIO

Digital Analog

Typ e

Pin Definition

Not connected on the die

PSoC NV Functional Overview

The PSoC NV provides a versatile microcontroller core (M8C), Flash program memory, nvSRAM data memory, and configurable analog and digital peripheral blocks in a single package. The flexible digital and analog IOs and routing matrix create a powerful embedded and flexible mixed signal System-on-Chip (SoC).

The device incorporates configurable analog and digital blocks, interconnect circuitry around an MCU subsystem, and an infinite endurance nvSRAM. This enables high level integration in consumer, industrial, and automotive applications, where preventing data loss under all conditions is vital.

PSoC NV Core

The PSoC NV core is a powerful PSoC engine that supports a rich feature set. The core includes a M8C CPU, memory, clocks, and configurable GPIO (General Purpose IO). The M8C CPU core is a powerful processor with speeds up to 24 MHz, providing a four MIPS 8-bit Harvard architecture microprocessor. The CPU uses an interrupt controller with 25 vectors, to simplify programming of real time embedded events. Program execution is timed and protected using the included Sleep and Watch Dog Timers (WDT).

On-chip memory encompasses 32 KB Flash for program storage, 2 KB SRAM for data storage, 256 KB nvSRAM for data logging, and up to 2 KB EEPROM emulated using Flash. Program Flash uses four protection levels on blocks of 64 bytes, allowing customized software IP protection. The nvSRAM combines a static RAM cell and a SONOS cell to provide an infinite endurance nonvolatile memory block. The memory is random access and is accessed using a user module provided with the device.

The device incorporates flexible internal clock generators, including a 24 MHz Internal Main Oscillator (IMO) accurate to 2.5 percent over temperature and voltage. The 24 MHz IMO can also be doubled to 48 MHz for use by the digital system. A low power 32 kHz Internal Low speed Oscillator (ILO) is provided for the Sleep timer and WDT. The clocks, together with programmable clock dividers (as a System Resource), provide the flexibility to integrate almost any timing requirement into the PSoC NV device.

GPIOs provide connection to the CPU, and digital and analog resources of the device. Each pin’s drive mode may be selected from eight options, allowing great flexibility in external

interfacing. Every pin also has the capability to generate a system interrupt on high level, low level, and change from last read.

nvSRAM Data Memory

The nvSRAM memory block is byte addressable fast static RAM with a nonvolatile element in each memory cell. The embedded nonvolatile elements incorporate QuantumTrap® technology producing the world’s most reliable nonvolatile memory. The SRAM provides infinite read and write cycles, when independent nonvolatile data resides in the highly reliable QuantumTrap cell. Data transfers from the SRAM to the nonvolatile elements (the STORE operation) takes place automatically at power down, and data is restored to the SRAM (the RECALL operation) from the nonvolatile memory on power up. All cells store and recall data in parallel.

Both the STORE and RECALL operations may be initiated under software control. The PSoC NV user module embedded in the PSoC Designer Tool provides all necessary APIs to initiate software STORE and RECALL function from the user program.

nvSRAM Operation

The nvSRAM is made up of an SRAM memory cell, and a nonvolatile QuantumTrap cell paired in the same physical cell. The SRAM memory cell operates as a standard fast static, and all READ and WRITE takes place from the SRAM during normal operation.

During the STORE and RECALL operations, SRAM READ and WRITE operations are inhibited, and internal operations transfer data between the SRAM and nonvolatile cells. The nvSRAM provides infinite RECALL operations from the nonvolatile cells and up to 200,000 STORE operations.

CAP

SWITCH

is ignored

pin. This

, the part

To reduce unnecessary nonvolatile stores, AutoStore unless at least one WRITE operation is complete after the most recent STORE or RECALL cycle. Software initiated STORE cycles are performed regardless of whether a WRITE operation has taken place. Embedded APIs provide a seamless interface to the nvSRAM.

During normal operation, the embedded nvSRAM draws current from Vcc to charge a capacitor connected to the V stored charge is used by the chip to perform a STORE operation. If the voltage on the Vcc pin drops below V automatically disconnects the V operation is initiated.

pin from Vcc and STORE

CAP

Document #: 001-43991 Rev. *D Page 5 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Programmable Digital System

The digital system contains 16 digital PSoC blocks. Each block is an 8-bit resource that is used alone or combined with other blocks to form 8, 16, 24, and 32-bit peripherals, which are called user module references. The digital peripheral configurations are:

■ PWMs (8 to 32 bit)

■ PWMs with dead band (8 to 32 bit)

■ Counters (8 to 32 bit)

■ Timers (8 to 32 bit)

■ UART 8 bit with selectable parity (up to 4)

■ SPI master and slave (up to 4 each)

■ I

C slave and multimaster (1 available as a System Resource)

■ Cyclical Redundancy Checker and Generator (8 to 32 bit)

■ IrDA (up to 4)

■ Pseudo Random Sequence Generators (8 to 32 bit)

The digital blocks connect to any GPIO through a series of global buses that route any signal to any pin. The buses also enable signal multiplexing and performing logic operations. This configurability frees your designs from the constraints of a fixed peripheral controller.

Digital blocks are provided in rows of four, where the number of blocks varies with PSoC device family. This gives you the optimum choice of system resources for your application.

Programmable Analog System

■ Peak Detectors

■ Other possible topologies

■ Analog blocks are provided in columns of three, which includes

one CT (Continuous Time) and two SC (Switched Capacitor) blocks.

Additional System Resources

System Resources, some of which are listed in the previous sections, provide additional capability useful to complete systems. Resources include a multiplier, decimator, switch mode pump, low voltage detection, and power on reset. The merits of each system resource are:

■ Digital clock dividers provide three customizable clock

frequencies for use in applications. The clocks may be routed to both the digital and analog systems. Additional clocks are generated using digital PSoC blocks as clock dividers.

■ Multiply Accumulate (MAC) provides fast 8-bit multiplier with

32-bit accumulate, to assist in general math and digital filters.

■ The decimator provides a custom hardware filter for digital

signal, and processing applications including the creation of Delta Sigma ADCs.

■ The I

■ Low Voltage Detection (LVD) interrupts can signal the

C module provides 100 and 400 kHz communication over two wires. Slave, master, and multi master modes are all supported.

application of falling voltage levels, while the advanced POR (Power On Reset) circuit eliminates the need for a system supervisor.

The analog system consists 12 configurable blocks, each having an opamp circuit enabling the creation of complex analog signal flows. Analog peripherals are very flexible and may be customized to support specific application requirements. Some of the more common analog functions (most available as user modules) are:

■ Analog-to-digital converters (up to 4, with 6 to 14 bit resolution,

selectable as Incremental, Delta Sigma, and SAR)

■ Filters (2, 4, 6, or 8 pole band pass, low pass, and notch)

■ Amplifiers (up to 4, with selectable gain to 48x)

■ Instrumentation amplifiers (up to 2, with selectable gain to 93x)

■ Comparators (up to 4, with 16 selectable thresholds)

■ DACs (up to 4, with 6 to 9 bit resolution)

■ Multiplying DACs (up to 4, with 6 to 9 bit resolution)

■ High current output drivers (four with 40 mA drive as a Core

Resource)

■ 1.3V reference (as a System Resource)

■ DTMF Dialer

■ Modulators

■ Correlators

Document #: 001-43991 Rev. *D Page 6 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Development Tools

Commands

Results

PSoC

Designer

Core

Engine

PSoC

Configuration

Sheet

Manufacturing

Info rm atio n

File

Device

Database

Importable

Design

Database

Device

Programmer

Graphical Designer

Inter face

Context

Se nsitive

Help

Emulation

Pod

In-C irc uit Emulator

Project

Database

Ap plic atio n

Database

User

Modules

Library

PSoC

Designer

PSoC Designer Software Subsystems

PSoC Designer is a Microsoft® Windows based, integrated development environment for Programmable System-on-Chip (PSoC) devices. The PSoC Designer IDE and application run on Windows NT 4.0, Windows 2000, Windows Millennium (Me), Microsoft Vista, and Windows XP.

PSoC Designer helps the customer to select an operating configuration for the PSoC, write application code that uses the PSoC, and debug the application. This system provides design database management by project, an integrated debugger with In-Circuit Emulator, in-system programming support, and the CYASM macro assembler for the CPUs.

PSoC Designer also supports a high level C language compiler developed specifically for the devices in this family.

Figure 2. PSoC Designer Subsystem

Device Editor

The Device Editor subsystem enables the user to select different onboard analog and digital components called user modules, using the PSoC blocks. Examples of user modules are ADCs, DACs, nvSRAM, Amplifiers, and Filters.

The device editor also supports easy development of multiple configurations and dynamic reconfiguration. Dynamic configuration enables changing configurations at run time.

PSoC Designer sets up power on initialization tables for selected PSoC block configurations and creates source code for an application framework. The framework contains software to operate the selected components. Also, if the project uses more than one operating configuration, the framework contains routines to switch between different sets of PSoC block configurations at run time. PSoC Designer can print out a configuration sheet for a given project configuration, for use during application programming in conjunction with the Device Data Sheet. After the framework is generated, the user can add application specific code to flesh out the framework. It is also possible to change the selected components and regenerate the framework.

Design Browser

The Design Browser enables users to select and import preconfigured designs into their project. Users can easily browse a catalog of preconfigured designs to facilitate time to design. Examples provided in the tools include a 300 baud modem, LIN Bus master and slave, fan controller, and magnetic card reader.

Application Editor

In the Application Editor you can edit C language and Assembly language source code. You can also assemble, compile, link, and build.

Assembler. The macro assembler seamlessly merges the assembly code with C code. The link libraries automatically use absolute addressing or are compiled in relative mode, and linked with other software modules to get absolute addressing.

C Language Compiler. A C language compiler that supports Cypress PSoC family devices is available. Even if you have never worked in the C language before, the product quickly enables you to create complete C programs for the PSoC family devices.

The embedded, optimizing C compiler provides all the features of C tailored to the PSoC architecture. It is complete with embedded libraries providing port and bus operations, standard keypad and display support, and extended math functionality.

Debugger

The PSoC Designer Debugger subsystem provides hardware in-circuit emulation, which enables the designer to test the program in a physical system while providing an internal view of the PSoC device. Debugger commands enable the designer to read and program, read and write data memory, read and write IO registers, read and write CPU registers, set and clear breakpoints, and provide program run, halt, and step control. The debugger also enables the designer to create a trace buffer of registers and memory locations of interest.

Document #: 001-43991 Rev. *D Page 7 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Online Help System

Debugger

Int erfac e

to ICE

Application Editor

Device Editor

Project

Manager

Source

Code

Editor

Storage

Inspector

User

Module

Selection

Placement

and

Parameter

-ization

Generate Application

Build All

Event &

Breakpoint

Manager

Build

Manager

Source

Code

Generator

The online help system displays online, context sensitive help for the user. Designed for procedural and quick reference, each functional subsystem has its own context sensitive help. This system also provides tutorials and links to FAQs and an Online Support Forum to aid the designer in getting started.

Hardware Tools

In-Circuit Emulator

A low cost, high functionality ICE (In-Circuit Emulator) is available for development support. This hardware has the capability to program single devices.

The emulator consists of a base unit that connects to the PC through the USB port. The base unit is universal and operates with all PSoC devices. Emulation pods for each device family are available separately. The emulation pod takes the place of the PSoC device in the target board and performs full speed (24 MHz) operation.

Designing with User Modules

The development process for the PSoC device differs from that of a traditional fixed function microprocessor. The configurable analog and digital hardware blocks give the PSoC architecture a unique flexibility that manages specification change during development and lowers inventory costs. These configurable resources, called PSoC Blocks, implement a wide variety of user-selectable functions. Each block has several registers that determine its function and connectivity to other blocks, multiplexers, buses, and to the IO pins. Iterative development cycles permit you to adapt the hardware and the software. This substantially lowers the risk of selecting a different part to meet the final design requirements.

To speed the development process, the PSoC Designer IDE provides a library of prebuilt, pretested hardware peripheral functions, called “User Modules.” User modules simplify selecting and implementing peripheral devices, and come in analog, digital, and mixed signal varieties. The standard User Module library contains over 50 peripherals such as ADCs, DACs, Timers, Counters, UARTs, nvSRAM, DTMF Generators, and Bi-Quad analog filter sections.

Each user module establishes the basic register settings that implement the selected function. It also provides parameters that enable you to tailor its precise configuration to your particular application. For example, a Pulse Width Modulator User Module configures one or more digital PSoC blocks, one for each 8 bits of resolution. The user module parameters permit you to establish the pulse width and duty cycle. User modules also provide tested software to cut your development time. The user module Application Programming Interface (API) provides high level functions to control and respond to hardware events at run time. The API also provides optional interrupt service routines that you can adapt as needed.

The API functions are documented in user module data sheets that are viewed directly in the PSoC Designer IDE. These data sheets explain the internal operation of the user module and provide performance specifications. Each data sheet describes the use of each user module parameter and documents the setting of each register controlled by the user module.

Document #: 001-43991 Rev. *D Page 8 of 38

The development process starts when you open a new project and bring up the Device Editor, which is a graphical user interface (GUI) for configuring the hardware. Pick the user modules required for your project and map them onto the PSoC blocks with point and click simplicity. Next, build signal chains by interconnecting user modules to each other and to the IO pins. At this stage, configure the clock source connections and enter parameter values directly or by selecting values from drop down menus. When you are ready to test the hardware configuration or develop code for the project, perform the “Generate Application” step. PSoC Designer generates source code that automatically configures the device to your specification and provides high level user module API functions.

User Module and Source Code Development Flows

The next step is to write the main program, and any subroutine using PSoC Designer’s Application Editor subsystem. The Application Editor includes a Project Manager that enables you to open the project source code files (including all generated code files) from a hierarchal view. The source code editor provides syntax coloring and advanced edit features for C and assembly language. File search capabilities include simple string searches and recursive “grep-style” patterns. A single mouse click invokes the Build Manager.

It employs a professional strength “makefile” system to automatically analyze all file dependencies and run the compiler and assembler as necessary. Project level options control optimization strategies used by the compiler and linker. Syntax errors are displayed in a console window. Double clicking the error message takes you directly to the offending line of source code. After correction, the linker builds a HEX file image suitable for programming.

Figure 3. User Module and Source Code Development Flows

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

The last step in the development process takes place inside the

5.25

4.75

3.00

93 kHz 12 MHz 24 MHz

CPU Frequency

Vdd Voltage

5.25

4.75

3.00

93 kHz 12 MHz 24 MHz

IMO Frequency

Vdd Voltage

3.60

6 MHz

SLIMO Mode = 0

SLIMO

Mode=0

SLIMO

Mode=1

SLIMO

Mode=1

SLIMO

Mode=0

3.60

Operating Region

(CY8CNP102E)

Operating Region

(CY8CNP102B)

PSoC Designer’s Debugger subsystem. The Debugger downloads the HEX image to the In-Circuit Emulator (ICE) where it runs at full speed. The Debugger capabilities rival those of systems costing much more. In addition to traditional single step, run to breakpoint, and watch variable features, the Debugger provides a large trace buffer enabling you to define complex breakpoint events that include monitoring address and data bus values, memory locations, and external signals.

Cypress nvSRAM user Module

The nvSRAM user module is integrated with the PSoC Designer tool and contains APIs that facilitate nvSRAM access and control. The user module provides high level access to the nvSRAM without user developed code. The user module API also provides the ability to read and write arbitrary data structures to or from the nvSRAM, and initiate nvSRAM Store or Recall operations.

Electrical Specifications

This section lists the PSoC NV device DC and AC electrical specifications.

Specifications are valid for -40

Refer Table 14 on page 17 for electrical specifications on the Internal Main Oscillator (IMO) using SLIMO mode.

Figure 4. Voltage versus CPU Frequency Figure 5. IMO Frequency Trim Options

C ≤ TA ≤ 85oC, and TJ ≤ 100oC, except where noted.

The following table lists the units of measure that are used in this data sheet.

Table 2. Units of Measure

Symbol Unit of Measure Symbol Unit of Measure

C degree Celsius μW microwatts

dB decibels mA milli-ampere

fF femto farad ms milli-second

Hz hertz mV milli-volts

KB 1024 bytes nA nanoampere

Kbit 1024 bits ns nanosecond

kHz kilohertz nV nanovolts

kΩ kilohm Ω ohm

MHz megahertz pA picoampere

MΩ megaohm pF picofarad

μA microampere pp peak-to-peak

μF microfarad ppm parts per million

μH microhenry ps picosecond

μs microsecond sps samples per second

μV microvolts σ sigma: one standard deviation

μVrms microvolts root-mean-square V volts

Document #: 001-43991 Rev. *D Page 9 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

3.3V Operation

Absolute Maximum Ratings

Table 3. 3.3V Absolute Maximum Ratings (CY8CNP102B)

Symbol Description Min Ty p Max Units Notes

STG

Storage Temperature -55 25 +100

Ambient Temperature with Power Applied -40 – +85

Vcc Supply Voltage on Vcc Relative to Vss -0.5 – +4.1 V

IOZ

MIO

MAIO

DC Input Voltage Vss - 0.5 – Vcc + 0.5 V

DC Voltage Applied to Tri-state Vss - 0.5 – Vcc + 0.5 V

Maximum Current into any Port Pin -25 – +50 mA

Maximum Current into any Port Pin

-50 – +50 mA

Configured as Analog Driver

ESD Electro Static Discharge Voltage 2000 – – V Human Body Model ESD.

LU Latch-up Current – – 200 mA

Operating Temperature

C Higher storage temperatures

reduce data retention time. Recommended storage temperature is ± 25

C. Extended duration storage temperatures above 65oC degrade reliability.

Table 4. 3.3V Operating Temperature (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

Ambient Temperature -40 – +85

Junction Temperature -40 – +100

Document #: 001-43991 Rev. *D Page 10 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Electrical Characteristics

The following DC electrical specifications list the guaranteed maximum and minimum specifications for the voltage and temperature range: 3.0V to 3.6V over the Temperature range of -40°C ≤ T guidance only.

DC Chip Level Specifications

Table 5. 3.3V DC Chip Level Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

Vcc Supply Voltage 3.00 – 3.6 V

DDP

Supply Current – 36 40 mA TA = 25 oC, CPU = 3 MHz,

Supply current when IMO = 6 MHz using SLIMO mode.

Sleep (Mode) Current with POR, LVD, Sleep Timer, WDT, and internal slow oscillator active.

REF

cap

Reference Voltage (Bandgap) 1.28 1.3 1.32 V Trimmed for appropriate Vcc.

Storage Capacitor between Vcap and Vss

≤ 85°C. Typical parameters apply to 3.3V at 25°C and are for design

SYSCLK doubler disabled, VC1 = 1.5 MHz, VC2 = 93.75 kHz, VC3 = 0.366 kHz, continuous nvSRAM access

– 27 28 mA TA = 25 oC, CPU = 0.75 MHz,

SYSCLK doubler disabled, VC1=0.375 MHz, VC2=23.44 kHz, VC3 = 0.09 kHz, continuous nvSRAM access

– – 5 mA nvSRAM in standby.

61 68 82 uF 5V rated (minimum)

DC General Purpose IO Specifications

Table 6. 3.3V DC GPIO Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

Pull up Resistor 4 5.6 8 KΩ

Pull down Resistor 4 5.6 8 KΩ

High Output Level Vcc - 1.0 – – V IOH = 10 mA, Vcc = 3.0 to 3.6V. 8

total loads, 4 on even port pins (for example, P0[2], P1[4]), 4 on odd port pins (for example, P0[3], P1[5]). 80 mA maximum combined IOH budget.

Low Output Level – – 0.75 V IOL = 25 mA, Vcc = 3.0 to 3.6V

8 total loads, 4 on even port pins (for example, P0[2], P1[4]), 4 on odd port pins (for example, P0[3], P1[5]). 150 mA maximum combined IOL budget.

OUT

Input Low Level – – 0.8 V Vcc = 3.0 to 3.6

Input High Level 1.6 – V Vcc = 3.0 to 3.6

Input Hysterisis – 60 – mV

Input Leakage (Absolute Value) – 1 – nA Gross tested to 1 μA.

Capacitive Load on Pins as Input – 3.5 10 pF Pin dependent.

Tem p = 2 5

Capacitive Load on Pins as Output – 3.5 10 pF Pin dependent.

Tem p = 2 5

Document #: 001-43991 Rev. *D Page 11 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Operational Amplifier Specifications

The Operational Amplifier is a component of both the Analog Continuous Time PSoC blocks and the Analog Switched Capacitor PSoC blocks. The guaranteed specifications are measured in the Analog Continuous Time PSoC block.

Table 7. 3.3V DC Operational Amplifier Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

OSOA

Input Offset Voltage (absolute value) High Power is 5 Volts Only

Power = Low, Opamp Bias = High – 1.65 10 mV

Power = Medium, Opamp Bias = High – 1.32 8 mV

TCV

OSOA

EBOA

INOA

CMOA

CMRR

OLOA

OHIGHOA

OLOWOA

SOA

Average Input Offset Voltage Drift – 7.0 35.0 μV/oC

Input Leakage Current (Port 0 Analog

– 200 – pA Gross tested to 1 μA.

Pins)

Input Capacitance (Port 0 Analog Pins) – 4.5 9.5 pF Pin dependent. Temp = 25 oC.

Common Mode Voltage Range 0 – Vcc V

Common Mode Rejection Ratio 60 – – dB

Open Loop Gain 80 – – dB

High Output Voltage Swing (internal

Vcc - 0.01 – – V

signals)

Low Output Voltage Swing (internal

– – 0.01 V

signals)

Supply Current (including associated AGND buffer)

Power = Low, Opamp Bias = Low – 150 200 μA

Power = Low, Opamp Bias = High – 300 400 μA

Power = Medium, Opamp Bias = Low – 600 800 μA

Power = Medium, Opamp Bias = High – 1200 1600 μA

Power = High, Opamp Bias = Low – 2400 3200 μA

Power = High, Opamp Bias = High – – – μA Not Allowed for 3.3V operation

PSRR

Supply Voltage Rejection Ratio 54 80 – dB Vss ≤ VIN ≤ (Vcc - 2.25) or

(Vcc - 1.25V) ≤ VIN ≤ Vcc

DC Low Power Comparator Specifications

Table 8. 3.3V DC Low Power Comparator Specifications (CY8CNP102B)

Symbol Description Min Ty p Max Units

REFLPC

SLPC

OSLPC

Low power comparator (LPC) reference voltage range 0.2 – Vcc - 1.0 V

LPC supply current – 10 40 μA

LPC voltage offset – 2.5 30 mV

Document #: 001-43991 Rev. *D Page 12 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Analog Output Buffer Specifications

Table 9. 3.3V DC Analog Output Buffer Specifications (CY8CNP102B)

Symbol Description Min Ty p Max Units

OSOB

TCV

CMOB

OUTOB

OSOB

Input Offset Voltage (Absolute Value) – 3 12 mV

Average Input Offset Voltage Drift – +6 – μV/°C

Common-Mode Input Voltage Range 0.5 - Vcc - 1.0 V

Output Resistance

Power = Low – – 10 Ω

Power = High – – 10 Ω

OHIGHOB

High Output Voltage Swing (Load = 1KΩ to Vcc/2)

Power = Low 0.5 x Vcc + 1.0 – – V

Power = High 0.5 x Vcc + 1.0 – – V

OLOWOB

Low Output Voltage Swing (Load = 1KΩ to Vcc/2)

Power = Low – – 0.5 x Vcc - 1.0 V

Power = High – – 0.5 x Vcc - 1.0 V

SOB

Supply Current Including Bias Cell (No Load)

Power = Low – 0.8 1 mA

Power = High – 2.0 5 mA

PSRR

Supply Voltage Rejection Ratio 60 64 – dB

Document #: 001-43991 Rev. *D Page 13 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Analog Reference Specifications

Note

1. AGND tolerance includes the offsets of the local buffer in the PSoC block. Bandgap voltage is 1.3V ± 0.02V.

The guaranteed specifications are measured through the Analog Continuous Time PSoC blocks. The power levels for AGND refer to the power of the Analog Continuous Time PSoC block. The power levels for RefHi and RefLo refer to the Analog Reference Control register. The limits stated for AGND include the offset error of the AGND buffer local to the Analog Continuous Time PSoC block. Reference control power is high.

Table 10. 3.3V DC Analog Reference Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units

BG33

Bandgap Voltage Reference 3.3V 1.28 1.30 1.32 V

– AGND = Vcc/2

– AGND = 2 x BandGap

[1]

Vcc/2 - 0.02 Vcc/2 Vcc/2 + 0.02 V

Not Allowed

– AGND = P2[4] (P2[4] = Vcc/2) P2[4] - 0.009 P2[4] P2[4] + 0.009 V

– AGND = BandGap

– AGND = 1.6 x BandGap

– AGND Block to Block Variation (AGND = Vcc/2)

[1]

1.27 1.30 1.34 V

[1]

2.03 2.08 2.13 V

-0.034 0.000 0.034 mV

– RefHi = Vcc/2 + BandGap Not Allowed

– RefHi = 3 x BandGap Not Allowed

– RefHi = 2 x BandGap + P2[6] (P2[6] = 0.5V) Not Allowed

– RefHi = P2[4] + BandGap (P2[4] = Vcc/2) Not Allowed

– RefHi = P2[4] + P2[6] (P2[4] = Vcc/2, P2[6] = 0.5V) P2[4] + P2[6] - 0.042 P2[4] + P2[6] P2[4] + P2[6] + 0.042 V

– RefHi = 2 x BandGap 2.50 2.60 2.70 V

– RefHi = 3.2 x BandGap Not Allowed

– RefLo = Vcc/2 - BandGap Not Allowed

– RefLo = BandGap Not Allowed

– RefLo = 2 x BandGap - P2[6] (P2[6] = 0.5V) Not Allowed

– RefLo = P2[4] – BandGap (P2[4] = Vcc/2) Not Allowed

– RefLo = P2[4]-P2[6] (P2[4] = Vcc/2, P2[6] = 0.5V) P2[4] - P2[6] - 0.036 P2[4] - P2[6] P2[4] - P2[6] + 0.036 V

DC Analog PSoC NV Block Specifications

Table 11. 3.3V DC Analog PSoC NV Block Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units

Resistor Unit Value (Continuous Time) – 12.2 – kΩ

Capacitor Unit Value (Switch Cap) – 80 – fF

Document #: 001-43991 Rev. *D Page 14 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC POR, SMP, and LVD Specifications

Note

2. Always greater than 50 mV above PPOR (PORLEV = 00) for falling supply.

Table 12. 3.3V DC POR, SMP, and LVD Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units

Vdd Value for PPOR Trip (positive ramp)

PPOR0R

PORLEV[1:0] = 00b 2.91 V

Vdd Value for PPOR Trip (negative ramp)

PPOR0

PORLEV[1:0] = 00b 2.82 V

PPOR Hysteresis

PH0

PH1

PH2

PORLEV[1:0] = 00b 92 mV

PORLEV[1:0] = 01b 0 mV

PORLEV[1:0] = 10b 0 mV

Vdd Value for LVD Trip

LVD 0

LVD 1

LVD 2

VM[2:0] = 000b 2.86 2.92 2.98

VM[2:0] = 001b 2.96 3.02 3.08 V

VM[2:0] = 010b 3.07 3.13 3.20 V

[2]

Vdd Value for SMP Trip

PUMP0

PUMP1

PUMP2

VM[2:0] = 000b 2.96 3.02 3.08 V

VM[2:0] = 001b 3.03 3.10 3.16 V

VM[2:0] = 010b 3.18 3.25 3.32 V

Document #: 001-43991 Rev. *D Page 15 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Programming Specifications

Note

3. A maximum of 36 x 50,000 block endurance cycles is allowed. This may be balanced between operations 36x1 blocks of 50,000 maximum cycles each, 36x2 blocks of 25,000 maximum cycles each, or 36x4 blocks of 12,500 maximum cycles each (to limit the total number of cycles to 36x50,000 and that no single lock ever sees more than 50,000 cycles). For the full industrial range, the user must employ a temperature sensor user module (Flash Temp) and feed the result to the temperature argument before timing. Refer to the Flash APIs Application Note AN2015 at http//www.cypress.com under Application Notes for more information.

Table 13. 3.3V DC Programming Specifications (CY8CNP102B)

Symbol Description Min Ty p Max Units Notes

DDPV

ILP

IHP

ILP

IHP

OLV

OHV

Flash

Supply Current During Programming or Verify – 10 30 mA

Input Low Voltage During Programming or Verify – – 0.8 V

Input High Voltage During Programming or Verify 2.2 – – V

Input Current when Applying Vilp to P1[0] or P1[1] During Programming or Verify

Input Current when Applying Vihp to P1[0] or P1[1] During Programming or Verify

– – 0.2 mA Driving internal pull

down resistor.

– – 1.5 mA Driving internal pull

down resistor.

Output Low Voltage During Programming or Verify – – Vss + 0.75 V

Output High Voltage During Programming or Verify Vcc - 1.0 – Vcc V

Flash Endurance (per block) 50,000 – – – Erase/write cycles

ENPB

Flash Endurance (total)

ENT

Flash Data Retention 10 – – Yea rs

[3]

1,800,000 – – – Erase/write cycles.

per block.

Document #: 001-43991 Rev. *D Page 16 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Electrical Characteristics

Notes

4. 4.75V < Vcc < 5.25V.

5. Accuracy derived from Internal Main Oscillator with appropriate trim for Vcc range.

6. 3.0V < Vcc < 3.6V. See Application Note AN2012 “Adjusting PSoC Micro controller Trims for Dual Voltage-Range Operation” for information on trimming for operation at 3.3V.

7. See individual user module data sheets for information on maximum frequencies for user modules.

The following AC electrical specifications list the guaranteed maximum and minimum specifications for the voltage and temperature range: 3.0V to 3.6V over the temperature range of -40°C ≤ T guidance only.

AC Chip Level Specifications

Table 14. 3.3V AC Chip Level Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

IMO24

IMO6

CPU2

48M

24M

32K1

32K2

PLL

Internal Main Oscillator Frequency for 24 MHz

Internal Main Oscillator Frequency for 6 MHz

CPU Frequency (3.3V Nominal) 0.93 12 12.3

Digital PSoC Block Frequency 0 48 49.2

Digital PSoC Block Frequency 0 24 24.6

Internal Low Speed Oscillator Frequency 15 32 64 kHz

External Crystal Oscillator – 32.768 – kHz Accuracy is capacitor and crystal

PLL Frequency – 23.986 – MHz A multiple (x732) of crystal

Jitter24M2 24 MHz Period Jitter (PLL) – – 600 ps

PLLSLEW

PLLSLEWLOW

OSACC

PLL Lock Time 0.5 – 10 ms

PLL Lock Time for Low Gain Setting 0.5 – 50 ms

External Crystal Oscillator Startup to 1% – 250 500 ms

External Crystal Oscillator Startup to 100 ppm

Jitter32k 32 kHz Period Jitter – 100 ns

XRST

External Reset Pulse Width 10 – – μs

DC24M 24 MHz Duty Cycle 40 50 60 %

Step24M 24 MHz Trim Step Size – 50 – kHz

Fout48M 48 MHz Output Frequency 46.8 48.0 49.2

Jitter24M1 24 MHz Period Jitter (IMO) – 600 ps

MAX

RAMP

Maximum frequency of signal on row input or row output.

Supply Ramp Time 0 – – μs

≤ 85°C. Typical parameters apply to 3.3V at 25°C and are for design

23.4 24 24.6

[4, 5, 6]

MHz Trimmed for 3.3V operation using

factory trim values. See the figure on page 10. SLIMO Mode = 0.

5.75 6 6.35

[4 , 5, 6]

MHz Trimmed for 3.3V operation using

factory trim values. See the figure on page 10. SLIMO Mode = 1.

[5, 6]

MHz

[4, 5, 7]

MHz Refer to section AC Digital Block

Specifications on page 19.

[5, 7]

MHz

dependent. 50% duty cycle.

frequency.

– 300 600 ms The crystal oscillator frequency is

within 100 ppm of its final value by the end of the T Correct operation assumes a

osacc

period.

properly loaded 1 uW maximum drive level 32.768 kHz crystal.

[4,6]

MHz Trimmed. Using factory trim

values.

– – 12.3 MHz

Document #: 001-43991 Rev. *D Page 17 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

In the following table, t

TFallF TFallS

TRise F

TRiseS

90%

10%

GPIO

Output

Voltage

HRECALL

starts from the time Vcc rises above V

SWITCH.

If an SRAM WRITE has not taken place since the last

nonvolatile cycle, no STORE occurs. Industrial grade devices require 15 ms maximum.

Table 15.3.3V nvSRAM AutoStore/Power Up RECALL (CY8CNP102B)

Parameter Description

HRECALL

STORE

SWITCH

VccRISE

Power Up RECALL Duration 20 ms

STORE Cycle Duration 12.5 ms

Low Voltage Trigger Level 2.65 V

VCC Rise Time 150 μs

Min Max

nvSRAM

Unit

AC General Purpose IO Specifications

Table 16. 3.3V AC GPIO Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

GPIO

GPIO Operating Frequency 0 – 12.3 MHz Normal Strong Mode

TRiseS Rise Time, Slow Strong Mode, Cload = 50 pF 10 27 – ns Vcc = 3V to 3.6V

10% - 90%

TFallS Fall Time, Slow Strong Mode, Cload = 50 pF 10 22 – ns Vcc = 3V to 3.6V

10% - 90%

Figure 6. GPIO Timing Diagram

Document #: 001-43991 Rev. *D Page 18 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Operational Amplifier Specifications

Note

8. 50 ns minimum input pulse width is based on the input synchronizers running at 24 MHz (42 ns nominal period).

Settling times, slew rates, and gain bandwidth are based on the Analog Continuous Time PSoC block.

Table 17. 3.3V AC Operational Amplifier Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

ROA

SOA

Rising Settling Time to 0.1% of a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low – – 3.92 μs

Power = Medium, Opamp Bias = High – – 0.72 μs

Falling Settling Time to 0.1% of a 1V Step (10 pF load, Unity Gain)

Power = High and Opamp Bias = High is not supported at

3.3V.

Power = Low, Opamp Bias = Low – – 5.41 μs

Power = Medium, Opamp Bias = High – – 0.72 μs

ROA

Rising Slew Rate (20% to 80%) of a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low 0.31 – – V/μs

Power = Medium, Opamp Bias = High 2.7 – – V/μs

FOA

Falling Slew Rate (20% to 80%) of a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low 0.24 – – V/μs

Power = Medium, Opamp Bias = High 1.8 – – V/μs

Gain Bandwidth Product

Power = Low, Opamp Bias = Low 0.67 – – MHz

Power = Medium, Opamp Bias = High 2.8 – – MHz

NOA

Noise at 1 kHz (Power = Medium, Opamp Bias = High)

– 100 – nV/rt-Hz

AC Digital Block Specifications

Table 18. 3.3V AC Digital Block Specifications (CY8CNP102B)

Function Description Min Ty p Max Units Notes

All Functions Maximum Block Clocking Frequency 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V

Timer Capture Pulse Width 50

[8]

– – ns

Maximum Frequency, No Capture – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V.

Maximum Frequency, With Capture – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V.

Counter Enable Pulse Width 50

[8]

– – ns

Maximum Frequency, No Enable Input – – 24.6 MHz 3.0V ≤ Vcc ≤3.6V.

Maximum Frequency, Enable Input – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V.

Dead Band Kill Pulse Width:

Asynchronous Restart Mode 20 – – ns

Synchronous Restart Mode 50

Disable Mode 50

[8]

– – ns

[8]

– – ns

Maximum Frequency – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V

Document #: 001-43991 Rev. *D Page 19 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Table 18. 3.3V AC Digital Block Specifications (CY8CNP102B) (continued)

Function Description Min Ty p Max Units Notes

CRCPRS

Maximum Input Clock Frequency – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V

(PRS Mode)

CRCPRS

Maximum Input Clock Frequency – – 24.6 MHz 3.0V ≤ Vcc ≤ 3.6V.

(CRC Mode)

SPIM Maximum Input Clock Frequency – – 8.2 MHz Maximum data rate at

4.1 MHz due to 2 x over clocking.

SPIS Maximum Input Clock Frequency – – 4.1 ns

Width of SS_ Negated Between Transmissions 50

Transmitter Maximum Input Clock Frequency

Vcc ≥ 3.0V, 2 Stop Bits

[8]

– – ns

– – 24.6 MHz Maximum data rate at

3.08 MHz due to 8 x over clocking.

– – 49.2 MHz Maximum data rate at

6.15 MHz due to 8 x over clocking.

Receiver Maximum Input Clock Frequency – – 24.6 MHz Maximum data rate at

3.08 MHz due to 8 x over clocking.

Vcc ≥ 3.0V, 2 Stop Bits – – 49.2 MHz Maximum data rate at

6.15 MHz due to 8 x over clocking.

AC Analog Output Buffer Specifications

Table 19. 3.3V AC Analog Output Buffer Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units

ROB

Rising Settling Time to 0.1%, 1V Step, 100pF Load

Power = Low – – 4.7 μs

Power = High – – 4.7 μs

SOB

Falling Settling Time to 0.1%, 1V Step, 100pF Load

Power = Low – – 4 μs

Power = High – – 4 μs

ROB

Rising Slew Rate (20% to 80%), 1V Step, 100pF Load

Power = Low 0.36 – – V/μs

Power = High 0.36 – – V/μs

FOB

Falling Slew Rate (80% to 20%), 1V Step, 100pF Load

Power = Low 0.4 – – V/μs

Power = High 0.4 – – V/μs

Small Signal Bandwidth, 20mVpp, 3dB BW, 100pF Load

Power = Low 0.7 – – MHz

Power = High 0.7 – – MHz

Large Signal Bandwidth, 1Vpp, 3dB BW, 100pF Load

Power = Low 200 – – kHz

Power = High 200 – – kHz

Document #: 001-43991 Rev. *D Page 20 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Programming Specifications

Note

9. A Fast Mode I2C-bus device may be used in a Standard-Mode I2C-bus system, but the requirement tSUDAT

≥ 250 ns must then be met. This is automatically the

case if the device does not stretch the LOW period of the SCL signal. If such device does stretch the LOW period of the SCL signal, it must output the next data bit to the SDA line trmax + tSU;DAT = 1000 + 250 = 1250 ns (according to the Standard Mode I2C bus specification) before the SCL line is released.

Table 20. 3.3V AC Programming Specifications (CY8CNP102B)

Symbol Description Min Typ Max Units Notes

RSCLK

FSCLK

SSCLK

HSCLK

SCLK

ERASEB

WRITE

DSCLK3

Rise Time of SCLK 1 – 20 ns

Fall Time of SCLK 1 – 20 ns

Data Set up Time to Falling Edge of SCLK 40 – – ns

Data Hold Time from Falling Edge of SCLK 40 – – ns

Frequency of SCLK 0 – 8 MHz

Flash Erase Time (Block) – 10 – ms

Flash Block Write Time – 10 – ms

Data Out Delay from Falling Edge of SCLK – – 50 ns 3.0V ≤ Vcc ≤ 3.6V

AC I2C Specifications

Table 21. 3.3V AC Characteristics of the I

Symbol Description

SCLI2C

HDSTAI2C

LOWI2C

HIGHI2C

SUSTAI2C

HDDATI2C

SUDATI2C

SUSTOI2C

BUFI2C

SPI2C

SCL Clock Frequency 0 100 0 400 kHz

Hold Time (repeated) START Condition. After this period, the first clock pulse is generated.

LOW Period of the SCL Clock 4.7 –1.3– μs

HIGH Period of the SCL Clock 4.0 –0.6– μs

Setup Time for a Repeated START Condition 4.7 –0.6– μs

Data Hold Time 0 –0– μs

Data Setup Time 250 – 100

Setup Time for STOP Condition 4.0 –0.6– μs

Bus Free Time Between a STOP and START Condition 4.7 –1.3– μs

Pulse Width of spikes are suppressed by the input filter. – – 0 50 ns

C SDA and SCL Pins (CY8CNP102B)

Standard Mode Fast Mode

Min Max Min Max

4.0 –0.6– μs

[9]

–ns

Units

Document #: 001-43991 Rev. *D Page 21 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

5V Operation

Absolute Maximum Ratings

Table 22. 5V Absolute Maximum Ratings (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

STG

Vcc Supply Voltage on Vcc

Storage Temperature -55 25 +100

Ambient Temperature with

-40 – +85

Power Applied

-0.5 – +6.0 V

Relative to Vss

IOZ

MIO

MAIO

DC Input Voltage Vss - 0.5 – Vcc + 0.5 V

DC Voltage Applied to

Vss - 0.5 – Vcc + 0.5 V

Tri-state

Maximum Current into any

-25 – +50 mA

Port Pin

Maximum Current into any

-50 – +50 mA Port Pin Configured as Analog Driver

ESD Electro Static Discharge

2000 – – V Human Body Model ESD.

Vol tag e

LU Latch-up Current – – 200 mA

C Higher storage temperatures

reduce data retention time. Recommended storage temperature is ± 25 duration storage temperatures above 65oC degrade reliability.

C. Extended

Operating Temperature

Table 23. 5V Operating Temperature (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

Ambient Temperature -40 – +85

Junction Temperature -40 – +100

Document #: 001-43991 Rev. *D Page 22 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Electrical Characteristics

The following DC electrical specifications lists the guaranteed maximum and minimum specifications for the voltage and temperature ranges: 4.75V to 5.25V over the Temperature range of -40°C ≤ T guidance only.

DC Chip Level Specifications

Table 24. 5V DC Chip-Level Specifications (CY8CNP102E)

Symbol Description Min Ty p Max Units Notes

Vcc Supply Voltage 4.75 – 5.25 V

DDP

Supply Current – 39 45 mA TA = 25 oC, CPU = 3 MHz,

Supply current when IMO = 6 MHz

– 27 28 mA TA = 25 oC, CPU = 0.75 MHz,

using SLIMO mode.

Sleep (Mode) Current with POR,

– – 5 mA nvSRAM in standby. LVD, Sleep Timer, WDT, and internal slow oscillator active.

REF

cap

Reference Voltage (Bandgap) 1.28 1.3 1.32 V Trimmed for appropriate Vcc.

Storage Capacitor between Vcap

61 68 82 uF 5V rated (minimum)

and Vss

≤ 85°C. Typical parameters apply to 5V at 25°C and are for design

SYSCLK doubler disabled, VC1 = 1.5 MHz, VC2 = 93.75 kHz, VC3 = 0.366 kHz, continuous nvSRAM access

SYSCLK doubler disabled, VC1=0.375 MHz, VC2=23.44 kHz, VC3 = 0.09 kHz, continuous nvSRAM access

DC General Purpose IO Specifications

Table 25. 5V DC GPIO Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

Pull up Resistor 4 5.6 8 kΩ Pull down Resistor 4 5.6 8 kΩ High Output Level Vcc - 1.0 – – V IOH = 10 mA, Vcc = 4.75 to 5.25V.

8 total loads, 4 on even port pins (for example, P0[2], P1[4]), 4 on odd port pins (for example, P0[3], P1[5]). 80 mA maximum combined IOH budget.

Low Output Level – – 0.75 V IOL = 25 mA, Vcc = 4.75 to 5.25V

8 total loads, 4 on even port pins (for example, P0[2], P1[4]), 4 on odd port pins (for example, P0[3], P1[5]). 150 mA maximum

combined IOL budget. V V V I C C

OUT

Input Low Level – – 0.8 V 4.75 to 5.25. Input High Level 2.1 – V 4.75 to 5.25. Input Hysterisis – 60 – mV Input Leakage (Absolute Value) – 1 – nA Gross tested to 1 μA. Capacitive Load on Pins as Input – 3.5 10 pF Pin dependent. Temp = 25oC. Capacitive Load on Pins as Output – 3.5 10 pF Pin dependent. Temp = 25oC.

Document #: 001-43991 Rev. *D Page 23 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Operational Amplifier Specifications

Table 26. 5V DC Operational Amplifier Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

OSOA

Input Offset Voltage (absolute value)

Power = Low, Opamp Bias = High – 1.6 10 mV

Power = Medium, Opamp Bias = High – 1.3 8 mV

Power = High, Opamp Bias = High – 1.2 7.5 mV

TCV

EBOA

INOA

CMOA

Average Input Offset Voltage Drift – 7.0 35.0 μV/oC

OSOA

Input Leakage Current (Port 0 Analog Pins) – 200 – pA Gross tested to 1 μA.

Input Capacitance (Port 0 Analog Pins) – 4.5 9.5 pF Pin dependent. Temp = 25 oC.

Common Mode Voltage Range. All Cases, except highest. 0.0 – Vcc V

Power = High, Opamp Bias = High 0.5 – Vcc - 0.5 V

CMRROACommon Mode Rejection Ratio 60 – – dB

OLOA

OHIGHOA

OLOWOA

SOA

Open Loop Gain 80 – – dB

High Output Voltage Swing (internal signals) Vcc - 0.01 – – V

Low Output Voltage Swing (internal signals) – – 0.1 V

Supply Current (including associated AGND buffer)

Power = Low, Opamp Bias = Low – 150 200 μA

Power = Low, Opamp Bias = High – 300 400 μA

Power = Medium, Opamp Bias = Low – 600 800 μA

Power = Medium, Opamp Bias = High – 1200 1600 μA

Power = High, Opamp Bias = Low – 2400 3200 μA

Power = High, Opamp Bias = High – 4600 6400 μA

PSRR

Supply Voltage Rejection Ratio 67 80 – dB Vss ≤ VIN ≤ (Vcc - 2.25) or

(Vcc - 1.25V) ≤ VIN ≤ Vcc.

DC Low Power Comparator Specifications

Table 27. 5V DC Low Power Comparator Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units

REFLPC

SLPC

OSLPC

Low power comparator (LPC) reference voltage range 0.2 – Vcc - 1.0 V

LPC supply current – 10 40 μA

LPC voltage offset – 2.5 30 mV

Document #: 001-43991 Rev. *D Page 24 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Analog Output Buffer Specifications

Table 28. 5V DC Analog Output Buffer Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units

OSOB

TCV

CMOB

OUTOB

Input Offset Voltage (Absolute Value) – 3 12 mV

Average Input Offset Voltage Drift – +6 – μV/°C

OSOB

Common-Mode Input Voltage Range 0.5 – Vcc - 1.0 V

Output Resistance

Power = Low – – 1 Ω

Power = High – – 1 Ω

OHIGHOB

High Output Voltage Swing (Load = 32 ohms to Vcc/2)

Power = Low 0.5 x Vcc + 1.3 – – V

Power = High 0.5 x Vcc + 1.3 – – V

OLOWOB

Low Output Voltage Swing (Load = 32 ohms to Vcc/2)

Power = Low – – 0.5 x Vcc - 1.3 V

Power = High – – 0.5 x Vcc - 1.3 V

SOB

Supply Current Including Bias Cell (No Load)

Power = Low – 1.1 2 mA

Power = High – 2.6 5 mA

PSRR

Supply Voltage Rejection Ratio 40 64 – dB

DC Analog Reference Specifications

Table 29. 5V DC Analog Reference Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units

BG5

Bandgap Voltage Reference 5V 1.28 1.30 1.32 V

– AGND = Vcc/2

– AGND = 2 x BandGap

– AGND = P2[4] (P2[4] = Vcc/2)

– AGND = BandGap

– AGND = 1.6 x BandGap

– AGND Block to Block Variation (AGND = Vcc/2)

[1]

Vcc/2 - 0.02 Vcc/2 Vcc/2 + 0.02 V

[1]

2.52 2.60 2.72 V

P2[4] - 0.013 P2[4] P2[4] + 0.013 V

1.27 1.3 1.34 V

2.03 2.08 2.13 V

-0.034 0.000 0.034 V

– RefHi = Vcc/2 + BandGap Vcc/2 + 1.21 Vcc/2 + 1.3 Vcc/2 + 1.382 V

– RefHi = 3 x BandGap 3.75 3.9 4.05 V

– RefHi = 2 x BandGap + P2[6] (P2[6] = 1.3V) P2[6] + 2.478 P2[6] + 2.6 P2[6] + 2.722 V

– RefHi = P2[4] + BandGap (P2[4] = Vcc/2) P2[4] + 1.218 P2[4] + 1.3 P2[4] + 1.382 V

– RefHi = P2[4] + P2[6] (P2[4] = Vcc/2, P2[6] = 1.3V) P2[4] + P2[6] - 0.058 P2[4] + P2[6] P2[4] + P2[6] + 0.058 V

– RefHi = 2 x BandGap 2.50 2.60 2.70 V

– RefHi = 3.2 x BandGap 4.02 4.16 4.29 V

– RefLo = Vcc/2 – BandGap Vcc/2 - 1.369 Vcc/2 - 1.30 Vcc/2 - 1.231 V

– RefLo = BandGap 1.20 1.30 1.40 V

– RefLo = 2 x BandGap - P2[6] (P2[6] = 1.3V) 2.489 - P2[6] 2.6 - P2[6] 2.711 - P2[6] V

– RefLo = P2[4] – BandGap (P2[4] = Vcc/2) P2[4] - 1.368 P2[4] - 1.30 P2[4] - 1.232 V

– RefLo = P2[4]-P2[6] (P2[4] = Vcc/2, P2[6] = 1.3V) P2[4] - P2[6] - 0.042 P2[4] - P2[6] P2[4] - P2[6] + 0.042 V

Document #: 001-43991 Rev. *D Page 25 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Analog PSoC NV Block Specifications

Table 30. 5V DC Analog PSoC NV Block Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units

Resistor Unit Value (Continuous Time) – 12.2 – kΩ

Capacitor Unit Value (Switch Cap) – 80 – fF

DC POR, SMP, and LVD Specifications

Table 31. 5V DC POR, SMP, and LVD Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units

Vdd Value for PPOR Trip (positive ramp)

PPOR0R

PPOR1R

PPOR2R

PORLEV[1:0] = 00b 2.91 V

PORLEV[1:0] = 01b 4.39 V

PORLEV[1:0] = 10b 4.55 V

Vdd Value for PPOR Trip (negative ramp)

PPOR0

PPOR1

PPOR2

PORLEV[1:0] = 00b 2.82 V

PORLEV[1:0] = 01b 4.39 V

PORLEV[1:0] = 10b 4.55 V

PPOR Hysteresis

PH0

PH1

PH2

PORLEV[1:0] = 00b 92 mV

PORLEV[1:0] = 01b 0 mV

PORLEV[1:0] = 10b 0 mV

Vdd Value for LVD Trip

LVD 0

LVD 1

LVD 2

LVD 3

LVD 4

LVD 5

LVD 6

LVD 7

VM[2:0] = 000b 2.86 2.92 2.98

VM[2:0] = 001b 2.96 3.02 3.08 V

VM[2:0] = 010b 3.07 3.13 3.20 V

VM[2:0] = 011b 3.92 4.00 4.08 V

VM[2:0] = 100b 4.39 4.48 4.57 V

VM[2:0] = 101b 4.55 4.64 4.74 V

VM[2:0] = 110b 4.63 4.73 4.82 V

VM[2:0] = 111b 4.72 4.81 4.91 V

[2]

Vdd Value for SMP Trip

PUMP0

PUMP1

PUMP2

PUMP3

PUMP4

PUMP5

PUMP6

PUMP7

VM[2:0] = 000b 2.96 3.02 3.08 V

VM[2:0] = 001b 3.03 3.10 3.16 V

VM[2:0] = 010b 3.18 3.25 3.32 V

VM[2:0] = 011b 4.11 4.19 4.28 V

VM[2:0] = 100b 4.55 4.64 4.74 V

VM[2:0] = 101b 4.63 4.73 4.82 V

VM[2:0] = 110b 4.72 4.82 4.91 V

VM[2:0] = 111b 4.90 5.00 5.10 V

Document #: 001-43991 Rev. *D Page 26 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

DC Programming Specifications

Table 32. 5V DC Programming Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

DDPV

ILP

IHP

ILP

IHP

OLV

OHV

Flash

Supply Current During Programming or Verify – 10 30 mA

Input Low Voltage During Programming or Verify – – 0.8 V

Input High Voltage During Programming or Verify 2.2 – – V

Input Current when Applying Vilp to P1[0] or P1[1] During Programming or Verify

Input Current when Applying Vihp to P1[0] or P1[1] During Programming or Verify

Output Low Voltage During Programming or

– – 0.2 mA Driving internal pull

down resistor.

– – 1.5 mA Driving internal pull

down resistor.

– – Vss + 0.75 V

Verify

Output High Voltage During Programming or

Vcc - 1.0 – Vcc V

Verify

Flash Endurance (per block) 50,000 – – – Erase/write cycles per

ENPB

Flash Endurance (total)

ENT

Flash Data Retention 10 – – Ye ar s

[3]

1,800,000 – – – Erase/write cycles.

block.

Document #: 001-43991 Rev. *D Page 27 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Electrical Characteristics

The following AC electrical specifications lists the guaranteed maximum and minimum specifications for the voltage and temperature range: 4.75V to 5.25V over the Temperature range of -40°C ≤ T guidance only.

AC Chip Level Specifications

Table 33. 5V AC Chip Level Specifications (CY8CNP102E)

Symbol Description Min Ty p Max Units Notes

IMO24

IMO6

CPU1

48M

24M

32K1

32K2

PLL

Internal Main Oscillator Frequency for 24 MHz 23.4 24 24.6

Internal Main Oscillator Frequency for 6 MHz 5.75 6 6.35

CPU Frequency (5V Nominal) 0.93 24 24.6

Digital PSoC Block Frequency 0 48 49.2

Digital PSoC Block Frequency 0 24 24.6

Internal Low Speed Oscillator Frequency 15 32 64 kHz

External Crystal Oscillator – 32.768 – kHz Accuracy is capacitor and

PLL Frequency – 23.986 – MHz A multiple (x732) of crystal

Jitter24M2 24 MHz Period Jitter (PLL) – – 600 ps

PLLSLEW

PLLSLEWLOW

OSACC

PLL Lock Time 0.5 – 10 ms

PLL Lock Time for Low Gain Setting 0.5 – 50 ms

External Crystal Oscillator Startup to 1% – 250 500 ms

External Crystal Oscillator Startup to 100 ppm – 300 600 ms The crystal oscillator

Jitter32k 32 kHz Period Jitter – 100 ns

XRST

External Reset Pulse Width 10 – – μs

DC24M 24 MHz Duty Cycle 40 50 60 %

Step24M 24 MHz Trim Step Size – 50 – kHz

Fout48M 48 MHz Output Frequency 46.8 48.0 49.2

Jitter24M1 24 MHz Period Jitter (IMO) – 600 ps

MAX

RAMP

Maximum frequency of signal on row input or row output.

Supply Ramp Time 0 – – μs

≤ 85°C. Typical parameters apply to 5V at 25°C and are for design

[4, 5, 6]

MHz Trimmed for 5V operation

using factory trim values. See Figure 5 on page 9. SLIMO Mode = 0.

[4 , 5, 6]

MHz Trimmed for 5V operation

using factory trim values. See Figure 5 on page 9. SLIMO Mode = 1.

[4, 5]

[4, 5, 7]

MHz

MHz Refer to AC Digital Block

Specifications on page 30.

[5, 7]

MHz

crystal dependent. 50% duty cycle.

frequency.

frequency is within 100 ppm of its final value by the end of the T operation assumes a

period. Correct

osacc

properly loaded 1 uW maximum drive level 32.768 kHz crystal.

[4,6]

MHz Trimmed. Using factory trim

values.

– – 12.3 MHz

Document #: 001-43991 Rev. *D Page 28 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

In the following table, t

TFallF TFallS

TRise F

TRiseS

90%

10%

GPIO

Output

Voltage

HRECALL

starts from the time Vcc rises above V

SWITCH.

If an SRAM WRITE has not taken place since the last

nonvolatile cycle, no STORE takes place. Industrial grade devices require 15 ms maximum.

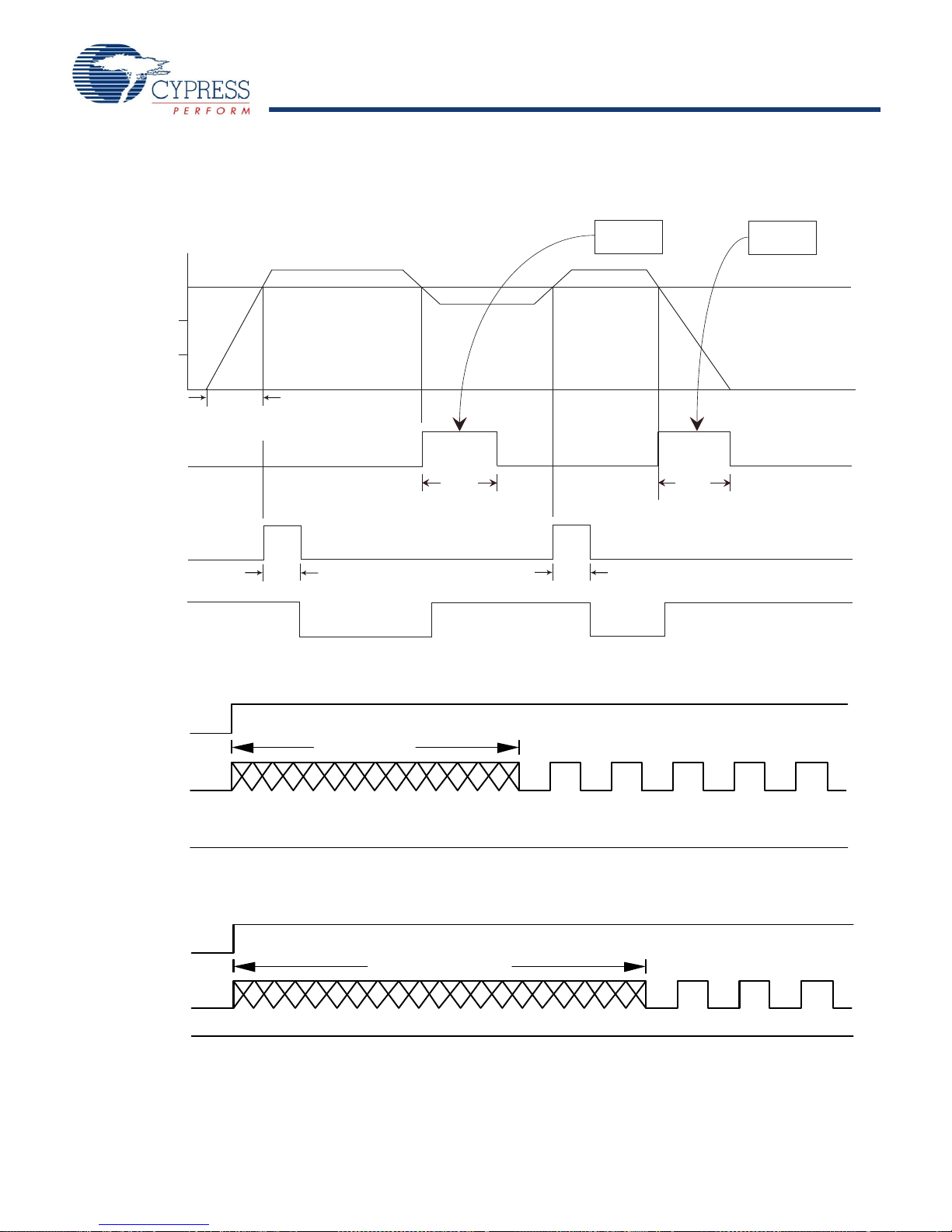

Table 34. 5V nvSRAM AutoStore/Power Up RECALL (CY8CNP102E)

Parameter Description

HRECALL

STORE

SWITCH

VccRISE

Power Up RECALL Duration 20 ms

STORE Cycle Duration 12.5 ms

Low Voltage Trigger Level 4.4 V

VCC Rise Time 150 μs

nvSRAM

Min Max

AC General Purpose IO Specifications

Table 35. 5V AC GPIO Specifications (CY8CNP102E)

Symbol Description Min Typ Max Units Notes

GPIO

GPIO Operating Frequency 0 – 12.3 MHz Normal Strong Mode

TRiseF Rise Time, Normal Strong Mode, Cload = 50 pF 3 – 18 ns Vcc = 4.75V to 5.25V

10% - 90%

TFallF Fall Time, Normal Strong Mode, Cload = 50 pF 2 – 18 ns Vcc = 4.75V to 5.25V

10% - 90%

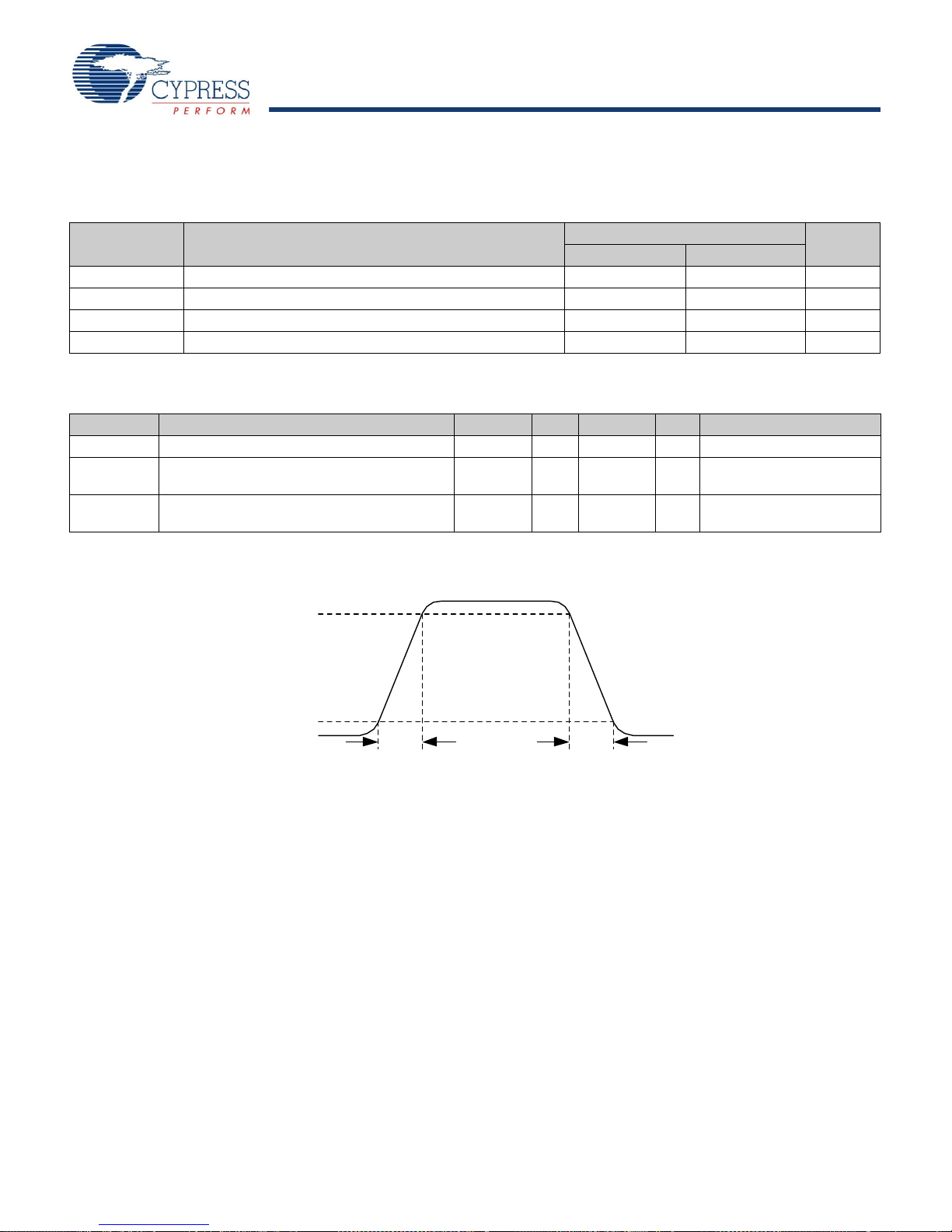

Figure 7. GPIO Timing Diagram

Unit

Document #: 001-43991 Rev. *D Page 29 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Operational Amplifier Specifications

Settling times, slew rates, and gain bandwidth are based on the Analog Continuous Time PSoC block.

Table 36. 5V AC Operational Amplifier Specifications (CY8CNP102E)

Symbol Description Min Ty p Max Units

ROA

Rising Settling Time to 0.1% for a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low – – 3.9 μs

Power = Medium, Opamp Bias = High – – 0.72 μs

Power = High, Opamp Bias = High – – 0.62 μs

SOA

Falling Settling Time to 0.1% for a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low – – 5.9 μs

Power = Medium, Opamp Bias = High – – 0.92 μs

Power = High, Opamp Bias = High – – 0.72 μs

ROA

Rising Slew Rate (20% to 80%) of a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low 0.15 – – V/μs

Power = Medium, Opamp Bias = High 1.7 – – V/μs

Power = High, Opamp Bias = High 6.5 – – V/μs

FOA

Falling Slew Rate (20% to 80%) of a 1V Step (10 pF load, Unity Gain)

Power = Low, Opamp Bias = Low 0.01 – – V/μs

Power = Medium, Opamp Bias = High 0.5 – – V/μs

Power = High, Opamp Bias = High 4.0 – – V/μs

Gain Bandwidth Product

Power = Low, Opamp Bias = Low 0.75 – – MHz

Power = Medium, Opamp Bias = High 3.1 – – MHz

Power = High, Opamp Bias = High 5.4 – – MHz

NOA

Noise at 1 kHz (Power = Medium, Opamp Bias = High) – 100 – nV/rt-Hz

AC Digital Block Specifications

Table 37. 5V AC Digital Block Specifications (CY8CNP102E)

Function Description Min Ty p Max Units Notes

All

Maximum Block Clocking Frequency 49.2 MHz 4.75V ≤ Vcc ≤ 5.25V.

Functions

Timer Capture Pulse Width 50

Maximum Frequency, No Capture

Maximum Frequency, With Capture

Counter Enable Pulse Width 50

Maximum Frequency, No Enable Input – – 49.2 MHz 4.75V ≤ Vcc ≤ 5.25V.

Maximum Frequency, Enable Input – – 24.6 MHz 4.75V ≤ Vcc ≤ 5.25V.

Dead Band Kill Pulse Width:

Asynchronous Restart Mode 20 – – ns

Synchronous Restart Mode 50

Disable Mode 50

Maximum Frequency – – 49.2 MHz 4.75V ≤ Vcc ≤ 5.25V

CRCPRS

Maximum Input Clock Frequency – – 49.2 MHz 4.75V ≤ Vcc ≤ 5.25V

(PRS Mode)

Document #: 001-43991 Rev. *D Page 30 of 38

[8]

– – ns

– – 49.2 MHz 4.75V ≤ Vcc ≤ 5.25V.

– – 24.6 MHz 4.75V ≤ Vcc ≤ 5.25V.

[8]

– – ns

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Table 37. 5V AC Digital Block Specifications (CY8CNP102E) (continued)

Function Description Min Ty p Max Units Notes

CRCPRS

Maximum Input Clock Frequency – – 24.6 MHz 4.75V ≤ Vcc ≤ 5.25V.

(CRC Mode)

SPIM Maximum Input Clock Frequency – – 8.2 MHz Maximum data rate at

4.1 MHz due to 2 x over clocking.

SPIS Maximum Input Clock Frequency – – 4.1 ns

Width of SS_ Negated Between Transmis-

[8]

– – ns

sions

Transmitter Maximum Input Clock Frequency

Vcc ≥ 4.75V, 2 Stop Bits

– – 24.6 MHz Maximum data rate at

3.08 MHz due to 8 x over clocking.

– – 49.2 MHz Maximum data rate at

6.15 MHz due to 8 x over clocking.

Receiver Maximum Input Clock Frequency

Vcc ≥ 4.75V, 2 Stop Bits

– – 24.6 MHz Maximum data rate at

3.08 MHz due to 8 x over clocking.

– – 49.2 MHz Maximum data rate at

6.15 MHz due to 8 x over clocking.

AC Analog Output Buffer Specifications

Table 38. 5V AC Analog Output Buffer Specifications (CY8CNP102E)

Symbol Description Min Ty p Max Units

ROB

Rising Settling Time to 0.1%, 1V Step, 100 pF Load

Power = Low – – 4 μs

Power = High – – 4 μs

SOB

Falling Settling Time to 0.1%, 1V Step, 100 pF Load

Power = Low – – 3.4 μs

Power = High – – 3.4 μs

ROB

Rising Slew Rate (20% to 80%), 1V Step, 100 pF Load

Power = Low 0.5 – – V/μs

Power = High 0.5 – – V/μs

FOB

Falling Slew Rate (80% to 20%), 1V Step, 100 pF Load

Power = Low 0.55 – – V/μs

Power = High 0.55 – – V/μs

Small Signal Bandwidth, 20mVpp, 3dB BW, 100 pF Load

Power = Low 0.8 – – MHz

Power = High 0.8 – – MHz

Large Signal Bandwidth, 1Vpp, 3dB BW, 100 pF Load

Power = Low 300 – – kHz

Power = High 300 – – kHz

Document #: 001-43991 Rev. *D Page 31 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

AC Programming Specifications

Table 39. 5V AC Programming Specifications (CY8CNP102E)

Symbol Description Min Ty p Max Units Notes

RSCLK

FSCLK

SSCLK

HSCLK

SCLK

ERASEB

WRITE

DSCLK

Rise Time of SCLK 1 – 20 ns

Fall Time of SCLK 1 – 20 ns

Data Set up Time to Falling Edge of SCLK 40 – – ns

Data Hold Time from Falling Edge of SCLK 40 – – ns

Frequency of SCLK 0 – 8 MHz

Flash Erase Time (Block) – 10 – ms

Flash Block Write Time – 10 – ms

Data Out Delay from Falling Edge of SCLK – – 45 ns 4.75V ≤ Vcc ≤ 5.25V

AC I2C Specifications

Table 40. 5V AC Characteristics of the I2C SDA and SCL Pins (CY8CNP102E)

Symbol Description

SCLI2C

HDSTAI2C

LOWI2C

HIGHI2C

SUSTAI2C

HDDATI2C

SUDATI2C

SUSTOI2C

BUFI2C

SPI2C

SCL Clock Frequency 0 100 0 400 kHz

Hold Time (repeated) START Condition. After this period, the first clock pulse is generated.

LOW Period of the SCL Clock 4.7 –1.3– μs

HIGH Period of the SCL Clock 4.0 –0.6– μs

Setup Time for a Repeated START Condition 4.7 –0.6– μs

Data Hold Time 0 –0– μs

Data Setup Time 250 – 100

Setup Time for STOP Condition 4.0 –0.6– μs

Bus Free Time Between a STOP and START Condition 4.7 –1.3– μs

Pulse Width of spikes are suppressed by the input filter. – –050ns

Standard Mode Fast Mode

Min Max Min Max

4.0 –0.6– μs

[9]

–ns

Units

Document #: 001-43991 Rev. *D Page 32 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Switching Waveforms

SWITCH

STORE

HRECALL

AutoStore

POWER-UP RECALL

Read & Write Inhibited

STORE occurs only if a SRAM write has happened

No STORE occurs without atleast one SRAM write

VCCRISE

24 MHz

PLL

Enable

PLLSLE W

PLL

Gain

24 MHz

PLL

Enable

PLLS LEW LOW

PLL

Gain

Figure 8. AutoStore/Power Up RECALL

Figure 10. PLL Lock for Low Gain Setting Timing Diagram

Document #: 001-43991 Rev. *D Page 33 of 38

Figure 9. PLL Lock Timing Diagram

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

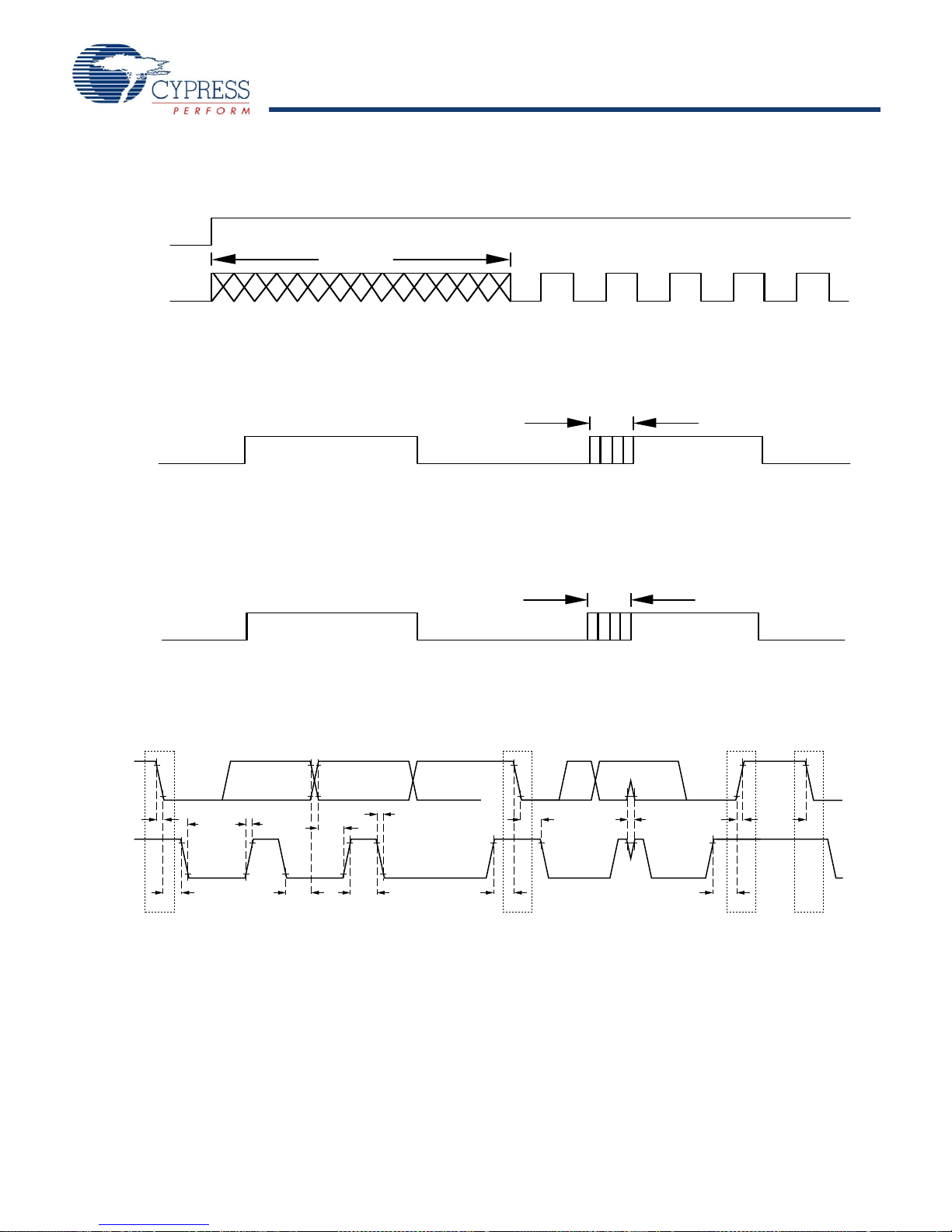

Switching Waveforms (continued)

32 kHz

32K2

32K

Select

Jitter24M1

24M

Jitter32k

32K2

~~~

Figure 11. External Crystal Oscillator Startup Timing Diagram

Figure 12. 24 MHz Period Jitter (IMO) Timing Diagram

Figure 13. 32 kHz Period Jitter (ECO) Timing Diagram

Figure 14. Definition of Timing for Fast/Standard Mode on the I

SDA

LOWI2C

SCL

HDSTAI2C

HDDATI2C

Document #: 001-43991 Rev. *D Page 34 of 38

C Bus

SUDATI2C

HIGHI2C

SUSTAI2C

HDSTAI2C

SPI2C

SUSTOI2C

BUFI2C

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Part Numbering Nomenclature

C Y 8 C N P 1 0 2 B - A X I

Cypress

Microcontroller

C = CMOS

NP = PSoC NV Family

Processor Type:

1 = M8C (PSoC1 Based)

Density: 01 = 1Mb 02 = 2Mb

12 = 512Kb

B = 3.3V

E = 5V

A = 100TQFP

X = Pb free

C = Commercial

I = Industrial

Temp:

Ordering Information

Ordering Code Package Diagram Package Type Operating Range

CY8CNP102B-AXI 51 - 85048 100-pin TQFP Industrial

CY8CNP102E-AXI 51 - 85048 100-pin TQFP

All the above mentioned parts are of “Pb-free” type and contain preliminary information. Please contact your local Cypress sales representative for availability of these parts.

Document #: 001-43991 Rev. *D Page 35 of 38

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Packaging Information

51-85048 *C

Note

10. * T

= TA + POWER x θ

This section describes the packaging specifications for the PSoC NV device and the thermal impedances for TQFP package.

Note Emulation tools may require a larger area on the target PCB than the chip’s footprint. For a detailed description of the emulation

tool dimensions, refer to the document “PSoC Emulator Pod Dimensions” at http://www.cypress.com/design/MR10161.

Package Diagrams

Figure 15. 100-Pin TQFP - 14 x 14 x 1.4 mm

Thermal Impedance

Table 41. Thermal Impedance

Package

100 TQFP 26.14 oC/W 5.81 oC/W

Document #: 001-43991 Rev. *D Page 36 of 38

[10]

Typ i c al θ

* Typica l θ

[+] Feedback

PRELIMINARY CY8CNP102B, CY8CNP102E

Document History Page

Document Title: CY8CNP102B/CY8CNP102E Nonvolatile Programmable System-on-Chip (PSoC® NV) Document Number: 001-43991

REV. ECN Orig. of Change

** 1941108 vsutmp8/AESA See ECN New Data Sheet

*A 2378513 PYRS See ECN Move to external web

*B 2512803 GVCH/PYRS 06/05/2008 Features: Added total no. of GPIO information in Programmable Pin

*C 2571208 GVCH/PYRS 09/23/08 Changed Title from nvPSoC to PSoC NV

*D 2594976 GVCH/PYRS 10/22/08 Added M8C processor speeds for 3.3V and 5V operation in “Features”

Submission

Date

Description of Change

configurations Changed Pin no.14 from P3_7 to NC in the Pin diagram Table 1: Updated Pin definitions Table 5: Changed Typ and max value of I

from 25 mA and 29mA to 36 mA

and 40 mA resp. Table 5: Changed Typ and max value of I

from 15 mA and 16 mA to

DDP

27 mA and 28 mA respectively. Table 5: Changed Min and Max value of V

from 56 uF and 100 uF to

CAP

61 uF and 82 uF resp. Table 6: Changed V

min value from 2.1 mV to 1.6 mV

Added Table 12: DC POR,SMP, and LVD specifications Table 13: Changed I

naming convention to I

DDP

DDPV

Table 14: Updated note references Table 17: Updated Timer, Counter, deadband and CRCPS (PRS mode) values Table 23: Changed Typ and max value of I

from 28 mA and 34 mA to

39 mA and 45 mA resp. Table 23: Changed Typ and max value of I

from 15 mA and 16 mA to

DDP

27 mA and 28 mA resp. Table 23: Changed Min and Max value of V

from 56 uF and 100 uF to

CAP

61 uF and 82 uF resp. Added Table 30: DC POR,SMP, and LVD specifications Table 31: Changed I

naming convention to I

DDP

DDPV

table 32: Updated note references Updated Figure 14: Definition for Timing for Fast/Standard Mode on the I2C bus Updated part Numbering Nomenclature Updated Thermal Impedance table Updated data sheet template

Updated “Features”

Updated Logic block diagram Changed total GPIOs from 27 to 33 Changed pin number 53 name from P1_4 to P1_6 Changed pin definition of pin 79 and 99 Table 5: Changed I

from 3 mA to 5 mA

Updated Table 12 Table 24: Changed I

from 3 mA to 5 mA

Document #: 001-43991 Rev. *D Page 37 of 38

[+] Feedback

CY8CNP102B, CY8CNP102EPRELIMINARY

Sales, Solutions, and Legal Information

Worldwide Sales and Design Support

Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office closest to you, visit us at cypress.com/sales.

Products

PSoC psoc.cypress.com

Clocks & Buffers clocks.cypress.com

Wireless wireless.cypress.com

Memories memory.cypress.com

Image Sensors image.cypress.com

PSoC Solutions

General psoc.cypress.com/solutions

Low Power/Low Voltage psoc.cypress.com/low-power

Precision Analog psoc.cypress.com/precision-analog

LCD Drive psoc.cypress.com/lcd-drive

CAN 2.0b psoc.cypress.com/can

USB psoc.cypress.com/usb

© Cypress Semiconductor Corporation, 2008. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circ uitry embodied in a Cypress product. Nor does it con vey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of, and compile the Cypress Sou rce Code and derivative works for the sole purpose of cr eating custom software and or firmware in support of licensee product to be used only in conjunction with a Cypress integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document #: 001-43991 Rev. *D Revised October 20, 2008 Page 38 of 38

PSoC Designer™, Programmable System-on-Chip™, and PSoC Express™ are trademarks and PSoC® is a registered trademark of Cypress Semiconductor Corp. All other trademarks or registered trademarks referenced herein are property of the respective corporations. AutoStore and QuantumTrap are registered trademarks of Simtek Corporation. All products and company names mentioned in this document are the trademarks of their respective holders.

[+] Feedback

Cypress Semiconductor CY8CNP102B, CY8CNP102E Specification Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
