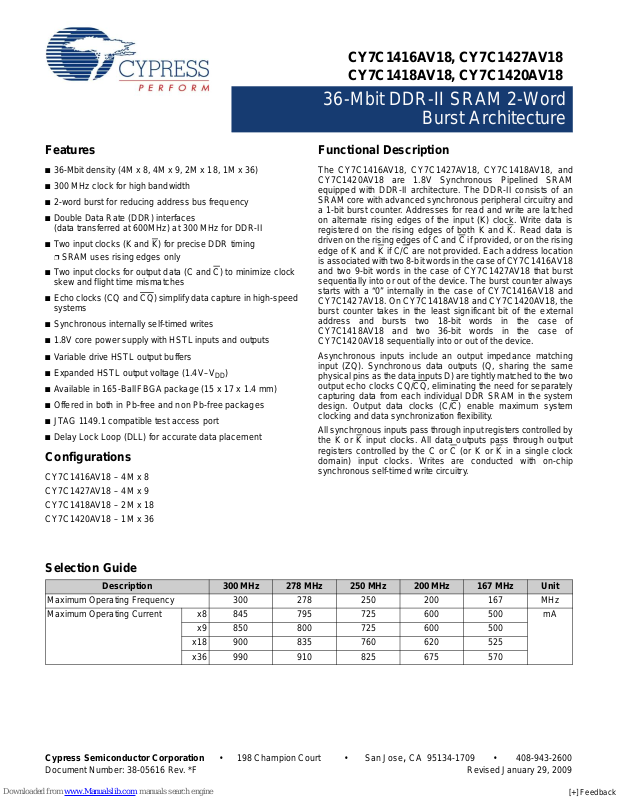

36-Mbit DDR-II SRAM 2-Word

Burst Architecture

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Features

Functional Description

■ 36-Mbit density (4M x 8, 4M x 9, 2M x 18, 1M x 36)

■ 300 MHz clock for high bandwidth

■ 2-word burst for reducing address bus frequency

■ Double Data Rate (DDR) interfaces

(data transferred at 600MHz) at 300 MHz for DDR-II

■ Two input clocks (K and K) for precise DDR timing ❐ SRAM uses rising edges only

■ Two input clocks for output data (C and C) to minimize clock

skew and flight time mismatches

■ Echo clocks (CQ and CQ) simplify data capture in high-speed

systems

■ Synchronous internally self-timed writes

■ 1.8V core power supply with HSTL inputs and outputs

■ Variable drive HSTL output buffers

■ Expanded HSTL output voltage (1.4V–V

■ Available in 165-Ball FBGA package (15 x 17 x 1.4 mm)

■ Offered in both in Pb-free and non Pb-free packages

■ JTAG 1149.1 compatible test access port

■ Delay Lock Loop (DLL) for accurate data placement

)

Configurations

CY7C1416AV18 – 4M x 8 CY7C1427AV18 – 4M x 9 CY7C1418AV18 – 2M x 18 CY7C1420AV18 – 1M x 36

The CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, and CY7C1420AV18 are 1.8V Synchronous Pipelined SRAM equipped with DDR-II architecture. The DDR-II consists of an SRAM core with advanced synchronous peripheral circuitry and a 1-bit burst counter. Addresses for read and write are latched on alternate rising edges of the input (K) clock. Write data is registered on the rising edges of both K and K driven on the rising edges of C and C edge of K and K is associated with two 8-bit words in the case of CY7C1416AV18 and two 9-bit words in the case of CY7C1427AV18 that burst sequentially into or out of the device. The burst counter always starts with a “0” internally in the case of CY7C1416AV18 and CY7C1427AV18. On CY7C1418AV18 and CY7C1420AV18, the burst counter takes in the least significant bit of the external address and bursts two 18-bit words in the case of CY7C1418AV18 and two 36-bit words in the case of CY7C1420AV18 sequentially into or out of the device.

Asynchronous inputs include an output impedance matching input (ZQ). Synchronous data outputs (Q, sharing the same physical pins as the data inputs D) are tightly matched to the two output echo clocks CQ/CQ capturing data from each individual DDR SRAM in the system design. Output data clocks (C/C) enable maximum system clocking and data synchronization flexibility.

All synchronous inputs pass through input registers controlled by the K or K registers controlled by the C or C domain) input clocks. Writes are conducted with on-chip synchronous self-timed write circuitry.

if C/C are not provided. Each address location

, eliminating the need for separately

input clocks. All data outputs pass through output

if provided, or on the rising

(or K or K in a single clock

. Read data is

Selection Guide

Description 300 MHz 278 MHz 250 MHz 200 MHz 167 MHz Unit

Maximum Operating Frequency 300 278 250 200 167 MHz Maximum Operating Current x8 845 795 725 600 500 mA

x9 850 800 725 600 500 x18 900 835 760 620 525 x36 990 910 825 675 570

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Document Number: 38-05616 Rev. *F Revised January 29, 2009

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Logic Block Diagram (CY7C1416AV18)

Write Reg

CLK

(20:0)

Gen.

Control

Logic

Address

Read Add. Decode

Read Data Reg.

R/W

Output

Logic

Reg.

NWS

[1:0]

REF

Write Add. Decode

Control

R/W

DOFF

2M x 8 Array

[7:0]

CQ CQ

Write Reg

CLK

(20:0)

Gen.

Control

Logic

Address Register

Read Add. Decode

Read Data Reg.

R/W

Output

Logic

Reg.

BWS

[0]

REF

Write Add. Decode

Control

R/W

DOFF

2M x 9 Array

[8:0]

CQ CQ

Logic Block Diagram (CY7C1427AV18)

Document Number: 38-05616 Rev. *F Page 2 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Logic Block Diagram (CY7C1418AV18)

Write Reg

CLK

(20:0)

Gen.

Control

Logic

Address

Read Add. Decode

Read Data Reg.

R/W

Output

Logic

Reg.

BWS

[1:0]

REF

Write Add. Decode

Control

Burst Logic

(20:1)

R/W

DOFF

1M x 18 Array

[17:0]

CQ CQ

Write Reg

CLK

(19:0)

Gen.

Control

Logic

Address

Read Add. Decode

Read Data Reg.

R/W

Output

Logic

Reg.

BWS

[3:0]

REF

Write Add. Decode

Control

Burst Logic

(19:1)

R/W

DOFF

512K x 36 Array

[35:0]

CQ CQ

Logic Block Diagram (CY7C1420AV18)

Document Number: 38-05616 Rev. *F Page 3 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Pin Configuration

Note

1. NC/72M, NC/144M, and NC/288M are not connected to the die and can be tied to any voltage level.

The pin configuration for CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, and CY7C1420AV18 follow.

165-Ball FBGA (15 x 17 x 1.4 mm) Pinout

CY7C1416AV18 (4M x 8)

1 2 3 4 5 6 7 8 9 10 11

A CQ NC/72M A R/W NWS

B NC NC NC A NC/288M K NWS C NC NC NC V D NC NC NC V E NC NC DQ4 V F NC NC NC V G NC NC DQ5 V H DOFF V

REF

DDQ

J NC NC NC V K NC NC NC V L NC DQ6 NC V M NC NC NC V N NC NC NC V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSNC NC NC

P NC NC DQ7 A A C A A NC NC NC R TDO TCK A A A C AAATMSTDI

K NC/144M LD AACQ

ANCNCDQ3

DDQ

[1]

NC NC NC NC NC DQ2 NC NC NC NC NC NC

DDQ

REF

NC DQ1 NC NC NC NC NC NC DQ0 NC NC NC

CY7C1427AV18 (4M x 9)

1 2 3 4 5 6 7 8 9 10 11

A CQ NC/72M A R/W NC K NC/144M LD AACQ B NC NC NC A NC/288M K BWS C NC NC NC V D NC NC NC V E NC NC DQ4 V F NC NC NC V G NC NC DQ5 V H DOFF V

REF

DDQ

J NC NC NC V K NC NC NC V L NC DQ6 NC V M NC NC NC V N NC NC NC V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSNC NC NC

ANCNCDQ3

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

NC NC NC NC NC DQ2 NC NC NC NC NC NC

DDQ

REF

NC DQ1 NC NC NC NC NC NC DQ0 NC NC NC

P NC NC DQ7 A A C A A NC NC DQ8 R TDO TCK A A A C AAATMSTDI

Document Number: 38-05616 Rev. *F Page 4 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Pin Configuration (continued)

The pin configuration for CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, and CY7C1420AV18 follow.

165-Ball FBGA (15 x 17 x 1.4 mm) Pinout

CY7C1418AV18 (2M x 18)

1 2 3 4 5 6 7 8 9 10 11

A CQ NC/72M A R/W BWS

B NC DQ9 NC A NC/288M K BWS C NC NC NC V D NC NC DQ10 V E NC NC DQ11 V F NC DQ12 NC V G NC NC DQ13 V H DOFF V

REF

DDQ

J NC NC NC V K NC NC DQ14 V L NC DQ15 NC V M NC NC NC V N NC NC DQ16 V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AA0AVSSNC DQ7 NC

AAAVSSNC NC NC

P NC NC DQ17 A A C A A NC NC DQ0 R TDO TCK A A A C AAATMSTDI

K NC/144M LD AACQ

ANCNCDQ8

DDQ

[1]

NC NC NC NC NC DQ6 NC NC DQ5 NC NC NC

DDQ

REF

NC DQ4 NC NC NC DQ3 NC NC DQ2 NC DQ1 NC

CY7C1420AV18 (1M x 36)

1 2 3 4 5 6 7 8 9 10 11

A CQ NC/144M A R/W BWS B NC DQ27 DQ18 A BWS C NC NC DQ28 V D NC DQ29 DQ19 V E NC NC DQ20 V F NC DQ30 DQ21 V G NC DQ31 DQ22 V H DOFF V

REF

DDQ

J NC NC DQ32 V K NC NC DQ23 V L NC DQ33 DQ24 V M NC NC DQ34 V N NC DQ35 DQ25 V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AA0AVSSNC DQ17 DQ7

AAAVSSNC NC DQ10

2 3

K BWS

LD A NC/72M CQ

KBWS0ANCNCDQ8

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

NC NC DQ16 NC DQ15 DQ6 NC NC DQ5 NC NC DQ14

DDQ

REF

ZQ NC DQ13 DQ4 NC DQ12 DQ3 NC NC DQ2 NC DQ11 DQ1

P NC NC DQ26 A A C A A NC DQ9 DQ0 R TDO TCK A A A C AAATMSTDI

Document Number: 38-05616 Rev. *F Page 5 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Pin Definitions

Pin Name IO Pin Description

[x:0]

Input OutputSynchronous

LD Input-

Synchronous

NWS NWS

0 1

Input-

Synchronous

Data Input Output Signals. Inputs are sampled on the rising edge of K and K operations. These pins drive out the requested data during a read operation. Valid data is driven out on the rising edge of both the C and C clocks during read operations or K and K when in single clock mode. When read access is deselected, Q CY7C1416AV18 − DQ CY7C1427AV18 − DQ CY7C1418AV18 − DQ CY7C1420AV18 − DQ

[7:0] [8:0] [17:0] [35:0]

are automatically tri-stated.

[x:0]

Synchronous Load. This input is brought LOW when a bus cycle sequence is defined. This definition includes address and read/write direction. All transactions operate on a burst of 2 data. LD the setup and hold times around edge of K.

Nibble Write Select 0, 1 − Active LOW (CY7C1416AV18 only). Sampled on the rising edge of the K

clocks during write operations. Used to select which nibble is written into the device during the

and K current portion of the write operations. Nibbles not written remain unaltered. NWS

controls D

All the Nibble Write Selects are sampled on the same edge as the data. Deselecting a Nibble Write Select

and NWS1 controls D

[3:0]

[7:4]

ignores the corresponding nibble of data and it is not written into the device.

BWS BWS BWS BWS

2 3

Input-

Synchronous

Byte Write Select 0, 1, 2, and 3 − Active LOW . Sampled on the rising edge of the K and K clocks during write operations. Used to select which byte is written into the device during the current portion of the write operations. Bytes not written remain unaltered. CY7C1427AV18 − BWS CY7C1418AV18 − BWS0 controls D CY7C1420AV18 − BWS0 controls D

[35:27]

All the Byte Write Selects are sampled on the same edge as the data.

controls D

[8:0]

and BWS1 controls D

[8:0]

, BWS1 controls D

[8:0]

[17:9].

, BWS2 controls D

[17:9]

Deselecting a Byte Write Select

ignores the corresponding byte of data and it is not written into the device

A, A0 Input-

Synchronous

Address Inputs. These address inputs are multiplexed for both read and write operations. Internally, the device is organized as 4M x 8 (2 arrays each of 2M x 8) for CY7C1416AV18, 4M x 9 (2 arrays each of 2M x 9) for CY7C1427AV18, 2Mx 18 (2 arrays each of 1M x 18) for CY7C1418AV18, and 1M x 36 (2 arrays each of 512K x 36) for CY7C1420AV18. CY7C1416AV18 – Since the least significant bit of the address internally is a “0,” only 21 external address inputs are needed to access the entire memory array. CY7C1427AV18 – Since the least significant bit of the address internally is a “0,” only 21 external address inputs are needed to access the entire memory array. CY7C1418AV18 – A0 is the input to the burst counter . These are incremented in a linear fashion internally. 21 address inputs are needed to access the entire memory array. CY7C1420AV18 – A0 is the input to the burst counter . These are incremented in a linear fashion internally. 20 address inputs are needed to access the entire memory array. All the address inputs are ignored when the appropriate port is deselected.

R/W

Input-

Synchronous

Synchronous Read or Write In put. When LD is LOW , this input designates the access type (read when R/W

is HIGH, write when R/W is LOW) for loaded address. R/W must meet the setup and hold times

around edge of K.

C Input Clock Positive Input Clock for Output Data. C is used in conjunction with C

the device. Use the C and C

together to deskew the flight times of various devices on the board back to

the controller. See Application Example on page 9 for further details.

Input Clock

Negative

the device. Use the C and C

Input Clock for Output Data. C is used in conjunction with C to clock out the read data from

together to deskew the flight times of various devices on the board back to

the controller. See Application Example on page 9 for further details.

K Input Clock Positive Input Clock In put. The rising edge of K is used to capture synchronous inputs to the device

and to drive out data through Q edge of K.

Input Clock Negative Input Clock Input. K is used to capture synchronous data being presented to the device and

to drive out data through Q

[x:0]

when in single clock mode. All accesses are initiated on the rising

[x:0]

when in single clock mode.

clocks during valid write

must meet

and BWS3 controls

[26:18],

to clock out the read data from

Document Number: 38-05616 Rev. *F Page 6 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Pin Definitions (continued)

Pin Name IO Pin Description

CQ Output Clock CQ Referenced with Respect to C. This is a free-running clock and is synchronized to the input clock

ZQ Input Output Impedance Matching Inpu t. This input is used to tune the device outputs to the system data bus

DOFF

TDO Output TDO for JTAG. TCK Input TCK Pin for JTAG. TDI Input TDI Pin for JTAG. TMS Input TMS Pin for JTAG. NC N/A Not Connected to the Die. Tie to any voltage level. NC/72M N/A Not Connected to the Die. Tie to any voltage level. NC/144M N/A Not Connected to the Die. Tie to any voltage level. NC/288M N/A Not Connected to the Die. Tie to any voltage level. V

REF

DDQ

Output Clock

Input DLL Turn Off − Active LOW . Connecting this pin to ground turns off the DLL inside the device. The timing

Input-

Reference

Power Supply Power Supply Inputs to the Core of the Device.

Ground Ground for the Device.

Power Supply Power Supply Inputs for the Outputs of the Device.

for output data (C) of the DDR-II. In the single clock mode, CQ is generated with respect to K. The timing for the echo clocks is shown in the Switching Characteristics on page 23.

Referenced with Respect to C. This is a free-running clock and is synchronized to the input clock

for output data (C for the echo clocks is shown in the Switching Characteristics on page 23.

impedance. CQ, CQ between ZQ and ground. Alternatively, connect this pin directly to V impedance mode. This pin cannot be connected directly to GND or left unconnected.

in the DLL turned off operation differs from those listed in this data sheet.

Reference Voltage Input. Static input used to set the reference level for HSTL inputs, outputs, and AC measurement points.

) of the DDR-II. In the single clock mode, CQ is generated with respect to K. The timing

, and Q

output impedance are set to 0.2 x RQ, where RQ is a resistor connected

[x:0]

, which enables the minimum

DDQ

Document Number: 38-05616 Rev. *F Page 7 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Functional Overview

The CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, and CY7C1420AV18 are synchronous pipelined Burst SRAMs equipped with a DDR interface.

Accesses are initiated on the rising edge of the positive input clock (K). All synchronous input timing is referenced from the rising edge of the input clocks (K and K referenced to the rising edge of the output clocks (C/C when in single clock mode).

All synchronous data inputs (D

[x:0]

controlled by the rising edge of the input clocks (K and K). All synchronous data outputs (Q

[x:0]

controlled by the rising edge of the output clocks (C/C or K/K when in single clock mode).

All synchronous control (R/W

, LD, BWS

input registers controlled by the rising edge of the input clock (K). CY7C1418AV18 is described in the following sections. The same

basic descriptions apply to CY7C1416AV18, CY7C1427AV18 and CY7C1420AV18.

Read Operations for DDR-II

The CY7C1418AV18 is organized internally as two arrays of 1M x 18. Accesses are completed in a burst of two sequential 18-bit data words. Read operations are initiated by asserting R/W HIGH and LD LOW at the rising edge of the positive input clock (K). The address presented to address inputs is stored in th e read address register and the least significant bit of the address is presented to the burst counter. The burst counter increments the address in a linear fashion. Following the next K clock rise, the corresponding 18-bit word of data from this address location is driven onto the Q

using C as the output timing reference.

[17:0]

On the subsequent rising edge of C the next 18-bit data word from the address location generated by the burst counter is driven onto the Q

. The requested data is valid 0.45 ns from

[17:0]

the rising edge of the output clock (C or C , or K and K when in single clock mode, 200 MHz and 250 MHz device). To maintain the internal logic, each read access must be allowed to complete. Initiate read accesses on every rising edge of the positive input clock (K).

On deselecting the read access, the CY7C1418AV18 first completes the pending read transactions. Synchronous internal circuitry automatically tri-states the output following the next rising edge of the positive output clock (C). This enables for a transition between the devices without the insertion of wait states in a depth expanded memory.

Write Operations

Write operations are initiated by asserting R/W LOW and LD LOW at the rising edge of the positive input clock (K). The address presented to address inputs is stored in the write address register and the least significant bit of the address is presented to the burst counter. The burst counter increments the address in a linear fashion. On the following K clock rise the data

) and all output timing is

or K/K

) pass through input registers

) pass through output registers

) inputs pass through

[0:X]

presented to D data register, provided BWS

is latched and stored into the 18-bit write

[17:0]

are both asserted active. On the

[1:0]

subsequent rising edge of the negative input clock (K) the information presented to D register , provided BWS

is also stored into the write data

[17:0]

are both asserted active. The 36 bits

[1:0]

of data are then written into the memory array at the specified location. Initiate write accesses on every rising edge of the positive input clock (K). Doing so pipelines the data flow such that 18 bits of data transfers into the device on every rising edge of the input clocks (K and K

When write access is deselected, the device ignores all inputs after the pending write operations have been completed.

Byte Write Operations

Byte write operations are supported by the CY7C1418AV18. A write operation is initiated as described in the Write Operations section. The bytes that are written are determined by BWS

and

BWS1, which are sampled with each set of 18-bit data words. Asserting the appropriate Byte Write Select input during the data portion of a write latches the data being presented and writes it into the device. Deasserting the Byte Write Select input during the data portion of a write enables the data stored in the device for that byte to remain unaltered. Use this feature to simplify read, modify, or write operations to a byte write operation.

Single Clock Mode

Use the CY7C1418AV18 with a single clock that controls both the input and output registers. In this mode the device recognizes only a single pair of input clocks (K and K) that control both the input and output registers. This operation is identical to the operation if the device had zero skew between the K/K

and C/C clocks. All timing parameters remain the same in this mode. To use this mode of operation, the user must tie C and C

HIGH at power on. This function is a strap option and not alterable during device operation.

DDR Operation

The CY7C1418AV18 enables high performance operation through high clock frequencies (achieved through pipelining) and double data rate mode of operation. The CY7C1418AV18 requires a single No Operation (NOP) cycle during transition from a read to a write cycle. At higher frequencies, some applications may require a second NOP cycle to avoid contention.

If a read occurs after a write cycle, address and data for the write are stored in registers. The write information must be stored because the SRAM cannot perform the last word write to the array without conflicting with the read. The data stays in this register until the next write cycle occurs. On the first write cycle after the read(s), the stored data from the earlier write is written into the SRAM array. This is called a posted write.

If a read is performed on the same address on which a write is performed in the previous cycle, the SRAM reads out the most current data. The SRAM does this by bypassing the memory array and reading the data from the registers.

Document Number: 38-05616 Rev. *F Page 8 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Depth Expansion

Vterm = 0.75V

R = 50ohms

R = 250ohms

LD# C C#R/W#

DQ A

LD# C C#R/W#

DQ A

SRAM#1

SRAM#2

R = 250ohms

BUS

MASTER

(CPU

ASIC)

Addresses

Cycle Start#

R/W# Return CLK Source CLK

Return CLK#

Source CLK# Echo Clock1/Echo Clock#1 Echo Clock2/Echo Clock#2

CQ/CQ#

Depth expansion requires replicating the LD control signal for each bank. All other control signals can be commo n between banks as appropriate.

Programmable Impedance

An external resistor, RQ, must be connected between the ZQ pin on the SRAM and V

to allow the SRAM to adjust its output

driver impedance. The value of RQ must be 5x the value of the intended line impedance driven by the SRAM, The allowable range of RQ to guarantee impedance matching with a tolerance of ± 15% is between 175Ω and 350Ω

, with V

=1.5V. The

DDQ

output impedance is adjusted every 1024 cycles upon power up to account for drifts in supply voltage and temperature.

Echo Clocks

Echo clocks are provided on the DDR-II to simplify data capture on high-speed systems. Two echo clocks are generated by the

Application Example

Figure 1 shows two DDR-II used in an application.

Figure 1. Application Example

DDR-II. CQ is referenced with respect to C and CQ is referenced with respect to C. These are free-running clocks and are synchronized to the output clock of the DDR-II. In the single clock mode, CQ is generated with respect to K, and CQ

is generated with respect to K. The timings for the echo clocks is shown in the AC Timing Table.

DLL

These chips use a Delay Lock Loop (DLL) that is designed to function between 120 MHz and the specified maximum clock frequency. During power up, when the DOFF DLL is locked after 1024 cycles of stable clock. The DLL can also be reset by slowing or stopping the input clock K and K for a minimum of 30 ns. However, it is not necessary to reset the DLL to lock to the desired frequency. The DLL automatically locks 1024 clock cycles after a stable clock is presented. The DLL may be disabled by applying ground to the DOFF refer to the application note AN5062, DLL Considerations in

QDRII/DDRII/QDRII+/DDRII+.

is tied HIGH, the

pin. For information

Document Number: 38-05616 Rev. *F Page 9 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Truth Table

Notes

2. X = “Don’t Care,” H = Logic HIGH, L = Logic LOW, ↑

represents rising edge.

3. Device powers up deselected with the outputs in a tri-state condition.

4. On CY7C1418AV18 and CY7C1420AV18, “A1” represents address location latched by the devices when transaction was init iated and “A2” represents the addresses sequence in the burst. On CY7C1416AV18 and CY7C1427AV18, “A1” represents A + ‘0’ and “A2” represents A + ‘1’.

5. “t” represents the cycle at which a read/write operation is started. t + 1 and t + 2 are the first and second clock cycles succeeding the “t” clock cycle.

6. Data inputs are registered at K and K

rising edges. Data outputs are delivered on C and C rising edges, except when in single clock mode.

7. It is recommended that K = K

and C = C = HIGH when clock is stopped. This is not essential, but permits most rapid restart by overcoming transmission line charging

symmetrically.

8. Is based on a write cycle that was initiated in accordance with the Write Cycle Descriptions table. NWS

, NWS1, BWS0, BWS1, BWS2, and BWS3 can be altered on

different portions of a write cycle, as long as the setup and hold requirements are achieved.

The truth table for the CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, and CY7C1420AV18 follows.

Operation K LD R/W DQ DQ

Write Cycle:

L-H L L D(A1) at K(t + 1) ↑ D(A2) at K Load address; wait one cycle; input write data on consecutive K and K

Read Cycle:

rising edges.

L-H L H Q(A1) at C(t + 1)↑ Q(A2) at C(t + 2) ↑ Load address; wait one and a half cycle; read data on consecutive C and C rising edges.

NOP: No Operation L-H H X High-Z High-Z Standby: Clock Stopped Stopped X X Previous State Previous State

[2, 3, 4, 5, 6, 7]

(t + 1) ↑

Burst Address Table

(CY7C1418AV18, CY7C1420AV18)

First Address (External) Second Address (Internal)

X..X0 X..X1 X..X1 X..X0

Write Cycle Descriptions

The write cycle description table for CY7C1416AV18 and CY7C1418AV18 follows.

BWS0/

NWS

BWS1/

NWS

L L L–H – During the data portion of a write sequence:

CY7C1416AV18 − both nibbles (D CY7C1418AV18 − both bytes (D

) are written into the device.

[7:0]

) are written into the device.

[17:0]

L L – L-H During the data portion of a write sequence:

CY7C1416AV18 − both nibbles (D CY7C1418AV18 − both bytes (D

) are written into the device.

[7:0]

) are written into the device.

[17:0]

L H L–H – During the data portion of a write sequence:

CY7C1416AV18 − only the lower nibble (D CY7C1418AV18 − only the lower byte (D

[3:0]

[8:0]

L H – L–H During the data portion of a write sequence:

CY7C1416AV18 − only the lower nibble (D CY7C1418AV18 − only the lower byte (D

[3:0]

[8:0]

H L L–H – During the data portion of a write sequence:

CY7C1416AV18 − only the upper nibble (D CY7C1418AV18 − only the upper byte (D

[7:4]

[17:9]

H L – L–H During the data portion of a write sequence:

CY7C1416AV18 − only the upper nibble (D CY7C1418AV18 − only the upper byte (D

[7:4]

[17:9]

H H L–H – No data is written into the devices during this portion of a write operation. H H – L–H No data is written into the devices during this portion of a write operation.

[2, 8]

Comments

) is written into the device, D

remains unaltered.

[7:4]

remains unaltered.

[17:9]

remains unaltered.

[7:4]

remains unaltered.

[17:9]

remains unaltered.

[3:0]

remains unaltered.

[8:0]

remains unaltered.

[3:0]

remains unaltered.

[8:0]

Document Number: 38-05616 Rev. *F Page 10 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Write Cycle Descriptions

The write cycle description table for CY7C1427AV18 follows.

[2, 8]

BWS

L L–H – During the Data portion of a write sequence, the single byte (D L – L–H During the Data portion of a write sequence, the single byte (D

K K Comments

) is written into the device.

[8:0]

) is written into the device.

[8:0]

H L–H – No data is written into the device during this portion of a write operation. H – L–H No data is written into the device during this portion of a write operation.

Write Cycle Descriptions

The write cycle description table for CY7C1420AV18 follows.

BWS0BWS1BWS2BWS3K K Comments

LLLLL–H–During the Data portion of a write sequence, all four bytes (D

the device.

LLLL–L–HDuring the Data portion of a write sequence, all four bytes (D

the device.

L H H H L–H – During the Data portion of a write sequence, only the lower byte (D

into the device. D

L H H H – L–H During the Data portion of a write sequence, only the lower byte (D

into the device. D

H L H H L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H L H H – L–H During the Data portion of a write sequence, only the byte (D

the device. D

H H L H L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H H L H – L–H During the Data portion of a write sequence, only the byte (D

the device. D

H H H L L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H H H L – L–H During the Data portion of a write sequence, only the byte (D

the device. D HHHHL–H–No data is written into the device during this portion of a write operation. HHHH–L–HNo data is written into the device during this portion of a write operation.

[2, 8]

[35:9]

and D

[8:0]

and D

[8:0]

and D

[17:0]

and D

[17:0]

remains unaltered.

[26:0]

remains unaltered.

[26:0]

remains unaltered.

[35:18]

remains unaltered.

[35:18]

remains unaltered.

[35:27]

remains unaltered.

[35:27]

[35:0]

[17:9]

[26:18]

[35:27]

) are written into

) is written

[8:0]

) is written

[8:0]

) is written into

Document Number: 38-05616 Rev. *F Page 11 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

IEEE 1149.1 Serial Boundary Scan (JTAG)

These SRAMs incorporate a serial boundary scan Test Access Port (TAP) in the FBGA p ackage. This part is fully compliant with IEEE Standard #1149.1-1900. The TAP operates using JEDEC standard 1.8V IO logic levels.

Disabling the JTAG Feature

It is possible to operate the SRAM without using the JTAG feature. To disable the TAP controller, TCK must be tied LOW (VSS) to prevent clocking of the device. TDI and TMS are internally pulled up and may be unconnected. They may alternatively be connected to V unconnected. Upon power up, the device comes up in a reset state, which does not interfere with the operation of the device.

Test Access Port—Test Clock

The test clock is used only with the TAP controller. All inputs are captured on the rising edge of TCK. All outputs are driven from the falling edge of TCK.

Test Mode Select (TMS)

The TMS input is used to give commands to the TAP controller and is sampled on the rising edge of TCK. This pin may be left unconnected if the TAP is not used. The pin is pulled up internally, resulting in a logic HIGH level.

Test Data-In (TDI)

The TDI pin is used to serially input information into the registers and can be connected to the input of any of the registers. The register between TDI and TDO is chosen by the instruction that is loaded into the TAP instruction register. For information on loading the instruction register, see the TAP Controller State

Diagram on page 14. TDI is internally pulled up and can be

unconnected if the TAP is unused in an application. TDI is connected to the most significant bit (MSB) on any register.

Test Data-Out (TDO)

The TDO output pin is used to serially clock data out from th e registers. The output is active, depending upon the current state of the TAP state machine (see Instruction Codes on page 17). The output changes on the falling edge of TCK. TDO is connected to the least significant bit (LSB) of any register.

Performing a TAP Reset

A Reset is performed by forcing TMS HIGH (VDD) for five rising edges of TCK. This Reset does not affect the operation of th e SRAM and can be performed while the SRAM is operating. At power up, the TAP is reset internally to ensure that TDO comes up in a high-Z state.

TAP Registers

Registers are connected between the TDI and TDO pins to scan the data in and out of the SRAM test circuitry. Only one register can be selected at a time through the instruction registers. Data is serially loaded into the TDI pin on the rising edge of TCK. Data is output on the TDO pin on the falling edge of TCK.

through a pull up resistor. TDO must be left

Instruction Register

Three-bit instructions can be serially loaded into the instructi on register. This register is loaded when it is placed between the TDI and TDO pins, as shown in TAP Controller Block Diagram on page 15. Upon power up, the instruction register i s loaded with the IDCODE instruction. It is also loaded with the IDCODE instruction if the controller is placed in a reset state, as described in the previous section.

When the TAP controller is in the Capture-IR state, the two least significant bits are loaded with a binary “01” pattern to allow for fault isolation of the board level serial test path.

Bypass Register

To save time when serially shifting data through registers, it is sometimes advantageous to skip certain chips. The bypass register is a single-bit register that can be placed between TDI and TDO pins. This enables shifting of data through the SRAM with minimal delay. The bypass register is set LOW (V the BYPASS instruction is executed.

Boundary Scan Register

The boundary scan register is connected to all of th e input and output pins on the SRAM. Several No Connect (NC) pins are also included in the scan register to reserve pins for higher density devices.

The boundary scan register is loaded with the contents of the RAM input and output ring when the TAP controller is in the Capture-DR state and is then placed between the TDI and TDO pins when the controller is moved to the Shift-DR state. The EXTEST, SAMPLE/PRELOAD, and SAMPLE Z instructions can be used to capture the contents of the input and output ring.

The Boundary Scan Order on page 18 shows the order in which the bits are connected. Each bit corresponds to one of the bumps on the SRAM package. The MSB of the register is connected to TDI, and the LSB is connected to TDO.

Identification (ID) Register

The ID register is loaded with a vendor-specific, 32-bit code during the Capture-DR state when the IDCODE command is loaded in the instruction register. The IDCODE is hardwired into the SRAM and can be shifted out when the TAP controller is in the Shift-DR state. The ID register has a vendor code and other information described in Identification Register Definitions on page 17.

) when

TAP Instruction Set

Eight different instructions are possible with the three-bit instruction register. All combinations are listed in Instruction

Codes on page 17. Three of these instructions are listed as

RESERVED and must not be used. The other five instructions are described in this section in detail.

Instructions are loaded into the TAP controller during the Shift-IR state when the instruction register is placed between TDI and TDO. During this state, instructions are shifted through the instruction register through the TDI and TDO pins. To execute the instruction after it is shifted in, the TAP controller must be moved into the Update-IR state.

Document Number: 38-05616 Rev. *F Page 12 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

IDCODE

The IDCODE instruction loads a vendor-specific, 32-bit code into the instruction register. It also places the instruction register between the TDI and TDO pins and shifts the IDCODE out of the device when the TAP controller enters the Shift-DR state. The IDCODE instruction is loaded into the instruction register at power up or whenever the TAP controller is supplied a Test-Logic-Reset state.

SAMPLE Z

The SAMPLE Z instruction connects the boundary scan register between the TDI and TDO pins when the TAP controller is in a Shift-DR state. The SAMPLE Z command puts the output bus into a High-Z state until the next command is supplied during the Update IR state.

SAMPLE/PRELOAD

SAMPLE/PRELOAD is a 1149.1 mandatory instruction. When the SAMPLE/PRELOAD instructions are loaded into the instruction register and the TAP controller is in the Capture-DR state, a snapshot of data on the input and output pins is captured in the boundary scan register.

The user must be aware that the TAP controller clock can only operate at a frequency up to 20 MHz, while the SRAM clock operates more than an order of magnitude faster. Because there is a large difference in the clock frequencies, it is possible that during the Capture-DR state, an input or output undergoes a transition. The TAP may then try to capture a signal while in transition (metastable state). This does not harm the device, but there is no guarantee as to the value that is captured. Repeatable results may not be possible.

To guarantee that the boundary scan register captures the correct value of a signal, the SRAM signal must be stabilized long enough to meet the TAP controller's capture setup plus hold times (t correctly if there is no way in a design to stop (or slow) the clock during a SAMPLE/PRELOAD instruction. If this is an issue, it is still possible to capture all other signals and simply ignore the value of the CK and CK

After the data is captured, it is possible to shift out the data by putting the T AP into the Shift-DR state. This places the boundary scan register between the TDI and TDO pins.

and tCH). The SRAM clock input might not be captured

captured in the boundary scan register.

PRELOAD places an initial data pattern at the latched parallel outputs of the boundary scan register cells before the selection of another boundary scan test operation.

The shifting of data for the SAMPLE and PRELOAD phases can occur concurrently when required, that is, while the data captured is shifted out, the preloaded data can be shifted in.

BYPASS

When the BYPASS instruction is loaded in the instruction register and the TAP is placed in a Shift-DR state, the bypass register is placed between the TDI and TDO pins. The advantage of the BYPASS instruction is that it shortens the boundary scan path when multiple devices are connected together on a board.

EXTEST

The EXTEST instruction drives the preloaded data out through the system output pins. This instruction also connects the boundary scan register for serial access between the TDI and TDO in the Shift-DR controller state.

EXTEST OUTPUT BUS TRI-ST ATE

IEEE Standard 1149.1 mandates that the TAP controller be able to put the output bus into a tri-state mode.

The boundary scan register has a special bit located at bit #108. When this scan cell, called the “extest output bus tri-state,” is latched into the preload register during the Update-DR state in the TAP controller, it directly controls the state of the output (Q-bus) pins, when the EXTEST is entered as the current instruction. When HIGH, it enables the output buffers to drive the output bus. When LOW, this bit places the output bus into a High-Z condition.

This bit can be set by entering the SAMPLE/PRELOAD or EXTEST command, and then shifting the desired bit into that cell, during the Shift-DR state. During Update-DR, the value loaded into that shift-register cell latches into the preload register. When the EXTEST instruction is entered, this bit directly controls the output Q-bus pins. Note that this bit is preset HIGH to enable the output when the device is powered up, and also when the TAP controller is in the Test-Logic-Reset state.

Reserved

These instructions are not implemented but are reserved for future use. Do not use these instructions.

Document Number: 38-05616 Rev. *F Page 13 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

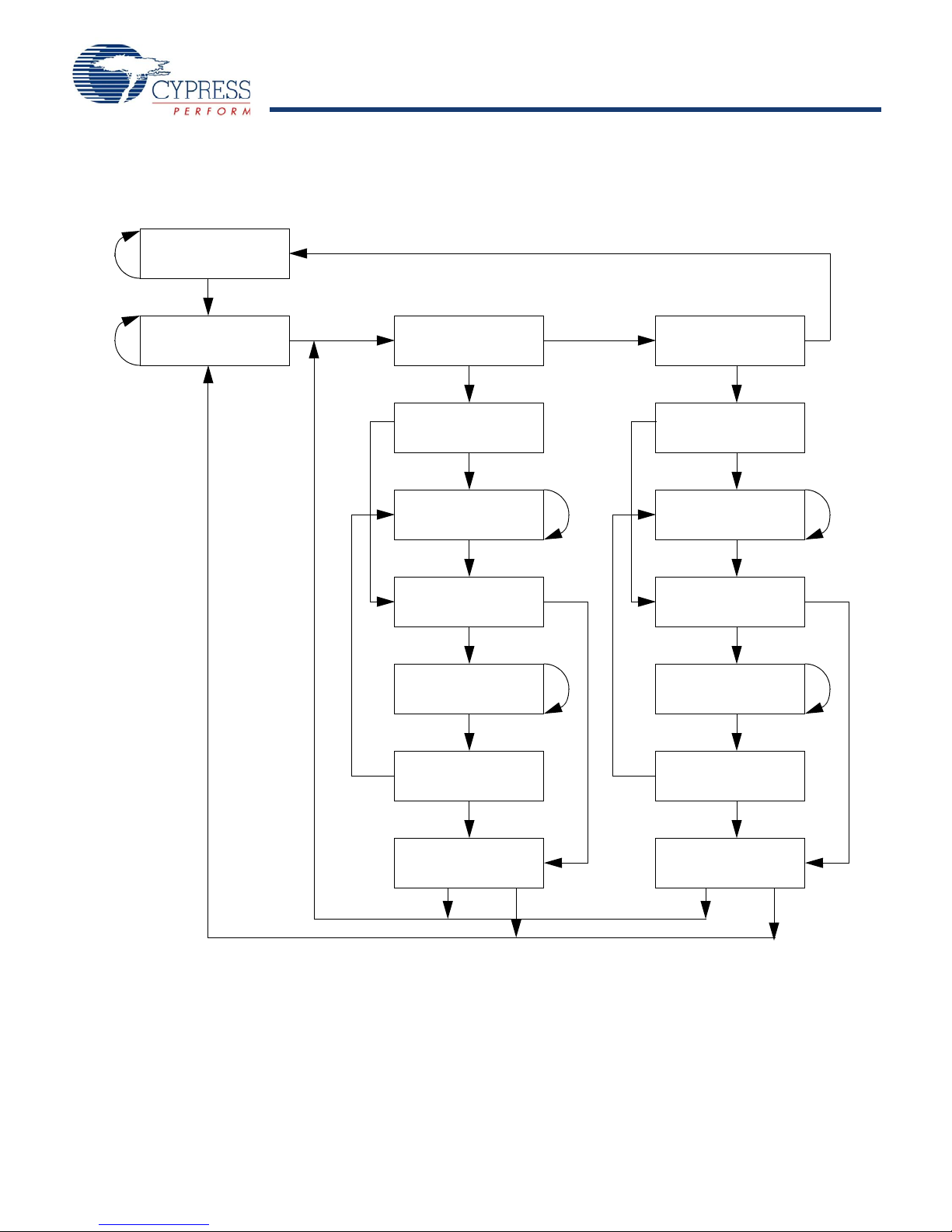

TAP Controller State Diagram

TEST-LOGIC RESET

TEST-LOGIC/ IDLE

SELECT DR-SCAN

CAPTURE-DR

SHIFT-DR

EXIT1-DR

PAUSE-DR

EXIT2-DR

UPDA TE-DR

SELECT IR-SCAN

CAPTURE-IR

SHIFT-IR

EXIT1-IR

PAUSE-IR

EXIT2-IR

UPDA TE-IR

Note

9. The 0/1 next to each state represents the value at TMS at the rising edge of TCK.

The state diagram for the TAP controller follows.

[9]

Document Number: 38-05616 Rev. *F Page 14 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

TAP Controller Block Diagram

012..29

3031

Boundary Scan Register

Identification Register

012..

.108

012

Instruction Register

Bypass Register

Selection Circuitry

TA P Controller

TDI

TDO

TCK TMS

Notes

10.These characteristics pertain to the TAP inputs (TMS, TCK, TDI and TDO). Parallel load levels are specified in the Electrical Characteristics Table.

11.Overshoot: V

(AC) < V

DDQ

+ 0.85V (Pulse width less than t

CYC

/2), Undershoot: VIL(AC) > −1.5V (Pulse width less than t

CYC

/2).

12.All Voltage referenced to Ground.

TAP Electrical Characteristics

Over the Operating Range

Parameter Description Test Conditions Min Max Unit

OH1

OH2

OL1

OL2

Output HIGH Voltage I Output HIGH Voltage I Output LOW Voltage IOL = 2.0 mA 0.4 V Output LOW Voltage IOL = 100 μA0.2V Input HIGH Voltage 0.65VDDV Input LOW Voltage –0.3 0.35V Input and Output Load Current GND ≤ VI ≤ V

[10, 11, 12]

= −2.0 mA 1.4 V

= −100 μA1.6 V

+ 0.3 V

–5 5 μA

Document Number: 38-05616 Rev. *F Page 15 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

TAP AC Switching Characteristics

(a)

TDO

= 20 pF

= 50

GND

0.9V

1.8V

ALL INPUT PULSES

0.9V

Test Clock

Test Mode Select

TCK

TMS

Test Data In TDI

Test Data Out

TCYC

TMSH

TMSS

TDIS

TDIH

TDOV

TDOX

TDO

Notes

13.t

and tCH refer to the setup and hold time requirements of latching data from the boundary scan register.

14.Test conditions are specified using the load in TAP AC Test Conditions. t

R/tF

= 1 ns.

Over the Operating Range

Parameter Description Min Max Unit

TCYC

TCK Clock Cycle Time 50 ns TCK Clock Frequency 20 MHz TCK Clock HIGH 20 ns TCK Clock LOW 20 ns

Setup Times

TMSS

TDIS

TMS Setup to TCK Clock Rise 5 ns TDI Setup to TCK Clock Rise 5 ns Capture Setup to TCK Rise 5 ns

Hold Times

TMSH

TDIH

TMS Hold after TCK Clock Rise 5 ns TDI Hold after Clock Rise 5 ns Capture Hold after Clock Rise 5 ns

Output Times

TDOV

TDOX

TCK Clock LOW to TDO Valid 10 ns TCK Clock LOW to TDO Invalid 0 ns

[13, 14]

TAP Timing and Test Conditions

Figure 2 shows the TAP timing and test conditions.

Figure 2. TAP Timing and Test Conditions

[14]

Document Number: 38-05616 Rev. *F Page 16 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Identification Register Definitions

Instruction Field

Revision Number (31:29)

Cypress Device ID (28:12)

Cypress JEDEC ID (11:1)

ID Register Presence (0)

CY7C1416AV18 CY7C1427AV18 CY7C1418AV18 CY7C1420AV18

000 000 000 000 Version number.

1101010001000011 1 110101000100011 11 110101000100101 11 1 1010100010100111 Defines the type of

00000110100 00000110100 00000110100 00000110100 Allows unique

1111Indicates the

Value

Description

SRAM.

identification of SRAM vendor.

presence of an ID register.

Scan Register Sizes

Instruction 3 Bypass 1 ID 32 Boundary Scan 109

Instruction Codes

Instruction Code Description

EXTEST 000 Captures the input and output ring contents. IDCODE 001 Loads the ID register with the vendor ID code and places the register between TDI and TDO.

SAMPLE Z 010 Captures the input and output contents. Places the boundary scan register between TDI and

RESERVED 011 Do Not Use: This instruction is reserved for future use. SAMPLE/PRELOAD 100 Captures the input and output ring contents. Places the boundary scan register between TDI

RESERVED 101 Do Not Use: This instruction is reserved for future use. RESERVED 110 Do Not Use: This instruction is reserved for future use. BYPASS 111 Places the bypass register between TDI and TDO. This operation does not affect SRAM

This operation does not affect SRAM operation.

TDO. Forces all SRAM output drivers to a High-Z state.

and TDO. Does not affect the SRAM operation.

operation.

Document Number: 38-05616 Rev. *F Page 17 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Boundary Scan Order

Bit # Bump ID Bit # Bump ID Bit # Bump ID Bit # Bump ID

0 6R 28 10G 56 6A 84 1J 16P299G575B852J 2 6N 30 11F 58 5A 86 3K 3 7P 31 11G 59 4A 87 3J 47N329F605C882K 5 7R 33 10F 61 4B 89 1K 6 8R 34 11E 62 3A 90 2L 7 8P 35 10E 63 2A 91 3L 8 9R 36 10D 64 1A 92 1M

9 11P 37 9E 65 2B 93 1L 10 10P 38 10C 66 3B 94 3N 11 10N 39 11D 67 1C 95 3M 12 9P 40 9C 68 1B 96 1N 13 10M 41 9D 69 3D 97 2M 14 11N 42 11B 70 3C 98 3P 15 9M 43 11C 71 1D 99 2N 16 9N 44 9B 72 2C 100 2P 17 11L 45 10B 73 3E 101 1P 18 11M 46 11A 74 2D 102 3R 19 9L 47 10A 75 2E 103 4R 20 10L 48 9A 76 1E 104 4P 21 11K 49 8B 77 2F 105 5P 22 10K 50 7C 78 3F 106 5N 23 9J 51 6C 79 1G 107 5R 24 9K 52 8A 80 1F 108 Internal 25 10J 53 7A 81 3G 26 11J 54 7B 82 2G 27 11H 55 6B 83 1H

Document Number: 38-05616 Rev. *F Page 18 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Power Up Sequence in DDR-II SRAM

DDR-II SRAMs must be powered up and initialized in a predefined manner to prevent undefined operations.

Power Up Sequence

■ Apply power and drive DOFF either HIGH or LOW (All other

inputs can be HIGH or LOW).

❐ Apply V ❐ Apply V ❐ Drive DOFF HIGH.

■ Provide stable DOFF (HIGH), power and clock (K, K) for 1024

cycles to lock the DLL.

before V

DD DDQ

before V

DDQ

or at the same time as V

REF

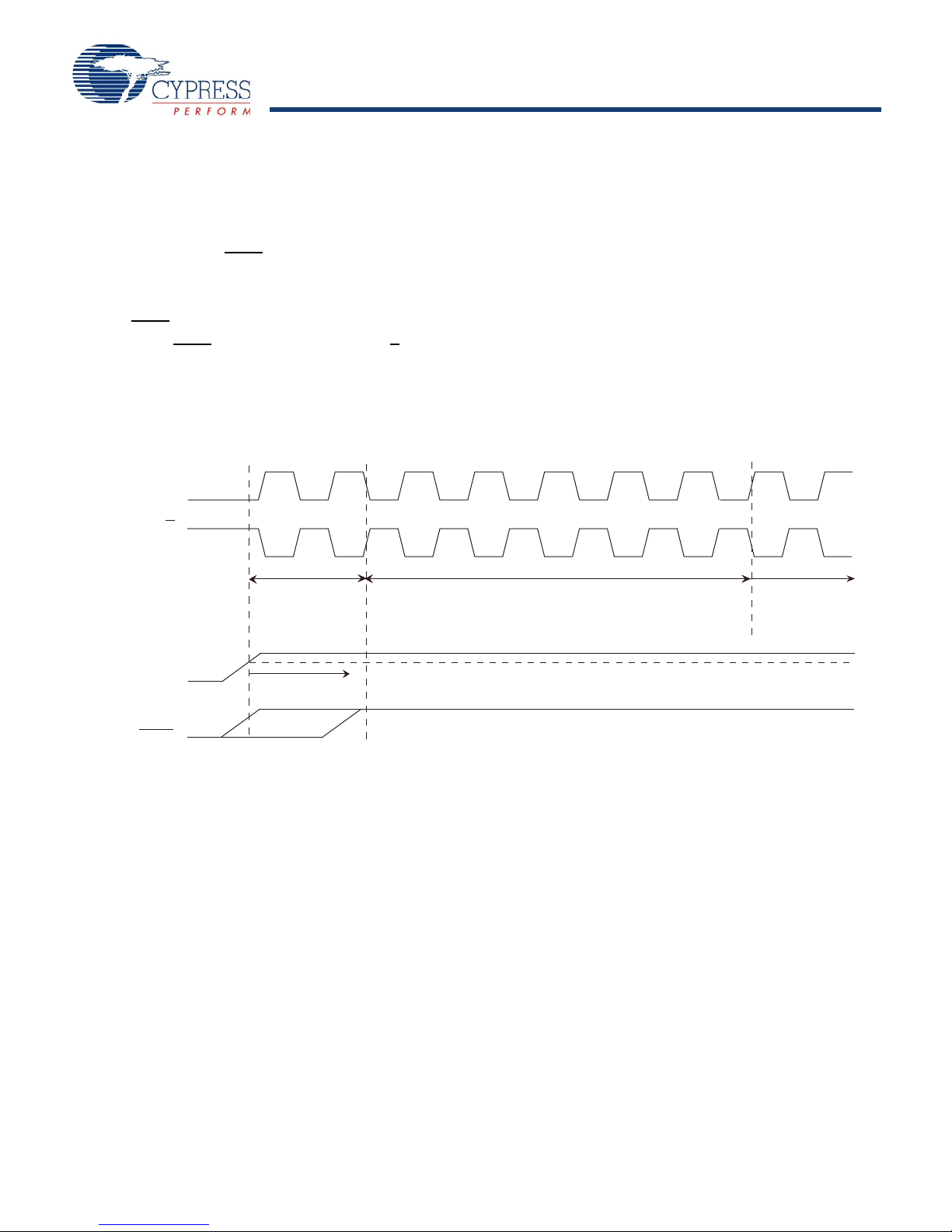

Figure 3. Power Up Waveforms

DLL Constraints

■ DLL uses K clock as its synchronizing input. The input must

have low phase jitter, which is specified as t

■ The DLL functions at frequencies down to 120 MHz.

■ If the input clock is unstable and the DLL is enabled, then the

DLL may lock onto an incorrect frequency, causing unstable SRAM behavior. T o avoid this, provide1024 cycles stable clock to relock to the desired clock frequency.

KC Var

Unstable Clock

> 1024 Stable clock

Start Normal Operation

Clock Start

DDQDD

(Clock Starts after Stable)

DDQDD

DOFF

DDQ

Stable (< +/- 0.1V DC per 50ns )

Fix High (or tie to V

DDQ

)

Document Number: 38-05616 Rev. *F Page 19 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Maximum Ratings

Notes

15.Power up: assumes a linear ramp from 0V to V

(min) within 200 ms. During this time V

< V

and V

DDQ

< VDD.

16.Outputs are impedance controlled. I

= –(V

DDQ

/2)/(RQ/5) for values of 175Ω < RQ < 350Ω.

17.Outputs are impedance controlled. I

= (V

DDQ

/2)/(RQ/5) for values of 175Ω < RQ < 350Ω.

18.V

REF

(min) = 0.68V or 0.46V

DDQ

, whichever is larger, V

REF

(max) = 0.95V or 0.54V

DDQ

, whichever is smaller.

19.The operation current is calculated with 50% read cycle and 50% write cycle.

Exceeding maximum ratings may impair the useful life of th e device. These user guidelines are not tested.

Storage Temperature ................................. –65°C to +150°C

Ambient Temperature with Power Appl i ed. .–55°C to +125°C

Supply Voltage on VDD Relative to GND........–0.5V to +2.9V

Supply Voltage on V

DC Applied to Outputs in High-Z.........–0.5V to V

DC Input Voltage

Relative to GND.......–0.5V to +V

DDQ

[11]

..............................–0.5V to VDD + 0.3V

DDQ

+ 0.3V

Electrical Characteristics

Current into Outputs (LOW) ........................................ 20 mA

Static Discharge Voltage (MIL-STD-883, M 3015).... >2001V

Latch up Current............................................... ...... >200 mA

Operating Range

Range

Temperature (TA) V

Commercial 0°C to +70°C 1.8 ± 0.1V 1.4V to Industrial –40°C to +85°C

Ambient

[15]

DDQ

[15]

DC Electrical Characteristics

Over the Operating Range

[12]

Parameter Description Test Conditions Min Typ Max Unit

DDQ

OH(LOW)

OL(LOW)

REF

[19]

Power Supply Voltage 1.7 1.8 1.9 V IO Supply Voltage 1.4 1.5 V Output HIGH Voltage Note 16 V Output LOW Voltage Note 17 V Output HIGH Voltage I

= −0.1 mA, Nominal Impedance V

Output LOW Voltage IOL = 0.1 mA, Nominal Impedance V Input HIGH Voltage V

/2 – 0.12 V

DDQ

/2 – 0.12 V

DDQ

– 0.2 V

DDQ

+ 0.1 V

REF

Input LOW Voltage –0.3 V Input Leakage Current GND ≤ VI ≤ V Output Leakage Current GND ≤ VI ≤ V Input Reference Voltage VDD Operating Supply V

[18]

Typical Value = 0.75V 0.68 0.75 0.95 V

= Max,

= 0 mA,

OUT

f = f

MAX

= 1/t

DDQ

Output Disabled −55μA

DDQ,

300MHz (x8) 845 mA

(x9) 850

CYC

(x18) 900

−55μA

/2 + 0.12 V

DDQ

/2 + 0.12 V

DDQ

0.2 V + 0.3 V

DDQ

– 0.1 V

REF

(x36) 990

278MHz (x8) 795 mA

(x9) 800 (x18) 835 (x36) 910

250MHz (x8) 725 mA

(x9) 725 (x18) 760 (x36) 825

Document Number: 38-05616 Rev. *F Page 20 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Electrical Characteristics (continued)

DC Electrical Characteristics

Over the Operating Range

[12]

Parameter Description Test Conditions Min Typ Max Unit

[19]

VDD Operating Supply V

OUT

f = f

= Max,

= 0 mA,

= 1/t

MAX

CYC

200MHz (x8) 600 mA

(x9) 600 (x18) 620 (x36) 675

167MHz (x8) 500 mA

(x9) 500 (x18) 525 (x36) 570

SB1

Automatic Power down Current

Max VDD, Both Ports Deselected, VIN ≥ VIH or VIN ≤ VIL f = f Static

MAX

= 1/t

CYC,

Inputs

300MHz (x8) 345 mA

(x9) 345 (x18) 360 (x36) 400

278MHz (x8) 325 mA

(x9) 330 (x18) 345 (x36) 370

250MHz (x8) 320 mA

(x9) 320 (x18) 330 (x36) 350

200MHz (x8) 300 mA

(x9) 300 (x18) 300 (x36) 315

167MHz (x8) 285 mA

(x9) 285 (x18) 290 (x36) 300

AC Electrical Characteristics

Over the Operating Range

Parameter Description Test Conditions Min Typ Max Unit

Input HIGH Voltage V Input LOW Voltage – – V

Document Number: 38-05616 Rev. *F Page 21 of 31

[11]

+ 0.2 – – V

REF

– 0.2 V

REF

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

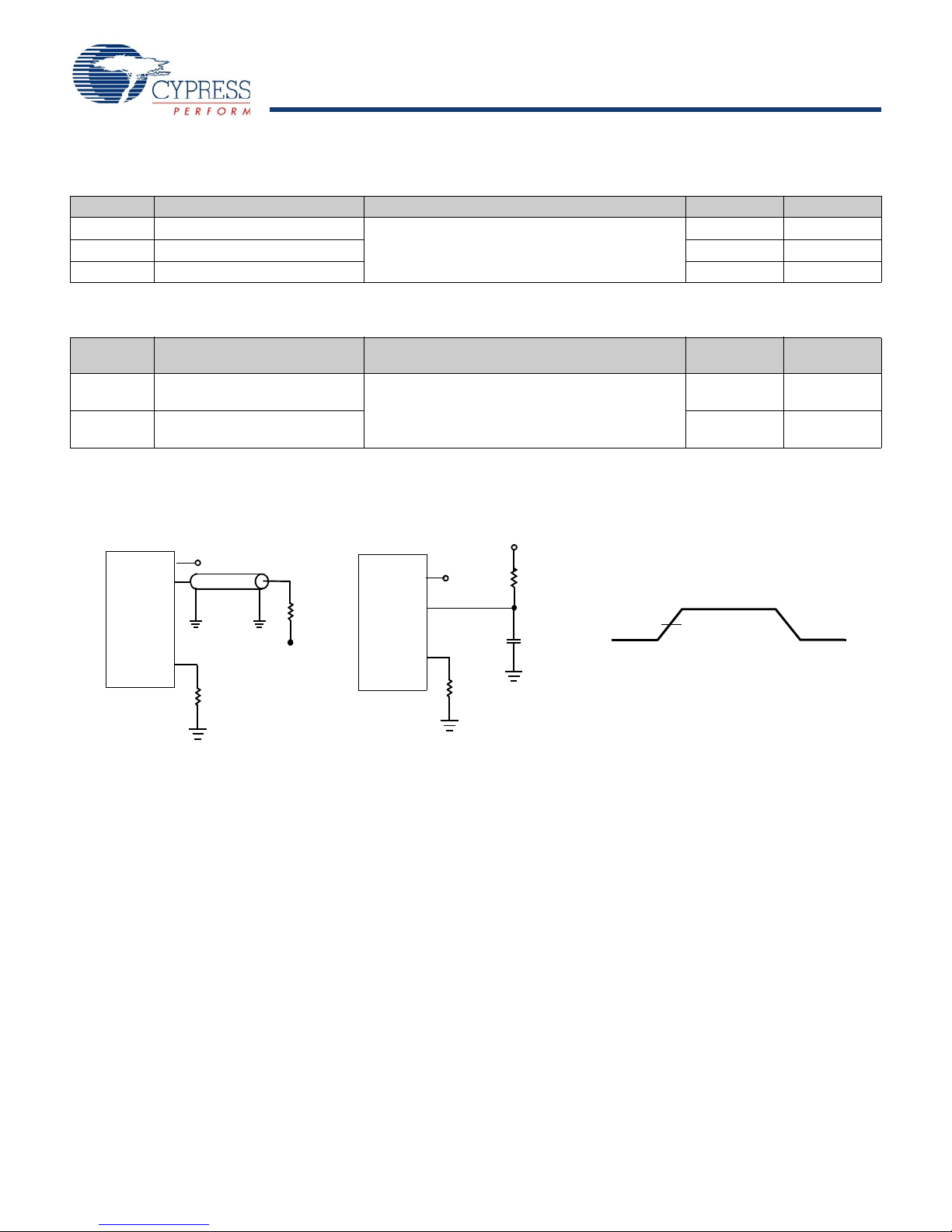

Capacitance

1.25V

0.25V

R = 50Ω

5pF

INCLUDING

JIG AND

SCOPE

ALL INPUT PULSES

Device

= 50Ω

REF

= 0.75V

REF

= 0.75V

[20]

0.75V

Under Test

0.75V

Device Under Test

OUTPUT

0.75V

REF

OUTPUT

(a)

Slew Rate = 2 V/ns

RQ = 250

(b)

RQ = 250

Note

20.Unless otherwise noted, test conditions assume signal transition time of 2V/ns, timing reference levels of 0.75V, V

REF

= 0.75V, RQ = 250Ω, V

DDQ

= 1.5V, input pulse

levels of 0.25V to 1.25V, and output loading of the specified I

OL/IOH

and load capacitance shown in (a) of AC Test Loads and Waveforms.

Tested initially and after any design or process change that may affect these parameters.

Parameter Description Test Conditions Max Unit

Input Capacitance TA = 25°C, f = 1 MHz, VDD = 1.8V, V

CLK

Clock Input Capacitance 4 pF Output Capacitance 5pF

= 1.5V 5 pF

DDQ

Thermal Resistance

Tested initially and after any design or process change that may affect these parameters.

Parameter Description Test Conditions

Thermal Resistance (Junction to Ambient)

Thermal Resistance (Junction to Case)

Test conditions follow standard test methods and procedures for measuring thermal impedance, in accordance with EIA/JESD51.

Figure 4. AC Test Loads and Waveforms

165 FBGA

Package

17.2 °C/W

3.2 °C/W

Unit

Document Number: 38-05616 Rev. *F Page 22 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Switching Characteristics

Notes

21.When a part with a maximum frequency above 167 MHz is operating at a lower clock frequency, it requires th e input timings of the freque ncy range in which it is being operated and outputs data with the output timings of that fre quency range.

22.This part has an internal voltage regulator; t

POWER

is the time that the power is supplied above V

min initially before a read or write operation can be initiated.

23.For DQ2 data signal on CY7C1427AV18 device, t

is 0.5 ns for 200 MHz, 250 MHz, 278 MHz, and 300 MHz frequencies.

Over the Operating Range

Cypress Parame-

ter

POWER

CYC

KHKH

KHCH

Consor-

tium Pa-

rameter

KHKH

KHKL

KLKH

KHKH

KHCH

Setup Times

SCDDRtIVKH

[23]

AVKH

IVKH

DVKH

Hold Times

HCDDRtKHIX

KHAX

KHIX

KHDX

[20, 21]

VDD(Typical) to the First Access K Clock and C Clock Cycle Time 3.3 8.4 3.6 8.4 4.0 8.4 5.0 8.4 6.0 8.4 ns Input Clock (K/K and C/C) HIGH 1.32 – 1.4 – 1.6 – 2.0 – 2.4 – ns Input Clock (K/K and C/C) LOW 1.32 – 1.4 – 1.6 – 2.0 – 2.4 – ns K Clock Rise to K Clock Rise and C

to C

Rise (rising edge to rising

edge) K/K Clock Rise to C/C Clock Rise

(rising edge to rising edge)

Address Setup to K Clock Rise 0.4 – 0.4 – 0.5 – 0.6 – 0.7 – ns Control Setup to K Clock Rise

(LD

, R/W)

Double Data Rate Control Setup to Clock (K/K (BWS

, BWS1, BWS2, BWS3)

Setup to Clock (K/K) Rise 0.3 – 0.3 – 0.35 – 0.4 – 0.5 – ns

[X:0]

Address Hold after K Clock Rise 0.4 – 0.4 – 0.5 – 0.6 – 0.7 – ns Control Hold after K Clock Rise

(LD

, R/W)

Double Data Rate Control Hold after Clock (K/K

, BWS1, BWS2, BWS3)

(BWS

Hold after Clock (K/K) Rise 0.3 – 0.3 – 0.35 – 0.4 – 0.5 – ns

[X:0]

Description

) Rise

300 MHz 278 MHz 250 MHz 200 MHz 167 MHz

Min Max Min Max Min Max Min Max Min Max

[22]

1–1–1–1–1–ms

1.49 – 1.6 – 1.8 – 2.2 – 2.7 – ns

0.0 1.45 0.0 1.55 0.0 1.8 0.0 2.2 0.0 2.7 ns

0.4 – 0.4 – 0.5 – 0.6 – 0.7 – ns

0.3 – 0.3 – 0.35 – 0.4 – 0.5 – ns

0.4 – 0.4 – 0.5 – 0.6 – 0.7 – ns

0.3 – 0.3 – 0.35 – 0.4 – 0.5 – ns

Unit

Document Number: 38-05616 Rev. *F Page 23 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Switching Characteristics (continued)

Notes

24.t

CHZ

, t

CLZ

are specified with a load capacitance of 5 pF as in (b) of AC T est Lo ads and Waveforms on p age 22. Transit ion is measured ±100 mV from steady-state voltage.

25.At any voltage and temperature t

CHZ

is less than t

CLZ

and t

CHZ

less than tCO.

Over the Operating Range

Cypress Parame-

ter

Consor-

tium Pa-

rameter

Output Times

DOH

CCQO

CQOH

CQD

CQDOHtCQHQX

CHQV

CHQX

CHCQV

CHCQX

CQHQV

[20, 21]

Description

C/C Clock Rise (or K/K in single clock mode) to Data Valid

Data Output Hold after Output C/C Clock Rise (Active to Active)

C/C Clock Rise to Echo Clock Valid – 0.45 – 0.45 – 0.45 – 0.45 – 0.50 ns Echo Clock Hold after C/C Clock

Rise Echo Clock High to Data Valid – 0.27 – 0.27 – 0.30 – 0.35 – 0.40 ns Echo Clock High to Data Invalid –0.27– –0.27––0.30– –0.35––0.40–ns

300 MHz 278 MHz 250 MHz 200 MHz 167 MHz

Min Max Min Max Min Max Min Max Min Max

Unit

– 0.45 – 0.45 – 0.45 – 0.45 – 0.50 ns

–0.45– –0.45––0.45– –0.45––0.50–ns

CHZ

CLZ

CHQZ

CHQX1

DLL Timing

KC Var

KC lock

KC ResettKC Reset

KC Var

KC lock

Clock (C/C) Rise to High-Z (Active to High-Z)

[24, 25]

Clock (C/C) Rise to Low-Z

[24, 25]

– 0.45 – 0.45 – 0.45 – 0.45 – 0.50 ns

–0.45– –0.45––0.45– –0.45––0.50–ns

Clock Phase Jitter – 0.20 – 0.20 – 0.20 – 0.20 – 0.20 ns DLL Lock Time (K, C) 1024 – 1024 – 1024 – 1024 – 1024 – Cycle

K Static to DLL Reset 30–30–30–30–30– ns

Document Number: 38-05616 Rev. *F Page 24 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Switching Waveforms

Notes

26.Q00 refers to output from address A0. Q01 refers to output from the next internal burst address following A0, that is, A0 + 1.

27.Outputs are disabled (High-Z) one clock cycle after a NOP.

28.In this example, if address A4 = A3, then data Q40 = D30 and Q41 = D31. Write data is forwarded imme diately as read resu lts. This note applies to t he whole diagram.

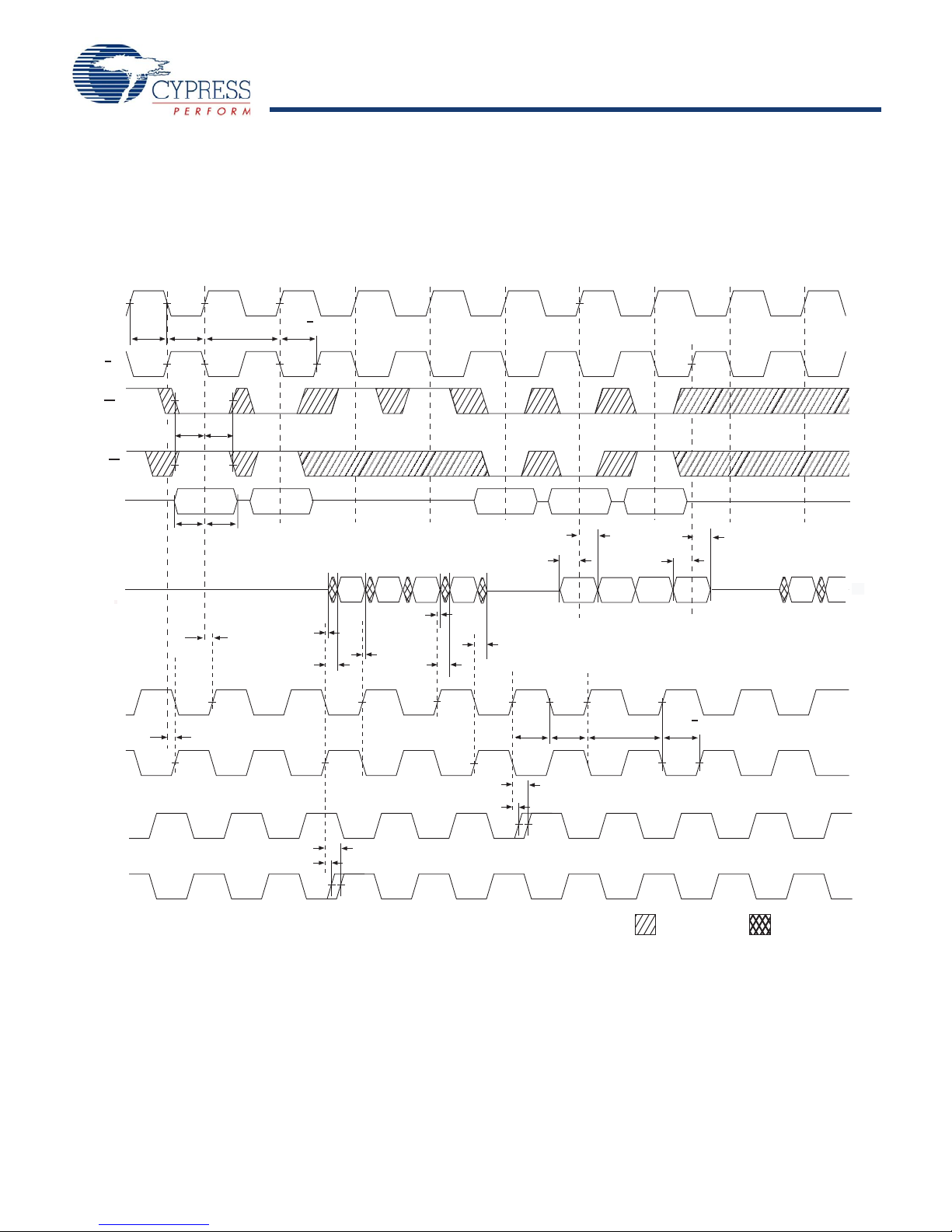

Figure 5. Read/Write/Deselect Sequence

[26, 27, 28]

R/W

NOP

KHCH

READ READREAD NOP NOP WRITEWRITE

2345678910

KHKH

CLZ

Q00 Q11Q01 Q10

CQDOH

DOH

CQD

CHZ

D20

D21 D30

CYC

D31

KHKH

Q40

CYC

KHCH

Q41

CCQO

DON’T CARE

UNDEFINED

CQ#

CQOH

CCQO

CQOH

Document Number: 38-05616 Rev. *F Page 25 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Ordering Information

Not all of the speed, package and temperature ranges are ava ilable. Please contact your local sales representative or visit www.cypress.com for actual products offered.

Speed

(MHz)

300 CY7C1416AV18-300BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1427AV18-300BZC CY7C1418AV18-300BZC CY7C1420AV18-300BZC CY7C1416AV18-300BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-300BZXC CY7C1418AV18-300BZXC CY7C1420AV18-300BZXC CY7C1416AV18-300BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1427AV18-300BZI CY7C1418AV18-300BZI CY7C1420AV18-300BZI CY7C1416AV18-300BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-300BZXI CY7C1418AV18-300BZXI CY7C1420AV18-300BZXI

278 CY7C1416AV18-278BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1427AV18-278BZC CY7C1418AV18-278BZC CY7C1420AV18-278BZC CY7C1416AV18-278BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-278BZXC CY7C1418AV18-278BZXC CY7C1420AV18-278BZXC CY7C1416AV18-278BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1427AV18-278BZI CY7C1418AV18-278BZI CY7C1420AV18-278BZI CY7C1416AV18-278BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-278BZXI CY7C1418AV18-278BZXI CY7C1420AV18-278BZXI

Ordering Code

Package Diagram

Package Type

Operating

Range

Document Number: 38-05616 Rev. *F Page 26 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Ordering Information (continued)

Not all of the speed, package and temperature ranges are ava ilable. Please contact your local sales representative or visit www.cypress.com for actual products offered.

Speed

(MHz)

250 CY7C1416AV18-250BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1427AV18-250BZC CY7C1418AV18-250BZC CY7C1420AV18-250BZC CY7C1416AV18-250BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-250BZXC CY7C1418AV18-250BZXC CY7C1420AV18-250BZXC CY7C1416AV18-250BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1427AV18-250BZI CY7C1418AV18-250BZI CY7C1420AV18-250BZI CY7C1416AV18-250BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-250BZXI CY7C1418AV18-250BZXI CY7C1420AV18-250BZXI

200 CY7C1416AV18-200BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1427AV18-200BZC CY7C1418AV18-200BZC CY7C1420AV18-200BZC CY7C1416AV18-200BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-200BZXC CY7C1418AV18-200BZXC CY7C1420AV18-200BZXC CY7C1416AV18-200BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1427AV18-200BZI CY7C1418AV18-200BZI CY7C1420AV18-200BZI CY7C1416AV18-200BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-200BZXI CY7C1418AV18-200BZXI CY7C1420AV18-200BZXI

Ordering Code

Package Diagram

Package Type

Operating

Range

Document Number: 38-05616 Rev. *F Page 27 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Ordering Information (continued)

Not all of the speed, package and temperature ranges are ava ilable. Please contact your local sales representative or visit www.cypress.com for actual products offered.

Speed

(MHz)

167 CY7C1416AV18-167BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1427AV18-167BZC CY7C1418AV18-167BZC CY7C1420AV18-167BZC CY7C1416AV18-167BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-167BZXC CY7C1418AV18-167BZXC CY7C1420AV18-167BZXC CY7C1416AV18-167BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1427AV18-167BZI CY7C1418AV18-167BZI CY7C1420AV18-167BZI CY7C1416AV18-167BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1427AV18-167BZXI CY7C1418AV18-167BZXI CY7C1420AV18-167BZXI

Ordering Code

Package Diagram

Package Type

Operating

Range

Document Number: 38-05616 Rev. *F Page 28 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Package Diagram



0).#/2.%2

¼

¼





8

-#!"

-#

8

¼

-!8

3%!4).'0,!.%

¼

#

#

0).#/2.%2

4/06)%7

"/44/-6)%7







(





(







 

3/,$%20!$490%./.3/,$%2-!3+$%&).%$.3-$

./4%3

0!#+!'%7%)'(4G

*%$%#2%&%2%.#%-/$%3)'.#

0!#+!'%#/$%""!$

51-85195-*A

Figure 6. 165-ball FBGA (15 x 17 x 1.4 mm), 51-85195

Document Number: 38-05616 Rev. *F Page 29 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Document History Page

Document Title: CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, CY7C1420AV18, 36-Mbit DDR-II SRAM 2-Word Burst Architecture Document Number: 38-05616

Rev. ECN

** 247331 SYT 08/26/04 New Data Sheet

*A 326519 SYT 04/14/05 Removed CY7C1420AV18 from the title

*B 413953 NXR 12/22/05 Converted from preliminary to final

*C 468029 NXR 07/10/06 Modified the ZQ Definition from Alternately, this pin can be connected

*D 505682 VKN 12/19/06 Corrected typo in the Functional Description section for burst counter logic

Oirg. Of Change

Submission Date Description Of Change

Included 300 MHz Speed grade Replaced TBDs with their respective values for I Added Industrial temperature grade Replaced the TBDs on the Thermal Characteristics Table to Θ and Θ Replaced TBDs in the Capacitance Table to their respective values for the

= 3.2°C/W

165 FBGA Package Changed typo of bit # 47 to bit # 108 under the EXTEST OUTPUT BUS TRI-STATE on Page 18 Added lead-free Product Information Updated the Ordering Information by Shading and Unshading MPNs as per availability

Added CY7C1427AV18 part number to title Added 278-MHz speed Bin Changed C, C

Description in Feature Section and Pin Description

Changed address of Cypress Semiconductor Corporation on Page# 1 from “3901 North First Street” to “198 Champion Court” Added Power-up sequence and Wave form on page# 19 Added Footnotes# 13, 14, 15 on page# 19 Replaced Three-state with Tri-state Changed the description of IX from Input Load Current to Input Leakage Current on page# 20 Modified the IDD and ISB values Modified test condition in Footnote #17 on page# 20 from V V

< V

DDQ

Replaced Package Name column with Package Diagram in the Ordering

Information table. Updated Ordering Information Table

directly to V Included Maximum Ratings for Supply Voltage on V

to Alternately, this pin can be connected directly to V

Changed the Maximum Ratings for DC Input Voltage from V Changed t

, t

TDIH

AC Switching Characteristics table

and t

from 10 ns to 5 ns and changed t

from 40 ns to 20 ns, changed t

Modified Power-Up waveform Changed the Maximum rating of Ambient T emperature with Power Applied from –10°C to +85°C to –55°C to +125°C Added additional notes in the AC parameter section Modified AC Switching Waveform Corrected the typo In the AC Switching Characteristics Table Updated the Ordering Information Table

and I

from 20 ns to 10 ns in TAP

TDOV

SB1

DDQ

Relative to GND

DDQ

, t

TMSS

TDIS

= 17.2°C/W

< VDD to

to V

, tCS, t

DDQ

TMSH

Document Number: 38-05616 Rev. *F Page 30 of 31

[+] Feedback

CY7C1416AV18, CY7C1427AV18 CY7C1418AV18, CY7C1420AV18

Document History Page

Document Title: CY7C1416AV18, CY7C1427AV18, CY7C1418AV18, CY7C1420AV18, 36-Mbit DDR-II SRAM 2-Word Burst Architecture Document Number: 38-05616

Rev. ECN

Oirg. Of Change

Submission Date Description Of Change

*E 2511757 VKN/AESA 06/19/08 Updated Logic Block diagram

Updated I Added footnote# 19 related to I Updated Power-up sequence waveform and it’s description

DD/ISB

specs

Changed DLL minimum operating frequency from 80MHz to 120MHz Changed t Modified footnotes 21 and 28

max spec to 8.4ns for all speed bins

CYC

*F 2648034 PYRS 01/29/09 Moved to external web

Sales, Solutions, and Legal Information

Worldwide Sales and Design Support

Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. T o find the office closest to you, visit us at cypress.com/sales.

Products

PSoC psoc.cypress.com Clocks & Buffers clocks.cypress.com Wireless wireless.cypress.com Memories memory .cypress.com Image Sensors image.cypress.com

PSoC Solutions

General psoc.cypress.com/solutions Low Power/Low Voltage psoc.cypress.com/low-power Precision Analog psoc.cypress.com/precision-analog LCD Drive psoc.cypress.com/lcd-drive CAN 2.0b psoc.cypress.com/can USB psoc.cypress.com/usb

© Cypress Semiconductor Corporation, 2004-2009. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life sa vin g, critical control or safety applications, unless pursua nt to an express written agreement with Cypress. Furthermore, Cyp r ess d oe s no t a uth or iz e its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States co pyright la ws and inte rnatio na l tre aty prov isi ons. Cyp ress he reby g rant s to lice nsee a p erson al, no n-ex clusi ve, non-tra nsferable license to copy, use, modify, create deriva tive works of, and compile the Cypress Source Code and derivative works for the sole purpo se of creating custom sof tware and or firm ware in support of licen see product to be use d only in conjunction with a Cypress integrated circuit as specified in th e applicable agreement. Any reproductio n, modification, translation, co mpilation, o r representati on of this Sour ce Code except as specified above is prohibited without the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the ap plicati on or u se o f any pr oduct o r circui t descri bed h erein. Cypr ess does not aut horize it s product s for use a s critical compo nent s in life-support systems whe re a malfunction or failure may reasonab ly be expected to resu lt in significant injury t o the user. The inclusion of Cypress’ prod uct in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document Number: 38-05616 Rev. *F Revised January 29, 2009 Page 31 of 31

DDR RAMs and QDR RAMs comprise a new family of products developed by Cypress, Hitachi, IDT, Micron, NEC, and Samsung. All product and company names mentioned in this document are the trademarks of their respective holders.

[+] Feedback

Cypress Semiconductor CY7C1416AV18, CY7C1418AV18, CY7C1420AV18, CY7C1427AV18 Specification Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
