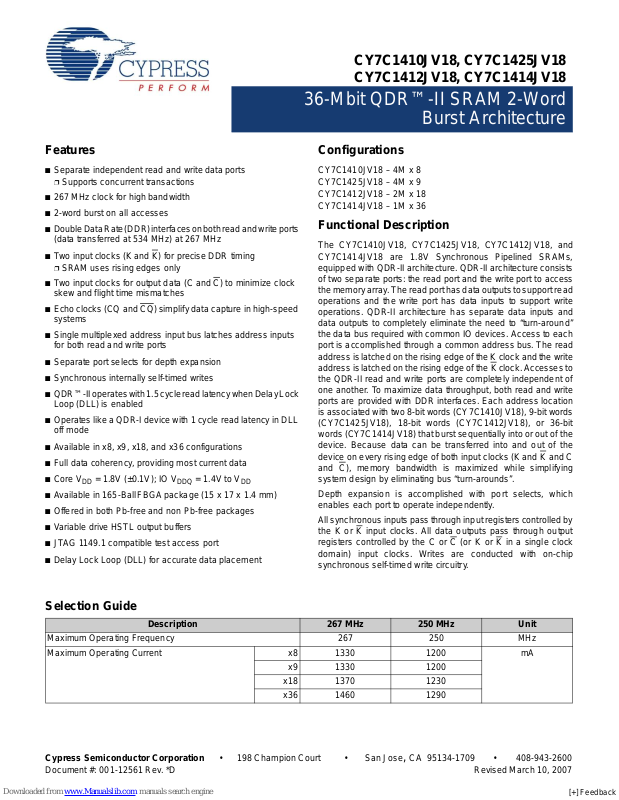

36-Mbit QDR™-II SRAM 2-Word

Burst Architecture

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Features

Configurations

■ Separate independent read and write data ports ❐ Supports concurrent transactions

■ 267 MHz clock for high bandwidth

■ 2-word burst on all accesses

■ Double Data Rate (DDR) interfaces on both read and write ports

(data transferred at 534 MHz) at 267 MHz

■ Two input clocks (K and K) for precise DDR timing ❐ SRAM uses rising edges only

■ Two input clocks for output data (C and C) to minimize clock

skew and flight time mismatches

■ Echo clocks (CQ and CQ) simplify data capture in high-speed

systems

■ Single multiplexed address input bus latches address inputs

for both read and write ports

■ Separate port selects for depth expansion

■ Synchronous internally self-timed writes

■ QDR™-II operates with 1.5 cycle read latency when Delay Lock

Loop (DLL) is enabled

■ Operates like a QDR-I device with 1 cycle read latency in DLL

off mode

■ Available in x8, x9, x18, and x36 configurations

■ Full data coherency, providing most current data

■ Core V

■ Available in 165-Ball FBGA package (15 x 17 x 1.4 mm)

■ Offered in both Pb-free and non Pb-free packages

■ Variable drive HSTL output buffers

■ JTAG 1149.1 compatible test access port

■ Delay Lock Loop (DLL) for accurate data placement

= 1.8V (±0.1V); IO V

= 1.4V to V

DDQ

CY7C1410JV18 – 4M x 8 CY7C1425JV18 – 4M x 9 CY7C1412JV18 – 2M x 18 CY7C1414JV18 – 1M x 36

Functional Description

The CY7C1410JV18, CY7C1425JV18, CY7C1412JV18, and CY7C1414JV18 are 1.8V Synchronous Pipelined SRAMs, equipped with QDR-II architecture. QDR-II architecture consists of two separate ports: the read port and the write port to access the memory array. The read port has data outputs to support read operations and the write port has data inputs to support write operations. QDR-II architecture has separate data inputs and data outputs to completely eliminate the need to “turn-around” the data bus required with common IO devices. Access to each port is accomplished through a common address bus. The read address is latched on the rising edge of the K clock and the write address is latched on the rising edge of the K the QDR-II read and write ports are completely independent of one another. To maximize data throughput, both read and write ports are provided with DDR interfaces. Each address location is associated with two 8-bit words (CY7C1410JV18), 9-bit words (CY7C1425JV18), 18-bit words (CY7C1412JV18), or 36-bit words (CY7C1414JV18) that burst sequentially into or out of the device. Because data can be transferred into and out of the device on every rising edge of both input clocks (K and K

), memory bandwidth is maximized while simplifying

and C system design by eliminating bus “turn-arounds”.

Depth expansion is accomplished with port selects, which enables each port to operate independently.

All synchronous inputs pass through input registers controlled by the K or K

input clocks. All data outputs pass through output registers controlled by the C or C (or K or K in a single clock domain) input clocks. Writes are conducted with on-chip synchronous self-timed write circuitry.

clock. Accesses to

and C

Selection Guide

Description 267 MHz 250 MHz Unit

Maximum Operating Frequency 267 250 MHz Maximum Operating Current x8 1330 1200 mA

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Document #: 001-12561 Rev. *D Revised March 10, 2007

x9 1330 1200 x18 1370 1230 x36 1460 1290

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Logic Block Diagram (CY7C1410JV18)

2M x 8 Array

CLK

(20:0)

Gen.

Control

Logic

Address Register

[7:0]

Read Add. Decode

Read Data Reg.

RPS

WPS

Control

Logic

Address Register

Reg.

NWS

[1:0]

REF

Write Add. Decode

Write

Reg

(20:0)

DOFF

[7:0]

Write

Reg

2M x 8 Array

2M x 9 Array

CLK

(20:0)

Gen.

Control

Logic

Address Register

[8:0]

Read Add. Decode

Read Data Reg.

RPS

WPS

Control

Logic

Address Register

Reg.

BWS

[0]

REF

Write Add. Decode

Write

Reg

(20:0)

DOFF

[8:0]

Write

Reg

2M x 9 Array

Logic Block Diagram (CY7C1425JV18)

Document #: 001-12561 Rev. *D Page 2 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Logic Block Diagram (CY7C1412JV18)

1M x 18 Array

CLK

(19:0)

Gen.

Control

Logic

Address Register

[17:0]

Read Add. Decode

Read Data Reg.

RPS

WPS

Control

Logic

Address

Reg.

BWS

[1:0]

REF

Write Add. Decode

Write

Reg

(19:0)

DOFF

[17:0]

Write

Reg

1M x 18 Array

512K x 36 Array

CLK

(18:0)

Gen.

Control

Logic

Address Register

[35:0]

Read Add. Decode

Read Data Reg.

RPS

WPS

Control

Logic

Address Register

Reg.

BWS

[3:0]

REF

Write Add. Decode

Write

Reg

(18:0)

DOFF

[35:0]

Write

Reg

512K x 36 Array

Logic Block Diagram (CY7C1414JV18)

Document #: 001-12561 Rev. *D Page 3 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Pin Configuration

Note

1. NC/72M, NC/144M and NC/288M are not connected to the die and can be tied to any voltage level.

The pin configuration for CY7C1410JV18, CY7C1412JV18, and CY7C1414JV18 follow.

165-Ball FBGA (15 x 17 x 1.4 mm) Pinout

CY7C1410JV18 (4M x 8)

1234567891011

A CQ

NC/72M A WPS NWS

B NC NC NC A NC/288M K NWS C NC NC NC V D NC D4 NC V E NC NC Q4 V F NC NC NC V

G NC D5 Q5 V

H DOFF

REF

DDQ

J NC NC NC V K NC NC NC V L NC Q6 D6 V

M NC NC NC V

N NC D7 NC V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSNC NC D3

AAAVSSNC NC NC

P NC NC Q7 A A C A A NC NC NC R TDO TCK A A A C

K NC/144M RPS AACQ

V V V V V V V V V

[1]

SS SS DD DD DD DD DD SS SS

ANCNCQ3

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

NC NC NC NC D2 Q2 NC NC NC NC NC NC

DDQ

REF

NC Q1 D1 NC NC NC NC NC Q0 NC NC D0

AAATMSTDI

CY7C1425JV18 (4M x 9)

1234567891011

A CQ B NC NC NC A NC/288M K BWS C NC NC NC V D NC D5 NC V E NC NC Q5 V F NC NC NC V

G NC D6 Q6 V

H DOFF

J NC NC NC V K NC NC NC V L NC Q7 D7 V

M NC NC NC V

N NC D8 NC V

NC/72M A WPS NC K NC/144M RPS AACQ

ANCNCQ4

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

NC NC NC NC D3 Q3 NC NC NC NC NC NC

DDQ

REF

NC Q2 D2 NC NC NC NC NC Q1 NC NC D1

REF

DDQ

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSNC NC D4

AAAVSSNC NC NC

P NC NC Q8 A A C A A NC D0 Q0 R TDO TCK A A A C

AAATMSTDI

Document #: 001-12561 Rev. *D Page 4 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Pin Configuration

The pin configuration for CY7C1410JV18, CY7C1412JV18, and CY7C1414JV18 follow.

165-Ball FBGA (15 x 17 x 1.4 mm) Pinout

CY7C1412JV18 (2M x 18)

1234567891011

A CQ

NC/144M A WPS BWS

B NC Q9 D9 A NC K BWS C NC NC D10 V D NC D11 Q10 V E NC NC Q11 V F NC Q12 D12 V

G NC D13 Q13 V

H DOFF

REF

DDQ

J NC NC D14 V K NC NC Q14 V L NC Q15 D15 V

M NC NC D16 V

N NC D17 Q16 V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSNC Q7 D8

AAAVSSNC NC D1

P NC NC Q17 A A C A A NC D0 Q0 R TDO TCK A A A C

K NC/288M RPS A NC/72M CQ

V V V V V V V V V

[1]

(continued)

SS SS DD DD DD DD DD SS SS

ANCNCQ8

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

NC NC D7 NC D6 Q6 NC NC Q5 NC NC D5

DDQ

REF

NC Q4 D4 NC D3 Q3 NC NC Q2 NC Q1 D2

AAATMSTDI

CY7C1414JV18 (1M x 36)

1234567891011

A CQ

NC/288M NC/72M WPS BWS

B Q27 Q18 D18 A BWS C D27 Q28 D19 V D D28 D20 Q19 V E Q29 D29 Q20 V F Q30 Q21 D21 V

G D30 D22 Q22 V

H DOFF

REF

DDQ

J D31 Q31 D23 V K Q32 D32 Q23 V L Q33 Q24 D24 V

M D33 Q34 D25 V

N D34 D26 Q25 V

SS DDQ DDQ DDQ DDQ DDQ DDQ DDQ

AAAVSSD16 Q7 D8

AAAVSSQ10 D9 D1

2 3

K BWS

RPS A NC/144M CQ

KBWS0AD17Q17Q8

V V V V V V V

DDQ DDQ DDQ DDQ DDQ DDQ DDQ

Q16 D15 D7 Q15 D6 Q6 D14 Q14 Q5 Q13 D13 D5

DDQ

REF

D12 Q4 D4 Q12 D3 Q3 D11 Q11 Q2 D10 Q1 D2

P Q35 D35 Q26 A A C A A Q9 D0 Q0 R TDO TCK A A A C

AAATMSTDI

Document #: 001-12561 Rev. *D Page 5 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Pin Definitions

Pin Name IO Pin Description

[x:0]

WPS Input-

NWS

BWS0, BWS

BWS2, BWS

A Input-

[x:0]

RPS Input-

C Input Clock Positive Input Clock for Output Data. C is used in conjunction with C

Input-

Synchronous

Input-

Synchronous

Outputs-

Synchronous

Data Input Signals. Sampled on the rising edge of K and K clocks during valid write operations. CY7C1410JV18 - D CY7C1425JV18 - D CY7C1412JV18 - D CY7C1414JV18 - D

[7:0] [8:0] [17:0] [35:0]

Write Port Select − Active LOW. Sampled on the rising edge of the K clock. When asserted active, a write operation is initiated. Deasserting deselects the write port. Deselecting the write port ignores D

Nibble Write Select 0, 1 − Active LOW (CY7C1410JV18 Only). Sampled on the rising edge of the K and K

clocks during Write operations. Used to select which nibble is written into the device during the current portion of the Write operations.Nibbles not written remain unaltered. NWS NWS

controls D

All Nibble Write Selects are sampled on the same edge as the data. Deselecting a Nibble Write Select

[7:4]

ignores the corresponding nibble of data and it is not written into the device. Byte Write Select 0, 1, 2, and 3 − Active LOW . Sampled on the rising edge of the K and K clocks during

write operations. Used to select which byte is written into the device during the current portion of the write operations. Bytes not written remain unaltered. CY7C1425JV18 − BWS CY7C1412JV18 − BWS CY7C1414JV18 − BWS D

[35:27].

All the Byte Write Selects are sampled on the same edge as the data. Deselecting a Byte Write Select

controls D

[8:0]

, BWS1 controls D

[8:0]

, BWS1 controls D

[8:0]

[17:9]

,BWS2 controls D

[17:9]

ignores the corresponding byte of data and it is not written into the device. Address Inputs. Sampled on the rising edge of the K (Read address) and K

active read and write operations. These address inputs are multiplexed for both read and write operations. Internally, the device is organized as 4M x 8 (2 arrays each of 2M x 8) for CY7C1410JV18, 4M x 9 (2 arrays each of 2M x 9) for CY7C1425JV18, 2M x 18 (2 arrays each of 1M x 18) for CY7C1412JV18 and 1M x 36 (2 arrays each of 512K x 36) for CY7C1414JV18. Therefore, only 21 address inputs are needed to access the entire memory array of CY7C1410JV18 and CY7C1425JV18, 20 address inputs for CY7C1412JV18 and 19 address inputs for CY7C1414JV18. These inputs are ignored when the appropriate port is deselected.

Data Output Signals. These pins drive out the requested data during a read operation. Valid data is driven out on the rising edge of both the C and C clock mode. When the read port is deselected, Q CY7C1410JV18 − Q CY7C1425JV18 − Q CY7C1412JV18 − Q CY7C1414JV18 − Q

[7:0] [8:0] [17:0] [35:0]

clocks during read operations, or K and K when in single

are automatically tri-stated.

[x:0]

Read Port Select − Active LOW . Sampled on the rising edge of positive input clock (K). When active, a read operation is initiated. Deasserting deselects the read port. When deselected, the pending access is allowed to complete and the output drivers are automatically tri-stated following the next rising edge of the C clock. Each read access consists of a burst of two sequential transfers.

the device. C and C

can be used together to deskew the flight times of various devices on the board back

to the controller. See Application Example on page 9 for further details.

[x:0]

controls D

and BWS3 controls

[26:18]

[3:0]

and

(Write address) clocks during

to clock out the read data from

Input Clock Negative Input Clock for Output Data. C is used in conjunction with C to clock out the read data from

the device. C and C to the controller. See Application Example on page 9 for further details.

K Input Clock Positive Input Clock In put. The rising edge of K is used to capture synchronous inputs to the device

and to drive out data through Q edge of K.

Input Clock Negative Input Clock Input. K is used to capture synchronous inputs being presented to the device and

to drive out data through Q

Document #: 001-12561 Rev. *D Page 6 of 26

can be used together to deskew the flight times of various devices on the board back

when in single clock mode. All accesses are initiated on the rising

[x:0]

when in single clock mode.

[x:0]

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Pin Definitions (continued)

Pin Name IO Pin Description

CQ Echo Clock CQ is Referenced with Respect to C. This is a free - running clock and is synchronized to the Input

clock for output data (C) of the QDR-II. In the single clock mode, CQ is generated with respect to K. The timings for the echo clocks is shown in the Switching Characteristics on page 22.

ZQ Input Output Impedance Matching Input. This input is used to tune the device outputs to the system data bus

DOFF

TDO Output TDO for JTAG. TCK Input TCK Pin for JTAG. TDI Input TDI Pin for JTAG. TMS Input TMS Pin for JTAG. NC N/A Not Connected to the Die. Can be tied to any voltage level. NC/72M N/A Not Connected to the Die. Can be tied to any voltage level. NC/144M N/A Not Connected to the Die. Can be tied to any voltage level. NC/288M N/A Not Connected to the Die. Can be tied to any voltage level. V

REF

DDQ

Echo Clock CQ is Referenced with Respect to C. This is a free - running clock and is synchronized to the Input

Input DLL Turn Off − Active LOW . Connecting this pin to ground turns off the DLL inside the device. The timing

Input-

Reference

Power Supply Power Supply Inputs to the Core of the Device.

Ground Ground for the Device.

Power Supply Power Supply Inputs for the Outputs of the Device.

clock for output data (C timings for the echo clocks is shown in the Switching Characteristics on page 22.

impedance. CQ, CQ, and Q between ZQ and ground. Alternatively, this pin can be connected directly to V minimum impedance mode. This pin cannot be connected directly to GND or left unconnected.

in the DLL turned off operation differs from those listed in this data sheet. For normal operation, this pin can be connected to a pull up through a 10-Kohm or less pull up resistor. The device behaves in DDR-I mode when the DLL is turned off. In this mode, the device can be operated at a frequency of up to 167 MHz with QDR-I timing.

Reference Voltage Input. Static input used to set the reference level for HSTL inputs, outputs, and AC measurement points.

) of the QDR-II. In the single clock mode, CQ is generated with respect to K. The

output impedance are set to 0.2 x RQ, where RQ is a resistor connected

[x:0]

, which enables the

DDQ

Document #: 001-12561 Rev. *D Page 7 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Functional Overview

The CY7C1410JV18, CY7C1425JV18, CY7C1412JV18, and CY7C1414JV18 are synchronous pipelined Burst SRAMs with a read port and a write port. The read port is dedicated to read operations and the write port is dedicated to write operations. Data flows into the SRAM through the write port and flows out through the read port. These devices multiplex the address inputs to minimize the number of address pins required. By having separate read and write ports, the QDR-II completely eliminates the need to “turn-around” the data bus and avoids any possible data contention, thereby simplifying system design. Each access consists of two 8-bit data transfers in the case of CY7C1410JV18, two 9-bit data transfers in the case of CY7C1425JV18, two 18-bit data transfers in the case of CY7C1412JV18, and two 36-bit data transfers in the case of CY7C1414JV18 in one clock cycle.

This device operates with a read latency of one and half cycles when DOFF connected to VSS then the device behaves in QDR-I mode with a read latency of one clock cycle.

Accesses for both ports are initiated on the rising edge of the positive input clock (K). All synchronous input timing is referenced from the rising edge of the input clocks (K and K all output timing is referenced to the rising edge of the output clocks (C and C,

All synchronous data inputs (D controlled by the input clocks (K and K). All synchronous data outputs (Q rising edge of the output clocks (C and C, or K and K when in single clock mode).

All synchronous control (RPS through input registers controlled by the rising edge of the input clocks (K and K

CY7C1412JV18 is described in the following sections. The same basic descriptions apply to CY7C1410JV18, CY7C1425JV18, and CY7C1414JV18.

Read Operations

The CY7C1412JV18 is organized internally as two arrays of 1M x 18. Accesses are completed in a burst of two sequential 18-bit data words. Read operations are initiated by asserting RPS active at the rising edge of the positive input clock (K). The address is latched on the rising edge of the K clock. The address presented to the address inputs is stored in the read address register. Following the next K clock rise the corresponding lowest order 18-bit word of data is driven onto the Q output timing reference. On the subsequent rising edge of C, the next 18-bit data word is driven onto the Q data is valid 0.45 ns from the rising edge of the output clock (C and C or K and K when in single clock mode).

Synchronous internal circuitry automatically tri-states the outputs following the next rising edge of the output clocks (C/C allows for a seamless transition between devices without the insertion of wait states in a depth expanded memory.

pin is tied HIGH. When DOFF pin is set LOW or

or K and K when in single clock mode).

) pass through input registers

[x:0]

) pass through output registers controlled by the

[x:0]

, WPS, BWS

) inputs pass

[x:0]

using C as the

[17:0]

. The requested

[17:0]

). This

) and

Write Operations

Write operations are initiated by asserting WPS active at the rising edge of the positive input cl ock (K). On the same K clock rise, the data presented to D lower 18-bit write data register, provided BWS

is latched and stored into the

[17:0]

[1:0]

are both asserted active. On the subsequent rising edge of the negative input clock (K presented to D BWS

[1:0]

), the address is latched and the information

is stored into the write data register, provided

[17:0]

are both asserted active. The 36 bits of data are then written into the memory array at the specified location. When deselected, the write port ignores all inputs after completion of pending write operations.

Byte Write Operations

Byte write operations are supported by the CY7C1412JV18. A write operation is initiated as described in the Write Operations section. The bytes that are written are determined by BWS

and

BWS1, which are sampled with each 18-bit data word. Asserting the byte write select input during the data portion of a write latches the data being presented and writes it into the device. Deasserting the byte write select input during the data portion of a write allows the data stored in the device for that byte to remain unaltered. This feature can be used to simplify read, modify, or write operations to a byte write operation.

Single Clock Mode

The CY7C1412JV18 can be used with a single clock that controls both the input and output registers. In this mode, the device recognizes only a single pair of input clocks (K and K) that control both the input and output registers. This operation is identical to the operation if the device had zero skew between

and C/C clocks. All timing parameters remain the same

the K/K in this mode. To use this mode of operation, the user must tie C

HIGH at power on. This function is a strap option and not

and C alterable during device operation.

Concurrent Transactions

The read and write ports on the CY7C1412JV18 operate independently of one another. As each port latches the address inputs on different clock edges, the user can read or write to any location, regardless of the transaction on the other port. The user can start reads and writes in the same clock cycle. If the ports access the same location at the same time, the SRAM delivers the most recent information associated with the specified address location. This includes forwarding data from a write cycle that was initiated on the previous K clock rise.

Depth Expansion

The CY7C1412JV18 has a port select input for each port. This enables for easy depth expansion. Both port selects are sampled on the rising edge of the positive input clock only (K). Each port select input can deselect the specified port. Deselecting a port does not affect the other port. All pending transactions (read and write) are completed prior to the device being deselected.

Document #: 001-12561 Rev. *D Page 8 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Programmable Impedance

R = 250ohms

Vt = Vddq/2

R = 50ohms

CC#

D A

SRAM #2

R P S #

P S #

S #

CQ/CQ#

CC#

D A

SRAM #1

R P S #

P S #

S #

CQ/CQ#

BUS

MASTER

(CPU

ASIC)

DATA IN

DATA OUT

Address

RPS# WPS# BWS#

Source K

Source K#

Delayed K

Delayed K#

CLKIN/CLKIN#

An external resistor, RQ, must be connected between the ZQ pin on the SRAM and V

to allow the SRAM to adjust its output

driver impedance. The value of RQ must be 5x the value of the intended line impedance driven by the SRAM. The allowable range of RQ to guarantee impedance matching with a tolerance of ±15% is between 175Ω and 350Ω

, with V

=1.5V. The

DDQ

output impedance is adjusted every 1024 cycles upon power up to account for drifts in supply voltage and temperature.

Echo Clocks

Echo clocks are provided on the QDR-II to simplify data capture on high-speed systems. Two echo clocks are generated by the QDR-II. CQ is referenced with respect to C and CQ

is referenced with respect to C. These are free-running clocks and are synchronized to the output clock (C/C) of the QDR-II. In single

Application Example

Figure 1 shows two QDR-II used in an application.

Figure 1. Application Example

clock mode, CQ is generated with respect to K and CQ

is generated with respect to K. The timing for the echo clocks is shown in the Switching Characteristics on page 22.

DLL

These chips utilize a Delay Lock Loop (DLL) that is designed to function between 120 MHz and the specified maximum clock frequency. During power up, when the DOFF DLL is locked after 1024 cycles of stable clock. The DLL can also be reset by slowing or stopping the input clock K and K for a minimum of 30 ns. However, it is not necessary to reset the DLL to lock to the desired frequency. The DLL automatically locks 1024 clock cycles after a stable clock is presented. The DLL may be disabled by applying ground to the DOFF is turned off, the device behaves in QDR-I mode (with one cycle latency and a longer access time). For information refer to the application note DLL Considerations in QDRII/DDRII.

is tied HIGH, the

pin. When the DLL

Document #: 001-12561 Rev. *D Page 9 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

T ruth Table

Notes

2. X = “Don't Care,” H = Logic HIGH, L = Logic LOW,

↑represents rising edge.

3. Device powers up deselected with the outputs in a tri-state condition.

4. “A” represents address location latched by the devices when transaction was initiated. A + 0, A + 1 represents the internal address sequence in the burst.

5. “t” represents the cycle at which a Read/Write operation is started. t + 1, and t + 2 are the first, and second clock cycles respectively succeeding the “t” clock cycle.

6. Data inputs are registered at K and K

rising edges. Data outputs are delivered on C and C rising edges, except when in single clock mode.

7. It is recommended that K = K

and C = C = HIGH when clock is stopped. This is not essential, but permits most rapid restart by overcoming transmission line charging

symmetrically.

8. Is based on a write cycle that was initiated in accordance with the Write Cycle Descriptions table. NWS

, NWS1,BWS0, BWS1,BWS2 and BWS3 can be altered on

different portions of a write cycle, as long as the setup and hold requirements are achieved.

The truth table for CY7C1410JV18, CY7C1425JV18, CY7C1412JV18, and CY7C1414JV18 follows.

Operation K RPS WPS DQ DQ

Write Cycle: Load address on the rising edge of K input write data on K and K

rising edges.

Read Cycle:

;

L-H X L D(A + 0) at K(t) ↑ D(A + 1) at K(t) ↑

L-H L X Q(A + 0) at C Load address on the rising edge of K; wait one and a half cycle; read data on C

and C rising edges.

NOP: No Operation L-H H H D = X

Q = High-Z

Standby: Clock Stopped Stopped X X Previous State Previous State

[2, 3, 4, 5, 6, 7]

(t + 1) ↑ Q(A + 1) at C(t + 2) ↑

D = X Q = High-Z

Write Cycle Descriptions

The write cycle description table for CY7C1410JV18 and CY7C1412JV18 follows.

BWS0/ NWS

BWS1/

NWS

L L L–H – During the data portion of a write sequence:

CY7C1410JV18 − both nibbles (D CY7C1412JV18 − both bytes (D

) are written into the device.

[7:0]

) are written into the device.

[17:0]

L L – L-H During the data portion of a write sequence:

CY7C1410JV18 − both nibbles (D CY7C1412JV18 − both bytes (D

) are written into the device.

[7:0]

) are written into the device.

[17:0]

L H L–H – During the data portion of a write sequence:

CY7C1410JV18 − only the lower nibble (D CY7C1412JV18 − only the lower byte (D

[3:0]

[8:0]

L H – L–H During the data portion of a write sequence:

CY7C1410JV18 − only the lower nibble (D CY7C1412JV18 − only the lower byte (D

[3:0]

[8:0]

H L L–H – During th e data portion of a write sequence:

CY7C1410JV18 − only the upper nibble (D CY7C1412JV18 − only the upper byte (D

[7:4]

[17:9]

H L – L–H During the data portion of a write sequence:

CY7C1410JV18 − only the upper nibble (D CY7C1412JV18 − only the upper byte (D

[7:4]

[17:9]

H H L–H – No data is written into the devices during this portion of a write operation. H H – L–H No data is written into the devices during this portion of a write operation.

[2, 8]

Comments

) is written into the device, D

remains unaltered.

[7:4]

remains unaltered.

[17:9]

remains unaltered.

[7:4]

remains unaltered.

[17:9]

remains unaltered.

[3:0]

remains unaltered.

[8:0]

remains unaltered.

[3:0]

remains unaltered.

[8:0]

Document #: 001-12561 Rev. *D Page 10 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Write Cycle Descriptions

The write cycle description table for CY7C1425JV18 follows.

[2, 8]

BWS

L L–H – During the Data portion of a write sequence, the single byte (D L – L–H During the Data portion of a write sequence, the single byte (D

K K Comments

) is written into the device.

[8:0]

) is written into the device.

[8:0]

H L–H – No data is written into the device during this portion of a write operation. H – L–H No data is written into the device during this portion of a write operation.

Write Cycle Descriptions

The write cycle description table for CY7C1414JV18 follows.

BWS0BWS1BWS2BWS3K K Comments

LLLLL–H–During the Data portion of a write sequence, all four bytes (D

the device.

LLLL–L–HDuring the Data portion of a write sequence, all four bytes (D

the device.

L H H H L–H – During the Data portion of a write sequence, only the lower byte (D

into the device. D

L H H H – L–H During the Data portion of a write sequence, only the lower byte (D

into the device. D

H L H H L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H L H H – L–H During the Data portion of a write sequence, only the byte (D

the device. D

H H L H L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H H L H – L–H During the Data portion of a write sequence, only the byte (D

the device. D

H H H L L–H – During the Data portion of a write sequence, only the byte (D

the device. D

H H H L – L–H During the Data portion of a write sequence, only the byte (D

the device. D HHHHL–H–No data is written into the device during this portion of a write operation. HHHH–L–HNo data is written into the device during this portion of a write operation.

[2, 8]

[35:9]

and D

[8:0]

and D

[8:0]

and D

[17:0]

and D

[17:0]

remains unaltered.

[26:0]

remains unaltered.

[26:0]

remains unaltered.

[35:18]

remains unaltered.

[35:18]

remains unaltered.

[35:27]

remains unaltered.

[35:27]

[35:0]

[17:9]

[26:18]

[35:27]

) are written into

) is written

[8:0]

) is written

[8:0]

) is written into

Document #: 001-12561 Rev. *D Page 11 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

IEEE 1149.1 Serial Boundary Scan (JTAG)

These SRAMs incorporate a serial boundary scan Test Access Port (TAP) in the FBGA p ackage. This part is fully compliant with IEEE Standard #1149.1-2001. The TAP operates using JEDEC standard 1.8V IO logic levels.

Disabling the JTAG Feature

It is possible to operate the SRAM without using the JTAG feature. To disable the TAP controller, TCK must be tied LOW (VSS) to prevent clocking of the device. TDI and TMS are internally pulled up and may be unconnected. They may alternatively be connected to V unconnected. Upon power up, the device comes up in a reset state, which does not interfere with the operation of the device.

Test Access Port—Test Clock

The test clock is used only with the TAP controller. All inputs are captured on the rising edge of TCK. All outputs are driven from the falling edge of TCK.

Test Mode Select (TMS)

The TMS input is used to give commands to the TAP controller and is sampled on the rising edge of TCK. This pin may be left unconnected if the TAP is not used. The pin is pulled up internally, resulting in a logic HIGH level.

Test Data-In (TDI)

The TDI pin is used to serially input information into the registers and can be connected to the input of any of the registers. The register between TDI and TDO is chosen by the instruction that is loaded into the TAP instruction register. For information on loading the instruction register, see the TAP Controller State

Diagram on page 14. TDI is internally pulled up and can be

unconnected if the TAP is unused in an application. TDI is connected to the most significant bit (MSB) on any register.

Test Data-Out (TDO)

The TDO output pin is used to serially clock data out from th e registers. The output is active, depending upon the current state of the TAP state machine (see Instruction Codes on page 17). The output changes on the falling edge of TCK. TDO is connected to the least significant bit (LSB) of any register.

Performing a TAP Reset

A Reset is performed by forcing TMS HIGH (VDD) for five rising edges of TCK. This Reset does not affect the operation of th e SRAM and can be performed while the SRAM is operating. At power up, the TAP is reset internally to ensure that TDO comes up in a high-Z state.

TAP Registers

Registers are connected between the TDI and TDO pins to scan the data in and out of the SRAM test circuitry. Only one register can be selected at a time through the instruction registers. Data is serially loaded into the TDI pin on the rising edge of TCK. Data is output on the TDO pin on the falling edge of TCK.

through a pull up resistor. TDO must be left

Instruction Register

Three-bit instructions can be serially loaded into the instructi on register. This register is loaded when it is placed between the TDI and TDO pins, as shown in TAP Controller Block Diagram on page 15. Upon power up, the instruction register i s loaded with the IDCODE instruction. It is also loaded with the IDCODE instruction if the controller is placed in a reset state, as described in the previous section.

When the TAP controller is in the Capture-IR state, the two least significant bits are loaded with a binary “01” pattern to allow for fault isolation of the board level serial test path.

Bypass Register

To save time when seri ally shifting data through registers, it is sometimes advantageous to skip certain chips. The bypass register is a single-bit register that can be placed between TDI and TDO pins. This enables shifting of data through the SRAM with minimal delay. The bypass register is set LOW (V the BYPASS instruction is executed.

Boundary Scan Register

The boundary scan register is connected to all of th e input and output pins on the SRAM. Several No Connect (NC) pins are also included in the scan register to reserve pins for higher density devices.

The boundary scan register is loaded with the contents of the RAM input and output ring when the TAP controller is in the Capture-DR state and is then placed between the TDI and TDO pins when the controller is moved to the Shift-DR state. The EXTEST, SAMPLE/PRELOAD, and SAMPLE Z instructions can be used to capture the contents of the input and output ring.

The Boundary Scan Order on page 18 shows the order in which the bits are connected. Each bit corresponds to one of the bumps on the SRAM package. The MSB of the register is connected to TDI, and the LSB is connected to TDO.

Identification (ID) Register

The ID register is loaded with a vendor-specific, 32-bit code during the Capture-DR state when the IDCODE command is loaded in the instruction register. The IDCODE is hardwired into the SRAM and can be shifted out when the TAP controller is in the Shift-DR state. The ID register has a vendor code and other information described in Identification Register Definitions on page 17.

) when

TAP Instruction Set

Eight different instructions are possible with the three-bit instruction register. All combinations are listed in Instruction

Codes on page 17. Three of these instructions are listed as

RESERVED and must not be used. The other five instructions are described in this section in detail.

Instructions are loaded into the TAP controller during the Shift-IR state when the instruction register is placed between TDI and TDO. During this state, instructions are shifted through the instruction register through the TDI and TDO pins. To execute the instruction after it is shifted in, the TAP controller must be moved into the Update-IR state.

Document #: 001-12561 Rev. *D Page 12 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

IDCODE

The IDCODE instruction loads a vendor-specific, 32-bit code into the instruction register. It also places the instruction register between the TDI and TDO pins and shifts the IDCODE out of the device when the TAP controller enters the Shift-DR state. The IDCODE instruction is loaded into the instruction register at power up or whenever the TAP controller is given a Test-Logic-Reset state.

SAMPLE Z

The SAMPLE Z instruction connects the boundary scan register between the TDI and TDO pins when the TAP controller is in a Shift-DR state. The SAMPLE Z command puts the output bus into a High-Z state until the next command is given during the Update IR state.

SAMPLE/PRELOAD

SAMPLE/PRELOAD is a 1149.1 mandatory instruction. When the SAMPLE/PRELOAD instructions are loaded into the instruction register and the TAP controller is in the Capture-DR state, a snapshot of data on the input and output pins is captured in the boundary scan register.

The user must be aware that the TAP controller clock can only operate at a frequency up to 20 MHz, while the SRAM clock operates more than an order of magnitude faster. Because there is a large difference in the clock frequencies, it is possible that during the Capture-DR state, an input or output undergoes a transition. The TAP may then try to capture a signal while in transition (metastable state). This does not harm the device, but there is no guarantee as to the value that is captured. Repeatable results may not be possible.

To guarantee that the boundary scan register captures the correct value of a signal, the SRAM signal must be stabilized long enough to meet the TAP controller's capture setup plus hold times (t correctly if there is no way in a design to stop (or slow) the clock during a SAMPLE/PRELOAD instruction. If this is an issue, it is still possible to capture all other signals and simply ignore the value of the CK and CK

After the data is captured, it is possible to shift out the data by putting the T AP into the Shift-DR state. This places the boundary scan register between the TDI and TDO pins.

PRELOAD places an initial data pattern at the latched parallel outputs of the boundary scan register cells before the selection of another boundary scan test operation.

The shifting of data for the SAMPLE and PRELOAD phases can occur concurrently when required, that is, while the data captured is shifted out, the preloaded data can be shifted in.

and tCH). The SRAM clock input might not be captured

captured in the boundary scan register.

BYPASS

When the BYPASS instruction is loaded in the instruction register and the TAP is placed in a Shift-DR state, the bypass register is placed between the TDI and TDO pins. The advantage of the BYPASS instruction is that it shortens the boundary scan path when multiple devices are connected together on a board.

EXTEST

The EXTEST instruction drives the preloaded data out through the system output pins. This instruction also connects the boundary scan register for serial access between the TDI and TDO in the Shift-DR controller state.

EXTEST OUTPUT BUS TRI-ST ATE

IEEE Standard 1149.1 mandates that the TAP controller be able to put the output bus into a tri-state mode.

The boundary scan register has a special bit located at bit #108. When this scan cell, called the “extest output bus tri-state,” is latched into the preload register during the Update-DR state in the TAP controller, it directly controls the state of the output (Q-bus) pins, when the EXTEST is entered as the current instruction. When HIGH, it enables the output buffers to drive the output bus. When LOW, this bit places the output bus into a High-Z condition.

This bit can be set by entering the SAMPLE/PRELOAD or EXTEST command, and then shifting the desired bit into that cell, during the Shift-DR state. During Update-DR, the value loaded into that shift-register cell latches into the preload register. When the EXTEST instruction is entered, this bit directly controls the output Q-bus pins. Note that this bit is pre-set LOW to enable the output when the device is powered up, and also when the TAP controller is in the Test-Logic-Rese t state.

Reserved

These instructions are not implemented but are reserved for future use. Do not use these instructions.

Document #: 001-12561 Rev. *D Page 13 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

TAP Controller State Diagram

TEST-LOGIC RESET

TEST-LOGIC/ IDLE

SELECT DR-SCAN

CAPTURE-DR

SHIFT-DR

EXIT1-DR

PAUSE-DR

EXIT2-DR

UPDA TE-DR

SELECT IR-SCAN

CAPTURE-IR

SHIFT-IR

EXIT1-IR

PAUSE-IR

EXIT2-IR

UPDA TE-IR

Note

9. The 0/1 next to each state represents the value at TMS at the rising edge of TCK.

The state diagram for the TAP controller follows.

[9]

Document #: 001-12561 Rev. *D Page 14 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

TAP Controller Block Diagram

012..29

3031

Boundary Scan Register

Identification Register

012..

.108

012

Instruction Register

Bypass Register

Selection Circuitry

TA P Controller

TDI

TDO

TCK TMS

Notes

10.These characteristics pertain to the TAP inputs (TMS, TCK, TDI and TDO). Parallel load levels are specified in the Electrical Characteristics table.

11.Overshoot: V

(AC) < V

DDQ

+ 0.85V (Pulse width less than t

CYC

/2), Undershoot: VIL(AC) > −1.5V (Pulse width less than t

CYC

/2).

12.All Voltage referenced to Ground.

TAP Electrical Characteristics

Over the Operating Range

Parameter Description Test Conditions Min Max Unit

OH1

OH2

OL1

OL2

Output HIGH Voltage I Output HIGH Voltage I Output LOW Voltage IOL = 2.0 mA 0.4 V Output LOW Voltage IOL = 100 μA0.2V Input HIGH Voltage 0.65VDDV Input LOW Voltage –0.3 0.35V Input and Output Load Current GND ≤ VI ≤ V

[10, 11, 12]

= −2.0 mA 1.4 V

= −100 μA1.6 V

–5 5 μA

+ 0.3 V

Document #: 001-12561 Rev. *D Page 15 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

TAP AC Switching Characteristics

(a)

TDO

= 20 pF

= 50

GND

0.9V

1.8V

ALL INPUT PULSES

0.9V

Test Clock

Test Mode Select

TCK

TMS

Test Data In TDI

Test Data Out

TCYC

TMSH

TMSS

TDIS

TDIH

TDOV

TDOX

TDO

Notes

13.t

and tCH refer to the setup and hold time requirements of latching data from the boundary scan register.

14.Test conditions are specified using the load in TAP AC Test Conditions. t

R/tF

= 1 ns.

Over the Operating Range

Parameter Description Min Max Unit

TCYC

TCK Clock Cycle Time 50 ns TCK Clock Frequency 20 MHz TCK Clock HIGH 20 ns TCK Clock LOW 20 ns

Setup Times

TMSS

TDIS

TMS Setup to TCK Clock Rise 5 ns TDI Setup to TCK Clock Rise 5 ns Capture Setup to TCK Rise 5 ns

Hold Times

TMSH

TDIH

TMS Hold after TCK Clock Rise 5 ns TDI Hold after Clock Rise 5 ns Capture Hold after Clock Rise 5 ns

Output Times

TDOV

TDOX

TCK Clock LOW to TDO Valid 10 ns TCK Clock LOW to TDO Invalid 0 ns

[13, 14]

TAP Timing and Test Conditions

Figure 2 shows the TAP timing and test conditions.

Figure 2. TAP Timing and Test Conditions

[14]

Document #: 001-12561 Rev. *D Page 16 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Identification Register Definitions

Instruction Field

Revision Number (31:29)

Cypress Device ID (28:12)

Cypress JEDEC ID (11:1)

ID Register Presence (0)

CY7C1410JV18 CY7C1425JV18 CY7C1412JV18 CY7C1414JV18

001 001 001 001 Version number.

11010011010000111 11010011010001111 11010011010010111 110100110101001 11 Defines the type of

00000110100 00000110100 00000110100 00000110100 Allows unique

1111Indicates the

Value

Description

SRAM.

identification of SRAM vendor.

presence of an ID register.

Scan Register Sizes

Instruction 3 Bypass 1 ID 32 Boundary Scan 109

Instruction Codes

Instruction Code Description

EXTEST 000 Captures the input and output ring contents. IDCODE 001 Loads the ID register with the vendor ID code and places the register between TDI and TDO.

This operation does not affect SRAM operation.

SAMPLE Z 010 Captures the input and output contents. Places the boundary scan register between TDI and

TDO. Forces all SRAM output drivers to a High-Z state. RESERVED 011 Do Not Use: This instruction is reserved for future use. SAMPLE/PRELOAD 100 Captures the input and output ring contents. Places the boundary scan register between TDI

RESERVED 101 Do Not Use: This instruction is reserved for future use. RESERVED 110 Do Not Use: This instruction is reserved for future use. BYPASS 111 Places the bypass register between TDI and TDO. This operation does not affect SRAM

and TDO. Does not affect the SRAM operation.

operation.

Document #: 001-12561 Rev. *D Page 17 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Boundary Scan Order

Bit # Bump ID Bit # Bump ID Bit # Bump ID Bit # Bump ID

0 6R 28 10G 56 6A 84 1J 16P299G575B852J 2 6N 30 11F 58 5A 86 3K 3 7P 31 11G 59 4A 87 3J 47N329F605C882K 5 7R 33 10F 61 4B 89 1K 6 8R 34 11E 62 3A 90 2L 7 8P 35 10E 63 2A 91 3L 8 9R 36 10D 64 1A 92 1M

9 11P 37 9E 65 2B 93 1L 10 10P 38 10C 66 3B 94 3N 11 10N 39 11D 67 1C 95 3M 12 9P 40 9C 68 1B 96 1N 13 10M 41 9D 69 3D 97 2M 14 11N 42 11B 70 3C 98 3P 15 9M 43 11C 71 1D 99 2N 16 9N 44 9B 72 2C 100 2P 17 11L 45 10B 73 3E 101 1P 18 11M 46 11A 74 2D 102 3R 19 9L 47 10A 75 2E 103 4R 20 10L 48 9A 76 1E 104 4P 21 11K 49 8B 77 2F 105 5P 22 10K 50 7C 78 3F 106 5N 23 9J 51 6C 79 1G 107 5R 24 9K 52 8A 80 1F 108 Internal 25 10J 53 7A 81 3G 26 11J 54 7B 82 2G 27 11H 55 6B 83 1H

Document #: 001-12561 Rev. *D Page 18 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Power Up Sequence in QDR-II SRAM

QDR-II SRAMs must be powered up and initialized in a predefined manner to prevent undefined operations. During Power Up, when the DOFF is tied HIGH, the DLL gets locked after 1024 cycles of stable clock.

Power Up Sequence

■ Apply power with DOFF tied HIGH (All other inputs can be

HIGH or LOW)

❐ Apply V ❐ Apply V

■ Provide stable power and clock (K, K) for 1024 cycles to lock

the DLL.

before V

DD DDQ

before V

DDQ

or at the same time as V

REF

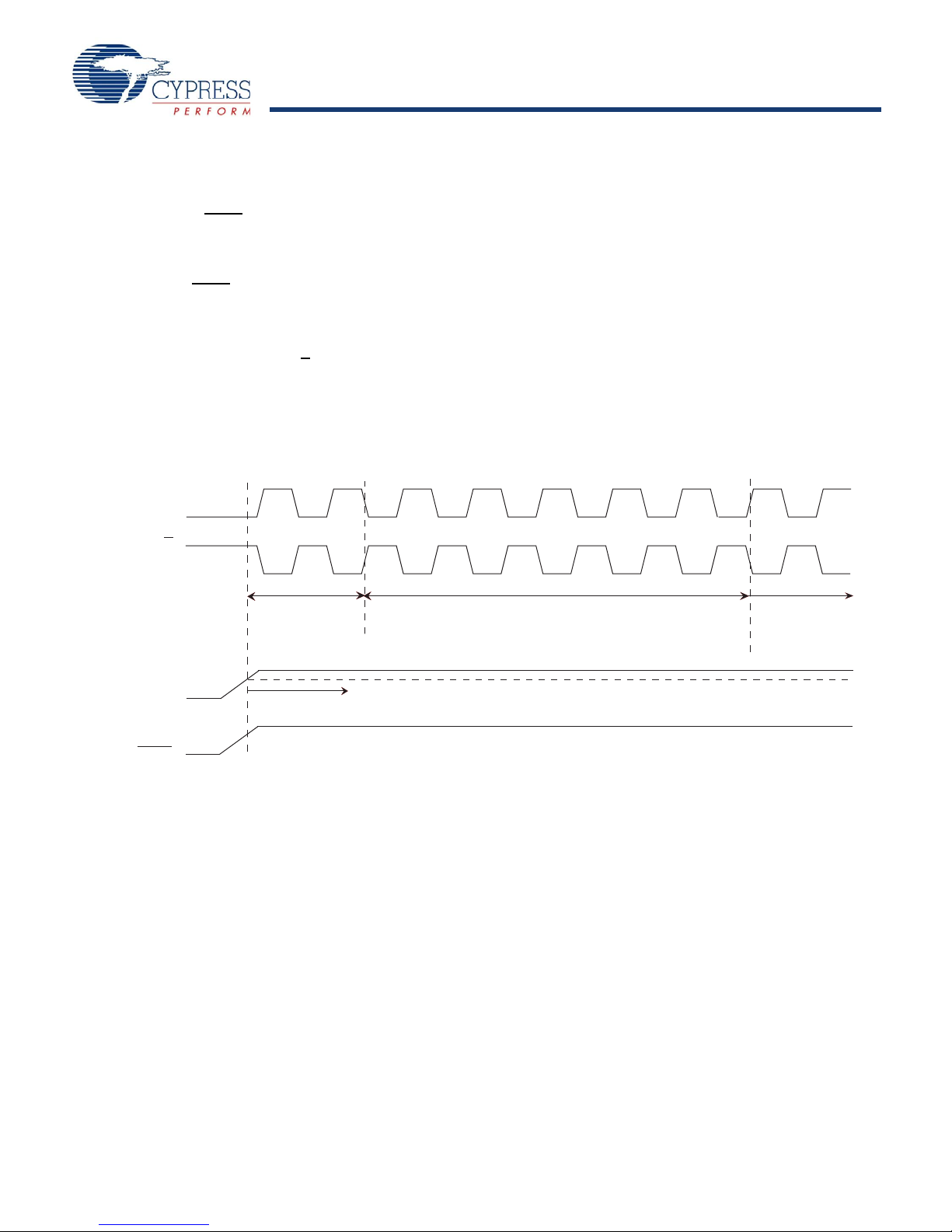

Power Up Waveforms

DLL Constraints

■ DLL uses K clock as its synchronizing input. The input must

have low phase jitter, which is specified as t

■ The DLL functions at frequencies down to 120 MHz.

■ If the input clock is unstable and the DLL is enabled, then the

DLL may lock onto an incorrect frequency, causing unstable SRAM behavior. To avoid DLL locking provide 1024 cycles stable clock to relock to the desired clock frequency.

KC Var

Unstable Clock

> 1024 Stable clock

Start Normal Operation

Clock Start

DDQ

(Clock Starts after Stable)

DDQ

DOFF

DDQ

Stable (< +/- 0.1V DC per 50ns )

Fix High (or tied to V

DDQ

)

Document #: 001-12561 Rev. *D Page 19 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Maximum Ratings

Notes

15.Power up: Assumes a linear ramp from 0V to V

(min) within 200 ms. During this time V

< V

and V

DDQ

< VDD.

16.Output are impedance controlled. IOH = −(V

DDQ

/2)/(RQ/5) for values of 175 ohms <= RQ <= 350 ohms.

17.Output are impedance controlled. I

= (V

DDQ

/2)/(RQ/5) for values of 175 ohms <= RQ <= 350 ohms.

18.V

REF

(min) = 0.68V or 0.46V

DDQ

, whichever is larger, V

REF

(max) = 0.95V or 0.54V

DDQ

, whichever is smaller.

Exceeding maximum ratings may impair the useful life of th e device. These user guidelines are not tested.

Storage Temperature .................................–65°C to +150°C

Ambient Temperature with Power Applied.... –10°C to +85°C

Supply Voltage on VDD Relative to GND........–0.5V to +2.9V

Supply Voltage on V

DC Applied to Outputs in High-Z ........–0.5V to V

DC Input Voltage

Relative to GND.......–0.5V to +V

DDQ

[11]

..............................–0.5V to VDD + 0.3V

DDQ

+ 0.3V

Current into Outputs (LOW) ........................................20 mA

Static Discharge Voltage (MIL-STD-883, M. 3015).. > 2001V

Latch-up Current ................................................... > 200 mA

Operating Range

Range

Temperature (TA) V

Commercial 0°C to +70°C 1.8 ± 0.1V 1.4V to Industrial –40°C to +85°C

Ambient

[15]

DDQ

Electrical Characteristics

DC Electrical Characteristics

Over the Operating Range

Parameter Description Test Conditions Min Typ Max Unit

DDQ

OH(LOW)

OL(LOW)

REF

SB1

Power Supply Voltage 1.7 1.8 1.9 V IO Supply Voltage 1.4 1.5 V Output HIGH Voltage Note 16 V Output LOW Voltage Note 17 V Output HIGH Voltage I Output LOW Voltage IOL = 0.1 mA, Nominal Impedance V Input HIGH Voltage V Input LOW Voltage –0.3 V Input Leakage Current GND ≤ VI ≤ V Output Leakage Current GND ≤ VI ≤ V Input Reference Voltage VDD Operating Supply V

Automatic Power down Current

[12]

/2 – 0.12 V

DDQ

/2 – 0.12 V

DDQ

= −0.1 mA, Nominal Impedance V

DDQ

Output Disabled −5 5 μA

= 1/t

DDQ,

CYC

267MHz (x8) 1330 mA

(x9) 1330

(x18) 1370

[18]

Typical Value = 0.75V 0.68 0.75 0.95 V

= Max,

= 0 mA,

OUT

f = f

MAX

– 0.2 V

DDQ

+ 0.1 V

REF

−5 5 μA

/2 + 0.12 V

DDQ

/2 + 0.12 V

DDQ

0.2 V + 0.3 V

DDQ

– 0.1 V

REF

(x36) 1460

250MHz (x8) 1200 mA

(x9) 1200 (x18) 1230 (x36) 1290

Max VDD, Both Ports Deselected,

≥ VIH or VIN ≤ VIL

f = f Inputs Static

MAX

= 1/t

CYC,

267MHz (x8) 375 mA

(x9) 375 (x18) 380 (x36) 385

250MHz (x8) 345 mA

(x9) 345 (x18) 350 (x36) 350

[15]

Document #: 001-12561 Rev. *D Page 20 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

AC Electrical Characteristics

1.25V

0.25V

R = 50Ω

5pF

INCLUDING

JIG AND

SCOPE

ALL INPUT PULSES

Device

= 50Ω

REF

= 0.75V

REF

= 0.75V

[19]

0.75V

Under Test

0.75V

Device Under Test

OUTPUT

0.75V

REF

OUTPUT

(a)

Slew Rate = 2 V/ns

RQ = 250

(b)

RQ = 250

Note

19.Unless otherwise noted, test conditions are based on signal transition time of 2V/ns, timing reference levels of 0.75V, Vref = 0.75V, RQ = 250Ω, V

DDQ

= 1.5V, input

pulse levels of 0.25V to 1.25V, and output loading of the specified I

OL/IOH

and load capacitance shown in (a) of AC Test Loads and Waveforms.

Over the Operating Range

Parameter Description Test Conditions Min Typ Max Unit

Input HIGH Voltage V Input LOW Voltage – – V

[11]

+ 0.2 – – V

REF

– 0.2 V

REF

Capacitance

Tested initially and after any design or process change that may affect these parameters.

Parameter Description Test Conditions Max Unit

Input Capacitance TA = 25°C, f = 1 MHz, VDD = 1.8V, V

CLK

Clock Input Capacitance 4 pF Output Capacitance 5pF

= 1.5V 5 pF

DDQ

Thermal Resistance

Tested initially and after any design or process change that may affect these parameters.

Parameter Description Test Conditions

Thermal Resistance (Junction to Ambient)

Thermal Resistance (Junction to Case)

Test conditi ons follow standard test methods and procedures for measuring thermal impedance, in accordance with EIA/JESD51.

165 FBGA

Package

17.2 °C/W

3.2 °C/W

Unit

AC Test Loads and Waveforms

Document #: 001-12561 Rev. *D Page 21 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Switching Characteristics

Notes

20.When a part with a maximum frequency above 250 MHz is operating at a lower clock frequency, it requires the input timing of the frequency range in which it is being operated and outputs data with the output timings of that fre quency range.

21.This part has a voltage regulator internally; t

POWER

is the time that the power is suppli ed a bove VDD minimum initially before a read or write operation can be initiated.

22.These parameters are extrapolated from the input timing parameters (t

KHKH

- 250 ps, where 250 ps is the internal jitter. An input jitter of 200 ps (tKC Var) is already

included in the t

KHKH

). These parameters are only guaranteed by design and are not tested in production.

23.t

CHZ

, t

CLZ

, are specified with a load capacitance of 5 pF as in part (b) of AC Test Loads and Waveforms on page 21. Transition is measured ± 100 mV from steady

state voltage.

24.At any voltage and temperature t

CHZ

is less than t

CLZ

and t

CHZ

less than tCO.

Over the Operating Range

Cypress

Parameter

POWER

CYC

KHKH

KHCH

Consortium

Parameter

KHKH

KHKL

KLKH

KHKH

KHCH

Setup Times

SCDDR

AVKH

IVKH

DVKH

Hold Times

HCDDR

KHAX

KHIX

KHDX

Output Times

DOH

CCQO

CQOH

CQD

CQDOHtCQHQX

CQH

CQHCQHtCQHCQH

CHZ

CLZ

CHQV

CHQX

CHCQV

CHCQX

CQHQV

CQHCQL

CHQZ

CHQX1

DLL Timing

KC Var

KC lock

KC ResettKC Reset

KC Var

KC lock

[19, 20]

VDD(Typical) to the first access K Clock and C Clock Cycle Time 3.75 8.4 4.0 8.4 ns Input Clock (K/K and C/C) HIGH 1.5–1.6– ns Input Clock (K/K and C/C) LOW 1.5 – 1.6 – ns K Clock Rise to K Clock Rise and C to C Rise (rising edge to rising edge) 1.68 – 1.8 – ns K/K Clock Rise to C/C Clock Rise (rising edge to rising edge) 0 1.68 0 1.8 ns

Address Setup to K Clock Rise 0.3 –0.35– ns Control Setup to K Clock Rise (RPS, WPS) 0.3 –0.35– ns DDR Control Setup to Clock (K/K) Rise (BWS0, BWS1, BWS3, BWS4) 0.3 –0.35– ns D

Setup to Clock (K/K) Rise 0.3 –0.35– ns

[X:0]

Address Hold after K Clock Rise 0.3 – 0.35 – ns Control Hold after K Clock Rise (RPS, WPS) 0.3 –0.35– ns DDR Control Hold after Clock (K/K) Rise (BWS0, BWS1, BWS3,BWS4) 0.3 –0.35– ns D

Hold after Clock (K/K) Rise 0.3 – 0.35 – ns

[X:0]

C/C Clock Rise (or K/K in Single Clock Mode) to Data Valid – 0.45 – 0.45 ns Data Output Hold after Output C/C Clock Rise (Active to Active) –0.45 – –0.45 – ns C/C Clock Rise to Echo Clock Valid – 0.45 – 0.45 ns Echo Clock Hold after C/C Clock Rise –0.45 – –0.45 – ns Echo Clock High to Data Valid – 0.27 – 0.30 ns Echo Clock High to Data Invalid –0.27 – –0.30 – ns Output Clock (CQ/CQ) HIGH CQ Clock Rise to CQ Clock Rise Clock (C/C) Rise to High-Z (Active to High-Z) Clock (C/C) Rise to Low-Z

Clock Phase Jitter – 0.20 – 0.20 ns DLL Lock Time (K, C) 1024 – 1024 – Cycles K Static to DLL Reset 30 – 30 – ns

Description

[21]

[22]

(rising edge to rising edge)

[23, 24]

[22]

267 MHz 250 MHz

Min Max Min Max

Unit

11ms

1.43 – 1.55 – ns

1.43 – 1.55 – ns – 0.45 – 0.45 ns

–0.45 – –0.45 – ns

Document #: 001-12561 Rev. *D Page 22 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Switching Waveforms

Notes

25.Q00 refers to output from address A0. Q01 refers to output from the next internal burst address following A0, that is, A0+1.

26.Outputs are disabled (High-Z) one clock cycle after a NOP.

27.In this example, if address A2 = A1, then data Q20 = D10 and Q21 = D11. Write dat a is forwar ded immediately as read resu lts. This note applies t o the whole diagram.

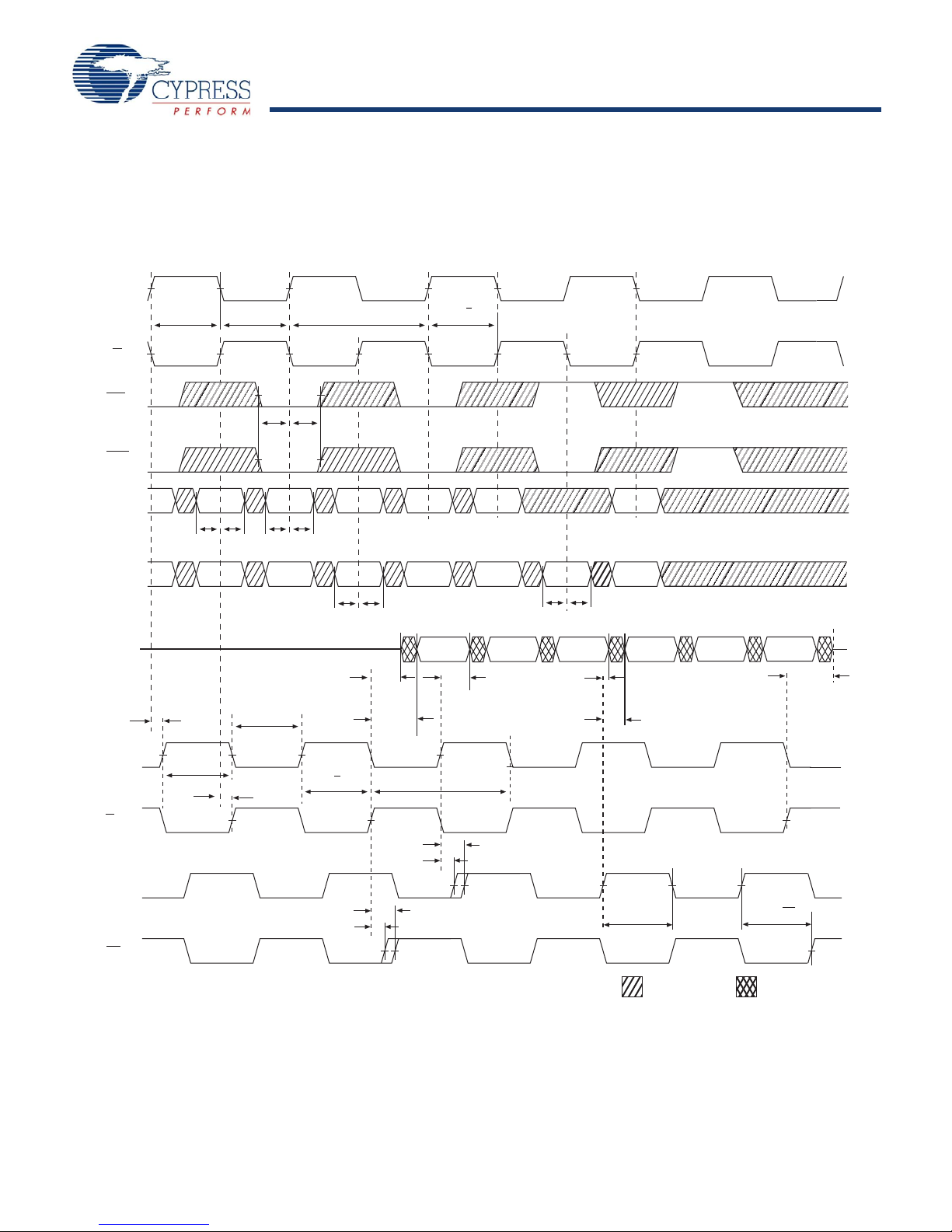

Figure 3. Read/Write/Deselect Sequence

[25, 26, 27]

READ READ WRITE WRITEWRITE

RPS

WPS

tSAt

D11D10 D60

KHCH

tSAt

D30 D50 D51 D61

CYC

A3 A4

D31

CLZ

KHKH

Q00 Q01

DOH

NOPREAD

CQDOH

Q20

WRITE NOP

A6A5

Q21

CQD

Q40

Q41

CHZ

KHCH

KHKH

CQOH

CCQO

CYC

CCQO

CQH

DON’T CARE

CQHCQH

UNDEFINED

Document #: 001-12561 Rev. *D Page 23 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Ordering Information

Not all of the speed, package and temperature ranges are ava ilable. Please contact your local sales representative or visit www.cypress.com for actual products offered.

Speed

(MHz)

267 CY7C1410JV18-267BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1425JV18-267BZC CY7C1412JV18-267BZC CY7C1414JV18-267BZC CY7C1410JV18-267BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1425JV18-267BZXC CY7C1412JV18-267BZXC CY7C1414JV18-267BZXC CY7C1410JV18-267BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1425JV18-267BZI CY7C1412JV18-267BZI CY7C1414JV18-267BZI CY7C1410JV18-267BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1425JV18-267BZXI CY7C1412JV18-267BZXI CY7C1414JV18-267BZXI

250 CY7C1410JV18-250BZC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Commercial

CY7C1425JV18-250BZC CY7C1412JV18-250BZC CY7C1414JV18-250BZC CY7C1410JV18-250BZXC 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1425JV18-250BZXC CY7C1412JV18-250BZXC CY7C1414JV18-250BZXC CY7C1410JV18-250BZI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Industrial CY7C1425JV18-250BZI CY7C1412JV18-250BZI CY7C1414JV18-250BZI CY7C1410JV18-250BZXI 51-85195 165-Ball Fine Pitch Ball Grid Array (15 x 17 x 1.4 mm) Pb-Free CY7C1425JV18-250BZXI CY7C1412JV18-250BZXI CY7C1414JV18-250BZXI

Ordering Code

Package Diagram

Package Type

Operating

Range

Document #: 001-12561 Rev. *D Page 24 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Package Diagram

PIN 1 CORNER

17.00±0.10

15.00±0.10

7.00

1.00

Ø0.50 (165X)

Ø0.25 M C A B

Ø0.05 M C

0.15(4X)

0.35±0.06

1.40 MAX.

SEATING PLANE

0.53±0.05

0.25 C

0.15 C

PIN 1 CORNER

TOP VIEW

BOTTOM VIEW

2345678910

10.00

14.00

1110986754321

1.00

5.00

0.36

+0.14

-0.06

SOLDER PAD TYPE : NON SOLDER MASK DEFINED (NSMD)

NOTES :

PACKAGE WEIGHT : 0.65g

JEDEC REFERENCE : MO-216 / DESIGN 4.6C

PACKAGE CODE : BB0AD

51-85195-*A

Figure 4. 165-ball FBGA (15 x 17 x 1.40 mm), 51-85195

Document #: 001-12561 Rev. *D Page 25 of 26

[+] Feedback

CY7C1410JV18, CY7C1425JV18 CY7C1412JV18, CY7C1414JV18

Document History Page

Document Title: CY7C1410JV18/CY7C1425JV18/CY7C1412JV18/CY7C1414JV18, 36-Mbit QDR™-II SRAM 2-Word Burst Architecture Document Number: 001-12561

REV. ECN NO.

ISSUE

DATE

** 808457 See ECN VKN New Data Sheet *A 1061960 See ECN VKN Removed 300MHz speed bin *B 1397384 See ECN VKN Added 267MHz speed bin *C 1462587 See ECN VKN/AESA Converted from preliminary to final

*D 2189567 See ECN VKN/AESA Minor Change-Moved to the external web

ORIG. OF CHANGE

DESCRIPTION OF CHANGE

Removed 200MHz speed bin Updated I Changed DLL minimum operating frequency from 80MHz to 120MHz Changed t

specs

DD/ISB

max spec to 8.4ns for all speed bins

CYC

© Cypress Semiconductor Corporation, 2007-2008. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life sa vin g, critical control or safety applications, unless pursuant to an express written agreem ent with Cypress. Furthermore, Cypress does not a uthor i ze i ts products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States co pyright la ws and inte rnatio na l tre aty prov isi ons. Cyp ress he reby g rant s to lice nsee a p erson al, no n-ex clusi ve, non-tra nsferable license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for the sole purpo se of creating custom sof tware and or firm ware in support of licen see product to be use d only in conjunction with a Cypress integrated circuit as specified in th e applicable agreement. Any reproductio n, modification, translation, co mpilation, o r representati on of this Sour ce Code except as specified above is prohibited without the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the ap plicati on or u se o f any pr oduct o r circui t descri bed h erein. Cypr ess does not aut horize it s product s for use a s critical compo nent s in life-support systems whe re a malfunction or failure may reasonab ly be expected to resu lt in significant injury t o the user. The inclusion of Cypress’ prod uct in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document #: 001-12561 Rev. *D Revised March 10, 2007 Page 26 of 26

QDR RAMs and Quad Data Rate RAMs comprise a new family of products developed by Cypress, IDT, NEC, Renesas, and Samsung. All product and company names mentioned in this document are the trademarks of their respective holders.

[+] Feedback

Cypress Semiconductor CY7C1410JV18, CY7C1414JV18, CY7C1412JV18, CY7C1425JV18 Specification Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual
