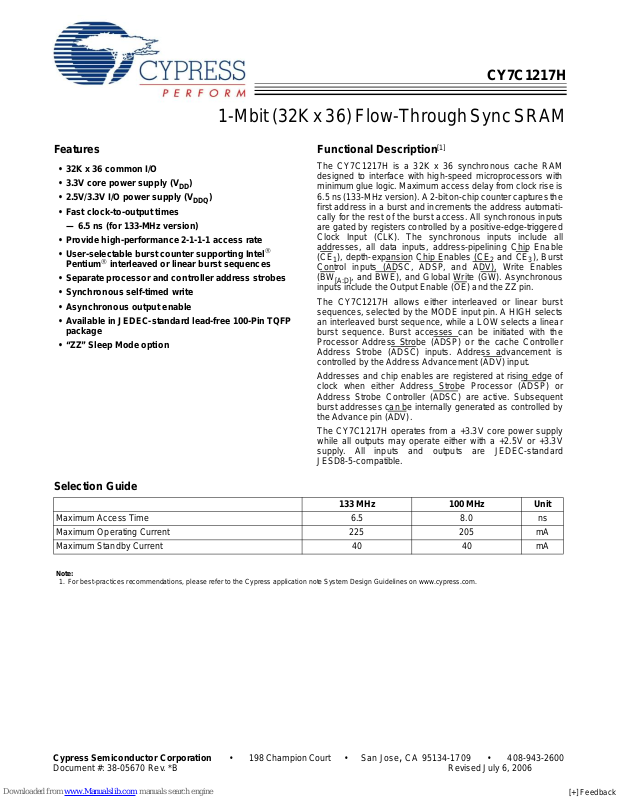

CY7C1217H

1-Mbit (32K x 36) Flow-Through Sync SRAM

Features

• 32K x 36 common I/O

• 3.3V core power supply (V

• 2.5V/3.3V I/O power supply (V

• Fast clock-to-output times
— 6.5 ns (for 133-MHz version )

• Provide high-performance 2-1-1-1 access rate

• User-selectable burst counter supporting Intel
Pentium

• Separate processor and controller address strobes

• Synchronous self-timed write

• Asynchronous output enable

• Available in JEDEC-standard lead-free 100-Pin TQFP
package

• “ZZ” Sleep Mode option

®

interleaved or linear burst sequences

DD

)

DDQ

)

®

Functional Description

The CY7C1217H is a 32K x 36 synchronous cache RAM
designed to interface with high-speed microprocessors with
minimum glue logic. Maximum access delay from clock rise is

6.5 ns (133-MHz version). A 2-bit on-chip counter captures the
first address in a burst and increments the address automati­cally for the rest of the burst access. All synchronous inputs
are gated by registers controlled by a positive-edge-trigg ered
Clock Input (CLK). The synchronous inputs include all
addresses, all data inputs, address-pipelining Chip Enable
(CE

), depth-expansion Chip Enables (CE2 and CE3), Burst

1

Control inputs (ADSC
(BW
inputs include the Output Enable (OE

The CY7C1217H allows either interleaved or linear burst
sequences, selected by the MODE input pin. A HIGH selects
an interleaved burst sequence, while a LOW selects a linear
burst sequence. Burst accesses can be initiated with the
Processor Address Strobe (ADSP
Address Strobe (ADSC
controlled by the Address Advancement (ADV

Addresses and chip enables are registered at rising edge of
clock when either Address Strobe Processor (ADSP
Address Strobe Controller (ADSC
burst addresses can be internally generated as controlled by
the Advance pin (ADV).

The CY7C1217H operates from a +3.3V core power supply
while all outputs may operate either with a +2.5V or +3.3 V
supply. All inputs and outputs are JEDEC-standard
JESD8-5-compatible.

, and BWE), and Global Write (GW). Asynchronous

[A:D]

[1]

, ADSP, and ADV), Write Enables

) and the ZZ pin.

) or the cache Controller

) inputs. Address advancement is

) input.

) or

) are active. Subsequent

Selection Guide

133 MHz 100 MHz Unit

Maximum Access Time 6.5 8.0 ns
Maximum Operating Current 225 205 mA
Maximum Standby Current 40 40 mA

Note:

1. For best-practices recommendations, please refer to the Cypress application note System Design Guidelines on www.cypress.com.

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600
Document #: 38-05670 Rev. *B Revised July 6, 2006

[+] Feedback

Logic Block Diagram

s

A
B
C
D

A

CY7C1217H

0, A1, A

ADDRESS
REGISTER

A

[1:0]

MODE

ADV

CLK

CLR

ADSC
ADSP

DQ

D

,

DQP

BW

D

BW

C

BW

B

WRITE REGISTER

BW

A

BWE

GW
CE1

CE2
CE3

OE

D

BYTE

BYTE

WRITE REGISTER

WRITE REGISTER

DQ

C

,

DQP

C

BYTE

WRITE REGISTER

DQ

B

,

DQP

B

BYTE

DQ

A

,

DQP

A

BYTE

WRITE REGISTER

ENABLE

REGISTER

Q1

BURST

COUNTER

AND LOGIC

Q0

DQ

D

,

DQP

D

BYTE

WRITE REGISTER

DQ

C

,

DQP

C

BYTE

WRITE REGISTER

DQ

B

,

DQP

B

BYTE

WRITE REGISTER

DQ

A

,

DQP

A

BYTE

WRITE REGISTER

MEMORY

ARRAY

SENSE
AMPS

OUTPUT
BUFFERS

INPUT

REGISTERS

DQ
DQP
DQP
DQP
DQP

ZZ

SLEEP

CONTROL

Document #: 38-05670 Rev. *B Page 2 of 16

[+] Feedback

Pin Configuration

100-Pin TQFP

CY7C1217H

BYTE C

BYTE D

DQP

DQ
DQ

V

DDQ

V

SSQ

DQ
DQ
DQ
DQ

V

SSQ

V

DDQ

DQ
DQ

V
NC

V
DQ
DQ

V

DDQ

V

SSQ

DQ
DQ
DQ
DQ

V

SSQ

V

DDQ

DQ
DQ

DQP

NC

DD

SS

A

100

1

C

2

C

3

C

CE

CE

99989796959493929190898887868584838281

2BWDBWC

1

A

4
5
6

C

7

C

8

C

9

C

10
11
12

C

13

C

14
15
16
17
18

D

19

D

20
21
22

D

23

D

24

D

25

D

26
27
28

D

29

D

30

D

3

A

CE

BWBBW

VDDV

CY7C1217H

SS

CLK

GW

BWE

OE

ADSC

ADSP

ADV

A

A

80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

DQP
DQ

B

DQ

B

V

DDQ

V

SSQ

DQ

B

DQ

B

DQ

B

DQ

B

V

SSQ

V

DDQ

DQ

B

DQ

B

V

SS

NC
V

DD

ZZ
DQ

A

DQ

A

V

DDQ

V

SSQ

DQ

A

DQ

A

DQ

A

DQ

A

V

SSQ

V

DDQ

DQ

A

DQ

A

DQPA

B

BYTE B

BYTE A

31323334353637383940414243444546474849

MODE

Document #: 38-05670 Rev. *B Page 3 of 16

AAAAA1A

50

0

SS

DD

V

V

NC/72M

NC/36M

NC/9M

NC/18M

AAAAA

NC/2M

NC/4M

[+] Feedback

CY7C1217H

Pin Descriptions

Name I/O Description

A0, A1, A Input-

Synchronous

, BW

BW

A

BWC, BW

B
D

Input-

Synchronous

GW Input-

Synchronous

BWE Input-

Synchronous

CLK Input-Clock Clock Input. Used to capture all synchronous inputs to the device. Also used to increment

CE

CE

CE

OE

1

2

3

Input-

Synchronous

Input-

Synchronous

Input-

Synchronous

Input-

Asynchronous

ADV Input-

Synchronous

ADSP

Input-

Synchronous

ADSC

Input-

Synchronous

ZZ Input-

Asynchronous

DQs
DQP
DQP

V

DD

V

SS

V

DDQ

V

SSQ

A,

C,

DQP

DQP

B
D

I/O-

Synchronous

Power Supply Power supply inputs to the core of the device.

Ground Ground for the core of the device.

I/O Power Supply Power supply for the I/O circuitry.

I/O Ground Ground for the I/O circuitry.

MODE Input-

Static

NC No Connects. Not Internally connected to the die. 2M, 4M, 9M, 18M, 72M, 144M, 288M,

Address Inputs used to select one of the 32K address locations. Sampled at the rising
edge of the CLK if ADSP
A

feed the 2-bit counter.

[1:0]

or ADSC is active LOW, and CE1, CE2, and CE3 are sampled active.

Byte Write Select Inputs, active LOW. Qualified with BWE to conduct Byte Writes to the
SRAM. Sampled on the rising edge of CLK.

Global Write Enable Input, acti ve LOW . When asserted LOW on the rising edge of CLK, a
global Write is conducted (ALL bytes are written, regardless of the values on BW
BWE

).

[A:D]

and

Byte Write Enable Input, active LOW. Sampled on the rising edge of CLK. This signal must
be asserted LOW to conduct a Byte Write.

the burst counter when ADV

is asserted LOW, during a burst operation.

Chip Enable 1 Input, active LOW. Sampled on the rising edge of CLK. Used in conjunction
with CE
sampled only when a new external address is loaded.

and CE3 to select/deselect the device. ADSP is ignored if CE1 is HIGH. CE1 is

2

Chip Enable 2 Input, active HIGH. Sampled on the rising edge of CLK. Used in conjunction
with CE
address is loaded.

and CE3 to select/deselect the device. CE

1

is sampled only when a new external

2

Chip Enable 3 Input, active LOW. Sampled on the rising edge of CLK. Used in conjunction
with CE
address is loaded.

and CE2 to select/deselect the device. CE3 is sampled only when a new external

1

Output Enable, asynchronous input, active LOW. Controls the direction of the I/O pins.
When LOW, the I/O pins behave as outputs. When deasserted HIGH, I/O pins are tri-stated,
and act as input data pins. OE is masked during the first clock of a Read cycle when emerging
from a deselected state.

Advance Input signal, sampled on the rising edge of CLK. When asserted, it automatically
increments the address in a burst cycle.

Address Strobe from Processor, sampled on the rising edge of CLK, active LOW. When
asserted LOW, addresses presented to the device are captured in the address registers. A
are also loaded into the burst counter. When ADSP
is recognized. ASDP

is ignored when CE1 is deasserted HIGH

and ADSC are both asserted, only ADSP

[1:0]

Address Strobe from Controller , sampled on the rising edge of CLK, active LOW. When
asserted LOW, addresses presented to the device are captured in the address registers. A
are also loaded into the burst counter. When ADSP

and ADSC are both asserted, only ADSP

[1:0]

is recognized.
ZZ “Sleep” Input, active HIGH. When asserted HIGH places the device in a non-time-critical

“sleep” condition with data integrity preserved. For normal operation, this pin has to be LOW
or left floating. ZZ pin has an internal pull-down.

Bidirectional Data I/O lines. As input s, they feed into an on-chip data register that is triggered
by the rising edge of CLK. As outputs, they deliver the data contained in the memory location
specified by the addresses presented during the previous clock rise of the Read cycle. The
direction of the pins is controlled by OE
outputs. When HIGH, DQs and DQP

Selects Burst Order. When tied to GND selects linear burst sequence. When tied to V
left floating selects interleaved burst sequence. This is a strap pin and should remain static

. When OE is asserted LOW, the pins behave as

are placed in a tri-state condition.

[A:D]

DD

during device operation. Mode Pin has an internal pull-up.

576M and 1G are address expansion pins and are not internally connected to the die.

or

Document #: 38-05670 Rev. *B Page 4 of 16

[+] Feedback

CY7C1217H

Functional Overview

All synchronous inputs pass through input registers controlled
by the rising edge of the clock. Maximum access d elay from
the clock rise (t

The CY7C1217H supports secondary cache in systems
utilizing either a linear or interleaved burst sequence. The
interleaved burst order supports Pentium and i486™
processors. The linear burst sequence is suited for processors
that utilize a linear burst sequence. The burst order is
user-selectable, and is determined by sampling the MODE
input. Accesses can be initiated with either the Processor
Address Strobe (ADSP

). Address advancement through the burst sequence is

(ADSC
controlled by the ADV
burst counter captures the first address in a burst sequence
and automatically increments the address for the rest of the
burst access.

Byte write operations are qualified with the Byte Write Enable
(BWE

) and Byte Write Select (BW[A:D]) inputs. A Global Write
Enable (GW
all four bytes. All Writes are simplified with on-chip
synchronous self-timed write circuitry.

Three synchronous Chip Selects (CE
asynchronous Output Enable (OE
selection and output tri-state control. ADSP
is HIGH.

Single Read Accesses

A single read access is initiated when the following conditions
are satisfied at clock rise: (1) CE
asserted active, and (2) ADSP
the access is initiated by ADSC
deasserted during this first cycle). The address presented to
the address inputs is latched into the address register and the
burst counter/control logic and presented to the memory core.
If the OE input is asserted LOW, the requested data will be
available at the data outputs a maximum to t
rise. ADSP

is ignored if CE1 is HIGH.

Single Write Accesses Initiated by ADSP

This access is initiated when the following conditions are
satisfied at clock rise: (1) CE
active, and (2) ADSP
presented are loaded into the address register and the burst
inputs (GW

, BWE, and BW[A:D]) are ignored during this first
clock cycle. If the write inputs are asserted active (see Write
Cycle Descriptions table for appropriate states that indicate a
Write) on the next clock rise, the appropriate data will be
latched and written into the device. Byte Writes are allowed.
During Byte Writes, BW
DQ

, BWC controls DQC, and BWD controls DQD. All I/Os are

B

tri-stated during a Byte Write. Since this is a common I/O
device, the asynchronous OE input signal must be deasserted
and the I/Os must be tri-stated prior to the presentation of data
to DQs. As a safety precaution, the data lines are tri -stated
once a write cycle is detected, regardless of the state of OE

Single Write Accesses Initiated by ADSC

This write access is initiated when the following conditions are
satisfied at clock rise: (1) CE
active, (2) ADSC

) is 6.5 ns (133-MHz device).

CDV

) or the Controller Address Strobe

input. A two-bit on-chip wraparound

) overrides all Byte Write inputs and writes data to

, CE2, CE3) and an

1

) provide for easy bank

is ignored if CE

, CE2, and CE3 are all

1

or ADSC is asserted LOW (if

, the write inputs must be

after clock

CDV

, CE2, and CE3 are all asserted

1

is asserted LOW. The addresses

controls DQA and BWB controls

A

, CE2, and CE3 are all asserted

is asserted LOW, (3) ADSP is deasserted

1

HIGH, and (4) the write input signals (GW, BWE, and BW[A:D])
indicate a write access. ADSC

is ignored if ADSP is active

LOW.
The addresses presented are loaded into the address register

and the burst counter/control logic and delivered to the
memory core. The information presented to DQ[A:D will be
written into the specified address location. Byte Writes are
allowed. During Byte Writes, BW
DQ

, BWC controls DQC, and BWD controls DQD. All I/Os are

B

tri-stated when a write is detected, even a Byte Write. Since

controls DQA, BWB controls

A

this is a common I/O device, the asynchronous OE input signal
must be deasserted and the I/Os must be tri-stated prior to the
presentation of data to DQs. As a safety precaution, the data
lines are tri-stated once a Write cycle is detected, regardless
of the state of OE

.

Burst Sequences

The CY7C1217H provides an on-chip two-bit wraparound
burst counter inside the SRAM. The burst counter is fed by
A

, and can follow either a linear or interleaved burst order.

[1:0]

The burst order is determined by the state of the MODE input.
A LOW on MODE will select a linear burst sequence. A HIGH
on MODE will select an interleaved burst order. Leaving
MODE unconnected will cause the device to default to a inter­leaved burst sequence.

Sleep Mode

1

The ZZ input pin is an asynchronous input. Asserting ZZ
places the SRAM in a power conservation “sleep” mode. Two
clock cycles are required to enter into or exit from this “sleep”
mode. While in this mode, data integrity is guaranteed.
Accesses pending when entering the “sleep” mode are not
considered valid nor is the completion of the operation
guaranteed. The device must be deselected prior to entering
the “sleep” mode. CE
inactive for the duration of t
LOW.

s, ADSP, and ADSC must remain

after the ZZ input returns

ZZREC

Interleaved Burst Address Table
(MODE = Floating or V

First

Address

A1, A0

00 01 10 11
01 00 11 10
10 11 00 01
11 10 01 00

Second

Address

A1, A0

DD

)

Third

Address

A1, A0

Linear Burst Address Table (MODE = GND)

First

Address

A1, A

0

00 01 10 11

.

01 10 11 00
10 11 00 01
11 00 01 10

Second

Address

A1, A

0

Third

Address

A1, A

0

Fourth

Address

A1, A0

Fourth

Address

A1, A

0

Document #: 38-05670 Rev. *B Page 5 of 16

[+] Feedback

CY7C1217H

ZZ Mode Electrical Characteristics

Parameter Description Test Conditions Min. Max. Unit

I

DDZZ

t

ZZS

t

ZZREC

t

ZZI

t

RZZI

Truth Table

Sleep mode standby current ZZ > VDD – 0.2V 40 mA
Device operation to ZZ ZZ > VDD – 0.2V 2t
ZZ recovery time ZZ < 0.2V 2t

CYC

ZZ Active to sleep current This parameter is sampled 2t

CYC

CYC

ZZ Inactive to exit sleep current This parameter is sampled 0 ns

[2, 3, 4, 5, 6]

ns
ns
ns

Cycle Description

Deselected Cycle,

Used CE1CE2CE3ZZ ADSP ADSC ADV WRITE OE CLK DQ

None H X X L X L X X X L-H Tri-State

Power-down

Address

Deselected Cycle,

None L L X L L X X X X L-H Tri-State

Power-down
Deselected Cycle,

None L X H L L X X X X L-H Tri-State

Power-down
Deselected Cycle,

None L L X L H L X X X L-H Tri-S tate

Power-down
Deselected Cycle,

None X X X L H L X X X L-H Tri-State

Power-down
Sleep Mode, Power-down None X X X H X X X X X X Tri-State
Read Cycle, Begin Burst External L H L L L X X X L L-H Q
Read Cycle, Begin Burst External L H L L L X X X H L-H Tri-State
Write Cycle, Begin Burst External L H L L H L X L X L-H D
Read Cycle, Begin Burst External L H L L H L X H L L-H Q
Read Cycle, Begin Burst External L H L L H L X H H L-H Tri-State
Read Cycle, Continue Burst Next X X X L H H L H L L-H Q
Read Cycle, Continue Burst Next X X X L H H L H H L-H Tri-State
Read Cycle, Continue Burst Next H X X L X H L H L L-H Q
Read Cycle, Continue Burst Next H X X L X H L H H L-H Tri-State
Write Cycle, Continue Burst Next X X X L H H L L X L-H D
Write Cycle, Continue Burst Next H X X L X H L L X L-H D
Read Cycle, Suspend Burst Current X X X L H H H H L L-H Q
Read Cycle, Suspend Burst Current X X X L H H H H H L-H Tri-State
Read Cycle, Suspend Burst Current H X X L X H H H L L-H Q
Read Cycle, Suspend Burst Current H X X L X H H H H L-H Tri-State
Write Cycle, Suspend Burst Current X X X L H H H L X L-H D
Write Cycle, Suspend Burst Current H X X L X H H L X L-H D

Notes:

2. X = “Don't Care.” H = Logic HIGH, L = Logic LOW.

3. WRITE

4. The DQ pins are controlled by the current cycle and the OE

5. The SRAM always initiates a Read cycle when ADSP

6. OE

= L when any one or more Byte Write Enable signals ( BWA, BWB, BWC, BWD) and BWE = L or GW = L. WRITE = H when all Byte Write Enable si gnals

(BW

, BWB, BWC, BWD), BWE, GW = H.

A

after the ADSP
don't care for the remainder of the Write cycle.

is asynchronous and is not sampled with the clock rise. It is masked internally during Write cycles. During a Read cycle all dat a bit s are tri-st ate whe n OE is

inactive or when the device is deselected, and all data bits behave as output when OE

or with the assertion of ADSC. As a result, OE must be driven HIGH prior to the start of the Write cycle to allow the outputs to tri-state. OE is a

Document #: 38-05670 Rev. *B Page 6 of 16

signal. OE is asynchronous and is not sampled with the clock.

is asserted, regardless of the state of GW, BWE, or BW

is active (LOW).

. Writes may occur only on subsequent clocks

[A: D]

[+] Feedback

CY7C1217H

Truth Table for Read/Write

Function GW BWE BW

[2, 3]

D

BW

C

BW

B

BW

A

Read HHXXXX
Read HLHHHH
Write Byte (A, DQP
Write Byte (B, DQP
Write Bytes (B, A, DQP
Write Byte (C, DQP
Write Bytes (C, A, DQP
Write Bytes (C, B, DQP
Write Bytes (C, B, A, DQP
Write Byte (D, DQP
Write Bytes (D, A, DQP
Write Bytes (D, B, DQP
Write Bytes (D, B, A, DQP
Write Bytes (D, B, DQP
Write Bytes (D, B, A, DQP
Write Bytes (D, C, A, DQP

) HLHHHL

A

)HLHHLH

B

, DQPB)HLHHLL

A

) HLHLHH

C

, DQPA) HLHLHL

C

, DQPB)HLHLLH

C

, DQPB, DQPA)HLHLLL

C

) HLLHHH

D

, DQPA)HLLHHL

D

, DQPA)HLLHLH

D

, DQPB, DQPA)H L L H L L

D

, DQPB) HLLLHH

D

, DQPC, DQPA)HLLLHL

D

, DQPB, DQPA)HLLLLH

D

Write All Bytes HLLLLL
Write All Bytes L XXXXX

Document #: 38-05670 Rev. *B Page 7 of 16

[+] Feedback

CY7C1217H

Maximum Ratings

(Above which the useful life may be impaired. For user guide­lines, not tested.)

Storage Temperature ................................–65°C to + 150°C

Ambient Temperature with

Power Applied............................................–55°C to + 125°C

Supply Voltage on V
Supply Voltage on V
DC Voltage Applied to Outputs

in Tri-State........................................ ...–0.5V to V

Electrical Characteristics

Relative to GND.......–0.5V to + 4.6V

DD

Relative to GND.....–0.5V to + V

DDQ

DDQ

Over the Operating Range

DD

+ 0.5V

DC Input Voltage............................... ... .–0.5V to V

Current into Outputs (LOW).........................................20 mA

Static Discharge Voltage........................................... >2001V

(per MIL-STD-883, Method 3015)

Latch-up Current..................................................... >200 mA

Operating Range

Range

T emperature

Commercial 0°C to +70°C 3.3V
Industrial –40°C to +85°C

[7, 8]

Ambient

]

−5%/+10%

V

DD

+ 0.5V

DD

V

DDQ

2.5V –5%
to V

DD

Parameter Description Test Conditions Min. Max. Unit

V
V

DD
DDQ

Power Supply Voltage 3.135 3.6 V
I/O Supply Voltage for 3.3V I/O 3.135 V

DD

for 2.5V I/O 2.375 2 .625 V

V

OH

V

OL

V

IH

V

IL

Output HIGH Voltage for 3.3V I/O, I

for 2.5V I/O, I

Output LOW Voltage for 3.3V I/O, I

for 2.5V I/O, I

Input HIGH Voltage

[7]

for 3.3V I/O 2.0 V
for 2.5V I/O 1.7 V

Input LOW Voltage

[7]

for 3.3V I/O –0.3 0.8 V

= –4.0 mA 2.4 V

OH

= –1.0 mA 2.0 V

OH

= 8.0 mA 0.4 V

OL

= 1.0 mA 0.4 V

OL

+ 0.3V V

DD

+ 0.3V V

DD

for 2.5V I/O –0.3 0.7 V

I

X

I

OZ

I

DD

I

SB1

I

SB2

I

SB3

I

SB4

Input Leakage Current

GND ≤ VI ≤ V

except ZZ and MODE
Input Current of MODE Input = V

Input = V

Input Current of ZZ Input = V

Input = V

SS
DD
SS
DD

Output Leakage Current GND ≤ VI ≤ V
V

Operating Supply

DD

Current
Automatic CE

Power-Down
Current—TTL Inputs

Automatic CE
Power-Down
Current—CMOS Inputs

Automatic CE
Power-Down
Current—CMOS Inputs

Automatic CE
Power-Down
Current—TTL Inputs

V

= Max., I

DD

f = f

MAX

= 1/t

Max. VDD, Device Deselected,
V

≥ VIH or VIN ≤ VIL, f = f

IN

inputs switching
Max. VDD, Device Deselected,

≥ VDD – 0.3V or VIN ≤ 0.3V,

V

IN

f = 0, inputs static
Max. V

V

IN

f = f

, Device Deselected,

DD

≥ V

– 0.3V or VIN ≤ 0.3V,

DDQ

, inputs switching

MAX

Max. VDD, Device Deselected,
V

≥ V

IN

f = 0, inputs static

– 0.3V or VIN ≤ 0.3V,

DD

DDQ

−55µA

–30 µA

–5 µA

, Output Disabled –5 5 µA

DDQ
OUT

CYC

= 0 mA,

7.5-ns cycle, 133 MHz 225 mA
10-ns cycle, 100 MHz 205 mA

7.5-ns cycle, 133 MHz 90 mA

MAX,

10-ns cycle, 100 MHz 80 mA
All speeds 40 mA

7.5-ns cycle, 133 MHz 75 mA
10-ns cycle, 100 MHz 65 mA

All speeds 45 mA

5 µA

30 µA

V

Notes:

7. Overshoot: V

8. T

Power-up

(AC) < VDD +1.5V (Pulse width less than t

IH

: Assumes a linear ramp from 0V to VDD(min.) within 200 ms. During this time VIH < VDD and V

Document #: 38-05670 Rev. *B Page 8 of 16

/2), undershoot: VIL(AC) > –2V (Pulse width less than t

CYC

DDQ

< VDD.

CYC

/2).

[+] Feedback

CY7C1217H

Capacitance

[9]

Parameter Description Test Conditions

C

IN

C

CLK

C

I/O

Thermal Resistance

Input Capacitance TA = 25°C, f = 1 MHz,

V

= 3.3V. V

Clock Input Capacitance 5 pF

DD

Input/Output Capacitance 5 pF

[9]

Parameter Description Test Conditions

Θ

JA

Θ

JC

AC Test Loads and Waveforms

3.3V I/O Test Load

OUTPUT

Thermal Resistance
(Junction to Ambient)

Thermal Resistance
(Junction to Case)

= 50Ω

Z

0

R

L

VT= 1.5V

(a) (b)

= 50Ω

3.3V

OUTPUT

INCLUDING

JIG AND

Test conditions follow standard test methods
and procedures for measuring thermal
impedance, per EIA/JESD51

R = 317Ω

5pF

SCOPE

R = 351Ω

DDQ

V

GND

= 2.5V

DDQ

≤ 1 ns

ALL INPUT PULSES

10%

90%

100 TQFP

Max. Unit

5pF

100 TQFP

Package Unit

30.32 °C/W

6.85 °C/W

90%

10%

≤ 1 ns

(c)

2.5V I/O Test Load

OUTPUT

= 50Ω

Z

0

V

T

R

= 1.25V

= 50Ω

L

2.5V

OUTPUT

5pF

INCLUDING

JIG AND

SCOPE

R = 1667Ω

R =1538Ω

(a) (b)

Note:

9. Tested initially and after any design or proc ess change that may affect these parameters.

V

DDQ

GND

≤ 1 ns

ALL INPUT PULSES

10%

90%

(c)

90%

10%

1 ns

≤

Document #: 38-05670 Rev. *B Page 9 of 16

[+] Feedback

CY7C1217H

Switching Characteristics Over the Operating Range

Parameter Description

t

POWER

Clock

t

CYC

t

CH

t

CL

Output Times

t

CDV

t

DOH

t

CLZ

t

CHZ

t

OEV

t

OELZ

t

OEHZ

Set-up Times

t

AS

t

ADS

t

ADVS

t

WES

t

DS

t

CES

Hold Times

t

AH

t

ADH

t

WEH

t

ADVH

t

DH

t

CEH

VDD(Typical) to the First Access

Clock Cycle Time 7.5 10 ns
Clock HIGH 2.5 4.0 ns
Clock LOW 2.5 4.0 ns

Data Output Valid after CLK Rise 7.5 8.0 ns
Data Output Hold after CLK Rise 2.0 2.0 ns
Clock to Low-Z
Clock to High-Z

[13, 14, 15]

[13, 14, 15]

OE LOW to Output Valid 3.5 3.5 ns
OE LOW to Output Low-Z
OE HIGH to Output High-Z

Address Set-up before CLK Rise 1.5 2.0 ns
ADSP, ADSC Set-up before CLK Rise 1.5 2.0 ns
ADV Set-up before CLK Rise 1.5 2.0 ns
GW, BWE, BW

Set-up before CLK Rise 1.5 2.0 ns

[A:D]

Data Input Set-up before CLK Rise 1.5 2.0 ns
Chip Enable Set-up 1.5 2.0 ns

Address Hold after CLK Rise 0.5 0.5 ns
ADSP, ADSC Hold after CLK Rise 0.5 0.5 ns
GW, BWE, BW

Hold after CLK Rise 0.5 0.5 ns

[A:D]

ADV Hold after CLK Rise 0.5 0.5 ns
Data Input Hold after CLK Rise 0.5 0.5 ns
Chip Enable Hold after CLK Rise 0.5 0.5 ns

[12]

[13, 14, 15]

[13, 14, 15]

[10, 11]

133 MHz 100 MHz

UnitMin. Max. Min. Max.

11ms

00ns

3.5 3.5 ns

00ns

3.5 3.5 ns

Notes:

10.Timing reference level is 1.5V when V

11.Test conditions shown in (a) of AC Test Loads unless otherwise noted.

12.This part has a voltage regulator internally; t
can be initiated.

, t

13.t

CHZ

14.At any given voltage and temperature, t
data bus. These specifications do not imply a bus contention condit ion , bu t refle ct p arame ter s gu arante ed over worst ca se user condi tio ns. Device is designe d
to achieve High-Z prior to Low-Z under the same system conditions.

15.This parameter is sampled and not 100% tested.

CLZ,tOELZ

, and t

are specified with AC test conditions shown in part (b) of AC Test Loads. Transition is measured ± 200 mV from steady-state voltage.

OEHZ

= 3.3V and is 1.25V when V

DDQ

POWER

OEHZ

Document #: 38-05670 Rev. *B Page 10 of 16

= 2.5V.

DDQ

is the time that the power needs to be supplied ab ove VDD(minimum) initially before a Read or Write operatio n

is less than t

OELZ

and t

is less than t

CHZ

to eliminate bus contention between SRAMs when sharing the same

CLZ

[+] Feedback

Timing Diagrams

G

Read Cycle Timing

[16]

t

CY7C1217H

CYC

CLK

ADSP

ADSC

ADDRESS

W, BWE,BW

[A:D]

CE

ADV

OE

Data Out (Q)

Note:

16.On this diagram, when CE

t

t

CL

CH

t

t

ADH

ADS

t

t

ADH

ADS

t

t

AH

AS

A1

t

WES

t

t

CES

CEH

t

WEH

A2

t

ADVS

t

ADVH

Deselect Cycle

ADV suspends burst.

t

CDV

t

DOH

Q(A2) Q(A2 + 1) Q(A2 + 2)

Q(A2) Q(A2 + 1) Q(A2 + 2)Q(A2 + 3)

Burst wraps around
to its initial state

High-Z

t

CLZ

t

t

OEV

CDV

t

Q(A1)

OEHZ

t

OELZ

Single READ BURST

READ

DON’T CARE

UNDEFINED

is LOW, CE1 is LOW, CE2 is HIGH and CE3 is LOW. When CE is HIGH, CE1 is HIGH or CE2 is LOW or CE3 is HIGH.

t

CHZ

Document #: 38-05670 Rev. *B Page 11 of 16

[+] Feedback

Timing Diagrams (continued)

D

Write Cycle Timing

[16, 17]

t

CYC

CY7C1217H

ADSP

ADSC

ADDRESS

BWE,

[A:D]

BW

CLK

GW

CE

t

t

CL

CH

t

t

ADH

ADS

t

t

ADH

ADS

t

t

AH

AS

A1

A2 A3

Byte write signals are ignored for first cycle when
ADSP initiates burst.

t

t

CEH

CES

t

WES

t

WEH

ADSC extends burst.

t

ADS

t

ADH

t

WES

t

ADVS

t

WEH

t

ADVH

ADV

ADV suspends burst.

OE

t

t

DH

DS

Data in (D)

High-Z

t

OEHZ

D(A1)

D(A2) D(A2 + 1) D(A2 + 1)

D(A2 + 2)

D(A3) D(A3 + 1) D(A3 + 2)D(A2 + 3)

ata Out (Q)

BURST READ BURST WRITE

Single WRITE

Extended BURST WRITE

DON’T CARE UNDEFINED

Note:

17.

Full width Write can be initiated by either GW

Document #: 38-05670 Rev. *B Page 12 of 16

LOW; or by GW HIGH, BWE LOW and BW

[A:D]

LOW.

[+] Feedback

Timing Diagrams (continued)

t

Read/Write Timing

[16, 18, 19]

CYC

CY7C1217H

CLK

ADSP

ADSC

ADDRESS

BWE, BW[A:D]

CE

ADV

OE

Data In (D)

Data Out (Q)

t

t

CL

CH

t

t

ADH

ADS

t

t

AH

AS

A1 A5 A6

A2

t

t

CEH

CES

High-Z

Q(A1)

Q(A2)

A3 A4

t

t

OEHZ

WES

t

DS

D(A3)

t

WEH

t

DH

t

OELZ

t

CDV

Q(A4) Q(A4+1) Q(A4+2) Q(A4+3)

D(A5) D(A6)

Notes:

18.The data bus (Q) remains in High-Z following a Write cycle unless an ADSP
is HIGH.

19.GW

Document #: 38-05670 Rev. *B Page 13 of 16

Single WRITE

BURST READBack-to-Back READs

DON’T CARE UNDEFINED

, ADSC, or ADV cycle is performed.

Back-to-Back

WRITEs

[+] Feedback

Timing Diagrams (continued)

A

ZZ Mode Timing

[20, 21]

CLK

CY7C1217H

t

ZZ

t

ZZREC

I

SUPPLY

LL INPUTS

(except ZZ)

Outputs (Q)

ZZ

t

ZZI

I

DDZZ

High-Z

t

RZZI

DESELECT or READ Only

DON’T CARE

Notes:

20.Device must be deselected when entering ZZ mode. See Cycle Descriptions table for all possible signal conditions to deselect the device.

21.DQs are in High-Z when exiting ZZ sleep mode.

Document #: 38-05670 Rev. *B Page 14 of 16

[+] Feedback

CY7C1217H

Ordering Information

Not all of the speed, package and temperature ranges are available. Please contact your local sales representative or

Speed

(MHz) Ordering Code

100 CY7C1217H-100AXC 51-85050 100-pin Thin Quad Flat Pack (14 x 20 x 1.4 mm) Lead-Free Commercial

CY7C1217H-100AXI Industrial

133 CY7C1217H-133AXC 51-85050 100-pin Thin Quad Flat Pack (14 x 20 x 1.4 mm) Lead-Free Commercial

CY7C1217H-133AXI Industrial

Package Diagram

visit www.cypress.com for actual products offered.

Package
Diagram Package Type

100-Pin TQFP (14 x 20 x 1.4 mm) (51-85050)

16.00±0.20

14.00±0.10

100

1

81

80

0.30±0.08

Operating

Range

1.40±0.05

20.00±0.10

22.00±0.20

GAUGE PLANE

R 0.08 MIN.

0.20 MAX.

0.25

0°-7°

0.60±0.15

1.00 REF.

30

31 50

0° MIN.

R 0.08 MIN.

0.20 MAX.

0.20 MIN.

A

DETAIL

0.65
TYP.

51

STAND-OFF

0.05 MIN.

0.15 MAX.

SEATING PLANE

NOTE:

1. JEDEC STD REF MS-026

2. BODY LENGTH DIMENSION DOES NOT INCLUDE MOLD PROTRUSION/END FLASH

MOLD PROTRUSION/END FLASH SHALL NOT EXCEED 0.0098 in (0.25 mm) PER SIDE

BODY LENGTH DIMENSIONS ARE MAX PLASTIC BODY SIZE INCLUDING MOLD MISMATCH

3. DIMENSIONS IN MILLIMETERS

12°±1°

(8X)

51-85050-*B

0.20 MAX.

1.60 MAX.

0.10

SEE DETAIL

A

Intel and Pentium are registered trademarks and i486 is a tr ademark of Intel Corporation. All product and company names
mentioned in this document may be the trademarks of their respective holders.

Document #: 38-05670 Rev. *B Page 15 of 16

© Cypress Semiconductor Corporation, 2006. The information contained herein is subject to change withou t n oti ce. C ypr ess S emi con duct or Corpo ration assu mes no resp onsib ility for the u se
of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be
used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its
products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

[+] Feedback

CY7C1217H

Document History Page

Document Title: CY7C1217H 1-Mbit (32K x 36) Flow-Through Sync SRAM
Document Number: 38-05670

REV. ECN NO. Issue Date

** 345879 See ECN PCI New Data Sheet

*A 430677 See ECN NXR Changed address of Cypress Semiconductor Corporation on Page# 1 from

*B 482139 See ECN VKN Converted from Preliminary to Final.

Orig. of

Change Description of Change

“3901 North First Street” to “198 Champion Court”
Added 2.5VI/O option
Changed Three-State to Tri-State
Included Maximum Ratings for V
Modified “Input Load” to “Input Leakage Current except ZZ and MODE” in the

relative to GND

DDQ

Electrical Characteristics Table
Modified test condition from V
Replaced Package Name column with Package Diagram in the Ordering

IH

< V

DD to VIH

< V

Information table

Updated the Ordering Information table.

DD

Document #: 38-05670 Rev. *B Page 16 of 16

[+] Feedback
