CY8CKIT-042-BLE

Bluetooth® Low Energy (BLE)

Pioneer Kit Guide

Doc. # 001-93731 Rev. *A

Cypress Semiconductor

198 Champion Court

San Jose, CA 95134-1709

Phone (USA): 800.858.1810

Phone (Intnl): +1.408.943.2600

www.cypress.com

Copyrights

© Cypress Semiconductor Corporation, 2014. The information contained here in is sub ject to change wi thout no tice. Cypress Semiconductor Corporation assumes no responsibility for the us e of any circuitry othe r than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critical control or sa fety applicati ons, unless pursu ant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its products for use as critical components in lifesupport systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty provisions. Cypress hereby grants to licensee a personal, non-exclusive, non-transferable license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction with a C ypress integrated circuit as specified in the applicable agreement. Any reproduction, modification, translation, compilation, or representation of this Source Code except as specified above is prohibited without the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the application or use of any product or circuit described herein. Cypress does not authorize its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement. CySmart, F-RAM, PRoC, Programmable System-on-Chip, and PSoC Creator are trademarks, and PSoC and CapSense are

registered trademarks of Cypress Semiconductor Corporation. All other products and company names mentioned in this document may be the trademarks of their respective holders.

Purchase of I

C components from Cypress or one of its sublicensed Associated Companies conveys a license under the Philips I2C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification as defined by Philips. As from October 1st, 2006 Philips Semiconductors has a new trade name - NXP Semiconductors.

Flash Code Protection

Cypress products meet the specifications contained in their particular Cypress Datasheets. Cypress believes that its family of products is one of the most secure families of its kind on the market today, regardless of how they are used. There may be methods, unknown to Cypress, that can breach the code protection features. Any of these methods, to our knowledge, would be dishonest and possibly illegal. Neither Cypress nor any other semiconductor manufacturer can guarantee the security of their code. Code protection does not mean that we are guaranteeing the product as “unbreakable.”

Cypress is willing to work with the customer who is concerned about th e integrity of their co de. Code pr otecti on is constantly evolving. We at Cypress are committed to continuously improving the code protection features of our products.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 2

Contents

Safety Information 6

1. Introduction 11

1.1 Kit Contents..................................... ... ... ....................................... ... ... ... .... ................11

1.2 Board Details ................................... ... ... ... .... ... ...................................... .... ... ... ... .... ...12

1.3 PSoC Creator™.........................................................................................................15

1.4 Getting Started...........................................................................................................16

1.5 Additional Learning Resources..................... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ...16

1.6 Technical Support......................................................................................................18

1.7 Documentation Conventions......................................................................................18

1.8 Acronyms...................................................................................................................19

1.5.1 Beginner Resources.......................................................................................16

1.5.2 Application Notes...........................................................................................16

1.5.3 PSoC Creator Example Projects....................................................................17

1.5.4 Component Datasheets .................................................................................17

1.5.5 Bluetooth Learning Resources.......................................................................17

1.5.6 Learning From Peers .....................................................................................17

1.5.7 Other Related Resources...............................................................................18

2. Software Installation 20

2.1 Before You Begin.......................................................................................................20

2.2 Install Software ..........................................................................................................20

2.3 Uninstall Software......................................................................................................23

3. Kit Operation 24

3.1 Theory of Operation..................... .... ... ... ... .... ... ...................................... .... ... ... ... .... ...24

3.2 BLE Pioneer Kit USB Connection..............................................................................26

3.3 Placing Modules on Baseboard.................................................................................26

3.4 Programming and Debugging BLE Device................................................................27

3.4.1 Programming and Debugging using PSoC Creator.......................................27

3.4.2 Programming using PSoC Programmer.........................................................30

3.5 Updating BLE Dongle for CySmart PC Tool..............................................................33

3.6 USB-UART Bridge................................................................. .... ... ... ... ... .... ... ... ... .... ...36

3.7 USB-I2C Bridge.........................................................................................................37

3.8 Updating the Onboard PSoC 5LP Programmer Firmware.........................................40

3.9 Measure Coin Cell Power Consumption.......... ... ... ... .... ... ... ... .... ... ... ... ... ....................40

4. Example Projects 42

4.1 Using Example Projects.............................................................................................42

4.2 CapSense Slider and LED.........................................................................................47

4.2.1 Project Description............................................................................ ... ... .... ...47

4.2.2 Hardware Connections...................................................................................50

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 3

Contents

4.2.3 Flow Chart......................................................................................................51

4.2.4 Verify Output..................................................................................................52

4.3 CapSense Proximity ..................................................................................................62

4.3.1 Project Description............................................................................ ... ... .... ...62

4.3.2 Hardware Connections...................................................................................64

4.3.3 Flow Chart......................................................................................................66

4.3.4 Verify Output..................................................................................................67

4.4 BLE Central Mode .....................................................................................................73

4.4.1 Project Description............................................................................ ... ... .... ...73

4.4.2 Hardware Connections...................................................................................76

4.4.3 Flow Chart......................................................................................................77

4.4.4 Verify Output..................................................................................................78

4.5 BLE Dongle and LED Control....................................................................................81

4.5.1 Project Description............................................................................ ... ... .... ...81

4.5.2 Hardware Connections...................................................................................82

4.5.3 Flow Chart......................................................................................................83

4.5.4 Verify Output..................................................................................................84

4.6 Direct Test Mode (DTM)............................................................................................84

4.6.1 Project Description............................................................................ ... ... .... ...84

4.6.2 Hardware Connection ....................................................................................86

4.6.3 Verify Output..................................................................................................87

5. Hardware 88

5.1 Pioneer Baseboard....................................................................................................88

5.1.1 PSoC 5LP ......................................................................................................88

5.1.2 Power System................................................................................................88

5.1.3 Programming Interface...................................................................................94

5.1.4 Expansion Connectors................................................................... ... ... ... .......95

5.1.5 USB Mini-B Connector................................................................................ ...98

5.1.6 CapSense Circuit...........................................................................................99

5.1.7 Pioneer Board LEDs ....................................................................................101

5.1.8 Push Buttons................................................................................................102

5.1.9 Cypress Ferroelectric RAM (F-RAM) ...........................................................103

5.1.10 Serial Interconnection Between PSoC 5LP and BLE Module......................104

5.1.11 Bluetooth Module Headers...........................................................................105

5.2 BLE Module Board...................................................................................................106

5.2.1 PSoC 4 BLE or PRoC BLE ..........................................................................106

5.2.2 Bluetooth Module Headers (20-Pin and 24-Pin Headers). ... ... ... .... ... ... ... .... .107

5.2.3 Wiggle Antenna............................................................................................108

5.2.4 Antenna Matching Network.................................. ... ... .... ... ... ... ... .... ... ... ... .... .109

5.2.5 BLE Passives...............................................................................................110

5.2.6 Test Points............... ... ... ... .... ... ... ... ....................................... ... ... .... ... ... ........111

5.3 BLE Dongle Board...................................................................................................111

5.3.1 Power System..............................................................................................112

5.3.2 USB Type A Plug.... ... ....................................... ... ... ... .... ... ... ... ... ..................113

5.3.3 User LED......................................................................................................114

6. Advanced Topics 115

6.1 Using PSoC 5LP as USB-UART Bridge ..................................................................115

6.2 Using PSoC 5LP as USB-I2C Bridge ......................................................................126

6.3 Developing Applications for PSoC 5LP ...................................................................134

6.3.1 Building a Bootloadable Project for PSoC 5LP. ... ... ... .... ... ... ........................134

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 4

Contents

6.3.2 Building a Normal Project for PSoC 5LP......................................................143

6.4 PSoC 5LP Factory Program Restore Instructions ...................................................144

6.4.1 PSoC 5LP is Programmed with a Bootloadable Application........................144

6.5 Using FM24V10 F-RAM...........................................................................................150

6.5.1 Address Selection........................................................................................151

6.5.2 Write/Read Operation ..................................................................................151

6.6 CySmart iOS/Android Application............................................................................152

6.7 CySmart PC Tool.....................................................................................................160

A. Appendix 168

A.1 Schematics ..............................................................................................................168

A.2 Board Layout ...... ... ... ... ... ....................................... ... .... ... ... ... .... ... ... ... ... .... ... ...........176

A.3 Bill of Materials (BOM).............................................................................................184

A.4 KitProg Status LED States.......................................................................................194

A.5 Adding BLE module compatible headers on your own baseboard..........................195

Revision History 196

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 5

Safety Information

The CY8CKIT-042-BLE boards contain electrostatic discharge (ESD) sensitive devices. Electrostatic charges readily accumulate on the human body and any equipment, which can cause a discharge without detection. Permanent damage may occur on devices subjected to high-energy discharges. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality. Store unused CY8CKIT-042-BLE boards in the protective shipping package.

End-of-Life/Product Recycling The end-of-life cycle for this kit is five years from the date of

manufacture mentioned on the back of the box. Contact your nearest recycler to discard the kit.

The CY8CKIT-042-BLE Bluetooth Low Energy (BLE) Pioneer Kit is intended for use as a development platform for hardware or software in a laboratory environment. The board is an open system design, which does not include a shielded enclosure. Due to this reason, the board may cause interference with other electrical or electronic devices in close proximity. In a domestic environment, this product ma y cause radio interfe rence. In such cases, the user may be required to take adequate preventive measures. Also, this board should not be used near any medical equipment or critical RF devices.

The CY8CKIT-042-BLE Bluetooth Low Energy (BLE) Pioneer Kit is intended for use as a development, demonstration and evaluation platform for hardware or software in a laboratory environment. The kit is not intended for general consumer use. Cypress recommends that the kit only be used in a shielded room.

Attaching additional wiring to this product or modifying the product ope ration from the factory default may affect its performance and cause interference with other apparatus in the immediate vicinity. If such interference is detected, suitable mitigating measures should be taken.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 6

General Safety Instructions

ESD Protection

ESD can damage boards and associated components. Cypress recommends that the user perform procedures only at an ESD workstation. If an ESD workstation is not available, use appropriate ESD protection by wearing an antistatic wrist stra p attached to the chassis ground (any unpainted metal surface) on the board when handling parts.

Handling Boards

CY8CKIT-042-BLE boards are sensitive to ESD. Hold the board only by its edges. After removing the board from its box, place it on a grounded, static-free surface. Use a conductive foam pad if available. Do not slide the board over any surf ac e.

Battery Care and Use

■ Use the correct size and type of battery specified in this guide.

■ Keep battery contact surfaces and battery compartment contacts clean by rubbing them with a

clean pencil eraser or a rough cloth each time you replace batteries.

■ Remove the battery from a device when it is not expected to be in use for several months.

■ Make sure that you insert the battery into your device properly, with the + (plus) and – (minus)

terminals aligned correctly.

■ Do not place the battery next to metallic objects such as keys and coins.

■ Never throw the battery into fire.

■ Do not open up the battery.

■ Do not short the battery.

■ Do not subject the battery to high temperatures or high humidity.

■ Store the battery in a dry place.

■ Do not recharge a battery unless it is marked “rechargeable.”

Battery Disposal

Batteries can be safely disposed of with normal household waste. Never dispose of batteries in fire because they can explode. It is important not to dispose of large amounts of batteries in a group. Used batteries are often not completely “dead.” Grouping used batteries together can bring these “live” batteries into contact with one another, creating safety risks.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 7

Regulatory Compliance Information

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance coul d void the user ’s authority to operate the equipment.

Only the PCB antenna(s) that were certified with the module may be used. Other antennas may be used only if they are of the same type and have the same or lower gain.

The module must be recertified as a Class II permissive change if the module is built into a different device than the EVB (evaluation board) it was certified with

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

The kit contains devices that transmit and receive radio signals in accordance with the spectrum regulations for the 2.4-GHz unlicensed frequency range.

Cypress Semiconductor Corporation has obtained regulatory approvals for this kit to be used in specific countries. These countries include United States (FCC Part 15), Canada (IC RSS210) and Japan (JRF/ TELEC). Additional regional regulatory agency approval may be required to operate these throughout the world.

This kit as shipped from the factory has been tested and found to comply with the limits/ requirements for following compliances:

■ FCC as a class B digital device, pursuant to part 15 of the FCC Rules.

■ This Class B digital apparatus complies with Canadian ICES-003

Regulatory statements and Product Labeling

United States (FCC)

This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful inter ference, and (2) this d evice must accept any interference received, including interference that may cause undesired operation.

The CY8CKIT-142 PSoC 4 BLE and CY5671 PRoC BLE modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is ins talled in to another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following:

Contains FCC ID: WAP-CY8CKIT-142 and WAP-CY5671, The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Any similar wording that expresses the same meaning may be used.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 8

CAUTION: The changes or modifications not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment and must not be co-located or operating in conjunction with any other antenna or transmitter.

Canada (IC)

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with radio frequency expos uncontrolled environment.

CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This Module is labelled with its own IC ID. If the IC ID Certification Number is not visible while installed inside another device, then the device should display the label on it referring the enclosed module. In that case, the final end product must be labelled in a visible area with the following:

“Contains Transmitter Module IC 7922A-CY8CKIT142 and 7922A-CY5671” OR “Contains IC: 7922A-CY8CKIT142 and 7922A-CY5671” Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio

exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Cet équipement est conforme aux limites Canada pour un environnement non contrôlé.

Ce module est étiqueté avec son propre ID IC. Si le numéro de certification IC ID n'est pas visible lorsqu'il est installé à l'intérieur d'un autre appareil, l'appareil doit afficher l'étiquette sur le module de référence ci-joint. Dans ce cas, le produit fi nal doit être étiqueté dans un endroit visible par le texte suivant:

d'exposition aux radiofréquences définies par Industrie

ure limits set forth by Industry Canada for an

“Contains Transmitter Module IC 7922A-CY8CKIT142 and 7922A-CY5671” OR “Contains IC: 7922A-CY8CKIT142 and 7922A-CY5671”

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 9

Japan (TELEC)



Model:CY5671 FCC ID: WAP-CY5671 IC: 7922A-CY5671 TELEC: 005-100920

Model:CY8CKIY-142 FCC ID : WAP-CY8CKIT-142 IC : 7922A-CY8CKIT142 TELEC : 005-100919

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 10

1. Introduction

Thank you for your interest in the CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit. This kit is designed to showcase the functionality and ease-of-use of the PSoC® 4 BLE and PRoC™ BLE devices while developing Bluetooth Low Energy (Bluetooth Smart) app lications. Cypress's BLE solution has an easy-to-use, intuitive GUI to configure the BLE protocol stack using the BLE component available in the Cypress standard integrated development environment (IDE), PSoC Creator. The CySmart PC tool allows emulation of a BLE Central device and quick access to peripher al connections and debugging. The solution is a true single-chip solution with an integrated balun, Cypress's industry-leading capacitive sensing technology, an analog front end (AFE) for biometric sensors, and digital peripherals suited to a wide variety of applications. Designed for flexibility, this kit offers footprint compatibility with several third-party Arduino™ shields. The kit includes a provision to populate an extra header to support Digilent CapSense® slider, an RGB LED, a push-button switch, an integrated USB programmer, a program and debug header, an F-RAM™, and USB-UART/I2C bridges.

1.1 Kit Contents

Pmod™ peripheral modules. In addition, the board features a

The BLE Pioneer Kit contains the following items, as shown in Figure 1-1.

■ BLE Pioneer Baseboard preloaded with the CY8CKIT-142 PSoC 4 BLE Module

■ CY5671 PRoC BLE Module

■ CY5670 CySmart USB Dongle

■ Quick start guide

■ USB standard A to mini-B cable

■ Four jumper wires (4 inch) and two proximity sensor wires (5 inch)

■ Coin cell

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 11

Figure 1-1. Kit Contents

Introduction

If any part of the kit is missing, contact your nearest Cypress sales of fice for help: www.cypress.com/

go/support.

1.2 Board Details

The BLE Pioneer baseboard consists of the blocks shown in Figure 1-2.

1. RGB LED

2. BLE module reset button

3. CapSense proximity header

4. User button

5. CapSense slider

6. Arduino compatible I/O header (J2)

7. Arduino compatible power header (J1)

8. Digilent Pmod compatible I/O header (J5)

9. Cypress F-RAM 1 Mb (FM24V10-G)

10.PSoC 5LP - programmer and debugger (CY8C5868LTI-LP039)

11.PSoC 5LP I/O header (J8)

12.Coin cell holder (bottom side)

13.USB conn ec to r (J1 3)

14.Power LED

15.Status LED

16.System power supply jumper (J16) - LDO 1.9 V~5 V

17.Arduino compatible I/O header (J3/J4)

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 12

18.BLE power supply jumper (J15) - for current measurement

19.BLE module headers (J10/J11) Figure 1-2. BLE Pioneer Baseboard

Introduction

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 13

Introduction

(/%7%%"

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

7%%3(/%

1@1@

1@1@

1@1@

1@73&'

1@1@

1@1@

1@1@

93&41@

(/%1@

7%%%1@

7%%

(/%

1@

8JHHMF

BOUFOOB

,)[ DSZTUBM CPUUPNTJEF

$NPE

$UBOL

"OUFOOB NBUDIJOH OFUXPSL"./

$:$-2*#-

14P$#-&EFWJDF

14P$ #-&NPEVMF IFBEFS+

14P$ #-&NPEVMF IFBEFS+

QJO6"35 IFBEFS

4"3CZQBTT

DBQBDJUPS

CPUUPNTJEF

(/%7%%"

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

1@1@

7%%3(/%

1@1@

1@1@

1@1@

1@73&'

1@1@

1@1@

1@1@

93&41@

(/%1@

7%%%1@

7%%

(/%

8JHHMF

BOUFOOB

$NPE

$UBOL

"OUFOOB NBUDIJOH OFUXPSL"./

.)[

DSZTUBM

$:#--29*

13P$#-&EFWJDF

13P$ #-&NPEVMF IFBEFS+

13P$ #-&NPEVMF IFBEFS+

QJO6"35 IFBEFS

4"3CZQBTT

DBQBDJUPS

CPUUPNTJEF

1@

1@

1@

.)[

DSZTUBM

,)[ DSZTUBM CPUUPNTJEF

Figure 1-3 shows a markup of the onboard components, where red BLE module denotes the PSoC 4

BLE module and black BLE module denotes the PRoC BLE module. Figure 1-3. BLE Module Markup

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 14

The dongle board consists of the blocks shown in Figure 1-4.

13P$#-&

SFTFUCVUUPO

$:#--29*

13P$#-&EFWJDF

14P$-1 QSPHSBNNJOHUFTUQPJOUT

$:$-5*-1

14P$-1QSPHSBNNFS

BOEEFCVHHFS

6TFSCVUUPO

1PXFS-&%

64#QMVH

4UBUVT-&%

8JHHMF

BOUFOOB

"OUFOOB NBUDIJOH

OFUXPSL

"./

.)[DSZTUBM

6TFS-&%

13P$FYUFSOBMQSPHSBNNJOHIFBEFS

,)[

DSZTUBM

CPUUPNTJEF

48%*0

48%$-,

93&4

(/%

7#64

1@

1@

Figure 1-4. BLE Dongle Markup

Introduction

1.3 PSoC Creator™

PSoC Creator is a state-of-the-art, easy-to-use integrated design environment (IDE). It is a revolutionary hardware and software co-design environment, powered by a library of preverified and precharacterized PSoC Components™.

With PSoC Creator, you can:

■ Drag and drop PSoC Components to build a schematic of your custom design

■ Automatically place and route components and configure GPIOs

■ Develop and debug firmware using the included component APIs

PSoC Creator also enables you to tap into an entire tool e cosystem wit h integrate d compiler ch ains and production programmers for PSoC devices.

For more information, visit www.cypress.com/psoccreator.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 15

1.4 Getting Started

This guide will help you get acquainted with the BLE Pioneer Kit:

■ The Software Installation chapter on page 20 describes the installation of the kit software. This

includes the PSoC Creator IDE for development and debu gging applications, PSoC Programmer for programming hex files, and the CySmart PC tool for BLE host emulation.

■ The Kit Operation chapter on page 24 describes the major features of the BLE Pioneer Kit such

as USB-UART and USB-I2C bridges and functionalities such as programming and debugging.

■ The Example Projects chapter on page 42 describes multiple PSoC 4 BLE and PRoC BLE code

examples that will help you understand how to create your own BLE application using the BLE component and device.

■ The Hardware chapter on page 88 details the hardware content of the kit and dongle, and the

hardware operation.

■ The Advanced Topics chapter on page 115 explains the functionality of the kit features, such as

the USB-UART bridge, USB-I2C bridge, F-RAM, iOS app, and the CySmart PC tool.

■ The Appendix on page 168 provides schematics, board layouts, KitProg LED status, and the bill

of materials (BOM).

1.5 Additional Learning Resources

Introduction

Visit www.cypress.com/go/psoc4ble and www.cypress.com/procble for additional learning resources including datasheets, technical reference manuals, and application notes.

Visit www.cypress.com/go/cysmart for information on the CySmart PC tool.

1.5.1 Beginner Resources

PSoC Creator Traini ng: www.cypress.com/go/creatorstart/creatortraining

1.5.2 Application Notes

Visit www.cypress.com/appnotes to view a growing list of application notes for PSoC 3, PSoC 4, PSoC 4 BLE, PRoC BLE, and PSoC 5LP.

Visit this site for PSoC 4BLE and PRoC BLE application notes.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 16

1.5.3 PSoC Creator Example Projects

These simple example projects demonstrate how to configure and use PSoC Creator co mponents. To open an example proje ct in PSoC Creator, go to File > Example Project (see Figure 1-5) and choose the required example project.

Figure 1-5. PSoC Creator Example Projects

Introduction

1.5.4 Component Datasheets

Right-click a component and select Open Datasheet (see Figure 1-6). Visit this page for the BLE component datasheet.

Figure 1-6. Opening Component Datasheet

1.5.5 Bluetooth Learning Resources

The Bluetooth Developer Portal provides material by the Special Interest Group (SIG) for learning various aspects of the Bluetooth Low Energy protocol and systems. Some of them are:

■ Training videos

■ GATT profiles

■ Bluetooth community forum

1.5.6 Learning From Peers

Cypress Developer Community Forums: Visit www.cypress.com/forums

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 17

1.5.7 Other Related Resources

■ Digilent PMod: www.digilentinc.com/pmods/

■ Arduino: http://arduino.cc/en/Main/ArduinoBoardUno

1.6 Technical Support

For assistance, go to our support web page, www.cypress.com/support, or contact our customer support at +1 (800) 541-4736 Ext. 2 (in the USA) or +1 (408) 943-2600 Ext. 2 (International).

1.7 Documentation Conventi ons

Table 1-1. Document Conventions for Guides

Convention Usage

Courier New

Italics

[Bracketed, Bold]

File > Open

Bold

Times New Roman

Text in gray boxes Describes cautions or unique functionality of the product.

Displays file locations, user entered text, and source code:

C:\...cd\icc\

Displays file names and reference documentation: Read about the sourcefile.hex file in the PSoC Creator User Guide.

Displays keyboard commands in procedures: [Enter] or [Ctrl] [C]

Represents menu paths: File > Open > New Project

Displays commands, menu paths, and icon names in procedures: Click the File icon and then click Open.

Displays an equation:

2 + 2 = 4

Introduction

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 18

1.8 Acronyms

Table 1-2. Acronyms Used in this Document

Acronym Definition

ADC Analog-to-Digital Converter API Application Programming Interface BD address Bluetooth Device address BLE Bluetooth Low Energy CD Compact Disc CDC Communications Device Class COM Communication Port DVD Digital Video Disc ESD Electrostatic Discharge F-RAM Ferroelectric Random Access Memory GUI Graphical User Interface GPIO General Purpose Input/Output I2C Inter-Integrated Circuit IAS Immediate Alert Service IDAC Interconnecting Digital-Analog Converter IDE Integrated Development Environment ISO International Organization for Standardization LDO Low Drop Out (voltage regulator) LED Light-Emitting Diode LP Low Power LPT Line Print Terminal PrISM Precise Illumination Signal Modulation PRoC Programmable Radio-on-Chip PRM Protocol Service Multiplexer PSoC Programmable Systems-on-Chip PWM Pulse-Width Modulation QFN Quad Flat No-lead (package) RGB Red Green Blue SAR Successi ve Approximation Register SPI Serial Peripheral Interface SWD Serial Wire Debug UART Universal Asynchronous Receiver Transmitter USB Universal Serial Bus USB CDC Universal Serial Bus Communications Device Class

Introduction

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 19

2. Software Installation

This chapter describes the steps to install the software tools and packages on a PC for using the BLE Pioneer Kit. This includes the IDE in which the projects will be built and used for programming the kit.

2.1 Before You Begin

All Cypress software installations require administrator privileges. Ensure you have the required privileges on the system for successful installation. Before you install the kit software, close any other Cypress software that is currently running.

2.2 Install Software

Follow these steps to install the BLE Pioneer Kit software:

1. Download the BLE Pioneer Kit software from www.cypress.com/CY8CKIT-042-BLE. The kit software is available in the following formats:

a. CY8CKIT-042-BLE Kit Setup: This installation package contains the files related to the kit.

However, it does not include the Windows Installer or Microsoft .NET framework packages. If these packages are not on your computer, the installer directs you to download and install them from the Internet.

b. CY8CKIT-042-BLE Kit Only: This executable file installs only the kit contents, which include kit

code examples, hardware files, and user documents. This package can be used if all the software prerequisites (listed in step 5) are installed on your PC.

c. CY8CKIT-042-BLE DVD ISO: This file is a complete package, stored in a DVD-ROM image

format, that you can use to create a DVD or extract using an ISO extraction program such as WinZip or WinRAR. The file can also be mounted similar to a virtual CD/DVD using virtual drive programs such as ‘Virtual CloneDrive’ and ‘MagicISO’. This file includes all the required software, utilities, drivers, hardware files, and user documents.

2. If you have downloaded the ISO file, mount it on a virtual drive; if you do not have a virtual drive to mount, extract the ISO contents using the appropriate ISO extractor (such as MagicISO or PowerISO). Double-click cyautorun.exe in the root directory of the extracted content or mounted ISO if “Autorun from CD/DVD” is not enabled on the PC. The installation window will appear automatically.

Note: If you are using the “Kit Setup” or “Kit Only” file, then go to step 4 for installation.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 20

Software Installation

3. Click Install CY8CKIT-042-BLE Kit to start the kit installation, as shown in Figure 2-1.

Figure 2-1. Kit Installer Screen

4. Select the folder in which you want to install the CY8CKIT-042-BLE kit-related files. Choose the directory and click Next.

5. When you click Next, the CY8CKIT-042-BLE Kit installer automatically installs the required software, if it is not present on your computer. The following software packages are required: Note: For the Setup Only installer package, download and install the following prerequisites.

a. PSoC Creator 3.1 or later: Download the latest version from www.cypress.com/psoccreator. b. PSoC Programmer 3.21.1 or later: This is installed as part of PSoC Creator installation

(www.cypress.com/programmer).

c. CySmart 1.0 or later: Download the latest version from www.cypress.com/go/cysmart.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 21

Software Installation

6. Choose the Typical/Custom/Complete installation type in the Product Installation Overview window, as shown in Figure 2-2. Click Next after you select the installation type.

Figure 2-2. Product Installation Overview

7. Read the license agreement and select I accept the terms in the license agreement to continue with installation. Click Next.

8. When the installation begins, a list of packages appears on the installation page. A green check mark appears next to each package after successful installation.

9. Click Finish to complete the CY8CKIT-042-BLE kit installation.

10.Enter your contact information or select the Continue Without Contact Information check box. Click Finish to complete the CY8CKIT-042-BLE kit installation.

11.After the installation is complete, the kit contents are available at the following location:

<Install_Directory>\CY8CKIT-042-BLE Kit

Default location: Windows 7 (64-bit): C:\Program Files (x86)\Cypress\CY8CKIT-042-BLE Kit Windows 7 (32-bit): C:\Program Files\Cypress\CY8CKIT-042-BLE Kit Note: For Windows 7/8/8.1 users, the installed files and the folder are read only. To use the installer

example project, follow the steps outlined in the Example Projects chapter on page 42. The kit installer also installs the CySmart PC tool for PC. This software, along with the dongle , allows

the PC to emulate as a BLE Central de vice . R ef er to CySmart PC Tool on page 160 for more details on how to use the CySmart PC tool.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 22

2.3 Uninstall Software

The software can be uninstalled using one of the following methods:

■ Go to Start > All Programs > Cypress > Cypress Update Manager > Cypress Update

Manager; select the Uninstall button.

■ Go to Start > Control Panel > Programs and Features for Windows 7 or Add/Remove

Programs for Windows XP; select the Uninstall/Change button.

Software Installation

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 23

3. Kit Operation

Status LED

Green

BLE/Arduino Compatible Headers

Proximity wire

connector

CapSense Slider

5 Segment

Reset SW

(Push Button)

USB

Mini B

PSoC 5LP

Programmer/Serial

Communication

PSoC 5LP

10 pin Prog. header

PSoC 5LP I/Os

16 pin Expansion header

PMOD header

6 pin PMOD header

ESD

Protection

MOSFET

Protection ckt

LDO

ORing

Diodes

BLE/Arduino Compatible Headers

Jumper

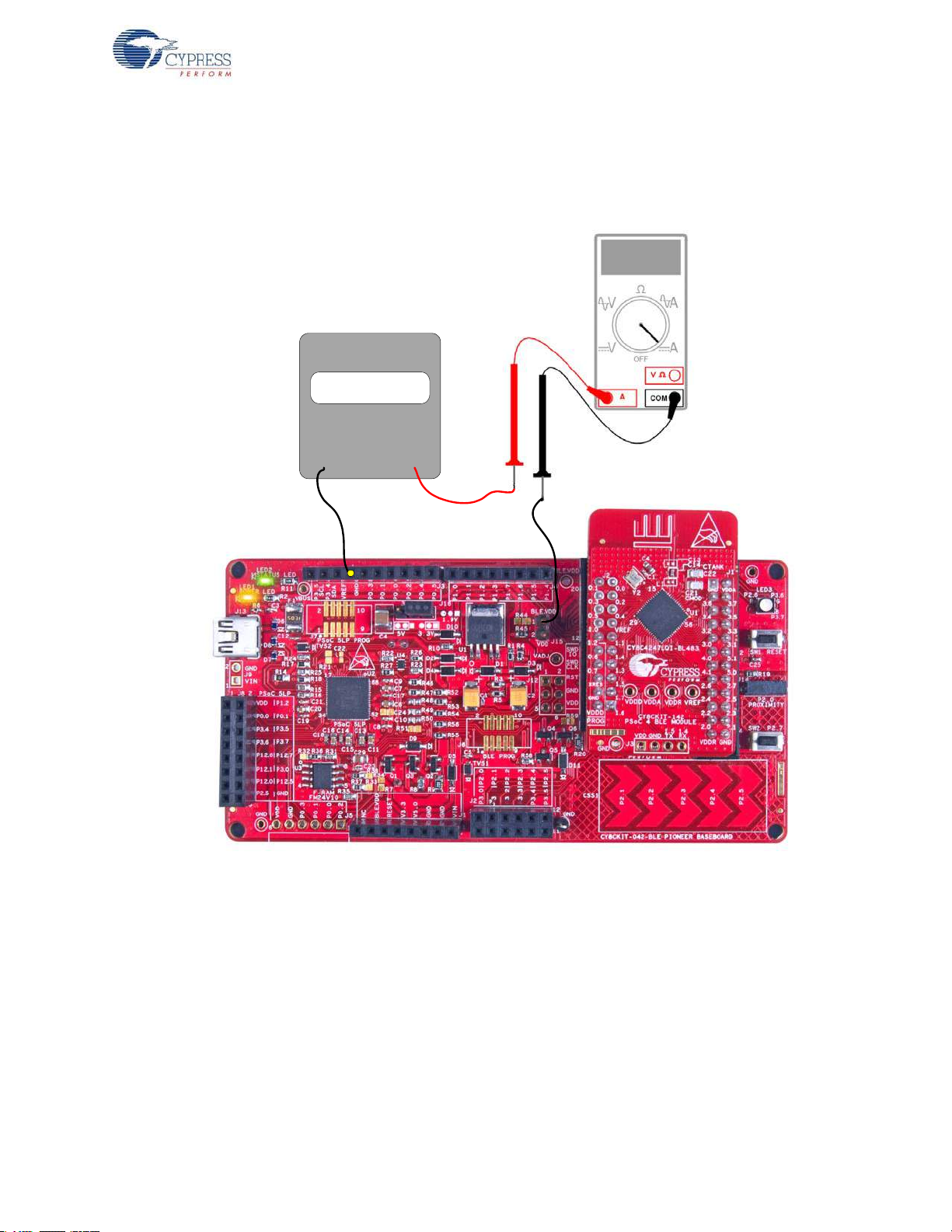

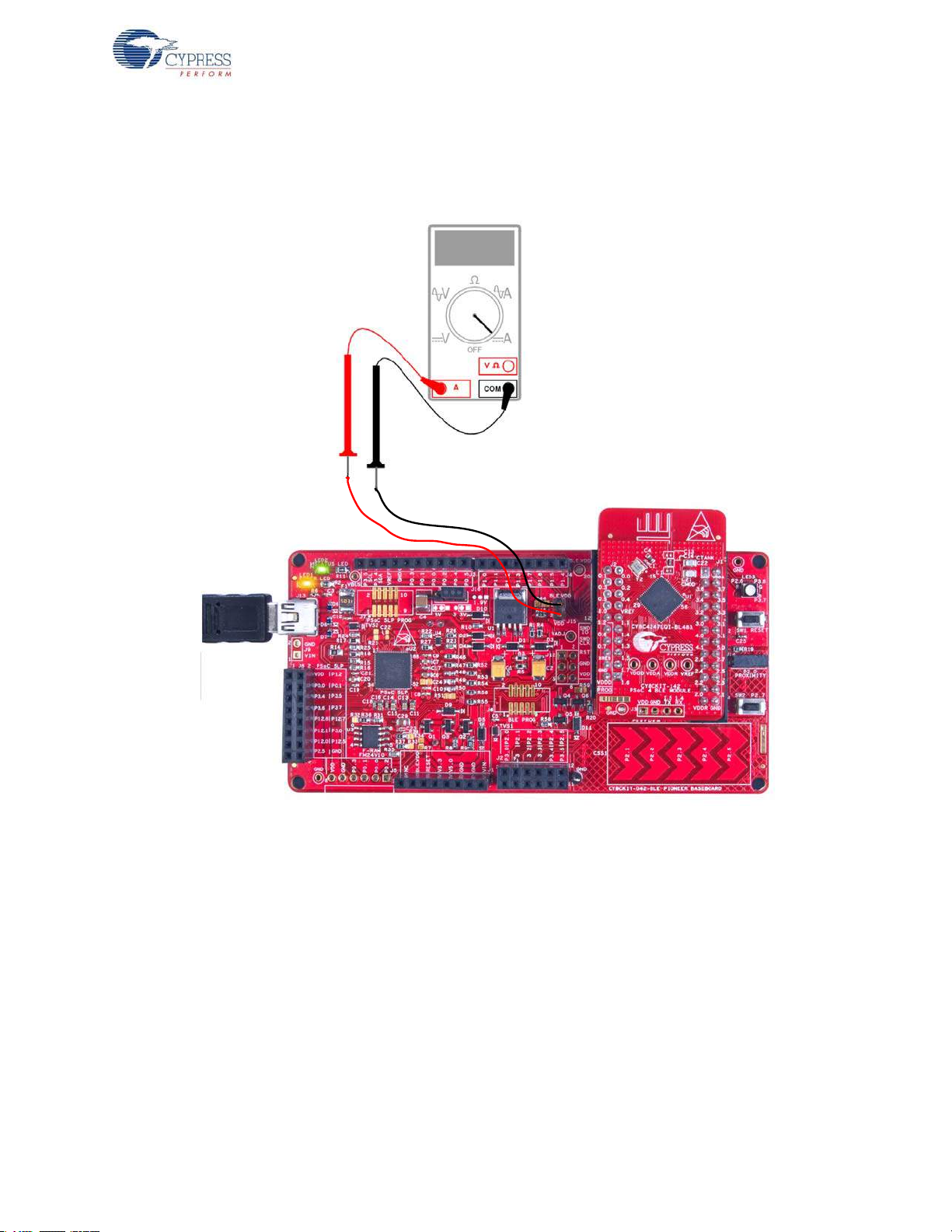

BLE current measuring

Coin cell

Battery holder

Power

LED Red

BLE Module I/Os

20 pin header

FRAM

I2C pull-up

via FET

ORing

Diodes

User SW

(Push Button)

BLE Module I/Os

24 pin header

VIN

VBUS

VCC

D+ / D-

VDD

BLE Reset

3.3V

~3V

SWD

I2C / SPI / UART

I2C

Voltage Ctrl

3 pin Jumper

RGB LED

MOSFET

Protection ckt

BLE SWD

10 pin Prog. header

PRoC BLE/

PSoC 4 BLE

This chapter introduces you to the BLE Pioneer kit and the features that will be used as part of the kit operation. We will discuss features such as USB connection, programming/debugging, and programmer firmware update. The chapter also describes the USB-UART and USB-I2C bridges along with the PC tools that can be used to communicate with the BLE device on the kit.

3.1 Theory of Operation

Figure 3-1, Figure 3-2, and Figure 3-3 show the block diagrams for the BLE Pioneer baseboard, BLE

module board, and BLE dongle. Figure 3-1. BLE Pioneer Baseboard Block Diagram

The BLE Pioneer board acts as the baseboard for the PSoC 4 BLE (red module) and PRoC BLE (black module). The Pioneer board contains a PSoC 5LP that is used as an onboard programmer or

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 24

debugger, and for the USB-Serial interface. The baseboard is Arduino form-factor compatible, enabling Arduino shields to be connected on top

of the board to extend the functionality of BLE modules. The board also features a 1-Mb F-RAM, an RGB LED, a five-segment CapSense slider, a proximity header, a user switch, and a reset switch for the PSoC 4 BLE and PRoC BLE devices on the module. The Pioneer board supports three voltage levels: 1.9 V, 3.3 V, and 5 V.

The baseboard can also be used as a standalone programmer to program and debug other PSoC 4 BLE/PRoC BLE devices using serial wire debug (SWD), and as a USB-Serial bridge. The firmware on PSoC 5LP device enables bootloading PSoC 5LP over USB to upgrade the firmware.

Kit Operation

PRoC BLE/

PSoC 4

BLE

BLE I/Os

20 pin Header (Digital, Power and Ground Pins)

GPIO

KHz

Crystal

Decaps

CMOD

SAR

Bypass Cap

CTANK

VREF

Power

matching

MHz

Crystal

Test

points

4 pin

header

RX/ TX/ Gnd

BLE I/Os

24 pin Header (Analog, Power and Ground Pins)

Ferrite Bead

VDDD/A/R

Power

Decaps

MATCHING

CIRCUIT

PSoC 5LP

68QFN

I2C

UART

SWD

SPI

USB

2.0

Type-A

Plug

10-Pin Programming

Header

SWD

USER Button

USER LED

XRES Button

XRES

Test Points

Protection

Circuits

D+ / D-

STATUS LED POWER LED

EXTRA GPIO

CRYSTALS

PRoC BLE

56QFN

Power

Figure 3-2. BLE Module Block Diagram

This kit includes two modules boards. These boards act as a basic breakout board for the CY8C4247LQI-BL483 and CYBL10563-56LQXI BLE silicon. The PSoC 4 BLE and PRoC BLE Modules are identical except for the silicon. In addition to including the PSoC 4 BLE and PRoC BLE devices, the module boards also contain the BLE passives (resistors, capacitors, external crystals, and antenna-matching network), an onboard antenna, and headers for connectin g to th e baseb oard.

The BLE dongle is the host's wireless interface for the BLE device or project on the baseboard. The dongle has a PRoC BLE device, to allow BLE connection with other kits. It also contains a PSoC 5 LP, to be used as an onboard programmer or debugger, and for the USB-Serial interface, as shown in Figure 3-3.

The dongle has a USB A-type plug to connect the PSoC 5LP to the USB port of the host PC. The PSoC 5LP then communicates with the PRoC BLE device over UART or multiplexed I bus. The board also features a user LED, a user switch, and a reset switch for the PRoC BLE device. The dongle is powered directly through the USB port (VBUS) at 5.0 V.

The BLE dongle can also be used as a standalone programmer to program and debug other PSoC devices (outside the dongle board) using SWD, and as a USB-Serial bridge after removing the resistor between the SWD pins of PSoC 5LP and PRoC BLE.

Figure 3-3. BLE Dongle Block Diagram

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 25

C or an SPI

3.2 BLE Pioneer Kit USB Connection

The BLE Pioneer kit connects to and powers from a PC over the USB interface (J13). The kit enumerates as a composite device, as shown in Table 3-1.

Note: Ensure that you install the kit installer on the system for successful enumeration. To download

and install the BLE Pioneer Kit, visit www.cypress.com/go/CY8CKIT-042-BLE. Table 3-1. BLE Pioneer Kit Enumerated Interfaces

Port Description

USB Composite Device Composite device USB Input Device Programmer and debugger

KitProg KitProg USB-UART USB-UART bridge, which appears as a COM# port

Figure 3-4. KitProg Driver Installation (appearance may differ depending on Windows platform)

USB-I2C bridge, programmer

Kit Operation

3.3 Placing Modules on Baseboard

Plug the BLE module into the baseboard on headers J10 and J11, while keeping the antenna directed outside of the baseboard. Note that the two parallel headers J10 and J11 are not equal (24-pin and 20-pin, respectively) and will not allow the BLE module to be inserted in the opposite direction.

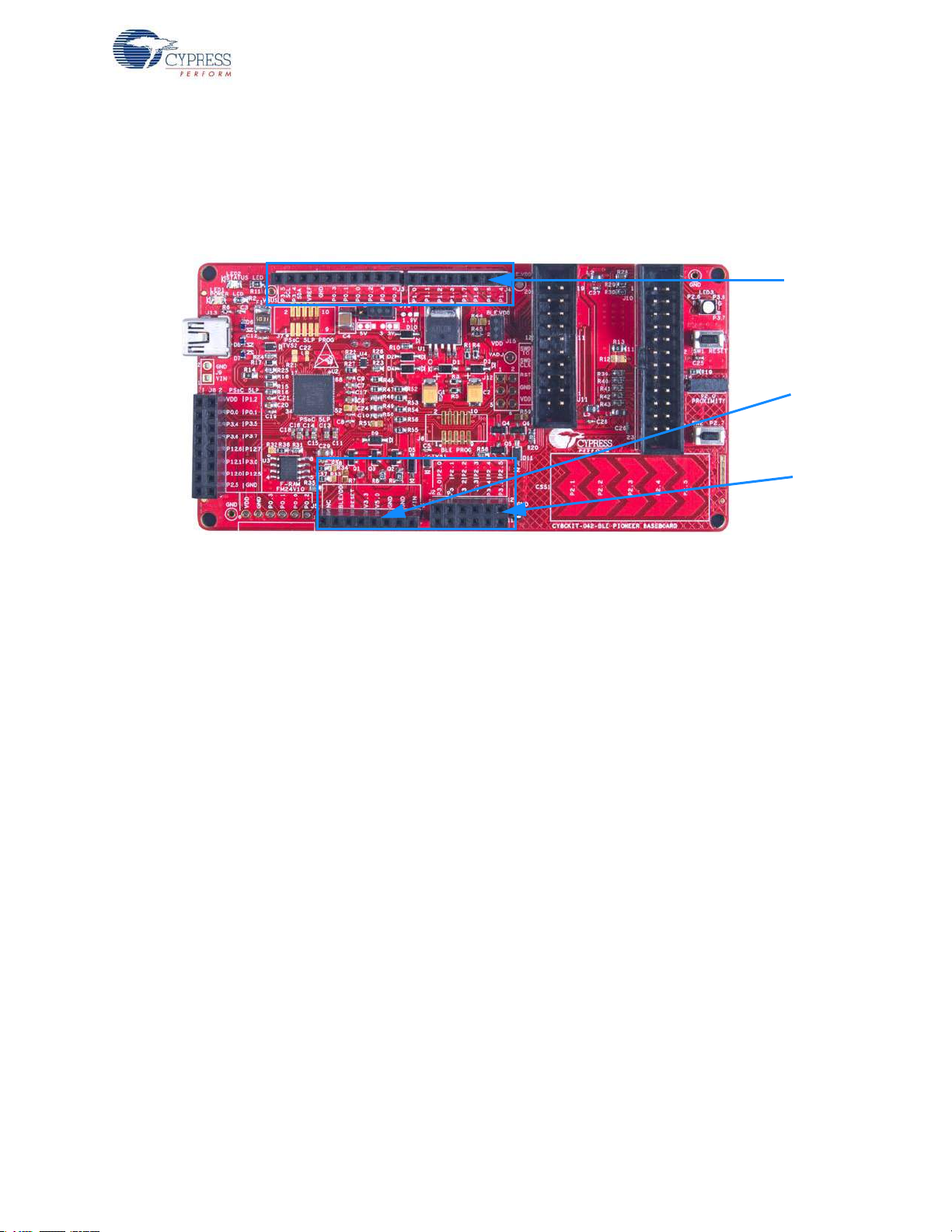

Figure 3-5. Baseboard with J10 and J11 Headers to Connect BLE Modules

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 26

Kit Operation

To remove the BLE modules from the BLE Pioneer kit, hold the BLE Pioneer kit in one hand and the BLE module in the other, as shown in Figure 3-6, and pull it out using a rocking motion.

Figure 3-6. Remove BLE Module Connected on BLE Pioneer Kit

3.4 Programming and Debugging BLE Device

The BLE Pioneer kit and BLE dongle can be programmed and debugged using the onboard PSoC 5LP programmer and debugger. Before programming the device, ensure that PSoC Creator and PSoC Programmer are installed on the PC. See the section Install Software on page 20 for more information.

3.4.1 Programming and Debugging using PSoC Creator

1. To program the BLE Pioneer kit, plug the USB cable into the programming USB connector, J13, and connect it to the USB port on the PC, as shown in Figure 3-7. The kit will enumerate as a composite device.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 27

Kit Operation

Mini USB PSoC 5LP

PSoC 4 BLE/

PRoC BLE

SWDCLK

Reset

SWDIO

D+

D-

Figure 3-7. Connect USB Cable to J13

2. To program the BLE dongle, plug the dongle into the USB port of the PC, as shown in Figure 3-8. The dongle will enumerate as a composite device.

Figure 3-8. Connect BLE Dongle to PC

3. The onboard PSoC 5LP uses SWD to program the PSoC 4 BLE or PRoC BLE device. See

Figure 3-9 for this implementation.

Figure 3-9. SWD Programming PSoC 4 BLE/PRoC BLE using PSoC 5LP

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 28

Kit Operation

4. To load the desired example project, open PSoC Creator and go to File > Open > Project/

Workspace. This will provide the option to browse to and open your saved project.

5. Build the project by choosing Build > Build <Project Name> or [Shift] [F6], as shown in

Figure 3-10.

Figure 3-10. Build an Example Project

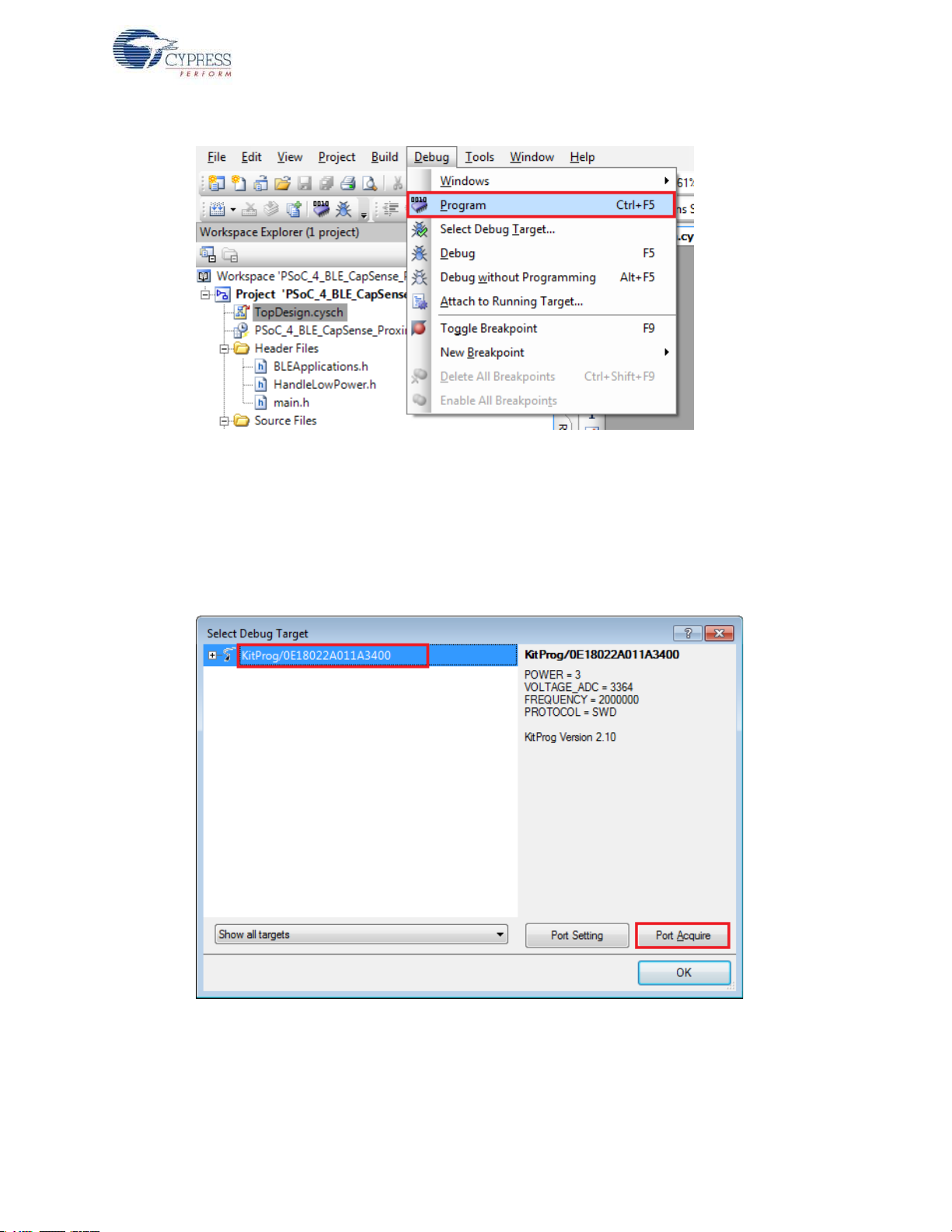

6. If there are no errors during build, program the firmware into the kit by choosing Debug >

Program or pressing [Ctrl] [F5], as shown in Figure 3-11. This will program the device on the

BLE Pioneer Kit/BLE dongle and it will be ready for use. If debugging is needed on the project, go to step 6.

Figure 3-11. Programming Device From PSoC Creator

7. To debug the project using PSoC Creator, choose

Debug > Debug or press [F5].

8. When the project is built and programmed into the device on the BLE Pioneer kit/BLE dongle, PSoC Creator will enter the Debug mode; you can use it to debug your application. For more details on using the debug features, see the Cypress application note Getting Started with PSoC

4 BLE.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 29

3.4.2 Programming using PSoC Programmer

PSoC Programmer (3.21 or later) can be used to program existing hex files into the BLE Pioneer kit or BLE dongle. To do this, follow these steps.

1. To program the BLE Pioneer kit, plug the USB cable into the programming USB connector, J13, and connect it to the PC USB port, as shown in Figure 3-7. The kit will enumerate as a composite device.

Figure 3-12. Connect BLE Pioneer Kit to PC

Kit Operation

2. To program the BLE dongle, plug the dongle to the USB port of the PC, as shown in Figure 3-13. The kit will enumerate as a composite device.

Figure 3-13. Connect BLE Dongle to PC

3. Go to

Start > All Programs > Cypress > PSoC Programmer <version> > PSoC Programmer

<version>. The PSoC Programmer window will open as shown in Figure 3-13. Note: BLE projects support PSoC Programmer 3.21 or later.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 30

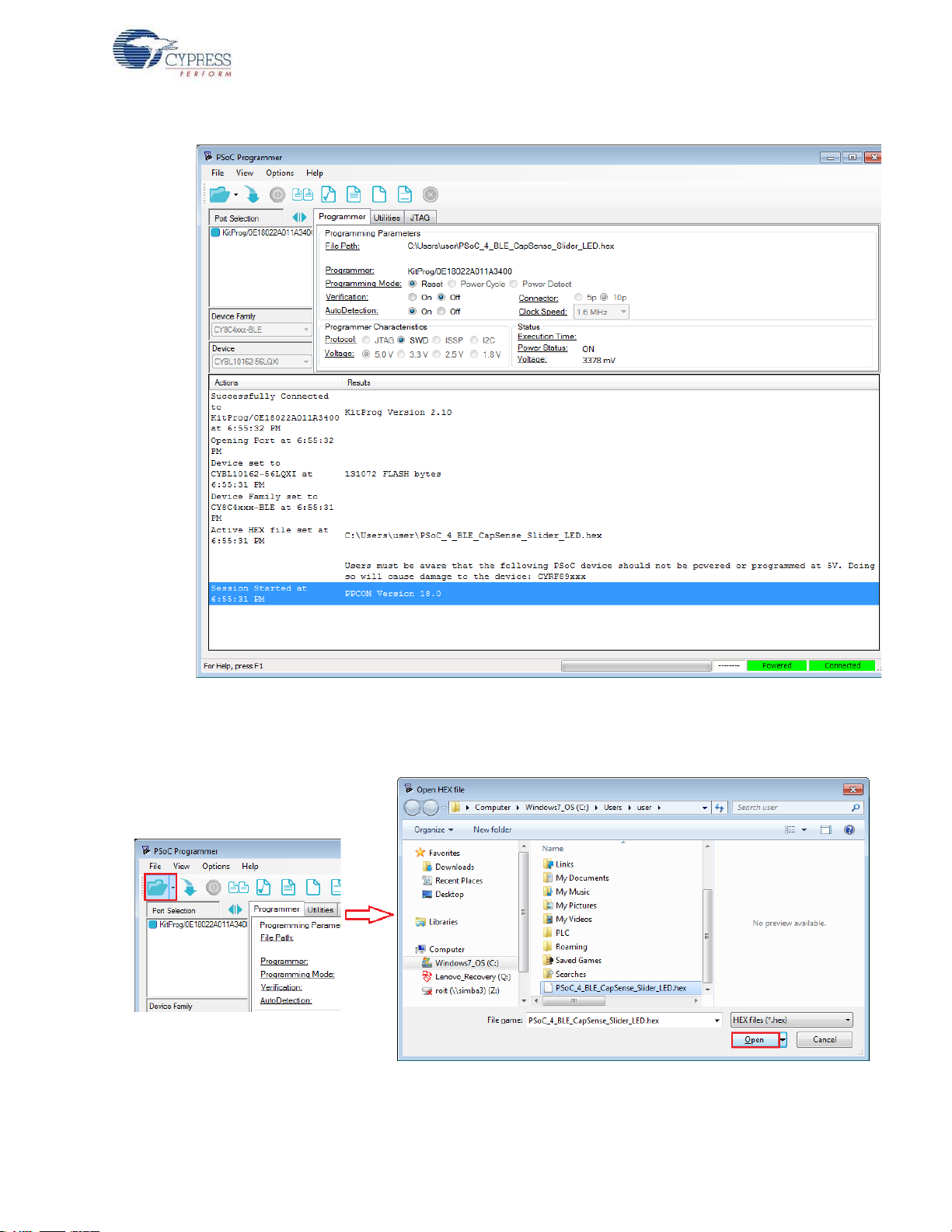

Figure 3-14. PSoC Programmenr GUI

Kit Operation

4. Click the

File Load button at the top left corner of the window . Browse for the desired hex file and

click Open.

Figure 3-15. Select Hex File

5. Go to

File > Program to start programing the kit with the selected file.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 31

Kit Operation

Note: If the hex file for a device is selected and programmed on the kit with a different device,

then PSoC Programmer will throw an error of device mismatch and terminate programming.

Figure 3-16. Program Hex File to Kit

6. When the programming is finished successfully, indicated by a PASS message on the status bar, the kit is ready for use. Close PSoC Programmer.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 32

3.5 Updating BLE Dongle for CySmart PC Tool

The dongle, shown in Figure 3-17, provides a BLE Central mode capability using the CySmart PC tool (see CySmart PC Tool on page 160) on the PC. The CySmart PC tool is used to connect and validate the example projects loaded on the BLE Pioneer Kit (baseboard with one of the modules) through BLE. The CySmart PC tool on the PC is the interface with which to configure the dongle and analyze the BLE data transferred after connecting with a BLE peripheral.

Figure 3-17. Dongle

Kit Operation

After being connected to the PC through the USB port, the dongle enumerates as a composite device, similar to the BLE Pioneer kit. When enumerated, it allows similar features, such as programming/debugging of the onboard PRoC BLE, USB-UART bridge, and USB-I

C bridge. Additionally, the interface is used to communicate with the CySmart PC tool and emulate a BLE Central device on PRoC BLE.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 33

Kit Operation

The dongle works along with the CySmart PC tool, as shown in Figure 3-18. The CySmart PC tool is installed as part of the BLE Pioneer Kit installation and can be opened from Start > All Programs >

Cypress > CySmart <version> > CySmart <version>. The tool operation is explained in CySmart

PC Tool on page 160.

Figure 3-18. Dongle Interface on CySmart PC Tool

If the dongle contains custom firmware on PRoC BLE, the original CySmart firmware can be programmed back to restore the CySmart functionality. It is not required to use the 10-pin programming header on the dongle for this purpose. The dongle must be connected through the USB and enumerated as KitProg. To do this, follow these steps:

1. Connect the dongle to the USB port on the PC.

2. Open PSoC Programmer by going to

Start > All Programs > Cypress > PSoC Programmer

<version> > PSoC Programmer <version>.

3. When PSoC Programmer opens, it will automatically detect the KitProg on the dongle. Note that

every BLE dongle KitProg ID will start with the string 'BLE'. Click the

File Load button and

browse to the location of the BLE_Dongle_CySmart.hex file. The hex file is located at:

C:\Program Files (x86)\Cypress\CY8CKIT-042-BLE Kit\<version>\Firmware\ BLE Dongle\Hex Files\

Note:

If Cypress releases new versions of the CySmart PC tool and the BLE dongle firmware, then the CySmart PC tool will display a message requesting to update the firmware on the BLE dongle, as shown in the following figures.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 34

Figure 3-19. Update Dongle Firmware with Hex from Latest Kit Installer

Kit Operation

Figure 3-20. Update Dongle Firmware with Hex from Web

In this scenario, choose the hex file from the respective location and update the dongle firmwa re with the following steps.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 35

Kit Operation

Figure 3-21. Open Hex File

4. Ensure the other settings match as shown in Figure 3-21. Click the Program button to start programming. The status bar at the bottom of the PSoC Programmer window will show the programming status and the result (Pass/Fail).

Figure 3-22. Programming Hex File to Dongle

5. After programming is completed successfully, the dongle firmware is updated and can be used to connect to the CySmart PC tool.

3.6 USB-UART Bridge

The onboard PSoC 5LP on both the baseboard and dongle acts as a USB-UART bridge to transfer and receive data from the PSoC 4 BLE or PRoC BLE device to the PC via the COM terminal software. When the USB mini-B cable is connected to J13 of the baseboard or the dongle is connected to the PC, a device named in the Device Manager. To use this functionality, a project supporting UART communication must be created on the BLE device. More details are available in the section Using PSoC 5LP as USB-UART

Bridge on page 115.

For both the baseboard and the dongle, the UART lines are hardwired onboard between the PSoC 5LP and BLE Modules. No ext ernal UART connection between the two devices is needed. Simply

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 36

“KitProg USB-UART” is available under Ports (COM & LPT)

Kit Operation

place the UART component in the PSoC 4 BLE or PRoC BLE and assign the UART pins a s shown in

Table 3-2.

Table 3-2. UART Pin Assignment in BLE Devices for USB-UART Bridge

Pin BLE Pioneer Kit BLE Dongle

UART_RX P1_4 P1_4 UART_TX P1_5 P1_5

Table 3-3 lists the specifications supported by the USB-UART bridge.

Table 3-3. Specifications Supported by USB-UART Bridge

Parameter Supported Values

Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 Data Bits 8 Parity None Stop Bits 1 Flow Control None File Transfer Protocols sup-

ported

Xmodem, 1K Xmodem, Ymodem, Kermit, and Zmodem (only speeds greater than 2400 baud)

3.7 USB-I2C Bridge

The PSoC 5LP also functions as a USB-I2C bridge. In this role, PSoC 5LP communicates with PSoC 4 BLE/PRoC BLE using an I2C interface, and sends that data over the USB to the USB-I2C software utility running on the PC, called the Bridge Control Panel (BCP). This feature is available for both the BLE Pioneer Kit and the BLE dongle.

The BCP is available as part of the PSoC Programmer installation. This software can be used to send and receive USB-I2C data from the PSoC 5LP. When the USB mini-B cable is connected to header J13 on the BLE Pioneer Kit or when the dongle is connected to the PC, the KitProg USB-I is available under Connected I2C/SPI/RX8 Ports in the BCP, as shown in Figure 3-23.

To open BCP in your system, go to Start > All Programs > Cypress > Bridge Control Panel.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 37

Figure 3-23. Bridge Control Panel

Kit Operation

To use the USB-I

C functionality, select the KitProg USB-I2C in the BCP. On successful connection,

the Connected and Powered tabs turn green, as shown in Figure 3-24.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 38

Figure 3-24. KitProg USB-I2C Connected in Bridge Control Panel

Kit Operation

USB-I

C is implemented using the USB and I2C components of PSoC 5LP. For the BLE Pioneer Kit, the SCL (P12_0) and SDA (P12_1) lines from the PSoC 5LP are connected to the SCL (P3_5) and SDA (P3_4) lines of the BLE module header. For the dongle, the SCL (P12_0) and SDA (P12_1) lines from the PSoC 5LP are connected to the SCL (P3_5) and SDA (P3_4) lines. The USB-I

bridge currently supports I2C speed of 50 kHz, 100 kHz, 400 kHz, and 1 MHz. See Using PSoC 5LP as USB-I2C Bridge on page 126 to build a project that uses the USB-I2C

bridge functionality.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 39

3.8 Updating the Onboard PSoC 5LP Programmer Firmware

The BLE Pioneer kit and BLE dongle contains the PSoC 5LP programmer (KitProg) required for programming, debugging and communication over the COM port. The KitProg normally does not require any update. If an update is required, then PSoC Programmer will display a warning message when the kit or dongle is connected to it, as shown in Figure 3-25.

Figure 3-25. Update KitProg

Kit Operation

To update the KitProg, go to the shown in Figure 3-26.

Figure 3-26. Update KitProg from PSoC Programmer

Utilities tab on PSoC Programmer and click Upgrade Firmware, as

3.9 Measure Coin Cell Power Consumption

To measure the power consumption of a project with coin cell, connect the coin cell directly to the BLE modules, as shown in Figure 3-27. The baseboard is designed with additional circuits to protect the PSoC 4 BLE/PRoC BLE device and the F-RAM in Arduino environment. Note that power consumption measurements on the baseboard will also include the power consumed by these additional circuits.

After you have programmed your application on the CY8CKIT-142 PSoC 4 BLE Module or the CY5671 PRoC BLE Module, remove the BLE module from the baseboard and connect the coin cell (Figure 3-27). This setup enables an accurate power consumption measurement for the application.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 40

Kit Operation

The other pins on the BLE module can be used to build the desired application. Connect the positive terminal of the coin cell to pin J2.2 and negative terminal to pin J2.4 using

wires. Figure 3-27. Powering the BLE Module using a Coin Cell

Connect an ammeter in series with the battery to measure the power consumption as shown in

Figure 3-28.

Figure 3-28. Current Measurement of BLE Module when Powered from a Coin Cell

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 41

4. Example Projects

This chapter demonstrates the functionality of the PSoC 4 BLE and PRoC BLE devices using the BLE Pioneer kit-based example projects. To access these example projects, download and install the kit setup file from the kit web page. The example projects are available in the firmware folder under the installed directory.

The Cypress BLE device comes in two variants:

■ PSoC 4 BLE: The PSoC 4 BLE product family is the new wireless member of the PSoC 4

architecture platform. The family provides a full programmable analog and digital system and a complete schematic view of PSoC Creator. The PSoC 4 BLE family provides a 32-bit ARM Cortex-M0 based MCU subsystem with programmable analog and digital peripherals, such as universal digital blocks (UDBs), 12-bit SAR ADC, opamp, LP comparator, IDACs, UART, I and timer/counter/PWM block. It also has a dedicated CapSense block (in select part numbers) to implement the touch-sensing solution, with a practical system SNR of 100:1.

■ PRoC BLE: This family provides prebuilt part numbers for applications such as human in terface

devices (HID), remote control, trackpad, and toys. PRoC BLE also supports up to two-finger gestures for trackpad and remote control applications. The PRoC BLE product family enriches the PRoC wireless capacitive touch devices with the Bluetooth Low Energy protocol. The PRoC BLE family has embedded gestures (in select part numbers) to implement the touch-sensing solution for trackpad implementation. It also provides a 32-bit ARM Cortex-M0 based MCU subsystem with analog and digital peripherals, such as 12-bit SAR ADC, UART, I timer/counter/PWM blocks. The family uses a special PSoC Creator schematic view for easy configuration of PRoC BLE devices.

C, SPI,

C, PWMs, and

4.1 Using Example Projects

Follow these steps to open and use the example projects:

1. Launch PSoC Creator from Start > All Programs > Cypress > PSoC Creator 3.1 > PSoC

Creator 3.1.

2. On the Start Page, choose

projects appears, as shown in Figure 4-1. Projects named with the prefix 'PSoC_4_BLE_' work on the BLE Pioneer kit with the PSoC 4 BLE Module; projects named with the prefix '

PRoC_BLE_' work on the BLE Pioneer kit with the PRoC BLE Module.

3. Click on the desired example project.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 42

Examples and Kits > Kits > CY8CKIT-042-BLE. A list of example

Figure 4-1. Open Example Project from PSoC Creator

Example Projects

4. Select the folder where you want to save the project and click

OK.

5. BLE projects use a public device address set in the BLE component GUI to advertise and scan,

depending on the role: peripheral or central mode. If there are other kits in close proximity, which have the same public device address, then wrong devices may be connected or connections can fail. To prevent this, you can change the Public device address (and preferably Device name) in the BLE component. To do this, double-click the BLE component in TopDesign, go to the GAP

Settings tab, and choose the General setting. Add the desired public device address (non-zero)

and device name in the respective fields, as shown in Figure 4-2. Click OK. Alternatively, you can select the 'Silicon generated' device address by selecting the check box.

This way, the BD address is generated using the silicon ID, unique to each silicon. Click OK.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 43

Figure 4-2. Change BLE Public Device Address and Name

Example Projects

6. Build the example project by choosing

Build > Build <Project Name>, as shown in Figure 4-3. A

hex file will be generated.

Figure 4-3. Build Project from PSoC Creator

7. To program the kit with this example project, connect the baseboard to the PC by plugging it into

the USB mini-B connector (J13) on the baseboard, as described in BLE Pioneer Kit USB

Connection on page 26. Ensure that the correct BLE Module (PSoC 4 BLE or PRoC BLE) is

placed on the baseboard, depending on the project opened.

8. Choose

Debug > Program in PSoC Creator, as shown in Figure 4-4.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 44

Example Projects

Figure 4-4. Program Device in PSoC Creator

9. If the device is not yet acquired, PSoC Creator will open the programming window. Select

KitProg and click the Port Acquire button, as shown in Figure 4-5. Note: The string following 'KitProg' is the serial ID for the programmer on the kit. Each kit will

have a unique serial ID. If various kits are connected to the same system, the serial ID can be used to select the correct kit to program the firmware. Additionally, the serial ID starting with 'BLE' belongs to the dongle (see Updating BLE Dongle for CySmart PC Tool on page 33) and provides visual confirmation for dongles connected to the system.

Figure 4-5. Port Acquire

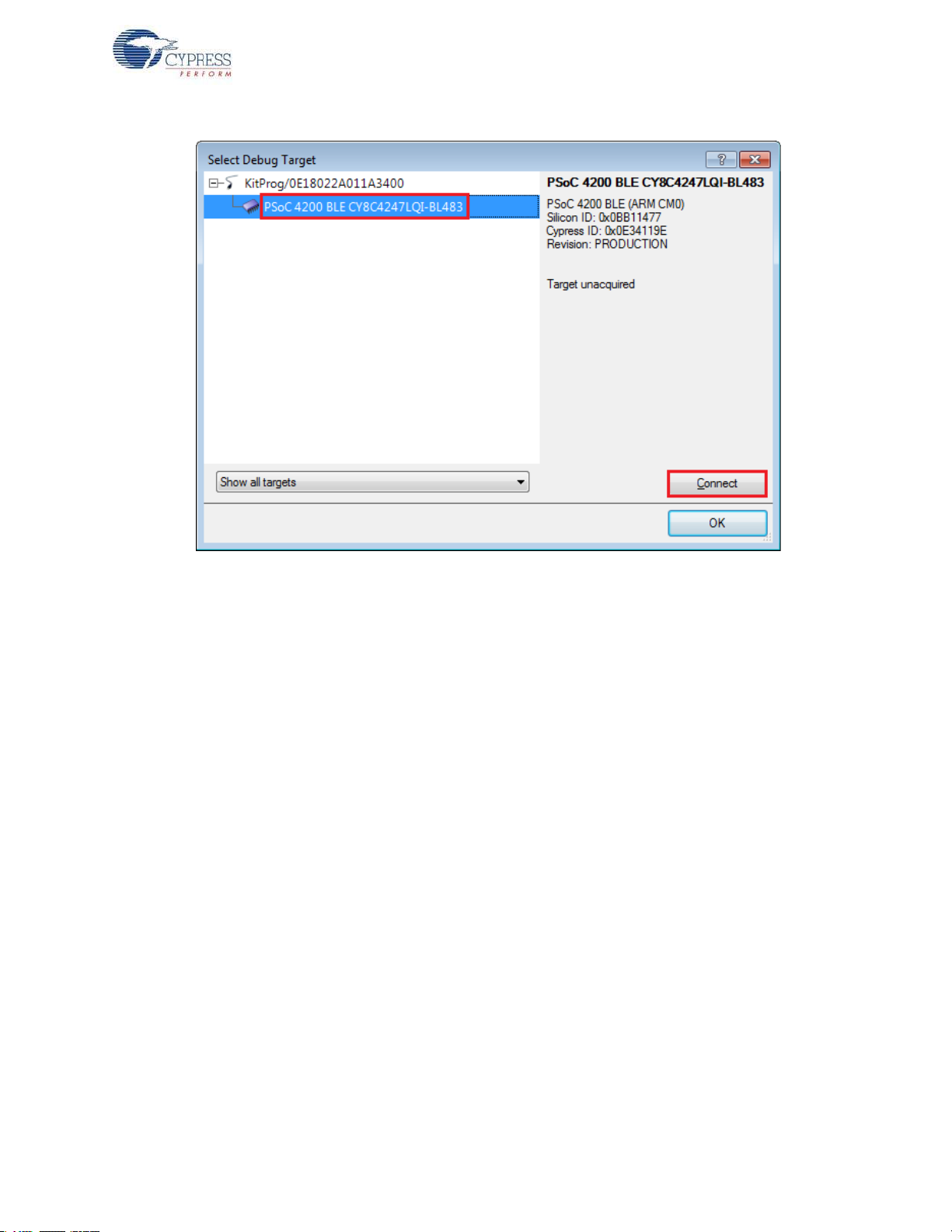

10.After the device is acquired, it is shown in a structure below the KitProg. Click the

ton and then OK to exit the window and start programming, as shown in Figure 4-6.

Connect but-

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 45

Figure 4-6. Connect Device From PSoC Creator and Program

Example Projects

Note: As stated previously, the BLE Pioneer kit supports both Cypress BLE devices: PSoC 4 BLE

and PRoC BLE. Thus, there are two v ersions of eac h of the kit example projects demonstrating the same functionality . Projects named with the prefix PSoC_4_BLE_ work with the PSoC 4 BLE Module placed on the baseboard. Projects named with the prefix PRoC_BLE_ work with the PRoC BLE Module placed on the baseboard. Ensure that the correct module is placed on the base boa rd before programming the device with the corresponding kit example projects.

The description, hardware configurations, and verification method of the kit example projects explained in the following sections are valid for both PSoC 4 BLE and PRoC BLE devices. Unless explicitly mentioned, the theory and usability for these example projects should be considered the same for both the modules/devices.

This document refers to the BLE Pioneer kits, dongle, and PC/mobile as BLE Central or peripheral devices. A BLE Central device is normally the master and requests/commands data from the peripheral device. BLE-enabled phones and PCs are on e such examp le. BLE per iphe ral de vices, on the other hand, store the actual data and send it to central devices when requested. Examples include BLE-enabled sensors, proximity beacons, and so on.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 46

4.2 CapSense Slider and LED

4.2.1 Project Description

This project demonstrates BLE connectivity between the BLE Pioneer kit (acting as a peripheral and server device) and BLE dongle or mobile device running the CySmart application (acting a s a central and client device). This project demonstrates following:

■ Advertisement with timeout

■ Connection with any BLE Central device

■ Two custom services in single profile

■ Data transfer over BLE custom service using notifications, read, and write

■ Low-power mode implementation for battery operation

The BLE profile in this project consists of two BLE custom services: CapSense and RGB LED. The

CapSense service consists of one custom characteristic, termed as CapSense Slider. The

CapSense slider characteristic is us ed to send one byt e data, ranging from 0 t o 100, as notif ication to the client device. This data is the finger location read by the CapSense component on the fivesegment slider (CSS1) present on the kit. This characteristics supports notification, which allows the BLE server to send data to the connected client device whenever new data is availab le.

The

RGB LED service also consists of one custom characteristic, termed as RGB LED Control.

This characteristic supports two operations, read and write, through which the connected client device can read data as well as write a new value to the characteristic. This data has four byte values indicating red, green, blue, and intensity values for the onboard RGB LED.

Example Projects

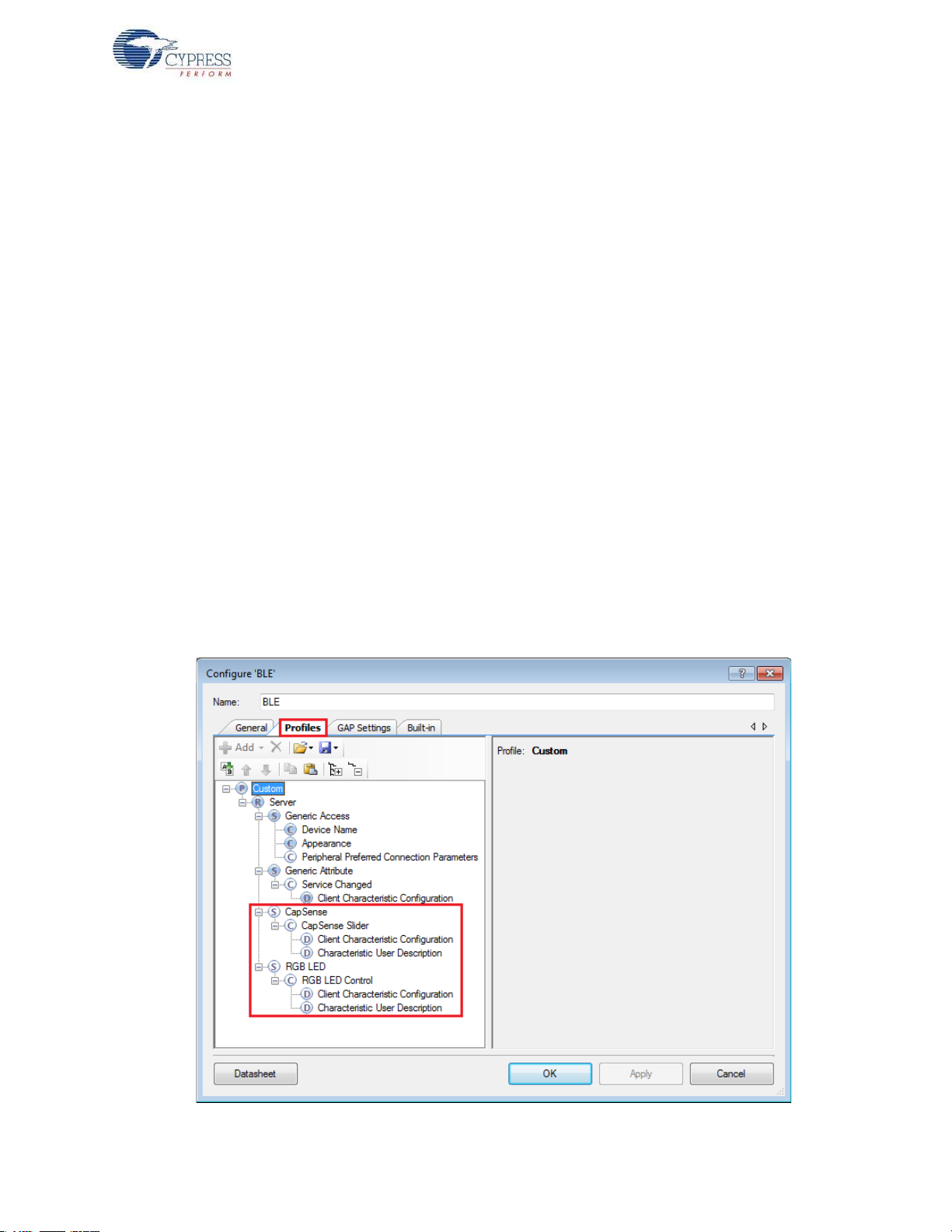

These properties for the custom service/characteristics are configured in the BLE component under the Profiles tab, as shown in Figure 4-7.

Figure 4-7. Attributes Configuration in BLE Component for Custom Services

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 47

Example Projects

The project consists of the following files:

■ main.c/.h

These files contain the main function, which is the entry point and execution of the firmware application. It also contains function definition for initialization of the system an d re ad in g the CapSense slider data from the CapSense component.

■ BLEApplications.c/.h

These files contain all the macros and function definitions related to BLE communication and operation. It contains the event callback function definition that is registere d with the BLE com ponent startup and used by the component to send BLE-related events from the BLE stack to the application layer for processing. It contains a meth od to send CapSense notifications to the client device and process the Read and Write commands on the RGB LED characteristic by the client device. It updates the BLE Connection parameter, which is important for low-power mode usage.

■ HandleLowPower.c/.h

These files contain the function to handle low-power mode. This function is continuously called in the main loop and is responsible for pushing the BLE hardware block (BLESS) as well as the CPU to Deep Sleep mode as much as possible. The wakeup source is either the BLE hardware block Link Layer internal timer or the interrupt from the user button press (

SW2). This allows for

very low power mode implementation and operation using a coin cell.

Additionally, the PRoC BLE version of this project consists of the RGB_PRSm.c/.h file, which contains the function to drive the software-based PrISM method and drive the color and intensity on the RGB LED.

This is the default firmware that comes in the BLE modules shipped with the kit. Two projects demonstrate this functionality on two different devices:

■ PSoC_4_BLE_CapSense_Slider_LED works with the PSoC 4 BLE Module

■ PRoC_BLE_CapSense_Slider_LED works with the PRoC BLE Module.

The PSoC 4 BLE project implements RGB color and intensity control using the PRiSM component whereas the PRoC BLE uses the software implementation of the PRiSM mode.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 48

Figure 4-8. TopDesign for PSoC_4_BLE_CapSense_Slider_LED Project

Example Projects

Figure 4-9. TopDesign for PRoC_BLE_CapSense_Slider_LED Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 49

4.2.2 Hardware Connections

No specific hardware connections are required for this project because all connections are hardwired on the board. Ensure that the correct BLE Module is placed on the baseboard corresponding to the project being used. PSoC_4_BLE_CapSense_Slider_LED works with the PSoC 4 BLE Module. PRoC_BLE_CapSense_Slider_LED works with the PRoC BLE Module.

Example Projects

The pin assignment for this project is in

PSoC_4_BLE_CapSense_Slider_LED.cydwr/

PRoC_BLE_CapSense_Slider_LED.cydwr in the Workspace Explorer, as shown in Figure 4-10.

Table 4-1. Pin Assignments for CapSense Slider and LED Project

Pin Name Port Name

CapSense CMOD P4_0 CapSense Slider 1 P2_1 CapSense Slider 2 P2_2 CapSense Slider 3 P2_3 CapSense Slider 4 P2_4 CapSense Slider 5 P2_5 BLUE P3_7 GREEN P3_6 RED P2_6 User_Button P2_7

Figure 4-10. Pin Selection for CapSense Slider and LED Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 50

4.2.3 Flow Chart

Start

CapSense Slider

Swipped?

Received RGB

LED Data?

BLE Connection

Still Present?

Send finger position

over CapSense

custom service

YES

Extract Data and

change color/

brightness on LED.

Keep LED ON for

set time

YES

Connected to BLE

Central device before

timeout?

YES

Notifications

Enabled?

YES

System in Deep Sleep and

waiting for User button press

Time-out?

YES

Put system to low power

mode and wait for interrupt

from BLE Link Layer

YES

System initialized.

Wait for interrupt from User

Button to Wakeup

Process BLE

Events

Figure 4-11 shows the flow chart of the code implemented.

Figure 4-11. CapSense Slider and LED Project Flow Chart

Example Projects

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 51

4.2.4 V erify Output

The project can be verified by two methods: using the CySmart PC tool and dongle or using the CySmart iOS/Android BLE app.

To install and use the CySmart PC tool, see CySmart PC Tool on page 160. To install and use the CySmart iOS/Android ap p, see CySmart iOS/Andr oid Application on p age 152.

4.2.4.1 CySmart PC Tool

To verify the CapSense and LED project using the CySmart PC tool, follow these steps:

Note: See CySmart PC Tool on page 160 to learn how to use the tool.

1. Connect the dongle to one of the USB ports on the PC.

2. Start the CySmart PC tool on the PC by going to

<version> > CySmart <version>. You will see a list of dongles connected to it. If no dongle is

found, click Refresh. Select the BLE dongle and click Connect.

Figure 4-12. Connect to BLE Dongle

Example Projects

Start > All Programs > Cypress > CySmart

3. Place either the PSoC 4 BLE Module or PRoC BLE Module, on the BLE Pioneer kit, depending

on the project chosen.

4. Power the BLE Pioneer kit through the USB connector

5. Program the BLE Pioneer kit with the CapSense and LED example projects. Follow steps in

Using Example Projects on page 42 to program the device.

6. After programming successfully, press the user button (

advertisement. Advertisement is indicated by a blinking red LED on the baseboard.

Note: The project has an advertisement timeout of 30 se cond s. If the BLE clien t de vice do es no t

connect to this peripheral within 30 seconds of starting the advertisement, the system goes back to low-power mode. Press SW2 again to restart the advertisement.

7. On the CySmart PC tool, click

can confirm your device by the device name and Bluetooth address o n the list. This should be same as the one configured in the BLE component GUI.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 52

Start Scan to see the list of available BLE peripheral devices. You

J13.

SW2) on the BLE Pioneer kit to start the

Example Projects

8. After the available devices are listed, double-click the BLE Slider and LED device to connect, or

click BLE Slider and LED and then click Connect.

Figure 4-13. Connect to BLE Slider and LED Peripheral

9. When the connection is made, the CySmart PC tool will display a message for the

Update Con-

nection parameters. This is the request from the BLE peripheral to update the existing connec-

tion parameters, such as connection interval, latency, and supervision timeout, to a new value. Select Yes, as shown in Figure 4-14.

Figure 4-14. Update Connection Parameter Option

Note: If you select No, the project will still work. However, th e current consumption will be higher

due to faster connection interval.

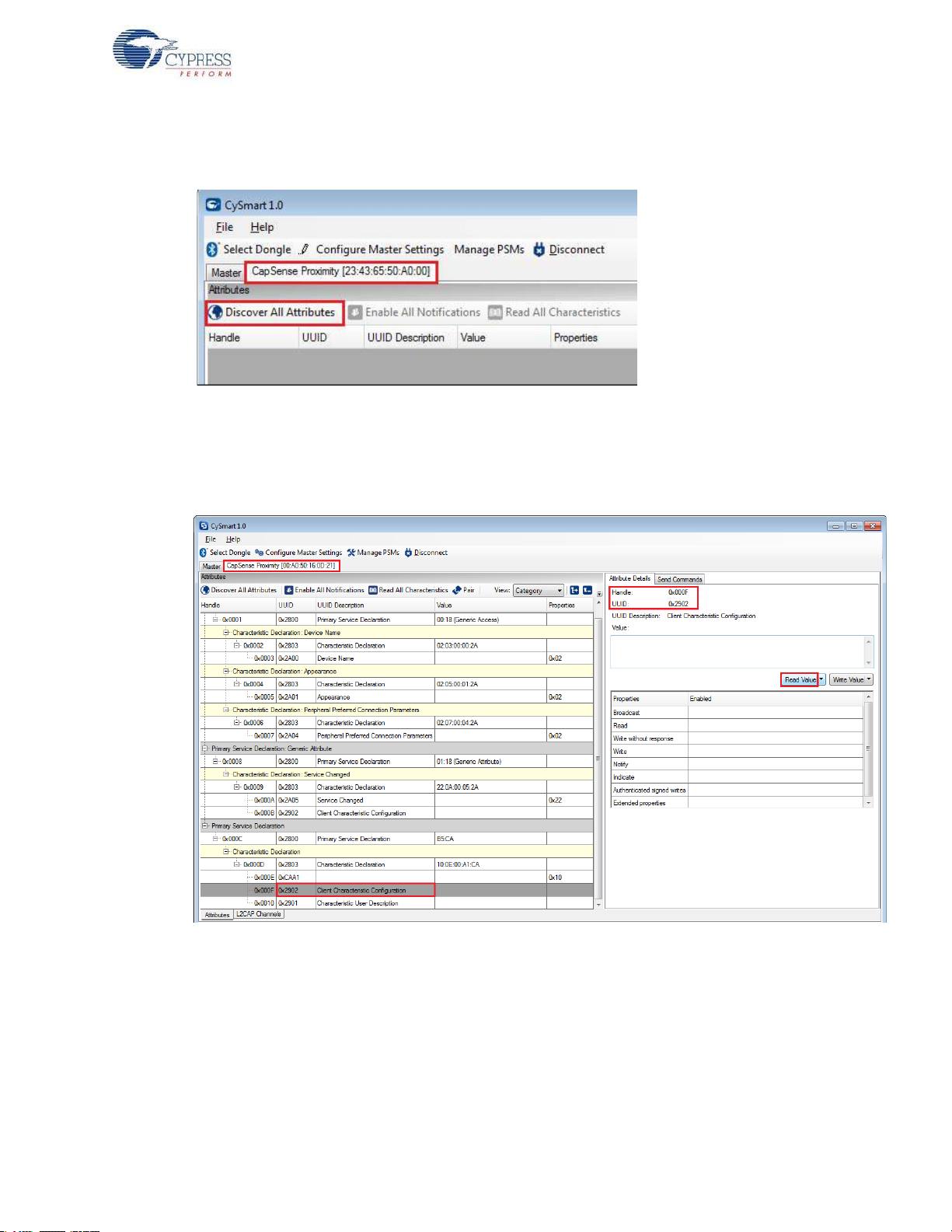

10.If the connection is successful, you will see another tab opening besides the Master tab. Click

Discover All Attributes to find all the services and attributes supported by the BLE periphe ral.

Figure 4-15. Discover All Attributes

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 53

Example Projects

11.When all the attributes are listed, locate the attribute with a UUID value of 0xCAA2, which is the

characteristic under CapSense Slider custom service. It will also have a Client Characteristic

Configuration descriptor (UUID 0x2902). The properties of the descriptor appear in the Attribute

Details window , as shown in Figure 4-16. Click Read Value to read the existing Client Characteristic Configuration Descriptor (CCCD) value.

Figure 4-16. Read CCCD for CapSense Slider Characteristic

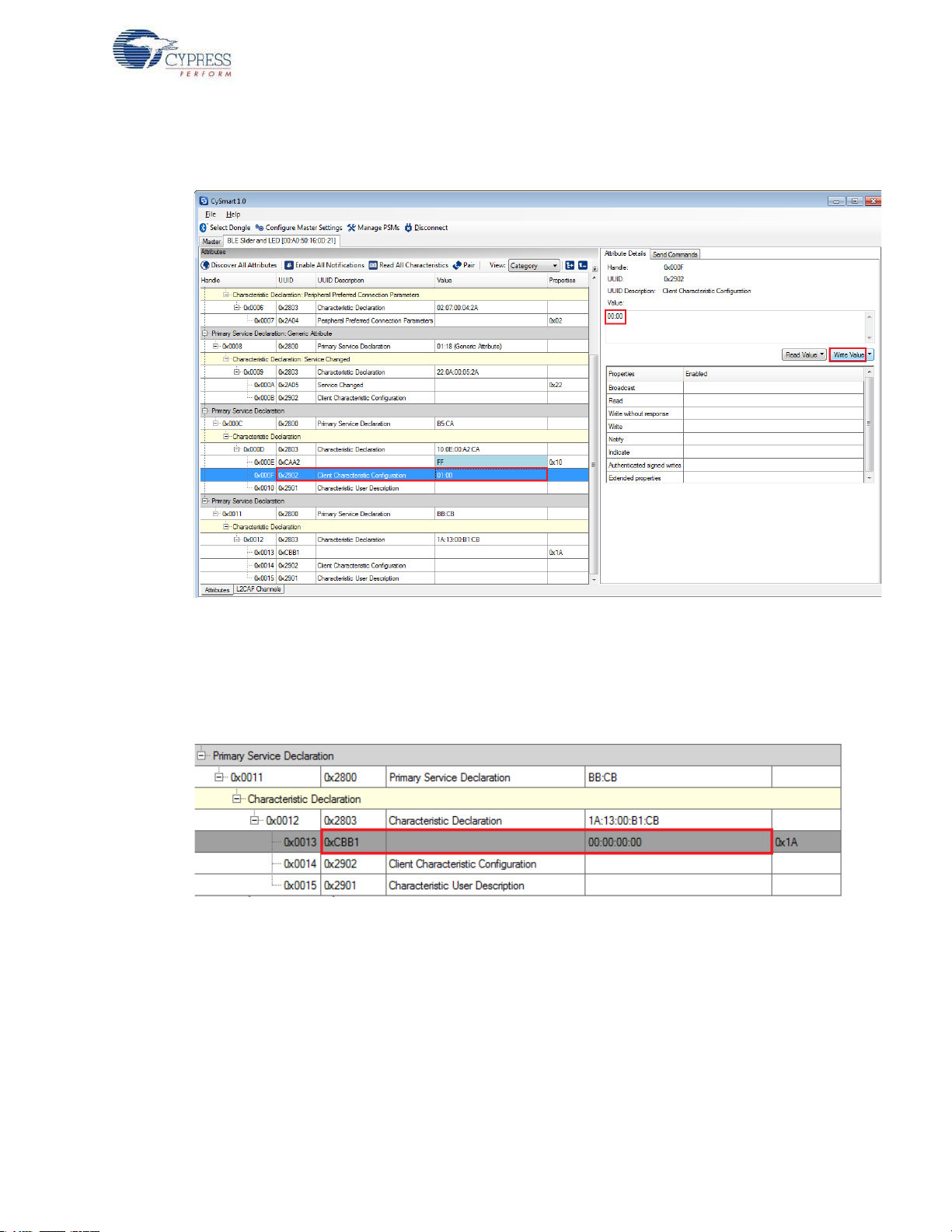

12.Modify the

Value field of CCCD to '01:00' and click Write Value. This enables the notifications on

the CapSense Slider characteristic. The notifications received are displayed in the Value field of the CapSense Slider characteristic.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 54

Figure 4-17. Write CCCD to Enable Notifications

Example Projects

13.Swipe your finger on the CapSense slider on the BLE Pioneer kit, as shown in Figure 4-19 and

see the notification values in the CapSense Slider value field, as shown in Figure 4-18.

Figure 4-18. CapSense Slider Notification Received

Figure 4-19. CapSense Slider

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 55

Example Projects

14.Modify the Value field of the Client Characteristic Configuration descr i ptor to '00:00' to disable

notifications.

Figure 4-20. Disable Notifications

15.Now, locate the

UUID value of 0xCBB1, which is the RGB LED Control characteristic. Under the

Attribute Details tab on the right, the read and write properties are enabled. Click Read Value to read the existing 4-byte onboard RGB LED color information, as shown in Figure 4-21. The first three bytes have the color values Red, Green, and Blue; the fourth byte is the o verall intensity value, all in the range of hexadecimal 0x00 to 0xFF.

Figure 4-21. Read RGB LED Control Characteristic Value

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 56

Example Projects

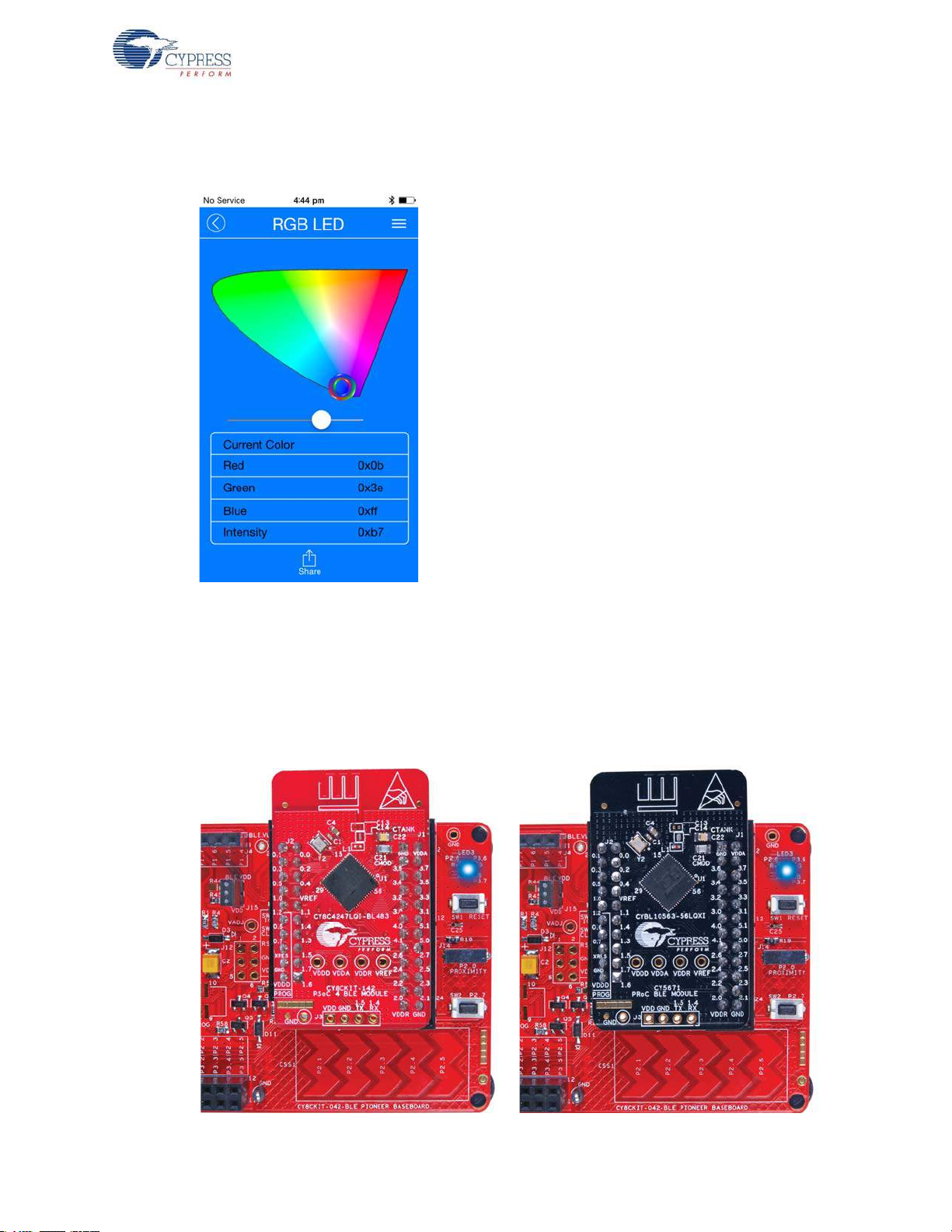

16.Modify the four bytes of data in the Value field and click Write Value. You will see the

corresponding change in the color and intensity of the RGB LED on the BLE Pioneer kit, as shown in Figure 4-22. The RGB LED will be on for 3 seconds before switching off to conserve power.

Note: If the BLE Pioneer kit is powered from a coin cell and not the USB Vbus, then the color

mixing and intensity will vary. This is because the coin cell provides a lower driving voltage for RGB LEDs.

Figure 4-22. Write RGB LED Control Characteristic Value

Figure 4-23. RGB LED Control with PSoC 4 BLE Module and PRoC BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 57

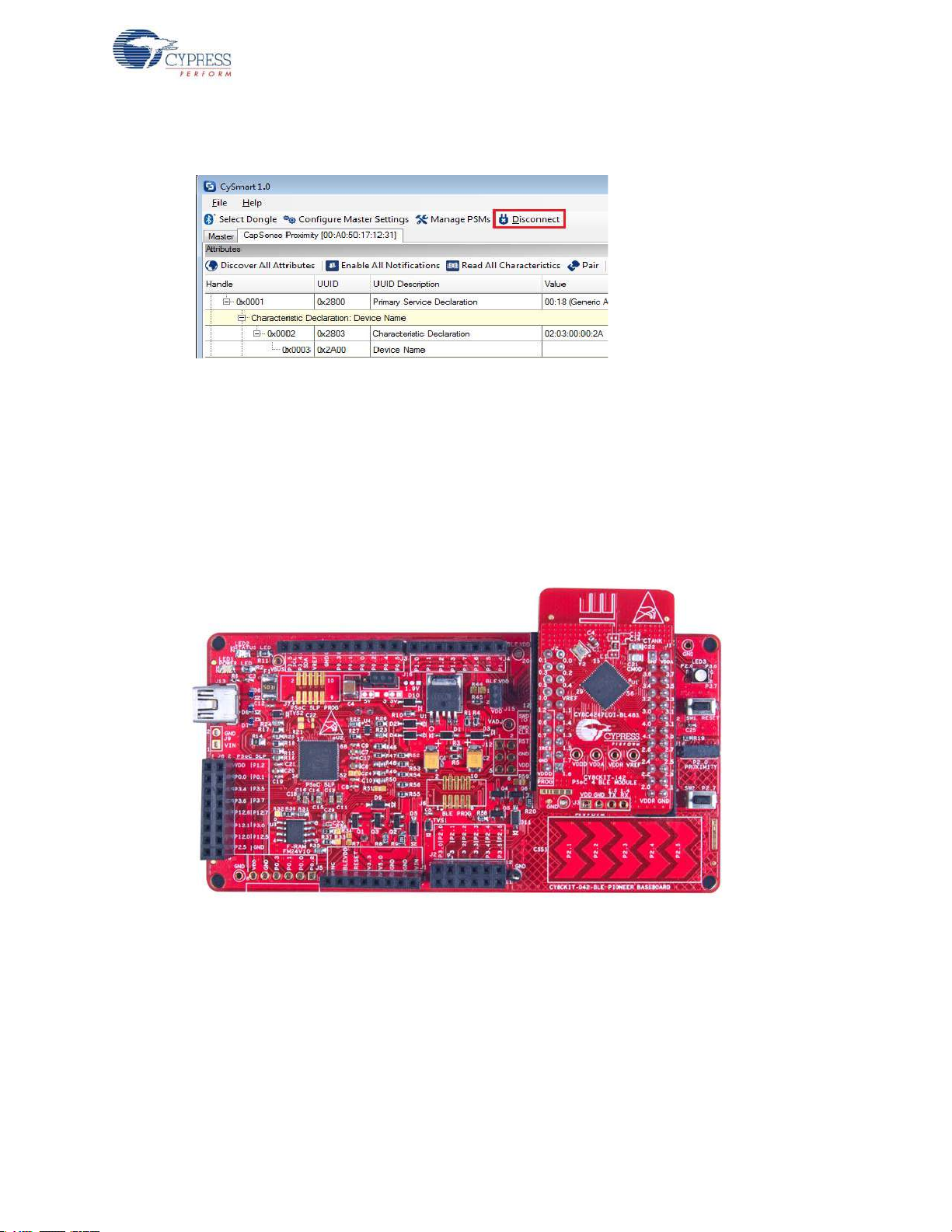

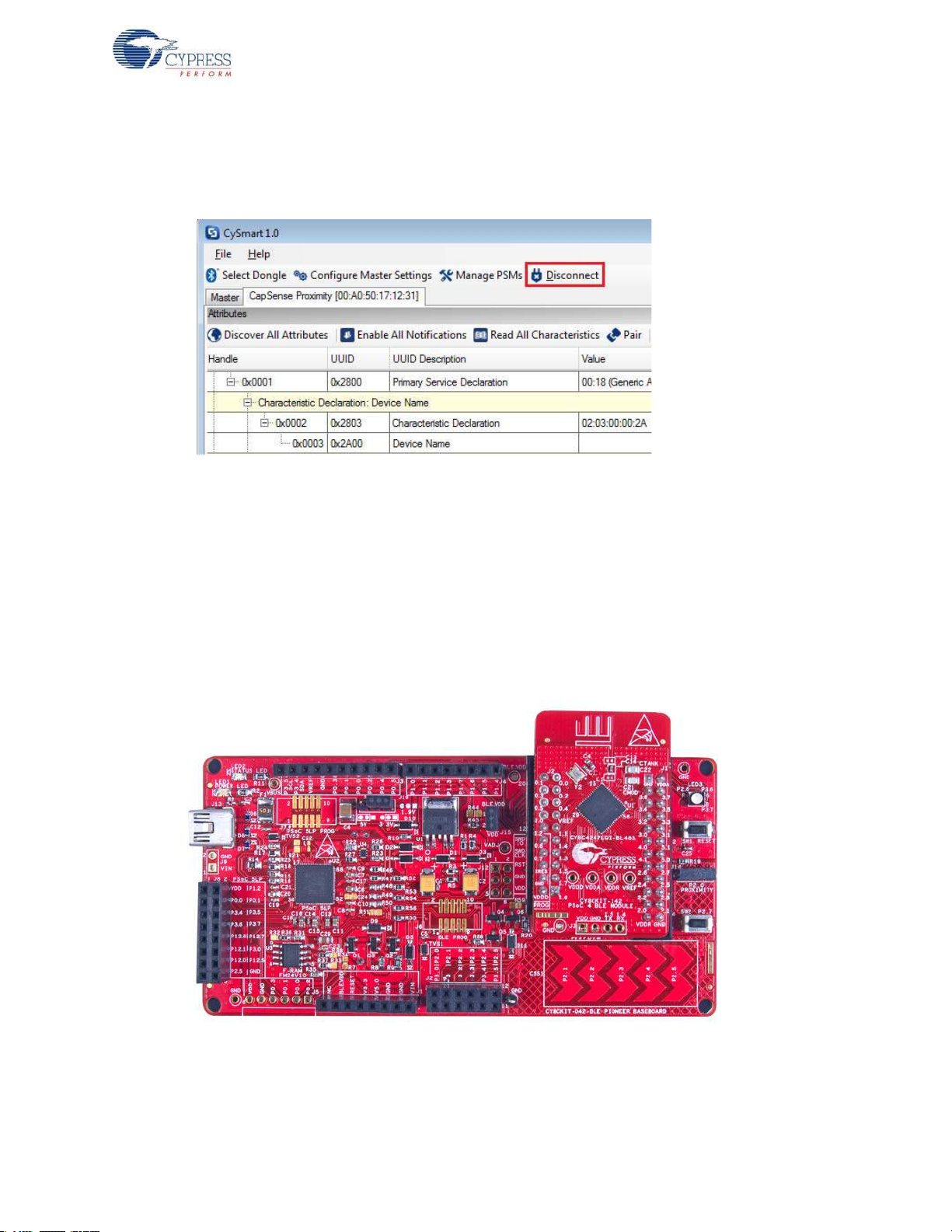

17.To disconnect from the device, click Disconnect, as shown in Figure 4-24. Figure 4-24. Disconnect from the Device

18.To connect to this peripheral again, restart advertising by pressing the user button (SW2) on the

BLE Pioneer kit. Advertising is indicated by the blinking red LED.

4.2.4.2 CySmart iOS/Android App

To verify the CapSense and LED project using the CySmart mobile application (see CySmart iOS/

Android Application on page 152), follow these steps:

1. To verify the PSoC_4_BLE_CapSense_Slider_LED project, plug in the PSoC 4 BLE Module on

the baseboard.

Example Projects

Figure 4-25. BLE Pioneer Kit with PSoC 4 BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 58

Example Projects

To verify the PRoC_BLE_CapSense_Sider_LED project, plug in the PRoC BLE Module on the baseboard.

Figure 4-26. BLE Pioneer Kit with PRoC BLE Module

2. Plug the BLE Pioneer kit into the PC to power using the J13 USB connector.

3. Program the kit with the CapSense and LED example projects. See Using Example Projects on

page 42 for programming instructions.

4. Press the user button (

SW2) on the BLE Pioneer kit to start the advertisement. This is indicated

by the blinking red LED on the BLE Pioneer kit.

5. Open the application on the mobile device. If Bluetooth is not enabled on the device, the

application will ask to enable it.

6. After Bluetooth is enabled, the application will automatically search for available BLE peripherals

and list them. Select the

BLE Slider and LED peripheral as shown in Figure 4-27.

Figure 4-27. BLE Slider and LED Peripheral

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 59

Example Projects

7. When connected, the application will list the supported profiles by the peripherals. Scroll and

select the CapSense page, as shown in Figure 4-28.

Figure 4-28. CapSense Service Page

8. Swipe your finger on the CapSense slider on the BLE Pioneer kit and see a similar response on

the

CapSense page in the CySmart application (Figure 4-29).

Figure 4-29. CapSense Slider

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 60

Example Projects

9. Press the back button in the top left corner of the application to return to the service selection

page. Scroll and tap on the RGB LED service shown in Figure 4-30.

Figure 4-30. RGB LED Service Page

10.On the RGB LED service page, swipe over the color gamut to see a similar color response on the

BLE Pioneer kit RGB LED. The slider below the color gamut controls the intensity of the RGB LED color. The RGB LED will be on for 3 seconds before switching off. This is done to conserve power.

If the BLE Pioneer kit is powered from the coin cell and not the USB Vbus power, then the color mixing and intensity will vary. This is because the coin cell provides a lower driving voltage for RGB LEDs.

Figure 4-31. RGB LED Control with PSoC 4 BLE Module and PRoC BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 61

11.To disconnect from the BLE Pioneer kit, return to the CySmart app home screen by pressing the

back button.

12.To reconnect to the peripheral, press the user button (SW2) on the BLE Pioneer kit again and

then scan for devices using CySmart mobile app.

4.3 CapSense Proximity

4.3.1 Project Description

This project demonstrates BLE connectivity between the BLE Pioneer kit (acting as a peripheral and server device) and the BLE dongle or mobile device running the CySmart application (acting as a central and client device). This project demonstrates the following:

■ Advertisement with timeout

■ Connection with any BLE Central device

■ One custom service

■ Data transfer over BLE custom service using notifications

■ Low-power mode implementation for coin cell operation

The BLE profile in this project consists of a single BLE custom service, called CapSense. The

CapSense service consists of a custom characteristic, termed as CapSense Proximity. The

CapSense proximity characteristic is used to send one byte data, ranging from 0 to 255, as notification to the client device. This data is the difference count read by the CapS ense component on the one-wire proximity sensor (J14) connected on the kit. This characteristics supports notification, which allows the BLE server to send data to the connected client device whenever new data is available.

Example Projects

The properties for the custom service/characteristics are config ured in the BLE compon ent under the Profiles tab, as shown in Figure 4-32.

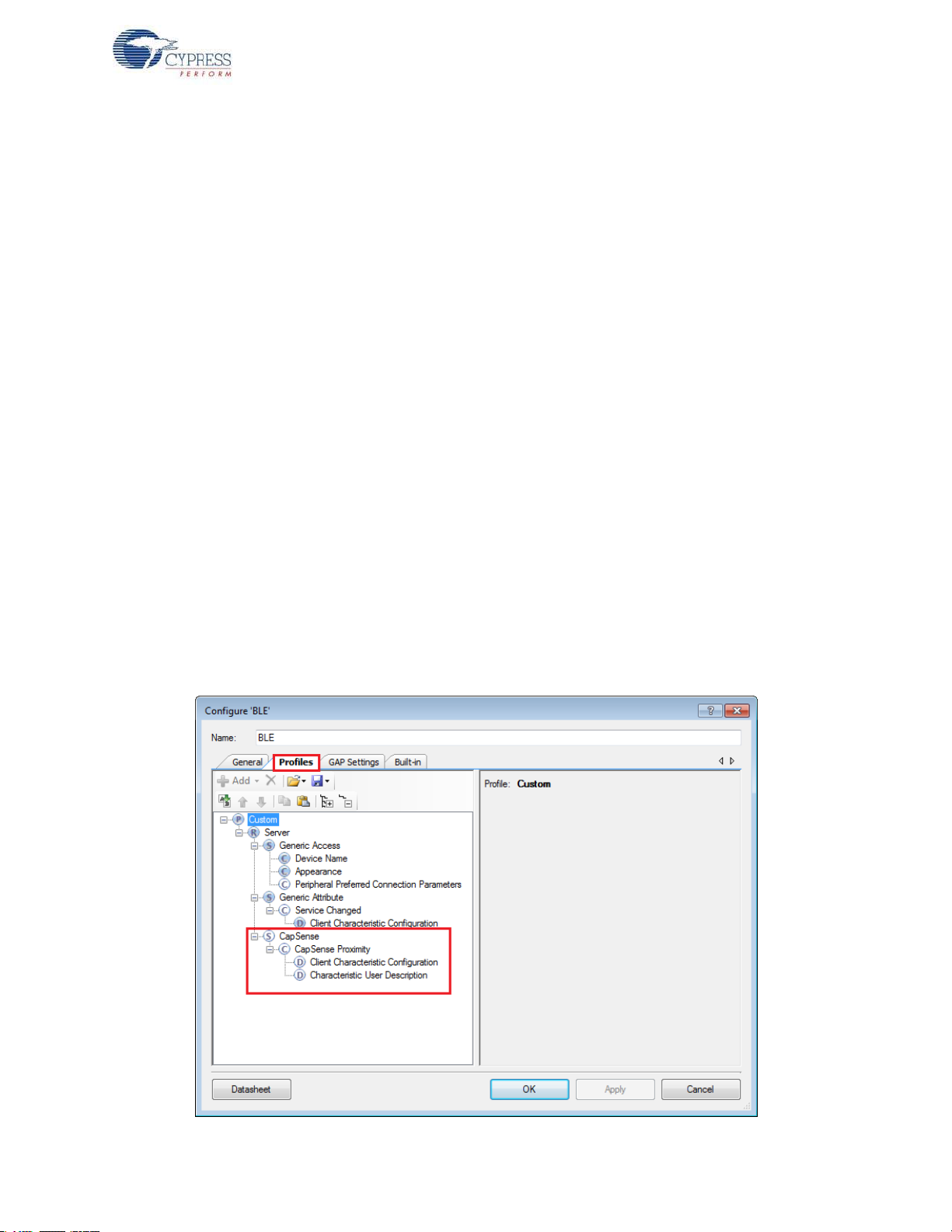

Figure 4-32. Attributes Configuration in BLE Component for CapSense Proximity

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 62

Example Projects

The project consists the following files:

■ main.c/.h

These files contain the main function, which is the entry point and execution of the firmware application. It contains function definition for initialization of the system and reading the CapSense proximity data from the CapSense component.

■ BLEApplications.c/.h

These files contain all the macros and function definitions related to BLE communication and operation. It contains the event callback function definition that is registere d with the BLE com ponent startup and used by the component to send BLE-related event from the BLE stack to the application layer for processing. It contains a meth od to send CapSense notifications to the client device. It updates the BLE Connection parameter, which is important for low-power mode usage.

■ HandleLowPower.c/.h

SW2). This allows for

very low-power mode implementation and operation using a coin cell.

The red LED is used as the status LED and provides visual confirmation on advertising or connection states. A blinking red LED indicates advertising state.

Two projects demonstrate this functionality on two different devices:

■ PSoC_4_BLE_CapSense_Proximity works with the PSoC 4 BLE Module.

■ PRoC_BLE_CapSense_Proximity works with the PRoC BLE Module.

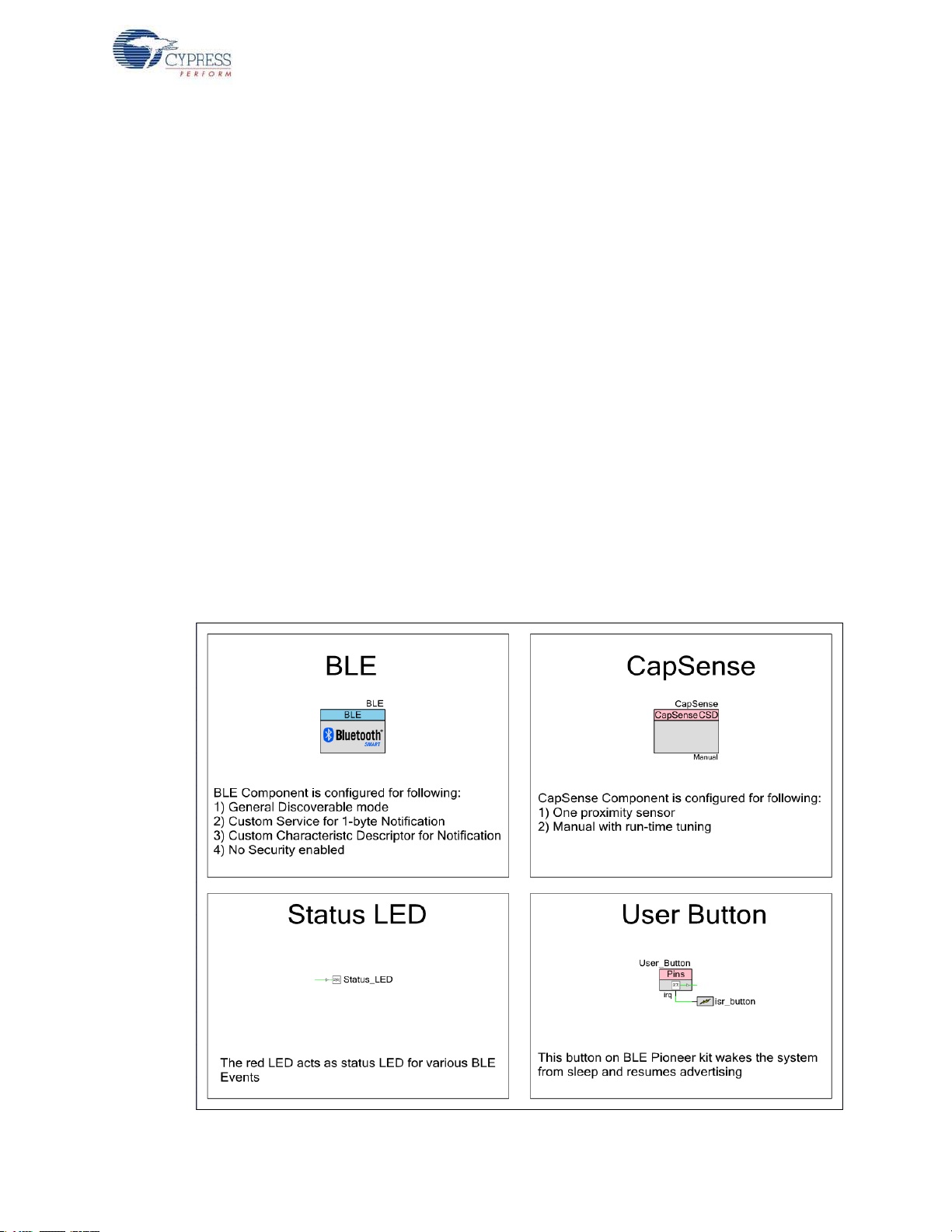

Figure 4-33. Top Design for PSoC_4_BLE_CapSense_Proximity Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 63

Figure 4-34. Top Design for PRoC_BLE_CapSense_Proximity Project

Example Projects

4.3.2 Hardware Connections

■ Ensure that the correct BLE module is placed on the baseboard corresponding to the project

being used. PSoC_4_BLE_CapSense_Proximity works with the PSoC 4 BLE Module. PRoC_BLE_CapSense_Proximity works with the PRoC BLE Module.

■ Connect a five-inch wire (provided as part of this kit) to the proximity connector J14 on the

baseboard. Loop the wire as shown in Figure 4-35.

Note: Ensure that the proximity sensor loop wire is kept away as much as possible from the BLE

antenna on the modules.

Figure 4-35. Proximity Sensor Connection on BLE Pioneer Kit with PSoC 4 BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 64

Example Projects

Figure 4-36. Proximity Sensor Connection on BLE Pioneer Kit with PRoC BLE Module

The pin assignment for this project is in

PSoC_4_BLE_CapSense_Proximity.cydwr/

PRoC_BLE_CapSense_Proximity.cydwr in the Workspace Explorer, as shown in Figure 4-37.

Table 4-2. Pin Assignments for CapSense Proximity Project

Pin Name Port Name

CapSense CMOD P4_0 CapSense Proximity Sensor P2_0 User Button P2_7 Status LED P2_6

Figure 4-37. Pin Selection for CapSense Proximity Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 65

4.3.3 Flow Chart

Start

Proximity value

Changed?

Send the proximity

data to BLE

Central device

BLE connection

still exists?

YES

Connected to BLE

Central device?

Notification

enabled?

YES

System is put in Sleep and waits for User Button press

Time-out?

System initialized.

Wait for interrupt from User

Button to Wakeup

Put system to low power

mode and wait for interrupt

from BLE Link Layer

YES

Process BLE

events

Figure 4-38 shows the flow chart of code implemented.

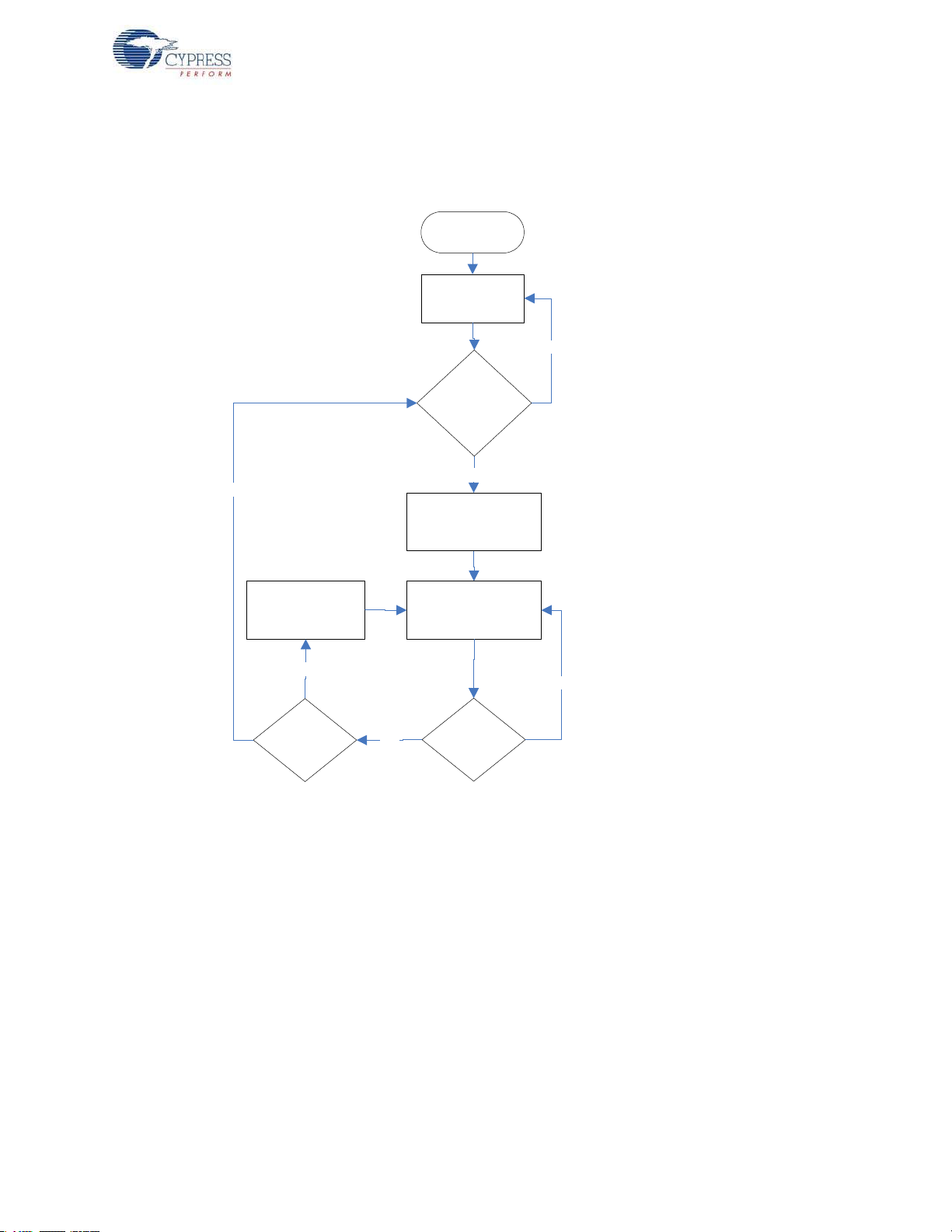

Figure 4-38. CapSense Proximity Project Flow Chart

Example Projects

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 66

4.3.4 V erify Output

The project can be verified by two methods: using the CySmart PC tool and dongle or using the CySmart iOS/Android BLE app.

To install and use the CySmart PC tool, see CySmart PC Tool on page 160. To install and use the CySmart iOS/Android ap p, see CySmart iOS/Andr oid Application on p age 152.

4.3.4.1 CySmart PC Tool

To verify the CapSense proximity project using the CySmart PC tool, follow these steps:

Note: See CySmart PC Tool on page 160 to know how to use the tool.

1. Connect the dongle to one of the USB ports on the PC.

2. Start the CySmart PC tool on the PC by going to

<version> > CySmart <version>. You will see a list of dongles connected to it. If no dongle is

found, click Refresh. Select the BLE dongle and click Connect.

Figure 4-39. Connect to BLE Dongle

Example Projects

Start > All Programs > Cypress > CySmart

3. Depending on the example project chosen, place the PSoC 4 BLE Module or PRoC BLE Module

on the baseboard.

4. Power the BLE Pioneer kit through the USB connector

5. Connect a five-inch wire (included in the kit) to the proximity sensor connector J14 and make a

loop of it.

6. Program the BLE Pioneer kit with the CapSense proximity example project. Follow the steps in

Using Example Projects on page 42 to program the device.

7. After programming successfully, press the user button (

advertisement. This is indicated by a blinking red LED on the baseboard.

8. On the CySmart PC tool, click

can recognize your device by the device name and Bluetooth address on the list. This should be the same as the one in the Gap Settings tab of the BLE component GUI in PSoC Creator.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 67

Start Scan to see the list of available BLE peripheral devices. You

J13.

SW2) on the BLE Pioneer kit to start the

Figure 4-40. Start Scanning

Example Projects

9. After the available devices are listed, double -click

CapSense Proximity to connect or click Stop

Scan and then click Connect to connect to the device.

Figure 4-41. Connect to CapSense Proximity Peripheral

10.When the connection is made, the CySmart PC tool will display a message for the Update Con-

nection parameter. This is the re quest from the BLE peripheral to update the existing connection parameters, such as connection interval, latency , and su pervision timeout, to a new value. Select

Yes, as shown in Figure 4-42.

Figure 4-42. Update Connection Parameter Option

Note: If you select No, the project will still work. However, th e current consumption will be higher

due to faster connection interval.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 68

Example Projects

11.If the connection is successful, you will see another tab opening besides the Master tab. Click

Discover All Attributes to find all the services and attributes supported by the BLE peripheral.

Figure 4-43. Discover All Attributes

12.When all the attributes are listed, locate the UUID value of 0xCAA1, which is the characteristic

for CapSense Proximity. It will also have a Client Characteristic Configuration descriptor (UUID 0x2902). The properties of the descriptor appear in the Attribute Details window, as shown in Figure 4-44. Click Read Value to read the existing CCCD value.

Figure 4-44. Read CapSense Proximity CCCD

13.Modify the

Value field to '01:00' and click Write Value. This enables the notifications on the

CapSense Proximity characteristic. The notifications received are displayed in the Value field of the CapSense Proximity characteristic.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 69

Figure 4-45. Write CCCD to Enable Notifications

Example Projects

14.Bring your hand closer to the proximity sensor on the BLE Pioneer kit, as shown in Figure 4-47

and observe the value changing in the characteristic value field, as shown in Figure 4-46.

Figure 4-46. CapSense Proximity Notification Received

Figure 4-47. CapSense Proximity Sensing with PSoC 4 BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 70

Example Projects

15.Modify the Value field of the Client Characteristic Configuration descriptor to '00:00' to disable

notifications.

16.To disconnect from the device, click Disconnect, as shown in Figure 4-48. Figure 4-48. Disconnect from the Device

17.Press user button (

SW2) to wake up from sleep and restart the advertisement for the next

connection.

4.3.4.2 CySmart iOS/Android App

To learn how to use the CySmart iOS/Android applic ation, see CySmart iOS/Android Application on

page 152 or the app user guide.

To verify the CapSense proximity project using the CySmart mobile app, follow these steps:

1. To verify the PSoC_4_BLE_CapSense_Proximity project, plug in the PSoC 4 BLE Module on the

baseboard.

Figure 4-49. BLE Pioneer Kit with PSoC 4 BLE Module

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 71

Example Projects

To verify the PRoC_BLE_CapSense_Proximity project, plug in the PRoC BLE Module on the baseboard.

Figure 4-50. BLE Pioneer Kit with PRoC BLE Module

2. Connect the five-inch wire as a loop to the proximity connector J14 on the baseboard.

3. Plug the BLE Pioneer kit into the PC for power, using the J13 USB connector.

4. Program the kit with the CapSense proximity example project. Follow steps in Using Example

Projects on page 42 to program the device.

5. Press the user button (

SW2) on the BLE Pioneer kit to start the advertisement.

6. Open the CySmart app on the mobile device. If Bluetooth is not enabled on the device, the app

will ask to enable it.

7. The app will automatically search for available BLE peripherals and list them. Select the

CapSense Proximity peripheral, as shown in Figure 4-51.

Figure 4-51. Connect to CapSense Proximity Peripheral

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 72

Example Projects

8. When connected, the app will list the services supported by the peripherals. Scroll and select the

CapSense service.

9. When the CapSense service page opens, bring your hand near the sensor wire on the BLE

Pioneer kit and see a similar response in the app as a bar graph, as shown in Figure 4-52.

Figure 4-52. CapSense Proximity Sensing with PSoC 4 BLE Module

10.To disconnect from the BLE Pioneer kit, return to the device selection screen on the CySmart

app.

11.To reconnect to the peripheral, press the user button (

advertisement and scan for the device in the CySmart app.

4.4 BLE Central Mode

4.4.1 Project Description

The BLE projects described above have been functioning as BLE peripheral devices. This means that the firmware role was set to be a BLE peripheral and server; another device such as the CySmart PC tool or CySmart mobile application will connect to it and collect the data.

This example project demonstrates the BLE central and client mode where it will scan for a peripheral device, connect to it, and send commands. In this project, the BLE Pioneer kit scans and autoconnects to a particular peripheral device supporting peripheral with a predetermined address is found, a connection request is sent followed by disco vering the attributes. When the discovery is over, you can send one of the three alert levels to the BLE peripheral device over the IAS. This is done by pressing the cycling through the alert levels.

The BLE central project supports low-power mode operation, where the firmware supports BLESS and CPU Deep Sleep mode whenever possible. The system remains in deep sleep when disconnected. Press timeout interval is set to 30 seconds. If the particular BLE peripheral device is found advertising before timeout, a connection is made (blue LED always ON). If no such device is found, then the

SW2 to wake up the system and start scanning (blinking blue LED). The scanning

SW2) on the BLE Pioneer Kit to restart the

Immediate Alert Service (IAS). Wheneve r the

SW2 button on the BLE Pioneer kit and

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 73

Example Projects

system stops scanning and returns to Deep Sleep mode (LED OFF). Press SW2 again to wake the system and restart scanning.

To aid in evaluation, the BLE pe ripheral project with the particular BD address is provided in the same workspace. This peripheral project supports IAS and has fixed BD address that the central device will recognize and auto-connect to. This peripheral project is programmed on the BLE dongle and powered through the USB port of PC. The received alert levels (No, Mid, and High alert) on the BLE dongle are represented by different LED status. No Alert is represented by LED OFF, Mid Alert by blinking LED, and High Alert with LED always ON. Upon each successive button press on the BLE Pioneer kit, the LED state on the BLE dongle changes in a circular fashion.

Two projects demonstrate the BLE Central functionality on the two devices:

■ PSoC_4_BLE_Central_IAS works with the PSoC 4 BLE Module.

■ PRoC_BLE_Central_IAS works with the PRoC BLE Module.

Additionally, the BLE_Dongle_Peripheral_IAS project is to be programmed on the dongle. This project is present in both the PSoC_4_BLE_Central_IAS and the PRoC_BLE_Central_IAS workspace and can be used to program the dongle separately.

Note: If the dongle is programmed with the BLE_Dongle_Peripheral_IAS example, it will not work

with the CySmart PC utility . Reprogram the dongle with the CySmart firmware according to Updating

BLE Dongle for CySmart PC Tool on page 33 to use the CySmart PC tool.

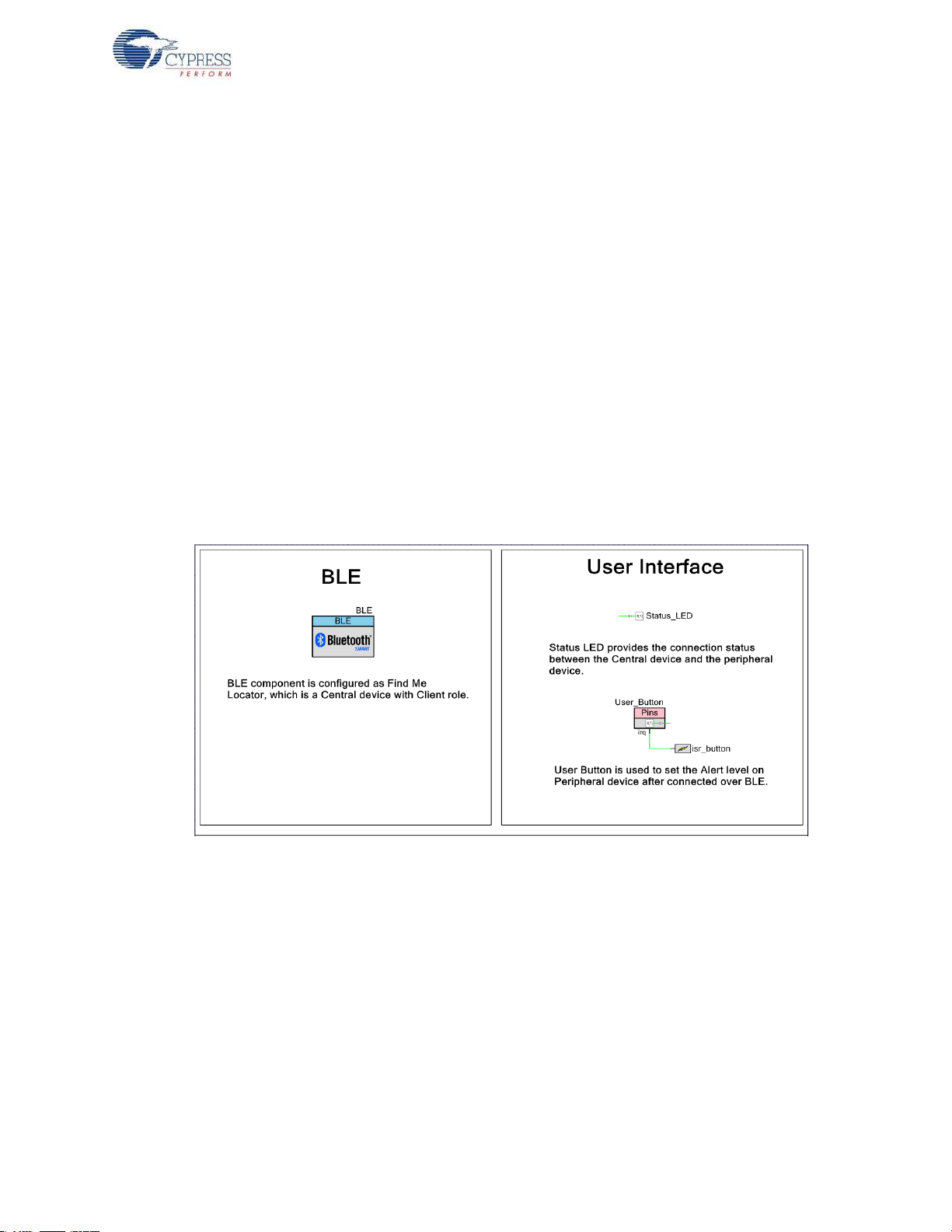

Figure 4-53. PSoC_4_BLE_Central_IAS TopDesign

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 74

Figure 4-54. PRoC_BLE_Central_IAS TopDesign

Example Projects

Figure 4-55. BLE_Dongle_Peripheral_IAS TopDesign

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 75

4.4.2 Hardware Connections

No specific hardware connections are required for this project because all connections are hardwired on the board.

Ensure that the correct BLE module is placed on the baseboard corresponding to the project being used. PSoC_4_BLE_Central_IAS works with the PSoC 4 BLE Module. PRoC_BLE_Central_IAS works with the PRoC BLE Module. BLE_Dongle_Peripheral_IAS is the common project for both workspaces and programs the BLE dongle with peripheral mode firm ware.

Example Projects

The pin assignment for this project is in

PRoC_BLE_Central_IAS.cydwr in the Workspace Explorer, as shown in Figure 4-56.

PSoC_4_BLE_Central_IAS.cydwr/

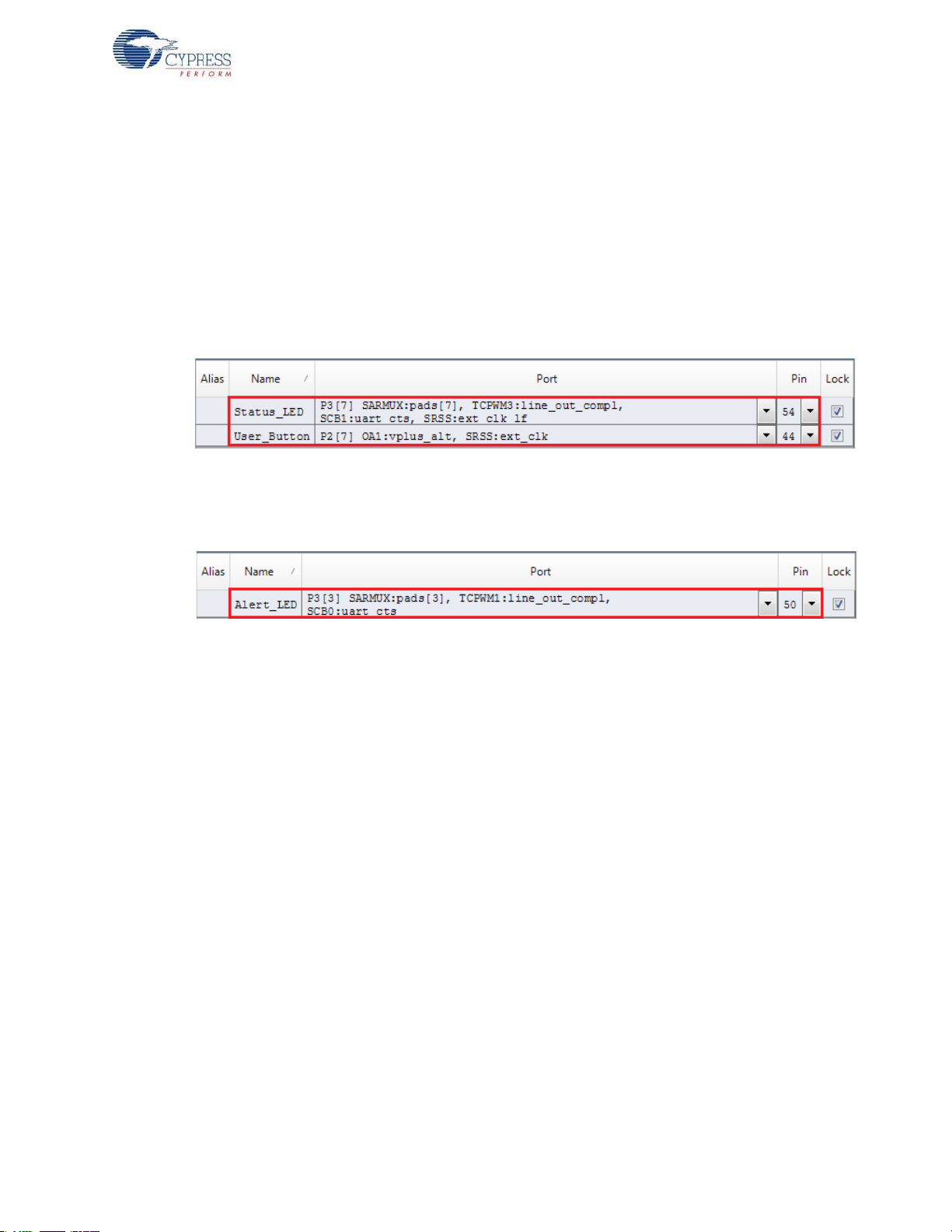

Figure 4-56. Pin Selection for BLE IAS Central Example Project

Similarly, the pin assignment for the dongle peripheral project is in

BLE_Dongle_Peripheral_IAS.cydwr in the Workspace Explorer as shown in Figure 4-57.

Figure 4-57. Pin Selection for BLE IAS Peripheral Example Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 76

4.4.3 Flow Chart

Start

Initialize BLE

Module

Button press

detected ?

Yes

Discovered peripheral with IAS Peripheral

Addr ess ?

Initiate and complete

connect operation .

Provide LED indication

on connection complete

Write the next Alert

lev el (Ale rt levels will

be repeated )

Yes

Check for configured

Button press event

Yes

Does

connection

exi s t ?

Figure 4-58 shows the flow chart for the IAS client mode example project.

Figure 4-58. IAS Client Mode Flow Chart

Example Projects

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 77

Figure 4-59 shows the flow chart for the IAS peripheral mode example project.

Start

In it i alize B LE

Module and start

Advertisem ent

Yes

Connect

request from

Cen t ra l device

Complete connect

operation and wait for

Alert notifications

Configure LED as per

alert level

Yes

Valid Alert level

is notified ?

Figure 4-59. IAS Peripheral Mode Flow Chart

Example Projects

4.4.4 V erify Output

1. Connect the BLE dongle to one of the USB ports on the PC. Figure 4-60. Connect Dongle to USB Port

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 78

Example Projects

2. In the PSoC Creator Workspace Explorer, right-click on the BLE_Dongle_Peripheral_IAS project and select Set As Active Project, as shown in Figure 4-61.

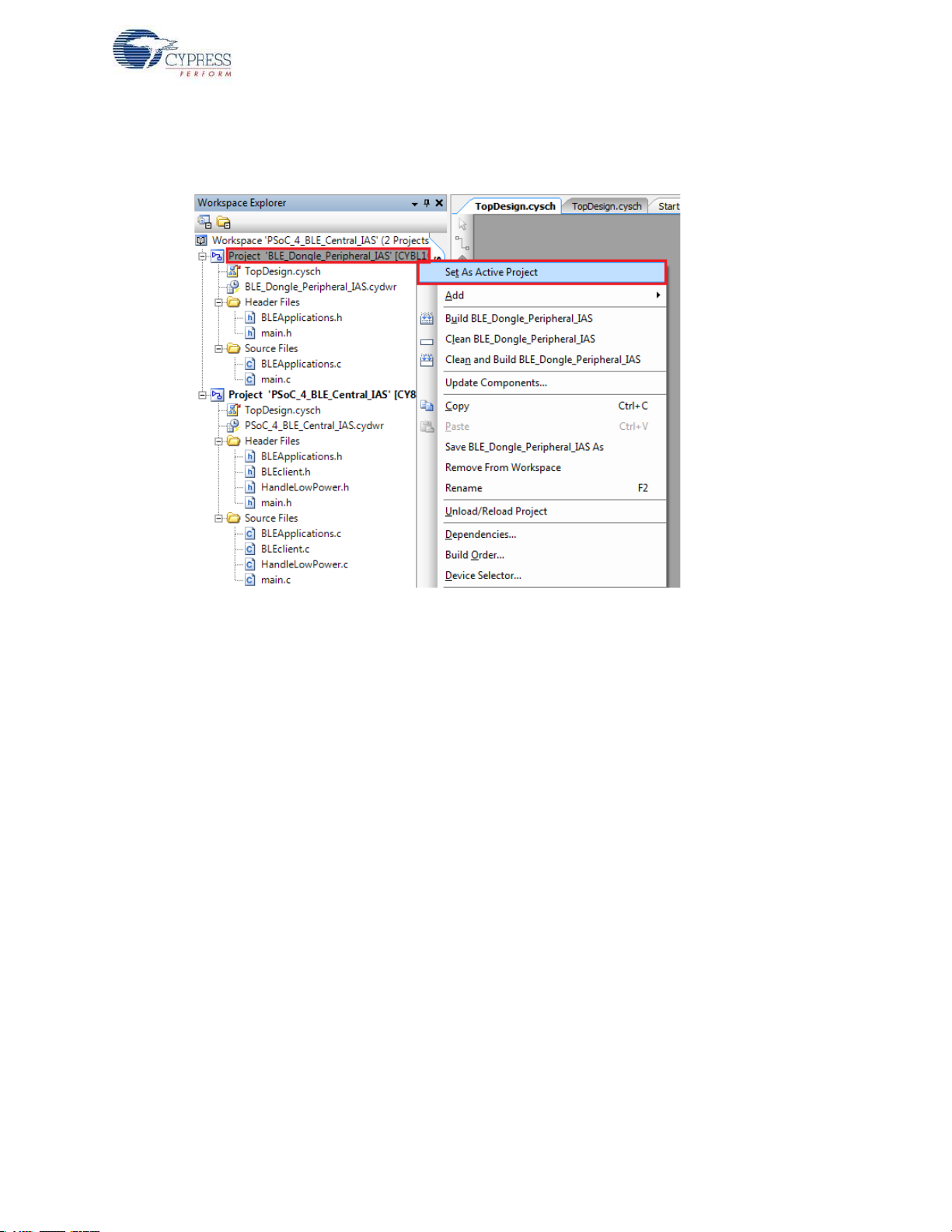

Figure 4-61. Set Dongle Peripheral Project as Active

3. Program the dongle with the BLE_Dongle_Peripheral_IAS project described in Using Example

Projects on page 42.

Note: Do not update the public device address (inside the BLE component) for the BLE_Dongle_Peripheral_IAS example project. This is because the central example project

looks for a particular public address equal to the one set on the peripheral BLE component. Changing the BLE_Dongle_Peripheral_IAS example project public address will lead to no connection with the BLE Central device on the BLE Pioneer kit.

4. Power the BLE Pioneer kit through USB connector J13.

5. In the Workspace Explorer, right-click on the

PSoC_4_BLE_Central_IAS project and select Set

As Active Project, as shown in Figure 4-62.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 79

Figure 4-62. Set Central IAS Project as Active

Example Projects

6. Program the BLE Pioneer kit with either the

PSoC_4_BLE_Central_IAS or the

PRoC_BLE_Central_IAS project, depending on the BLE module placed on the BLE Pioneer kit.

7. Press button

SW2 on the BLE Pioneer kit to wake the system and start scanning. Scanning is

indicated by a blinking LED.

8. Wait for the BLE connection between the dongle and the Pioneer baseboard. The connection success status is indicated on the baseboard in the following three stages:

a. Fast blinking blue LED represents scanning mode. Du ring this mode, the BLE Pioneer kit is

scanning for peripheral devices.

b. Slow blinking blue LED represents discovery mode. Duri ng this mode, the BLE Pione er kit has

found the dongle peripheral device and has started the connection procedure.

c. The blue LED remains on, representing the connected mode. This mode indicates that the

peripheral device has been connected and the application can now send alert levels.

9. Press button

SW2 on the BLE Pioneer kit to send the next alert level to the dongle. The alert level

will rotate from No Alert to Mid Alert to High Alert.

10.Check if the LED behavior changes for each alert notification on the dongle according to the following table:

Alert Level LED State

No Alert LED OFF Mild Alert LED blinking High Alert LED ON

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 80

Figure 4-63. User Button on BLE Pioneer Kit with PSoC 4 BLE Module

Example Projects

Note: To revert the CySmart functionality to the dongle, program the dongle hex file, as described in

Updating BLE Dongle for CySmart PC Tool on page 33.

4.5 BLE Dongle and LED Control

4.5.1 Project Description

This firmware supports the CySmart debug tool (see CySmart PC Tool on page 160) by acting as the BLE host emulator . This is the default firmware that comes in the BLE dongle shipped with the kit.

This project additionally demonstrates LED brightness control via a custo m BLE p rofile, wh ich works with the CapSense slider example explained in CapSense Slider and LED on page 47.

The device will scan for the peripheral acting as a CapSense slider and LED device, and connect to it automatically. This is achieved by filtering the advertisement packets for the CapSense Slider service data, which will be sent by the CapSense slider example. Then, it will enable slider notifications and process the received notifications. Whenever CapSense detects activity, it will notify the finger location to the dongle; the dongle will update the LED brightness using PWM.

The custom client LED control will be stopped if the CySmart PC tool acquires the dongle. The dongle will enter the CySmart emulator mode, in which it will process all BLE commands as triggered by the user via the tool. The proj ect uses custom command/event protocol to exchange data between the CySmart PC tool and the BL E component via a USB-CDC interface. It uses the Cypress USB-UART bridge functionality from the PSoC 5LP-based KitProg module described in

Using PSoC 5LP as USB-UART Bridge on page 115.

Note: This project is meant only for the PRoC BLE device and works on the dongle hardware.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 81

Figure 4-64. Top Design for BLE_Dongle_CySmart Project

Example Projects

4.5.2 Hardware Connections

No specific hardware connections are required for this project because all connections are hardwired on the dongle board.

The pin assignment for this project is in BLE_Dongle_CySmart.cydwr in the Workspace Explorer, as shown in Figure 4-65.

Figure 4-65. Pin Selection for BLE Dongle Project

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 82

4.5.3 Flow Chart

Perform connect

sequence

Yes

Power BLE

Dongle

Start BLE, Prism and

UART Component

Scan for Capsense

device

Yes

Notification occurs

with valid position

value ?

Yes

Capsense

device found ?

Enter CySmart emulator mode

CySmart tool

started

Yes

Enable notifications for

Capsense slider

System in sleep and

waiting for user

button press

USB suspend

triggered ?

Update LED

brightness as per

slider position

Wait for slider

position change

notifications

Figure 4-66. Flow Chart for BLE_Dongle_CySmart Project

Example Projects

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 83

4.5.4 V erify Output

DUT

Upper

Tester

Lower Tester

RF (2.4 GHz)

HCI/UART

This project will be used whenever the CySmart PC tool (see CySmart PC Tool on page 160) is invoked for testing other example projects. In addition, the LED control operation can be verified as follows.

1. Power the BLE Pioneer kit through the USB connector J13.

2. Program the BLE Pioneer kit with the CapSense and LED example project described in

CapSense Slider and LED on page 47.

3. Connect the BLE dongle to one of the USB ports on the PC.

4. Program the dongle with the

page 42 for programming instructions.

5. Press the user button SW2 on both the BLE dongle and the BLE Pioneer kit. The BL E dongle will start scanning and the BLE Pioneer kit will start advertising.

6. Wait for the BLE connection between the BLE dongle and the Pioneer baseboard. The connection success status will be indicated by a 3-second ON state of the red LED followed by the OFF state on the baseboard.

7. Swipe your finger on the CapSense slider and check the LED brightness variation on the dongle.

4.6 Direct Test Mode (DTM)

Example Projects

BLE_Dongle_CySmart project. See Using Example Projects on

4.6.1 Project Description

Bluetooth Core specification (v4.0 and later), Volume 6, Part F defines Direct Test Mode (DTM) as a

method to test the BLE PHY layer and provide a report back to the tester. It uses one of the two methods, over Host Controller Interface (HCI) or through a two-wire UART interface.

Device under test (DUT) is the BLE system that is to be tested (for example, BLE Pioneer kit). With DTM, the RF performance of the BLE system can be verified during development or in production line. The environment consists of the DUT and a tester. The tester has two parts; the upper te ster sends commands through one of the two methods (HCI or two-wire UART) and the lower tester performs the corresponding action over the RF link. The tester compares the command sent over HCI and the response received over RF, and provides a result of the performance.

Figure 4-67. Direct Test Mode (DTM) Setup

The BLE component allows configuring the device in DTM by enabling the HCI. The appropriate response to commands from t he tester ar e performed by the BLE stack and does not involve separate application handling. The only task is to start the BLE component and call the API to process the events.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 84

Example Projects

The HCI is enabled in the BLE component under the General Settings. Note that when the HCI mode is selected, all other tabs are hidden and cannot be configured. This is because in HCI mode, there are no upper layer processes. On enabling HCI mode in the components, the components automatically reserves a UART block to allow communication between the tester and BLE stack. The UART exposes the pins that can be assigned in

Design Wide Resource > Pins. The only

option to be configured for HCI mode is the baud rate and the pins for communication with the tester. Figure 4-68. HCI Mode in BLE Component

Many companies develop BLE testers for Direct Test Mode. It is also possible to create PC-based software tools that will send HCI commands over serial communication links.

For PC-based software, the serial communication link is the COM port, which is enumerated by KitProg on PSoC 5LP of the BLE Pioneer kit. In such a case, the UART pins in PSoC 4 BLE/PRoC BLE should be assigned to P1_4 and P1_5. These pins are hardwired to pins on PSoC 5LP and allows USB-UART data communication between the PC tool and the BLE device.

For separate BLE testers, the serial communication is mostly over the RS232. To test with this system, an external RS232 voltage translator is required, such as Digilent's Pmod RS232. This translator will modify the signal level of the serial communication between the BLE device and the RS232 port on the tester. The UART pins of the BLE device can be assigned to P0_0 and P0_1 and the header J5 can be used to connect to the RS232 translator.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 85

Figure 4-69. J5 Header to Interface RS232 Translator

4.6.2 Hardware Connection

For DTM test mode, it is recommended to use SMA connectors and connect the tester and DUT using a SMA to SMA connector cable. This ensures that there is minimum interference to RF communication between the DUT and tester, and the performance measured is the true RF performance of the device. The BLE Pioneer kit module with SMA connector (CY8CKIT-141 PSoC 4 BLE) is available separately and can be ordered from th e Cypress web page.

Example Projects

Four UART pins are exposed when HCI mode is selected in the BLE component. These pins should be assigned to allow communication with the external tester. The connection depends on the tester being used.

If the tester is a PC-based software and communicated with HCI over serial link, then the onboard PSoC 5LP on the BLE Pioneer kit can act as the USB-UART bridge. The KitProg on the PSoC 5LP enumerates as a USB-UART interface and opens a COM port in the PC. This COM por t is then used by the software tool to communicate commands to the BLE device. In this case, the UART pins should be assigned as follows.

Table 4-3. UART Pin Assignment for PC Software Tester

UART Pins Pin Assigned

RX P1_4 TX P1_5 RTS P1_6 CTS P1_7

The UART for HCI communication exposes hardware flow control lines CTS and RTS. They can either be connected to the hardware control lines of the tester or CTS connected to ground for operation without hardware flow control.

If the tester is an external hardware tester (CBT), then connect any of the RS232 voltage translators to header J5 on the BLE Pioneer kit. The UART pins should be assigned as follows.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 86

Table 4-4. UART Pin Assignment for RS232 Voltage Translator

UART Pins Pin Assigned

RX P0_0 TX P0_1 RTS P0_2 CTS P0_3

4.6.3 V erify Output

1. Connect the BLE Pioneer kit through the USB connector J13.

2. Program the BLE Pioneer kit with the PSoC_4_BLE_DTM or PRoC_BLE_DTM project, depending on the BLE module used (PSoC 4 BLE or PRoC BLE), as described in Using Example Proj-

ects on page 42. Programming should complete successfully.

3. Connect the Serial link, UART or RS232 to the tester.

4. On the software tool for tester, configure the UAR T communication with the correct COM port and baud rate, as set in the BLE component.

5. Start the test. The tool will generate the report after the end of the test. This depends on the tester/tool being used.

Example Projects

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 87

5. Hardware

This chapter describes the contents of the BLE Pioneer kit hardware and its different blocks, such as the power block, USB connection, Arduino-compatible headers, BLE module connectors, and CapSense slider.

5.1 Pioneer Baseboard

5.1.1 PSoC 5LP

An onboard PSoC 5LP is used to program and debug the BLE silicon. The PSoC 5LP connects to the USB port of the PC through a USB mini-B connector and to the SWD interface o f the BLE device. PSoC 5LP is a true system-level solution providing MCU, memory, analog, and digital peripheral functions in a single chip. The CY8C58LPxx family offers a modern method of signal acquisition, signal processing, and control with high accuracy, high bandwidth, and high flexibility. The analog capability spans the range from thermocouples (near DC voltages) to ultrasonic signals.

For more information, visit the PSoC 5LP web page. See Serial Interconnection Between PSoC 5LP and BLE Module on page 104 for more details.

5.1.2 Power System

The power supply system on this board is versatile, allowing the input supply to come from the following sources:

■ 5-V power from onboard USB connector

■ 5-V to 12-V VIN power from Arduino shield at J1

■ 3.3 V from I/O header J1

■ 3 V from CR2032 coin cell

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 88

Hardware

VADJ VDD

VCC

EN_CTRL

VBUS

VIN

VCC

EN_CTRL

NO LOAD NO LOAD

CTL

VCC

N.C.

OUT

GND

Output Voltage ON / OFF control

Power supply voltage input

Unconnected terminal

Voltage output

Output voltage regulation terminal

Ground

Pin No Symbol Function

TABLE: LDO PIN FUNCTIONS

GND Test Points

TABLE: VOLTAGE SELECTION JUMPER SETTINGS

JUMPER SETTING O/P VOLTAGE

SHORT 2 & 3

SHORT 1 & 2

REMOVE JUMPER

3.3V

1.9V

TP5 BLACK

SOD123

BA00BC0WFP-E2

VCC

CTL

OUT

GND

R1 11K

R4 10K 1%

3216

4.7uF

R10 10K

14.7K 1%

SOD123

TP6 BLACK

4.3K 1%

TP4 BLACK

J16

3 PIN HDR

3216

C1 1 uFd

SOD123

An adjustable LDO is used to output three dif ferent volt age levels (1.9 V, 3.3 V, and 5 V) to power the BLE module. These voltages are selected with the J16 jumper, as shown in Figure 5-1.

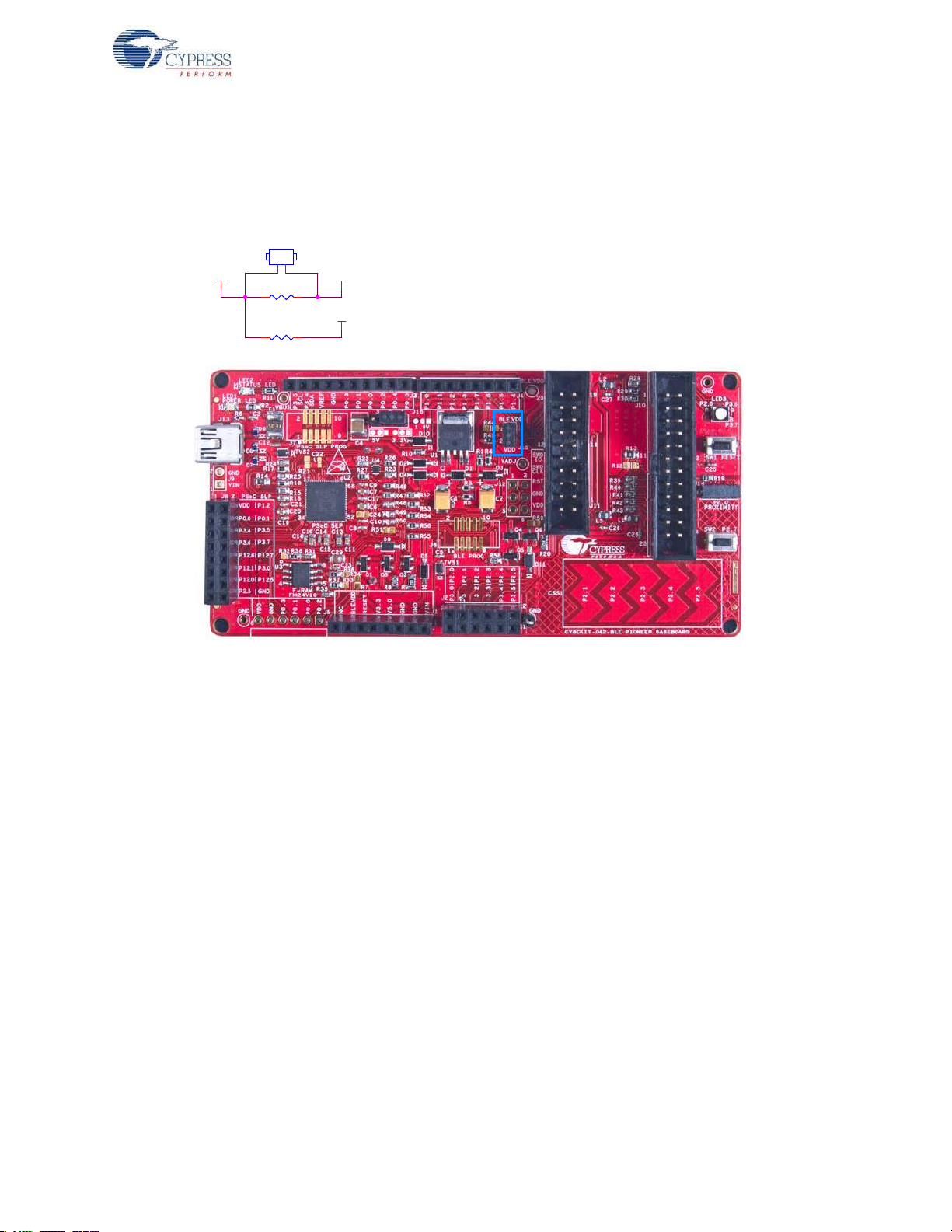

Figure 5-1. Schematics and Board Highlight of LDO and Power Selection Jumper

The input to the LDO can come from either the USB, the VIN pin in the Arduino header J1 or header J9.

Note: The typical dropout voltage of the selected LDO is 0.3 V at 500-mA output current. This gives

a minimum output of 4.6 V from the input voltage of 5 V from the VBUS. This drop also takes into

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 89

account the voltage drop across the Schottky diode connected at the output of the LDO to protect against voltage applied at the output terminal of the regulator.

Hardware

I/OHeader

USB

Bluetooth

Module

Vin

3.3V

PSoC 5LP

PSoC 5LP 10 Pin

Prog. Header

PTC

LDO

ESD

Protection

MOSFET based

Protection Ckt

Coin cell

Battery Holder

PSoC 4 BLE 10

Pin Prog. Header

~3V

The board also contains a CR2032 coin cell holder to powe r the boar d using a coin cell, as shown in

Figure 5-2.

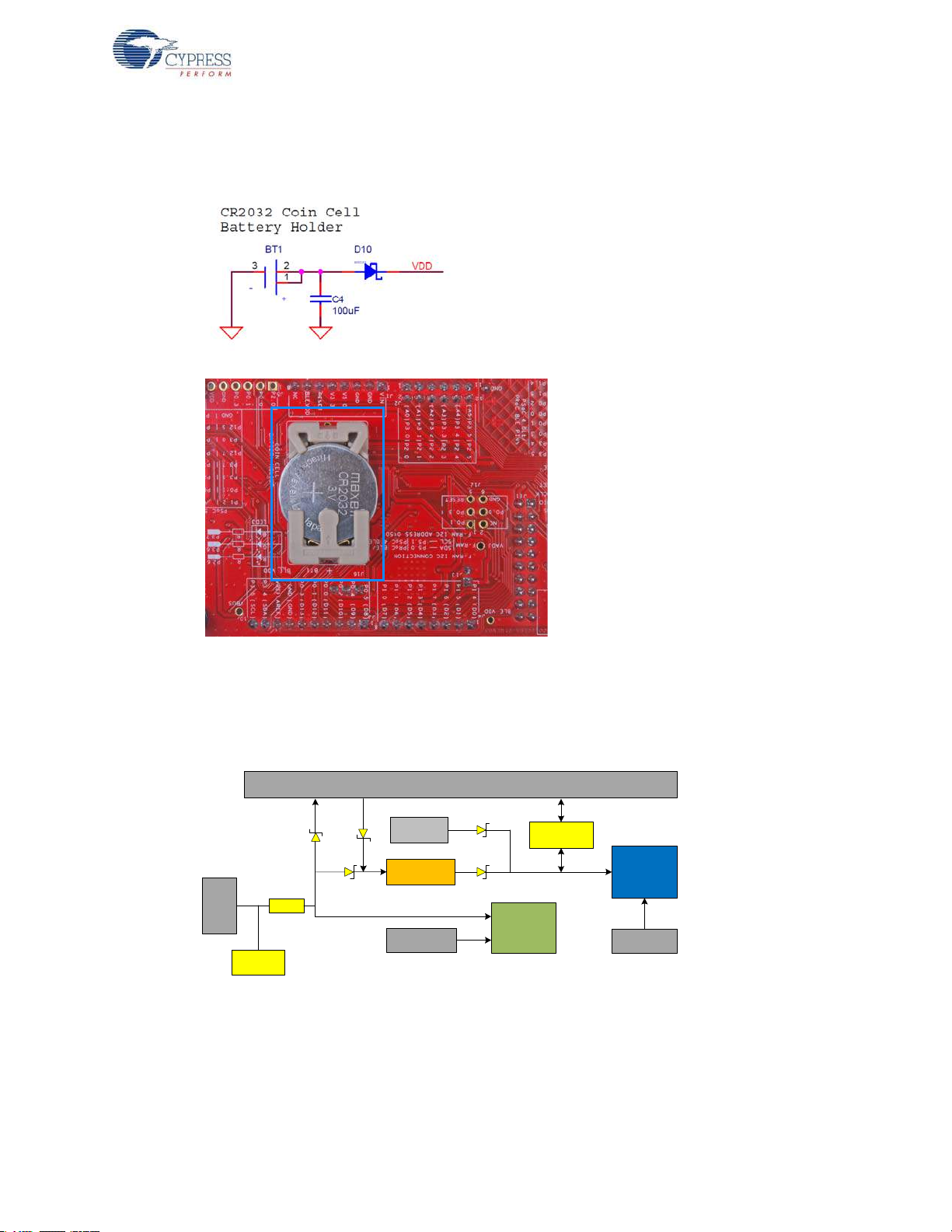

Figure 5-2. Schematics and Board Highlight of Coin Cell Holder

5.1.2.1 Protection Circuits

The power supply rail has reverse-voltage, overvoltage, short circuits, and excess current protection features, as shown in Figure 5-3.

Figure 5-3. Power Supply Block Diagram With Protection Circuits

■ A PTC resettable fuse is connected to protect the computer's USB ports from shorts and

overcurrent.

■ ORing diodes prevent damage to components when the board is powered from different voltage

■ ESD protection is provided for the USB mini-B connector.

sources at the same time.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 90

Hardware

VDDV3.3

NO LOAD

R9 10K

R8 15K

PMOS( NTR4171PT1G)

R7 ZERO

Vz=3.9V(BZT52C3V9-7-F)

PMOS(PMV48XP,215)

PMOS( DMP3098L-7)

■ A MOSFET-based pr otection circuit is provided for overvolt age and reverse-volt age pr otection for

the 3.3-V rail from J1.5, as sho wn in Figure 5-4. When a voltage greater than 3.6 V is applied from J1.5, the Q2 PMOS will turn off, which will cut off the power to the BLE module from J1.5. When reverse voltage is applied from J1.5, the Q1 PMOS will turn off, protecting the onboard components from reverse voltage.

Figure 5-4. Schematics and Board Highlight of MOSFET Protection Circuit for 3.3-V Input

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 91

5.1.2.2 Current Measurement Jumper

NO LOAD

VDD BLE_VDD

VTARG

J15

HDR2

0805

R44 ZERO

0603

R45 ZERO

To demonstrate the low power consumption of PSoC 4/PRoC BLE, a two-pin header is populated in series with the power supply to the PSoC 4 BLE. This can be used to measure current using an ammeter without the need to desolder any component s from the board, as shown in Figure 5-5.

Figure 5-5. Schematics and Board Highlight of Current Measurement Jumper

Hardware

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 92

Hardware

The following methods are supported for measuring the current consumption of the BLE device.

■ When the board is powered through the USB port (J13), remove jumper J15 and connect an

ammeter, as shown in Figure 5-6.

Figure 5-6. Current Measurement when Powered from USB Port

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 93

Hardware

VOLTAGE

SOURCE

- +

■ When the board is powered from an external volt age supply, remove the USB port (J13). Connect

the positive terminal of the external voltage supply to the positive terminal of the ammeter and the negative terminal of the ammeter to the upper pin of J15. Connect the negative terminal of the external voltage supply to and GND pin on board. Figure 5-7 shows the required connections.

Figure 5-7. Current Measurement when Powered Separately

5.1.3 Programming Interface

The kit allows you to program and debug the PSoC 4 BLE/PRoC BLE in two ways:

■ Using the onboard PSoC 5LP Programmer and Debugger

■ Using a CY8CKIT-002 Min i Prog3 Programmer and Debugger

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 94

5.1.4 Expansion Connectors

Arduino compatible I/O header (J3/J4)

Arduino compatible I/O header (J2)

Arduino compatible power header (J1)

5.1.4.1 Arduino Compatible Headers (J1, J2, J3, J4, and J12-unpopulated)

This kit has five Arduino compatible headers: J1, J2, J3, J4, and J12, as shown in Figure 5-8. You can develop applications based on the Arduino shield's hardware.

Figure 5-8. Arduino Headers

Hardware

The J1 header contains I/O pin s for reset, I/O r eference volt age (IOREF), and power supply line . The J2 header is an analog port that con tains I/O pins for SAR ADC, comparator, and opamp. The J3 header is primarily a digital port that contains I/O pins for PWM, I

C, SPI, and analog reference. The J4 header is also a digital port that contains I/O pins for UART and PWM. The J12 header is an Arduino ICSP compatible header for the SPI interface and is not populated. Refer to the “No Load Components” section of Bill of Materials (BOM) on page 184 for the header part number.

Additional Functionality of Header J2

The J2 header is a 6×2 header that supports Arduino shields. The Port 2 and Port 3 pins of PSoC 4 BLE and PRoC BLE are brought to this header. The Port 2 pins also connect to the onboard CapSense slider through 560-ohm resistors. When the CapSense feature is not used, remove these resistors to help ensure better performance with these pins.

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 95

5.1.4.2 PMod Connector - Digilent Pmod Compatible (J5-unpopulated)

Digilent® PmodTM -

compatible I/O header (J5)

This port supports Digilent Pmod peripheral modules (see Figure 5-9). Pmods are small I/O interfaces that connect with the embedded control boards through either 6- or 12-pin connectors. The BLE Pioneer kit supports the 6-pin Pmod type 2 (SPI) interface. For Digilent Pmod cards, go to

www.digilentinc.com.

This header is not populated on the BLE Pioneer board. You must populate this header before connecting the Pmod daughter cards. Refer to the “No Load Components” section of Bill of Materials

(BOM) on page 184 for the header part number.

Figure 5-9. Schematics and Board Highlight of PMod Connector

Hardware

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 96

5.1.4.3 PSoC 5LP GPIO Header (J8)

PSoC 5LP GPIO Expansion Header

USB-Serial Bridge Connections

P5LP12_6 ------------- UART RX P5LP12_7 ------------- UART TX P5LP12_0 ------------- SPI SCLK / I2C SCL P5LP12_1 ------------- SPI MISO / I2C SDA P5LP12_5 ------------- SPI MOSI P5LP2_5 ------------- SPI SSEL

P5LP12_7P5LP12_6

P5LP3_6 P5LP3_7

P5LP0_0

P5LP1_2 P5LP3_5P5LP3_4

P5LP3_0

P5LP0_1

P5LP12_1

P5LP12_5P5LP12_0

P5LP2_5

VDD

SPI_MOSI

SPI_SSEL

UART TXUART RX

8x2 RECPT

112

334

556

778

10109

121211

141413

161615

An 8×2 header is provided on the board to pull out several pins of PSoC 5LP to support advanced features such as a low-speed oscilloscope and a low-speed digital logic analyzer (see Figure 5-10). This header also contains the USB-Serial bridge pins that can be used when these pins are not accessible on the Arduino headers becaus e a sh ie ld is connected.

Note: You can use PSoC 5LP for your own custom firmware. See Developing Applications for PSoC

5LP on page 134 for details.

Figure 5-10. Schematics and Board Highlight of PSoC 5LP GPIO Expansion Header

Hardware

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 97

5.1.5 USB Mini-B Connector

NO LOAD

VBUS

P5LP_DM P5LP_DP

J13

USB MINI B

VBUS

GND

S16S2

PTC Resettable Fuse

1 2

0603

0402

R6100K

0603

0402

C3 0.01 uF

TP2 RED

0603

The PSoC 5LP connects to the USB port of a PC through a mini-B connector (see Figure 5-11), which can also be used to power the board. A resettable polyfuse is used to protect the computer's USB ports from shorts and overcurrent. If more than 500 mA is drawn from the USB port, the fuse will automatically break the connection until the short or overload is removed.

Figure 5-11. Schematics and Board Highlight of USB Mini-B Connector

Hardware

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 98

5.1.6 CapSense Circuit

5.1.6.1 CapSense Slider

The kit has a five-segment linear capacitive touch slider, which is connected to the BLE module pins (see Figure 5-12). The CMOD and CTANK capacitors are required for CapSense functionality a nd are provided on the BLE modules (see BLE Module Board on page 106). A 2.2-nF capacitor is present on the CMOD pin, P 4[0], for CapS en se o peration. This kit also supports CapSense designs that enable waterproofing. On this kit, the connection of the shield to the pin or to ground is made by resistors R12 and R13, respectively. By default, R13 is mounted on the board, which connects the shield to ground. Populate R12 and remove R13 when evaluating waterproofing designs, which will connect the shield to the designated pin, P1[6].

Figure 5-12. Schematics and Board Highlight of CapSense Slider and Shield Setting

Hardware

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 99

Hardware

Proximity Header

P0_2 P0_0 P0_1 P0_3

P2_0

VDD

J14

1x1 RECP

MOSI

MISO

SCK

GND

VCC

0603

R19 ZERO

Proximity Header

The baseboard contains a header ( J14) for CapSense proximity wire connection (see Figure 5-13). Figure 5-13. Schematics and Board Highlight of Proximity Header

CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *A 100
