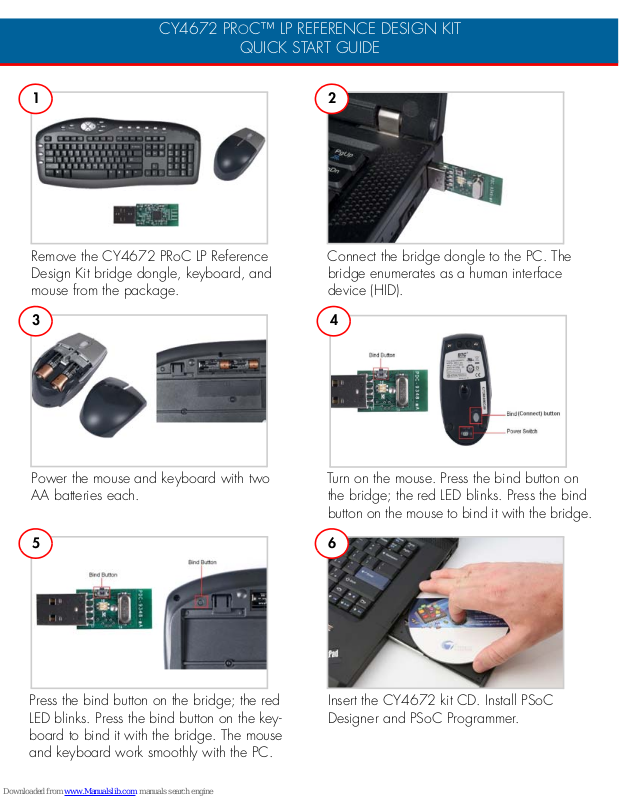

CY4672 PROC™ LP REFERENCE DESIGN KIT
QUICK START GUIDE
Remove the CY4672 PRoC LP Reference
Design Kit bridge dongle, keyboard, and
mouse from the package.
Connect the bridge dongle to the PC. The
bridge enumerates as a human interface
device (HID).
Power the mouse and keyboard with two
AA batteries each.
Turn on the mouse. Press the bind button on
the bridge; the red LED blinks. Press the bind
button on the mouse to bind it with the bridge.
Press the bind button on the bridge; the red
LED blinks. Press the bind button on the keyboard to bind it with the bridge. The mouse
and keyboard work smoothly with the PC.
Insert the CY4672 kit CD. Install PSoC
Designer and PSoC Programmer.
123
4
5
6
Page 2
© 2011-2012 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered
trademarks referenced herein are the properties of their respective owners. DOC#: 001-69296 REV. *A
http://www.cypress.com/go/CY4672
For the latest information about this kit, visit
CY4672 PROC™ LP REFERENCE DESIGN KIT
QUICK START GUIDE
CY4672 PRoC LP Reference Design Kit Details
