1. Introduction
Thank you for your interest in the CY3655-EXT enCoRe™ II Development Kit (DVK). The enhanced
Component Reduction (enCoRe) II development system is based on Cypress’s PSoC
ging encore II and encore II LV, customers are requested to purchase CY3215-DK.CY3215-DK has
an in-circuit emulator (ICE) that works in conjunction with the actual silicon to provide an accurate
and efficient development system. The PSoC Designer™ software consists of a graphical user interface, assembler, C compiler, linker, and debugger for a highly integrated code development environment. A compliant USB User Module along with PS/2 and other peripheral user modules simplifies
the learning curve and speeds development time.
Getting Started on page 7 of this document describes the installation and configuration of the
CY3655-EXT enCoRe™ II DVK. Kit Operation on page 13 describes the kit operation. Hardware on
page 17 describes the hardware operation. Code Examples on page 25 describes the code example
provided along with the kit. The DrawUSB project is programmed on the enCoRe II device as default
project for demonstration purpose. The Appendix on page 29 section provides the sc hematics and
bill of materials (BOM) for the kit.
®
.For debug-
1.1 Kit Contents
The "CY3655-EXT enCoRe II Development Kit" or "CY3655-EXT enCoRe II DVK" provides the
enCoRe II specific items for customers who already have the base in-circuit emulator in the CY3215DK.
The CY3655-EXT contains:
■ Application board
■ One enCoRe II pod
■ One Wireless enCoRe II pod
■ 40, 18, and 16-pin PDIP feet
■ 5-pin ISSP header to USB receptacle programming adapter plug (CY3655-PLG)
■ "USB A to mini B" or "USB A to B"
■ PS/2 male-to-male cable
■ Kit CD/DVD with documentation and Firmware sources
Visit http://www.cypress.com/shop for more information. Inspect the contents of the kit. If any parts
are missing, contact your nearest Cypress sales office for further assistance.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 5
Introduction
1.2 Additional Learning Resources
Visit http://www.cypress.com for additional learning resources in the form of data sheets, technical
reference manual, and application notes.
1.2.1 Reference Documents
■ MiniProg Users Guide and Code Example - http://www.cypress.com/?rID=3412
■ PSoC Designer Training - http://www.cypress.com/?rID=40543
■ enCoRe II Overview - http://www.cypress.com/?id=182
■ CY3655_DVK_Kit Schematic.pdf - http://www.cypress.com/?docID=23090
■ enCoRe II Low-Speed USB Solutions - http://www.cypress.com/?docID=8789
■ MiniProg - http://www.cypress.com/?rID=37459
1.3 Document History
Revision
** 07/14/2011 CSAI Initial version of kit guide
*A 03/28/2012 ELIN Kit guide updated with OOB review comments.
PDF Creation
Date
Origin of
Change
1.4 Documentation Conventions
Table 1-1. Document Conventions for Guides
Convention Usage
Courier New
Italics
[Bracketed, Bold]
File > Open
Bold
Times New Roman
Text in gray boxes Describes cautions or unique functionality of the product.
Displays file locations, user entered text, and source code:
C:\ ...cd\icc\
Displays file names and reference documentation:
Read about the sourcefile.hex file in the PSoC Designer User Guide.
Displays keyboard commands in procedures:
[Enter] or [Ctrl] [C]
Represents menu paths:
File > Open > New Project
Displays commands, menu paths, and icon names in procedures:
Click the File icon and then click Open.
Displays an equation:
2 + 2 = 4
Description of Change
6 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
2. Getting S tarted
This chapter describes the installation and configuration of the CY3655-EXT enCoRe™ II Development Kit.
2.1 Kit Installation
To install the kit software, follow these steps:
1. Insert the kit CD/DVD into the CD/DVD drive of your PC. The CD/DVD is designed to auto-run
and the kit installer startup screen appears.
You can also download the latest installer from http://www.cypress.com/go/CY3655-EXT. Down-
load the ISO file and create an installer CD/DVD or extract the ISO using WinRar and install the
executables.
2. Click Install CY3655-EXT enCoRe II DVK to start the installation, as shown in Figure 2-1.
Figure 2-1. Kit Installer Startup Screen
Note: If auto-run does not execute, double-click cyautorun.exe in the root directory of the CD, as
shown in Figure 2-2.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 7
Getting Started
Figure 2-2. Root Directory of the CD/DVD
3. The InstallShield Wizard screen appears. The default location for setup is shown on the
InstallShield Wizard screen. You can change the location for setup using Change, as shown in
Figure 2-3.
4. Click Next to launch the kit installer.
Figure 2-3. InstallShield Wizard
5. On the Product Installation Overview screen, select the installation type that best suits your
requirement. The drop-down menu has three options - Typical, Complete, and Custom, as
shown in Figure 2-4.
6. Click Next to start the installation.
8 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
Figure 2-4. Installation Type Options
Getting Started
7. When the installation begins, a list of all packages appears on the Installation Page. A green
check mark appears adjacent to every package that is downloaded and installed, as shown in
Figure 2-5.
8. Wait until all the packages are downloaded and installed successfully.
Figure 2-5. Installation Page
9. Click Finish to complete the installation.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 9
Getting Started
Figure 2-6. Installation Completion Page
After software installation, verify your installation and setup.
2.2 PSoC Designer
PSoC Designer is the Integrated Design Environment (IDE) that you can use to customize your
PSoC application.
1. Click Start > All Programs > Cypress > PSoC Designer <version> > PSoC Designer <ver-
sion>.
2. Click File > New Project, to create new project; click File > Open Project/Workspace to work
with the existing project.
10 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A

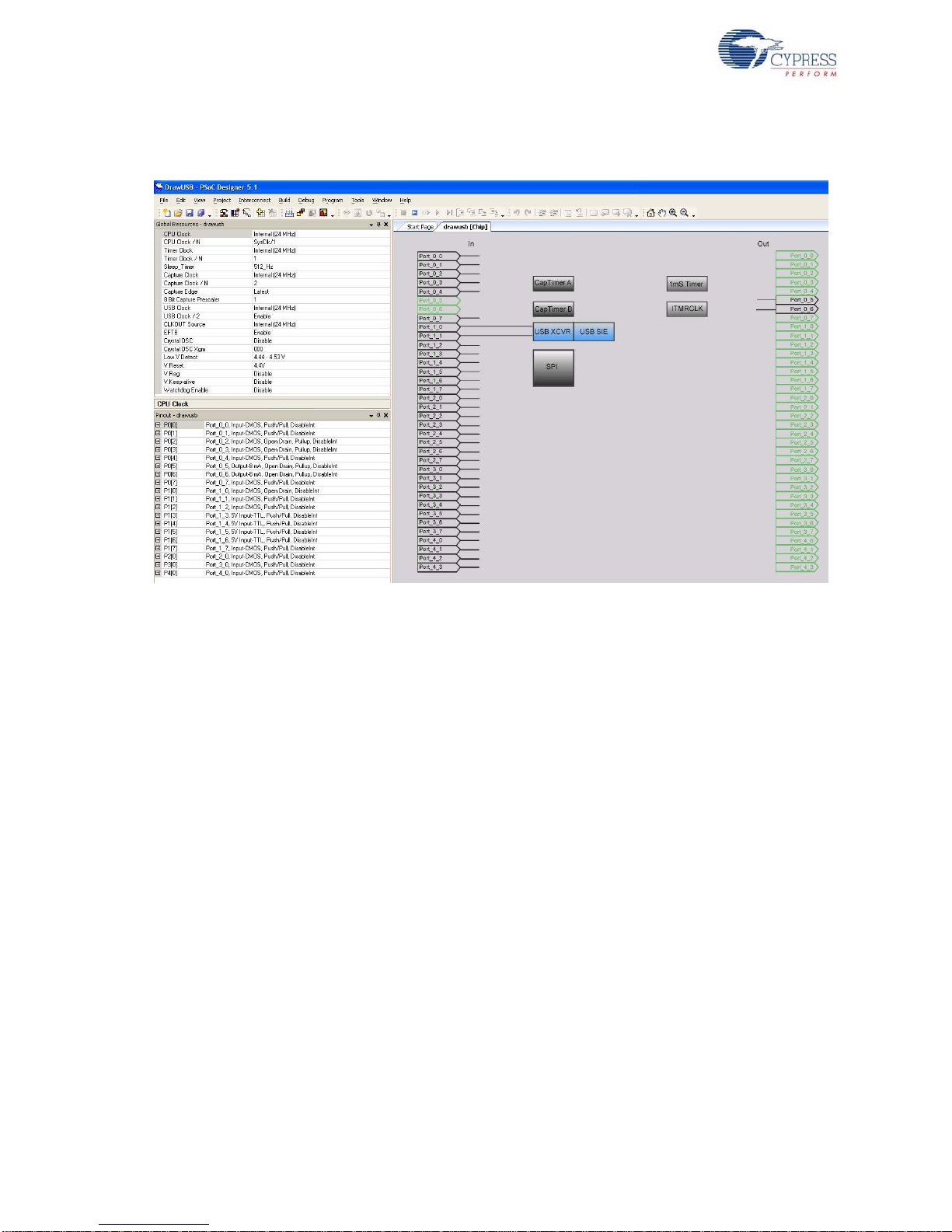

Figure 2-7. PSoC Designer Interconnect View
Getting Started
3. To experiment with the code examples, go to Code Examples on page 25.
Note For more details on PSoC Designer, see PSoC Designer IDE Guide at the following location:
<Install_Directory>\Cypress\PSoC Designer\<version>\Documentation.
2.3 PSoC Programmer
PSoC Programmer offers a simple GUI that connec ts to pro gramming hardwar e to program and configure PSoC devices.
1. Click Start > All Programs > Cypress > PSoC Programmer <version> > PSoC Programmer
<version>.

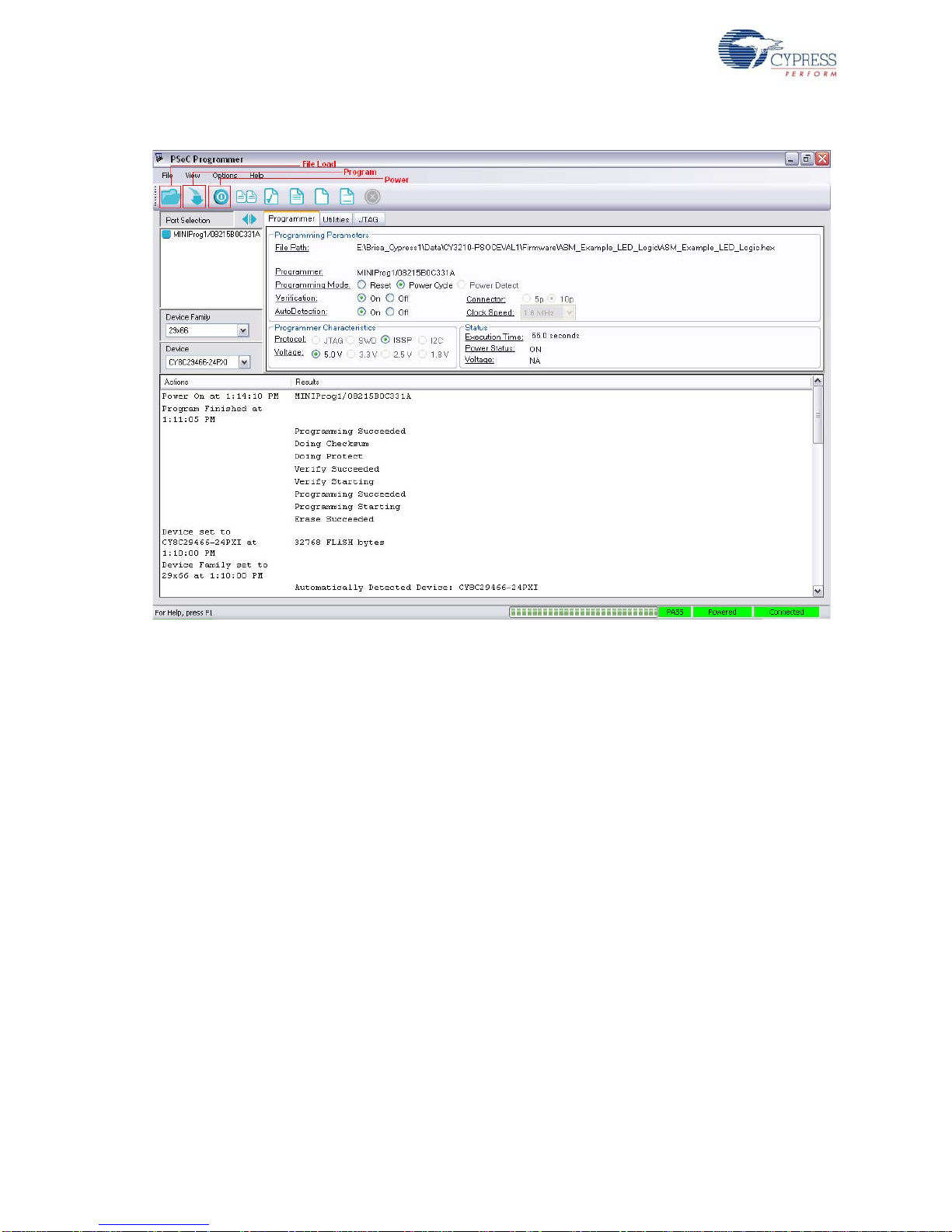

2. Select the MiniProg from Port Selection, as shown in Figure 2-8.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 11
Getting Started
Figure 2-8. PSoC Programmer Window
3. Click on File Load from the menu bar to navigate and select the hex file.
4. Use the Program button to load the hex file onto the chip.
5. When programming is successful, ‘Programming Succeeded’ appears in the Actions pane.
6. Close PSoC Programmer.
Note For more details on PSoC Programmer, see the user guide at the following location:
<Install_Directory>\Cypress\Programmer\<version>\Documents.
2.4 Install Hardware
No hardware installation required for this kit.
12 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
3. Kit Operation
The Cypress CY3655-EXT enCoRe II DVK board is a versatile development platform used to
develop with the Cypress enCoRe II low-speed USB peripheral controller or Wireless enCoRe II
microcontroller.
3.1 Connect enCoRe II Pod to Application Board
Perform the following steps to use the emulator pod:
1. Solder or connect a foot adapter to the target system (application board).
2. Connect the pod to the foot and ensure to orient the pin 1 corner of the pod to the pin 1 corner of
the foot.
Note: There is an index pin position that is off the normal grid of the pin-grid array on both the pod
and the foot. Make sure that the index pin on the pod aligns with the index pin on the foot.
3.2 enCoRe II
Reinventing its leadership position in the low-speed USB microcontroller market, enCoRe II is an 8bit RISC flash-based programmable microcontroller with an integrated low-speed USB interface.
The enCoRe II eliminates the external crystal or resonator, pull up resistors, wakeup circuitry, and
3.3-V regulator to reduce the overall system cost. enCoRe II feat ures a wide selection of I/O (up to
20 GPIOs) and memory (up to 8 Kbytes of flash for user code and 256 bytes of RAM) options targeted at USB and other embedded applications.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 13
Kit Operation

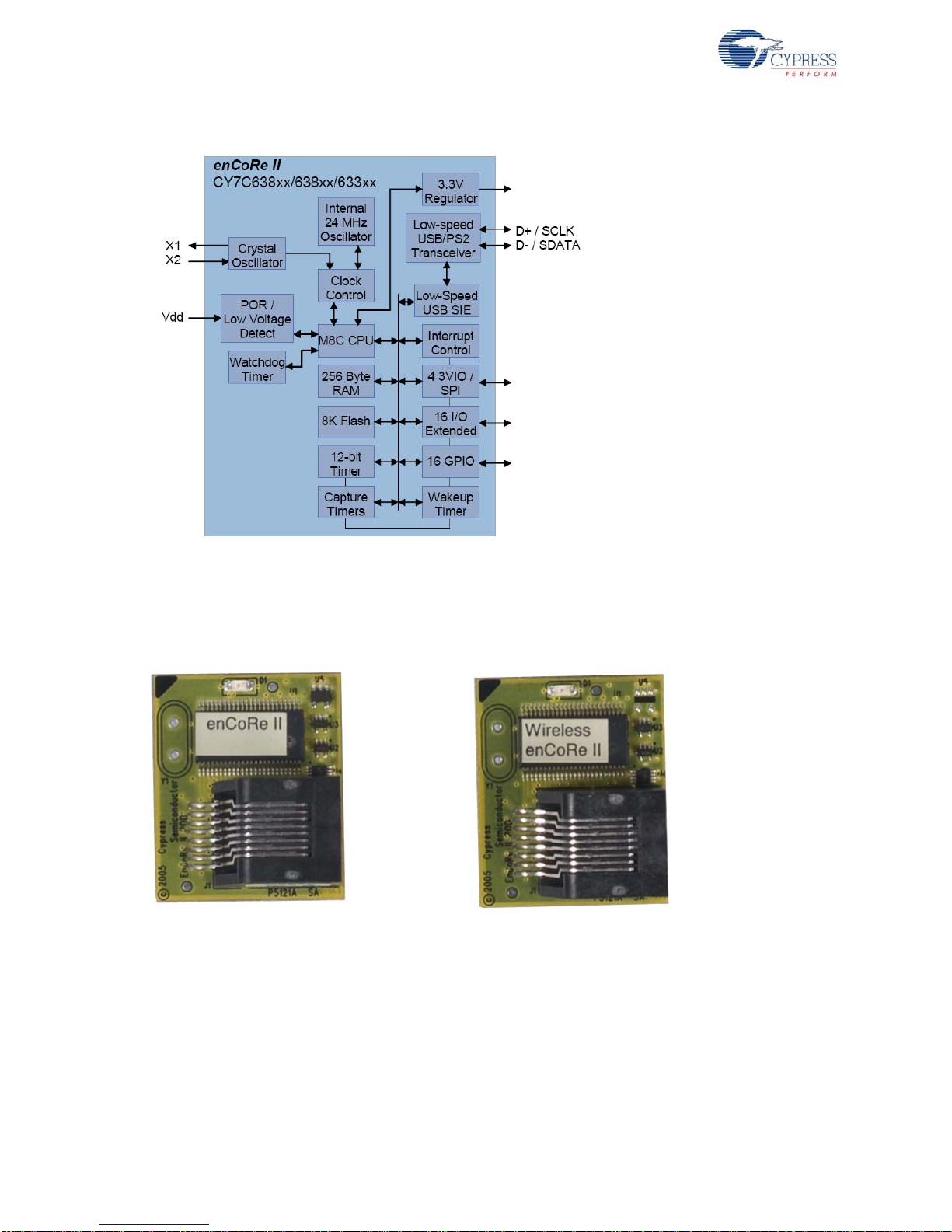

Figure 3-1. enCoRe II Block Diagram
The Cypress enCoRe II emulator pod and the Wireless enCoRe II emulator pod are part of the
debugging and emulation system used for development with the Cypress enCoRe II low-speed USB
controller and Cypress Wireless enCoRe II controller.
Figure 3-2. enCoRe II and Wireless enCoRe II Pods
Pod features include:
■ Support for enCoRe II emulation for most enCoRe II packages with the appropriate foot adapter
and the ICE-Cube emulator.
■ Power supplied by either system or ICE.
■ 4.0 V to 5.25 V operation for enCoRe II pod.
■ 2.7 V to 3.6 V operation for Wireless enCoRe II pod.
14 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
3.3 5-Pin to USB Adapter
The 5-Pin to USB adapter is a small board that allows enCoRe II based devices to be programmed
through their USB cables using the MiniProg. This adapter is not designed to be used with the ICECube and ISSP cable due to cable length restrictions during programming. Please ensure that the
jumper J3 is set for encore II (E2).

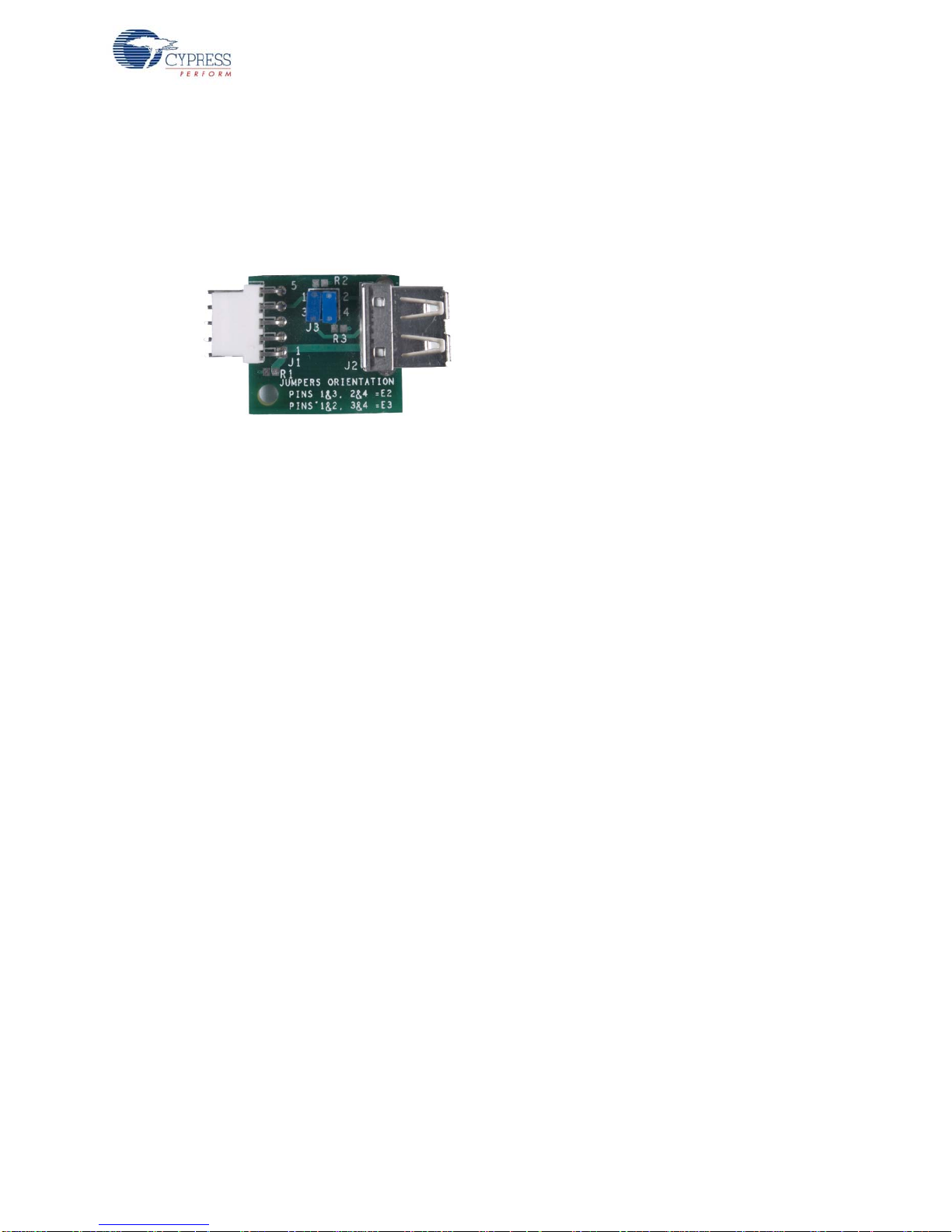

Figure 3-3. 5-Pin to USB Adapter
3.4 Pin DIP Foot
The kit is provided with a 40-pin DIP foot and a 24-pin DIP foot. These foots are used to attach the
enCoRe II and Wireless enCoRe II pods on the applications board.
Kit Operation
3.5 Program enCoRe II and Wireless enCoRe II on Applications Board
3.5.1 Program Using ICE-Cube
enCoRe II devices and Wireless enCoRe II devices can be programmed on the applications board
using the ICE-Cube. Follow these steps:
1. Plug the ICE-Cube into a PC using the USB cable. Power up the ICE-Cube.
2. Connect the 5-pin end of the ISSP cable on the 5-pin header (J2) of the applications board and
the other end to the ICE-Cube through the RJ4 5 ad a pter.
3. Make sure that no external power supply is connected to Vcc or GND on the applications board.
4. Launch PSoC Programmer.
5. Select the ICE-Cube from Port Selection, "USB/xxxxCxxx" where ‘x’ is specific to the USB device
ID of your ICE-Cube.
6. Program the hex file onto the enCoRe II device or Wireless enCoRe II device.
7. On successful programming, "Programming Succeeded" appears on the Actions pane.
3.5.2 Program Using MiniProg
enCoRe II devices and Wireless enCoRe II devices can be programmed on the applications board
using the MiniProg. Follow these steps:
1. Plug the MiniProg programmer into a PC using the USB A to Mini B cable.
2. Place the MiniProg programmer on the 5-pin header (J2) of the applications board.
3. Make sure that no external power supply is connected to Vcc or GND on the applications board.
4. Launch PSoC Programmer.
5. Select the MiniProg from Port Selection.
6. Program the hex file onto the enCoRe II device or Wireless enCoRe II device.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 15
Kit Operation
7. On successful programming, "Programming Succeeded" appears on the Actions pane.
3.6 Debug enCoRe II and Wireless enCoRe II devices
The ICE-Cube is driven by the Debugger subsystem of PSoC Designer. This software interface
enables to debug and view the content of specific memory locations. It also allows to set complex
event points. Event points can start and stop the trace memory on the ICE, as well as break the program execution.
To debug an enCoRe II or Wireless enCoRe II device using an ICE-Cube:
1. Connect the ICE-Cube to the PC through a USB A to Mini B cable and power up the ICE-Cube.
2. Connect the enCoRe II or Wireless enCoRe II through the RJ 45 adapter to the ICE-Cube.
3. Open PSoC Designer.
4. Go to Debug tab from the PSoC Designer menu.
5. Click on Connect / Disconnect or press F9.
6. Right-click on a line in the project from where the debugging process should start; the option
Insert/Delete Breakpoint appears.
7. To view Memory, Registers, or Watch at any particular location go to Debug > Windows.
8. To start the debugging process go to Debug > Go or press F5. For more information on using
ICE-Cube for debugging, see the CY3215-DK User Guide.
16 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
4. Hardware
24 Pin DI P/40 Pi n DIP
Analyzer
headers
ISSP he a der
Prototyping
area
PS/2 Por t
USB
ButtonsLEDs
enCoRell/Wireless
enCoRe ll
Power Supply
USB Comm
PS/2 Port
ISSP
4.1 System Block Diagram
The CY3655-EXT enCoRe II application board has the following sections:
■ DIP socket
■ USB connector
■ PS/2 port
■ ISSP header
■ Prototyping area
■ Analyzer headers
■ Pushbuttons and LEDs

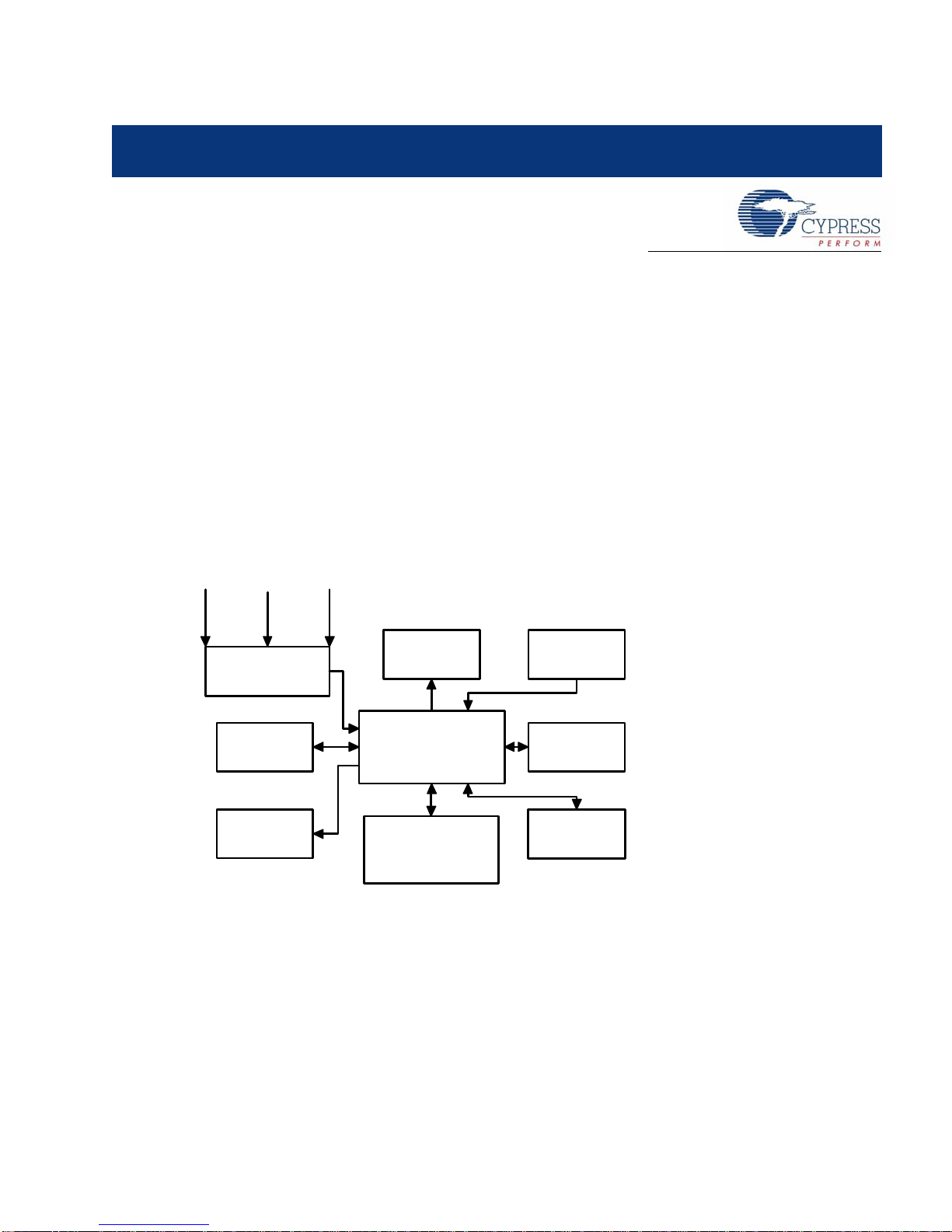

Figure 4-1. System Block Diagram
4.2 Power Supply System
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 17
The power supply system on this board is versatile; it takes input supply from the following sources:
■ Power from USB B port
■ Power from ISSP connector
■ Power from PS/2 port
Hardware

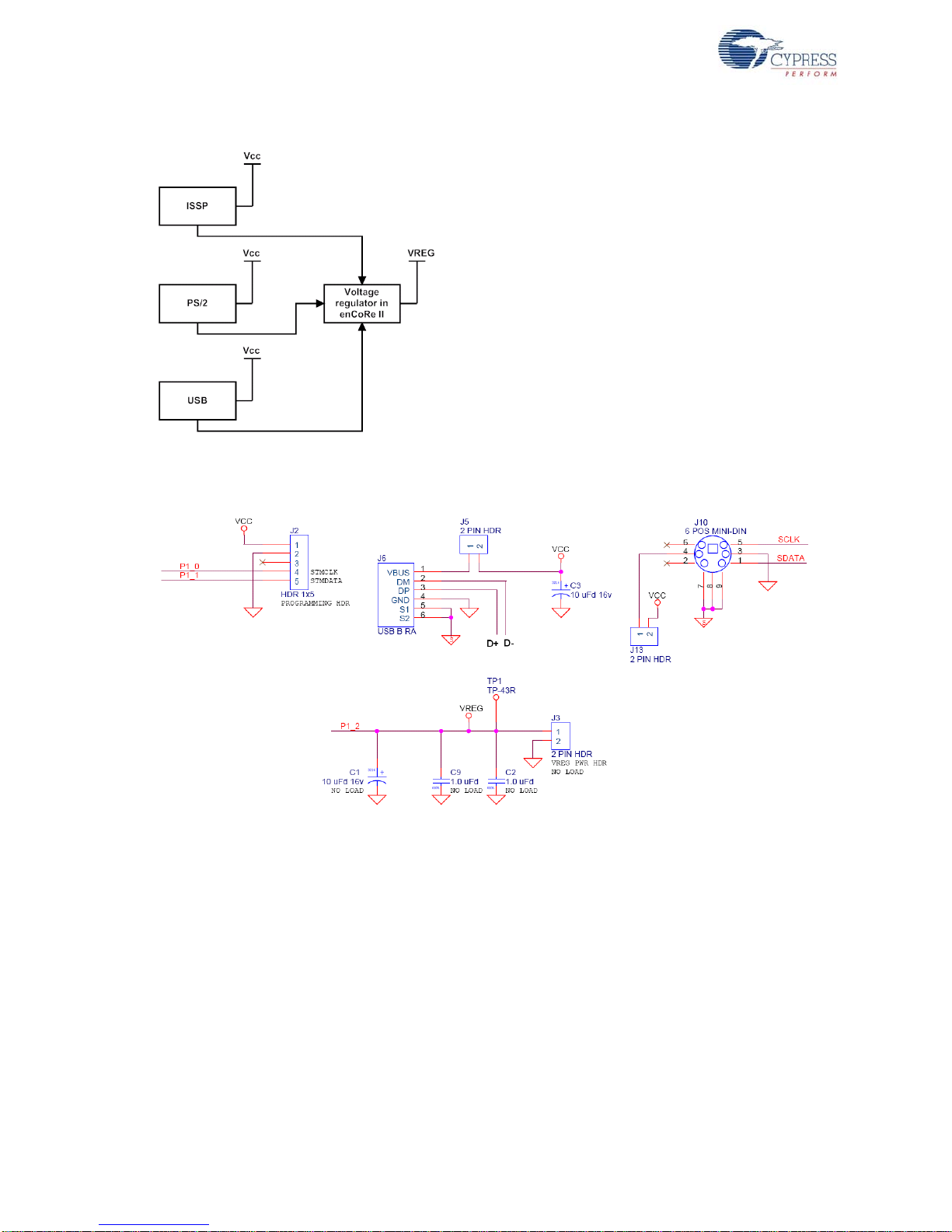

Figure 4-2. Power Supply System Structure
Figure 4-3. Schematic View of Power Supply System Structure
18 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
4.3 Functional Description
The following figure shows the different functional blocks on the CY3655-EXT enCoRe II application
board.

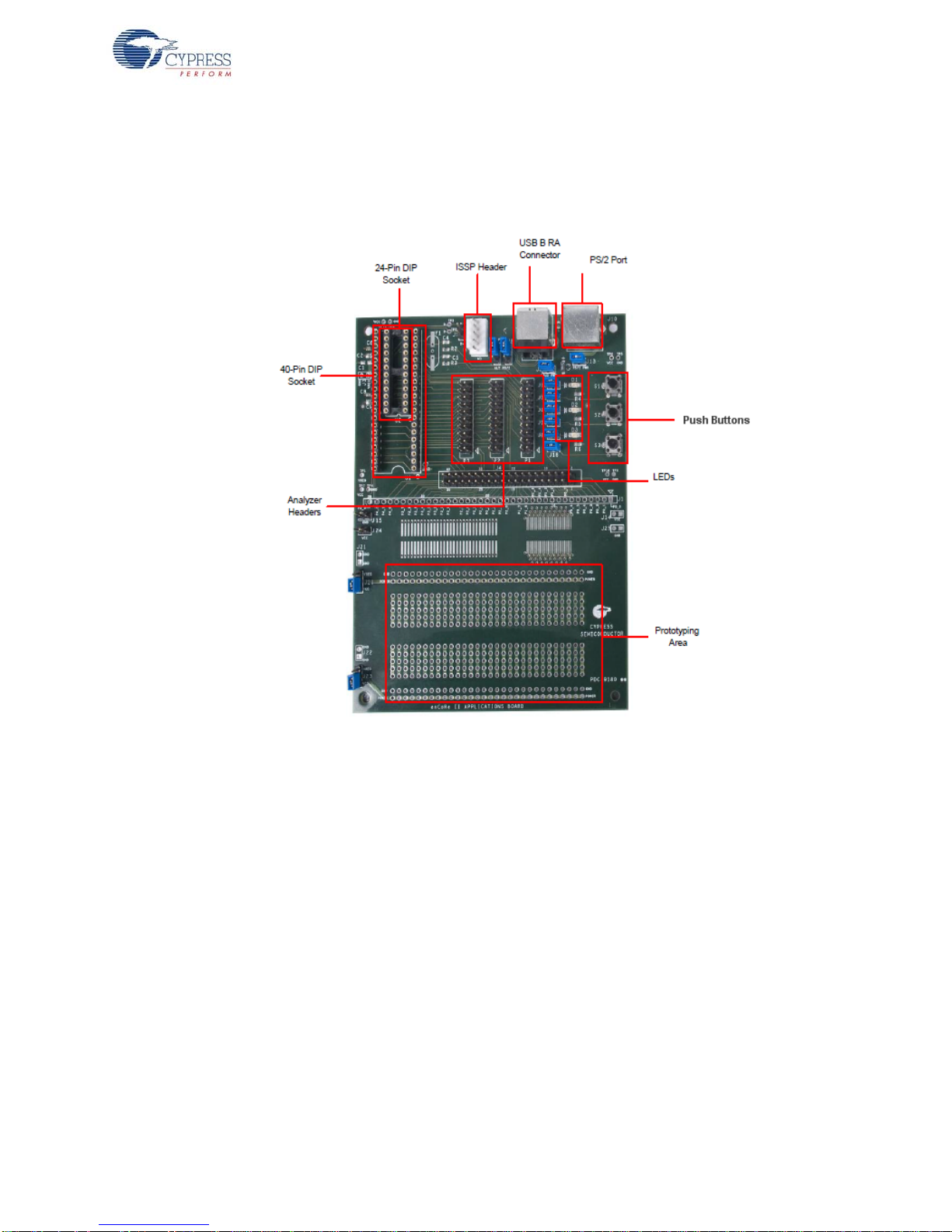

Figure 4-4. enCoRe II Application Board Functional Blocks
Hardware
4.3.1 DIP Sockets
The applications Board has a 24-pin DIP and a 40-pin DIP socket to connect enCoRe II and Wireless enCoRe II devices.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 19
Hardware

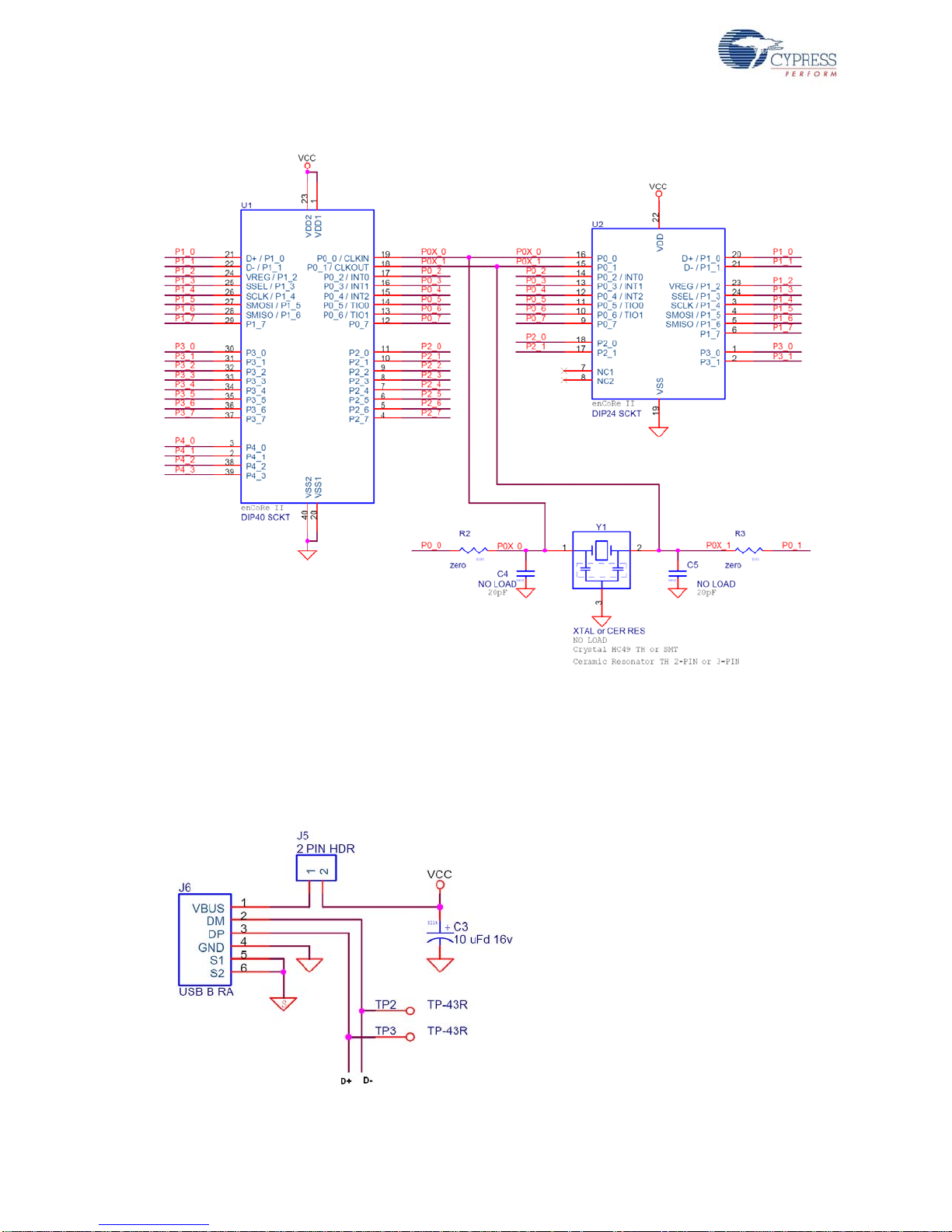

Figure 4-5. Schematic View of 24-Pin and 40-Pin DIP Sockets
4.3.2 USB B Connector
The USB B connector port on the application board is used to communicate with the PC. The power
pin of the connector goes to a jumper (J5) labeled "VBUS PWR" to allow USB power to be disconnected from the system for emulator based development.
Figure 4-6. Schematic View of USB Connector
20 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
4.3.3 PS/2 Port
The PS/2 connector allows a PS/2 connection to a PC using the supplied cable. The power pin of the
connector goes to a jumper (J13) labeled ‘PS/2 PWR’ to allow PS/2 power to be disconnected from
the system for emulator base d development. In addition, the PS/2 signals can be viewed with an
oscilloscope or logic analyzer at header J7. The enCoRe II pins used for PS/2 are normally P1.0 and
P1.1, but the alternate pins P1.5 and P1.6 can be used by moving the jumpers on J8 and J9 to the
side labeled ‘ALT PS/2’.

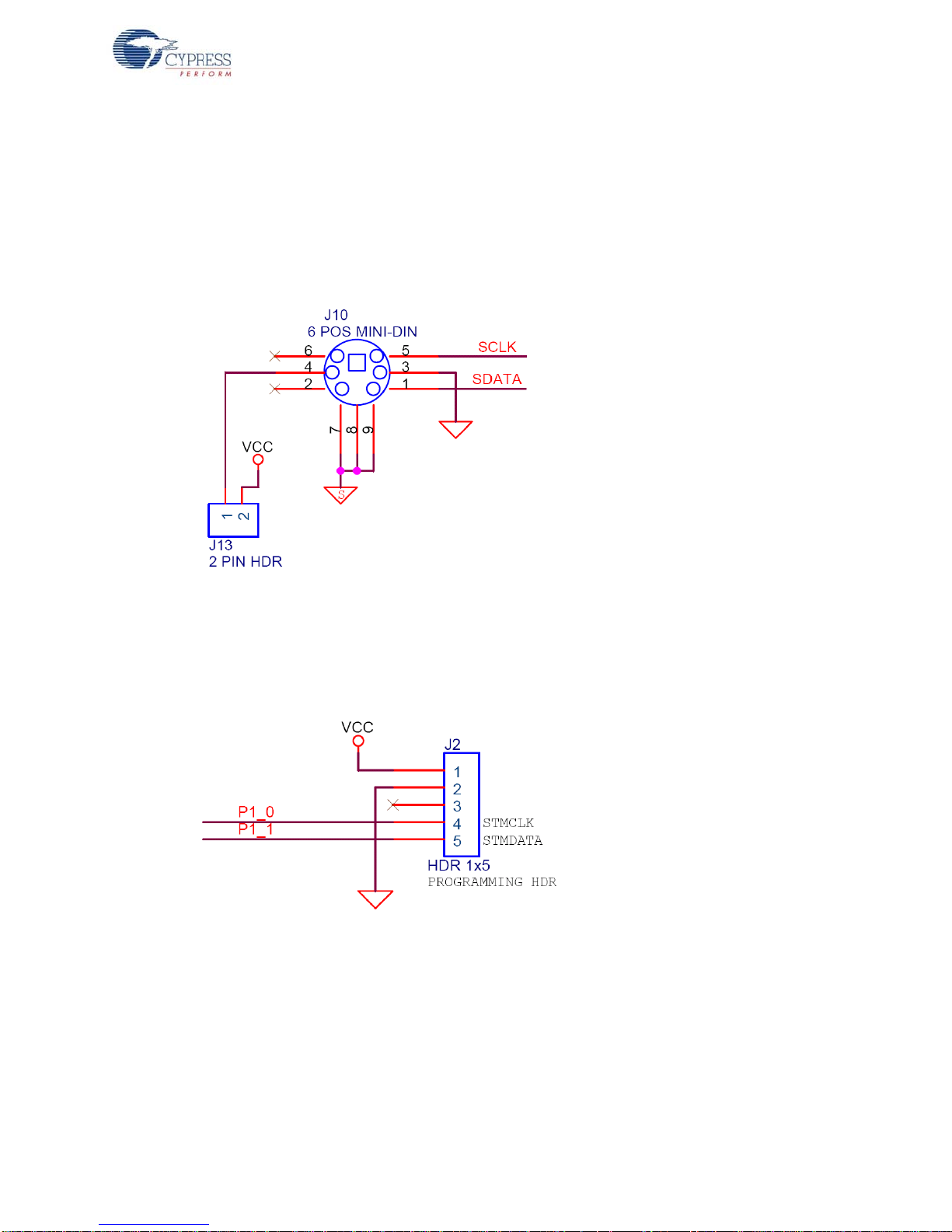

Figure 4-7. Schematic View of PS/2 Port
Hardware
4.3.4 ISSP Header
In-System Serial Programmer (ISSP) is used to program the device. Programming can be done
using the MiniProg programmer device or ICE Cube.
Figure 4-8. Schematic View of ISSP Connector
4.3.5 Prototyping Area
This area on the board is available for customized prototyping. The through-hole area contains 0.1"
spaced holes appropriate for DIP devices. On either side of the through-hole area, there is a ground
row and a power row. Each power row can be individually configured to use either the board's VCC
or the VREG output from the enCoRe II. There is also a surface mount prototype area that accepts
either 0.050" pitch parts or 0.025" pitch parts. Holes on the outside of the surface mount pads allow
signals to easily be soldered from elsewhere on the board. A single row of signals above the prototype area allows enCoRe II signals to be wired to the prototyping area.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 21
Hardware
Figure 4-9. Schematic View of Prototyping Area
4.3.6 Analyzer Headers
P1, P2, and P3 are 20-pin headers that are compatible with Agilent logic analyzer terminator adapters. This feature allows for a quick and simple debugging connection.
22 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A

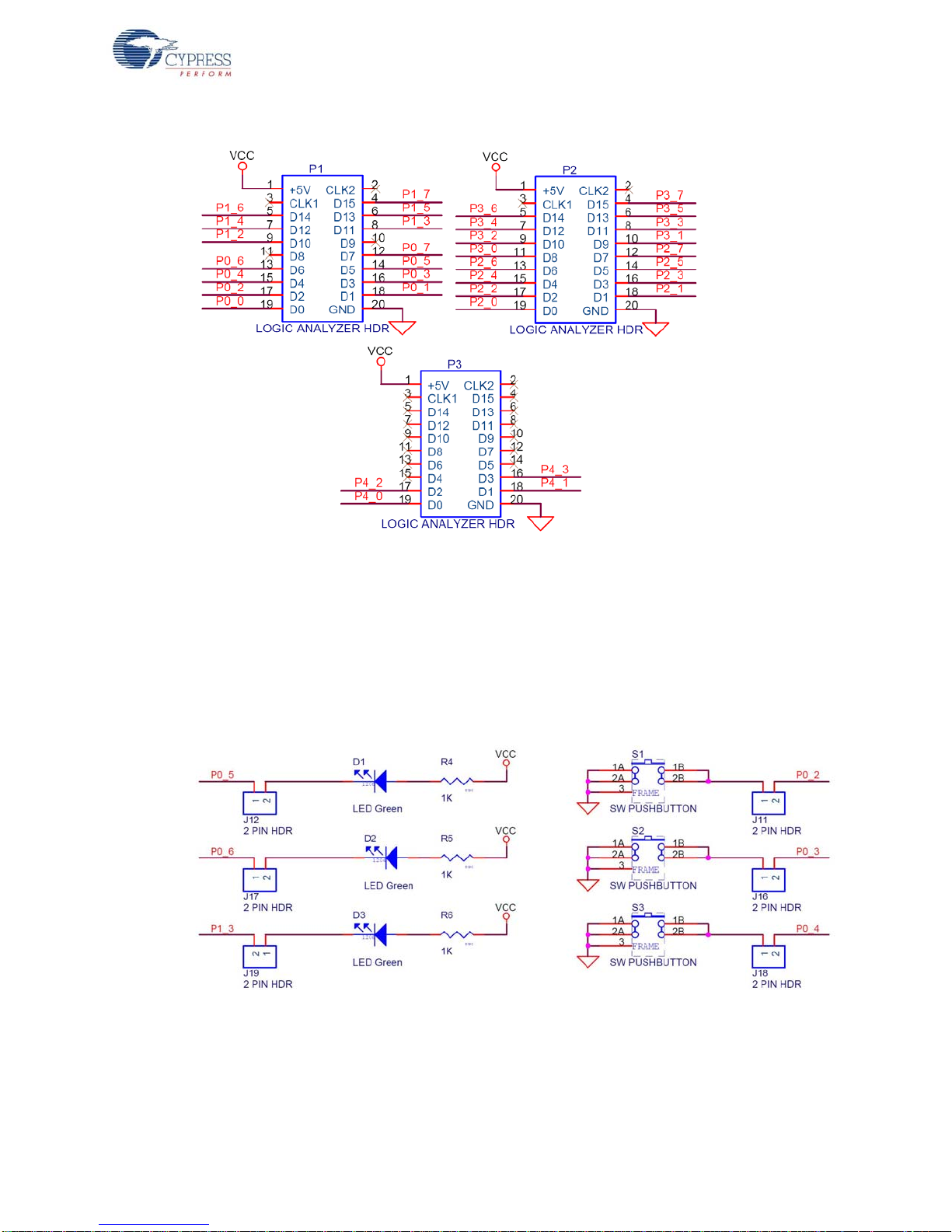

Figure 4-10. Schematic View of Analyzer Headers
Hardware
4.3.7 Pushbuttons and LEDs
Three pushbuttons and three LEDs are available on the boar d fo r gener al purpose use. The jumpe rs
J12, J17, J19, J11, J16, and J18 can be used to isolate the LED D1, D2, D3 or pushbutton S1, S2,
S3 respectively from the enCoRe II, if desired. Note that the LEDs use the same power as the
enCoRe II. Driving the enCoRe pin low illuminates the LEDs. To detect pushbutton presses, make
the appropriate enCoRe II pin an input with the pull-up enabled. Note that the pushbutton inputs are
connected to enCoRe II pins that can be configured as external interrupt pins.
Figure 4-11. Schematic View of Pushbuttons and LEDs
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 23
Hardware
24 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
5. Code Examples
The code examples are available on the kit CD or at the following location:
<Installed_directory>\Cypress\CY3655-EXT enCoRe II DVK\<ver>\Firmware\
5.1 Project1- DrawUSB Example
5.1.1 Project Description
DrawUSB example demonstrates the basic functionality of a USB HID mouse. The example ap plication contains a USB HID mouse descriptor that works on any USB host with HID driver. This example application enumerates as a three button USB mouse (HID class) and moves the mouse cursor
in the shape of the letters U, S, and B. It demonstrates the use of the USB User Module API.
Note: Turn off Mouse Accelerator using the Windows Control Panel.
The following user module is used for this project:
USB: The USB user module provides a low level driver for the control endpoint that decodes and
dispatches requests from the USB host. The user module supports the HID class. USB descriptors
can be configured with the USB Setup Wizard.

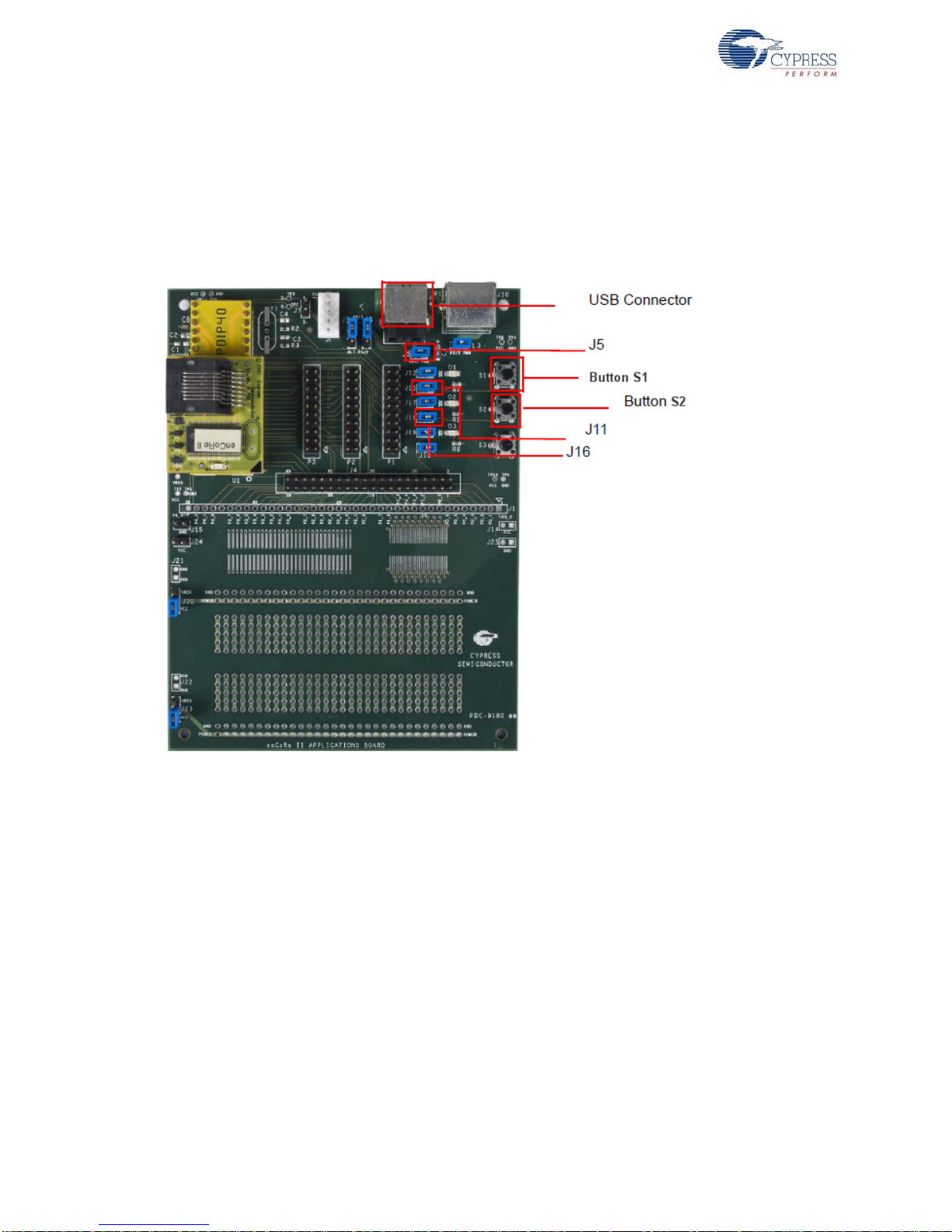

Hardware Connections:
1. Switch S1 is connected to P0.2 (Down = Start Movement; Up = Stop Movement)
2. Switch S2 is connected to P0.3 (Down = Left Button Down; Up = Left Button Up)
3. LED D1 is connected to P0.5 (Tracks S1: On = Down; Off = Up)
4. LED D2 is connected to P0.6 (Tracks S2: On = Down; Off = Up)
5. Place a jumper on J11. Connect button S1 to P0.2.
6. Place a jumper on J16. Connect button S2 to P0.3.
7. Place a jumper on J5. CY3655-EXT enCoRe II application board is powered by VBUS.
8. Go to Control Panel > Mouse > Pointer Options; uncheck the Enhance Pointer Precision
option.
9. Connect the B side of the USB A/B cable to the CY3655 DVK board and the A side of the
USB A/B cable to the PC.
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 25
Code Examples
5.1.2 Device Configuration
Figure 5-1. Device Configuration for Project1
26 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A

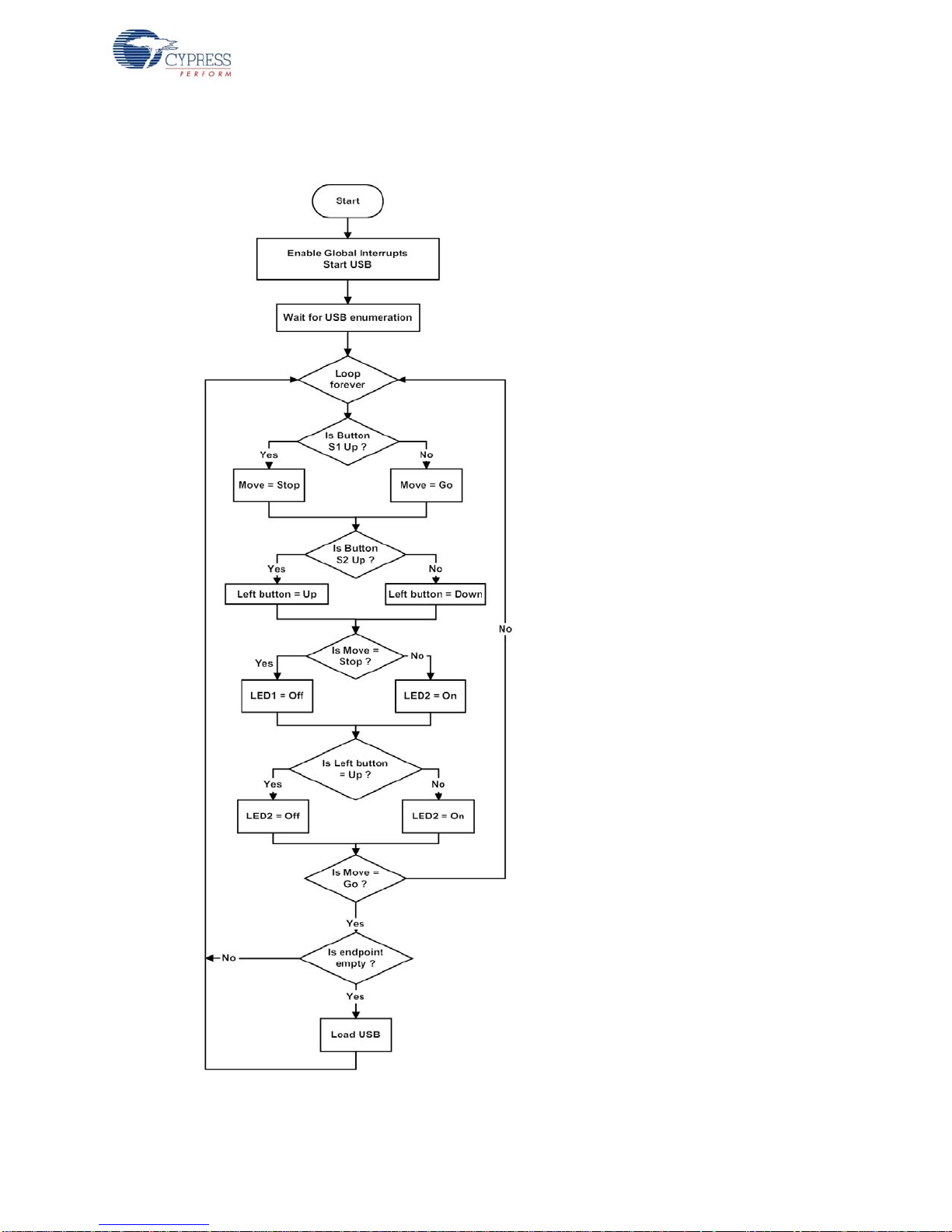

5.1.3 Flow Chart
Firmware Architecture
Code Examples
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 27
Code Examples
5.1.4 V erify Output
1. The DrawUSB example enumerates on the PC as a USB mouse HID device.
2. On the PC, open a simple drawing application such as Paint.
3. Press the S1 button on the DVK board to toggle the drawing in the drawing application.
4. Press the S2 button on the DVK board to toggle the left button of the mouse.
Figure 5-2. Verify Output
28 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
A. Appendix

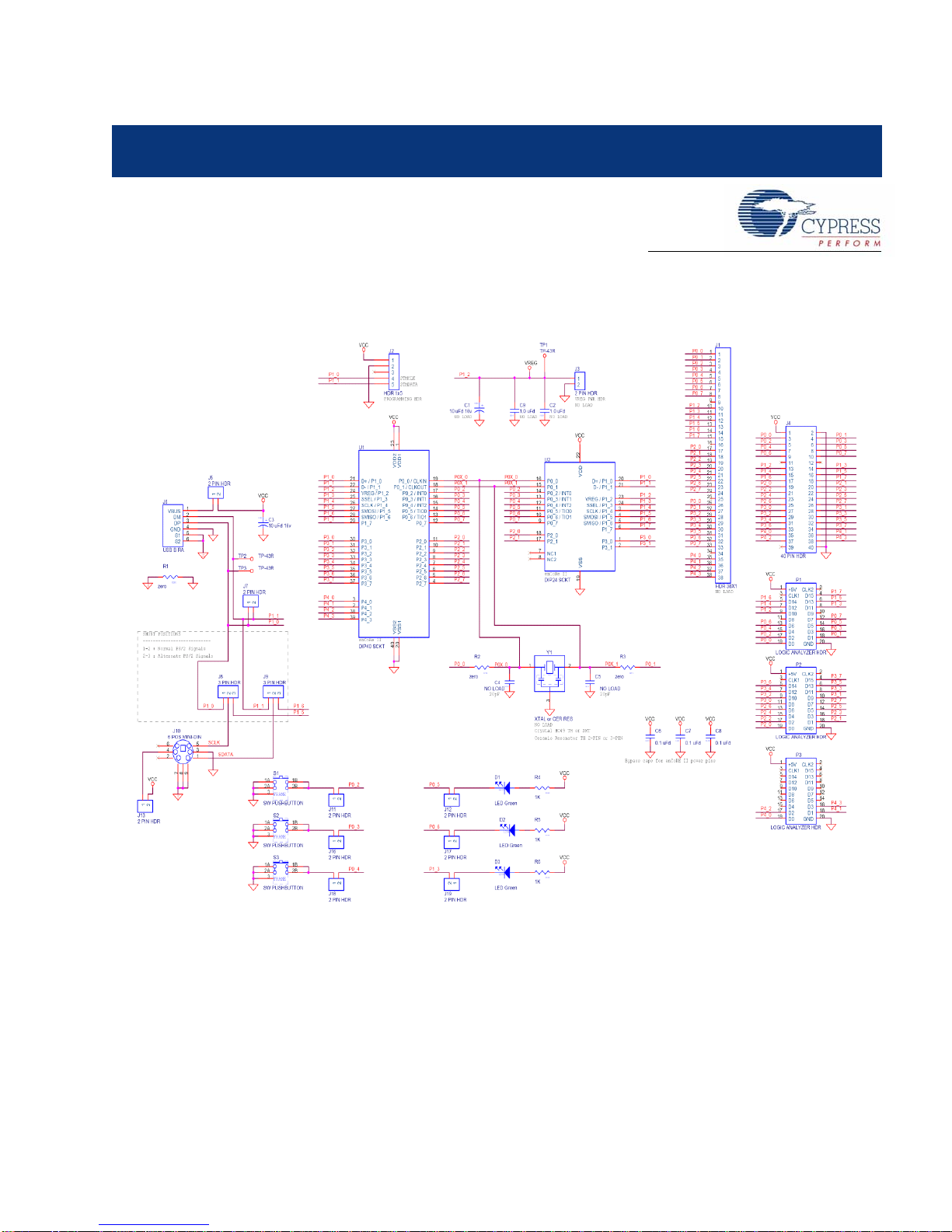

A.1 Schematic
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 29

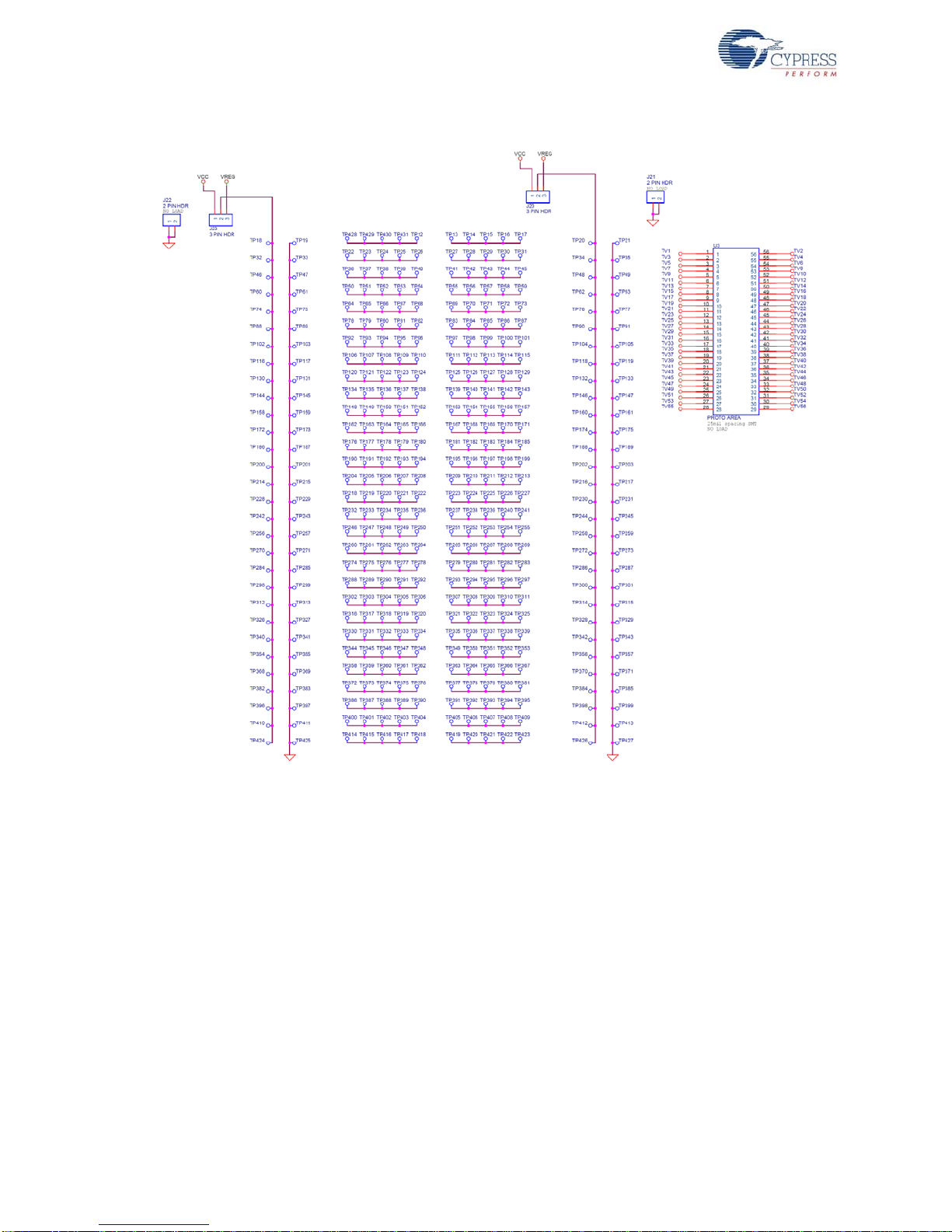

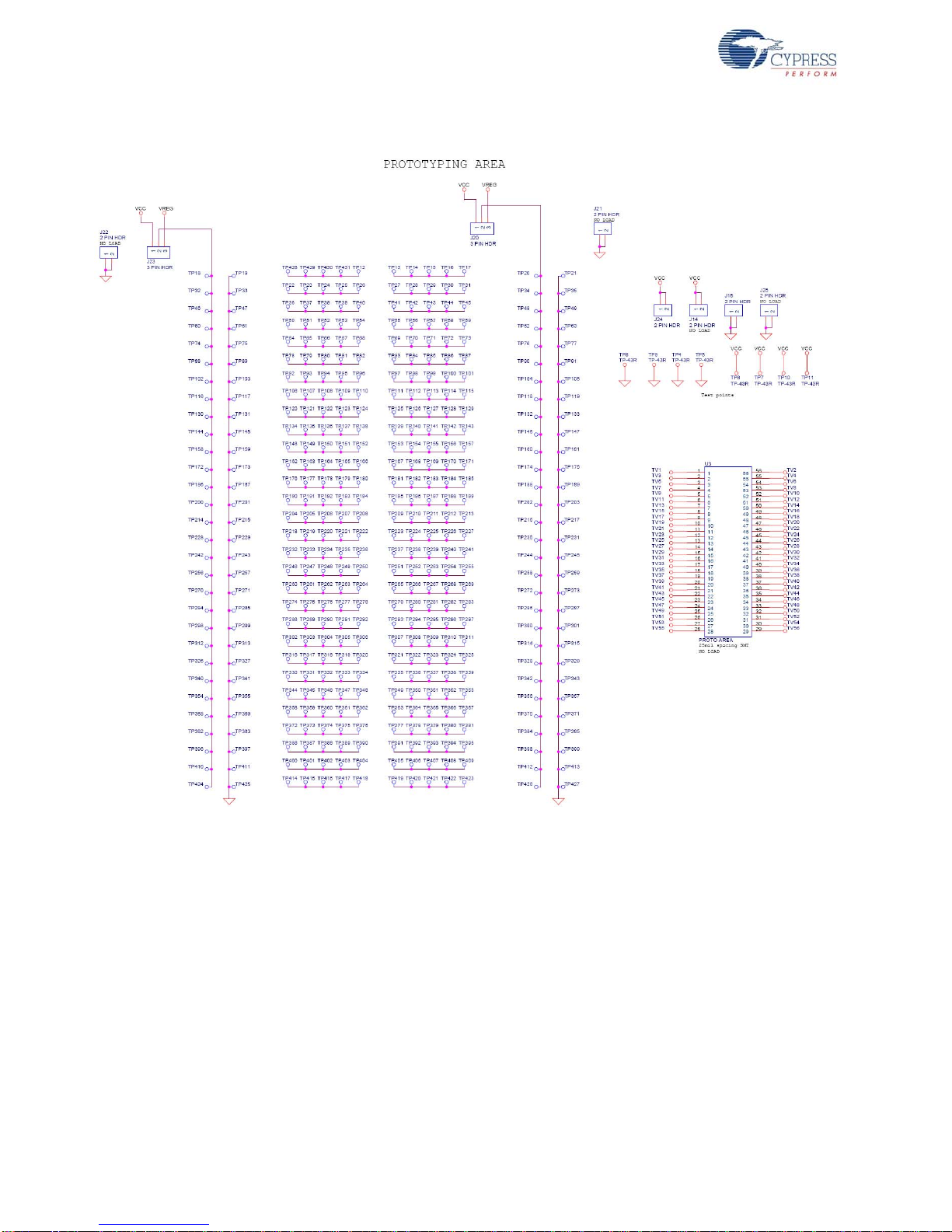

Figure A-1. Prototyping Area
30 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
A.2 Board Layout

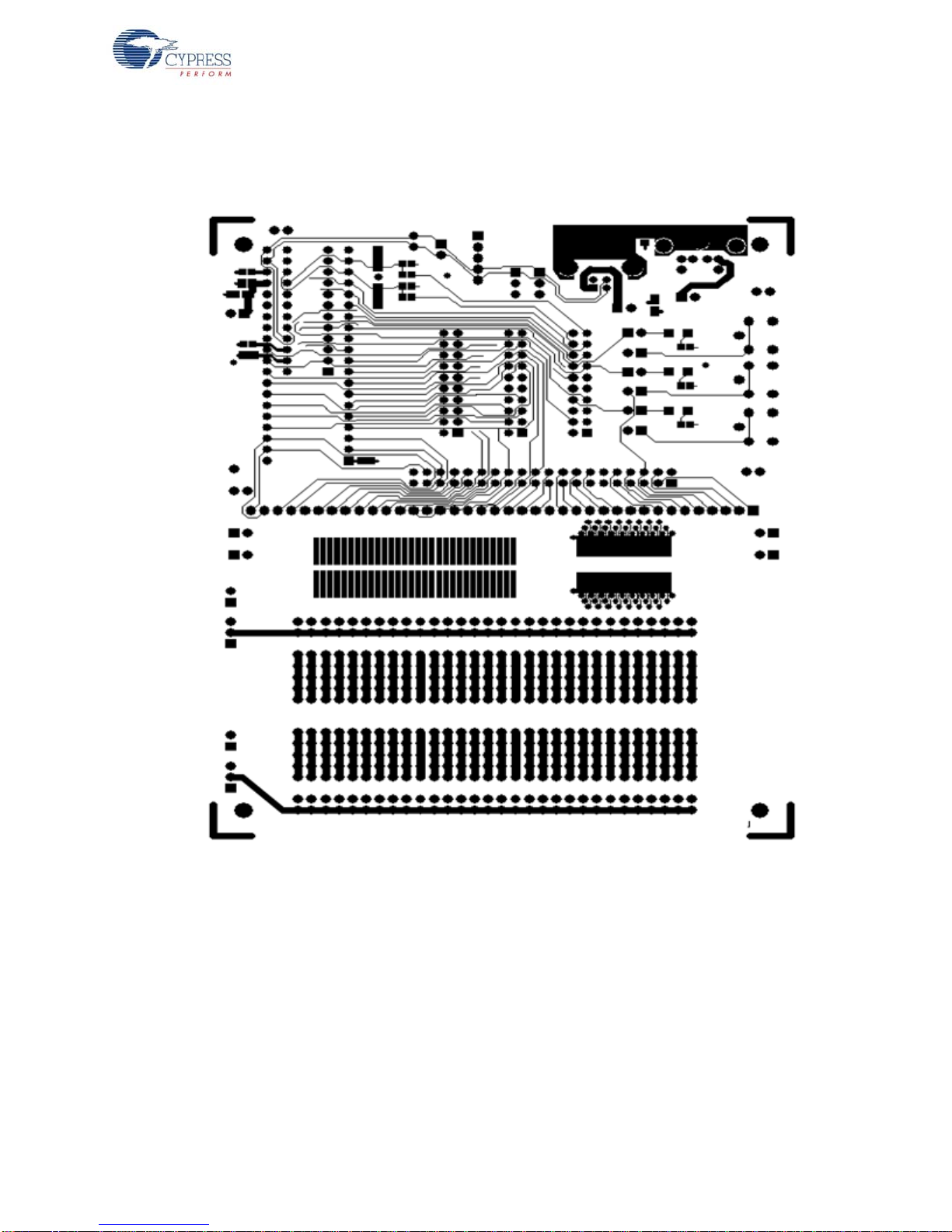

A.2.1 PDC-9180 Top
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 31
A.2.2 PDC-9180 Bottom
32 CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A
A.3 Bill of Materials
Item Qty Reference Description Manufacturer Manufacturer Part No.
1 1 C3 CAP 10UF 16V TANTALUM 10% 3216 AVX TAJA106K016R
2 3 C6,C7,C8 CAP .1UF 50V CERAMIC Y5V 0603 Panasonic - ECG ECJ-1VF1H104Z
3 3 D1,D2,D3 LED GREEN CLEAR 1206 SMD
41J2
511
6 1 J4 CONN HEADER VERT 40 POS .1" AMP Division of TYCO 2-103186-0
7 1 J6 CONN USB RECEPT TYPE B PCB AMP/TYCO 787780-1
8 4 J8,J9,J20,J23
91J10
10 3 P1,P2,P3
11 3 R1,R2,R3 RES ZERO OHM 1/16W 5% 0603 SMD Panasonic - ECG ERJ-3GEY0R00V
12 3 R4,R5,R6 RES 1.0K OHM 1/16W 5% 0603 SMD Panasonic - ECG ERJ-3GEYJ102V
13 3 S1,S2,S3 LT SWITCH 6MM 100GF H=7MM TH Panasonic - ECG EVQ-PBC07K
14 2 U1 Socket strip, 20 position Mill-Max 310-93-120-41-001
15 1 U2 DIP24 Socket 300 mil Mill-Max 111-93-324-41-001000
16 1 PCB Cypress Semiconductor PCD-9180 Rev **
17 1 PCB label, Year, Work-week, SN
18 8
19 4 J8,J9,J20,J23 Shunts, 2-pin header jumper 3M
20 1 Reference
21 PCB Foot pads, white square, .50”W x .23”H 3M SJ5518
22 1 PCB label, PCA revision 121-18000 *A
23 2 C5,C4 CAP NO LOAD 0603 NA NA
24 1 C1 CAP NO LOAD NA NA
25 2 C2, C9 CAP NO LOAD NA NA
26 1 J1 HDR 38X1 Footprint Only NA NA
27 5 J3,J14,J21,J22,J25 HDR 2 POS NA NA
28 1 U3 PROTO AREA 56-pin 25mil pitch NA NA
29 1 Y1 XTAL HC49SMT or CER RES 3-pin NA NA
J5,J7,J11,J12,J13,J15,J16,
J17,J18,J19,J24
J5,J11,J12,J13,J16,J17,J18
, J19
CONN HEADER 5POS 0.1 VERT
KEYED
HEADER 2 POS .100CL AMP Division of TYCO 103185-2
HEADER 3POS FRIC STRGHT MTA
100
CONN MINI-DIN 6POS FEMALE
SHIELD
CONN HEADER/RECEPT 20POS
DUAL ROW VERT
Shunts, 2-pin header jumper 3M
Chicago Miniature Lamp,
Inc
Molex 22-23-2051
AMP Division of TYCO 103185-3
CUI Stack Inc. MD-60SGK
AMP/TYCO 1-103186-0
Schematic, PCA 121-18000
rev *A for PDC- 9180 Rev **
CMD15-21VGC/TR8
929955-06. Place on 2pin header
929955-06. Place on pins
1-2 of 3-pin header
As per schematic file
CY3655-EXT enCoRe II Development Kit Guide, Doc. # 001-70268 Rev.*A 33
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Cypress Semiconductor:
CY3655-EXT
Loading...
