PRELIMINARY

CYBT-483039-02

EZ-BT™ XR WICED® Module

General Description

Notes

1. Connection range tested module-to-module in full line-of-sight environment, free of obstacles or interference sources with o

2. Specified as EZ-BT XT module to module range. Mobile phone connection will decrease based on the PA/LNA performance of the mobile phone used.

The CYBT-483039-02 is a dual-mode Bluetooth BR/EDR and Low Energy (BLE) wireless module solution. The CYBT-483039-02 includes onboard crystal oscillators, passive components, PA/LNA, and the Cypress CYW20719 silicon device.

The CYBT-483039-02 supports a number of peripheral functions (ADC, PWM), as well as multiple serial communication protocols (UART, SPI, I2C, I2S/PCM). The CYBT-483039-02 includes a royalty-free stack compatible with Bluetooth 5.0 in a 12.75 ×

18.59 × 1.80 mm module form-factor. The CYBT-483039-02 includes an integrated chip antenna,

on-board external power/low noise amplifier, qulaified by Bluetooth SIG, and includes regulatory certification approval for FCC, ISED, MIC, and CE.

Module Description

Module size: 12.75 mm × 18.59 mm × 1.80 mm

Complies with Bluetooth Core Specification version 5.0

supporting BR, EDR 2/3 Mbps, eSCO, BLE, and LE 2 Mbps .

QDID: TBD

Declaration ID: TBD

True Extended Range:

Up to 1 kilometer bidirectional communication

Certified to FCC, ISED, MIC, and CE standards

Up to 15 GPIOs

1024-KB flash memory, 512-KB SRAM memory

Industrial temperature range: –30 °C to +85 °C

Integrated ARM Cortex-M4 microprocessor core with floating point unit (FPU)

RF Characteristics

Maximum TX output power(EIRP): +20.0 dBm

Conducted output power:

+17.6dBm for BT3.0, +16.8dBm for BT4.0

Antenna peak gain: 2.3 dBi

BLE RX Receive Sensitivity: –95.0 dbm

Received signal strength indicator (RSSI) with 1-dB resolution

Power Consumption

TX current consumption

BLE silicon: 5.6 mA (MCU + radio only, 0 dbm)

RFX2401C: 100 mA peak (PA/LNA only, +17.5 dBm Pout)

RFX2401C: 27 mA peak (PA/LNA only, +7.5 dBm Pout)

[1, 2]

RX current consumption

Bluetooth silicon: 5.9 mA (MCU + radio only)

RFX2401C: 8.0 mA (PA/LNA only)

Cypress CYW20719 silicon low power mode support

PDS: 61 μA with 512 KB SRAM retention SDS: 1.6 uA

HIDOFF (External Interrupt): 400 nA

Functional Capabilities

1x ADC with (12-bit ENoB for DC measurement and 13-bit ENoB for Audio measurement) with 10 channels.

1x HCI UART for programming and HCI

1x peripheral UART (PUART)

2x SPI (master or slave) blocks (SPI, Quad SPI, MIPI DBI-C)

1x I2C master/slave and 1x I2C master only

I2S/PCM audio interfaces

Up to 6 16-bit PWMs

Watchdog Timer

Bluetooth Basic Rate (BR) and Enhanced Data Rate (EDR)

Support

BLE protocol stack supporting generic access profile (GAP)

Central, Peripheral, or Broadcaster roles

Hardware Security Engine

Benefits

CYBT-483039-02 is fully integrated and certified solution that provides all necessary components required to operate Bluetooth communication standards.

Proven hardware design ready to use

Ultra-flexible supermux I/O designs allows maximum flexibility for GPIO function assignment

Large non-volatile memory for complex application devel-

opment

Over-the-air update capable for development or field updates

Bluetooth SIG qualified with QDID and Declaration ID

WICED™ Studio provides an easy-to-use integrated design

environment (IDE) to configure, develop, program, and test your Bluetooth application

Cypress Semiconductor Corporation • 198 Champion Court • San Jose,CA 95134-1709 • 408-943-2600 Document Number: 002-23993 Rev. ** Revised May 22, 2018

utput power of +18 dBm POUT.

PRELIMINARY

CYBT-483039-02

More Information

Cypress provides a wealth of data at www.cypress.com to help you to select the right module for your design, and to help you to quickly and effectively integrate the module into your design.

References

n Overview: EZ-BLE/EZ-BT Module Portfolio, Module Roadmap

n Development Kits:

p CYBT-483039-EVAL, CYBT-483039-02 Evaluation Board p CYW920719Q40EVB-01, Evaluation Kit for CYW20719

silicon device

n Test and Debug Tools:

p CYSmart, Bluetooth p CYSmart Mobile, Bluetooth

LE Test and Debug Tool (Windows)

LE Test and Debug Tool

n Knowledge Base Article

p KBA97095 - EZ-BLE™ Module Placement p KBA213976 - FAQ for BLE and Regulatory Certifications with

EZ-BLE modules

p KBA210802 - Queries on BLE Qualification and Declaration

Processes

p KBA218122 - 3D Model Files for EZ-BLE/EZ-BT Modules p KBA223428- Programming an EZ-BT WICED Module

(Android/iOS Mobile App)

Development Environments

Wireless Connectivity for Embedded Devices (WICED) Studio Software Development Kit (SDK)

Cypress' WICED® (Wireless Connectivity for Embedded Devices) is a full-featured platform with proven Software Development Kits (SDKs) and turnkey hardware solutions from partners to readily enable Wi-Fi and Bluetooth® connectivity in system design.

WICED Studio is the only SDK for the Internet of Things (ioT) that combines Wi-Fi and Bluetooth into a single integrated development environment. In addition to providing WICED APIs and an application framework designed to abstract complexity, WICED Studio also leverages many common industry standards.

Technical Support

n Cypress Community: Whether you’re a customer, partner or a developer interested in the latest Cypress innovations, the Cypress

Developer Community offers you a place to learn, share and engage with both Cypress experts and other embedded engineers around the world.

n Frequently Asked Questions (FAQs): Learn more about our Bluetooth ECO System.

n Visit our support page and create a technical support case or contact a local sales representatives. If you are in the United States,

you can talk to our technical support team by calling our toll-free number: +1-800-541-4736. Select option 2 at the prompt.

Document Number: 002-23993 Rev. ** Page 2 of 49

PRELIMINARY

CYBT-483039-02

Contents

Overview............................................................................ 4

Functional Block Diagram ........................................... 4

Module Description...................................................... 4

Pad Connection Interface ................................................ 6

Recommended Host PCB Layout ................................... 8

Module Connections ...................................................... 10

Connections and Optional External Components ..... 12

Power Connections (VDD and VDDPA) .................... 12

External Reset (XRES).............................................. 13

HCI UART Connections ............................................ 13

External Component Recommendation .................... 13

Critical Components List ........................................... 15

Antenna Design......................................................... 15

Power Amplifier (PA) and Low Noise Amplifier (LNA) 15

Bluetooth Baseband Core ............................................. 16

BQB and Regulatory Testing Support....................... 16

Power Management Unit................................................ 17

Integrated Radio Transceiver........................................ 18

Transmitter Path........................................................ 18

Receiver Path............................................................ 18

Local Oscillator.......................................................... 18

Microcontroller Unit ....................................................... 19

External Reset........................................................... 19

Peripheral and Communication Interfaces .................. 20

I2C............................................................................. 20

HCI UART Interface .................................................. 20

Peripheral UART Interface ........................................ 20

Serial Peripheral Interface......................................... 20

32 kHz Crystal Oscillator........................................... 20

ADC Port ................................................................... 22

GPIO Ports................................................................ 22

PWM.......................................................................... 23

PDM Microphone....................................................... 24

I2S Interface.............................................................. 24

PCM Interface ........................................................... 24

Security Engine ......................................................... 25

Power Modes .................................................................. 26

Firmware.......................................................................... 26

Electrical Characteristics............................................... 27

Core Buck Regulator................................................. 27

Digital LDO................................................................ 29

Digital I/O Characteristics.......................................... 29

ADC Electrical Characteristics .................................. 29

Bluetooth Silicon Current Consumption .................... 30

Chipset RF Specifications ............................................. 31

Timing and AC Characteristics ..................................... 34

UART Timing............................................................. 34

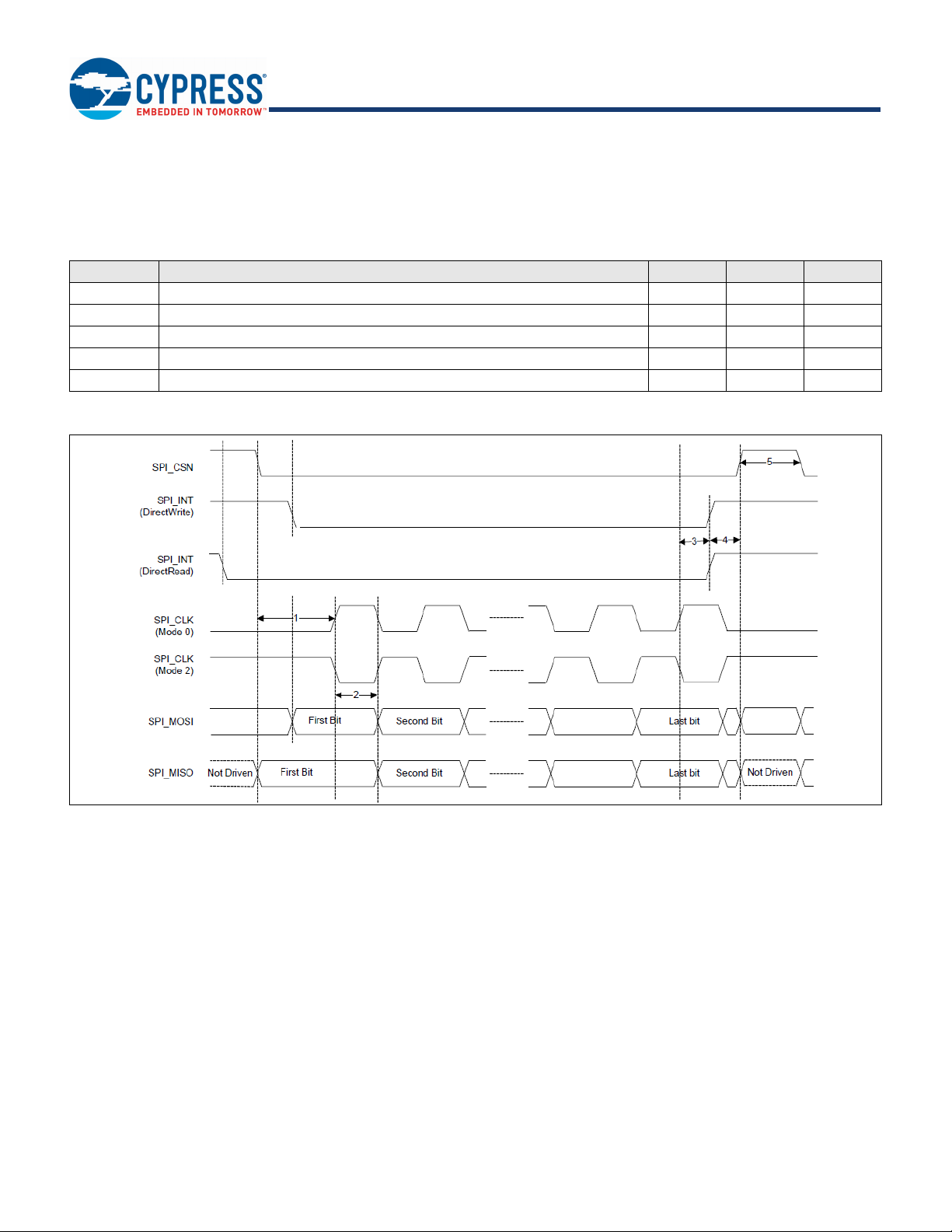

SPI Timing................................................................. 35

I2C Compatible Interface Timing............................... 37

I2S Interface Timing .................................................. 38

Environmental Specifications ....................................... 40

Environmental Compliance ....................................... 40

RF Certification.......................................................... 40

Safety Certification .................................................... 40

Environmental Conditions ......................................... 40

ESD and EMI Protection ........................................... 40

Regulatory Information.................................................. 41

FCC........................................................................... 41

ISED.......................................................................... 42

European Declaration of Conformity ......................... 43

MIC Japan................................................................. 43

Packaging........................................................................ 44

Ordering Information...................................................... 46

Acronyms........................................................................ 47

Document Conventions ................................................. 47

Units of Measure ....................................................... 47

Document History Page................................................. 48

Sales, Solutions, and Legal Information...................... 49

Worldwide Sales and Design Support....................... 49

Products .................................................................... 49

PSoC® Solutions ...................................................... 49

Cypress Developer Community................................. 49

Technical Support ..................................................... 49

Document Number: 002-23993 Rev. ** Page 3 of 49

PRELIMINARY

CYBT-483039-02

Overview

Functional Block Diagram

Figure 1 illustrates the CYBT-483039-02 functional block diagram.

Figure 1. Functional Block Diagram

Note: General Purpose Input/Output pins shown in Figure 1 are configuratble to any specified input or output function in the SuperMux table detailed in Table 5 in the Module

Connections section.

Note: Connections shown in the above block diagram are maximum number of connections per function. The total number of GPIOs available on the CYBT-483039-02 is 15.

Module Description

The CYBT-483039-02 module is a complete module designed to be soldered to the applications main board.

Module Dimensions and Drawing

Cypress reserves the right to select components from various vendors to achieve the Bluetooth module functionality. Such selections will still guarantee that all mechanical specifications and module certifications are maintained. Any changes to the current BOM for the CYBT-483039-02 will not be made until approval is provided by the end customer for this product. The CYBT-483039-02 will be held within the physical dimensions shown in the mechanical drawings in Figure 2 on page 5. All dimensions are in millimeters (mm).

Table 1. Module Design Dimensions

Dimension Item Specification

Module dimensions

Antenna location dimensions

PCB thickness Height (H) 0.50 ± 0.10 mm Shield height Height (H) 1.20 mm Maximum component height Height (H) 1.30 mm typical (Chip Antenna) Total module thickness (bottom of module to top of shield) Height (H) 1.80 mm typical

See Figure 2 for the mechanical reference drawing for CYBT-483039-02.

Length (X) 12.75 ± 0.15 mm

Width (Y) 18.59 ± 0.15 mm

Length (X) 12.75 mm

Width (Y) 4.82 mm

Document Number: 002-23993 Rev. ** Page 4 of 49

PRELIMINARY

CYBT-483039-02

Figure 2. Module Mechanical Drawing

Bottom View (Seen from Bottom)

Side View

Top View (Seen from Top)

Notes

3. No metal should be located beneath or above the antenna area. Only bare PCB material should be located beneath the antenna area. For more information on recommended host PCB layout, see “Recommended Host PCB Layout” on page 8.

Document Number: 002-23993 Rev. ** Page 5 of 49

PRELIMINARY

CYBT-483039-02

Pad Connection Interface

Solder Pad Connections

(Seen from Bottom)

As shown in the bottom view of Figure 2 on page 5, the CYBT-483039-02 has 34 connections to a host board via solder pads (SP).

Ta bl e 2 and Figure 3 detail the solder pad length, width, and pitch dimensions of the CYBT-483039-02 module.

Table 2. Connection Description

Name Connections Connection Type Pad Length Dimension Pad Width Dimension Pad Pitch

SP 34 Solder Pad 1.02 mm 0.71 mm 1.02 mm

Figure 3. Solder Pad Dimensions (Seen from Bottom)

To maximize RF performance, the host layout should follow these recommendations:

1. Antenna Area Keepout: The host board directly below the antenna area of the Cypress module (see Figure 2 on page 5) must contain no ground or signal traces. This keep out area requirement applies to all layers of the host board.

2. Module Placement: The ideal placement of the Cypress Bluetooth module is in a corner of the host board with the chip antenna located at the far corner. This placement minimizes the additional recommended keep out area stated in item 3 below. Please refer to AN96841 for module placement best practices.

3. Optional Keepout: To maximize RF performance, the area immediately around the Cypress Bluetooth module chip antenna may contain an additional keep out area, where there are no grounding or signal traces. The keep out area applies to all layers of the host board. The recommended dimensions of the host PCB keep out area are shown in Figure 4 (dimensions are in mm).

Document Number: 002-23993 Rev. ** Page 6 of 49

PRELIMINARY

CYBT-483039-02

Figure 4. Optional Additional Host PCB Keep Out Area Around the CYBT-483039-02 Chip Antenna

Document Number: 002-23993 Rev. ** Page 7 of 49

PRELIMINARY

CYBT-483039-02

Recommended Host PCB Layout

Top View (Seen on Host PCB)

Figure 5, Figure 6, Figure 7, and Ta bl e 3 provide details that can be used for the recommended host PCB layout pattern for the

CYBT-483039-02. Dimensions are in millimeters unless otherwise noted. Pad length of 1.27 mm (0.635 mm from center of the pad on either side) shown in Figure 7 is the minimum recommended host pad length. The host PCB layout pattern can be completed using either Figure 5, Figure 6, or Figure 7. It is not necessary to use all figures to complete the host PCB layout pattern.

Figure 5. CYBT-483039-02 Host Layout (Dimensioned) Figure 6. CYBT-483039-02 Host Layout (Relative to Origin)

Document Number: 002-23993 Rev. ** Page 8 of 49

PRELIMINARY

CYBT-483039-02

Ta bl e 3 provides the center location for each solder pad on the CYBT-483039-02. All dimensions are referenced to the center of the

Top View (Seen on Host PCB)

solder pad. Refer to Figure 7 for the location of each module solder pad.

Table 3. Module Solder Pad Location Figure 7. Solder Pad Reference Location

Solder Pad

(Center of Pad)

1 (0.38, 5.92) (14.96, 233.07) 2 (0.38, 6.93) (14.96, 272.83) 3 (0.38, 7.95) (14.96, 312.99) 4 (0.38, 8.97) (14.96, 353.15) 5 (0.38, 9.98) (14.96, 392.91) 6 (0.38, 11.00) (14.96, 433.07) 7 (0.38, 12.01) (14.96, 472.83) 8 (0.38, 13.03) (14.96, 512.99)

9 (0.38, 14.05) (14.96, 553.15) 10 (0.38, 15.06) (14.96, 592.91) 11 (0.38, 16.08) (14.96, 633.07) 12 (0.38, 17.09) (14.96, 672.83) 13 (1.80, 18.21) (70.87, 716.93) 14 (2.82, 18.21) (111.02, 716.93) 15 (3.84, 18.21) (151.18, 716.93) 16 (4.85, 18.21) (190.94, 716.93) 17 (5.87, 18.21) (231.10, 716.93) 18 (6.88, 18.21) (270.87, 716.93) 19 (7.90, 18.21) (311.02, 716.93) 20 (8.92, 18.21) (351.18, 716.93) 21 (9.93, 18.21) (390.94, 716.93) 22 (10.95, 18.21) (431.10, 716.93) 23 (12.37, 17.09) (487.01, 672.83) 24 (12.37, 16.08) (487.01, 633.07) 25 (12.37, 15.06) (487.01, 592.91) 26 (12.37, 14.05) (487.01, 553.15) 27 (12.37, 13.03) (487.01, 512.99) 28 (12.37, 12.01) (487.01, 472.83) 29 (12.37, 11.00) (487.01, 433.07) 30 (12.37, 9.98) (487.01, 392.91) 31 (12.37, 8.97) (487.01, 353.15) 32 (12.37, 7.95) (487.01, 312.99) 33 (12.37, 6.93) (487.01, 272.83) 34 (12.37, 5.92) (487.01, 233.07)

Location (X,Y) from

Orign (mm)

Dimension from

Orign (mils)

Document Number: 002-23993 Rev. ** Page 9 of 49

PRELIMINARY

CYBT-483039-02

Module Connections

Note

4. The CYBT-483039-02 can configure GPIO connections to any Input/Output function described in Tab l e 5 .

5. P15 should not be driven high externally while the part is held in reset (it can be floating or driven low). Failure to do so may cause some current to flow through P15 until the device comes out of reset.

Ta bl e 4 details the solder pad connection definitions and available functions for each connection pad. The GPIO connections available

on the CYBT-483039-02 can be configured to any of the input or output funcitons listed in Ta bl e 5 . Table 4 specifies any function that is required to be used on a specific solder pad, and also identifies GPIOs that can be configured using the SuperMux.

Table 4. CYBT-483039-02 Solder Pad Connection Definitions

Pad Pad Name Silicon Pin Name XTALI/O ADC GPIO

1 VDD VDDIO Silicon Power Supply Input (2.0V ~ 3.6V) 2 GND GND Ground 3 XRES RST_N External Reset (Active Low) 4P33 P33 - IN6 33 see Table 5 5P25 P25 - - 33 see Table 5 6P26 P26 - - 33 see Table 5 7P38 P38 - IN1 33 see Table 5

8 P34/P35/P36

9P1 P1 - IN28 33 see Table 5 10 P0 P0 - IN29 33 see Table 5 11 P2 9 P29 - I N10 33 see Table 5

12 P13/P23/P28

13 GND GND Ground

14 P10/P11

15 P17 P17 - IN18 33 see Table 5 16 P7 P7 - - 3 - 17 P6 P6 - - 33 see Table 5 18 P4 P4 - - 3 -

19 XTALO_32K XTALO_32K

XTALI_32K/

21 UART_CTS_N BT_UART_CTS_N UART (HCI UART) Clear To Send Input Only 22 UART_RTS_N BT_UART_RTS_N UART (HCI UART) Request To Send Output Only 23 UART_TXD BT_UART_TXD UART (HCI UART) Transmit Data Only 24 UART_RXD BT_UART_RXD UART (HCI UART) Receive Data Only

25 HOST_WAKE BT_HOST_WAKE

26 GND GND Ground 27 GND GND Ground 28 GND GND Ground 29 GND GND Ground 30 GND GND Ground 31 GND GND Ground 32 VDDPA N/A PA/LNA Power Supply Voltage (2.0 ~ 3.6V) 33 GND GND Ground 34 GND GND Ground

P15

[5]

P34 P35 P36

P13 P23 P28

P10 P11

XTALI_32K

P15

External Oscillator

Output (32KHz)

External Oscillator Input

(32KHz)

A signal from the CYBT-483039-02 module to the host indicating that the Bluetooth device requires

IN5 (P34) IN4 (P35) IN3 (P36)

IN22 (P13) IN12 (P23) IN11 (P28)

IN25 (P10) IN24 (P11)

-- -

IN20 (P15) 3(P15) 3(P15), see Ta b le 5

3 (P34/P35/P36) 3 see Table 5

3(P13/P23/P28) 3 see Table 5

3 (P10/P11) 3 see Table 5

attention.

SuperMux Capable

[4]

Document Number: 002-23993 Rev. ** Page 10 of 49

PRELIMINARY

CYBT-483039-02

Table 5 details the available Input and Ouput functions that are configurable to any sodler pad in Ta bl e 4 that are marked as SuperMux

capable.

Table 5. GPIO SuperMux Input and Output Functions

Function Input or Output Function Type GPIOs Required Function Connection Description

SWD

SPI 1

SPI 2

PUART

C Input/Output

C 2 Input/Output

PCM In Input Audio Input Communication 3

PCM Out Output Audio Output Communication 3

S In Input Audio Input Communication 3

S Out Ouput Audio Output Communication 3

PDM Input Microphone 1 ~ 2

Input

Input/Output SWDIO, Serial Wire Debugger I/O

Input/Output

Output SPI 1 DCX (DBI-C DCX 8-bit mode)

Input/Output

Output SPI 2 DCX (DBI-C DCX 8-bit mode)

Input Serial Communication Input

Output Serial Communication Output

Serial Communication and

Debug

Serial Communication

(Master or Slave)

Serial Communication

(Master or Slave)

Serial Communication

(Master or Slave)

Serial Communication

(Master or Slave)

4 ~ 8

SWDCK, Serial Wire Debugger Clock

SPI 1 Clock

SPI 1 Chip Select

SPI 1 MOSI

SPI 1 MISO SPI 1 I/O 2 (Quad SPI) SPI 1 I/O 3 (Quad SPI)

SPI 1 Interrupt

SPI 2 Clock

SPI 2 Chip Select

SPI 2 MOSI

SPI 2 MISO SPI 2 I/O 2 (Quad SPI) SPI 2 I/O 3 (Quad SPI)

SPI 2 Interrupt

Periperal UART RX

Peripheral UART CTS

Peripheral UART TX

Peripheral UART RTS

I2C Clock

I2C Data

I2C 2 Clock

I2C 2 Data PCM Input

PCM Clock

PCM Sync

PCM Output

PCM Clock

PCM Sync

I2S DI, Data Input

I2S WS, Word Select

I2S Clock I2S DO, Data Output I2S WS, Word Select

I2S Clock

PDM Input Channel 1 PDM Input Channel 2

Document Number: 002-23993 Rev. ** Page 11 of 49

PRELIMINARY

CYBT-483039-02

Function Input or Output Function Type GPIOs Required Function Connection Description

PWM Channel 0 PWM Channel 1 PWM Channel 2

PWM Output Pulse Width Modulator 1 ~ 6

PWM Channel 3 PWM Channel 4 PWM Channel 5

ACLK Output Auxiliary Clock 1 ~ 2

HIDOFF Output HID-OFF Indicator 1 HID-OFF Indicator to host

Auxiliary Clock 0 (ACLK0) Auxiliary Clock 1 (ACLK1)

Connections and Optional External Components

Power Connections (VDD and VDDPA)

The CYBT-483039-02 contains two power supply connections, VDD and VDDPA. VDD is the power supply connection for the Cypress CYW20719 silicon device. VDD accepts a supply input of 1.76 V to 3.63 V.

Ta bl e 1 4 provides this specification. The maximum power supply ripple for this power connection is 100 mV, as shown in Ta bl e 1 4.

VDDPA is the power supply connection for the on-module power amplifier/low-noise amplifier. VDDPA accepts a supply input of 2.00 V to 3.60 V. Table 14 provides this specification. The maximum power supply ripple for this power connection is 100 mV, as shown in

Ta bl e 1 4.

Considerations and Optional Components for Brown Out (BO) Conditions

Power supply design must be completed to ensure that the CYBT-483039-02 module does not encounter a Brown Out condition, which can lead to unexpected funcitonality, or module lock up. A Brown Out condition may be met if power supply provided to the module during power up or reset is in the range shown below:

≤ VDD ≤ V

Refer to Table 18 for the VIL and V

specifications.

System design should ensure that the condition above is not encountered when power is removed from the system. In the event that this cannot be guaranteed (i.e. battery installation, high value power capacitors with slow discharge), it is recommended that an external voltage detection device be used to prevent the Brown Out voltage range from occuring during power removal. Please refer to Figure 8 for the recommended circuit design when using an external voltage detection IC.

Figure 8. Reference Circuit Block Diagram for External Voltage Detection IC

In the event that the module does encounter a Brown Out condition, and is operating erratically or not responsive, power cycling the module will correct this issue and once reset, the module should operate correctly. Brown Out conditions can potentially cause issues that cannot be corrected, but in general, a power-on-reset operation will correct a Brown Out condition.

Document Number: 002-23993 Rev. ** Page 12 of 49

PRELIMINARY

CYBT-483039-02

External Reset (XRES)

The CYBT-483039-02 has an integrated power-on reset circuit which completely resets all circuits to a known power on state. This action can also be envoked by an external reset signal, forcing it into a power-on reset state. The XRES signal is an active-low signal, which is an input to the CYBT-483039-02 module (solder pad 3). The CYBT-483039-02 module resistor on the XRES input

During power on operation, the XRES connection to the CYBT-483039-02 is required to be held low 50 ms after the VDD power supply input to the module is stable. This can be accomplished in the following ways:

n The host device can connect a GPIO to the XRES of Cypress CYBT-483039-02 module and pull XRES low until VDD is stable.

XRES is recommended to be released 50 ms after VDD is stable.

n If the XRES connection of the CYBT-483039-02 module is not used in the application, a 0.33 uF capacitor may be connected to the

XRES solder pad of the CYBT-483039-02 in order to delay the XRES release. The capacitor value for this recommended implementation is approximate, and the exact value may differ depending on the VDD power supply ramp time of the system. The capacitor value should result in an XRES release timing of at least 50 ms after VDD stability.

n The XRES release timing may be controlled by a external voltage detection IC. XRES should be released 50 ms after VDD is stable.

Refer to Figure 11 on page 19 for XRES operating and timing requirements during power on events.

does not require an external pull-up

HCI UART Connections

The recommendations in this section apply to the HCI UART (Solder Pads 21, 22, 23, and 24). For full UART functionality, all UART signals must be connected to the Host device. If full UART functionality is not being used, and only UART RXD and TXD are desired or capable, then the following connection considerations should be followed for UART RTS and CTS:

n UART RTS: Can be left floating, pulled low, or pulled high. RTS is not critical for initial firmware uploading at power on.

n UART CTS: Must be pulled low to bypass flow control and to ensure that continuous data transfers are made from the host to the

module.

External Component Recommendation

Power Supply Input Options and Circuitry

Two connection options are available for the VDD and VDDPA power supplies:

1. Single supply: Connect VDD and VDDPAto the same supply.

2. Independent supply: Power VDD and VDDPA separately.

In either connection scenario, it is recommended to place an external ferrite bead between the supply and the module connection. The ferrite bead should be positioned as close as possible to the module pad connection.

The recommended ferrite bead value is 330 Ω, 100 MHz. (Murata BLM21PG331SN1D).

Document Number: 002-23993 Rev. ** Page 13 of 49

PRELIMINARY

CYBT-483039-02

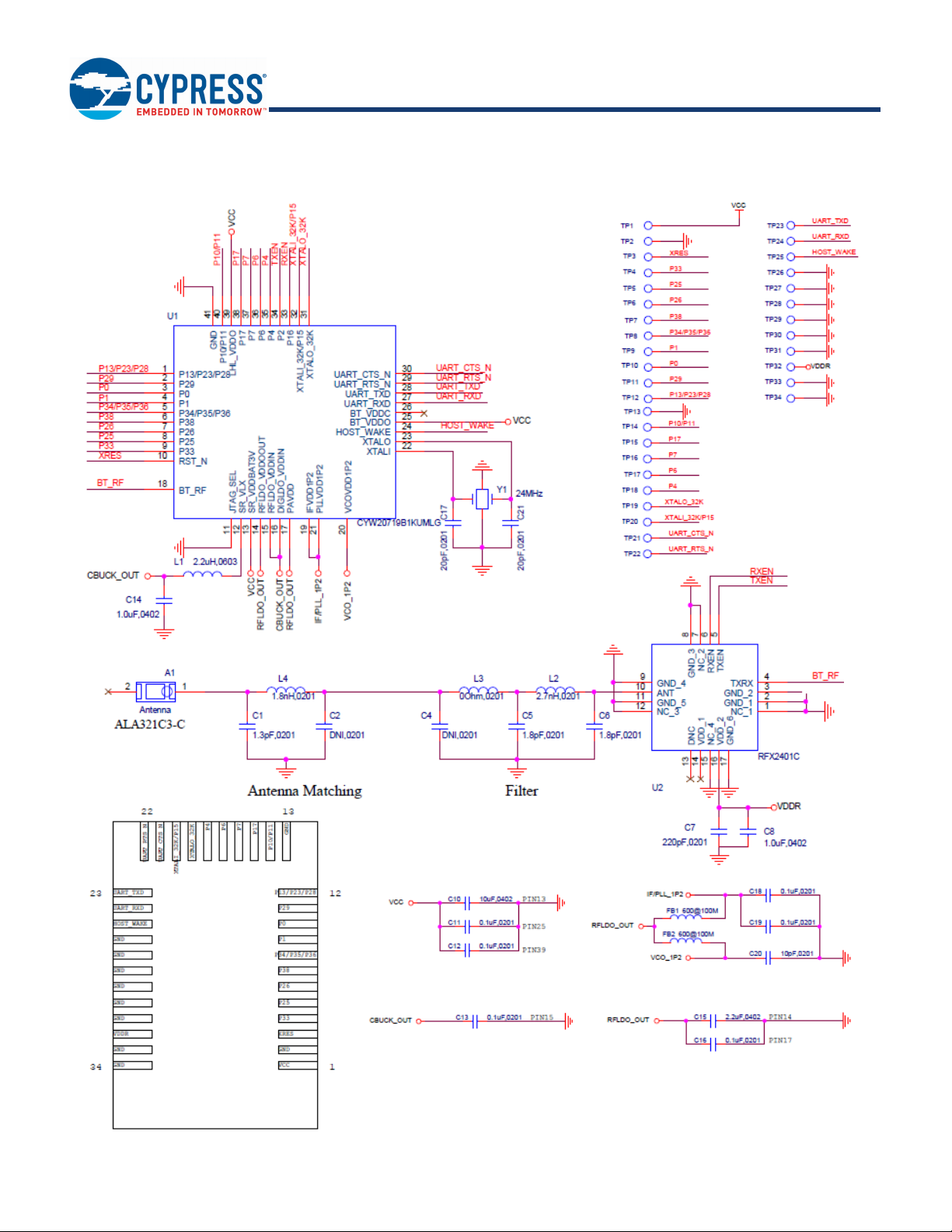

Figure 9 illustrates the CYBT-483039-02 schematic.

Figure 9. CYBT-483039-02 Schematic Diagram

Document Number: 002-23993 Rev. ** Page 14 of 49

PRELIMINARY

CYBT-483039-02

Critical Components List

Ta bl e 6 details the critical components used in the CYBT-483039-02 module.

Table 6. Critical Component List

Component Reference Designator Description

40-pin QFU2Silicon N Bluetooth Silicon Device - CYW20719 Antenna, 2.4 GHz, ALA321C3-CA1Chip Antenna PA/LNA, RFX2401CU2PA/LNA

24.000 MHz, 12PFY1Crystal

Antenna Design

Ta bl e 7 details the chip antenna used in the CYBT-483039-02 module.

Table 7. Chip Antenna Specifications

Item Description

2400 – 2500 MHzFrequency Range

2.3 dBi typicalPeak Gain

10.0 dB typicalReturn Loss

Power Amplifier (PA) and Low Noise Amplifier (LNA)

Ta bl e 8 details the PA/LNA that is used on the CYBT-483039-02 module. For more information, see Ta ble 8 .

Table 8. Power Amplifier/Low Noise Amplifier Details

Item Description

Skyworks Inc.PA/LNA Manufacturer RFX2401CPA/LNA Part Number

Power Supply R 2.0V to 3.6Vange

Ta bl e 9 details the power consumption of the integrated PA/LNA used on the More Part Numbers module. Ta b le 9 only details the

current consumption of the RFX2401C PA/LNA. VDD= 3.3 V, TA = +25°C, measured on the RFX2401C evaluation board, unless otherwise noted.

Table 9. Power Amplifier/Low Noise Amplifier Current Consumption Specifications

Parameter Test Condition Min Typical Max Unit

mA100Pout = +18dBmTx High Power Current mA17No RF appliedTx Quiescent Current mA8No RF appliedRx Quiescent Current

Document Number: 002-23993 Rev. ** Page 15 of 49

PRELIMINARY

CYBT-483039-02

Bluetooth Baseband Core

The Bluetooth Baseband Core (BBC) implements all time-critical functions required for high-performance Bluetooth operation. The BBC manages the buffering, segmentation, and routing of data for all connections. It prioritizes and schedules all RX/TX activities including adv, paging, scanning, and servicing of connections. In addition to these functions, it independently handles the host controller interface (HCI) including all commands, events, and data flowing over HCI. The core also handles symbol timing, forward error correction (FEC), header error control (HEC), cyclic redundancy check (CRC), authentication, data encryption/decryption, and data whitening/dewhitening.

Table 10. Bluetooth Features

Bluetooth 1.0 Bluetooth 1.2 Bluetooth 2.0

Basic Rate Interlaced Scans EDR 2 Mbps and 3 Mbp SCO Adaptive Frequency Hopping – Paging and Inquiry eSCO – Page and Inquiry Scan – – Sniff – –

Bluetooth 2.1 Bluetooth 3.0 Bluetooth 4.0

Secure Simple Pairing Unicast Connectionless Data Bluetooth Low Energy Enhanced Inquiry Response Enhanced Power Control – Sniff Subrating eSCO –

Bluetooth 4.1 Bluetooth 4.2 Bluetooth 5.0

Low Duty Cycle Advertising Data Packet Length Extension LE 2 Mbps Dual Mode LE Secure Connection Slot Availability Mask LE Link Layer Topology Link Layer Privacy High Duty Cycle Advertising

BQB and Regulatory Testing Support

The CYBT-483039-02 fully supports Bluetooth Test mode as described in Part I:1 of the Specification of the Bluetooth System Version

3.0. This includes the transmitter tests, normal and delayed loop back tests, and reduced hopping sequence. In addition to the standard Bluetooth Test Mode, the CYBT-483039-02 also supports enhanced testing features to simplify RF

debugging and qualification and type-approval testing. These features include:

n Fixed frequency carrier wave (unmodulated) transmission

p Simplifies some type-approval measurements (Japan) p Aids in transmitter performance analysis

n Fixed frequency constant receiver mode

p Receiver output directed to I/O pin p Allows for direct BER measurements using standard RF test equipment p Facilitates spurious emissions testing for receive mode

n Fixed frequency constant transmission

p 8-bit fixed pattern or PRBS-9 p Enables modulated signal measurements with standard RF test equipment

Document Number: 002-23993 Rev. ** Page 16 of 49

PRELIMINARY

CYBT-483039-02

Power Management Unit

Figure 10 shows the CYW20719 power management unit (PMU) block diagram. The CYW20719 includes an integrated buck

regulator, a bypass LDO, a capless LDO for digital circuits and a separate LDO for RF. The bypass LDO automatically takes over from the buck once V

The voltage levels shown in this figure are the default settings; the firmware may change voltage levels based on operating conditions.

supply falls below 2.1V.

bat

Figure 10. Default Usage Mode

Document Number: 002-23993 Rev. ** Page 17 of 49

PRELIMINARY

CYBT-483039-02

Integrated Radio Transceiver

The CYBT-483039-02 has an integrated radio transceiver that has been designed to provide low power operation in the globally available 2.4 GHz unlicensed ISM band. It is fully compliant with Bluetooth Radio Specification 3.0 and meets or exceeds the requirements to provide the highest communication link quality of service.

Transmitter Path

CYBT-483039-02 features a fully integrated transmitter. The baseband transmit data is GFSK modulated in the 2.4 GHz ISM band.

Digital Modulator

The digital modulator performs the data modulation and filtering required for the GFSK signal. The fully digital modulator minimizes any frequency drift or anomalies in the modulation characteristics of the transmitted signal.

Power Amplifier

The CYBT-483039-02 has an integrated power amplifier (PA) on the silicon device as well as a high power external power amplifier (PA) integrated on the module. The total output power that this module is designed to achieve is +18 dBm.

Receiver Path

The receiver path uses a low IF scheme to downconvert the received signal for demodulation in the digital demodulator and bit synchronizer. The receiver path provides a high degree of linearity, and an extended dynamic range to ensure reliable operation in the noisy 2.4 GHz ISM band. The front-end topology, which has built-in out-of-band attenuation, enables the CYBT-483039-02 to be used in most applications without off-chip filtering.

Digital Demodulator and Bit Synchronizer

The digital demodulator and bit synchronizer take the low-IF received signal and perform an optimal frequency tracking and bit synchronization algorithm.

Receiver Signal Strength Indicator

The radio portion of the CYBT-483039-02 provides a receiver signal strength indicator (RSSI) to the baseband. This enables the controller to take part in a Bluetooth power-controlled link by providing a metric of its own receiver signal strength to determine whether the transmitter should increase or decrease its output power.

Local Oscillator

The local oscillator (LO) provides fast frequency hopping (1600 hops/second) across the 79 maximum available channels. The CYBT-483039-02 uses an internal loop filter.

Document Number: 002-23993 Rev. ** Page 18 of 49

PRELIMINARY

CYBT-483039-02

Microcontroller Unit

The CYBT-483039-02 includes a Cortex M4 processor with 2 MB of ROM, 448 KB of data RAM, 64 KB of patch RAM, and 1 MB of on-chip flash. The CM4 has a maximum speed of 96 MHz. CYBT-483039-02 supports execution from on-chip flash (OCF).

The CM4 also includes a single precision IEEE 754 compliant floating point unit (FPU). The CM4 runs all the BT layers as well as application code. The ROM includes LM, HCI, L2CAP, GATT, as well as other stack layers

freeing up the flash for application usage. A standard serial wire debug (SWD) interface provides debugging support.

External Reset

An external active-low reset signal, XRES, can be used to put the CYBT-483039-02 in the reset state. An external voltage detector reset IC with 50 ms delay is recommended on the XRES connection. The XRES must only be released after the VDDO supply voltage level has been stabilized for 50 ms.

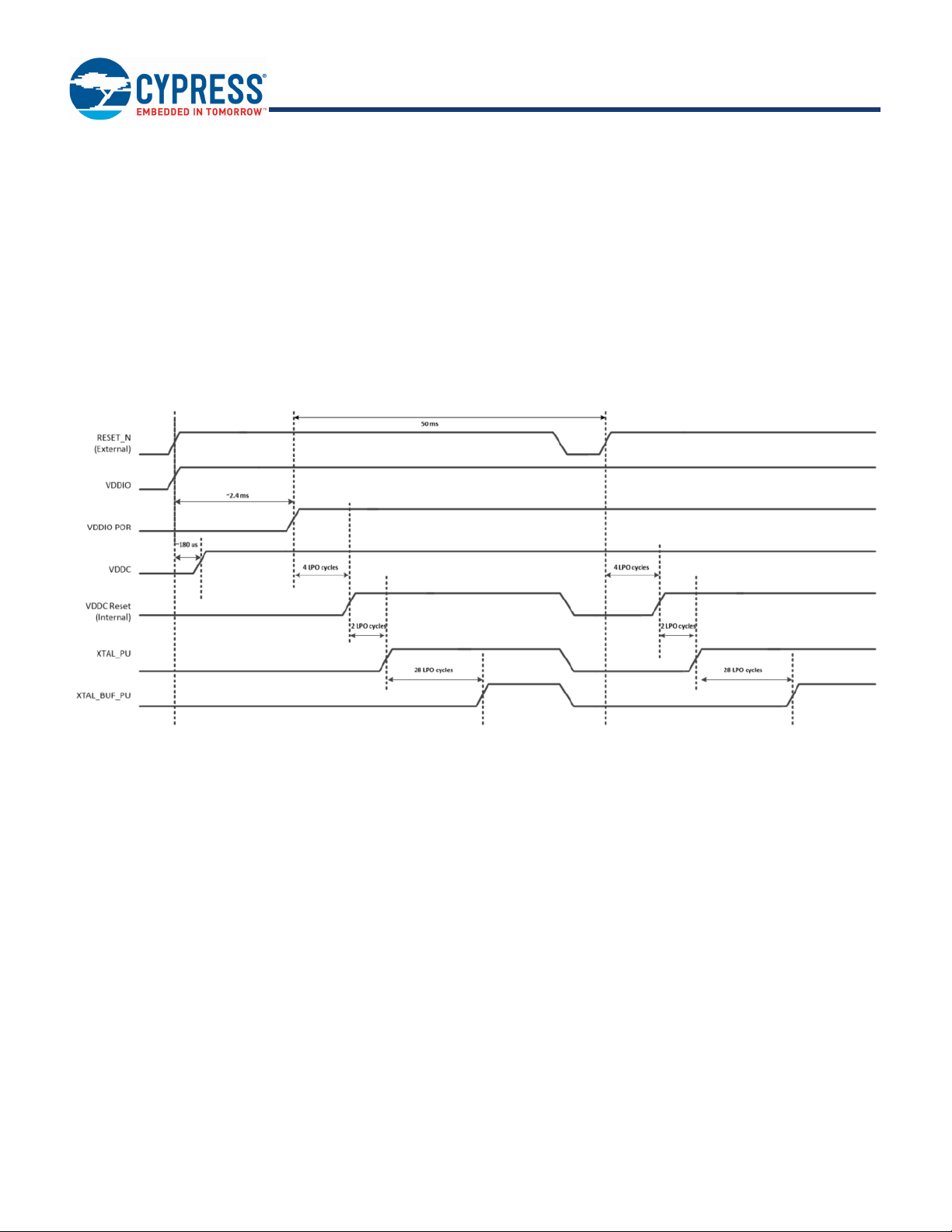

Figure 11. Reset Timing

Document Number: 002-23993 Rev. ** Page 19 of 49

PRELIMINARY

CYBT-483039-02

Peripheral and Communication Interfaces

I2C

The CYBT-483039-02 provides a 2-pin I2C compatible master interface to communicate with I2C compatible peripherals. The following transfer clock rates are supported are:

n 100 kHz

n 400 kHz

n 800 kHz (Not a standard I

n 1 MHz (Compatibility with high-speed I

SCL and SDA lines can be routed to any of the P0-P39 GPIOs allowing for flexible system configuration. When used as SCL/SDA the GPIOs go into open drain mode and require an external pull-up for proper operation. I capability by either master or slave devices.

C1 is Master Only; I2C2 is Master/Slave. The Slave support is subject to driver support in WICED Studio.

HCI UART Interface

The CYBT-483039-02 includes a UART interface for factory programming as well as when operating as a BT HCI device in a system with an external host. The UART physical interface is a standard, 4-wire interface (RX, TX, RTS, and CTS) with adjustable baud rates from 115200 bps to 1.5 Mbps. Typical rates are 115200, 921600, 1500000 bps although intermediate speeds are also available. Support for changing the baud rate during normal HCI UART operation is included through a vendor-specific command. The CYBT-483039-02 UART operates correctly with the host UART as long as the combined baud rate error of the two devices is within ±5%. The UART interface has a 1040-byte receive FIFO and a 1040-byte transmit FIFO to support enhanced data rates. The interface supports the Bluetooth UART HCI (H4) specification. The default baud rate for H4 is 115.2 kbaud.

The CYBT-483039-02 can wake up the host as needed or allow the host to sleep via the HOST_WAKE signal (solder pad 2). signal allows the CYBT-483039-02 to optimize system power consumption by allowing a host device to remain in low power modes as long as possible. The HOST_WAKE signal can be enabled via a vendor specific command.

C-compatible speed)

C-compatible devices is not guaranteed)

C block does not support multi master

Peripheral UART Interface

The CYBT-483039-02 has a second UART that may be used to interface to peripherals. This peripheral UART is accessed through the optional I/O ports, which can be configured individually and separately for each functional pin. The CYBT-483039-02 can map the peripheral UART to any GPIO. The Peripheral UART functionality is the same as the HCI UART, but with a 256-byte transmit and receive FIFO.

Serial Peripheral Interface

The CYBT-483039-02 has two independent SPI interfaces. Both interfaces support Single, Dual, and Quad mode SPI operations as well as MIPI DBI-C Interface.Either of the interface can be a master or a slave. SPI2 can support only 1 slave. SPI1 has a 1024 byte transmit and receive buffers which is shared with the host UART interface. SPI2 has a dedicated 256 byte transmit and receive buffers. To support more flexibility for user applications, the CYBT-483039-02 has optional I/O ports that can be configured individually and separately for each functional pin. SPI IO voltage depends on VDDO.

MIPI interface

There are three options in DBI type-C corresponding to 9-bit, 16-bit, and 8-bit modes. The CYBT-483039-02 plays the role of host, and only the 9-bit and 8-bit modes (option 1 and option 3 in DBI-C spec) are supported. In the 9-bit mode, the SCL, CS, MOSI, and MISO pins are used. In the 8-bit mode, an additional pin (DCX) is required. The DCX pin indicates if the current outgoing bit stream is a command or data byte.

32 kHz Crystal Oscillator

The CYBT-483039-02 utlizes the built-in Local Oscillator (LO) on the CYW20719 silicon device for 32kHz timing. The accuracy of the LO is +/- 500 ppm. The use of an external XTAL oscillator is optional. CYBT-483039-02 includes external XTAL oscilator connections for applications requiring higher timing accuracy. Figure 12 shows an external 32 kHz XTAL oscillator with external components and

Ta bl e 11 lists the the recommended external oscillator’s characteristics. This oscillator input can be operated with a 32 kHz or 32.768

kHz crystal oscillator or be driven with a clock input at similar frequency. The default component values are: R1 = 10 MΩ and C1 = C2 = ~6 pF. The values of C1 and C2 are used to fine-tune the oscillator.

Document Number: 002-23993 Rev. ** Page 20 of 49

PRELIMINARY

CYBT-483039-02

Figure 12. 32 kHz Oscillator Block Diagram

Table 11. XTAL Oscillator Characteristics

Parameter Symbol Conditions Minimum Ty pical Maximum Unit

Output frequency F

oscout

– – 32.768 – kHz Frequency tolerance – Crystal-dependent – 100 – ppm Start-up time T XTAL drive level P XTAL series resistance R XTAL shunt capacitance C External AC Input Amplitude V

startup

drv

series

shunt

(AC) C

For crystal selection – – 0.5 μW For crystal selection – – 70 kΩ For crystal selection – – 2.2 pF

couple

= 10 Mohm

bias

– – 500 – ms

= 100 pF;

400 – – mVpp

Document Number: 002-23993 Rev. ** Page 21 of 49

PRELIMINARY

CYBT-483039-02

ADC Port

The ADC is a Σ-Δ ADC core designed for audio (13 bits) and DC (12 bits) measurement. It operates at 12 MHz and has 10 solder pad connections that can act as input channels. The internal bandgap reference has ±5% accuracy without calibration. Calibration and digital correction schemes can be applied to reduce ADC absolute error and improve measurement accuracy in DC mode.

The following CYBT-483039-02 module solder pads can be used as ADC inputs:

n Pad 4: P33, ADC Input Channel 6

n Pad 7: P38, ADC Input Channel 1

n Pad 8: P34/P35/P36, ADC Input Channels 5/4/3 respectively; NOTE: only one ADC input on this solder pad can be active at a

given time.

n Pad 9: P1, ADC Input Channel 28

n Pad 10: P0, ADC Input Channel 29

n Pad 11: P29, ADC Input Channel 10

n Pad 12: P13/P23/28, ADC Input Channels 22/12/11 respectively; NOTE: only one ADC input on this solder pad can be active at a

given time.

n Pad 14: P10/P11, ADC Input Channels 25/24 respectively; NOTE: only one ADC input on this solder pad can be active at a given time.

n Pad 15: P17, ADC Input Channel 18

n Pad 20: P15, ADC Input Channel 20. P15 should not be driven high externally while the part is held in reset (it can be floating or

driven low). Failure to do so may cause some current to flow through P15 until the device comes out of reset.

GPIO Ports

The CYBT-483039-02 has a maximum of 15 general-purpose I/Os (GPIOs). All GPIOs support the following:

n Programmable pull-up/down of approximately 45 KOhms.

n Input disable, allowing pins to be left floating or analog signals connected without risk of leakage.

n Source/sink 8 mA at 3.3V and 4 mA at 1.8V.

n P15 is Bonded to the same pin as XTALI_32K (Pad 20). If an External 32.768KHz crystal is not used, then this pin can be used as

GPIO P15.

n P26/P28/P29 can sink/source 16 mA at 3.3V and 8 mA at 1.8V.

Most peripheral functions can be assigned to any GPIO. For details, refer to Ta ble 5 . For more details on Supermux configuration and control, refer to "Supermux Wizard for CYW20719" user guide.

The list below details the GPIOs that are available on the CYBT-483039-02 module:

p P0-P1, P4, P6, P7, P17, P25, P26, P29, P33, and P38 p P10/P11 (Double bonded connection on the CYBT-483039-02 module, only one of two is available) p P13/P23/P28 (Triple bonded connection on the CYBT-483039-02 module, only one of three is available) p P15/XTALI_32K (Double bonded pin on the CYBT-483039-02 module, only one of two is available) p P34/P35/P36 (Triple bonded pin on the CYBT-483039-02 module, only one of three is available) p P19, P20 and P39 are reserved for system use. Please do not use those 3 GPIOs.

For GPIOs highlighted as double or triple bonded connections, only one of the connections can be used at a given time. When a certain GPIO is selected, the other GPIOs bonded to the same connection must be configured to input with output disable.

Document Number: 002-23993 Rev. ** Page 22 of 49

PRELIMINARY

CYBT-483039-02

PWM

The CYBT-483039-02 has six internal PWMs, labeled PWM0-5. The PWM module consists of the following:

n Each of the six PWM channels contains the following registers:

p 16-bit initial value register (read/write) p 16-bit toggle register (read/write) p 16-bit PWM counter value register (read)

n PWM configuration register shared among PWM0–5 (read/write). This 18-bit register is used:

p To configure each PWM channel p To select the clock of each PWM channel p To change the phase of each PWM channel

The application can access the PWM module through the FW driver.

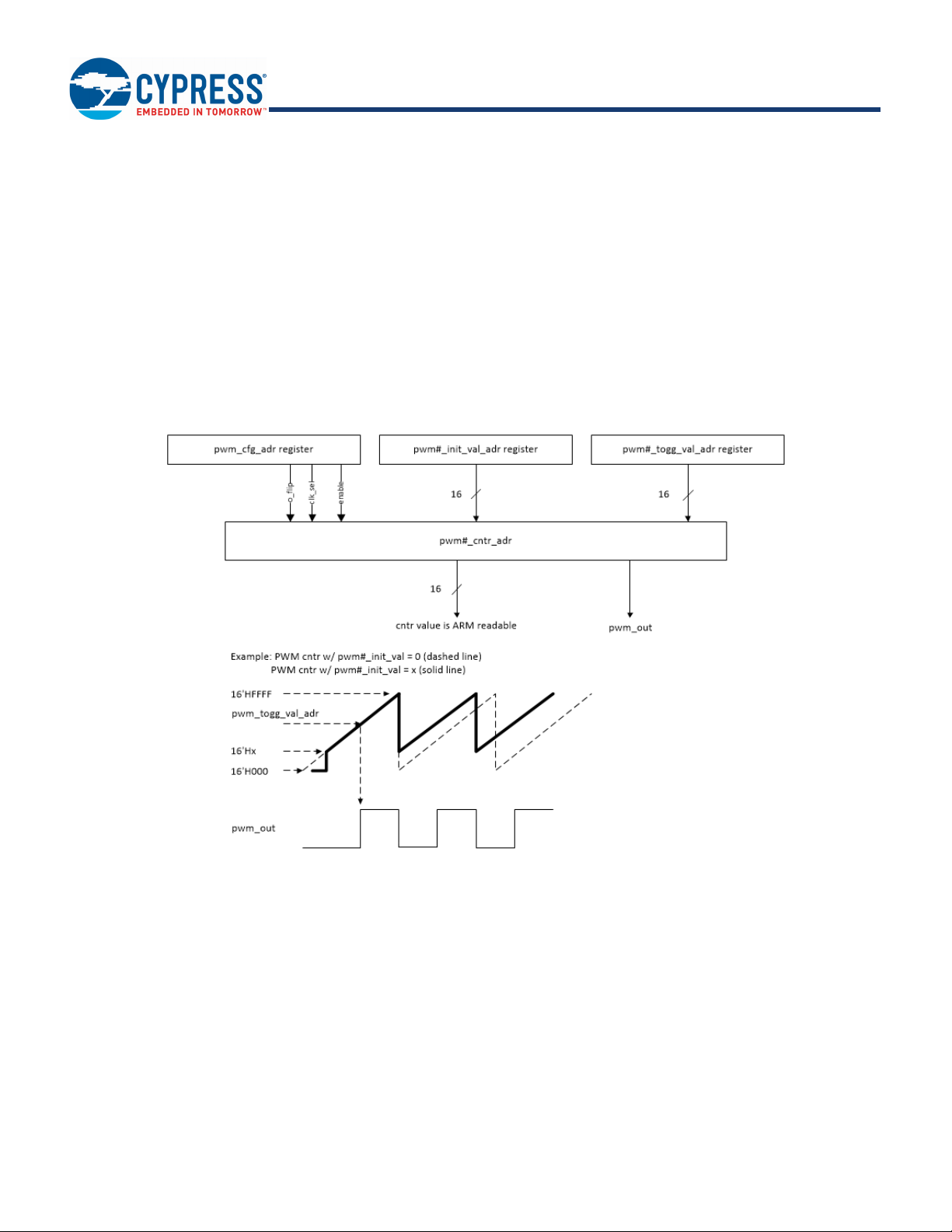

Figure 13 shows the structure of one PWM channel.

Figure 13. PWM Block Diagram

Document Number: 002-23993 Rev. ** Page 23 of 49

PRELIMINARY

CYBT-483039-02

PDM Microphone

The CYBT-483039-02 accepts a ΣΔ-based one-bit pulse density modulation (PDM) input stream and outputs filtered samples at either 8 kHz or 16 kHz sampling rates. The PDM signal derives from an external kit that can process analog microphone signals and generate digital signals. The PDM input shares the filter path with the auxADC. Two types of data rates can be supported:

n 8 kHz

n 16 kHz

The external digital microphone takes in a 2.4 MHz clock generated by the CYBT-483039-02 and outputs a PDM signal which is registered by the PDM interface with either the rising or falling edge of the 2.4 MHz clock selectable through a programmable control bit. The design can accommodate two simultaneous PDM input channels, so stereo voice is possible.

Note: Subject to the driver support in WICED Studio.

I2S Interface

The CYBT-483039-02 supports a single I2S digital audio port with both master and slave modes. The I2S signals are:

n I

S Clock: I2S SCK

n I

S Word Select: I2S WS

n I

S Data Out: I2S DO

n I

S Data In: I2S DI

I2S SCK and I2S WS become outputs in master mode and inputs in slave mode, while I2S DO always stays as an output. The channel word length is 16 bits and the data is justified so that the MSN of the left-channel data is aligned with the MSB of the I Specifications. The MSB of each data word is transmitted one bit clock cycle after the I edge of bit clock. Left Channel data is transmitted when I Data bits sent by the CYBT-483039-02 are synchronized with the falling edge of I the rising edge of the I

Note: The PCM interface shares HW with the I

S SCK.

S interface and only one can be used at a given time.

S WS is low, and right-channel data is transmitted when I2S WS is high.

S WS transition, synchronous with the falling

S SCK and should be sampled by the receiver on

S bus, per I2S

PCM Interface

The CYBT-483039-02 includes a PCM interface that can connect to linear PCM codec devices in master or slave mode. In master mode, the CYBT-483039-02 generates the PCM_CLK and PCM_SYNC signals. In slave mode, these signals are provided by another master on the PCM interface and are inputs to the CYBT-483039-02.The configuration of the PCM interface may be adjusted by the host through the use of vendor-specific HCI commands.

Note: The PCM interface shares HW with the I

Slot Mapping

The CYBT-483039-02 supports up to three simultaneous full-duplex SCO or eSCO channels through the PCM Interface. These three channels are time-multiplexed onto the single PCM interface by using a time-slotting scheme where the 8 kHz or 16 kHz audio sample interval is divided into as many as 16 slots. The number of slots is dependent on the selected interface rate (128 kHz, 512 kHz, or 1024 kHz). The corresponding number of slots for these interface rate is 1, 2, 4, 8, and 16, respectively. Transmit and receive PCM data from an SCO channel is always mapped to the same slot. The PCM data output driver tristates its output on unused slots to allow other devices to share the same PCM interface signals. The data output driver tristates its output after the falling edge of the PCM clock during the last bit of the slot.

Frame Synchronization

The CYBT-483039-02 supports both short- and long-frame synchronization in both master and slave modes. In short frame synchronization mode, the frame synchronization signal is an active-high pulse at the audio frame rate that is a single-bit period in width and is synchronized to the rising edge of the bit clock. The PCGM slave looks for a high on the falling edge of the bit clock and expects the first bit of the first slot to start at the next rising edge of the clock. In long-frame synchronization mode, the frame synchronization signal is again an active-high pulse at the audio frame rate; however, the duration is three bit periods and the pulse starts coincident with the first bit of the first slot.

Data Formatting

The CYBT-483039-02 may be configured to generate and accept several different data formats. For conventional narrow band speech mode, the CYBT-483039-02 uses 13 of the 16 bits in each PCM frame. The location and order of these 13 bits can be configured to support various data formats on the PCM interface. The remaining three bits are ignored on the input and may be filled with 0s, 1s, a sign bit, or a programmed value on the output. The default format is 13-bit 2’s complement data, left justified, and clocked MSB first.

S interface and only one can be used at a given time.

Document Number: 002-23993 Rev. ** Page 24 of 49

PRELIMINARY

CYBT-483039-02

Burst PCM Mode

In this mode of operation, the PCM bus runs at a significantly higher rate of operation to allow the host to duty cycle its operation and save current. In this mode of operation, the PCM bus can operate at a rate of up to 24 MHz. This mode of operation is initiated with an HCI command from the host.

Security Engine

The CYBT-483039-02 includes a hardware security accelerator which greatly decreases the time required to perform typical security operations. Access to the hardware block is provided via a firmware interface (see firmware documentation for details).Thie security engine includes:

n Public key acceleration (PKA) cryptography

n AES-CTR/CBC-MAC/CCM acceleration

n SHA2 message hash and HMAC acceleration

n RSA encryption and decryption of modulus sizes up to 2048 bits

n Elliptic curve Diffie-Hellman in prime field GF(p)

Note: Security Engine is used only by the Bluetooth stack to reduce CPU overhead. It is not available for application use.

Random Number Generator

This hardware block is used for key generation for Bluetooth. Note: Availability for use by the application is subject to the support in WICED Studio. Note: The Random Number Generator block must be warmed up prior to use. A delay of 500 ms from cold boot is necessary prior to

using the Random Number Generator.

Document Number: 002-23993 Rev. ** Page 25 of 49

PRELIMINARY

CYBT-483039-02

Power Modes

The CYBT-483039-02 support the following HW power modes are supported:

n Active mode - Normal operating mode in which all peripherals are available and the CPU is active.

n Idle mode - In this mode, the CPU is in “Wait for Interrupt” (WFI) and the HCLK, which is the high frequency clock derived from the

main crystal oscillator is running at a lower clock speed. Other clocks are active and the state of the entire chip is retained.

n Sleep mode - In this mode, CPU is in WFI and the HCLK is not running. The PMU determines if the other clocks can be turned off

and does accordingly. State of the entire chip is retained, the internal LDOs run at a lower voltage (voltage is managed by the PMU), and SRAM is retained.

n PDS mode - This mode is an extension of the PMU Sleep wherein most of the peripherals such as UART and SPI are turned off.

The entire memory is retained, and on wakeup the execution resumes from where it paused.

n Shut Down Sleep (SDS) - Everything is turned off except the IO Power Domain, RTC, and LPO. The device can come out of this

mode either due to BT activity or by an external interrupt. Before going into this mode, the application can store some bytes of data into “Always On RAM” (AON). When the device comes out of this mode, the data from AON is restored. After waking from SDS, the application will start from the beginning (warmboot) and has to restore its state based on information stored in AON. In the SDS mode, a single BT task with no data activity, such as an ACL connection, BLE connection, or BLE advertisement can be performed.

n HIDOFF (Timed-Wake) mode - The device can enter this mode asynchronously, that is, the application can force the device into

this mode at any time. IO Power Domain, RTC, and LPO are the only active blocks. A timer that runs off the LPO is used to wake the device up after a predetermined fixed time.

n HIDOFF (External Interrupt-Waked) mode - This mode is similar to Timed-Wake, but in HID-off mode even the LPO and RTC are

turned off. So, the only wakeup source is an external interrupt.

Transition between power modes is handled by the on-chip firmware with host/application involvement. Please see Firmware Section for details.

Firmware

The CYBT-483039-02 ROM firmware runs on a real time operating system and handles the programming and configuration of all on-chip hardware functions as well as the BT/LE baseband, LM, HCI, GATT, ATT, L2CAP and SDP layers. The ROM also includes drivers for on-chip peripherals as well as handling on-chip power management functions including transitions between different power modes.

The CYBT-483039-02 is fully supported by the Cypress WICED Studio platform. WICED releases provide latest ROM patches, drivers, and sample applications allowing customized applications using the CYBT-483039-02 to be built quickly and efficiently.

Please refer to WICED Technical Brief and CYBT-483039-02 Product Guide for details on the firmware architecture, driver documentation, power modes and how to write applications/profiles using the CYBT-483039-02.

Document Number: 002-23993 Rev. ** Page 26 of 49

PRELIMINARY

CYBT-483039-02

Electrical Characteristics

The absolute maximum ratings in the following table indicate levels where permanent damage to the device can occur, even if these limits are exceeded for only a brief duration. Functional operation is not guaranteed under these conditions. Operation at absolute maximum conditions for extended periods can adversely affect long-term reliability of the device.

Table 12. Silicon Absolute Maximum Ratings

Requirement Parameter

Maximum Junction Temperature – – 125 °C VDD IO –0.5 – 3.795 V VDD RF –0.5 – 1.38 V VDDBAT3V –0.5 – 3.795 V DIGLDO_VDDIN1P5 –0.5 – 1.65 V RFLDO_VDDIN1P5 –0.5 – 1.65 V PALDO_VDDIN_5V –0.5 – 3.795 V MIC_AVDD –0.5 – 3.795 V

Table 13. ESD/Latchup

Requirement Parameter

ESD Tolerance HBM (Silicon) –2000 – 2000 V ESD Tolerance CDM (Silicon) –500 – 500 V Latch-up – 200 – mA

Table 14. Power Supply Specifications

Parameter Conditions Min. Typical Max. Unit

VDD input Module Chipset Input 2.0 3.0 3.60 V VDDPA input Module PA/LNA Input 2.0 3.0 3.60 V VDD Ripple Module Input Ripple (VDDPA, VDD) – – 100 mV VBAT Input Internal to Module (not accessible) 1.90 3.0 3.6 V PMU turn-on time VBAT is ready. – – 300 μs

Min. Nom. Max.

Specification

Unit

The CYBT-483039-02 uses an onboard low voltage detector to shut down the part when supply voltage (VDD) drops below operating range.

Table 15. Power Supply Shut Down Specifications

Parameter Min. Typical Max. Unit

SHUT

1.625 1.7 1.76 V

Core Buck Regulator

Table 16. Silicon Core Buck Regulator

Parameter Conditions Min. Typ . Max. Unit

Input supply voltage DC, VBAT DC voltage range inclusive of disturbances 1.90 3.0 3.63 V CBUCK output current LPOM only – – 65 mA

Document Number: 002-23993 Rev. ** Page 27 of 49

PRELIMINARY

CYBT-483039-02

Table 16. Silicon Core Buck Regulator (continued)

Parameter Conditions Min. Typ . Max. Unit

Output voltage range Programmable, 30mV/step

default = 1.2V (bits=0000) Output voltage DC accuracy Includes load and line regulation –4 – +4% LPOM efficiency (high load) – 85 – % LPOM efficiency (low load) – 80 – % Input supply voltage ramp-up time 0 to 3.3V 40 – – μs

n Minimum capacitor value refers to residual capacitor value after taking into account part-to-part tolerance, DC-bias, temperature,

and aging.

n Maximum capacitor value refers to the total capacitance seen at a node where the capacitor is connected. This also includes any

decoupling capacitors connected at the load side, if any.

1.21.261.5 V

Document Number: 002-23993 Rev. ** Page 28 of 49

PRELIMINARY

CYBT-483039-02

Digital LDO

Table 17. Digital LDO

Parameter Conditions Min. Typ. Max. Unit

Input supply voltage, Vin Minimum Vin=Vo+0.12V requirement must be

1.2 1.2 1.6 V

met under maximum load. Nominal output voltage,Vo Internal default setting – 1.1 – V Dropout voltage At maximum load – – 120 mV

Digital I/O Characteristics

Table 18. Digital I/O Characteristics

Characteristics Symbol Minimum Typical Maximum Unit

Input low voltage (VDD = 3V) V Input high voltage (VDD = 3V) V Input low voltage (VDD = 1.8V) V Input high voltage (VDD = 1.8V) V Output low voltage V Output high voltage V Input low current I Input high current I Output low current (VDD = 3V, V Output low current (VDD = 1.8V, V

= 0.5V) I

Output high current (VDD = 3V, VOH = 2.55V) I Output high current (VDD = 1.8V, V

= 1.35V) I

Input capacitance C

UART_TXD VOL (0.5mA) UART_TXD V UART_TXD V

(0.5mA) UART_TXD V

––0.8V

2.4 – – V ––0.4V

1.4 – – V – – 0.45 V

VDDO – 0.45V – – V

––1.0μA ––1.0μA ––8.0mA ––4.0mA ––8.0mA ––4.0mA ––0.4pF ––TBDmA

TBD – – mA

ADC Electrical Characteristics

Table 19. Electrical Characteristics

Parameter Symbol Conditions/Comments Min. Typ. Max. Unit

Current consumption I

TOT

Power down current – At room temperature – 1 – μA ADC Core Specification ADC reference voltage VREF From BG with ±3% accuracy – 0.85 – V ADC sampling clock – – – 12 – MHz Absolute error – Includes gain error, offset and

ENOB – For audio application 12 13 – Bit

ADC input full scale FS For audio application – 1.6 –

Conversion rate – For audio application 8 16 – kHz

Document Number: 002-23993 Rev. ** Page 29 of 49

––23mA

––5%

distortion. Without factory calibration. Includes gain error, offset and

––2%

distortion. After factory calibration.

For static measurement 10 – –

For static measurement 1.8 – 3.6

For static measurement 50 100 –

PRELIMINARY

CYBT-483039-02

Table 19. Electrical Characteristics (continued)

Parameter Symbol Conditions/Comments Min. Typ. Max. Unit

Signal bandwidth – For audio application 20 – 8K Hz

For static measurement – DC –

Input impedance R

Startup time – For audio application – 10 – ms

MIC PGA Specifications MIC PGA gain range – – 0 – 42 dB MIC PGA gain step – – – 1 – dB MIC PGA gain error – Includes part-to-part gain variation –1 – 1 dB PGA input referred noise – At 42 dB PGA gain A-weighted – – 4 μV Passband gain flatness – PGA and ADC, 100 Hz–4 kHz –0.5 – 0.5 dB MIC Bias Specifications MIC bias output voltage – At 2.5V supply – 2.1 – V MIC bias loading current – – – – 3 mA MIC bias noise – Refers to PGA input 20 Hz to

MIC bias PSRR – at 1 kHz 40 – – dB ADC SNR – A-weighted 0 dB PGA gain 78 – – dB ADC THD + N – –3 dBFS input 0 dB PGA gain 74 – – dB GPIO input voltage Always lower than avddBAT – – 3.6 V GPIO source impedance

– Resistance – – 1 kΩ

For audio application 10 – – KW For static measurement 500 – –

For static measurement – 20 – μs

––3μV

8 kHz, A-weighted

Capacitance – – 10 pF

1. Conditional requirement for the measurement time of 10 μs. Relaxed with longer measurement time for each GPIO input channel.

Bluetooth Silicon Current Consumption

In Table 20, current consumption measurements are taken at module input VDD = 3.0V.

Table 20. SIlicon Current Consumption BT/LE

Operational Mode Conditions Typical Unit

HCI 48 MHz with Pause 1.1 mA

48 MHz Without Pause 2.2 mA RX Continuous RX 5.9 mA TX Continuous TX - 0 dBm 5.6 mA PDS 61 μA HID-Off (SDS) 32 KHz xtal and 16 KB Retention RAM on 1.6 μA Advertising Unconnectable - 1 sec 14 μA

Connectable Undirected - 1 sec 17 μA LE Connection - SDS Master - 1 sec TBD μA

Slave - 1 sec TBD μA Page Scan - PDS Interlaced - R1 122 μA Sniff - PDS 500 ms Sniff, 1 attempt, 0 timeout - Master 132 μA

500 ms Sniff, 1 attempt, 0 timeout - Slave 138 μA

Document Number: 002-23993 Rev. ** Page 30 of 49

PRELIMINARY

CYBT-483039-02

Table 20. SIlicon Current Consumption BT/LE

Operational Mode Conditions Typical Unit

Continuous DM5 or DH5 packets - MasBi-Directional Data Exchange mA6.9ter or Slave

Table 21. Power Amplifier/Low Noise Amplifier Current Consumption Specifications

Parameter Test Condition Min Typi cal Max Unit

Tx High Power Current

Pout = +18dBm

Chipset RF Specifications

Ta bl e 2 2 and Table 23 apply to single-ended industrial temperatures. Unused inputs are left open.

Table 22. Chipset Receiver RF Specifications

Parameter Mode and Conditions Min Ty p Max Unit

RX sensitivity

8-DPSK, 0.01% BER –88.0–, 3 Mbps

GFSK Modulation

GFSK, 0.1% BERC/I cochannel GFSK, 0.1% BERC/I 1 MHz adjacent channel GFSK, 0.1% BERC/I 2 MHz adjacent channel

C/I ≥ GFSK, 0.1% BER3 MHz adjacent channel

GFSK, 0.1% BERC/I image channel GFSK, 0.1% BERC/I 1 MHz adjacent to image channel

QPSK Modulation

C/I cochannel

/4-DQPSK, 0.1% BER

C/I 1 MHz adjacent channel π/4-DQPSK, 0.1% BER C/I 2 MHz adjacent channel π/4-DQPSK, 0.1% BER C/I ≥ 3 MHz adjacent channel C/I image channel

/4-DQPSK, 0.1% BER

π π

/4-DQPSK, 0.1% BER

C/I 1 MHz adjacent to image channelπ/4-DQPSK, 0.1% BER

8PSK Modulation

8-DPSK, 0.1% BERC/I cochannel 8-DPSK, 0.1% BERC/I 1 MHz adjacent channel 8-DPSK, 0.1% BERC/I 2 MHz adjacent channel

C/I ≥ 8-DPSK, 0.1% BER3 MHz adjacent channel

8-DPSK, 0.1% BERC/I image channel

C/I 1 MHz adjacen 8-DPSK, 0.1% BERt to image channel

Out-of-Band Blocking Performance (CW)

–92.0–GFSK, 0.1% BER, 1 Mbps

–94.0–/4-DQPSK, 0.01% BER, 2 Mbps

mA100 mA17No RF appliedTx Quiescent Current mA8No RF appliedRx Quiescent Current

MHz2480–2402–Frequency range dBm– dBm– dBm– dBm–20––All data ratesMaximum input

dB11.0–– dB0–– dB–30.0–– dB–40.0–– dB–9.0–– dB–20.0––

dB13.0–– dB0–– dB–30.0–– dB–40.0–– dB–9.0–– dB–20.0––

dB21.0–– dB5.0–– dB–25.0–– dB–33.0–– dB0–– dB13––

dBm––10.0–BDR GFSK 0.1% BER30 MHz to 2000 MHz

Document Number: 002-23993 Rev. ** Page 31 of 49

PRELIMINARY

CYBT-483039-02

Table 22. Chipset Receiver RF Specifications (continued)

Parameter Mode and Conditions Min Ty p Max Unit

2000 MHz to 2399 MHz BDR GFSK 0.1% BER – –27.0 – dBm 2498 MHz to 3000 MHz BDR GFSK 0.1% BER – –27.0 – dBm 3000 MHz to 12.75 GHz BDR GFSK 0.1% BER – –10.0 – dBm

Inter-modulation Performance

BT, interferer signal level BDR GFSK 0.1% BER – – –39.0 dBm Spurious Emissions 30 MHz to 1 GHz – – – –57.0 dBm 1 GHz to 12.75 GHz – – – –55.0 dBm

1. Dirty TX is off

2. Up to 1dB of variation may potentially be seen from typical sensitivity specs due to the chip, board and associated variations

3. The receiver sensitivity is measured at BER of 0.1% on the device interface.

4. Desired signal is 10 dB above the reference sensitivity level (defined as –70 dBm).

5. Desired signal is 3 dB above the reference sensitivity level (defined as –70 dBm).

6. Desired signal is -64 dBm Bluetooth-modulated signal, interferer 1 is –39 dBm sine wave at frequency f1, interferer 2 is –39 dBm Bluetooth modulated signal at

frequency f2, f0 = 2*f1 – f2, and |f2 – f1| = n*1 MHz, where n is 3, 4, or 5. For the typical case, n = 4.

Table 23. Chipset Transmitter RF Specifications

Parameter Min Ty p Max Unit

Transmitter Section

Frequency range 2402 – 2480 MHz Class 2: GFSK Tx power – 4.0 – dBm Class 2: EDR Tx Power – 0 – dBm 20 dB bandwidth – 930 1000 kHz

Adjacent Channel Power

|M – N| = 2 – – –20 dBm |M – N| ≥ 3 – – –40 dBm

Out-of-Band Spurious Emission

30 MHz to 1 GHz – – –36.0 dBm 1 GHz to 12.75 GHz – – –30.0 dBm

1.8 GHz to 1.9 GHz – – –47.0 dBm

5.15 GHz to 5.3 GHz – – –47.0 dBm

LO Performance

Initial carrier frequency tolerance –75 – +75 kHz Frequency Drift DH1 packet –25 – +25 kHz DH3 packet –40 – +40 kHz DH5 packet –40 – +40 kHz Drift rate –20 20 kHz/50 µs

Frequency Deviation

Average deviation in payload

140 – 175 kHz

(sequence used is 00001111) Maximum deviation in payload

115 – – k Hz

(sequence used is 10101010) Channel spacing – 1 – MHz

Modulation Accuracy

Document Number: 002-23993 Rev. ** Page 32 of 49

PRELIMINARY

CYBT-483039-02

Table 23. Chipset Transmitter RF Specifications (continued)

Parameter Min Ty p Max Unit

π kHz10––10/4-DQPSK Frequency Stability π π π

In-Band Spurious Emissions

1.0 MHz < |M – N| < dBc–26––1.5 MHz

1.5 MHz < |M – N| < dBm–20––2.5 MHz

Table 24. BLE RF Specifications

Parameter Conditions Minimum Ty pi cal Maximum Unit

Rx sensitivity (QFN)

Mod Char: Delta F2 max

%20––/4-DQPSK RMS DEVM %35––/4-QPSK Peak DEVM %30––/4-DQPSK 99% DEVM

kHz10––108-DPSK frequency stability

%13––8-DPSK RMS DEVM %25––8-DPSK Peak DEVM %20––8-DPSK 99% DEVM

dBm–40––|M – N| > 2.5 MHz

MHz2480–2402N/AFrequency range

–95.0–LE GFSK, 0.1% BER, 1 Mbps

––Module total output powerTx power

dBm– dBm–4.0–BLE Silicon Device CYW20719 OnlyTx power dBm

kHz275255225N/AMod Char: Delta F1 average

%––99.9N/A %–0.950.8N/AMod Char: Ratio

1. Dirty Tx is Off p to 1dB of variation may potentially be seen from typical sensitivity specs due to the chip, board and associated variations

2. U

3. At least 99.9% of all delta F2 max frequency values recorded over 10 packets must be greater than 185 kHz.

Table 25. CYBT-483039-02 GPS and GLONASS Band Spurious Emission

Parameter Condition Min. Typ. Max. Unit

dBm/Hz––160–GPS1570-1580 MHz dBm/Hz––159–GLONASS1592-1610 MHz

Document Number: 002-23993 Rev. ** Page 33 of 49

PRELIMINARY

CYBT-483039-02

Timing and AC Characteristics

In this section, use the numbers listed in the Reference column of each table to interpret the following timing diagrams.

UART Timing

Table 26. UART Timing Specifications

Reference Characteristics Min. Ty p. Max. Unit

1 Delay time, UART_CTS_N low to UART_TXD valid. – – 1.50 Bit periods 2 Setup time, UART_CTS_N high before midpoint of stop bit. – – 0.67 Bit periods 3 Delay time, midpoint of stop bit to UART_RTS_N high. – – 1.33 Bit periods

Figure 14. UART Timing

Document Number: 002-23993 Rev. ** Page 34 of 49

PRELIMINARY

CYBT-483039-02

SPI Timing

The SPI interface can be clocked up to 24 MHz.

Ta bl e 2 7 and Figure 15 show the timing requirements when operating in SPI Mode 0 and 2.

Table 27. SPI Mode 0 and 2

Reference Characteristics Min. Max. Unit

1 Time from master assert SPI_CSN to first clock edge 45 – ns 2 Hold time for MOSI data lines 12 3 Time from last sample on MOSI/MISO to slave deassert SPI_INT 0 100 ns 4 Time from slave deassert SPI_INT to master deassert SPI_CSN 0 – ns 5 Idle time between subsequent SPI transactions 1 SCK – ns

Figure 15. SPI Timing, Mode 0 and 2

½ SCK ns

Document Number: 002-23993 Rev. ** Page 35 of 49

PRELIMINARY

CYBT-483039-02

Ta bl e 2 8 and Figure 16 show the timing requirements when operating in SPI Mode 1 and 3.

Table 28. SPI Mode 1 and 3

Reference Characteristics Min. Max. Unit

Figure 16. SPI Timing, Mode 1 and 3

½ SCK ns

Document Number: 002-23993 Rev. ** Page 36 of 49

PRELIMINARY

CYBT-483039-02

I2C Compatible Interface Timing

The specifications in Table 29 references Figure 17.

Table 29.

Reference Characteristics Minimum Maximum Unit

1. As a transmitter, 125 ns of delay is provided to bridge the undefined region of the falling edge of SCL to avoid unintended generation

of START or STOP conditions.

2. Time that the CBUS must be free before a new transaction can start.

I2C Compatible Interface Timing Specifications (up to 1 MHz)

1 Clock frequency – 100 kHz

400 800

1000 2 START condition setup time 650 – ns 3 START condition hold time 280 – ns 4 Clock low time 650 – ns 5 Clock high time 280 – ns 6 Data input hold time 7 Data input setup time 100 – ns 8 STOP condition setup time 280 – ns 9 Output valid from clock – 400 ns

10 Bus free time

Figure 17. I

C Interface Timing Diagram

0 – ns

650 – ns

Document Number: 002-23993 Rev. ** Page 37 of 49

PRELIMINARY

CYBT-483039-02

I2S Interface Timing

I2S timing is shown below in Table 30, Figure 18, and Figure 19.

Table 30. Timing for I

Clock Period T T

HIGH t

LOWt

HIGH t

LOW t

Rise time t

Delay t

Hold time t

Setup time t

Hold time t

1. The system clock period T must be greater than Ttr and Tr because both the transmitter and receiver have to be able to handle the data transfer rate.

dtr

htr

2.At all data rates in master mode, the transmitter or receiver generates a clock signal with a fixed mark/space ratio. For this reason, t

are specified with respect to T.

3.In slave mode, the transmitter and receiver need a clock signal with minimum HIGH and LOW periods so that they can detect the signal. So

long as the minimum periods are greater than 0.35T

4.Because the delay (t

result in t or equal to zero, so long as the clock rise-time t

5. To allow data to be clocked out on a falling edge, the delay is specified with respect to the rising edge of the clock signal and T, always giving the receiver sufficient setup time.

6. The data setup and hold time must not be less than the specified receiver setup and hold time.

not exceeding tRC which means t

dtr

S Transmitters and Receivers

Transmitter Receiver

Min Max Min Max Min Max Min Max

–––Tr–––

Master Mode: Clock generated by transmitter or receiver

0.35T

– – – 0.35T

–––

Slave Mode: Clock accepted by transmitter or receiver

–0.35Ttr–––0.35Ttr––

– – 0.15T

––– –

Transmi tter

–––0.8T––––

0–––––––

Receiver

––––0.2Ttr–––

, any clock that meets the requirements can be used.

) and the maximum transmitter speed (defined by Ttr) are related, a fast transmitter driven by a slow clock edge can

dtr

becomes zero or negative. Therefore, the transmitter has to guarantee that t

htr

is not more than t

RCmax

, where t

is not less than 0.15Ttr.

RCmax

is greater than

htr

NotesLower LImit Upper Limit Lower Limit Upper Limit

and

Document Number: 002-23993 Rev. ** Page 38 of 49

PRELIMINARY

CYBT-483039-02

Figure 18. I2S Transmitter Timing

Figure 19. I

S Receiver Timing

Document Number: 002-23993 Rev. ** Page 39 of 49

PRELIMINARY

CYBT-483039-02

Environmental Specifications

Note

6. This does not apply to the RF pins (ANT).

Environmental Compliance

This Cypress BLE module is produced in compliance with the Restriction of Hazardous Substances (RoHS) and Halogen-Free (HF) directives. The Cypress module and components used to produce this module are RoHS and HF compliant.

RF Certification

The CYBT-483039-02 module is certified under the following RF certification standards:

n FCC: WAP3039

n IC: 7922A-3039

n MIC: TBD

n CE

Safety Certification

The CYBT-483039-02 module complies with the following safety regulations:

n Underwriters Laboratories, Inc. (UL): Filing E331901

n CSA

n TUV

Environmental Conditions

Ta bl e 3 1 describes the operating and storage conditions for the Cypress BLE module.

Table 31. Environmental Conditions for CYBT-483039-02

Description Minimum Specification Maximum Specification

Operating temperature −30 °C 85 °C Operating humidity (relative, non-condensation) 5% 85% Thermal ramp rate Storage temperature Storage temperature and humidity

ESD: Module integrated into system Components

[6]

– 10 °C/minute

–40 °C 85 °C

– 85 °C at 85%

–

15 kV Air

2.0 kV Contact

ESD and EMI Protection

Exposed components require special attention to ESD and electromagnetic interference (EMI). A grounded conductive layer inside the device enclosure is suggested for EMI and ESD performance. Any openings in the enclosure

near the module should be surrounded by a grounded conductive layer to provide ESD protection and a low-impedance path to ground. Device Handling: Proper ESD protocol must be followed in manufacturing to ensure component reliability.

Document Number: 002-23993 Rev. ** Page 40 of 49

PRELIMINARY

CYBT-483039-02

Regulatory Information

FCC

FCC NOTICE: The device CYBT-483039-02 complies with Part 15 of the FCC Rules. The device meets the requirements for modular transmitter

approval as detailed in FCC public Notice DA00-1407.transmitter Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

CAUTION:

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Cypress Semiconductor may void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,ê may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help

LABELING REQUIREMENTS: The Original Equipment Manufacturer (OEM) must ensure that FCC labelling requirements are met. This includes a clearly visible

label on the outside of the OEM enclosure specifying the appropriate Cypress Semiconductor FCC identifier for this product as well as the FCC Notice above. The FCC identifier is FCC ID: WAP3039.

In any case the end product must be labeled exterior with “Contains FCC ID: WAP3039”.

ANTENNA WARNING: This device is tested with a standard SMA connector and with the antenna listed in Table 7 on page 15. When integrated in the OEMs

product, this fixed antenna requires installation preventing end-users from replacing them with non-approved antennas. Any antenna not in Table 7 on page 15 must be tested to comply with FCC Section 15.203 for unique antenna connectors and Section 15.247 for emissions.

RF EXPOSURE: To comply with FCC RF Exposure requirements, the Original Equipment Manufacturer (OEM) must ensure to install the approved

antenna in the previous. The preceding statement must be included as a CAUTION statement in manuals, for products operating with the approved antennas

in Table 7 on page 15, to alert users on FCC RF Exposure compliance. Any notification to the end user of installation or removal instructions about the integrated radio module is not allowed.

SAR is not required for this module as long as the distance is higher than 33mm away from user. End users

may

not be

provided

with

the module installation instructions. OEM

integrators

and end users must be

provided

with

transmitter operating conditions for satisfying RF exposure compliance.

Document Number: 002-23993 Rev. ** Page 41 of 49

PRELIMINARY

CYBT-483039-02

ISED

Innovation, Science and Economic Development (ISED) Canada Certification

CYBT-483039-02 is licensed to meet the regulatory requirements of Innovation, Science and Economic Development (ISED) Canada. License: IC: 7922A-3039 Manufacturers of mobile, fixed or portable devices incorporating this module are advised to clarify any regulatory questions and ensure

compliance for SAR and/or RF exposure limits. Users can obtain Canadian information on RF exposure and compliance from

www.ic.gc.ca.

This device has been designed to operate with the antennas listed in Table 7 on page 15, having a maximum gain of 2.3 dBi. Antennas not included in Table 7 on page 15 or having a gain greater than 2.3 dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISED NOTICE: The device CYBT-483039-02 including the built-in trace antenna complies with Canada RSS-GEN Rules. The device meets the

requirements for modular transmitter approval as detailed in RSS-GEN. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

L'appareil CYBT-483039-02, y compris l'antenne intégrée, est conforme aux Règles RSS-GEN de Canada. L'appareil répond aux exigences d'approbation de l'émetteur modulaire tel que décrit dans RSS-GEN. L'opération est soumise aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d'interférences nuisibles, et (2) Cet appareil doit accepter toute interférence reçue, y compris les interférences pouvant entraîner un fonctionnement indésirable.

ISED INTERFERENCE STATEMENT FOR CANADA This device complies with Innovation, Science and Economic Development (ISED) Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil est conforme à la norme sur l'innovation, la science et le développement économique (ISED) norme RSS exempte de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

ISED RADIATION EXPOSURE STATEMENT FOR CANADA The antenna of this transmitter must provide a separation distance of at least 35 mm from all persons. Installers and end-users

must be provided with antenna installation instructions and transmitter operating conditions and instructions for satisfying RF

exposure compliance.

Compliance of this device in all final product configurations is the responsibility of the Grantee. Installation of this device into specific final products may require the submission of a Class II permissive change application,

containing data pertinent to RF Exposure, emissions and host/module authentication, or new application if appropriate. The final product operating with this transmitter must include operating instructions and antenna installation instructions, for end-users and installers to satisfy RF exposure compliance requirements.

L'antenne de cet émetteur doit fournir une distance de séparation d'au moins 35 mm par rapport à toutes les personnes. Les installateurs et les utilisateurs finaux doivent recevoir les instructions d'installation de l'antenne ainsi que les conditions d'utilisation

de l'émetteur et les instructions pour satisfaire à la conformité à l'exposition aux radiofréquences.

La conformité de cet appareil dans toutes les configurations de produit final est la responsabilité du bénéficiaire. L'installation de cet appareil dans des produits finaux spécifiques peut nécessiter la soumission d'une demande de modification permissive de classe II, contenant des données pertinentes sur l'exposition RF, les émissions et l'authentification hôte / module, ou une nouvelle application, le cas échéant. Le produit final fonctionnant avec cet émetteur doit inclure des instructions d'utilisation et des instructions d'installation de l'antenne, pour les utilisateurs finaux et les installateurs afin de satisfaire aux exigences de conformité en matière d'exposition aux RF.

Document Number: 002-23993 Rev. ** Page 42 of 49

PRELIMINARY

CYBT-483039-02

LABELING REQUIREMENTS:

The Original Equipment Manufacturer (OEM) must ensure that ISED labelling requirements are met. This includes a clearly visible label on the outside of the OEM

the ISED Notices above. The IC identifier is 7922A-3039. In any case, the end product must be labeled in its exterior with "Contains IC:7922A-3039".

Le fabricant d'équipement d'origine (OEM) doit s'assurer que les exigences d'étiquetage ISED sont respectées. Cela comprend une

étiquette clairement visible à l'extérieur de l'enceinte OEM spécifiant l'identifiant Cypress Semiconductor IC approprié pour

ainsi que l'avis ISED ci-dessus. L'identificateur IC est 7922A-3039. En tout cas, le produit final doit être étiqueté dans son extérieur avec "Contient IC: 7922A-3039".

enclosure specifying the appropriate Cypress Semiconductor IC identifier for this product as well as

ce produit

European Declaration of Conformity

Hereby, Cypress Semiconductor declares that the Bluetooth modul other relevant provisions of Directive 2014. As a result of the 2014, the end-customer equipment

should be labeled as follows:

e CYBT-483039-02 complies with the essential requirements and

conformity assessment procedure described in Annex III of the

Directive

All versions of the CYBT-483039-02 in the specified reference d Czech Republic, Denmark, Estonia, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, the United Kingdom, Switzerland, and Norway.

Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Ma

esign can be used in the following countries: Austria, Belgium, Cyprus,

MIC Japan

More Part Numbers is certified as a module with certification n need additional MIC Japan certi

End product can display the certif

fication for t

ication label of the embedded module.

he end product.

umber TBD. End products that integrate More Part Numbers do not

lta,

Document Number: 002-23993 Rev. ** Page 43 of 49

PRELIMINARY

CYBT-483039-02

Packaging

Table 32. Solder Reflow Peak Temperature

Module Part Number Package Maximum Peak Temperature Maximum Time at Peak Temperature No. of Cycles

CYBT-483039-02 34-pad SMT 260 °C 30 seconds 2

Table 33. Package Moisture Sensitivity Level (MSL), IPC/JEDEC J-STD-2

Module Part Number Package MSL

CYBT-483039-02 34-pad SMT MSL 3

The CYBT-483039-02 is offered in tape and reel packaging. Figure 20 details the tape dimensions used for the CYBT-483039-02.

Figure 20. CYBT-483039-02 Tape Dimensions

Figure 21 details the orientation of the CYBT-483039-02 in the tape as well as the direction for unreeling.

Figure 21. Component Orientation in Tape and Unreeling Direction (TBD)

Document Number: 002-23993 Rev. ** Page 44 of 49

PRELIMINARY

CYBT-483039-02

Figure 22 details reel dimensions used for the CYBT-483039-02.

Figure 22. Reel Dimensions

The CYBT-483039-02 is designed to be used with pick-and-place equipment in an SMT manufacturing environment. The center-of-mass for the CYBT-483039-02 is detailed in Figure 23.

Figure 23. CYBT-483039-02 Center of Mass (TBD)

Document Number: 002-23993 Rev. ** Page 45 of 49

PRELIMINARY

CYBT-483039-02

Ordering Information

Ta bl e 3 4 lists the CYBT-483039-02 part number and features. Ta bl e 3 4 also lists the target program for the respective module ordering

codes. Ta bl e 3 5 lists the reel shipment quantities for the CYBT-483039-02.

Table 34. Ordering Information

Ordering Part

Number

CYBT-483039-02 96 1024 512 Yes Yes Yes Yes Yes 6 10 15 34-SMT Tape and Reel

Table 35. Tape and Reel Package Quantity and Minimum Order Amount

Description Minimum Reel Quantity Maximum Reel Quantity Comments

Reel Quantity Minimum Order Quantity (MOQ) Order Increment (OI)

The CYBT-483039-02 is offered in tape and reel packaging. The CYBT-483039-02 ships in a reel size of 500 units.

For additional information and a complete list of Cypress Semiconductor Bluetooth products, contact your local Cypress sales representative. To locate the nearest Cypress office, visit our website.

U.S. Cypress Headquarters Address 198 Champion Court, San Jose, CA 95134 U.S. Cypress Headquarter Contact Info (408) 943-2600 Cypress website address http://www.cypress.com

Max CPU

Speed (MHz)

Flash

Size

(KB)

RAM

Size

UART I2C SPI I2S PCM PWM

(KB)

500 500 Ships in 500 unit reel quantities. 500 – – 500 – –

ADC

Inputs

GPIOs Package Packaging

Document Number: 002-23993 Rev. ** Page 46 of 49

PRELIMINARY

CYBT-483039-02

Acronyms Document Conventions

Table 36. Acronyms Used in this Document

Acronym Description

BLE Bluetooth Low Energy Bluetooth SIG Bluetooth Special Interest Group CE European Conformity CSA Canadian Standards Association EMI electromagnetic interference ESD electrostatic discharge FCC Federal Communications Commission GPIO general-purpose input/output

ISED

IDE integrated design environment KC Korea Certification

MIC

PCB printed circuit board RX receive QDID qualification design ID

SMT

TCPWM timer, counter, pulse width modulator (PWM)

TUV

TX transmit

Innovation, Science and Economic Development (Canada)

Ministry of Internal Affairs and Communications (Japan)

surface-mount technology; a method for producing electronic circuitry in which the components are placed directly onto the surface of PCBs

Germany: Technischer Überwachungs-Verein (Technical Inspection Association)

Units of Measure

Table 37. Units of Measure

Symbol Unit of Measure

°C degree Celsius kV kilovolt mA milliamperes mm millimeters mV millivolt

μA microamperes μm micrometers

MHz megahertz GHz gigahertz Vvolt

Document Number: 002-23993 Rev. ** Page 47 of 49

PRELIMINARY

CYBT-483039-02

Document History Page

Document Title: CYBT-483039-02 EZ-BT™ XR WICED® Module Document Number: 002-23993

Revision ECN

** DSO 05/17/2018 Preliminary datasheet for CYBT-483039-02 module.

Orig. of Change

Submission

Date

Description of Change

Document Number: 002-23993 Rev. ** Page 48 of 49

PRELIMINARY

CYBT-483039-02

Sales, Solutions, and Legal Information

Worldwide Sales and Design Support

Cypress maintains a worldwide network of offices, solution centers, manufacturer’s representatives, and distributors. To find the office closest to you, visit us at Cypress Locations.

Products

ARM® Cortex® Microcontrollers cypress.com/arm Automotive cypress.com/automotive Clocks & Buffers cypress.com/clocks Interface cypress.com/interface Internet of Things cypress.com/iot Memory cypress.com/memory Microcontrollers cypress.com/mcu PSoC cypress.com/psoc Power Management ICs cypress.com/pmic Touch Sensing cypress.com/touch USB Controllers cypress.com/usb Wireless Connectivity cypress.com/wireless

PSoC® Solutions

PSoC 1 | PSoC 3 | PSoC 4 | PSoC 5LP | PSoC 6

Cypress Developer Community

Technical Support

cypress.com/support

© Cypress Semiconductor Corporation, 2018. This document is the property of Cypress Semiconductor Corporation and its subsidiarie s, including Spansion LLC ("C ypress"). This doc ument, inclu ding any software or firmware included or referenced in this document ("Software"), is owned by Cypress under the intellectual property laws and treaties of the United States and other countries worldwide. Cypress reserves all rights under such laws and treaties and does not, except as specifically stated in this paragraph, grant any license under its patents, copyrights, trademarks, or other intellectual property rights. If the Software is not accompanied by a license agreement and you do not otherwise have a written agreement with Cypress governing the use of the Software, then Cypress hereby grants you a personal, non-exclusive, nontransferable license (without the right to sublicense) (1) under its copyright rights in the Software (a) for Software provided in source code form, to modify and reproduce the Software solely for use with Cypress hardware products, only internally within your organization, and (b) to distribute the Software in binary code form externally to end users (either directly or indirectly through resellers and distributors), solely for use on Cypress hardware product units, and (2) under those claims of Cypress's patents that are infringed by the Software (as provided by Cypress, unmodified) to make, use, distribute, and import the Software solely for use with Cypress hardware products. Any other use, reproduction, modification, translation, or compilation of the Software is prohibited.

TO THE EXTENT PERMITTED BY APPLICABLE LAW, CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS DOCUMENT OR ANY SOFTWARE OR ACCOMPANYING HARDWARE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent permitted by applicable law, Cypress reserves the right to make changes to this document without further notice. Cypress does not assume any liability arising out of the application or use of any product or circuit described in this document. Any information provided in this document, including any sample design information or programming code, is provided only for reference purposes. It is the responsibility of the user of this document to properly design, program, and test the functionality and safety of any application made of this informa tion and any resulting product. Cypress products are not designed, intended, or authorized for use as critical components in systems designed or intended for the operation of weapons, weapons systems, nuclear installations, life-support devices or systems, other medical devices or systems (including resuscitation equipment and surgical implants), pollution control or hazardous substances management, or other uses where the failure of the device or system could cause personal injury, death, or property damage ("Unintended Uses"). A critical component is any component of a device or system whose failure to perform can be reasonably expected to cause the failure of the device or system, or to affect its safety or effectiveness. Cypress is not liable, in whole or in part, and you shall and hereby do release Cypress from any claim, damage, or other liability arising from or related to all Unintended Uses of Cypress products. You shall indemnify and hold Cypress harmless from and against all claims, costs, damages, and other liabilities, including claims for personal injury or death, arising from or related to any Unintended Uses of Cypress products.

Cypress, the Cypress logo, Spansion, the Spansion logo, and combinations thereof, WICED, PSoC, CapSense, EZ-USB, F-RAM, and Traveo are trademarks or registered trademarks of Cypress in the United States and other countries. For a more complete list of Cypress trademarks, visit cypress.com. Other names and brands may be claimed as property of their respective owners.

Document Number: 002-23993 Rev. ** Revised May 22, 2018 Page 49 of 49

Cypress Semiconductor 3039 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

General Description

Module Description

RF Characteristics

Power Consumption

Functional Capabilities

Benefits

More Information

References

Development Environments

Technical Support

Overview

Functional Block Diagram

Module Description

Module Dimensions and Drawing

Pad Connection Interface

Recommended Host PCB Layout

Module Connections

Connections and Optional External Components

Power Connections (VDD and VDDPA)

Considerations and Optional Components for Brown Out (BO) Conditions

External Reset (XRES)

HCI UART Connections

External Component Recommendation

Power Supply Input Options and Circuitry

Critical Components List

Antenna Design

Power Amplifier (PA) and Low Noise Amplifier (LNA)

Bluetooth Baseband Core

BQB and Regulatory Testing Support

Power Management Unit

Integrated Radio Transceiver

Transmitter Path

Digital Modulator

Power Amplifier

Receiver Path

Digital Demodulator and Bit Synchronizer

Receiver Signal Strength Indicator

Local Oscillator

Microcontroller Unit

External Reset

Peripheral and Communication Interfaces

HCI UART Interface

Peripheral UART Interface

Serial Peripheral Interface

MIPI interface

32 kHz Crystal Oscillator

ADC Port

GPIO Ports

PDM Microphone

I2S Interface

PCM Interface

Slot Mapping

Frame Synchronization

Data Formatting

Burst PCM Mode

Security Engine

Random Number Generator

Power Modes

Firmware

Electrical Characteristics

Core Buck Regulator

Digital LDO

Digital I/O Characteristics

ADC Electrical Characteristics

Bluetooth Silicon Current Consumption

Chipset RF Specifications

Timing and AC Characteristics

UART Timing

SPI Timing

I2C Compatible Interface Timing

I2S Interface Timing

Environmental Specifications

Environmental Compliance

RF Certification

Safety Certification

Environmental Conditions
