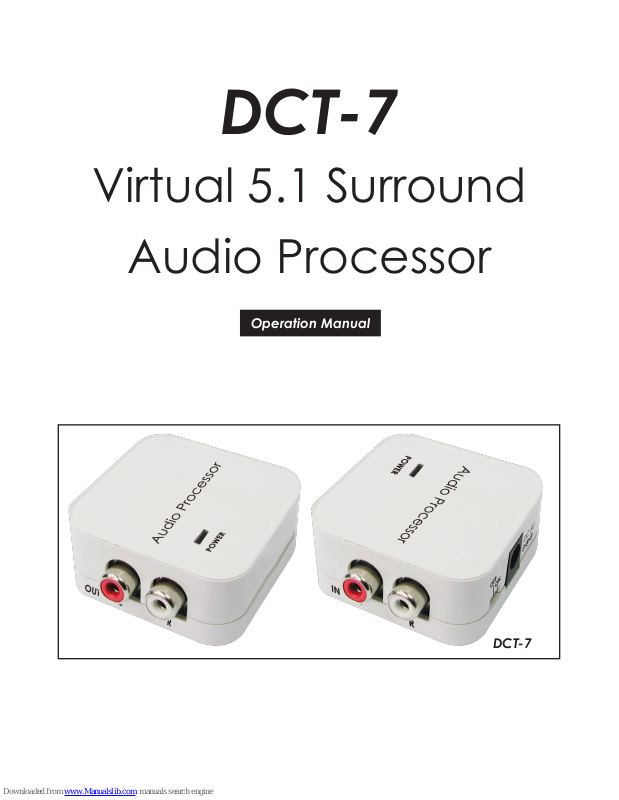

Page 1
DCT-7
Virtual 5.1 Surround
Audio Processor
Operation Manual
DCT-7
Page 2
Revision History
Version No Date Summary of Change
V1 20090408 Preliminary Release
Precaution
Failure to follow the precautions described below may cause damage to
Audio Processor and void the warranty.
DO NOT open the case. Doing so will void the warranty. If you find
problem with it, please return back to your retailer or seller who will
assist you or provide you with solution.
DO NOT use third-Party AC adapter or power cord. Doing so may
damage Audio Processor.
DO NOT bump, jar or drop contents of the products as it may
damage it and result in warranty void.
DO NOT set any liquids or beverages on the drive as they may
damage Audio Processor.
Page 3
Table of Contents
1
1
1
1
2
3
3
3
3
4
4
1. Introduction…………………………………………………........……….
2. Application…………………………………………………................….
3. Contents……………………………………………….........................…
4. System Require…………………………………….…………........…….
5. Features…………………………………………….......……........………
6. Operation Controls and Functions…………………………………….
6.1 Front Panel ...............................................................................
6.2 Rear Panel ………………………………………….........….….…
6.3 Side Panel ………………………………………….........….….…
7. Connection and Installation…………………………….........……..…
8. Specications……………………………………………...........………..
Page 4
1. Introduction
The Audio Processor is a comprehensive application for your entertainment
usage. It allows stereo sound to imitate 5.1CH sound and adjust different
sound volume into a balance form to make the listening more enjoyable.
With only a pair of L/R input and a pair of L/R output users can set up the
surrounding very easily and play the sound directly. Without extra speakers
require a theater like sound will be performed.
2. Application
Home Theater
Personal Entertainment
Cable TV
Night time entertainment
3. Contents
Audio processer x 1
5V/1A Power adaptor x 1
Operational Manual
4. System Require
Source input (DVD player, PS3, Wii ….etc.) with L/R RCA cable and L/R
RCA cable with output display TV.
1
Page 5
5. Features
Supports stereo 2 channels input and converts a surround audio signal
(5.1 channels) output through L/R jack.
Support AST (Adaptive Surround Technology) technology to coverts 2
channels audio signal to Virtual 5.1 channels surround sound audio.
Support DVX (Virtualizer X) technology for virtual 5.1 channels surround
sound audio.
Support DBEX (Bandwidth Extender) technology to compensate the
low/high frequency and perform it in real environment sound effects.
Support DSC (Smart Compression) technology to correct some error
sound effects.
Compact size and easy to install.
2
Page 6
①
L/R output: Connect L/R stereo analog audio output to the display audio
input of TV.
6.2 Rear Panel
LROUT
1
①
L/R input: Connect L/R stereo analog audio input port to the L/R source
equipment, such as DVD player or PS3.
6. Operation Controls and Functions
6.1 Front Panel
1
IN RL
6.3 Side Panel
1
DC 5V
OFF
ON
2
①
On/Off switch: Switch On/Off to enable the stereo sound into 5.1CH Sound.
②
Power: Plug 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
3
Page 7
Input ports L/R stereo
Input Impedance 6.8K
Output ports L/R surround sound
Output Impedance 1K
Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified)
Dimensions (mm) 42(W) x 40.5(D) x 22(H)
Weight(g) 25
Chassis Material Plastic
Silk Skin Color White
Operating Temperature Operating from 0°C ~ 40°C
Power Consumption 0.5W
7. Connection and Installation
8. Specications
L/R
L/R
L/R
L/R
DVD
PS3
or
LCD TV
4
Page 8
2008.07.08 MPM-DCT7
Home page: http://www.cypress.com.tw
