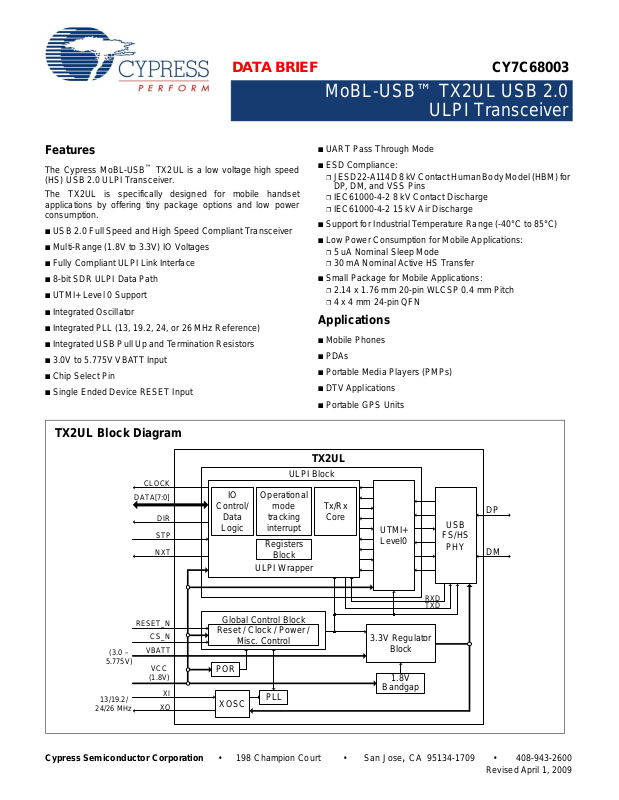

DATA BRIEF

CY7C68003

MoBL-USB™ TX2UL USB 2.0

ULPI T ransceiver

Features

TX2UL

ULPI Block

XOSC

ULPI Wrapper

UTMI+ Level0

DATA[7:0]

CLOCK

DIR

STP NXT

VBATT

13/19.2/

24/26 MHz

RESET_N

Control/

Data

Logic

Operational

mode

tracking

interrupt

Tx/Rx

Core

Registers

Block

Global Control Block

Reset / Clock / Power /

Misc. Control

POR

PLL

1.8V

Bandgap

USB

FS/HS

PHY

CS_N

3.3V Regulator Block

(3.0 –

5.775V) VCC

(1.8V)

RXD TXD

TX2UL Block Diagram

The Cypress MoBL-USB™ TX2UL is a low voltage high speed (HS) USB 2.0 ULPI Transceiver.

The TX2UL is specifically designed for mobile handset applications by offering tiny package options and low power consumption.

■ USB 2.0 Full Speed and High Speed Compliant Transceiver

■ Multi-Range (1.8V to 3.3V) IO Voltages

■ Fully Compliant ULPI Link Interface

■ 8-bit SDR ULPI Data Path

■ UTMI+ Level 0 Support

■ Integrated Oscillator

■ Integrated PLL (13, 19.2, 24, or 26 MHz Reference)

■ Integrated USB Pull Up and Termination Resistors

■ 3.0V to 5.775V VBATT In pu t

■ Chip Select Pin

■ Single Ended Device RESET Input

■ UART Pass Through Mode

■ ESD Compliance: ❐ JESD22-A114D 8 kV Cont act Human Body Model (HBM) for

DP, DM, and VSS Pins

❐ IEC61000-4-2 8 kV Contact Discharge ❐ IEC61000-4-2 15 kV Air Discharge

■ Support for Industrial Temperature Range (-40°C to 85°C)

■ Low Power Consumption for Mobile Applications: ❐ 5 uA Nominal Sleep Mode ❐ 30 mA Nominal Active HS Transfer

■ Small Package for Mobile Applications: ❐ 2.14 x 1.76 mm 20-pin WLCSP 0.4 mm Pitch

❐ 4 x 4 mm 24-pin QFN

Applications

■ Mobile Phones

■ PDAs

■ Portable Media Players (PMPs)

■ DTV Applications

■ Portable GPS Units

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600

Revised April 1, 2009

CY7C68003

Functional Overview

TX2UL

txd

DATA[0]

DATA[1]

rxd

TXD RXD

USB

INTERFACE

ULPI

INTERFACE

UTMI+ Low Pin Interface (ULPI)

This block conforms to the ULPI Specification. It supports the 8-bit wide SDR data path. The primary IOs of this block support multi-range LVCMOS signaling from 1.8V to 3.3V (±5%). The level used is automatically selected by the voltage applied to Vccio and is set at any voltage between 1.8V and 3.3V.

Oscillator (OSC)

This block meets the requirements of both the on-chip PLL and the USB-IF requirements for clock parameters. It is a fundamental mode parallel resonant oscillator with a maximum ESR of 60 ohms. It supports the following:

■ Integrated Crystal Oscillator - 13, 19.2, 24, or 26 MHz crystal

■ 13, 19.2, 24, or 26 MHz LVCMOS single ended input clock on XI

Phase Locked Loop (PLL)

The PLL meets all clock stability requirements imposed by this device and the USB standard. It supports all requirements to make the device compliant to the USB 2.0 specifications. It also has a fractional multiplier that enables it to supply the correct frequency to the device when it is presented with a 13, 19.2, 24, or 26 MHz reference clock.

Power On Reset (POR)

This block provides a power on reset signal (internal) based on the input supply. An internal power on reset is generated when VCC input rises above VPOR(trip).

Reset (RESET_N)

The three major functions of RESET_N pin are as follows:

■ Reset TX2UL

■ Place TX2UL into Sleep Mode

■ Place TX2UL into Configuration Mode

When the RESET_N pin is asserted (low) for tSTATE (tST ATE is specified in Table 21 on page 19), the TX2UL enters into either Sleep Mode or Configuration Mode depending on the CS_N state. When RESET_N is asserted while CS_N is asserted, TX2UL enters into Sleep Mode. When RESET_N is asserted for tSTATE while CS_N is deasserted, TX2UL enters into Configuration Mode. In these modes, all the pins in the ULPI interface are tri-stated. If the RESET_N pin is not used, it must be pulled high. For more information about different modes of configuration, see Table 5 on page 4.

DP and DM pins

The DP and DM pins are the differential pins for the USB. They must be connected to the corresponding DP and DM pins of the USB receptacle.

■ Tri-state the ULPI bus output pins

■ Associate with RESET_N to place TX2UL in the Sleep mode

When the CS_N pin is deasserted (high), all the pins in the ULPI interface are tri-stated.

USB2 Transceiver Macrocell Interface (UTMI+)

This block conforms to the UTMI+ Level 0 standard. It performs all the UTMI to USB translation.

Global Control

This block is the digital control logic that ties the blocks of the device together. Functions performed include pull up control, over current protect control, and more.

Full Speed and High Speed USB T ransceivers (F S/HS)

The FS and HS Transceivers comply fully with the USB 2.0 specifications.

USB Pull up and Intr Detect, Termination Resistors (Pull up / TERM)

These blocks contain the USB pull up and termination resistors as specified by the USB 2.0 specification.

UART Pass Through Mode

TX2UL supports Carkit UART Pass Through Mode. When the Carkit Mode bit in the Interface Control register is set, it enables the Link to communicate through the DP/DM to a remote system using UART signaling. By default, the clock is powered down when the TX2UL enters Carkit Mode. Entering and exiting the Carkit Mode is identical to the Serial Mode. Table 1, Table 2, and

Figure 1 show the UART Signal Mapping between the DP/DM

and DATA[1:0] at ULPI interface.

Table 1. UART Signal Mapping at ULPI Interface

Signal Maps to Direction Description

txd DATA[0] IN UART TXD signal

routed to DM pin

rxd DATA[1] OUT UART RXD signal

routed to DP pin

Reserved DATA[7:2] - Reserved

Table 2. UART Signal Mapping at USB Interface

Signal Maps to Direction Description

TXD DM OUT UART TXD signal RXD DP INT UART RXD signal

Figure 1. UART Signal Mapping in Pass Through Mode

Chip Select (CS_N)

This signal pin is available only in 24-pin QFN package. The two major functions of CS_N are as follows:
