CY7B9911V

3.3V RoboClock+™

High Speed Low Voltage Programmable Skew

Clock Buffer

Features

TEST

REF

VCO AND

TIME UNIT

GENERATOR

SELECT

INPUTS (THREE

LEVEL)

SKEW

SELECT

MATRIX

4F0 4F1

3F0 3F1

2F0 2F1

1F0 1F1

4Q0

4Q1

3Q0

3Q1

2Q0

2Q1

1Q0

1Q1

FILTER

PHASE

FREQ

DET

Functional Description

■ All output pair skew <100 ps typical (250 max)

■ 3.75 to 110 MHz output operation

■ User selectable output functions ❐ Selectable skew to 18 ns ❐ Inverted and non-inverted

❐ Operation at ❐ Operation at 2x and 4x input frequency (input as low as

⁄

and

⁄

input frequency

3.75 MHz)

■ Zero input-to-output delay

■ 50% duty cycle outputs

■ LVTTL outputs drive 50Ω terminated lines

■ Operates from a single 3.3V supply

■ Low operating current

■ 32-pin PLCC package

■ Jitter 100 ps (typical)

Logic Block Diagram

The CY7B9911V 3.3V RoboClock+™ High Speed Low Voltage Programmable Skew Clock Buff er (LVPSCB) offers user selectable control over system clock functions. These multiple output clock drivers provide the system integrator with functions necessary to optimize the timing of high performance computer systems. Each of the eight individual drivers, arranged in four pairs of user controllable outputs, can drive terminated transmission lines with impedances as low as 50Ω. They deliver minimal and specified output skews and full swing logic levels (L VTTL).

Each output is hardwired to one of nine delay or function configurations. Delay increments of 0.7 to 1.5 ns are determined by the operating frequency with outputs that can skew up t o ±6 time units from their nominal “zero” skew position. Th e completely integrated PLL allows external load and cancels the transmission line delay effects. When this “zero delay” capability of the LVPSCB is combined with the selectable output skew functions, you can create output-to-output delays of up to ±12 time units.

Divide-by-two and divide-by-four output functions are provided for additional flexibility in designing complex clock systems. When combined with the internal PLL, these divide functions allow distribution of a low frequency clock that are multiplied by two or four at the clock destination. This facility minimizes clock distribution difficulty enabling maximum system clock speed and flexibility.

Cypress Semiconductor Corporation • 198 Champion Court • San Jose, CA 95134-1709 • 408-943-2600 Document Number: 38-07408 Rev. *D Revised June 20, 2007

[+] Feedback

CY7B9911V

3.3V RoboClock+™

1234323130

17161514 18 19 20

5 6

7 8 9

10 11

12 13

29 28 27 26 25 24 23 22 21

3F0

REF

GND

TEST

2F1

2Q1

2Q0

CCQ

2F0 GND 1F1 1F0 V

CCN

1Q0 1Q1 GND GND

3Q1

3Q0

CCNVCCN

3F1 4F0

4F1

CCQ

CCN

4Q1

4Q0 GND GND

PLCC

CY7B9911V

Pin Configuration

Pin Definitions

Signal Name IO Description

REF I Reference frequency input. This input supplies the frequency and timing against which all functional

variations are measured. FB I PLL feedback input (typically connected to one of the eight outputs). FS I Three level frequency range select. See Table1. 1F0, 1F1 I Three level function select inputs for output pair 1 (1Q0, 1Q1). See Table 2. 2F0, 2F1 I Three level function select inputs for output pair 2 (2Q0, 2Q1). See Table 2. 3F0, 3F1 I Three level function select inputs for output pair 3 (3Q0, 3Q1). See Table 2. 4F0, 4F1 I Three level function select inputs for output pair 4 (4Q0, 4Q1). See Table 2. TEST I Three level select. See “Test Mode” on page 4 under the “Block Diagram Description” on page 3. 1Q0, 1Q1 O Output pair 1. See Table 2. 2Q0, 2Q1 O Output pair 2. See Table 2. 3Q0, 3Q1 O Output pair 3. See Table 2. 4Q0, 4Q1 O Output pair 4. See Table 2. V

CCN

CCQ

GND PWR Ground.

Document Number: 38-07408 Rev. *D Page 2 of 14

PWR Power supply for output drivers. PWR Power supply for internal circuitry.

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Block Diagram Description

NOM

N×

----------------------- -

Notes

1. For all three-state inputs, HIGH indicates a connection to V

, LOW indicates a connection to GND, and MID indicates an open connection. Internal termination

circuitry holds an unconnected input to V

/2.

2. The level to be set on FS is determined by the “normal” operating frequency (f

NOM

) of the VCO and Time Unit Generator (see). Nominal frequency (f

NOM

) always

appears at 1Q0 and the other outputs when they are op erated in their undivided modes (see Table 2). The frequency appearing at the REF and FB inputs is f

NOM

when the output connected to FB is undivided. The frequency of the REF and FB inp uts is f

NOM

/2 or f

NOM

/4 when the part is configured for a frequency multi plication

using a divided output as the FB input.

3. When the FS pin is selected HIGH, the REF input must not transition upon power up until V

has reached 2.8V.

Phase Frequency Detector and Filter

The Phase Frequency Detector and Filter blocks accept inputs from the Reference Frequency (REF) input and the Feedback (FB) input. They generate correction information to control the frequency of the Voltage Controlled Oscillator (VCO). These blocks, along with the VCO, form a Phase Locked Loop (PLL) that tracks the incoming REF signal.

VCO and Time Unit Generator

The VCO accepts analog control inputs from the PLL filter block. It generates a frequency used by the time unit generator to create discrete time units that are selected in the skew select matrix. The operational range of the VCO is determined by the FS control pin. The time unit (t frequency of the device and the level of the FS pin as shown in

Table 1.

Table 1. Frequency Range Select and t

(MHz)

NOM

[2, 3]

Min Max

LOW 15 30 44 22.7 MID 25 50 26 38.5 HIGH 40 110 16 62.5

) is determined by the operating

Calculation

Approximate

Frequency (MHz) At

where N =

Which tU = 1.0 ns

[1]

Skew Select Matrix

The skew select matrix is comprised of four independent sections. Each section has two low skew, high fanout drivers (xQ0, xQ1), and two corresponding three level function select (xF0, xF1) inputs. Table 2 shows the nine possible output functions for each section as determined by the function select inputs. All times are measured with respect to the REF input assuming that the output connected to the FB input has 0t selected.

Table 2. Programmable Skew Configurations

Function Selects Output Functions

1F1, 2F1,

3F1, 4F1

LOW LOW –4t LOW MID –3t LOW HIGH –2t MID LOW –1t MID MID 0t MID HIGH +1t HIGH LOW +2t HIGH MID +3t HIGH HIGH +4t

1F0, 2F0,

3F0, 4F0

1Q0, 1Q1,

2Q0, 2Q1

U U U U

3Q0, 3Q1 4Q0, 4Q1

Divide by 2 Divide by 2

–6t –4t –2t

0t +2t +4t +6t

Divide by 4 Inverted

[1]

U U U

–6t –4t –2t

0t +2t +4t +6t

U U U

Document Number: 38-07408 Rev. *D Page 3 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Figure 1 shows the typical outputs with FB connected to a zero skew output.

– 6t

– 5t

– 4t

– 3t

– 2t

– 1t

t 0t

+1t

t 0t 0t 0t 0t

+2tU+3tU+4tU+5tU+6t

FB Input

REFInput

– 6t

– 4t

– 3t

– 2t

– 1t

+1t

+2t

+3t

+4t

+6t

DIVIDED

INVERT

LM LH

(N/A)

LL/HH

3Fx 4Fx

(N/A)

ML MM MH

HL HM

(N/A) (N/A) (N/A)

1Fx 2Fx

Note

4. FB connected to an output selected for “zero” skew (that is, xF1 = xF0 = MID).

Figure 1. The Typical Outputs with FB Connected to a Zero Skew Output

[4]

Test Mode

The TEST input is a three level input. In normal system operation, this pin is connected to ground, allowing the CY7B9911V to operate as described in “Block Diagram

Description” on page 3. For testing purposes, any of the three

level inputs can have a removable jumper to ground or b e tied LOW through a 100W resistor. This enables an external tester to change the state of these pins.

Document Number: 38-07408 Rev. *D Page 4 of 14

If the TEST input is forced to its MID or HIGH state, the device operates with its internal phase locked loop disconnected, and input levels supplied to REF directly control all outputs. Relative output-to-output functions are the same as in normal mode.

In contrast with normal operation (TEST tied LOW), all outputs function based only on the connection of their own function select inputs (xF0 and xF1) and the waveform characteristics of the REF input.

[+] Feedback

CY7B9911V

3.3V RoboClock+™

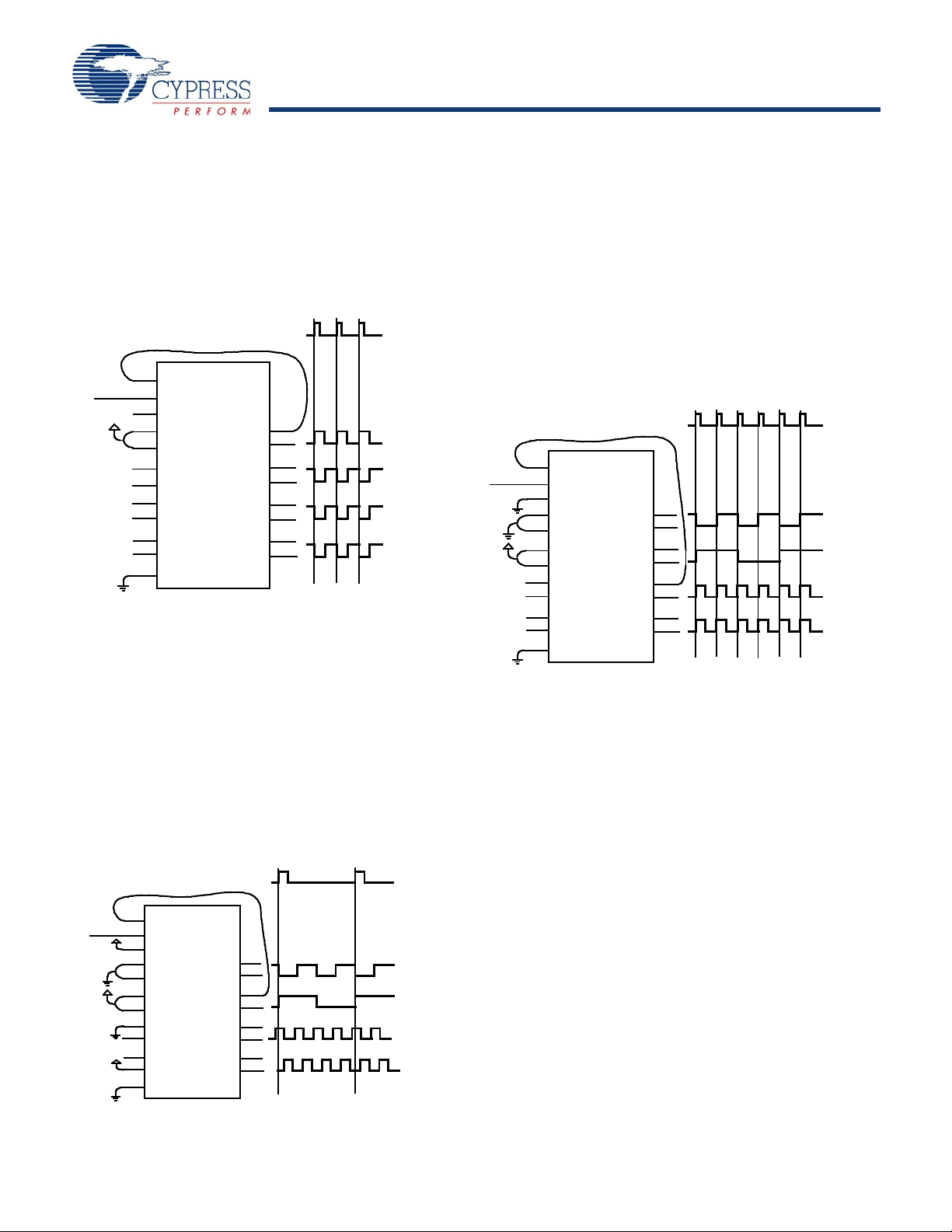

Operational Mode Descriptions

SYSTEM CLOCK

LENGTH L1 = L2 = L3 = L4

FB REF

FS 4F0

4F1 3F0

3F1 2F0

2F1 1F0

1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

LOAD

REF

LENGTH L1 = L2

L3 < L2 by 6 inches L4 > L2 by 6 inches

SYSTEM CLOCK

FB REF

FS 4F0

4F1 3F0

3F1 2F0

2F1 1F0

1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

LOAD

REF

Figure 2. Zero Skew and Zero Delay Clock Driver

Figure 2 shows the L VPSCB configured as a zero skew clock buf fer . In this mode the CY7B9911V is used as the basis for a low skew

clock distribution tree. When all the function select inputs (xF0, xF1) are left open, each of the outputs are aligned and driv e a terminated transmission line to an independent load. The FB input is tied to any output in this configuration and the operating frequency range is selected with the FS pin. The low skew specification, along with the ability to drive terminated transmission lines (with impedances as low as 50Ω), enables efficient printed circuit bo ard design.

Figure 3. Programmable Skew Clock Driver

Figure 3 shows a configuration to equalize skew between metal

traces of different lengths. In addition to low skew between outputs, the LVPSCB is programmed to stagger the timing of its outputs. Each of the four groups of output pairs is programmed to different output timing. Skew timing is adjusted over a wide range in small increments with the appropriate strapping of the function select pins. In this configuration the 4Q0 output is sent back to FB and configured for zero skew. The other three pairs of outputs are programmed to yield different skews relative to the feedback. By advancing the clock signal on the longer traces or

Document Number: 38-07408 Rev. *D Page 5 of 14

retarding the clock signal on shorter traces, all loads receive the clock pulse at the same time.

In Figure 3 the FB input is connected to an output with 0 ns skew (xF1, xF0 = MID) selected. The internal PLL synchronizes the FB and REF inputs and aligns their rising edges to make certain that all outputs have precise phase alignment.

Clock skews are advanced by ±6 time units (tU) when using an output selected for zero skew as the feedback. A wider range of delays is possible if the output connected to FB is also skewed. Since “Zero Skew”, +tU, and – tU are de fined relative to output

[+] Feedback

CY7B9911V

3.3V RoboClock+™

groups, and the PLL aligns the rising edges of REF and FB, you

FB REF

FS 4F0

4F1 3F0

3F1 2F0

2F1 1F0

1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

REF

FB REF FS

4F0 4F1

3F0 3F1

2F0 2F1

1F0 1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

REF

20 MHz

40 MHz

80 MHz

FB REF FS

4F0 4F1

3F0 3F1

2F0 2F1

1F0 1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

REF

20 MHz

5 MHz

10 MHz

20 MHz

can create wider output skews by proper selection of the xFn inputs. For example, a +10 tU between REF and 3Qx is achieved by connecting 1Q0 to FB and setting 1F0 = 1 F1 = GND, 3F0 = MID, and 3F1 = High. (Since FB aligns at –4 tU and 3Qx skews to +6 tU, a total of +10 tU skew is realized). Many other configurations are realized by skewing both the outputs used as the FB input and skewing the other outputs.

Figure 4. Inverted Output Connections

Figure 5 shows the L VPSCB configured as a clock multiplier. The

3Q0 output is programmed to divide by four and is sent back to FB. This causes the PLL to increase its frequency until the 3Q0 and 3Q1 outputs are locked at 20 MHz, while the 1Qx and 2Qx outputs run at 80 MHz. The 4Q0 and 4Q1 outputs are programmed to divide by two, that results in a 40 MHz waveform at these outputs. Note that the 20 and 40 MHz clocks fall simultaneously and are out of phase on their rising edge. This enables the designer to use the rising edges of the frequency outputs without concern for rising edge skew. The

⁄

frequency and

2Q0, 2Q1, 1Q0, and 1Q1 outputs run at 80 MHz and are skewed by programming their select inputs accordingly. Note that the FS pin is wired for 80 MHz operation because that is the frequency of the fastest output.

Figure 6. Frequency Divider Connections

⁄

Figure 4 shows an ex ample of the invert function of the LVPSCB.

In this example, the 4Q0 output used as the FB input is programmed for invert (4F0 = 4F1 = HIGH) while the other three pairs of outputs are programmed for zero skew. When 4F0 and 4F1 are tied HIGH, 4Q0 and 4Q1 become inverted zero phase outputs. The PLL aligns the rising edge of the FB input with the rising edge of the REF. This causes the 1Q, 2Q, and 3Q outputs to become the “inverted” outputs with respect to the REF input. By selecting the output connected to FB, you can have two inverted and six non-inverted outputs or six inverted and two non-inverted outputs. The corre ct configuration is determined by the need for more (or fewer) inverted outputs. 1Q, 2Q, and 3Q outputs are also skewed to compensate for varying trace delays independent of inversion on 4Q.

Figure 5. Frequency Multiplier with Skew Connections

Figure 6 shows the LVPSCB in a clock divider application. 2Q0

is sent back to the FB input and programmed for zero skew. 3Qx is programmed to divide by four. 4Qx is programmed to divide by two. Note that the falling edges of the 4Qx and 3Qx outputs are aligned. This enables use of the rising edges of the

and

⁄

frequency without concern for skew mismatch. The 1Qx

outputs are programmed to zero skew and are aligned with the

⁄

frequency

2Qx outputs. In this example, the FS input is grounded to configure the device in the 15 to 30 MHz range, since the highest frequency output is running at 20 MHz.

Figure 7 shows some of the functions that are selectable on the

3Qx and 4Qx outputs. These include inverted outputs and outputs that offer divide-by-2 and divide-by-4 timing. An inverted output enables the system designer to clock different subsystems on opposite edges, without suffering from the pulse asymmetry typical of non-ideal loading. This function enables

Document Number: 38-07408 Rev. *D Page 6 of 14

each of the two subsystems to clock 180 degrees out of phase, but still is aligned within the skew specification.

The divided outputs offer a zero delay divider for portions of the system that divide the clock by either two or four, and still remain within a narrow skew of the “1X” clock. Without this feature, an external divider is added, and the propagation delay of the divider adds to the skew between the different clock signals.

These divided outputs, coupled with the Phase Locked Loo p, allow the LVPSCB to multiply the clock rate at the REF input by either two or four. This mode enables the designer to distribute a low frequency clock between various portions of the system, and then locally multiply the clock rate to a more suitable

[+] Feedback

CY7B9911V

3.3V RoboClock+™

frequency, while still maintaining the low skew characteristics of

27.5 MHz

DISTRIBUTION

CLOCK

110 MHz

INVERTED

27.5 MHz

110 MHz

ZERO SKEW

110 MHz

SKEWED –2.273 ns (–4tU)

FB REF

FS 4F0

4F1 3F0

3F1 2F0

2F1 1F0

1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

REF

LOAD

SYSTEM CLOCK

FB REF

FS 4F0

4F1 3F0

3F1 2F0

2F1 1F0

1F1

4Q0 4Q1

3Q0 3Q1

2Q0 2Q1

1Q0 1Q1

TEST

REF

4F0 4F1 3F0 3F1 2F0 2F1 1F0 1F1

4Q0 4Q1

3Q0 3Q1 2Q0 2Q1

1Q0 1Q1

REF FS

LOAD

TEST

the clock driver. The LVPSCB performs all of the functions described in this section at the same time. It can multiply by two

Figure 7. Multi-Function Clock Driver

Figure 8. Board-to-Board Clock Distribution

and four or divide by two (and four) at the same time. This shifts its outputs over a wide range or maintain zero skew between selected outputs.

Figure 8 shows the CY7B9911V connected in series to construct a zero skew clock distribution tree between boards. Delays of the

downstream clock buffers are programmed to compensate for the wire length (that is, select nega tive skew e qual to the wire dela y) necessary to connect them to the master clock source, approximating a zero delay clock tree. Cascaded clock buffers accumulates low frequency jitter because of the non-ideal filtering characteristics of the PLL filter. Do not connect more than two clock buffers in a series.

Document Number: 38-07408 Rev. *D Page 7 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Maximum Ratings

Notes

5. For more information see Group A subgroup testing information

6. These inputs are normally wired to VCC, GND, or left unconnected (actual threshold voltages vary as a percentage of VCC). Internal termination resistors hold unconnected inputs at VCC/2. If these inputs are switched, the function and timing of the outputs glitch and the PLL may require an additional tLOCK time before all data sheet limits are achieved.

7. CY7B9911V must be tested one output at a time, output shorted for less than one second, less than 10% duty cycle. Room temperature only.

8. Total output current per output pair is approximated by t he following expression that includes device current plus load current: CY7B9911V:ICCN = [(4 + 0.11F) + [[((835 –3F)/Z) + (.0022FC)]N] x 1.1 Where

F = frequency in MHz C = capacitive load in pF Z = line impedance in ohms N = number of loaded outputs; 0, 1, or 2 FC = F < C

9. To tal power dissipation per output pair is approximated by the following expression that includes device power dissipation plus power dissipation due to the load circuit: PD = [(22 + 0.61F) + [[(1550 + 2.7F)/Z) + (.0125FC)]N] x 1.1. (See note 8 for variable definition.)

Operating outside these boundaries may affect the performance and life of the device. These user guidelines are not tested.

Storage Temperature .................................–65°C to +150°C

Ambient Temperature with

Power Applied ............................................ –55°C to +125°C

Supply Voltage to Ground Potential................–0.5V to +7.0V

Output Current into Outputs (LOW).............................64 mA

Static Discharge Voltage...........................................> 2001V

(MIL-STD-883, Method 3015)

Latch up Current.....................................................> 200 mA

Operating Range

Range Amb ient Temperature V

Commercial 0°C to +70°C 3.3V ± 10%

DC Input Voltage..................................... .. .....–0.5V to +7.0V

Electrical Characteristics

Over the Operating Range

Parameter Description T est Conditions

V V V V V

IHH

IMM

ILL

CCQ

CCN

OH OL IH IL IHH

IMM

ILL

Output HIGH Voltage VCC = Min, IOH = –18 mA 2.4 V Output LOW Voltage VCC = Min, IOL = 35 mA 0.45 V Input HIGH Voltage (REF and FB inputs only) 2.0 V Input LOW Voltage (REF and FB inputs only) –0.5 0.8 V Three Level Input HIGH Voltage (Test, FS,

xFn) Three Level Input MID Voltage (Test, FS,

xFn) Three Level Input LOW Voltage (Test, FS,

xFn) Input HIGH Leakage Current (REF and FB

inputs only) Input LOW Leakage Current (REF and FB

inputs only) Input HIGH Current (Test, FS, xFn) VIN = V Input MID Current (Test, FS, xFn) VIN = VCC/2 –50 50 μA Input LOW Current (Test, FS, xFn) VIN = GND –200 μA Short Circuit Current Operating Current Used by Internal Circuitry V

Output Buffer Current per Output Pair

PD Power Dissipation per Output Pair

[5]

Min ≤ VCC ≤ Max 0.87 * VCC VCCV

Min ≤ VCC ≤ Max 0.47 * VCC0.53 * V

Min ≤ VCC ≤ Max 0.0 0.13 * V

VCC = Max, VIN = Max 20 μA

VCC = Max, VIN = 0.4V –20 μA

[7]

[8]

[9]

VCC = MAX, V

= V

CCN

Input Selects Open V

CCN

OUT

CCN

OUT

CCQ

= V

CCQ

= 0 mA Input Selects Open, f

= V

CCQ

= 0 mA Input Selects Open, f

= GND (25° only) –200 mA

OUT

= Max, All

= Max,

CY7B9911V

Min Max

Unit

200 μA

Com’l 95 mA Mil/Ind 100

19 mA

MAX

104 mW

MAX

Document Number: 38-07408 Rev. *D Page 8 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

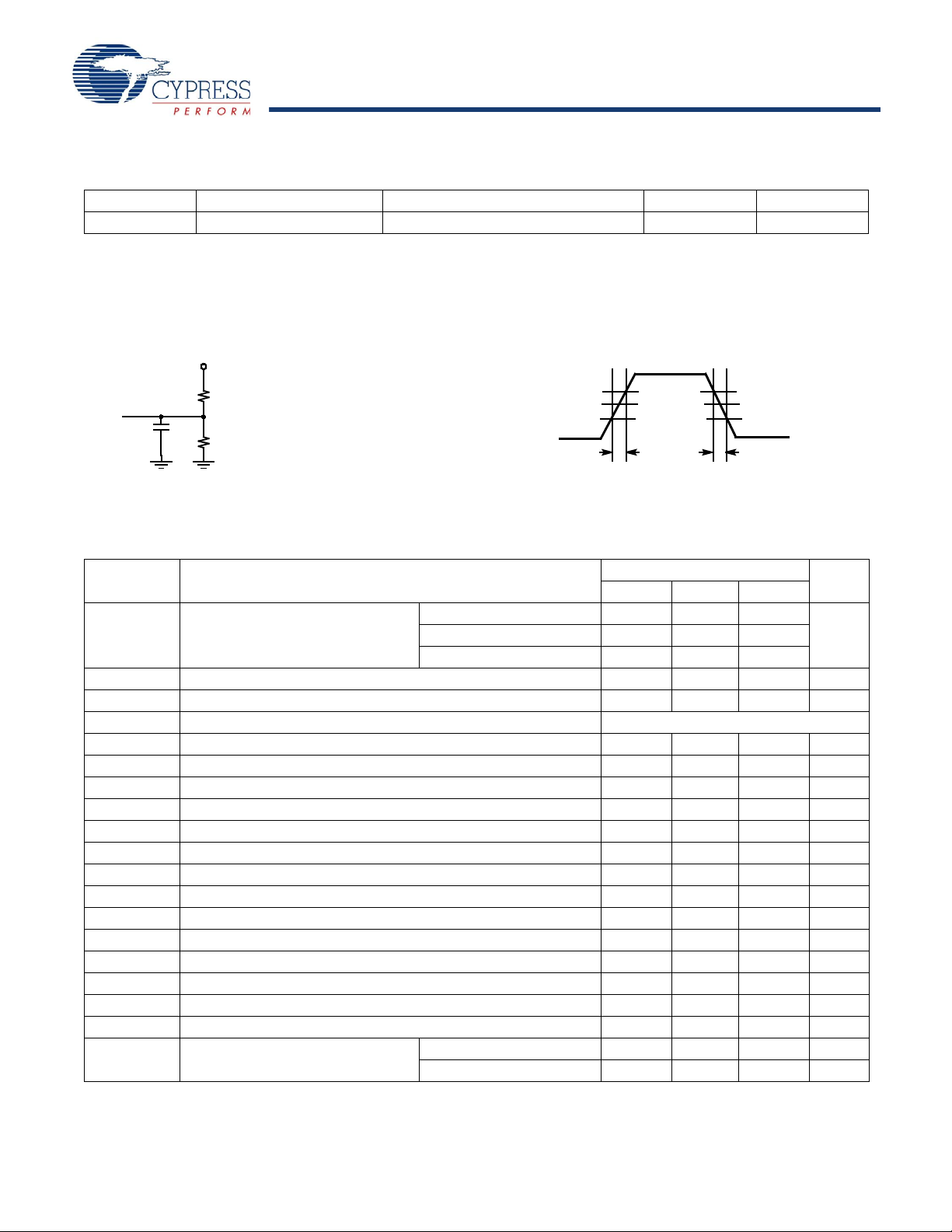

Capacitance

TTL ACTestLoad TTL Input TestWaveform

3.0V

2.0V

=1.5V

0.8V

0.0V

≤1ns

2.0V

0.8V

=1.5V

R1=100 R2=100 C

=30pF

(Includes fixture and probe capacitance)

Figure 9. AC Test Loads and Waveforms

Tested initially and after any design or process changes that may affect these parameters.

Parameter Description Test Conditions Max Unit

Note

10.Applies to REF and FB inputs only.

Input Capacitance TA = 25°C, f = 1 MH z , VCC = 3.3V 10 pF

AC Test Loads and Waveforms

Switching Characteristics – 5 Option

Over the Operating Range

Parameter Description

NOM

RPWH

RPWL

SKEWPR

SKEW0

SKEW1

SKEW2

SKEW3

SKEW4

DEV

ODCV

PWH

PWL

ORISE

OFALL

LOCK

Document Number: 38-07408 Rev. *D Page 9 of 14

Operating Clock Frequency in MHz

REF Pulse Width HIGH 5.0 ns REF Pulse Width LOW 5.0 ns Programmable Skew Unit See Table 1 Zero Output Matched-Pair Skew (XQ0, XQ1) Zero Output Skew (All Outputs) Output Skew (Rise-Rise, Fall-Fall, Same Class Outputs) Output Skew (Rise-Fall, Nominal-Inverted, Divided-Divided) Output Skew (Rise-Rise, Fall-Fall, Different Class Outputs) Output Skew (Rise-Fall, Nominal-Divided, Divided-Inverted) Device-to-Device Skew Propagation Delay, REF Rise to FB Rise –0.5 0.0 +0.5 ns Output Duty Cycle Variation Output HIGH Time Deviation from 50% Output LOW Time Deviation from 50% Output Rise Time Output Fall Time PLL Lock Time Cycle-to-Cycle Output

Jitter

[2, 11]

FS = LOW FS = MID FS = HIGH

[13, 15]

[12, 18]

[19]

[20]

[20, 21]

[22]

RMS

[1, 2]

[1, 2 , 3]

[13, 14]

[12]

Peak-to-Peak

Min Typ Max

[13, 17]

[17, 17]

[13, 17]

–1.0 0.0 +1.0 ns

0.15 1.0 1.5 ns

[12]

[10]

CY7B9911V-5

Unit

15 30 MHz 25 50 40 110

0.1 0.25 ns

0.25 0.5 ns

0.6 0.7 ns

0.5 1.0 ns

0.5 0.7 ns

0.5 1.0 ns

1.25 ns

2.5 ns 3ns

0.5 ms

25 ps

200 ps

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Switching Characteristics – 7 Option

Notes

11.Test measurement levels for the CY7B9911V are TTL levels (1.5V to 1.5V). Test conditions assume signal transition times of 2 ns or less and output loading as shown in the AC Test Loads and Waveforms unless otherwise specified.

12.Guaranteed by statistical correlation. Tested initially and after any design or process changes that may affect these parameters.

13.SKEW is defined as the time between the earliest and the latest output transition among all outputs for which th e same tU delay is selected when all are loaded with 30 pF and terminated with 50Ω to VCC/2 (CY7B9911V).

14.tSKEWPR is defined as the skew between a pair of outputs (XQ0 and XQ1) when all eight outputs are selected for 0tU.

15.tSKEW0 is defined as the skew between outputs when they are selected for 0tU. Other outputs are divided or inverted but not shifted.

16.CL=0 pF. For CL=30 pF, tSKEW0=0.35 ns.

17.There are three classes of outputs: Nominal (multiple of tU delay), Inverted (4Q0 and 4Q1 only with 4F0 = 4F1 = HIGH), and Divided (3Qx and 4Qx only in Divide-by-2 or Divide-by-4 mode).

18.tDEV is the output-to-output skew between any two devices operating under the same conditions (VCC ambient temperature, air flow, and so on.)

19.tODCV is the deviation of the output from a 50% duty cycle. Output pulse width variations are included in tSKEW2 and tSKEW4 specifications.

20.Specified with outputs loaded with 30 pF for th e CY7B991 1V-5 and -7 devices. Devices are terminated through 50Ω to VCC/2.tPWH is measured at 2.0V . tPWL is measured at 0.8V.

21.tORISE and tOFALL measured between 0.8V and 2.0V.

22.tLOCK is the time that is required before synchronization is achieved. This specification is valid only af ter VCC is st able and within normal oper ating limits. This parameter is measured from the application of a new signal or frequency at REF or FB until tPD is within specified limits.

Over the Operating Range

Parameter Description

NOM

RPWH

RPWL

SKEWPR

SKEW0

SKEW1

SKEW2

SKEW3

SKEW4

DEV

ODCV

PWH

PWL

ORISE

OFALL

LOCK

Operating Clock Frequency in MHz

REF Pulse Width HIGH 5.0 ns REF Pulse Width LOW 5.0 ns Programmable Skew Unit See T able1 Zero Output Matched Pair Skew (XQ0, XQ1) Zero Output Skew (All Outputs) Output Skew (Rise-Rise, Fall-Fall, Same Class Outputs) Output Skew (Rise-Fall, Nominal-Inverted, Divided-Divided) Output Skew (Rise-Rise, Fall-Fall, Different Class Outputs) Output Skew (Rise-Fall, Nominal-Divided, Divided-Inverted) Device-to-Device Skew Propagation Delay, REF Rise to FB Rise –0.7 0.0 +0.7 ns Output Duty Cycle Variation Output HIGH Time Deviation from 50% Output LOW Time Deviation from 50% Output Rise Time Output Fall Time PLL Lock Time Cycle-to-Cycle Output

Jitter

[2, 11]

[13, 15]

[12, 18]

[19]

[20, 21]

[22]

FS = LOW FS = MID FS = HIGH

[13, 14]

[20]

[12]

RMS

[12]

Peak

[1, 2]

[1, 2 , 3]

[13, 17]

CY7B9911V-7

Min Typ Max

Unit

15 30 MHz 25 50 40 110

0.1 0.25 ns

0.3 0.75 ns

0.6 1.0 ns

1.0 1.5 ns

0.7 1.2 ns

1.2 1.7 ns

1.65 ns

–1.2 0.0 +1.2 ns

3ns

3.5 ns

0.15 1.5 2.5 ns

0.5 ms 25 ps

100 200 ps

Document Number: 38-07408 Rev. *D Page 10 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

ODCV

REF

OTHERQ

INVERTED Q

REF DIVIDED BY 2

REF DIVIDED BY 4

RPWH

RPWL

SKEWPR,

SKEW0,1

SKEWPR,

SKEW0,1

SKEW2

SKEW3,4

SKEW1,3, 4

SKEW2,4

AC Timing Diagrams

Document Number: 38-07408 Rev. *D Page 11 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Ordering Information

Note

23.Parts not recommended for the new design.

Accuracy (ps) Ordering Code Package Type

500 CY7B9911V-5JC 32-Pb Plastic Leaded Chip Carrier Commercial 500 CY7B9911V-5JCT 32-Pb Plastic Leaded Chip Carrier – Tape and Reel Commercial 700 CY7B9911V-7JC 700 CY7B9911V-7JCT

Pb-Free

500 CY7B9911V-5JXC 32-Pb Plastic Leaded Chip Carrier Commercial 500 CY7B9911V-5JXCT 32-Pb Plastic Leaded Chip Carrier – Tape and Reel Commercial 700 CY7B9911V-7JXC 700 CY7B9911V-7JXCT

[23]

32-Pb Plastic Leaded Chip Carrier Commercial 32-Pb Plastic Leaded Chip Carrier – Tape and Reel Commercial

Operating

Range

Document Number: 38-07408 Rev. *D Page 12 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Package Diagram

51-85002-*B

Figure 10. 32-Pin Plastic Leaded Chip Carrier J65

Document Number: 38-07408 Rev. *D Page 13 of 14

[+] Feedback

CY7B9911V

3.3V RoboClock+™

Document History Page

Document Title: CY7B9911V 3.3V RoboClock+™ High Speed Low Voltage Programmable Skew Clock Buffer Document Number: 38-07408

REV. ECN NO. Issue Date

** 114350 3/20/02 DSG Change from Specification number: 38-00765 to 38-07408

*A 299713 See ECN RGL Added T ape and Reel and Pb-free Devices in the Ordering Information table

*B 404630 See ECN RGL Minor Change: Added a note in ordering table that Pb-free is in Pure Sn *C 1199925 See ECN KVM/AESA Added Note 23: Parts not recommended for the new design in Ordering

*D 1286064 See ECN AESA Change status to final

Orig. of Change

Description of Change

Added 100 ps typical value for jitter (peak)

Information table

© Cypress Semiconductor Corporation, 2002- 2007. The infor mation cont ain ed herein is subj ect to change wi thout notice. C ypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be used for medical, life support, life saving, critica l contr o l or safety applications, unless pursuant to an exp re ss wr itten agreement with Cypress. Furthermore, Cypress doe s not author i ze its products for use as critical components in life-support systems where a malfunction or fa ilure may reasonably be expe cted to result in significa nt injury to the us er . The inclu sion of Cypress p roducts in life -support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Any Source Code (software and/or firmware) is owned by Cypress Semiconductor Corporation (Cypress) and is protected by and subject to worldwide patent protection (United States and foreign), United States copyright laws and international treaty provisions. Cypress hereby gr ant s to l icense e a pers onal, no n-exclu sive , non-tr ansfer able license to copy, use, modify, create derivative works of, and compile the Cypress Source Code and derivative works for the sole purpose of creating custom software and or firmware in support of licensee product to be used only in conjunction w ith a Cypress integrated circuit as specified in the ap plicable agreem ent. Any reprod uction, modificatio n, translation, co mpilation, or repr esentation of this Source Co de except as speci fied above is pro hibited with out the express written permission of Cypress.

Disclaimer: CYPRESS MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Cypress reserves the right to make changes without further notice to the materials described herein. Cypress does not assume any liability arising out of the applic ation or use o f any pr oduct or circ uit de scribed herein . Cypr ess does n ot author ize its p roducts fo r use as critical compon ents in life-su pport systems whe re a malfunction or failure may reason ably be expected to result in significant injury to the user. The inclusion of Cypress’ product in a life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

Use may be limited by and subject to the applicable Cypress software license agreement.

Document Number: 38-07408 Rev. *D Revised June 20, 2007 Page 14 of 14

PSoC Designer™, Programmable System-on-Chip™, and PSoC Express™ are trademarks and PSoC® is a registered t rade mark of Cypress S em ic on duct or C orp. A ll other trademarks or registered trademarks referenced he rein are property of the re spective c orporatio ns. Purch ase of I

Philips I

C Patent Rights to use these components in an I2C system, provided that the system conforms to the I2C Standard Specification as defined by Philips. RoboClock+ is a trademark of Cypress

Semiconductor Corporation. All products and company names mentioned in this document may be the trademarks of their respective holders.

C components from Cypress or one of its sublicensed Associated Companies conveys a license under the

[+] Feedback

Cypress CY7B9911V User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Features

Functional Description

Pin Configuration

Pin Definitions

Block Diagram Description

Phase Frequency Detector and Filter

VCO and Time Unit Generator

Skew Select Matrix

Test Mode

Operational Mode Descriptions

Maximum Ratings

Operating Range

Electrical Characteristics

Capacitance

AC Test Loads and Waveforms

AC Timing Diagrams

Ordering Information

Package Diagram

Document History Page
