Video Distributor
Operation Manual
CVSD-3A
The CVSD-3A is the combination of a 1x3 CV and 1x3 SV Distribution amplifier
with stereo.
It accepts one CV and one SV input at the same time and delivers 3
buffered and isolated outputs for each of the CV and SV input.
When the CV and SV come from the same source, the CVSD-3A becomes
a 1-in 6-out distributor.
This package includes:
- One CVSD-3A
- One user manual
- One set of S video cable
- One set of 1 R to 1R video cable
- One set of 2R to 2 R audio cable
Features:
- The input can be composite video or S video. It can connect up to 3 displays
for input either.
- High bandwidth : 10MHz (-3dB)
- LED power indicator
- Worldwide power supply.
Connection and Installation:
S-VIDEO 3VIDEO 3S-VIDEO 2VIDEO 2S-VIDEO 1VIDEO 1
OUTPUT 3
AUDIO OUTPUT INPUT
DC 5V 1A
AUDIO
123
VIDEO
S-VIDEO VIDEO
L
R
L
R
CVSD-3A Video distributor
S-VIDEO 3VIDEO 3S-VIDEO 2VIDEO 2S-VIDEO 1VIDEO 1
OUTPUT 3
1. Works as a 1-in 3-out distribution amplifier for S-Video source
DVD
S V3-out S V2-out
S V1-out
Connection and Installation:
S-VIDEO 3VIDEO 3S-VIDEO 2VIDEO 2S-VIDEO 1VIDEO 1
OUTPUT 3
AUDIO OUTPUT INPUT
DC 5V 1A
AUDIO
123
VIDEO
S-VIDEO VIDEO
L
R
L
R
CVSD-3A Video distributor
S-VIDEO 3VIDEO 3S-VIDEO 2VIDEO 2S-VIDEO 1VIDEO 1
OUTPUT 3

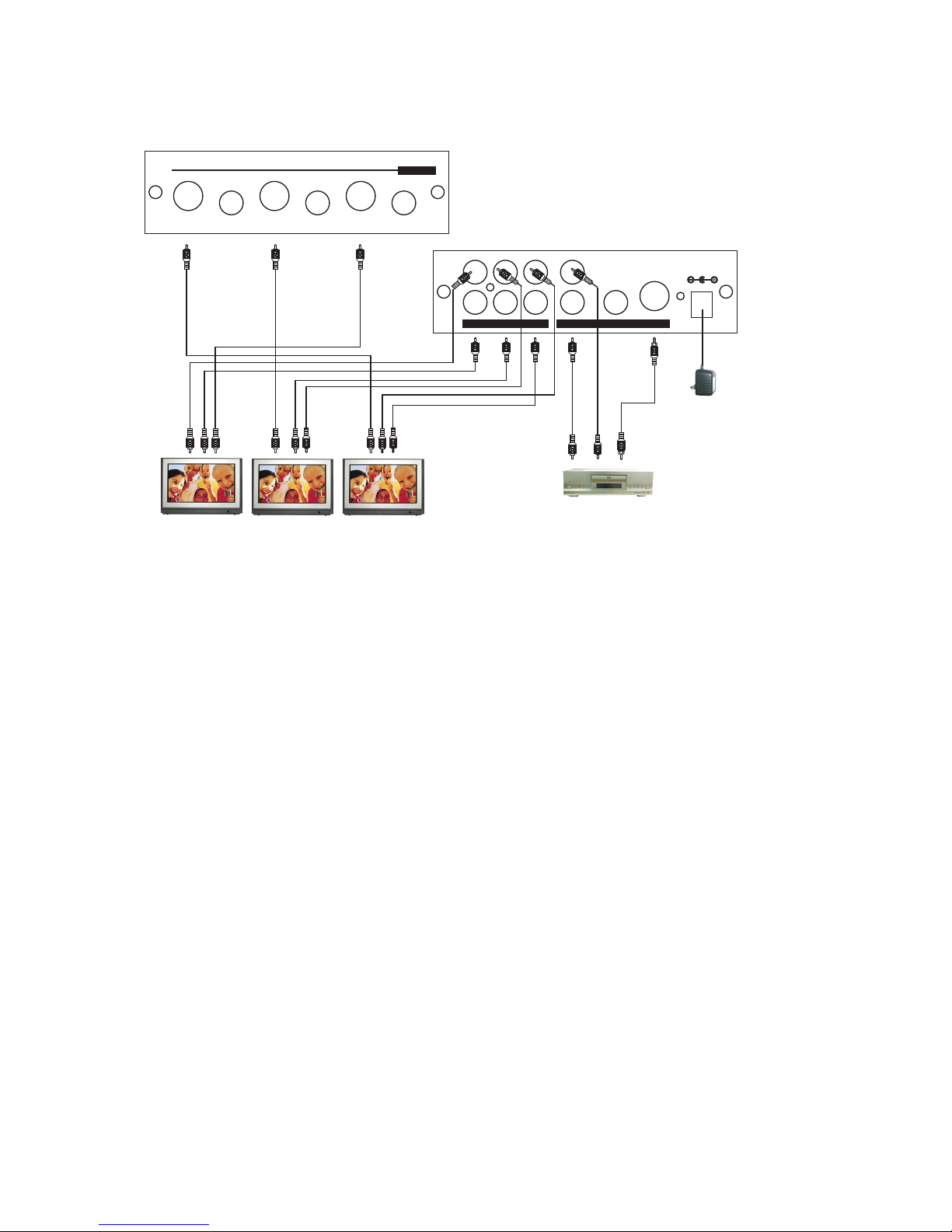

2. Works as a 1-in 3-out distribution amplifier for Video source
DVD
Specifications
* Video Input x 1：1Vp-p 75 ohm
* S-Vido Input x 1：Y 1Vp-p 75 ohm C 0.7Vp-p 75 ohm
* Video Output x 3 ：1Vp-p 75 ohm x 3
* S-Video Output x 3：Y 1Vp-p 75 ohm C 0.7Vp-p 75 ohm
* Audio Input x 1：2Vrms max 47K ohm
* Audio Output x 3：2Vrms max 47K ohm
* Bandwidth：10MHZ (-3db)
* Differential gain：0.05%
* Differential phase：0.05 degree
* Power：5V 1~2A
* Dimension (WxHxD)：141 * 38 * 105mm
CV3 out CV2 out CV1 out
