Cypress CPRO-A1, CPRO-AVR1 Operation Manual

CPRO-A1
Sound Bar
Operation Manual
CPRO-A1
DRAFT
Disclaimers
The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual, or otherwise - without express written permission and consent from Cypress Technology.
© Copyright 2011 by Cypress Technology. All Rights Reserved. Version 1.0 June 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.
DRAFT
Safety Precautions
Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the slots and openings in the module housing that provide ventilation.
Revision History
Version No Date Summary of Change
RDV0 20110630 Preliminary Release
DRAFT
Table of Contents
1
1
1
1
2
2
2
3
4
5
5
7
8
8
9
13
14
1. Introduction ……………………..……………………..…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Audio Input Specications …………….…...……..........………....….
7. Analog Audio Output Specication …………….…...…...……....….
8. Amplier Performance …………….…........................…...……....….
9. Specication …………….…........................................…...……....….
10. Operation Controls and Functions ……………...……..............……
10.1 Front Panel ............................................................................
10.2 Rear Panel .………………………….....…..…….......…...….…
11. Remote Control .......................…......……………..........…..…....…...
11.1 Dip Switch ..............................................................................
12. OSD Chart .........................................................................................

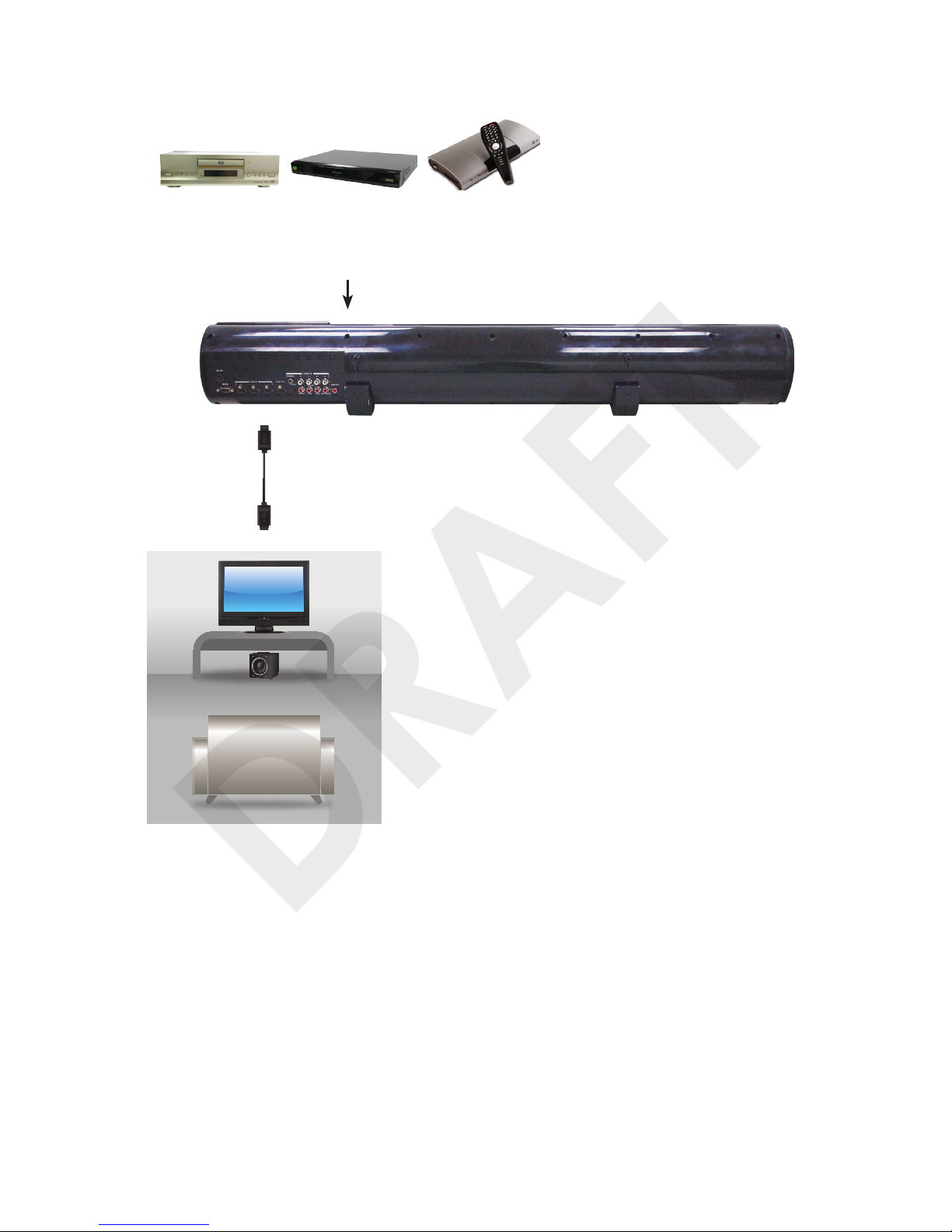

13. Connection and Installation ….………………….........…..…..…......
14. Acronyms …......................................................................................
DRAFT
1. Introduction
As we advance we are able to create some amazing pieces of technology, on ofthose creations is the Sound Bar. With its sleek, modern design that includes built inspeakers, this Sound bar is superior to most thanks to its umerous new features and compact design. HDMI TM compliant and supporting 7.1 channel surround soundthe Sound Bar is a single piece speaker system designed so you can enjoy highquality surround sound without going through the hassle of a multi-speaker setup. The Sound Bar makes your entertainment world complete.
2. Applications
Home Theater
Showroom
Concert Room
Dancing Room
Display Room
3. Package Contents
Sound Bar x 1
Remote Control x 1
Battery x 2
Operation Manual x 1
24V / 6.75A Power adaptor x 1
Power Cord x 1
4. System Requirements
Input source equipments such as DVD/Blue-Ray player, Set-Top-Box, VCR, and or PS3 amplier with up to 7.1 Channels connection cables and output display HD TV/monitor.
1
DRAFT
5. Features
HD Sound Theater Technology
HDCP and CEC compliant
HDMI v1.4 with:
Audio Return Channel
Fast switching on all HDMI input ports in less than 1 second
EIncludes a built-in HDMI EDID simulator and HDCP keset which allows
independent audio source selection.
HDMI output with xvYCC to RGB color space design
Support HDMI CEC bypass and HDCP repeater
Easy to install and operate
User friendly OSD menu
Large, easy to read LCD display
Audio supports:
Different audio sound mode (Jazz/music/Speech/Concert/Movie)
Dedicated, exible and full audio input and output
Flexible Subwoofer setting (internal or external)
Audio Channel Level +/- 10dB
7x Passive speaker 4ohm~8ohm
PCM 2.0, 5.0 & 7.1
Sampling rate up to 192kHz
HDMI compatible audio interface
6. Audio Input Specications
1. Analog Input (1). Max. Input Level: 2Vrms (2). Input Impedance: 47k ohm
2. Coaxial Digital Input (1). Max. Input Level: 0dBFS (2) Input Impedance: 75ohm
3. HDMI Ditigal Input (1). Max. Input Level:0dBFS (2). HDMI Differential Impedance: 100+/-10%ohm(TMDS)
7. Analog Audio Output Specication
1. Sub Woofer Output (1). Max Output Level: 1.7Vrms (2). Output Imedance: 620ohms (3). SNR>85dB@0dbFs (4). Sub Woofer -3dB, Frequency: 100Hz
2
DRAFT
