CLUX-8M
1x8 HDMI
Multi-channel
Splitter
CLUX-8M
Operation Manual
1. Introduction................................................................................
2. Applications...............................................................................
3. Package Contents....................................................................
4. System Requirements...............................................................
5. Features......................................................................................
3. Operation Controls and Functions..........................................
6.1 Front Panel...........................................................................
6.2 Rear Panel............................................................................
7. Connection and Installation.....................................................
8. Specifications............................................................................
TABLE OF CONTENTS
1
1
1
1
2
3
3
4
5
5
1. Introduction
The 1 by 8 HDMI Multi-channel Splitter is the most advanced solution to HDMI
signal distribution. It supports to transfer 8-bit and Deep Color (10-bit and
12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio) digital audio, with a high bandwidth up to 225MHz
(6.75Gbps). Besides splitting and distributing, the splitter also does signal
amplification and equalization, so as to provide high performance I/O of
audio and video.
2. Applications
● Project presentation
● Showroom display
● Advertising display control
3. Package Contents
● 1 by 8 HDMI Multi-channel Splitter
● 5V DC power supply adaptor
● Operation Manual
4. System Requirements
HDMI equipped source equipment, HDMI equipped displays (TVs or
monitors), and HDMI cables or HDMI to DVI cables.
1
5. Features
● HDMI, HDCP1.1 and DVI1.0 compliant.
● Deep color support up to 12-bit, 1080p@24/60 Hz.
● One HDMI source to be connected to up to eight HDMI displays
simultaneously.
● HDCP keysets allow each output to work independently when connecting
to an HDMI display.
● Splits one HDMI source up to eight outputs without signal loss.
● Supports DVI source and DVI display by using HDMI to/from DVI adaptor
cable.
● Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master
Audio transmission (32-192 kHz sample rate).
● Supports a wide range of PC and HDTV resolutions from VGA to UXGA and
480i to 1080p.
● HDMI cable length support 15 meters at 1080p/8-bit resplution and 10
meters at 1080p/12-bit.
● Can selected EDID source from TV or this splitter.
● Supports CEC bypass.
● Supports xvYCC.
● Supports System Reset function.
2
3
7
HDMI OUT
8 1
HDMI OUT SYNC HDMI IN HDMI OUT
POWER
DC 5V
CLUX-8M
HDMI v1.3 SPLITTER
1
2 3
4 5
6. Operation Controls and Functions
6.1 Front Panel
① HDMI OUT 1/7/8: Connect each of the output ports to the HDMI display.
When more than one output connected, the HDMI outputs play identical
video signal simultaneously.
② SYNC LED: The LED will illuminate when the HDMI source signal is
connected to the input port.
③ HDMI IN: Connect input port to the HDMI or DVI output of your source
equipment such as DVD player or set-top-box.
④ POWER LED: The LED will illuminate when the power is connected.
⑤ DC 5V: Plug the 5V DC power supply into the splitter and connect the
adaptor to AC wall outlet.
4
2
HDMI OUT
3
HDMI OUT
4
HDMI OUT
5
HDMI OUT
6
HDMI OUT
EDID
STD TV
1 2
SYS.Reset
ON OFF
3

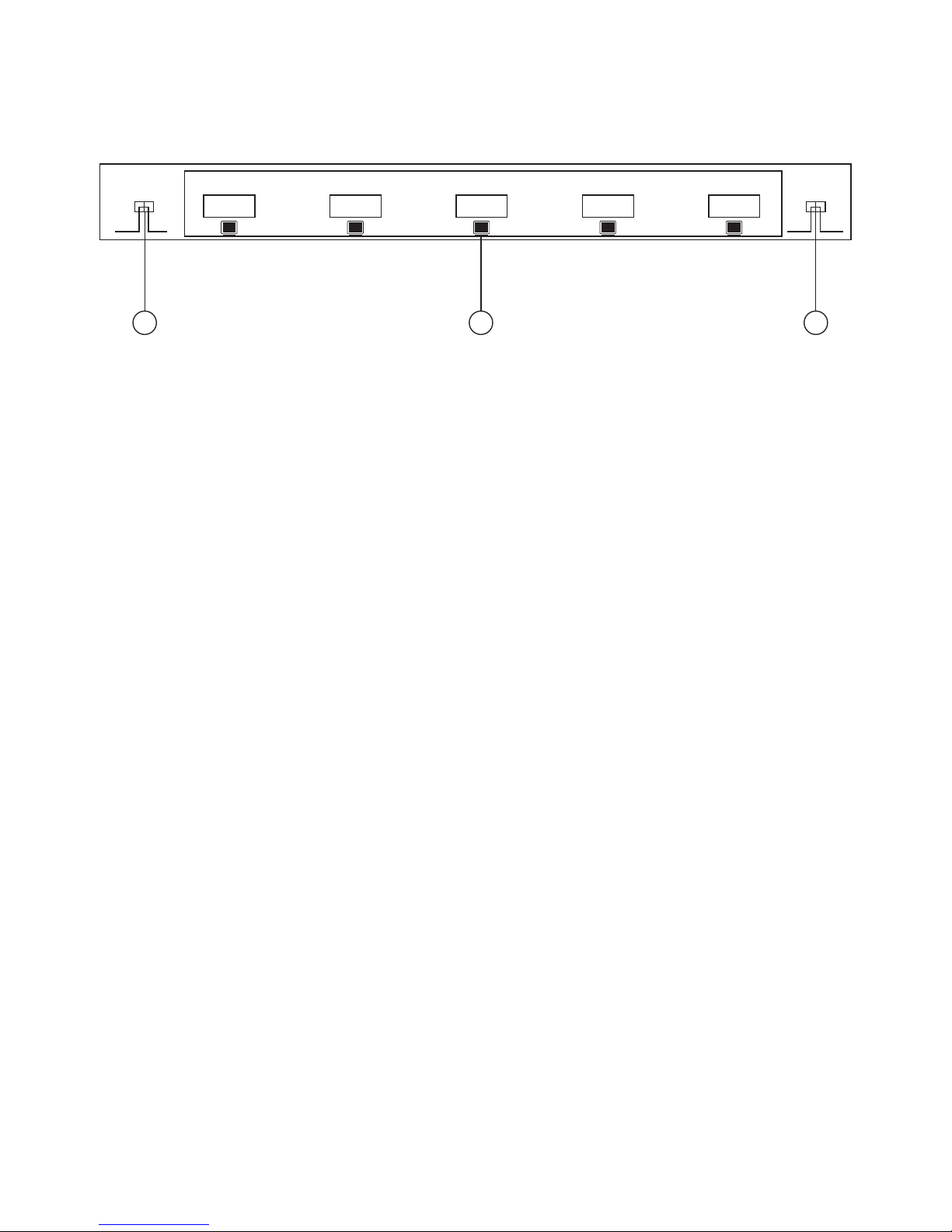

6.2 Rear Panel
① EDID: Default factory setting is TV, leave as is if the display is properly.
Switch to STD to use build-in EDID if the display has problems. When the
EDID control switch in TV selection, the unit will detect the first HDMI output
source’s EDID and record in the unit. If the first detected output source is
DVI it will pass to next source, until the first HDMI been detected
Note: EDID Control switch will be valid when re-power on the unit.
② HDMI OUT 2~6: Connect each of the output ports to the HDMI display.
When more than one output connected, the HDMI outputs play identical
video signal simultaneously.
③ SYS Reset: Switch to “ON” stage, the system will send the internal CEC
Command to the display within 8~10 minutes to force all the displays
switch to HDMI 1 port. Meanwhile, the source CEC Command will not
functional to the system. When switch to “OFF” stage, the system reset
function will terminate.
5
8. Specifications
2.25Gbps (single link)
1 x HDMI female port (Type A connector)
8 x HDMI female ports (signal link)
5V/5A DC (US/EU standards, CE/FCC/UL certified)
240 mm (W) x 103 mm (D) x 24 mm (H)
1000 g
Metal
Black
0°C ~ 40°C
Frequency Bandwidth
Input Port
Output Ports
Power Supply
Dimensions
Weight
Chassis Material
Silkscreen Color
Operating Temperature
HDMI
HDMI
HDMI Cable
HDMI
HDMI
HDMI Cable
HDTV HDMI display LCD TV
OR OR
DVD or Set-Top-Box

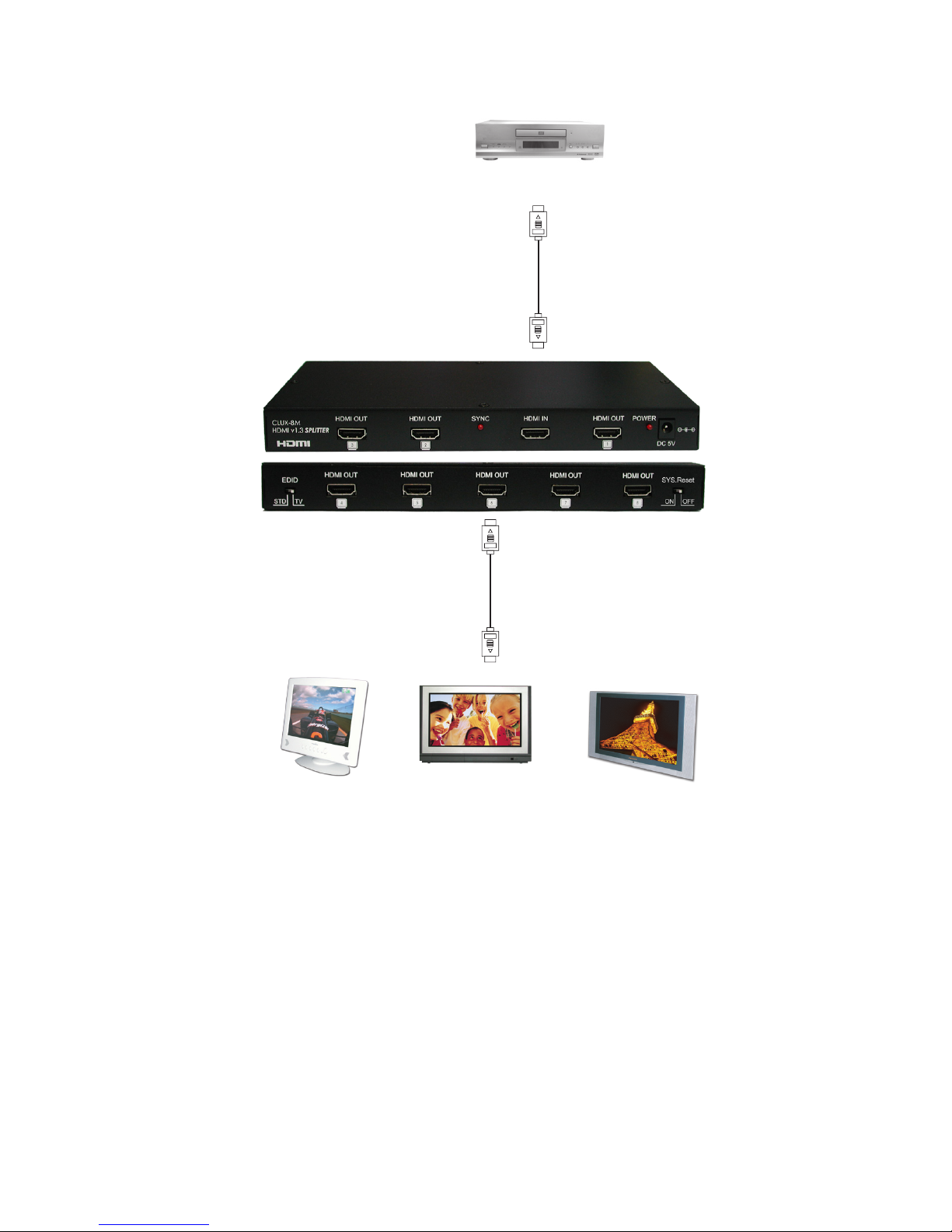

7. Connection and Installation
20080801 MPM-CLUX8M
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
