8-in 1-out
HDMI Switcher
Operation Manual
Introduction
CLUX-81 is a high performance HDMI switcher with remote control.
It allows your variousHDMI sources to share one HDTV display.
Simply press a button to select your desired HDMI source to be
displayed on the HDTV.
Features
* HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
* Signal Enhancement feature allows you to improve signal quality
after long distance transmission.
* LED indicators.
* Ideal for home theater integrations:
* Supports input/output resolution:
pc: VGA, SVGA, XGA, SXGA, and UXGA (1600 x 1200) & WUXGA (1920x1200)
HDTV: 480i 576i 480p, 576p, 720p, 1080i and 1080p
* Remote control & RS232 operation.
* Easy to install and to operate.
Operation Controls and Functions
Front Panel
1. Remote control sensor.
2. HDMI inputs: Connect your various HDMI sources to each of the
HDMI input of the unit using HDMI cables.
3. Input select/Indicators: Press the " INPUT" button repeatedly to switch to your
desired input source and the LED will illuminate to indicate which
input source is being selected.
4. Signal Enhancement/Indicator: Press the " Signal Enhance" button to turn
on this feature to improve signal quality after long distance transmission.
Press again to turn off. The LED will illuminate when the signal is enhanced.
5. Power LED Indicator: The LED will illuminate when the power is connected.
1
2
3 54
Operation Controls and Functions
Rear Panel
1 4
2
3
INPUT 1INPUT 2INPUT 3INPUT 4OUTPUT
RS-232
DC 5V
INPUT 5 INPUT 6 INPUT 7 INPUT 8
INPUT3 421
POWER
SIGNAL
ENHANCE
87
65
Switcherv1.3
HD
8x1
1. HDMI output: Connect the HDMI output to the HDMI input of
your display using HDMI cable.
2. HDMI inputs: Connect your various HDMI sources to each of the
HDMI input of the unit using HDMI cables.
3. Power: Plug the supplied 5VDC power supply into the unit.
4. RS232: 9-pin D-sub female connector for connecting to your other control
console for remote control.
Specifications
CR-22
1
3
2
Remote Control
1. Power:
Press the button to turn on/off the unit.
2. Direct input selector:
Press numerical number button to select your desired
input source.
3. Void buttons (No function). If the button number is
greater than the total input number of the unit then
the button is of no function.
CLUX-81 Remote Control Protocol
Pins definition of modem cable
RS-232 transmission format:
Baud Rate : 9600 bps
Data Bit : 8 Bits
Parity: None
Stop Bit: 1 bit
Splitter Remote Controller
PIN Definition PIN Definition
1 NC 1 NC
2 T x D 2 R xD
3 R x D 3 T x D
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC
-Frequency Band Width:
-Inputs:
-Output:
-Power Supply:
-Weight(g):
-Dimensions(mm):
-Silkscreen Color:
-Operating Temperature:
2.25 Gbps (single link)
8 x HDMI female port (Type A connector)
1 x HDMI female port (Type A connector)
5V DC
850
280(W) x l04(L) x 44(H)
Black
0°C~40°C

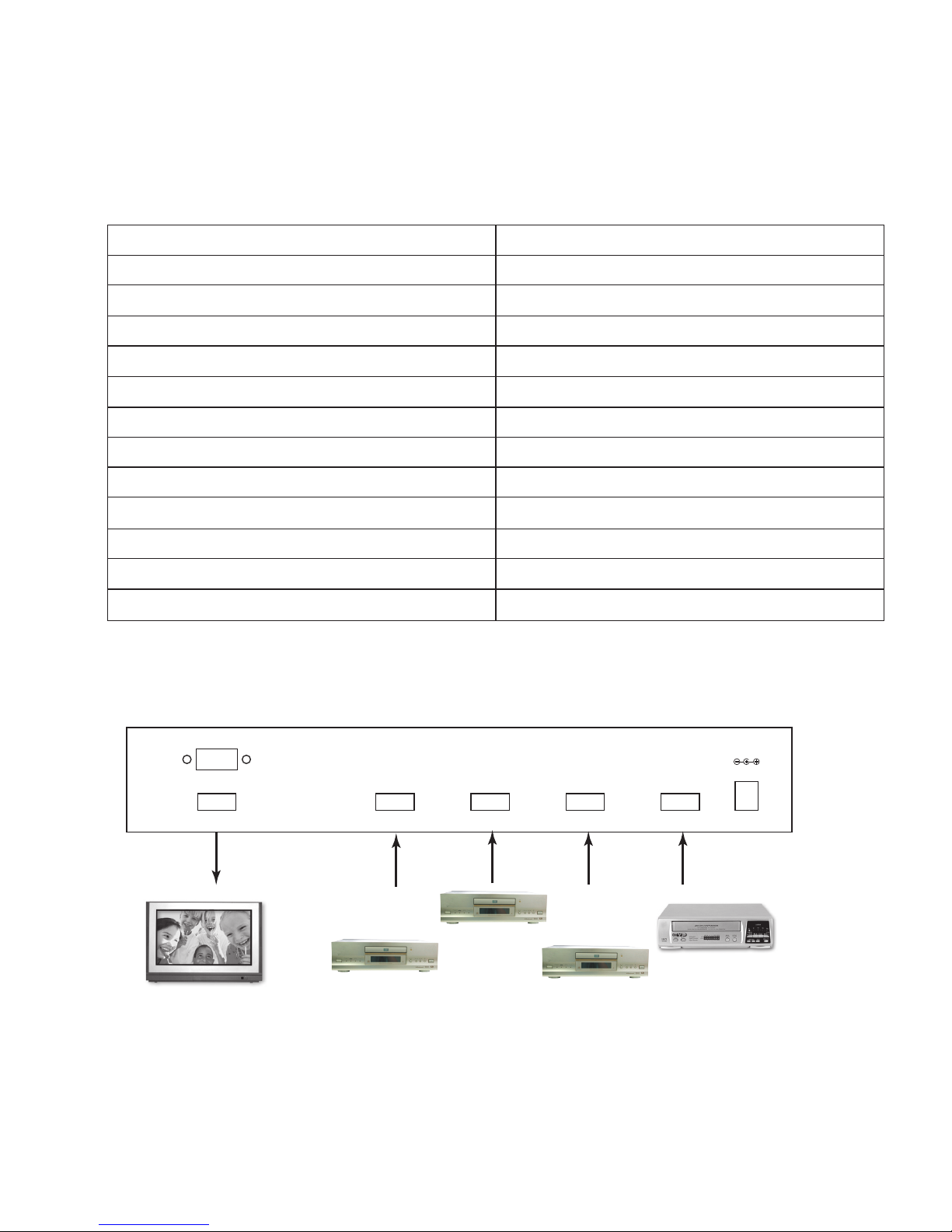

Connection and Installation
LCD TV
DVD 3
DVD 1
DVD 2
STB
......
20080403 MPM-CLUX81
RS-232 command
* The command is combined with a characters and digits.
* This combination command code has to be separated by ASCII character SPACE
* The command will be executed after ASCII character "CR" input
* After ASCII character "CR" is entered, if the command is legal the unit will reply "OK" message
* If the command is illegal, The unit will reply "NG" message
Command Code Comment
PORT 1 PORT 1 ON
PORT 2 PORT 2 ON
PORT 3 PORT 3 ON
PORT 4 PORT 4 ON
PORT 5 PORT 5 ON
PORT 6 PORT 6 ON
PORT 7 PORT 7 ON
PORT 8 PORT 8 ON
SIGNAL 1 ENABLE SIGNAL ENHANCE
SIGNAL 0 DISABLE SIGNAL ENHANCE
POWER 1 POWER ON
POWER 0 POWER OFF
