Cypress CHDMI2 Operation Manual

1x2 HDMI
Distribution
Amplifier
Operation Manual
CHDMI2
CHDMI2 is a high performance HDMI distribution amplifier.
It allows one HDMI source to connect up to 2 HDMI displays simultaneously.
Features
1. Built-in EDID simulator and HDCP keyset allows each output to work independently when connecting to a HDMI display.
2. Splits a HDMI source up to 2 outputs without signal loss.
3. Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable. 4 Supports a wide range of PC and HDTV resolutions-from VGA to UXGA and 480p to 1080p. Maximum resolution bandwidth-165MHz.
5. Can be cascaded up to 3 layers, or more if using high quality cable.
6. Each of the buffered output can run up to 15 meters@1600x1200.
Operation Controls and Functions

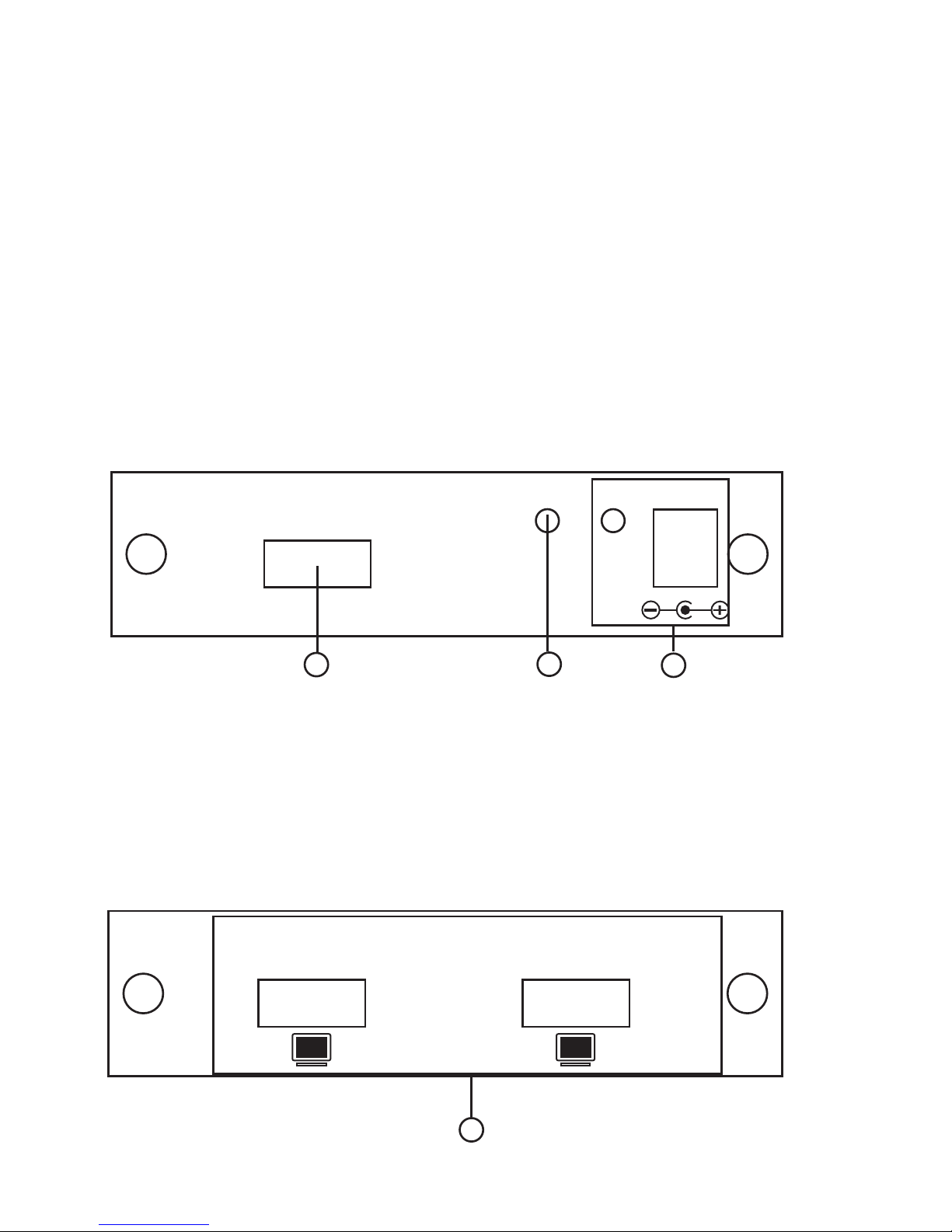

Front Panel
1
3
2
1. HDMI input: Connects to the HDMI or DVI output of your source equipment such as DVD player or Set-Top-Box.
2. Sync LED: The LED will illuminate when the HDMI source signal is connected to the input and is detected by the unit.
3. Power input: Plug the supplied 5VDC power supply into the unit. The LED will illuminate when connected.
Rear Panel
1
1. HDMI output 1/2 : Connects each of these output ports to the HDMI input of a HDMI display.
HDMI
OUTPUT
HDMI
OUTPUT
1 2
HDMI
INPUT
SYNC
DC 5V
POWER
Specifications:
- Frequency bandwidth: 1.65Gbps(single link)
- Input/Output:1-in/2-out HDMI female port
- Power consumption: 6W Max
- 5VDC universal power supply
- Operating temperature range: 0 ~ 48 C
- Operating humidity range: 30 to 80% RH
- Dimensions: 102(W) x92(D) x 25(H)mm
- Weight: 220g
Connection and Installation
DVD or Set-Top-Box
PC
DVI to HDMI Cable
or
HDMI display
HDMI to DVI Cable
HDMI
HDMI Cable
PC Monitor
HDMI
OUTPUT
HDMI
OUTPUT
1 2
HDMI
INPUT
SYNC
DC 5V
POWER
HDMI
HDMI
HDMI
HDMI
HDMI Cable
HDMI
