CDPH-1P
DisplayPort to HDMI Converter
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2012
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 09/11/10 Preliminary Release
VR1 12/04/11 Support Dual Mode
VS2 30/08/12 Updated format/texts
CONTENTS
1. Introduction ............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements ............................ 1
5. Features .................................................. 1
6. Operation Controls and Functions ....... 2
6.1 Front Panel ........................................2
6.2 Rear Panel .........................................2
7. Connection and Installation ................. 3
8. Specications ........................................ 4
9. Acronyms ............................................... 5
1. INTRODUCTION
The Display Port to HDMI Converter provides digital signal conversion
from DisplayPort to HDMI interface, utilizing ‘DisplayPort to HDMI
Level Shifter’ technology this model is able to output TMDS signal
fully compatible with HDMI, and so makes it the best solution to show
DisplayPort content on HDTV / HDMI monitor.
2. APPLICATIONS
• Display a DisplayPort signal on an HDMI display
• Use HDTV/HDMI monitor as the external/mirror display of MAC/PC/
NB
3. PACKAGE CONTENTS
• 1×DisplayPort to HDMI Converter
• Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment with DisplayPort output (must support Dual
mode), HDTV/HDMI monitor, and cables.
5. FEATURES
• HDMI and DVI 1.0 compliant
• Support DVI monitor if an HDMI to DVI adaptor is used
• Stylish design
• Runs without the need to install any software
• Support audio sampling rate up to 48 kHz
1
6. OPERATION CONTROLS AND FUNCTIONS

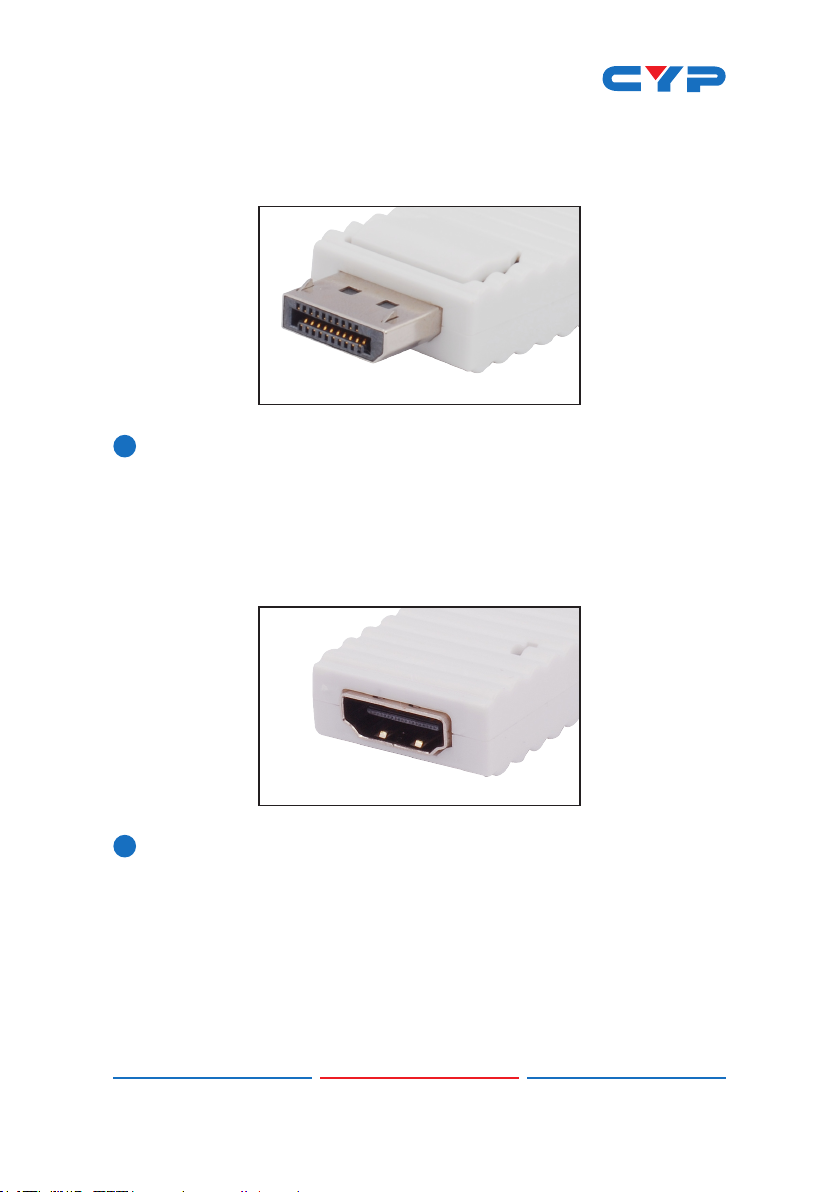

6.1 Front Panel
1
DisplayPort Input:
Connect to the DisplayPort equipped source device such as PC
or Laptop. Hold the top button to safely remove the unit from the
source device.
6.2 Rear Panel
1
HDMI Output:
Connect to HDMI equipped displays such as HDTV or HDMI
monitor.
Note: Some PC's DisplayPort port do not output audio signal, in such a
case, the HDMI port will output video signal
2

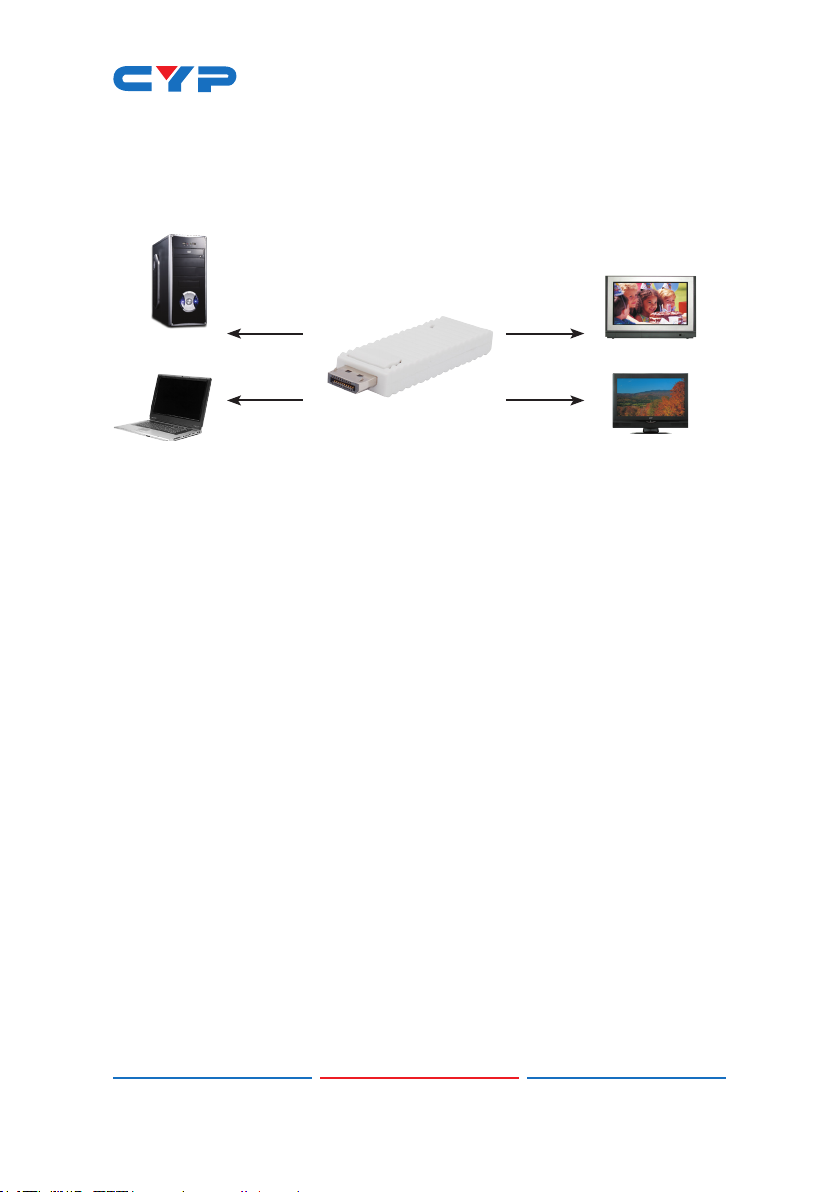

7. CONNECTION DIAGRAM
PC
NB
LCD TV
TV
3
8. SPECIFICATIONS
Frequency Bandwidth 2.25Gbps (single link)
Input Port 1 x DisplayPort (Male type)
Output Port 1 x HDMI (Female type)
Output Resolution 480p ~ 1080p, VGA ~ WUXGA
ESD Protection Human body model:
± 10kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions (mm) 81(W) x 25(D) x 11(H)
Weight(g) 22
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
4
9. ACRONYMS
ACRONYM COMPLETE TERM
HDMI High-Denition Multimedia Interface
DVI
DP DisplayPort
Digital Visual Interface
5
