HDMI Over CAT5
Receiver
at 100 Meters
Operation Manual
CA-HDMI100R
Disclaimers
Copyright Notice
Trademark Acknowledgments
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to
this document and/or product at any time and without notice.
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into
any language or computer file, in any form or by any means electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2010 by Cypress Technology.
All Rights Reserved.
Version 1.0 December 2010
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Revision History
Version No Date Summary of Change
VS1 20101201 Add HDCP Description
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
TABLE OF CONTENTS
1. Introduction................................................................................ 1
2. Features...................................................................................... 1
3. Package Contents.................................................................... 1
4. Operation Controls and Functions........................................... 2
4.1 Front Panel........................................................................... 2
4.2 Rear Panel........................................................................... 2
5. Specifications............................................................................ 3
6. Connection and Installation.................................................... 4
1
1. Introduction
This is the receiver (Rx) unit of HDMI over CAT5 Tx/Rx solution, works with HDMI
over CAT5 transmitter, can extend HDMI signal through CAT-5 cables for a
distance up to 100 meters. The installation of HDMI Over CAT5 is easy and
quick, simply place the transmitter next to your HDTV source such as a DVD
player, then place this unit next to your display, and get all necessary cables
connected to complete and enjoy.
2. Features
Compliant with HDMI 1.2, and DVI 1.0 specifications.
Supports CAT-5/CAT-5E/CAT-6 cables of variable types.
Supports high definition input up to 1080P, output resolution follows input.
Easy to install and simple to operate.
Not compatible with HDCP Source.
Note: This product does not process HDCP input. When receiving contents
that has HDCP encruption there will be no video output.
3. Package Contents
HDMI Over CAT5 Receiver at 100 Meters
5VDC Power Supply Adaptor
Operation Manual
2
4. Operation Controls and Functions
4.1 Front Panel
①
HDMI OUTPUT:
Connect the HDMI output port to the HDMI input of your display.
①
EQUALIZER:
Use this switch to adjust signal enhancement over long distance.
②
GAIN:
Use this switch to adjust brightness.
③
DDC INPUT:
Connect the DDC input to the DDC output of the transmitter unit using
CAT-5/CAT-5E/CAT-6 cable.
④
VIDEO INPUT:
Connect the VIDEO input to the VIDEO output of the transmitter unit using
CAT-5/CAT-5E/CAT-6 cable.
⑤
Power:
Plug the 5VDC power supply into the unit and connect the adaptor to AC
wall outlet.
1
CAT5 to HDMI
100
HDMI OUTPUT
4.2 Rear Panel
21 3 4 5
ADJUST
MIN
MAX
CAT5 INPUT
DDC
VIDEO
DC 5V
EQUALIZER
GAIN
3
5. Specifications
Supported resolutions: HDMI - 480i/480p, 576i/576p, 720P@50/60Hz,
1080i@50/60Hz, 1080p@50/60Hz
Input: 1* CAT-5 input for VIDEO, 1* CAT-5 input for DDC
Output: 1* HDMI female port
Power: 5V / 2.6A DC power supply
Dimensions: 123(W) x 125(D) x 30(H)mm
Weight: 700g
4

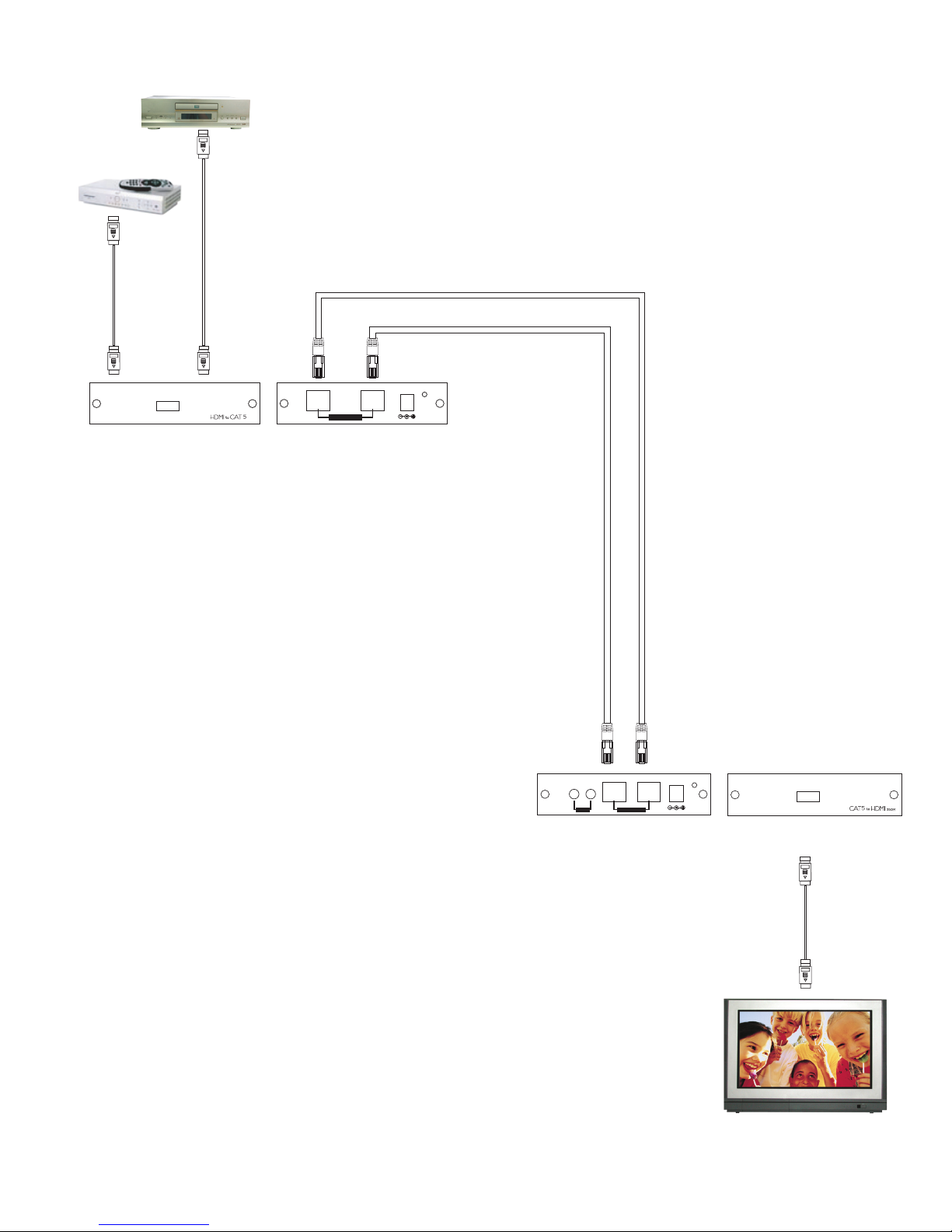

6. Connection and Installation
HDMI
Cable
HDMI
Display
HDMI
HDMI
DDC (CAT-5 Cable)
100 Meters
VIDEO (CAT-5 Cable)
Transmitter Unit
Front
Receiver Unit
Front
Transmitter Unit
Rear
Receiver Unit
Rear
VIDEO DDC
DC 5V
CAT5 OUTPUT
HDMI to CAT 5
HDMI INPUT
CAT5 to HDMI
250
HDMI OUTPUT
ADJUST
MIN
MAX
CAT5 INPUT
DDC
VIDEO
DC 5V
EQUALIZER
GAIN
DVD Player
HDMI
Cable
OR
HDMI
HDMI
STB
HDMI
Cable
HDMI
HDMI
Cypress HDMI Over CAT5 Series:
Product
CA-HDMIAT
CA-HDMI 50R
CA-HDMI 100R
CA-HDMI 150R
CA-HDMI 250R
Description
HDMI Over CAT5 Transmitter
HDMI Over CAT5 Receiver at 50 meters
HDMI Over CAT5 Receiver at 100 meters
HDMI Over CAT5 Receiver at 150 meters
HDMI Over CAT5 Receiver at 250 meters
5
Acronyms
A
Acronym Complete Term
CV Composite Video
NTSC National Television System Committee
OSD On-Screen-Display
PAL Phase Alternating Line
RGB Red Green Blue
SV S-Video
20070803 MPM-CAHDMI100R
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
