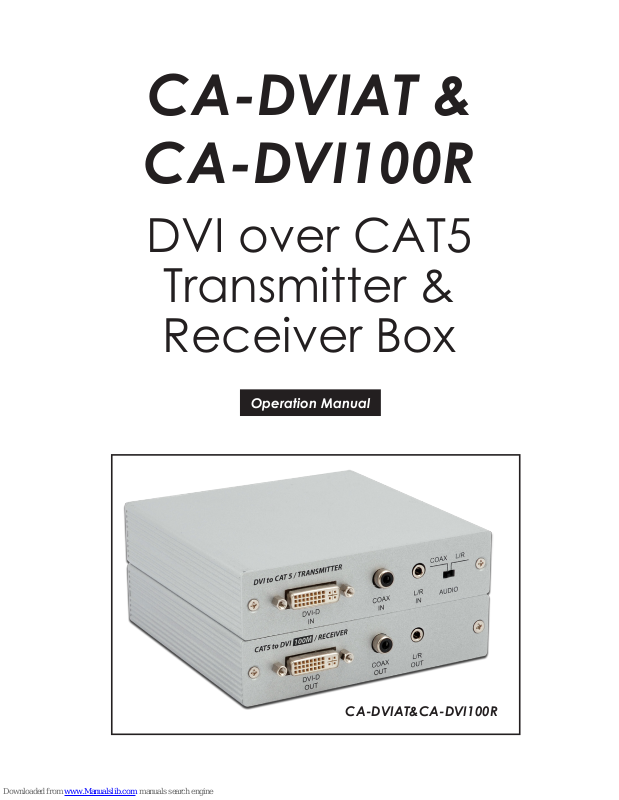

Cypress CA-DVIAT, CA-DVI100R Operation Manual

CA-DVIAT &

CA-DVI100R

DVI over CAT5

Transmitter &

Receiver Box

Operation Manual

CA-DVIAT&CA-DVI100R

Revision History

Version No Date Summary of Change

V1 20090401 Preliminary Release

Precaution

Failure to follow the precautions described below may cause damage to DVI

over CAT 5 Transmitter and Receiver Box and void the warranty.



DO NOT open the case. Doing so will void the warranty. If you find

problem with it, please return back to your retailer or seller who will

assist you or provide you with solution.



DO NOT use third-Party AC adapter or power cord. Doing so may

damage DVI over CAT 5 Transmitter and Receiver Box.



DO NOT bump, jar or drop contents of the products as it may

damage it and result in warranty void.



DO NOT set any liquids or beverages on the drive as they may

damage DVI over CAT 5 Transmitter and Receiver Box.

Table of Contents

1

1

1

1

2

2

2

3

3

4

5

6

1. Introduction…………………………………………………........……….

2. Application…………………………………………………................….

3. Contents……………………………………………….........................…

4. System Require…………………………………….…………........…….

5. Features…………………………………………….......……........………

6. Operation Controls and Functions…………………………………….

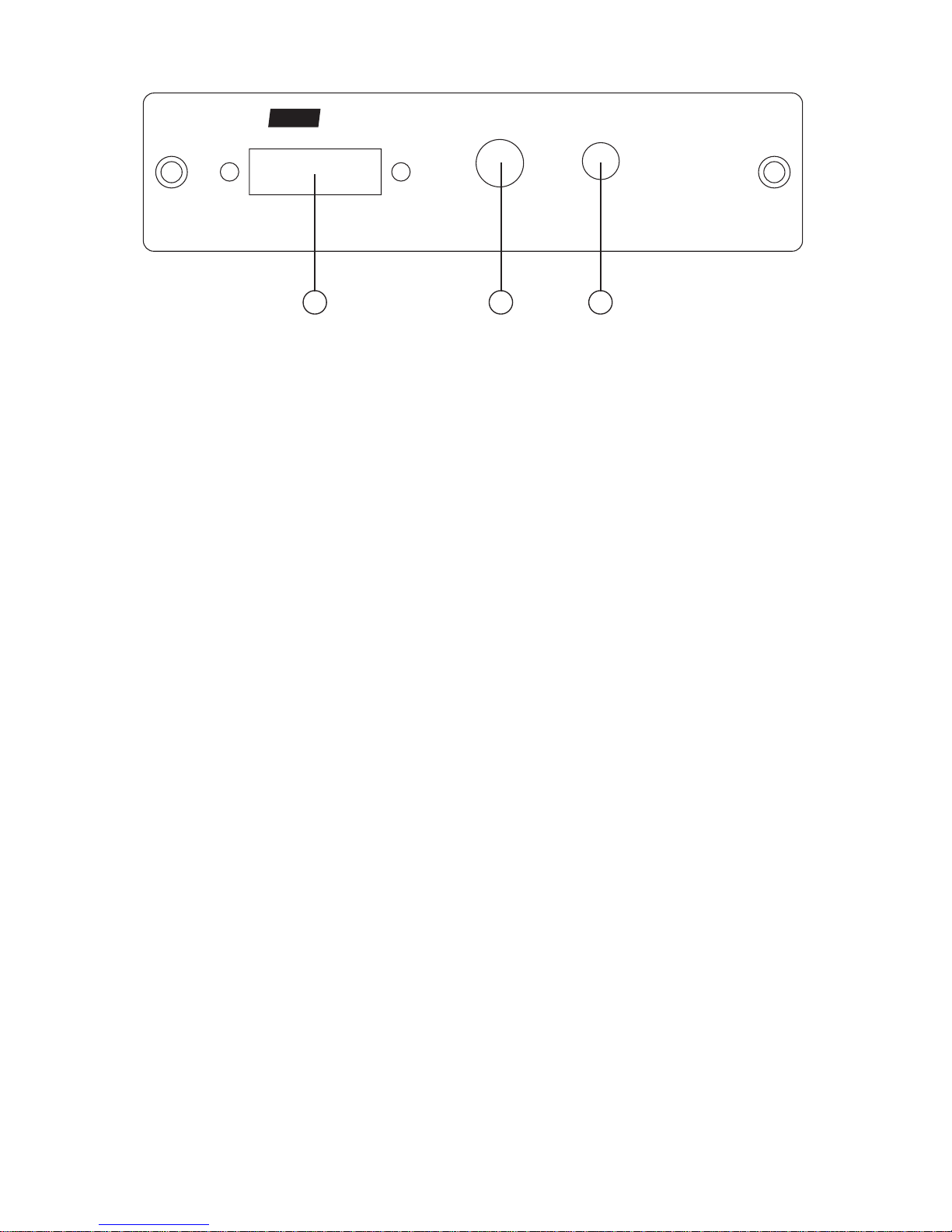

6.1 Transmitter’s Front Panel.........................................................

6.2 Transmitter’s Rear Panel..........................................................

6.3 Receiver’s Front Panel………………..........................….….…

6.4 Receiver’s Rear Panel……………………………….........….…

7. Connection and Installation…………………………….........……..…

8. Specications……………………………………………...........………..

1. Introduction

DVI transmitter and receiver over CAT 5 is a pair of extender for DVI signal ­up to 100 meters long. Not only can this device transfer the HD image signal
but also the analog/digital audio signal with coaxial and L/R audio port. This
extender is perfect for extending high resolution digital display with crystal
clear images over low cost CAT5 solution.

2. Application



For long distance DVI source display in a separate room or class.



For long distance digital and analog sounds transferring up to 100M long.



Any PC source equipment with output DVI connector.

3. Contents



DVI over CAT 5 Transmitter x 1



DVI over CAT 5 Receiver 100M x 1



Operational Manual x 1



5V/2.6A Power Adaptor x 2

4. System Require

PC/DVI source with DVI output connector, DVI to DVI cable(s), CAT 5 cable(s)
and DVI display monitor.
