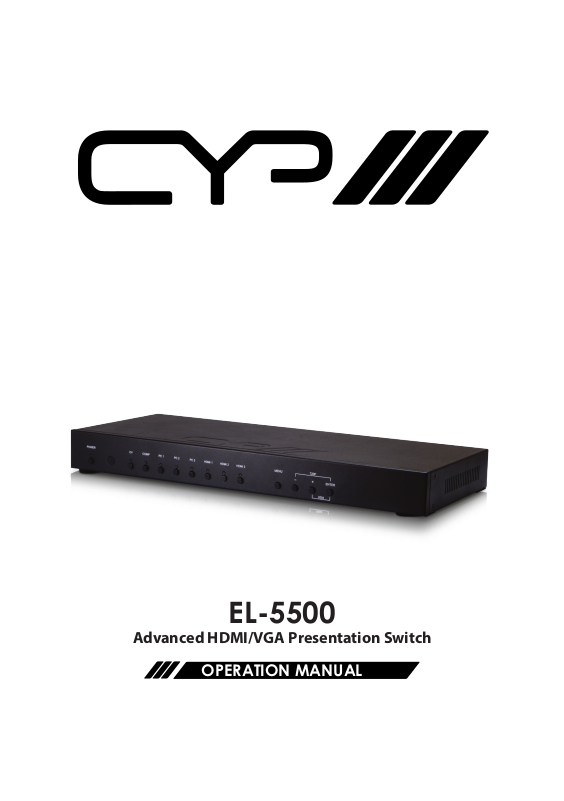

Cyp EL-5500 User Manual

Advanced HDMI/VGA Presentation Switch
OPERATION MANUAL
EL-5500
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document. CYP (UK) Ltd also makes no commitment to update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer le, in any form or by any means—electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from CYP (UK) Ltd.
© Copyright 2011 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
Always follow basic safety precautions to reduce the risk of re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain, moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sucient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v1.00 29/09/13 First Release
v1.01 02/07/13 Updates
v1.02 03/07/13 Added 'Free run' colours
v1.03 01/10/15 Added 'SYNC_SHIFT' to RS-232
commands and TIMING SHIFT to OSD menu.
v1.04 06/11/15 Added note about reduced blanking
CONTENTS
1. Introduction ...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features ..................................................7
6. Operation Controls and Functions .......8
6.1 Front Panel ................................................... 8
6.2 Rear Panel ..................................................... 9
6.3 Remote Control ........................................10
6.4 RS-232 Protocols ......................................11
6.5 RS-232 and Telnet Commands ............12
6.6 OSD Menu .................................................. 15
6.7 Telnet Control ............................................20
6.8 Web GUI Control ......................................22
6.9 Input Resolution Support ..................... 23
6.10 Output Resolution Support ...............24
7. Connection Diagram .......................... 25
8. Specications ...................................... 26
9. Acronyms ............................................. 27
1. INTRODUCTION
The EL-5500 is an advanced rack mountable HDMI, VGA, Composite, and Component presentation switcher. This device can scale and switch input sources to it's two HDMI outputs, with their associated audio signals to the native resolutions supported by the connected display. Control is via the IR remote, RS-232, IP, or via manual selection buttons. Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter). The EL-5500 is the perfect solution for any educational or commercial environment requiring integration of multiple sources and signal formats to two HDMI displays.
2. APPLICATIONS
Analogue and digital source integration
Upscaling standard denition video for high-denition displays
Conference centres
Lecture halls
Schools and universities
3. PACKAGE CONTENTS
Multi Input Scaler
Remote Control (CR-122)
D-Sub to RCA adaptor cable
Power Adaptor
Operation Manual
4. SYSTEM REQUIREMENTS
Input source equipment such as Blu-ray/DVD players or PC/NB, output display and amplier or speakers.
6
5. FEATURES
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Supported Resolutions: HDTV: 480i to 1080p PC: VGA to WUXGA
Aspect Ratio Adjustment
Motion Adaptive De-interlace (3D)
Video Noise Reduction
Underscan / Overscan Selection
Picture Adjustment Settings
7
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
720P
UNEM3 IMDH2 IMDH1 IMDH3 CP2 CP1 CPPMOCVCREWOP
ENTER
-
+
XGA
1 2
1
POWER Button and LED: Press this button to switch the device on or
3 4 5 6
to set it to standby mode. Once the device is connected to an active power supply the LED will illuminate and the device will switch on automatically.
2
IR Receiver Window: Receives only the IR signal from the remote
control included in the package.
3
INPUT Buttons and LEDs: Press these buttons to switch directly to
the required source. An LED will illuminate to indicate the selected input source.
4
MENU: Press this button to enter the On-screen Display (OSD) menu.
5
Plus/Minus (−/+) Buttons: Press these buttons to navigate down and
up in the OSD menu.
6
ENTER: Press this button to conrm the selection in the OSD menu.
Note: Press this button simultaneously with the '+' (plus) button to
instantly switch the output to XGA resolution or with the '−' (minus) button to instantly switch the output to 720p resolution.
8
6.2 Rear Panel
1 2 5 6
OUTPUT
SERVICE
RS232
COAX AUDIO
HDMI 2HDMI 1
PC/HD
AUDIO
RL
Cr/Pr
Cb/Pb
3 CP2 CP1 CP3 IMDH2 IMDH1 IMDH
3 4 7
1
IR IN: Connect the supplied IR extender to receive the IR signal from
the included IR remote. Ensure that the remote is within the direct line-of-sight of the IR extender.
2
SERVICE: Reserved for manufacturer use only.
3
RS-232: Connect to a PC/Laptop or RS-232 control system to use RS-
232 commands to control the device (See Section 6.5 for details on RS-232 commands).
4
OUTPUT
1) HDMI 1/2: Connect to an HDMI display or AV Receiver for video
and/or audio output.
2) PC/HD: Connect to a monitor/display for video output. For HD
(Component) output, use the supplied D-Sub 9pin to 3 RCA adaptor cable for HD resolutions from 480p~1080p.
3) COAX: Connect to an amplier or active speakers for audio output
in digital format.
Note: When the input audio source signal is in bitstream format and
the AUDIO SOURCE setting is set to AUTO in the OSD menu, the coaxial output will bypass the input audio signal including compatible surround sound formats.
4) AUDIO: Connect to an amplier or active speakers for audio output
in stereo format.
5
INPUT
1) HDMI 1/2/3: Connect to HDMI sources such as Blu-ray/DVD player
for both video and audio signal conversion.
2) PC 1/2/3: Connect to a PC/Laptop source for video signal input
with a D-Sub 15pin cable.
3) 3.5mm Mini-jacks: Connect to source's L/R output with 3.5mm
mini-jack for audio signal conversion.
INPUT
Y
CONTROL
RLCV
POWER
DC 5V
9
