CYP DCT-23 Operation Manual

DCT-23

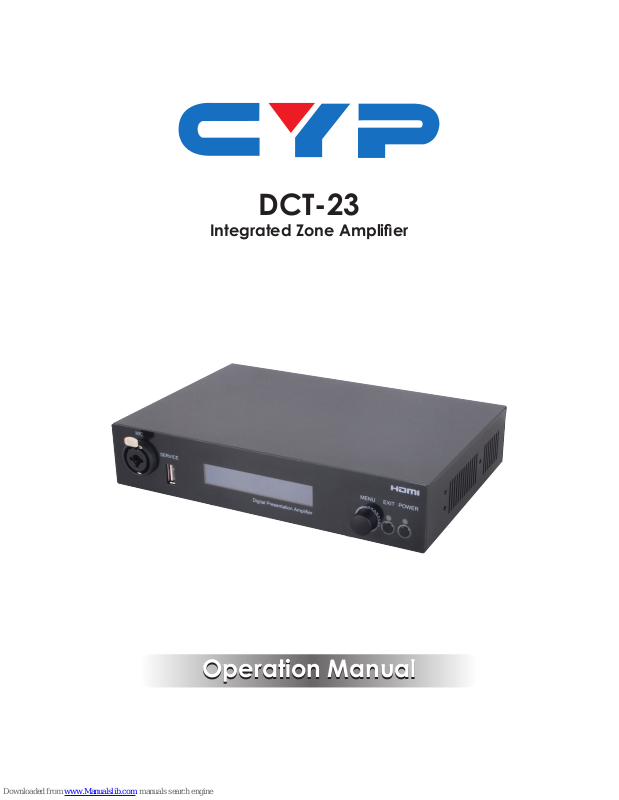

Integrated Zone Amplier
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside the unit.
Do not attach the power supply cabling to building surfaces.
Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person to walk on it.
To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE (DD/MM/YY) SUMMARY OF CHANGE
VS0 20/06/13 Updated text/diagrams
VR0 10/02/15 Preliminary Release
VS1 27/02/14 Added section 6.7 & 6.8
VS2 06/07/17 Updated Telnet screen captures
CONTENTS
1. Introduction ............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements ............................ 1
5. Features .................................................. 2
6. Operation Controls and Functions ....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel .........................................4
6.3 Remote Control ................................ 5
6.4 OLED Menu .......................................5
6.5 RS-232 Protocols ...............................7
6.6 RS-232 and Telnet Commands .......7
6.7 Telnet Control ...................................9
6.8 WebGUI Control .............................11
7. Connection Diagram .......................... 12
8. Specications ...................................... 13
8.1 Technical Specications ...............13
8.2 Audio Specications ...................... 14
8.3 Amplier Specication ................... 14
9. Acronyms ............................................. 15
1
1. INTRODUCTION
The Integrated Zone Amplier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital,
and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. Suitable for use at musical
events, sound presentation and sound amplication. With output audio sampling rate support up to 48 kHz and I/O data rate support
up to 24-bit, it provides a high quality sound reproduction.
2. APPLICATIONS
Public speech
Corporate events
Home systems
Ceiling speaker systems
• Matrix zone amplication
3. PACKAGE CONTENTS
• 1×Integrated Zone Amplier
1×Remote Control (CR-126)
• 1×IR Extender
1×24 V/3.75 A DC Power Adaptor
1×Power Cable
1×Rack Mount Ears (Set of 2)
1×Operation Manual
4. SYSTEM REQUIREMENTS
Audio source equipment such as DVD/Blu-ray players, PC, CD player, MP3 etc. with output display TV/monitor and active speakers.
2
5. FEATURES
• 30 watts per channel Digital Stereo Amplier
Supports Digital to Analog audio Conversion (DAC) and Analog to
Digital audio Conversion (ADC)
HDMI audio embedding and de-embedding
• Supports input audio sampling rates up to 96 kHz and output at 48 kHz
Supports HDMI audio sampling rates loop-through and video bypass
output
Supports a wide range of resolutions from 480i to 1080p and VGA to WUXGA (RB)
Dedicated XLR microphone input with independent volume control
Supports microphone sound being embedded into video output
Simultaneous output of sound on both digital and analog
• Analog line output selectable to be either xed or variable output
level
• Supports control via IR (Remote and IR Extender input), RS-232 or IP
(Telnet/WebGUI)
Compact design and easy to use
Note: Does not support the decoding of Dolby® Digital signals.
