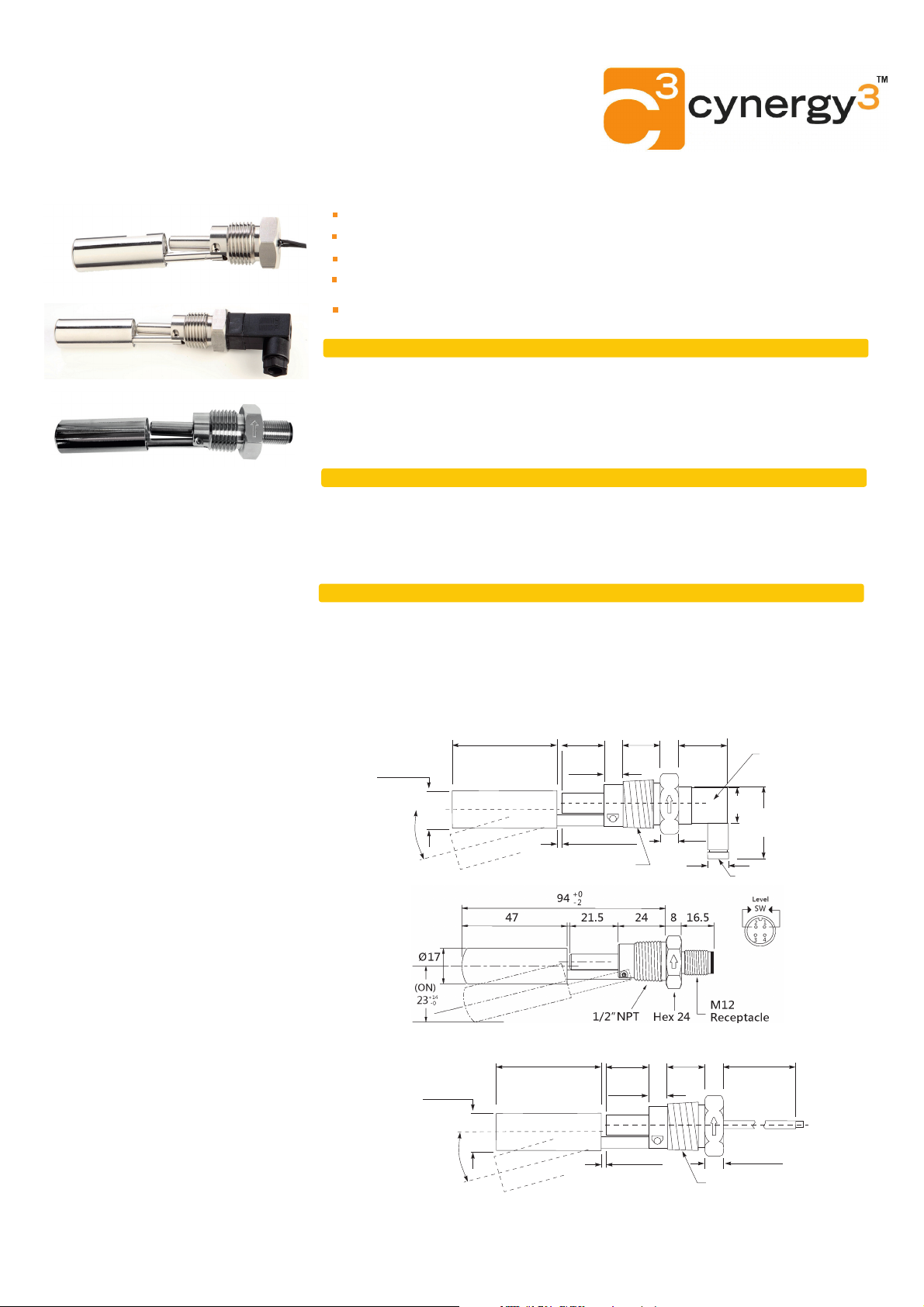

SSF212 Series
Compact external fitting via ½” NPT thread
External fitting via 1/2”NPT thread
SS 316 float
Compact switch design
High Temperature version available (180ºC)
User configurable N/O (make on rise) or N/C (make on fall)
Technical Specification
Mounting style EXternal Cable length - standard 100cm or plug
Mounting thread 1/2”NPT Cable size 17/0.10 - AWG22
Float & Stem material 316 & 304grade SS Cable conductor material Tinned copper
Maximum Temperature 120 C (H version 180ºC ) Cable sheath material XLPEº
Maximum pressure 5 bar Cable temperature rating 125 Cº
Float SG 0.7 Sealing gasket Not supplied
Minimum fluid SG 0.8 Tightening torque for fixing nut2.0kg/cm
Electrical Specification
Contact Form N/O (N/C)
The SSF212 series are horizontally
mounted switches that are fitted via a
½”NPT thread from the outside of the tank,
so does not require access to the inside of
the tank.
These are manufactured in SS 304 & 316
and will work in liquids of SG 0.8
minimum.
The switch action may be reversed by
mounting the device with the orientation
arrow pointing downwards, instead of the
normal upwards direction.
These are available with either 100cm
flying lead, DIN 43650 plug & socket or
M12 round connection.
Cable sets are available for use with M12
connection versions.
Switching Power Max VA 50
Switching Voltage AC Max V 300 (SSF212XPM12 = 240Vac)
Switching Voltage DC Max V 300 (SSF212XPM12 = 200Vdc)
Switching Current Max A 0.5
All ratings are for resistive load only.
Standard Parts Material Max Power LeadoutsFloat Stem Material
SSF212X100 SS 316 SS 304 50VA 100cm XLPE 17/0.1
SSF212X100H SS 316 SS 304 50VA 100cm XLPE 17/0.1
SSF212XPL SS 316 SS 304 50VA Plug & Socket
SSF212XPM12 SS316 SS304 50VA M12 4-pin socket
Custom versions can be made for particular applications. Please contact Cynergy3 with your requirements.
Mechanical Dimensions
SSF212XPL
17mm (0.7”)
ON
15°
SSF212XPM12
47mm
(1.85”)
10mm (0.4”) max.
Tank wall
19.5mm
(0.77”)
8.5mm
(0.3”)
2mm (0.08”)
NPT ½”
17mm
(0.67”)
34mm
(1.34”)
8mm
(0.3”)
13
A/F
2-pole
Plug/socket
15mm
(0.6”)
33.5mm
(1.3”)
Cable Gland 6mm max.
Plug Connections
All Dimensions in mm
SSF212X100
17mm (0.7”)
ON
15°
ISO
9001
CERTIFIED
SSF212 2017
© 2017 Cynergy3 Components, All Rights Reserved. Specifications are subject to change without prior notice. Cynergy3 Components and the Cynergy3 Components logo are trademarks of Cynergy3 Components Limited.
47mm
(1.85”)
19.5mm
(0.77”)
8.5mm
(0.3”)
2mm (0.08”)
10mm (0.4”) max.
Tank wall
17mm
(0.67”)
100cm
(39.4”)
8mm (0.3”)
½” NPT
