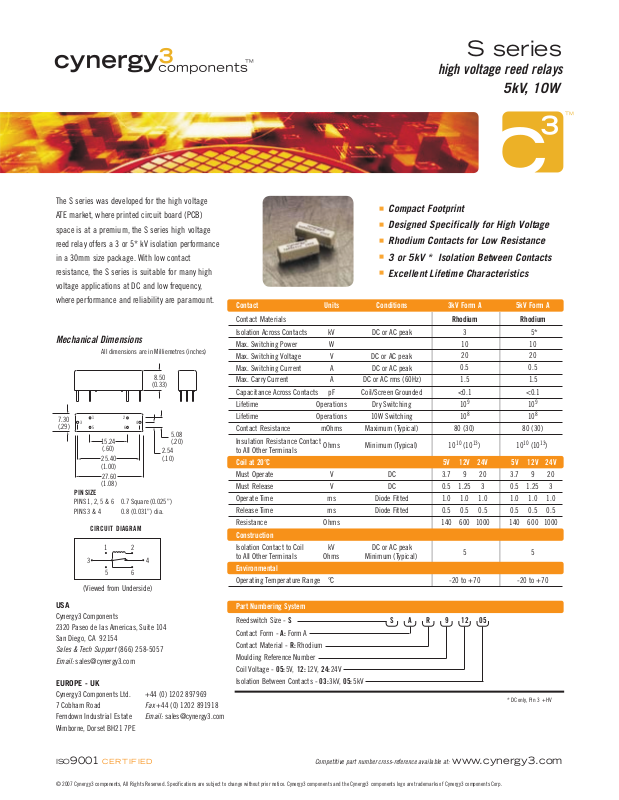

Cynergy3 Components S series Catalog Page

S series

high voltage reed relays

5kV, 10W

The S series was developed for the high voltage

ATE market, where printed circuit board (PCB)

space is at a premium, the S series high voltage

reed relay offers a 3 or 5* kV isolation performance

in a 30mm size package. With low contact

resistance, the S series is suitable for many high

voltage applications at DC and low frequency,

where performance and reliability are paramount.

Mechanical Dimensions

All dimensions are in Milliemetres (inches)

8.50

(0.33)

7.30
(.29)

(Viewed from Underside)

1

3

5

PIN SIZE

PINS 1, 2, 5 & 6 0.7 Square (0.025”)
PINS 3 & 4 0.8 (0.031”) dia.

CIRCUIT DIAGRAM

3 4

15.24
(.60)

25.40

(1.00)

27.60

(1.08)

1 2

5 6

2

4

6

2.54
(.10)

5.08
(.20)

#

Compact Footprint

#

Designed Specifically for High Voltage

#

Rhodium Contacts for Low Resistance

#

3 or 5kV * Isolation Between Contacts

#

Excellent Lifetime Characteristics

Contact Units Conditions 3kV Form A 5kV Form A

Contact Materials Rhodium Rhodium

Isolation Across Contacts kV DC or AC peak 3 5*

Max. Switching Power W

Max. Switching Voltage V DC or AC peak

Max. Switching Current A DC or AC peak
Max. Carry Current A DC or AC rms (60Hz) 1.5 1.5

Capacitance Across Contacts pF Coil/Screen Grounded <0.1 <0.1

Lifetime Operations Dry Switching 109 10

Lifetime Operations 10W Switching 10

Contact Resistance mOhms Maximum (Typical) 80 (30) 80 (30)

Insulation Resistance Contact
to All Other Terminals

Coil at 20°C 5V 12V 24V 5V 12V 24V

Must Operate V DC 3.7 9 20 3.7 9 20

Must Release V DC 0.5 1.25 3 0.5 1.25 3

Operate Time ms Diode Fitted 1.0 1.0 1.0 1.0 1.0 1.0

Release Time ms Diode Fitted 0.5 0.5 0.5 0.5 0.5 0.5

Resistance Ohms 140 600 1000 140 600 1000

Construction

Isolation Contact to Coil kV DC or AC peak
to All Other Terminals Ohms Minimum (Typical)

Environmental

Operating Temperature Range °C -20 to +70 -20 to +70

Ohms Minimum (Typical) 1010 (1013) 1010 (1013)

10 10
20 20

0.5 0.5

8

5 5

9

8

10

°

USA

Cynergy3 Components
2320 Paseo de las Americas, Suite 104
San Diego, CA 92154

Sales & Tech Support [phone]
Email: [e-mail]

EUROPE - UK

Cynergy3 Components Ltd.
7 Cobham Road
Ferndown Industrial Estate
Wimborne, Dorset BH21 7PE

ISO9001 C E RTIFIED Competitive part number cross-reference available at: www.cynergy3.com

© 2007 Cynergy3 components, All Rights Reserved.

[phone]

Fax [phone]
Email: [e-mail]

Specifications are subject to change without pr ior notice. Cynergy3 components and the Cynergy3 components logo are tra demarks of Cynergy3 components Corp.

Part Numbering System

Reedswitch Size - S S A R 9 12 05

Contact Form - A: Form A

Contact Material - R: Rhodium

Moulding Reference Number

Coil Voltage - 05: 5V, 12: 12V, 24: 24V

Isolation Between Contacts - 03: 3kV, 05: 5kV

* DC only, Pin 3 +HV
