CYmodel Pt-19 Instruction Manual

Wing Span:2000 mm (79 in)

2

Wing Area:61.3 dm (950 sq.in) Total Length: 1550 mm (61 in) Take-off weight: 11 lb(5kg) Engine :2c 1.40-1.60cu.in 26cc gas engine Radio : 5 channels ,8 servos

SAFETY PRECAUTIONS

This radio control model is not a toy!

lFirst-time builders should seek advice from people having building experience in order to assemble the model correctly and to produce its performance to full extent.

,

lAssemble this kit only in places out of childrens reach! lTake enough safety precautions prior to operating this model.

,

You are responsible for this models assembly and safe operation! lAlways keep this instruction manual ready at hand for quick reference,even after completing the assembly. lCould cause serious injury or even death

SPECIFICATION

Pt-19

ALMOST - READY - TO - FLYALMOST - READY - TO - FLY

Before commencing assembly,please read these instructions thoroughly.

Thank you for choosing CYmodel

Global : www.cymodel.com

Australia : www.austars-model.com Italia : www.biellaexpress.com

Instruction Manual

Item Nr: CY8023

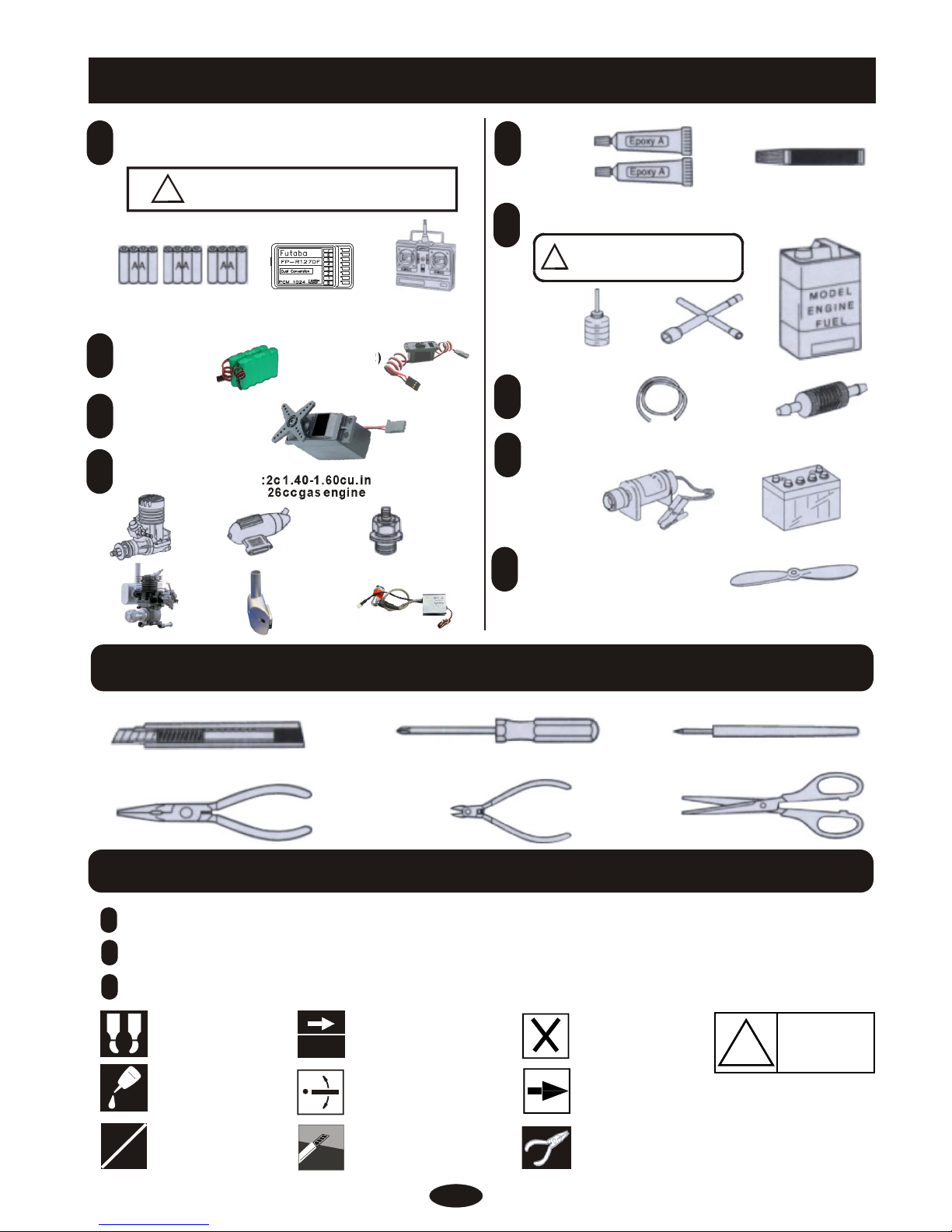

REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately) REQUIRED FOR OPERATION (Purchase separately)

TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)TOOLS REQUIRED ( Purchase separately)

BEFORE YOU BEGINBEFORE YOU BEGINBEFORE YOU BEGINBEFORE YOU BEGIN

Sharp Hobby Knife

Phillips Screw Driver

Awl

Needle Nose Pliers

Wire Cutters

Scissors

Read through the manual before you begin ,so you will have an overall idea of what to do.

Check all parts .if you find any defective or missing parts .contact your local dealer.

Symbols used throughout this instruction manual,comprise.

111 222

333

.

Warning!

!

Do not overlook this symbol.

A minimum 5channel radio for airplanes (with 8servos). And dry batteries.

CAUTION: Only use a minimum 5channel radio for airplanes! (No other radio may be used!)

!

12 AA-size Batteries

A minimum 5 channel

transmitter for airplanes.

For handing the radio properly.refer to its instruction manual.

Engine and Muffler

Purchase a propeller that will match your engine

Silicone Tube

Fuel Filter

required for engine starting

Glow engine fuel only.

WARNING: Normal gasoline cannot

be used with glow engines.

!

Fuel Pump

Plug Wrench

Glue

Instant glue

Epoxy Glue

Other equipment for enhancing

airplane operation & perormance

12V Battery (for starter)

Engine Starter

B B BB

16X10----18X10

22

Cut off shaded portion.

Ensure smooth non-binding movement while assembling.

Must be purchased separately!

Pay close attention here!

Drill holes with the specified Diameter(here:2mm)

Assemble left and right Sides the same way.

Apply instant glue

(CA glue,super glue).

Apply epoxy glue.

Cut off excess.

50

2

C.A

L

R

A B

2mm2mm

99

44

11

77

66

55

88

Muffler

Ignition

Model Airplane engine:2c 1.40-1.60cu.in 26cc gas engine

Receiver

22

Battery (need 2)

33

Servo(need 8 servos )

remote control

Switch (need 2)

Glow plug

Muffler

!

3

2

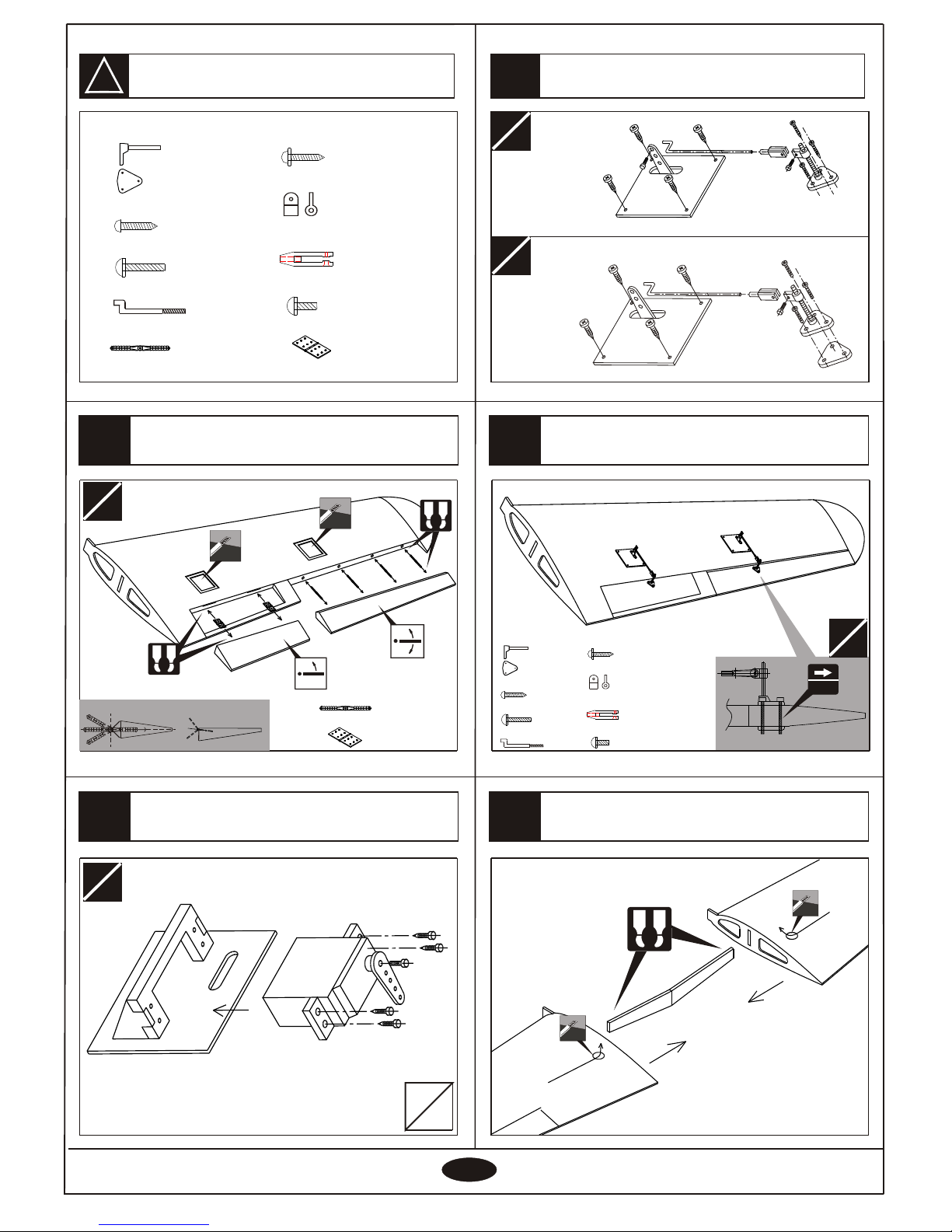

Install the aileron

1

5

4

33

Install the servo.

Main wing

Flap.

Aileron

Install the servo.

Cut the film, put the aileron and flap servo line out

Accessory list for this page.

L

R

Horn

Connecting rod head

Rod adjuster

- - - - - - 4

- - - - - - 2

- - - - - - 4

2x8mm Screw

- - - - - - 4

1.8X90mm rod

- - - - - 4

2x30mm Screw

- - - - - - 6

- - - - - - 4

2.3X10mm Tp screw

- - - - - - 16

A B

Hinge

- - - - - - - - 4

- - - - - - - - 8

A B

LL

RR

LL

RR

LL

RR

LL

RR

2X12mm Tp screw

- - - - - - 6

2mm2mm

LL

RR

FlapAileron

Make sure hinges are mounted in the same line

A B

Horn

Connecting rod head

Rod adjuster

- - - - - - 4

- - - - - - 2

- - - - - - 4

2x8mm Screw

- - - - - - 4

1.8X90mm rod

- - - - - 4

2x30mm Screw

- - - - - - 6

- - - - - - 4

2.3X10mm Tp screw

- - - - - - 16

Hinge

2X12mm Tp screw

- - - - - - 6

- - - - - - 4

- - - - - 8

!

8

7

10

99

44

6

Accessory list for this page.

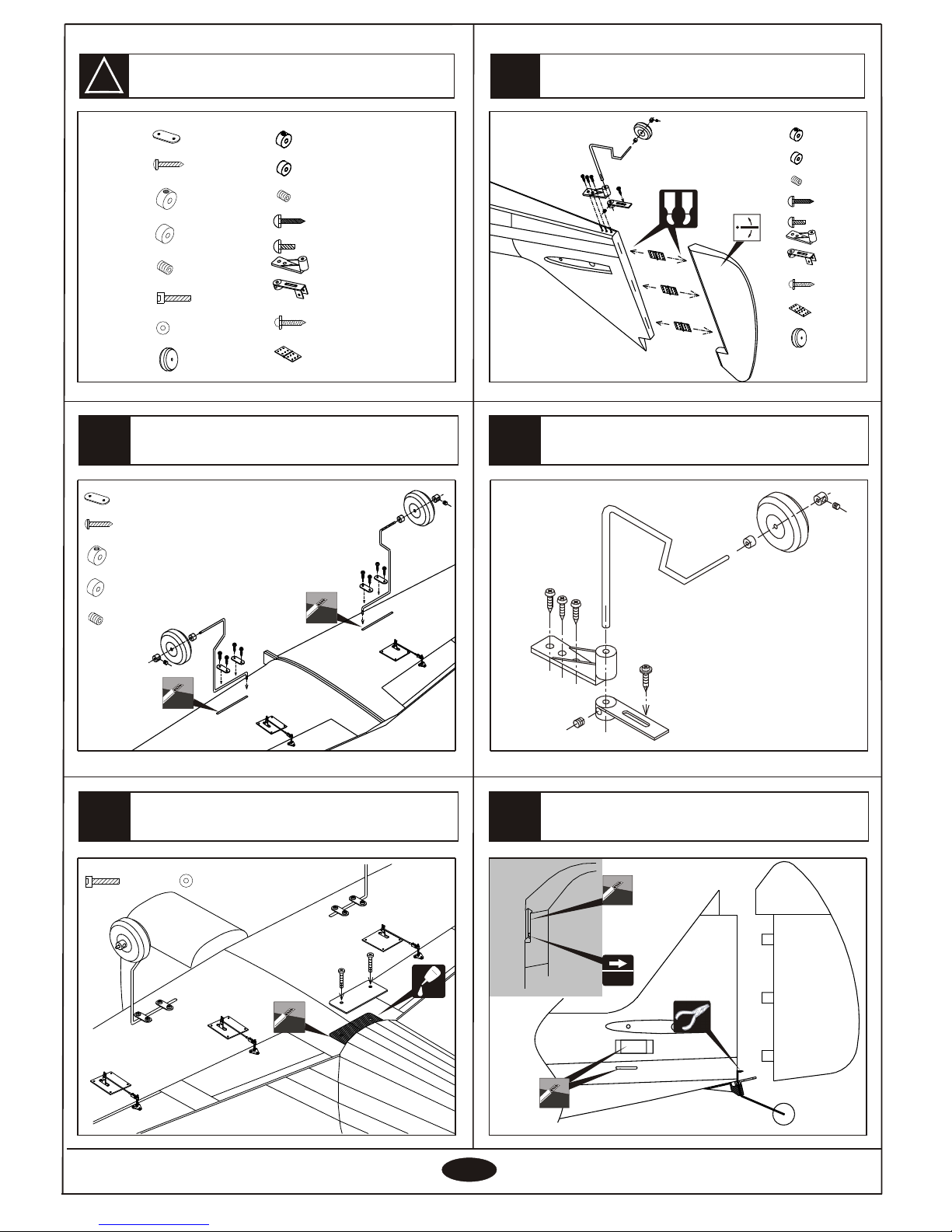

Install the rudder&tail wheel

Install the main landing gear

Pressure plate

- - - - - 4

3X20mm Tp screw

- - - - - 8

5.2mm Collar

5.2mm Nylon collar

3X3mm screw

- - - - - 2

Main wing installing

3X12 Tp screw

- - - - 3

3X5 Screw

- - - - 1

2.6mm Collar

2.6mm Nylon collar

3X3mm screw

Hinge

- - - - 3

35mm wheel

- - - - 1

2.6X12mm Tp screw

- - - - 1

- - - - 2

2.5mm2.5mm

A B

Install the rudder&tail wheel

5

02

C.AC.A

5X45mm screw

- - - - - - 2

5mm Washer

- - - - - - 2

3X12 Tp screw

- - - - 3

3X5 Screw

- - - - 1

2.6mm Collar

2.6mm Nylon collar

3X3mm screw

Hinge

- - - - 3

35mm wheel

- - - - 1

2.6X12mm Tp screw

- - - - 1

- - - - 2

Pressure plate

- - - - - 4

3X20mm Tp screw

- - - - - 8

5.2mm Collar

5.2mm Nylon collar

3X3mm screw

- - - - - 2

5X45mm screw

- - - - - - 2

5mm Washer

- - - - - - 2

!

13

12

15

14

11

55

Accessory list for this page.

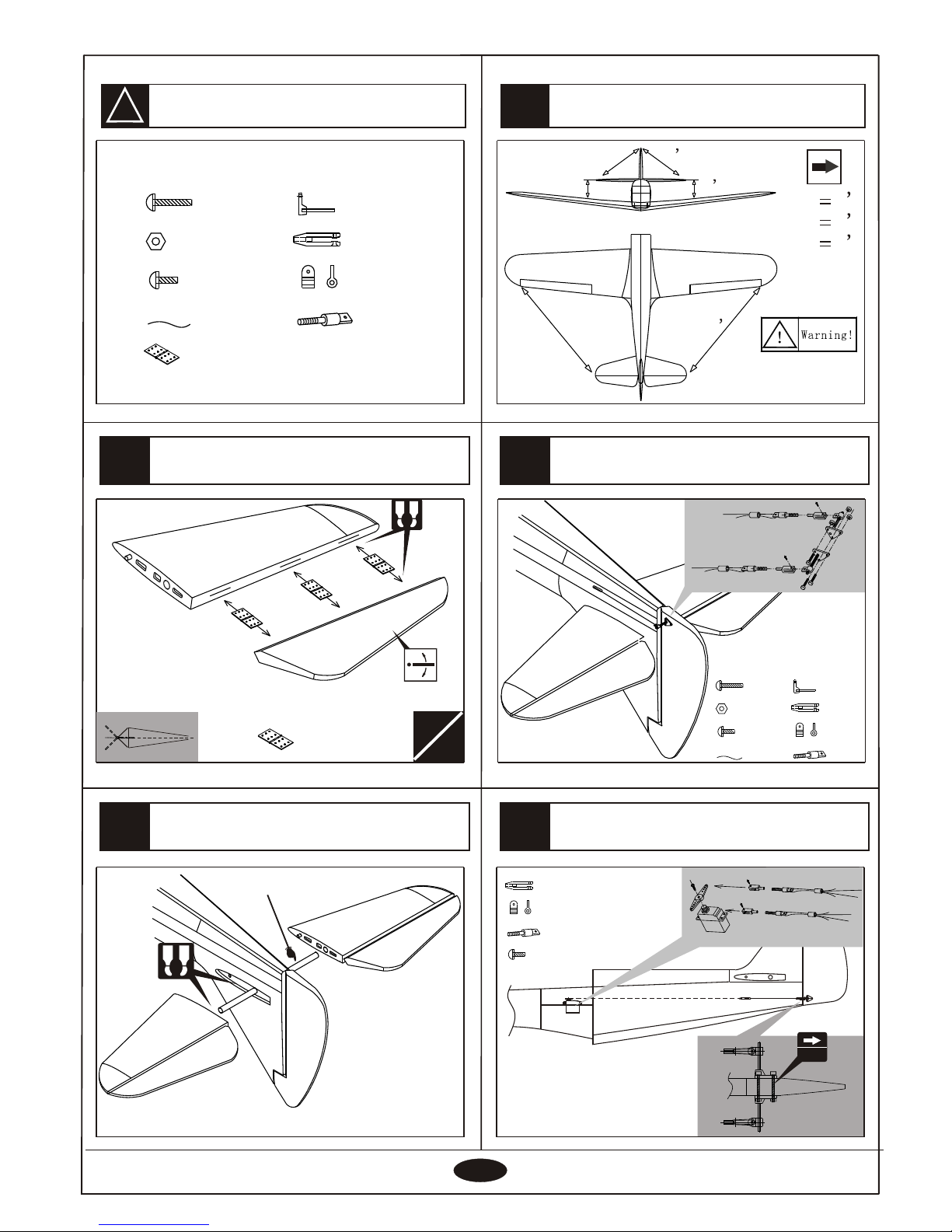

Install the elevator

A B

Make sure hinges are mounted in the same line

Hinge

- - - - - - - - 6

LL

RR

Install the elevator

Securely glue together ,if coming off during flights. You lose control of your airplane which leads to accidents!

A A B

B

C

Main wing&Horizontal/Vertical tail

A

B

C

Install the rudder servo

HORN

Rod adjuster Connecting rod head

Rod

2X20mm screw

2mm nut

2X8mm screw

- - - - 2

- - - - 3

- - - - 2

1000mm Steel wire

- - - - 2

Rod adjuster Connecting rod head

Rod

2X8mm screw

- - - - 2

12X280mm tube

2mm2mm

HORN

Rod adjuster Connecting rod head

Rod

2X20mm screw

2mm nut

2X8mm screw

- - - - 2

- - - - 4

- - - - 3

- - - - 4

1000mm Steel wire

- - - - 2

Hinge

- - - - - - - - 6

!

18

17

20

19

66

16

Accessory list for this page.

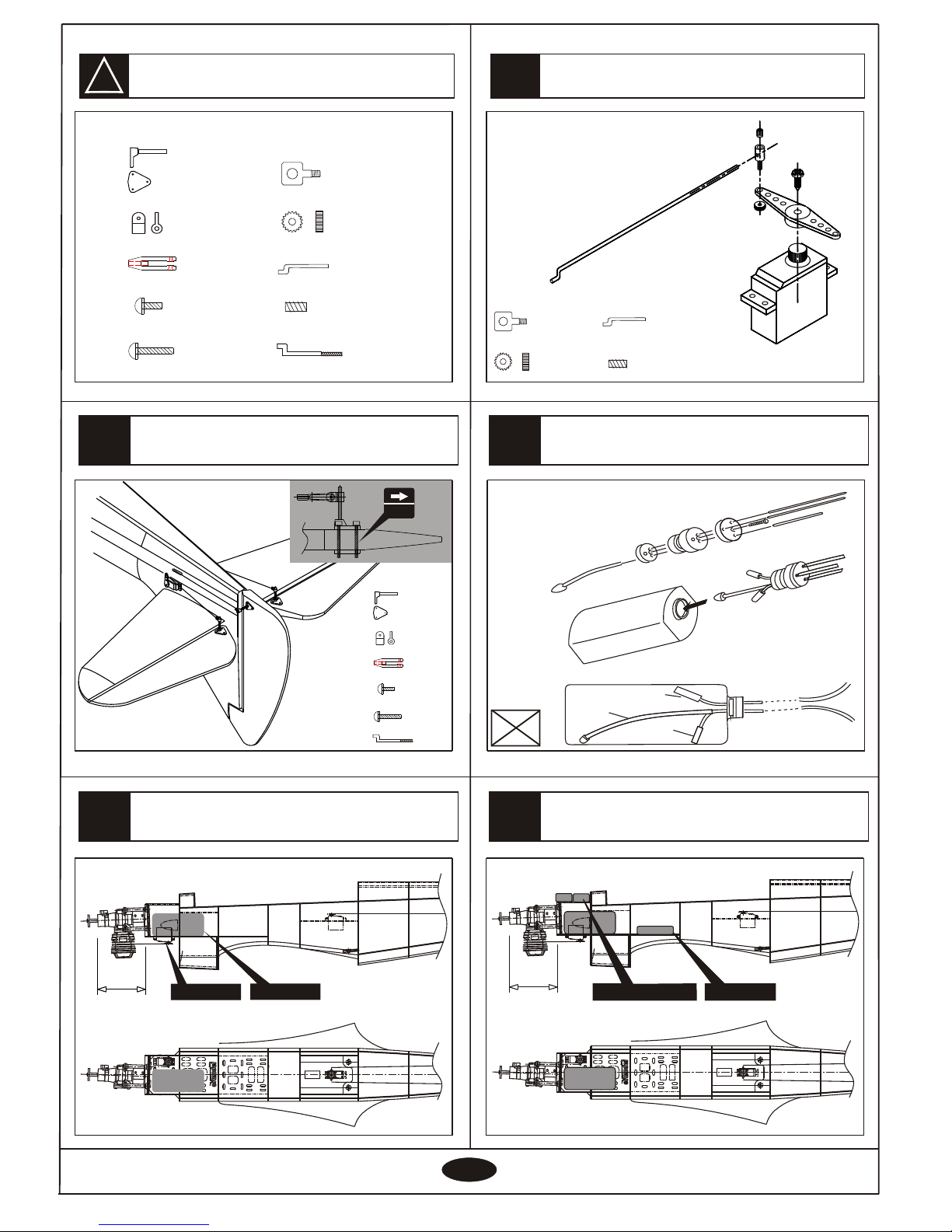

Install the engine

After confirming the position(see front of fuel tank). Insert and tighten the screw.

Fuel supply line

Fuel pipe

Air pressure line

Assembly of the full tank

1.8X180mm Rod

- - - - - - 1

Linkage Stopper

2mm Nut

- - - - 1

3X3mm Screw

- - - - - - 1

Install the throttle servo

140mm

ThrottleThrottle

Fuel tankFuel tank

Radio Equipment

140mm140mm

Receiver Receiver

Battery/IgnitionBattery/Ignition

Model Airplane engine:2c 1.40-1.60cu.in 26cc gas engine

Install the elevator servo

Horn

Connecting rod head

Rod adjuster

- - - - - - 2

2x8mm Screw

- - - - - - 2

1.8X90mm rod

- - - - - 2

2x20mm Screw

- - - - - - 6

- - - - - - 2

2mm2mm

1.8X180mm Rod

- - - - - - 1

Linkage Stopper

2mm Nut

3X3mm Screw

Horn

Connecting rod head

Rod adjuster

- - - - - - 2

2x8mm Screw

- - - - - - 2

1.8X90mm rod

- - - - - 2

2x20mm Screw

- - - - - - 6

- - - - - - 2

- - - - - - 1

!

23

25

77

21 24

22

Accessory list for this page.

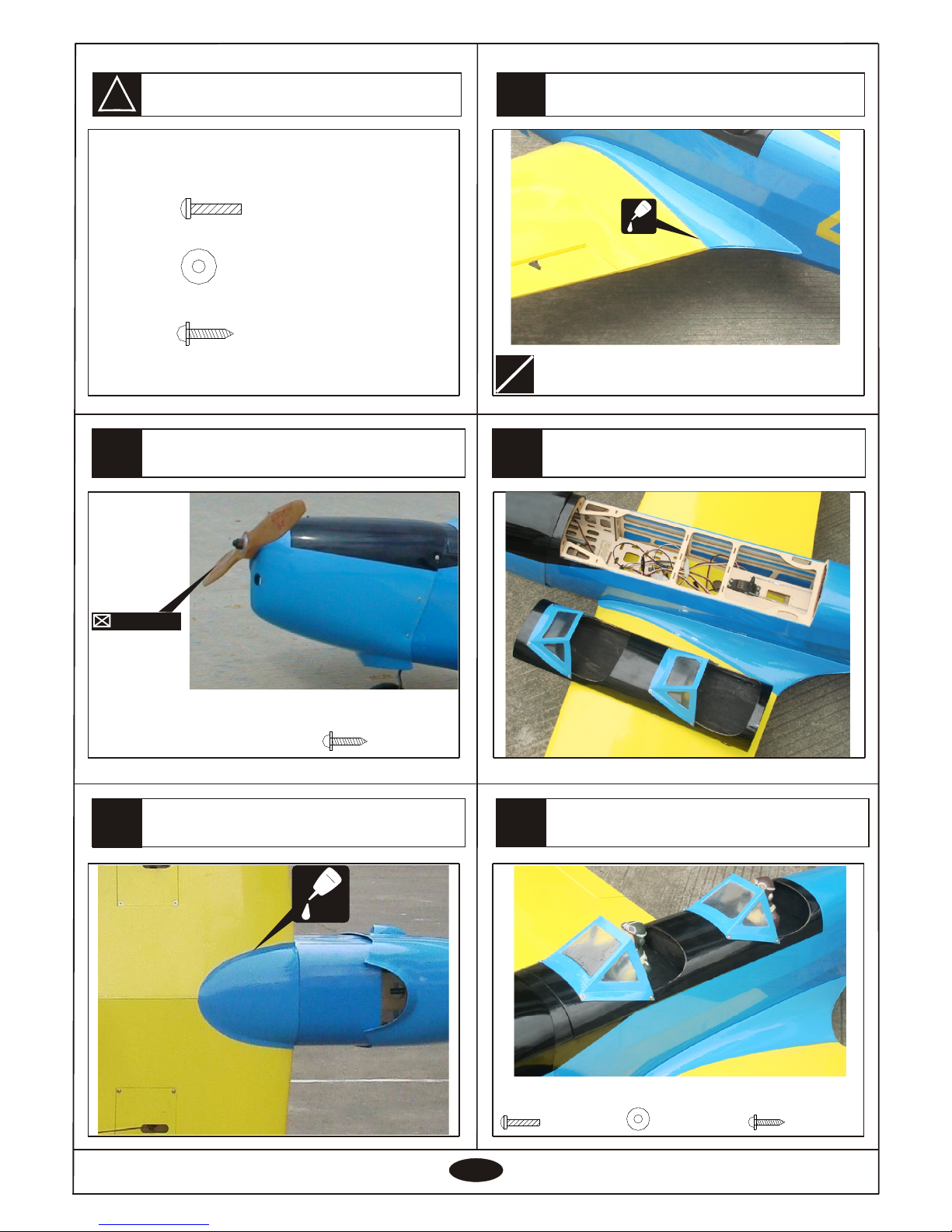

Install the thr cowling

Install the canopy

502

C.AC.A

2.3X10mm Tp screw

- - - - - - 6

PropellerPropeller

Install the canopy

5

0

2

C.AC.A

LL

RR

2.3X10mm Tp screw

- - - - - - 8

3mm Washer

- - - - - 2

3X20mm screw

- - - - - 2

2.3X10mm T p screw

- - - - - - 14

3mm Washer

- - - - - 2

3X20mm screw

- - - - - 2

28

27

29

Side view

ELEV A TOR

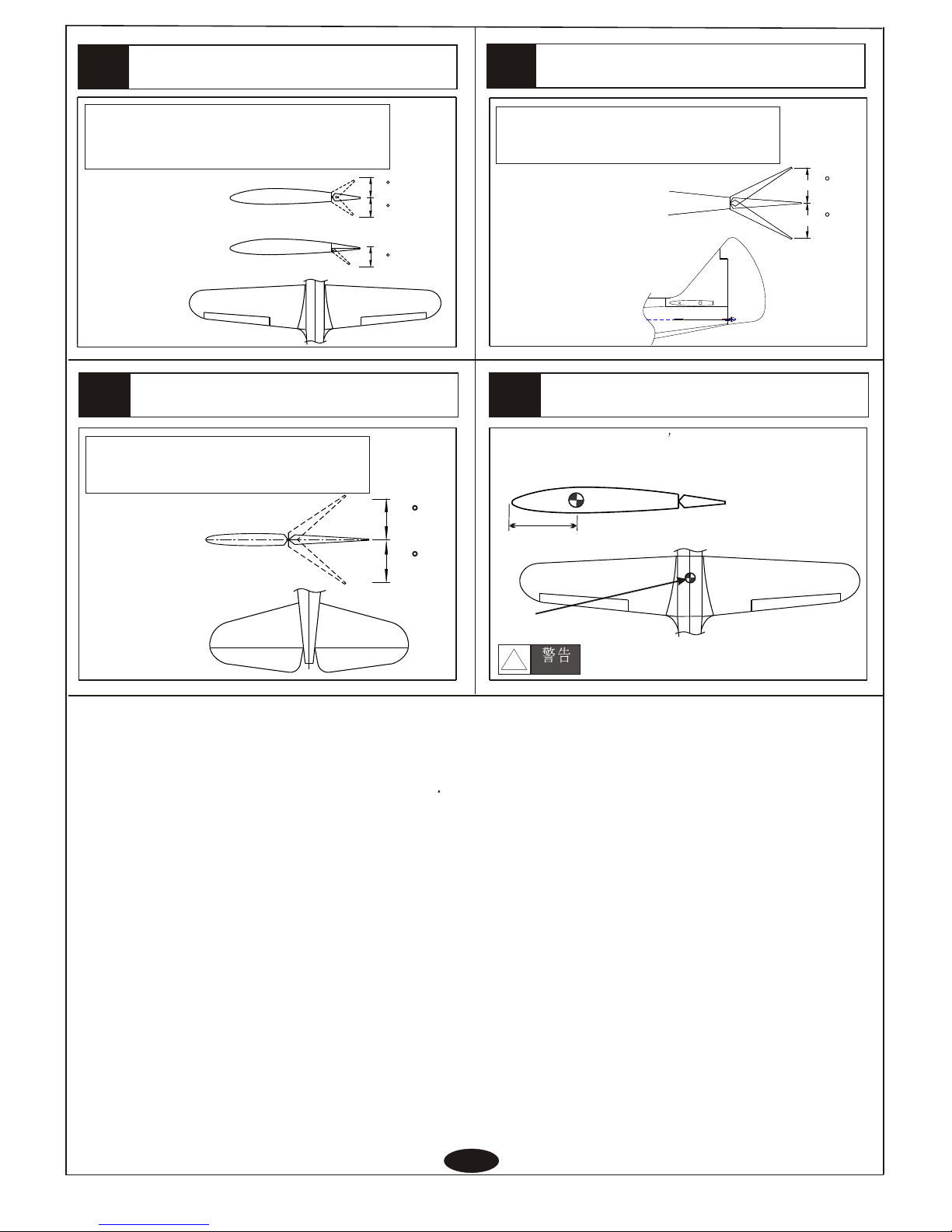

Adjust the travel of each control surface to the values in the diagrams. These values fit general flight capabilities.

Readjust according to your needs and flight level.

Top view

26

AILERON

Adjustment.

Top view

Adjust the travel of each control surface to the values in the diagrams. These values fit general flight capabilities. Readjust according to your needs and flight level.

88

Adjustment.

Never fly before checking the Cg s required position. In order to obtain th e CG specified ,reposition the

receiver and battery.

NEVER fly the model without well balancing.

Warning!

!

CG

Side view

Rudder

Adjust the travel of each control surface to the values in the diagrams. These values fit general flight capabilities. Readjust according to your needs and flight level.

Top view

1 15-120mm1 15-120mm

Adjustment

Side view

40

Adjustment.

40

45

Flap

40
