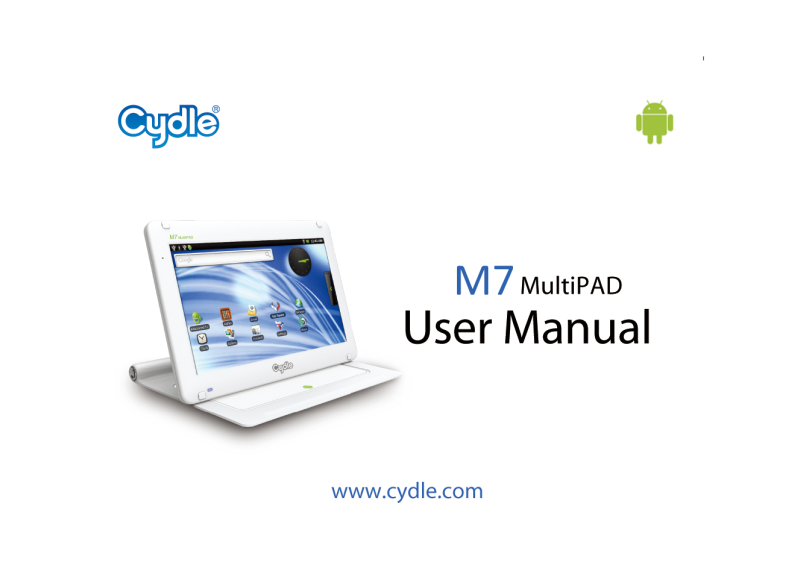

Cydle M7 Users Manual
Contents
Introduction
Pre-caution
Safety and Handling Information
Important Safety Information
Before you start
M7 at a Glance
Battery
Detachable Stand
Getting Started
Turning the M7 MultiPAD On/Off
Home Screen and Applications Tab
How to Manage Icons
Status Indicator on Device
Music Playback
Gallery
Video Gallery
Photo Gallery
2
3
4
5
6
7
8
8
9
10
12-13
13
14
HDMI
How to Use HDMI
Web Browsing
Connecting to the Internet
To Start Internet Browser
Bookmark
Syncing
How to Use the Mini USB Port
How to Use Your Micro SD
Pairing a Wireless Device
App Square
To Start App Square
Manage Account
Application
Specification
Notice
Copyright
Warranty Card
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
Introduction
Thank you for choosing Cydle
We hope you will find the instructions in this manual clear and easy to follow. Please take a few minutes to look
through the Quick Manual to learn how to use all the features of Cydle M7 MultiPAD.
What’s in the Box
Box includes
Cydle M7 MultiPAD Manual
Earphone Mini USB Cable Wall Charger
Web site
Please visit our website or contact a Cydle representative if you have any inquires while using the Cydle M7 MultiPAD.
Get the latest software update at the Cydle website at no cost.
Register as a Cydle Member for the latest updates, promotions and new product information.
Contact http://www.cydle.com
e-mail cydle@cydle.com
Cydle customer service Toll free number 1-877-810-5818
2
Pre-caution
Pr
Safety and Handling Information
Be sure to carefully read the operating instructions and adhere to the safety precautions before using your M7 MultiPAD to ensure
correct usage and user safety. Cydle Corporation will not be responsible for incidents that occur due to failing to follow instructions
presented. This information applies to all Cydle Corporation products.
Operating in a safe place:
This product should be used for personal use only and used as intended in accordance with the user’s manual. Do not
operate or adjust settings while driving , cycling, or walking near traffic.
Stop using the M7 MultiPAD if you find it disruptive or distracting while operating any type of vehicle, or performing
any other activity that requires your full attention. Check and obey the applicable laws and regulations on the use of
earphones and devices such as M7 MultiPAD in the areas where you drive or ride. Be careful and attentive while
driving.
Proper handling:
Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign
objects into M7 MultiPAD.
Unit contains electronic components that can be permanently damaged when exposed to shock or vibration.
Please keep your unit in a stable place and avoid dropping the unit.
Do not operate unit in high–shock and high-vibration environments.
Do not attempt to take apart, open, service, or modify the product. Refer all servicing to qualified personnel.
Repair
Clean only with cloth dampened with water, gently wipe dry with dry cloth.
Do not apply liquid directly to the unit.
Never attempt to repair or modify the M7 MultiPAD yourself. If the M7 MultiPAD has been submerged in water,
punctured, or subjected to a severe fall, do not use it until you take it to an Cydle Authorized Service Provider. The M7
MultiPAD doesn’t contain any user-serviceable parts. Disassembling the M7 MultiPAD, including the removal of the back
cover, may cause damage that is not covered under warranty.
Customer Service contact
For service information, please visit our support center at www.cydle.com
The rechargeable battery in M7 MultiPAD should be replaced only by an Cydle Authorized Service Provider.
3
Pre-caution
Pr
Important safety Information
Caution: Power Adapter Usage
When using the Power Adapter to charge the M7 MultiPAD, make sure that the Power Adapter is plugged into the power outlet. Do not connect
or disconnect the Power Adapter while hands are wet. Do not use any other Power Adapter other than the AC/DC Power Adapter certificated by
Cydle to charge your M7 MultiPAD. (Make sure that the rated Voltage of the M7 MultiPAD is 5V)
The Power Adapter may become warm during normal use. Always allow adequate ventilation around the Power Adapter and use care when
handling.
Unplug the Power Adapter if any of the following conditions exist:
1. The power cord or plug has become frayed or damaged.
2. The adapter is exposed to rain, liquids, or excessive moisture.
3. The adapter case has become damaged.
4. You suspect the adapter needs service or repair.
5. You want to clean the adapter.
Caution: Battery Care & Recycle regulation
THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECET TYPE.
This unit contains materials such as battery, circuit boards, cables, electromagnetic
compatibility gaskets and connectors which may contain lead and copper/beryllium alloys
that require special handling and disposal at end of life. Before this unit is disposed of,
these materials must be removed and recycled or discarded according to applicable
regulations.
4
Before you start
Before you start
M7 MultiPAD at a Glance
ⓐ
Microphone
ⓑ
Power Button
ⓒ
Volume Keys
ⓓ
Home Button
ⓔ
Menu Button
e
ⓕ
Back Button
ⓖ
Microphone Jack
ⓗ
3.5mm Earphone Jack
ⓘ
Mini USB Port
ⓙ
HDMI Port
ⓚ
Power Jack
ⓛ
External Speaker
ⓜ
Hook for Detachable Stand
ⓝ
Micro SD Slot
Stand body
P
q
Support & cover
5
f
Before you start
Before you start
Battery
Charge the M7 MultiPAD with the original Power Adapter included in the box.
Use only the adapter(5V,2A) included in the box.
Understanding Battery Status
Charging the Battery
1. The Power Jack is located on the bottom right of the unit.
2. Plug in the Power Adapter to the Power Outlet.
3. Connect the Power Adapter to the M7 MultiPAD.
4. The M7 MultiPAD will begin charging. The Battery Icon will change to the
Charging Icon on the top right of the screen.
When the M7 MultiPAD is connected to a power source, the
battery icon changes to show that the battery is charging or
fully charged.
When the M7 MultiPAD isn’t connected to a power source,
a battery icon on the M7 MultiPAD screen shows approximately how much
battery life is left.
Use Battery
The charge time can vary but when the M7 MultiPAD battery has completely depleted, expect about 5 hours to charge
the M7 MultiPAD completely.
The charging time can be different when using the M7 MultiPAD while charging.
f
6
Before you start
Introduction
Detachable Stand
Use the M7 MultiPAD Detachable Stand to set on top of the desk for a hands free operation or use as a Screen Cover when
collapsed, to protect the LCD screen when mobile.
How to turn the stand
Gently lift up the Screen to set the M7 MultiPAD for horizontal view,
turn the Screen to the left for vertical view.
How to detach the stand
The Detachable Stand can be easily disassembled using the following 2 options:
How to attach the stand
To attach the
Detachable Stand to
the M7, place the M7
as shown in the picture.
Insert the hook of the
Detachable Stand to
the specified
connecting point of
the M7 MultiPAD and
push up until a clicking
noise is heard.
Place a pen or
pencil between the
M7 and stand,
then close the M7
to easily detach.
Push off the stand like above
WARNING: For user safety, users must follow the instructions outlined in the manual and proceed with caution when detaching the stand. All
damages resulting from failing to follow the outlined instructions will be the responsibility of the user.
7
Getting Started
Introduction
Turning the M7 Multi PAD On/Off
To turn Power On/Off, press the Power Button for 3 seconds, located on top of the unit.
Home Screen and Applications Tab
The Home Screen is what you see when turning on the M7 MultiPAD. It gives you access to shortcuts, widgets and more.
The Home Screen expands further by dragging the screen to the left or right.
Unlock:
Slide the Green Lock Icon up to green spot to unlock the screen.
Sleep Mode:
Press the power button to activate Sleep mode.
To activate the screen again, hold the power button for 3 seconds.
The M7’s LCD is a Resistive Touch Screen so utilizing a stylus pen might be more convenient to control the screen.
8
