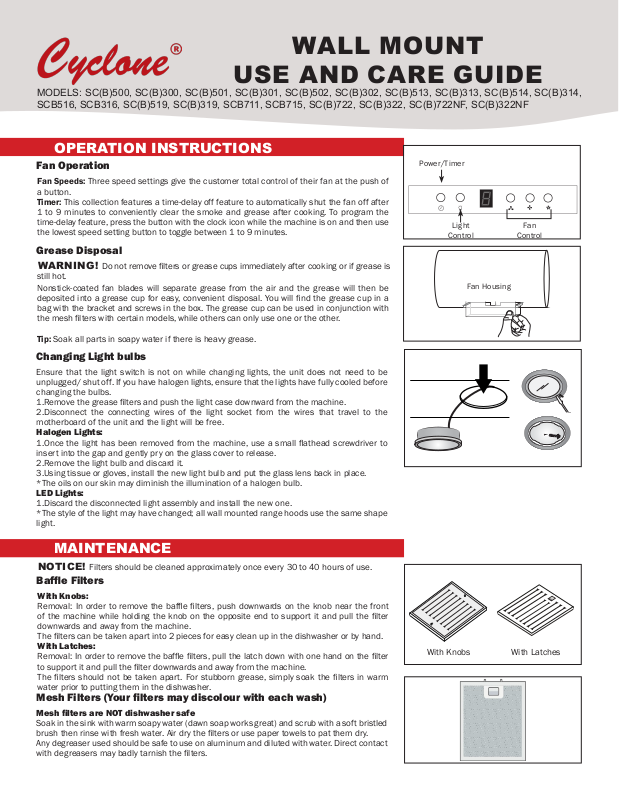

Page 1
WALL MOUNT
USE AND CARE GUIDE
MODELS: SC(B)500, SC(B)300, SC(B)501, SC(B)301, SC(B)502, SC(B)302, SC(B)513, SC(B)313, SC(B)514, SC(B)314,
SCB516, SCB316, SC(B)519, SC(B)319, SCB711, SCB715, SC(B)722, SC(B)322, SC(B)722NF, SC(B)322NF
OPERATION INSTRUCTIONS
Fan Operation
Fan Speeds: Three speed settings give the customer total control of their fan at the push of
a button.
Timer: This collection features a time-delay off feature to automatically shut the fan off after
1 to 9 minutes to conveniently clear the smoke and grease after cooking. To program the
time-delay feature, press the button with the clock icon while the machine is on and then use
the lowest speed setting button to toggle between 1 to 9 minutes.
Grease Disposal
WARNING! Do not remove lters or grease cups immediately after cooking or if grease is
still hot.
Nonstick-coated fan blades will separate grease from the air and the grease will then be
deposited into a grease cup for easy, convenient disposal. You will nd the grease cup in a
bag with the bracket and screws in the box. The grease cup can be used in conjunction with
the mesh lters with certain models, while others can only use one or the other.
Tip: Soak all parts in soapy water if there is heavy grease.
Power/Timer
Light
Control
Fan
Control
Fan Housing
Changing Light bulbs
Ensure that the light switch is not on while changing lights, the unit does not need to be
unplugged/ shut off. If you have halogen lights, ensure that the lights have fully cooled before
changing the bulbs.
1.Remove the grease lters and push the light case downward from the machine.
2.Disconnect the connecting wires of the light socket from the wires that travel to the
motherboard of the unit and the light will be free.
Halogen Lights:
1.Once the light has been removed from the machine, use a small athead screwdriver to
insert into the gap and gently pry on the glass cover to release.
2.Remove the light bulb and discard it.
3.Using tissue or gloves, install the new light bulb and put the glass lens back in place.
*The oils on our skin may diminish the illumination of a halogen bulb.
LED Lights:
1.Discard the disconnected light assembly and install the new one.
*The style of the light may have changed; all wall mounted range hoods use the same shape
light.
MAINTENANCE
NOTICE! Filters should be cleaned approximately once every 30 to 40 hours of use.
Bafe Filters
With Knobs:
Removal: In order to remove the bafe lters, push downwards on the knob near the front
of the machine while holding the knob on the opposite end to support it and pull the lter
downwards and away from the machine.
The lters can be taken apart into 2 pieces for easy clean up in the dishwasher or by hand.
With Latches:
Removal: In order to remove the bafe lters, pull the latch down with one hand on the lter
to support it and pull the lter downwards and away from the machine.
The lters should not be taken apart. For stubborn grease, simply soak the lters in warm
water prior to putting them in the dishwasher.
Mesh Filters (Your lters may discolour with each wash)
Mesh lters are NOT dishwasher safe
Soak in the sink with warm soapy water (dawn soap works great) and scrub with a soft bristled
brush then rinse with fresh water. Air dry the lters or use paper towels to pat them dry.
Any degreaser used should be safe to use on aluminum and diluted with water. Direct contact
with degreasers may badly tarnish the lters.
With Knobs With Latches
Page 2
MAINTENANCE
Grease Cup
*Never remove this cup while the grease is still hot to prevent injury
Remove the grease cup, empty out and place it in the top rack of your dishwasher.
For heavily soiled grease cups, soak in warm water before putting it in the dishwasher.
Exterior
Stainless Steel:
The exterior of the machine can be maintained by wiping the surface area with a gentle cloth and a mild
soap (dawn soap works great). Follow this step with a stainless-steel cleanser and a gentle cloth adequate
for stainless steel nishes. For stubborn grease/oil build up a chemical solvent such as paint thinner, varsol
or acetone can be applied on a rag and used to wipe stainless steel surfaces ONLY. DO NOT USE ON PAINTED
SURFACES DO NOT LET THE CHEMICAL SOLVENT COME IN CONTACT WITH ANY PLASTIC COMPONENTS!!
REPLACEABLE PARTS
NAME QTY DESCRIPTION IMAGE
WM 01 1 Canopy Oil Collector
Fan Housing
WM 05 2
G4 Type JC 12V
20W
Halogen light
UCIX12HC 2
socket kit with pre-
installed bulb
UCIX18LC/
UCIX12LC
*If your range hood was purchased before 2020 Bafe lters are no longer compatible*
2
1st/2nd
generation LED
light
FREQUENTLY ASKED QUESTIONS
When do I need a Cyclone Range Hood?
Peoples’ cooking habits vary, but getting rid of airborne contaminants
and odours which linger in your cooking area is important for everyone.
Whether it is steam from cooking soups, steaming vegetables or
grease and oil from frying food, it is important for everyone to have
efcient ventilation in their kitchen.
Can I install a Cyclone Range Hood myself?
Installing a Cyclone Range Hood is fairly straightforward, and we
provide detailed installation instructions. We do not recommend
range hood installation for novices to electrical or handy work.
What is the minimum mounting height between the range top to
hood bottom?
The minimum mounting height between the cooking surface to the
bottom of the range hood should be no less than 30” above a gas range
and 28” above an electric range or ceramic cooktop. The maximum
height should be no more than 36” above a gas range and 34” above
an electric or ceramic cooktop. The hood must be installed at the
correct mounting height. Hoods mounted too low can result in heat
damage and hoods mounted too high will have impaired performance.
Cyclone Range Hoods Inc.
1361 Huntingwood Drive, Unit 16, Scarborough, ON M1S 3J1
Tel: 1-866-293-5662 or (416) 293-0933 Fax (416) 293-4793
Email: [email protected]
Website: www.CycloneRangeHoods.com
How often do I clean my Cyclone Range Hood?
Cyclone recommends that our range hoods are cleaned at least once
every month. However, cooking habits differ and cleaning should
reect the frequency and intensity of cooking.
What is the difference between a mesh and a bafe lter?
Most Cyclone Range Hood wall mount models have mesh lters as
the standard which can be exchanged for Bafe Filters. Bafe lters
are a durable and stainless-steel alternative to aluminum mesh lters,
capture more grease and provide a pleasant aesthetic.
Can I get a longer chimney ue to reach my high ceilings?
Cyclone Canopy range hoods can accommodate almost any ceiling
height. Extended chimney pieces can be purchased with certain
retailers, consult with the retailer that you are shopping with to conrm
if they can accommodate your requirements. Otherwise, the correct
chimney portions can be purchased separately directly from Cyclone
Range Hoods. Cyclone does not exchange the chimney size once the
order has been received. For more information about this please feel
free to contact Cyclone Range Hood Inc. customer service team before
you buy your new range hood.
