Cybex international VR1 Biceps/Triceps Owner’s and Service Manual

VR1® Biceps/Triceps

Owner’s and Service Manual

Strength Systems

Part Number 13230-999-4 C

www.cybexinternational.com

VR1® Biceps/Triceps

Owner’s and Service Manual

Strength Systems

Part Number 13230-999-4 C

Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.

®

and its mark are registered trademarks of Cybex International, Inc.

VR1

DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to
revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such
revisions or changes.

© Copyright 2010, Cybex International, Inc. All rights reserved.
Printed in the United States of America.

10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone]
www.cybexinternational.com • [e-mail] • [e-mail] • 13230-999-4 C •March 2010

Table of Contents

1 Safety

Safety ......................... 1-1

Safety Guidelines and Practices .... 1-2

Warning/Caution Decals .......... 1-3

Regular Maintenance Activities ..... 1-6

Use Proper Form. . . . . . . . . . . . . . . 1-6

2 Exercises

Intended Use. . . . ............... 2-1

Instructions . . . . . . . . . . . . . . . . . . . 2-2

3 Customer Service

Contacting Service .............. 3-1

Ordering parts .................. 3-1

Return Material Authorization (RMA) . 3-2

Damaged Parts ................. 3-2

4 Assembly . . . . . . . . . . . . . . . . . . . . . 4-1

5 Maintenance

Daily Procedures ................ 5-1

Weekly Procedures .............. 5-4

Yearly Procedures ............... 5-5

Cable Adjustments ............... 5-6

Environment. . . . . . . . . . . . . . . . . . . 5-7

Storage . . . . . . . . . . . . . . . . . . . . . . 5-7

6 Service . . . . . . . . . . . . . . . . . . . . . . . 6-1

Page i

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

1 - Safety

Safety

Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper operation of the

equipment and review all labels.

WARNING: Serious injury could occur if these safety precautions are not observed:

User Safety Precautions

Obtain a medical exam prior to beginning an exercise program.•
Read and understand warning labels and user manual prior to exercising. Obtain instruction •

prior to use.
Keep body and clothing free from and clear of all moving parts.•
Inspect machine prior to use. • DO NOT use if it appears damaged or inoperable.
DO NOT • attempt to fi x a broken or jammed machine. Notify fl oor staff.
Use the machine only for the intended use. • DO NOT modify the machine.
Be sure that the weight pin is completely inserted. Use only the pin provided by the manufacturer. •

If unsure seek assistance.
Never pin the weights in an elevated position. • DO NOT use the machine if found in this condition.

See assistance from fl oor staff.
Children must not be allowed near these machines. Teenagers must be supervised.•

DO NOT• use if guards are missing or damaged.
DO NOT • use dumbbells or other incremental weights, except those provided by the manufacturer.

Inspect all cables and belts and connections prior to use. • DO NOT use if any components are worn, frayed or
damaged.

DO NOT• remove any labeling from equipment. Replace any damaged labels.
Stop exercising if you feel faint, dizzy or experience pain at any time while exercising and consult your •

physician.

Facility Safety Precautions

Read the Owner’s Manual carefully before assembling, servicing or using the equipment. •
Securely anchor each machine to the fl oor using the anchor holes provided in each machine.•

NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional

contractor.

NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any

leg or frame not in contact with surface using fl at washers.

Safety

Page 1-1

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

Make sure that each machine is set up and operated on a solid level surface. • Do not install equipment on an
uneven surface.

Make sure that all users are properly trained on how to use the equipment.•
Make sure there is enough room for safe access and operation of the equipment. •
Perform regular maintenance checks on the equipment. Also pay close attention to all areas most susceptible to wear, •

including (but not limited to) cables, pulleys, belts and grips.
Immediately replace worn or damaged components. If unable to immediately replace worn or damaged components •

then remove from service until the repair is made.
Use only Cybex supplied components to maintain/repair the equipment.•
Keep a repair log of all maintenance activities.•
Inspect all cables and belts and connections prior to use. • DO NOT use if any components are worn, frayed or

damaged.

NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is performed.

Safety Guidelines And Practices

Cybex recommends that all fi tness equipment be used in a supervised area. It is recommended that the equipment be
located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of
the owner.

It is the responsibility of the purchaser/user of Cybex products to read and understand the owner’s manual, and warning
labels; as well as instruct all individuals, whether end users or supervising personnel, on proper usage of the equipment.

PROPER USAGE:

Use machine only as described in the manual. Failing to follow proper instructions may result in injury.
Do Not Lean Against or Pull On the framework, weight stack, or any component, whether machine is at rest or in use.

Inappropriate or improper use may result in injury to users or third parties (bystanders).
Do not use machine if it is not located on a solid level surface or is improperly installed.
Provide an adequate safety perimeter between the machine, walls and other equipment to ensure that the facility has the

proper clearance for usage and training.

SECURING EQUIPMENT:

The machine has holes in the feet, which allow for ease in anchoring to the fl oor. Cybex strongly recommends that,
to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level
surface.

1. The solid, level surface should not deviate more than 1/8” over a 10’ distance or as defi ned and required by local
building and architectural codes.

2. Anchoring of equipment must be completed by a qualifi ed licensed contractor.

Safety
Page 1-2

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

3. Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the
equipment to the fl oor .

4. Due to the wide variation of fl ooring on which machines may be anchored or installed, verify anchoring method and
anchoring fasteners with a qualifi ed and licensed contractor.

5. A minimum pull out force of 220 lbs/100 kgs is required for each anchor position..

6. Do not use machine until it is properly anchored.
MAINTENANCE:

Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance
requirements as specifi ed in the manual.

STANDARD COMPLIANCE:

Cybex products meet or exceed applicable ASTM and EN Standards.

Warning/Caution Decals

Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury.
The warning and caution decals are shown on the following page. The diagrams following the decals show where each

decal is located.

Safety

Page 1-3

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

A

Safety
Page 1-4

4605-381-4 A

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

Biceps/Triceps 13230

A

Description Part No.

A. Warning Label....................4605-381-4

Safety

Page 1-5

Cybex VR1 13230 Biceps/Triceps Owner’s Manual

Regular Maintenance Activities

Preventative maintenance activities must be performed to maintain normal operation of your equipment.
Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative
maintenance activities. The preventative maintenance actions are described in detail in Chapter 5.
Briefl y, they include:

Daily

1. Clean upholstery.
Weekly

1. Inspect all nuts and bolts for looseness. Tighten as required.

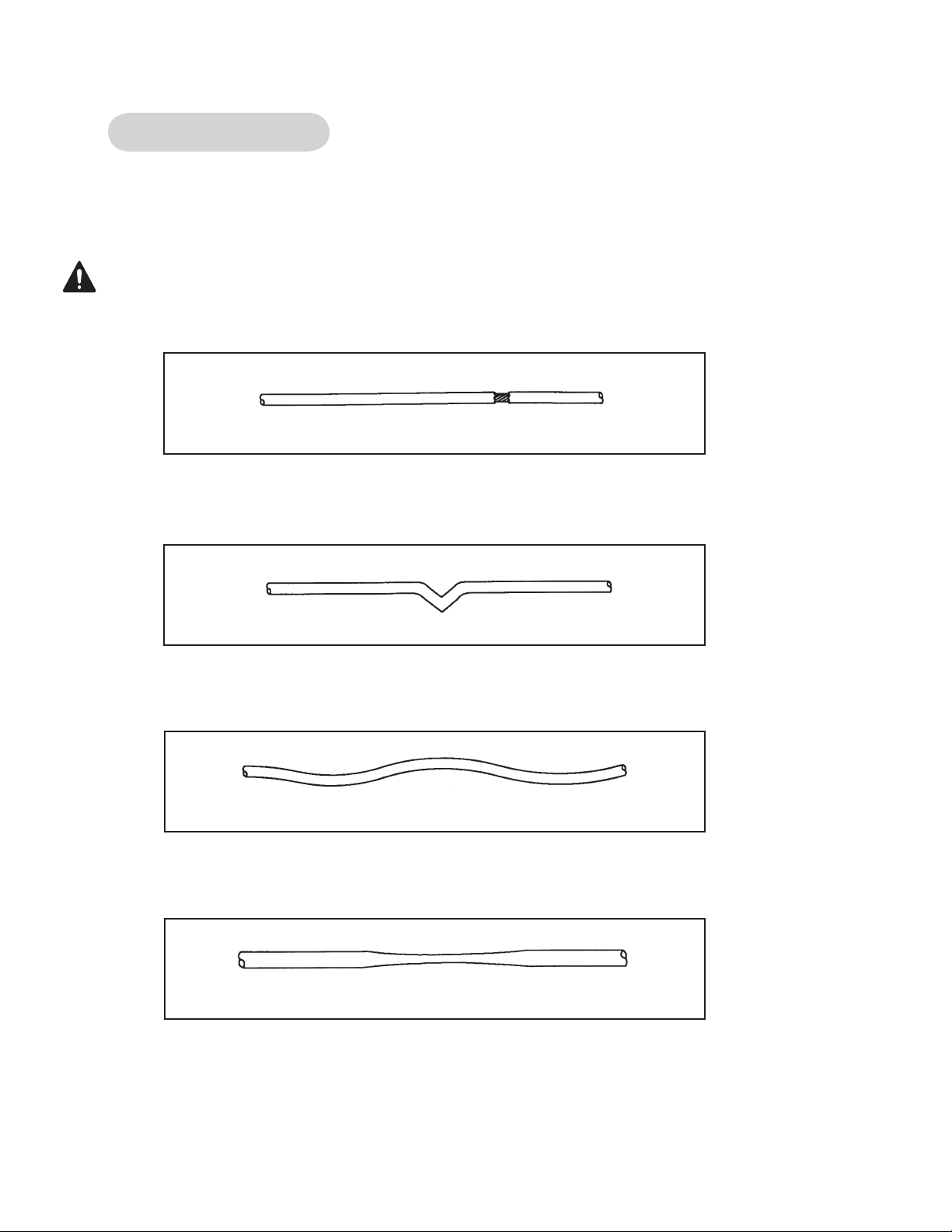

2. Inspect all cables and belts for damage or wear (see Chapter 5). If a cable or belt is worn

or damaged, immediately discontinue use until cable or belt has been replaced.

3. Check for worn handles, worn snap links, and worn warning labeling. Replace all worn parts

immediately.

4. Inspect for loose or worn grips. Replace all worn grips immediately.

5. Inspect weight stacks for proper alignment and operation. Correct all improper alignment

and operation issues immediately.

6. Lubricate guide rods using automotive engine oil only.
Yearly

1. Replace all cables and belts at least annually.

Using Proper Form

Before working out, read and understand the exercises located on the placard and in Chapter 2.

Safety
Page 1-6

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

2 - Exercise

Intended Use

The intended use of this equipment is to aid or
improve general physical fi tness and exercise. For
Commercial use.

MUSCLES USED

Instructions

Read and understand all instructions and warnings
prior to using this machine. See Chapter 1, Safety, in
the Owner’s Manual or consult with fl oor staff.

Biceps - Biceps Brachii, Brachialis,

Brachioradialis
Triceps - Triceps

BICEPS

START FINISH

TRICEPS

START

NOTE: Motion Developed: Elbow Flexion, Elbow Extension

NOTE: All adjustment points on the machine have yellow handles or knobs.
NOTE: See next page for “Set Up” and “Movement.”

FINISH

Exercise
Page 2-1

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Set Up

1. Biceps - Grasp handle while facing machine.

2. Triceps - Position body with hips and back fi rmly against back pad.

3. Grasp handle.

4. Bring elbows down to side.
Movement

1. Biceps - Pull handle up towards shoulder.

2. Triceps - Push handle downward until arms are fully extended.
NOTE: Limit motion to elbows.

Exercise
Page 2-2

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

3 - Customer Service

Contacting Service

Hours of phone service are Monday through Friday from 8:30 to 6:00 p.m. Eastern Standard Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300

or fax [phone].
Find information on the web at www.cybexintl.com or by e-mail at [e-mail].

Ordering Parts

Fax orders to 508-533-5183. To speak with a customer service representative, call 888-462-9239 (for customers
living within the USA) or 508-533-4300 (for customers outside the USA). You may also contact us through e-mail

at [e-mail]

Having the following information ready when calling will assist our Cybex representatives in serving you.

Unit Serial Number

•

Product Name•

The unit serial number and product name can be found on the serial number decal. See Chapter 6 for
exact location of serial number decal.

Part Description•
Part Number•

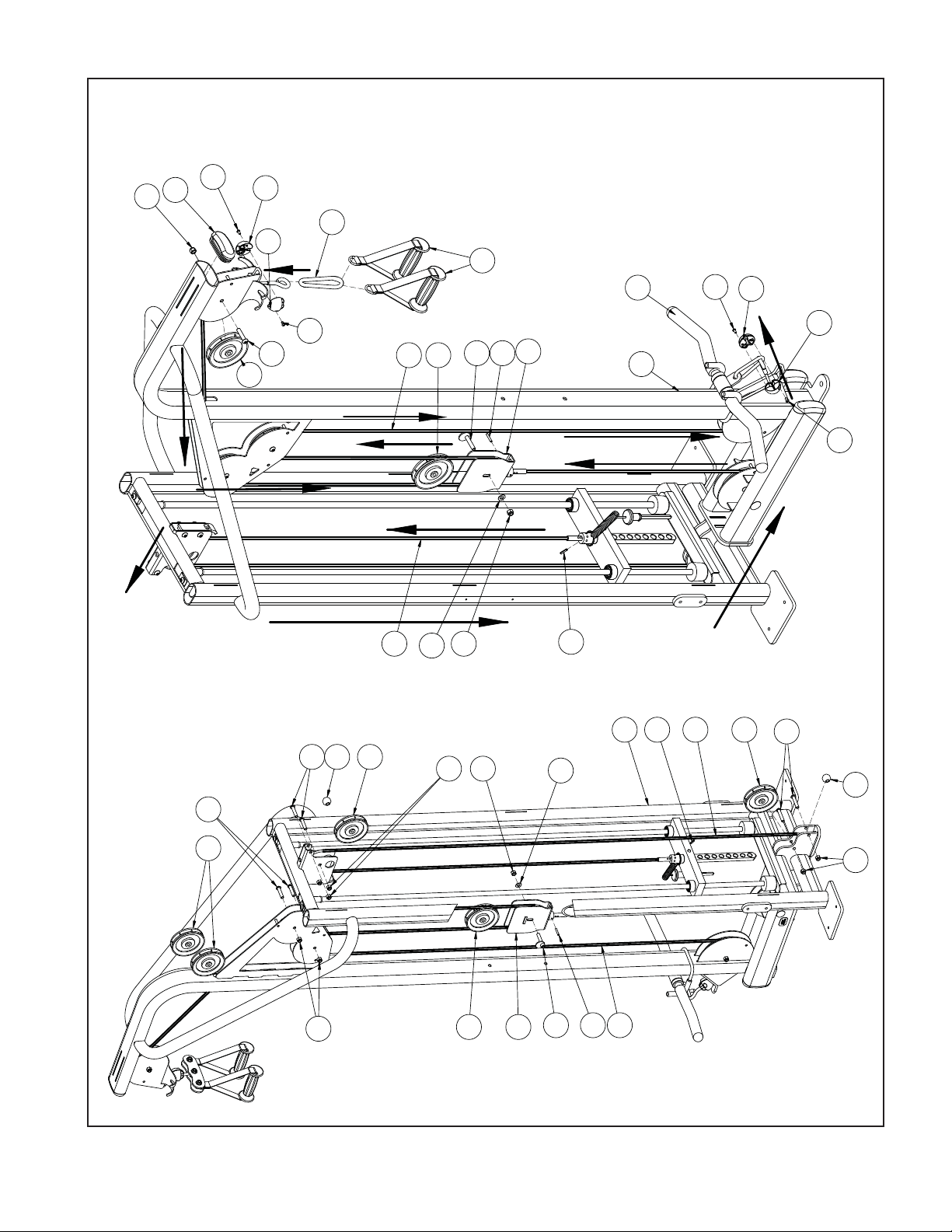

Part descriptions and part numbers are located in Chapter 6 of this manual.

Shipping Address•
Contact Name•

In addition to your shipping address and contact name, your account number is helpful but not
required.

Customer

Service

Page 3-1

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Return Material Authorization (RMA)

The Return Material Authorization (RMA) system outlines the procedures to follow when returning
material for placement, repair or credit. The system assures that returned materials are properly handled and
analyzed. Follow the following procedures carefully.

Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA
from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without

proper RMA and an Automated Return Service (ARS) label.

1. Call the Customer Service Hot Line listed above for the return of any item that is defective.

2. Provide the technician with a detailed description of the problem you are having or the defect in the item you
wish to return.

3. Provide the model and serial number of your Cybex equipment.

4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation
and repair or replacement. The technician will assign you a RMA number and will send you an ARS label.
The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains
the item(s) to be returned. Include the description of the problem, the serial number of the VR1 equipment
and the name and address of the owner in the package along with the part(s).

5. Forward the package through UPS to Cybex.

Attn: Customer Service Department
Cybex International, Inc.
1975 24th Ave SW

Owatonna, MN 55060

NOTE: Merchandise returned without an RMA number on the outside of the package or shipments sent COD will

not be accepted by the Cybex receiving department.

Damaged Parts

Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the
carrier (UPS, Federal Express, trucking companies, etc.)

Apparent Damage - Upon receipt of your shipment, check all items carefully. Any damage seen with a visual
check must be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers
refusal to honor your damage claim. The carrier will provide you with the required forms for fi ling such claims.

Concealed Damage - Damage not seen with a visual check upon receipt of a shipment but
notices later must be reported to the carrier as soon as possible. Upon discovery of the
damage, a written or phone request to the carrier asking them to perform an inspection of the materials must
be made within ten days of the delivery date. Keep all shipping containers and packing materials as they will be
needed in the inspection process. The carrier will provide you with an inspection report and the necessary forms
for fi ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.

Customer
Service
Page 3-2

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

4 - Assembly

Tools Required

•

7/32” Allen wrench

3/4” Socket or wrench•
Hammer•

3/16” Pin punch•

NOTE: Two people will be required to perform this procedure.
NOTE: It is the responsibility of the facility owner/owner of the equipment to ensure that there is

appropriate clearance around each machine to allow for safe use and passage.

NOTE: Refer to Chapter 6 for reference diagrams.

1. Read and understand all instructions thoroughly before assembling this product.

2. Verify you have received the appropriate confi guration.

Verify that you received the correct color machine that you ordered.A.
Verify you received the proper weight stack and weight stack decals. B.
Verify you received the appropriate owner’s manual.C.
Verify you received the warranty sheet.D.

3. Move to desired location.

NOTE: If weight stacks need to be removed before moving to desired location proceed to step 7.

NOTE: If weight stacks need to be installed proceed to step 8

4. Remove shipping feet.

WARNING: Use extreme caution when removing shipping cones and installing feet. Failure to do so

could result in injury.

With an assistant, carefully remove each (standard) cone-shaped shipping support using a 3/4” socket A.
or wrench.

Carefully place rubber feet (supplied with machine) on each foot of the frame.B.

NOTE: It is important that you perform regular inspection and maintenance activities on your equipment. See

the CYBEX VR1 Owner’s Manual for inspection and maintenance activities. If you do not have a CYBEX
Owner’s Manual or if you have any questions or concerns, Call Cybex Customer Relations at
888-462-9239.

.

Assembly

Page 4-1

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

5. Securely anchor machine to the fl oor.

Securely anchor machine to the fl oor using the anchor holes provided in each machine.A.

NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor.
NOTE: Use fasteners having a minimum of 500 lbs tensil capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any leg or frame not in

contact with surface using fl at washers.

6. Verify proper operation.

7. Removing weight plates.

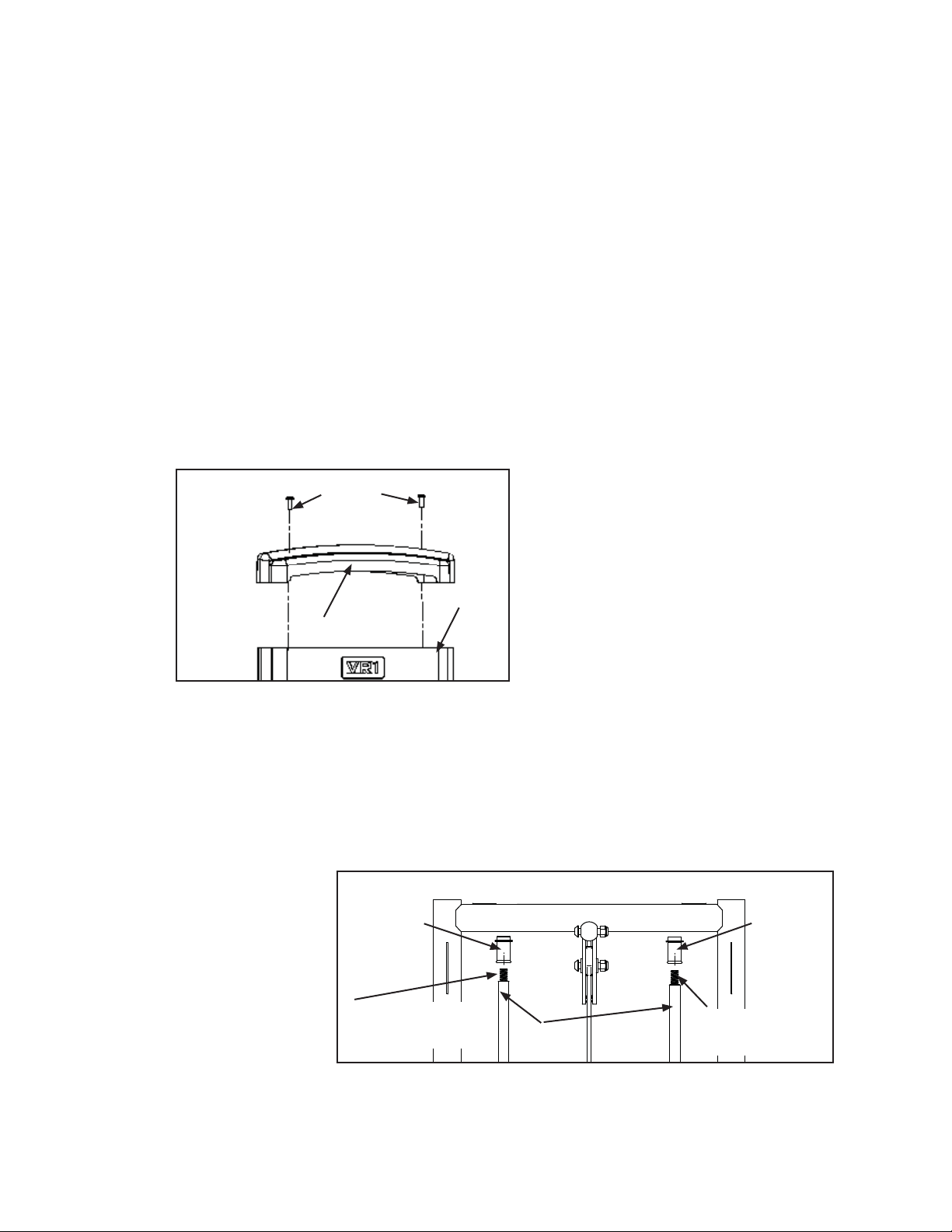

Using a 7/32” Allen wrench, remove the two Button Head Socket Cap Screws (BHSCS) securing the top A.
cap to the frame. See Figure 1.

BHSCS

Shroud

Top Cap

Figure 1

Remove top cap and BHSCS and set aside.B.
Carefully lift shroud up and out of machine. C.
Slide spring loaded guide rod cap down guide rod until cap is clear of frame. D. NOTE: Guide rod cap is

spring loaded.

Slowly release grasp E.
of guide rod cap.
See Figure 2. NOTE:

Guide rod cap
contains a
compression spring
that will fl y if grasp is

not released slowly.

Guide
Rod Cap

Compression
Spring

Guide
Rods

Guide
Rod Cap

Compression
Spring

Assembly
Page 4-2

Figure 2

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Remove guide rod cap and spring and set aside.F.
Repeat steps 7D - 7F for other guide rod.G.

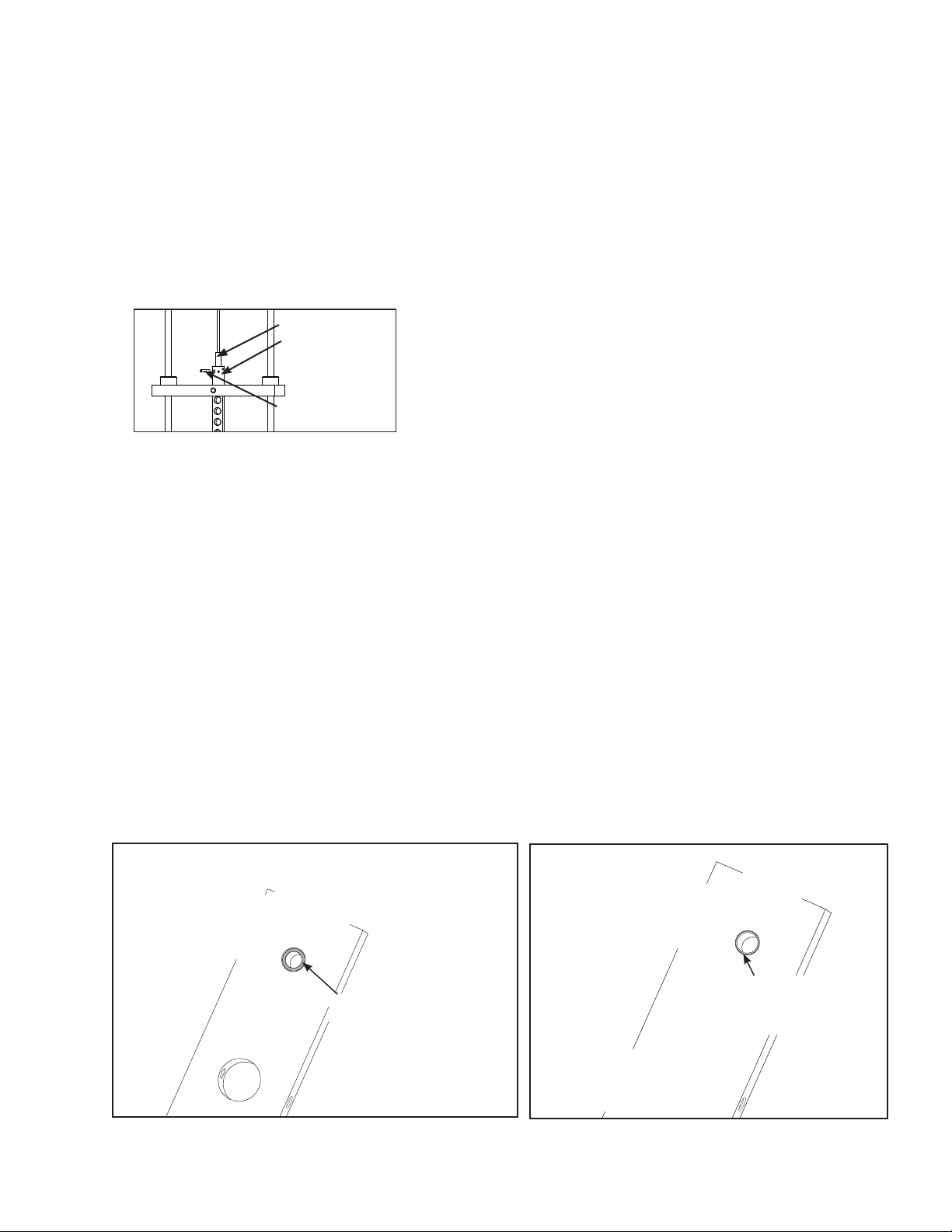

Using a 3/16” pin punch and hammer, carefully remove roll pin securing cable end to top weight H.

connector. See Figure 3.
Carefully lean guide rods slightly outward. I. NOTE: Excessive pressure on guide rods may damage lower

guide rod caps.

Cable End

Top Weight
Connector

Roll Pin

Figure 3

Slide top weight up and out of machine and carefully set aside.J.
Have an assistant hold guide rods vertical.K.
Carefully remove each weight plate and set aside.L.
Wipe guide rods clean over entire length. Lubricate with light coating of medium weight automotive engine M.

oil.

8. Installing weight plates.

Have an assistant hold guide rods vertical.A.
Carefully align weight plates (removed in step 7M) over guide rods and slowly lower each weight plate. B.

NOTE: Install weight plates in reverse order as removed in step 7M. NOTE: When installing weight plates,
position plates so wide edges of bushings face upward and narrow edges of bushings face downward.

See Figures 4A and 4B.

CORRECT

WIDE bushing

edge faces

upward

WRONG

NARROW

bushing edge

NOTE: The narrow
bushing edge must face
downward.

Figure 4A Figure 4B

Assembly

Page 4-3

Repeat steps 8A and 8B for each weight plate.C.
Carefully slide top weight (removed in step 7J) over guide rods.D.

9. Cable routing.

Verify cable is routed through top of pulley bracket and then route cable end to top weight A.
connector.

Pull cable tight and secure in place with roll pin removed in step 7H.B.
Place weight stack pin in each plate to verify proper installation.C.
Without selecting any resistance, lift top weight up and down (simulating normal operation).D.
Have an assistant verify that the cable is moving smoothly and is routed straight from the pulley bracket to E.

the top of the weight plate connector.

10. Install back shroud.

Carefully place shroud into position.A.

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Secure top cap in place with the two BHSCS removed in step 7A.B.

11. Complete Steps 4 and 5.

Assembly
Page 4-4

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

5 - Maintenance

All preventive maintenance activities must be performed on a regular basis. Performing routine preventive
maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength Systems equipment.

NOTE: Cybex is not responsible for performing regular inspection and maintenance actions for your machines.

Instruct all personnel in equipment inspection and maintenance actions and also in accident
reporting/recording. Cybex phone representatives are available to answer any questions or concerns that

you may have

.

NOTE: All inspections and
repairs must be performed
by trained service

personnel only

.

Cybex will void warranty if
non-Cybex replacement
parts are used.

Daily Procedures

1. Upholstery - Wipe down all upholstery as per the recommendations listed below for light soiling and more

diffi cult stains.

Light Soiling

A solution of 10% household liquid soap with warm water applied with a soft damp cloth.

•

If necessary, a solution of liquid cleanser and water applied with a soft bristle brush. Wipe away the residue •

with a water dampened cloth.

Maintenance

Page 5-1

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

More Diffi cult Stains

•

Dampen a soft white cloth with a solution of 10% household bleach (sodium hypochlorite),
90% water. Rub gently. Rinse with a water dampened cloth to remove bleach concentration.

The same procedure can be used with full strength household bleach, if necessary.

•

Allow bleach to puddle on the affected area or apply with a soaked cloth for approximately •

30 minutes. Rinse with a water dampened cloth to remove any remaining bleach concentration.

Alternative Method for Diffi cult Stains

Dampen a soft white cloth with rubbing alcohol and rub gently. Rinse with a water dampened cloth to remove

•

any remaining rubbing alcohol concentration.

NOTE: To restore luster, a light coat of spray furniture wax can be used. Apply for 30 seconds and

follow with a light buffi ng using a clean white cloth.

Please Review Carefully

When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to fi rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to formula
changes by the product manufacturer without notice. Should you desire to use other
cleaning agents, carefully try them in an inconspicuous area to determine potential damage to the material.
Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained or soiled
areas, a soft white cloth is recommended. Avoid use of paper towels.

Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye
protection. Do not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. CYBEX and its vendors
cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.

2. Frames - Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry
thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could
scratch or damage the equipment.

3. Chrome - Clean chrome tubes, fi rst using chrome polish and then using a car wax seal. Neutral cleaners with
a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners

and also cleaners containing abrasives as these could scratch or damage the equipment.

Maintenance
Page 5-2

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

4. Guidelines for cleaning front panel:

•

Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing.

Follow up the application with warm water rinse.•
Don’t use abrasives or high alkaline cleaners.•
Don’t leave cleaners on for long periods, wash immediately.•
Don’t apply cleaners in direct sunlight or at elevated temperatures.•
Don’t use scrapers, squeegees or razors.•
Don’t clean with gasoline.•

Compatible Cleaners and Detergents:

Formula 409

•

Top Job•
Joy•
Palmolive•
Windex with Ammonia D•

To Minimize Fine or Hairline Scratches:

Mild automotive polish applied and removed with a soft, clean cloth will help fi ll scratches.

Suggested Polishes:

Johnson Paste Wax

•

Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)•
Novus Plastics Polish #1, #2 (By Novus Inc.)•

Maintenance

Page 5-3

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Weekly Procedures

1. Check all nuts and bolts for looseness. Tighten as required.

2. Inspect all cables for wear or damage and proper tension. When inspecting cables, run fi ngers on the cable,

paying particular attention to bends in cable and attachment points.

WARNING: Replace all worn cables immediately. The following conditions may indicate a worn cable:

A tear or crack in the cable sheath that exposes the cable. See Figure 1• .

Figure 1.

A kink in the cable. See Figure 2.•

Figure 2.

A curled sheath. See Figure 3.

•

Figure 3.

“Necking”, a stretched cable sheath. See Figure 4.•

Figure 4.

Maintenance
Page 5-4

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

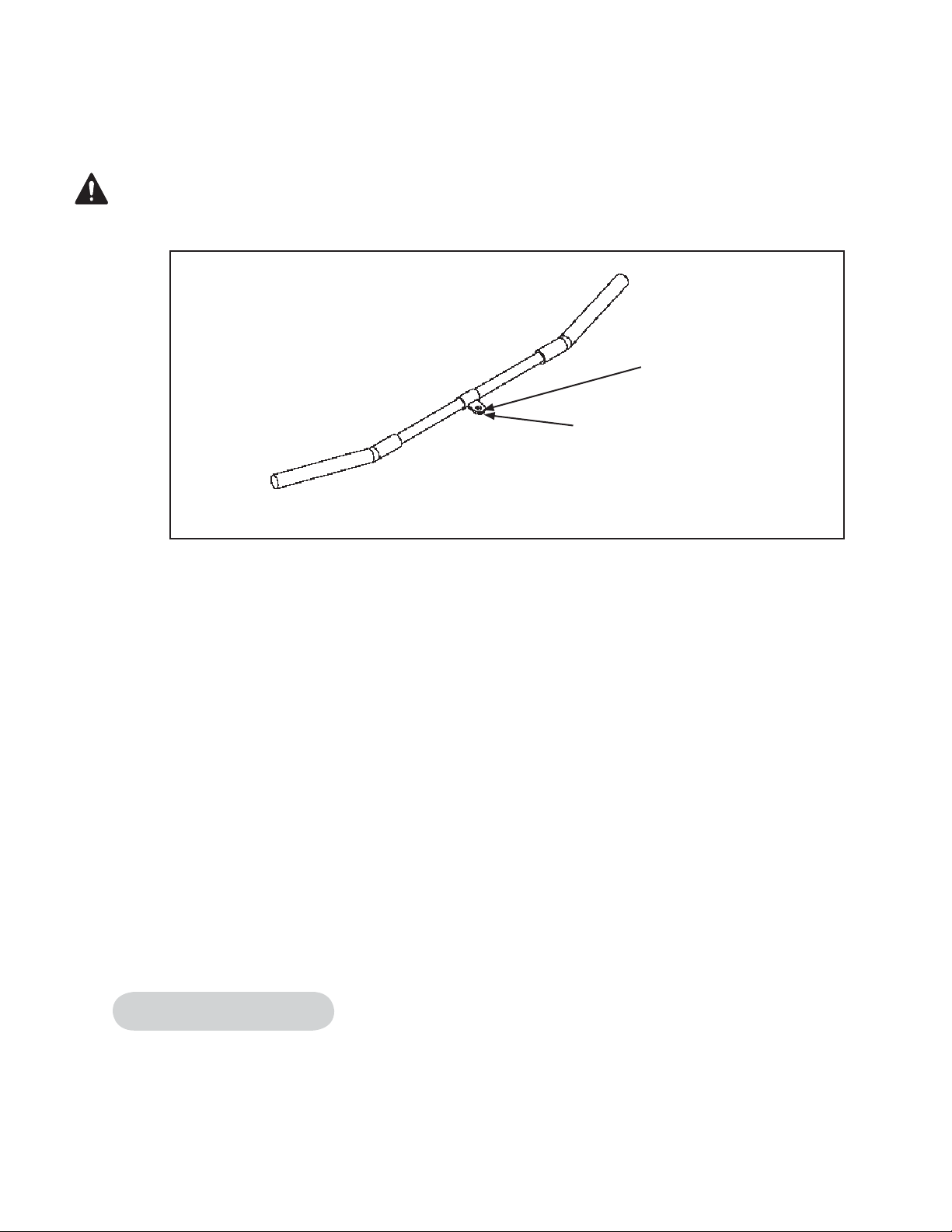

3. Inspect bars and handles for wear, paying particular attention to tab area connection points.

Replace all worn handles immediately.

CAUTION: Replace all worn handles immediately. Do not use if less than 1/8” of material

remains to the edge. See Figure 5

.

Attachment Hole

NOTE: Replace bar if less
than 1/8” of material
remains to the edge.

Figure 5

4. Inspect snap links for proper latching (indicates wear)
Replace all worn snap links immediately.

5. Inspect for loose or worn grips.

Replace all loose or worn grips immediately.

6. Inspect all labeling for readability. This includes instructional placards, warning and caution decals.

Replace all worn labeling immediately.

7. Inspect all weight stacks for proper alignment and operation.
Correct all improper alignment and operation issues immediately.

8. Wipe Weight Stack Guide Rods clean over entire length. Lubricate with a light coat of medium weight

automotive engine oil.

Yearly Procedures

1. Replace all cables at least annually.

Maintenance

Page 5-5

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Cable Adjustment

Three types of cable tension adjustment are used on Cybex Strength Systems:

1. Jam Nut Adjustment - This type uses a jam nut

and a tension adjustment nut at the cable cam end
as the primary adjustment. The other end of the cable
usually contains a roll pin adjustment. See Figures 6 and 7.

2. Rod End Adjustment - This type of adjustment contains

a socket head cap screw (SHCS) securing a cable rod end
bearing to the machine. Primary adjustment is by turning the
rod end bearing. The other end of the cable usually contains
a roll pin cable adjustment. See Figures 7 and 8.

Jam Nut

Tension
Adjustment
Nut

3. Roll Pin Adjustment - This type of adjustment utilizes a roll

pin and series of holes in the weight stack top weight
connector. See Figure 8.

Figure 6

Cable End

Frame

SHCS

Figure 7

Jam Nut

Cable Rod End
Bearing

Nylon
Locknut

Roll Pin

Cable End

Top Weight
Connector

Maintenance
Page 5-6

Figure 8

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

Environment

Static Electricity - Depending upon where you live, you may experience dry air, causing a common experience

of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking
across a carpet and then touching a metal object. The same can hold true while working out on your unit. You
may experience a shock due to the build-up of static electricity on your body and the discharge path of the unit.
If you experience this type of situation, you may want toincrease the humidity to a comfortable level through the
use of a humidifi er .

Humidity - The unit is designed to function normally in an environment with a relative humidity range of 30% to
75%.

NOTE: Do not install or use the unit in an area of high humidity, such as in the vicinity of a steam room, sauna,

indoor pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely
affect the electronics as well as other parts of the machine.

Temperature - The unit is designed to function normally in an environment with an ambient temperature range

o

of 50

F (10o C) to 104o F(40o C) degrees.

Storage

Humidity - The unit can be shipped and stored in an environment with a relative humidity range of 10% to 90%.

NOTE: Do not store the unit in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor

pool or outdoors. Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the
electronics as well as other parts of the machine.

Temperature - The unit can be shipped and stored in an environment with an ambient temperature range of 32
F (0o C) and 140 F (60o C) degrees.

o

Maintenance

Page 5-7

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

This page intentionally left blank.

Maintenance
Page 5-8

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

6 - Service

Please refer to the next several pages for parts lists, exploded-view diagrams and cable
and belt routing diagrams.

NOTE: All inspections
and repairs must be
performed by trained
service personnel only.

Cybex will void warranty if
non-Cybex replacement parts
are used.

Service

Page 6-1

Cybex VR1 13230 Tricep/Bicep Owner’s Manual

This page intentionally left blank.

Service
Page 6-2

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

BICEPS/TRICEPS

PRODUCT NO. 13230

A

G

E

B

I

F

NOTE: See exploded-view diagram for location of H (serial number decal).

See cable routing diagram for location of C and D.

DESCRIPTION PART NO.

A. Placard Decal .................... 13230-598

B. Warning Label ................... 4605-381

C. Cable..................... ............. 13230-002

D. Cable.................................. 13230-003

DESCRIPTION PART NO.

E. Back Pad............................ 4800-188

F. Handle Subassembly......... 02204

G. Handle Assembly............... 12220-005

H. Serial Number Decal

I. Weight Selector Pin............. BH030207

Service

Page 6-3

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

ITEM QTY PART NO. DESCRIPTION

39 12 HN704901 LOCKNUT, .375-16 NYLON

40 2 HP286819 SPIRAL PIN .188 X 1.12

41 1 HS347600 WASHER, SAE .375

42 2 HS720004 WASH, FELT .641 1.250 .125T

43 4 HS-60531 BOLT, BHSC .375-16 x .75 BLK ZINC

44 4 HS-60536 BOLT, BHSC .375-16 x 2.00 BLK ZINC

45 2 HT512517 TAP SC 10-24 X 1.00 TYPE WB PN

HD PHIL BLK

46 1 HT552515 TAP SC NO. 8-16 X .75 PLASTITE

PN HD PHIL BLK

47 8 HW-60085 WASHER, USS .312 BLK ZINC

48 3 JC700420 BHSCS .375-16 X 1.25

(REMOVED 3/20/08)

ITEM QTY PART NO. DESCRIPTION

1 1 02204 HANDLE SUBASSEMBLY

2 7 08014 PULLEY ASSEMBLY, 4.50 IN.

3 1 08020 PULLEY ASSEMBLY, 6.00 INCH

4 1 11000-212 W FLOATING PULLEY

5 2 12210-347 GUIDE ROD CAP

6 2 12210-348 GUIDE ROD CAP

7 2 13000-322 ROLLER

8 1 13000-342 MOLDED TOP CAP

9 6 13000-353 FOOT PAD

10 2 13000-364 BEARING, FLANGE .62 ID. x .92

OD. x 1.75 LG

11 1 13000-400 HOLDER, WATER BOTTLE

12 1 13000-403 MOUNT, WATER BOTTLE HOLDER

49 9 JC700424 BHSCS .375-16 X 1.75

50 2 JS347400 LOCKWASHER, INT TOOTH .375

51 2 PN660200 INSERT, PLASTIC 1.00 DIA-11 GA

52 4 PP040004 BALL STOP

53 3 PP130002 INSERT, DOMED PLASTIC

54 4 PP130003 INSERT, DOMED PLASTIC

55 2 PR060005 BUMPER, WEIGHT

56 4 PR070004 FOOT PAD, 3.00 x 5.00

57 1 4800-188 BACK PAD

58 10 HT552511 TAP SC 8-16X .38 TAP BLACK

59 1 4605-381-X* DECAL, WARNING

13 2 13040-336 WT ROD .625 DIA X 66.43

14 1 13130-201 LEG RH

15 1 13130-202 LEG LH

16 1 13230-002 CABLE SUBASSEMBLY

17 1 13230-003 CABLE SUBASSEMBLY

18 1 13230-200 MAIN FRAME

19 2 13230-306 PLATE, HANDLE

(REMOVED 3/20/08)

20 2 12220-005 HANDLE ASSEMBLY

21 1 3900-438 DECAL, CYBEX

22 1 4700c073 TOP WT 10-3 c 12

60 1 13230-598-X* BICEP/TRICEP PRESS PLACARD

61 1 13230-999-X* OWNERS MANUAL (NOT SHOWN)

62 1 13040-100 EDGE TRIM

63 1 13000-399 DECAL, VR1

64 1 13000-101 HALF WEIGHT OPTION 5 LBS

64 1 13000-102 HALF WEIGHT OPTION 7.5 LBS

65 1 13000-208 LATCH

66 1 13040-322 FRONT PANEL

67 1 13040-324 BACK PANEL

68A 1 4700-337 WEIGHT PLATE 10 LB

68B 1 4700-338 WEIGHT PLATE 15 LB

69 9 13000-030 WEIGHT PLATE PACK (LIGHT)

70 9 13000-034 WEIGHT PLATE PACK (STANDARD)

23 1 51198 WARRANTY BOOK (NOT SHOWN)

24 3 8550-358 SPACER (REMOVED 3/20/08)

25 2 8620-336 GRIP, FOAM

26 1 8650-204 CAM BOLT

27 1 BH030207 PIN, WEIGHT SELECTOR

28 2 BR030206 RING, RETAINING

29 2 BR030220 RETAINING RING 1.250 INTERNAL

30 2 BS070208 COMPRESSION SPRING

31 1 CM000211 DECAL, PATENT PENDING

(REMOVED 7/6/09)

32 2 GQ000206 SNAP LINK

33 2 HC700417 BHSCS .375-16 X 1.00

34 2 HC700426 BHSCS .375-16 X 2.00

71 1 4800-557 DECAL, WEIGHT PLATE 10-150

72 1 13000-552 DECAL, WEIGHT PLATE 10-220

73 1 13230-309 PAD, NON SLIP BIMPER

74 1 13000-398 DECAL, CYBEX

75 1 11040-790 DECAL, MADE IN U.S.A.

35 2 HC700428 BHSCS .375-16 X 2.25

36 2 HF700000 PANEL FASTNER, .375-16 , U TYPE

37 4 HM580410 BHSCS .190 10-32 X .375

38 3 HN704400 NUT, HEX JAM .375-16

(REMOVED 3/20/31)

Service
Page 6-4

*Language Key

1-German

2-French

3-Spanish

4-English

6-Japanese

7-Swedish

8-Russian

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

9

18

15

9

54

14

44

47

44

43

47

47 47

54

43

25

25

57

39

9

39

51

56

39

51

Serial Number Decal

53 53

2

7

34

9

3939

56

9

14

9

13230 BICEPS/TRICEPS FRAME ASSSEMBLY

2

3

35

50

12

45

11

46

50

35

45

44

44

47

43

47

43

54

18

49

49

51

15

47

54

47

Service

Page 6-5

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

58

74

18

65

36

33

8

33

49

62

58

66

58

63

60

58

59

58

75

36

13

30

5

5

30

13

13230 BICEPS/TRICEPS PANEL AND WEIGHT STACK ASSEMBLY

67

21

39

64

29

12

45

46

27

42

10

29

11

28

28

22

10

22

55

68B

45

6

6

55

72

STANDARD STACK 13000-034

71

70

Service
Page 6-6

68A

LIGHT STACK 13000-030

69

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

2

39

49

39

49

7

2

41

39

34

2

39 7

16

40

18

39

53

37

52

2

49

52

37

20

17

2

40

26

4

41

39

40

16

1

37

52

52

37

73

32

2

26

40417

13230 CABLE ROUTING DETAIL

Service

Page 6-7

Cybex VR1 13230 Tricep-Bicep Owner’s Manual

This page intentionally left blank

Service
Page 6-8

10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone]

www.cybexinternational.com • [e-mail]
