Cybex international Total Access Row Owner’s and Service Manual
Cybex Total Access Row
Owner’s and Service Manual
Strength Systems
Part Number 14030-999-4 F
www.cybexinternational.com
Cybex Total Access Row
Owner’s and Service Manual
Strength Systems
Part Number 14030-999-4 F
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
VR3® and its mark are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to
revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such
revisions or changes.
© Copyright 2010, Cybex International, Inc. All rights reserved.
Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183
www.cybexinternational.com • techhelp@cybexintl.com • 14030-999-4 F
Table of Contents
Front Pages
Table of Contents ................ i
1 Safety
Safety ......................... 1-1
Safety Guidlines and Practices ..... 1-2
Warning/Caution Decals .......... 1-3
Regular Maintenance Activities ..... 1-6
Using Proper Form .............. 1-6
2 Exercises
Intended Use . . . ................ 2-1
Instructions . . . . . . . . . . . . . . . . . . . 2-1
3 Customer Service
Contacting Service .............. 3-1
Ordering parts .................. 3-1
Return Material Authorization (RMA) . 3-1
Damaged Parts ................. 3-2
4 Assembly . . . . . . . . . . . . . . . . . . . . . 4-1
5 Maintenance
Daily Procedures ................ 5-1
Weekly Procedures .............. 5-4
Yearly Procedures ............... 5-6
Environment. . . . . . . . . . . . . . . . . . . 5-7
Storage . . . . . . . . . . . . . . . . . . . . . . 5-7
Page i
Cybex Total Access 14030 Row Owner’s Manual
1 - Safety
Safety
Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper operation of the
equipment and review all labels.
WARNING: Serious injury could occur if these safety precautions are not observed:
User Safety Precautions
Obtain a medical exam prior to beginning an exercise program.•
Read and understand warning labels and user manual prior to exercising. Obtain instruction •
prior to use.
Keep body and clothing free from and clear of all moving parts.•
Inspect machine prior to use. • DO NOT use if it appears damaged or inoperable.
DO NOT • attempt to x a broken or jammed machine. Notify oor staff.
Use the machine only for the intended use. • DO NOT modify the machine.
Be sure that the weight pin is completely inserted. Use only the pin provided by the manufacturer. •
If unsure seek assistance.
Never pin the weights in an elevated position. • DO NOT use the machine if found in this condition.
See assistance from oor staff.
Children must not be allowed near these machines. Teenagers must be supervised.•
DO NOT• use if guards are missing or damaged.
DO NOT • use dumbbells or other incremental weights, except those provided by the manufacturer.
Inspect all cables and belts and connections prior to use. • DO NOT use if any components are worn, frayed or
damaged.
DO NOT• remove any labeling from equipment. Replace any damaged labels.
Stop exercising if you feel faint, dizzy or experience pain at any time while exercising and consult your •
physician.
Facility Safety Precautions
Read the Owner’s Manual carefully before assembling, servicing or using the equipment. •
Securely anchor each machine to the oor using the anchor holes provided in each machine.•
NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional
contractor.
NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better).
NOTE: If legs/frame does not contact surface, DO NOT pull down with anchors. Shim any
leg or frame not in contact with surface using at washers.
Safety
Page 1-1
Cybex Total Access 14030 Row Owner’s Manual
Make sure that each machine is set up and operated on a solid level surface. • Do not install equipment on an
uneven surface.
Make sure that all users are properly trained on how to use the equipment.•
Make sure there is enough room for safe access and operation of the equipment. •
Perform regular maintenance checks on the equipment. Also pay close attention to all areas most susceptible to wear, •
including (but not limited to) cables, pulleys, belts and grips.
Immediately replace worn or damaged components. If unable to immediately replace worn or damaged components •
then remove from service until the repair is made.
Use only Cybex supplied components to maintain/repair the equipment.•
Keep a repair log of all maintenance activities.•
Inspect all cables and belts and connections prior to use. • DO NOT use if any components are worn, frayed or
damaged.
NOTE: It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance is performed.
Safety Guidelines And Practices
Cybex recommends that all tness equipment be used in a supervised area. It is recommended that the equipment be
located in an access controlled area. Control is the responsibility of the owner. The extent of control is at the discretion of
the owner.
It is the responsibility of the purchaser/user of Cybex products to read and understand the owner’s manual, and warning
labels; as well as instruct all individuals, whether end users or supervising personnel, on proper usage of the equipment.
PROPER USAGE:
Use machine only as described in the manual. Failing to follow proper instructions may result in injury.
Do Not Lean Against or Pull On the framework, weight stack, or any component, whether machine is at rest or in use.
Inappropriate or improper use may result in injury to users or third parties (bystanders).
Do not use machine if it is not located on a solid level surface or is improperly installed.
Provide an adequate safety perimeter between the machine, walls and other equipment to ensure that the facility has the
proper clearance for usage and training.
SECURING EQUIPMENT:
The machine has holes in the feet, which allow for ease in anchoring to the oor. Cybex strongly recommends that,
to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level
surface.
1. The solid, level surface should not deviate more than 1/8” over a 10’ distance or as dened and required by local
building and architectural codes.
2. Anchoring of equipment must be completed by a qualied licensed contractor.
Safety
Page 1-2
Cybex Total Access 14030 Row Owner’s Manual
3. Anchoring holes are provided on the feet of the frame. All anchoring locations must be used when anchoring the
equipment to the oor.
4. Due to the wide variation of ooring on which machines may be anchored or installed, verify anchoring method and
anchoring fasteners with a qualied and licensed contractor.
5. A minimum pull out force of 220 lbs/100 kgs is required for each anchor position..
6. Do not use machine until it is properly anchored.
MAINTENANCE:
Preventative maintenance allows proper equipment operation and reduces the risk of injury. Perform the maintenance
requirements as specied in the manual.
STANDARD COMPLIANCE:
Cybex products meet or exceed applicable ASTM and EN Standards.

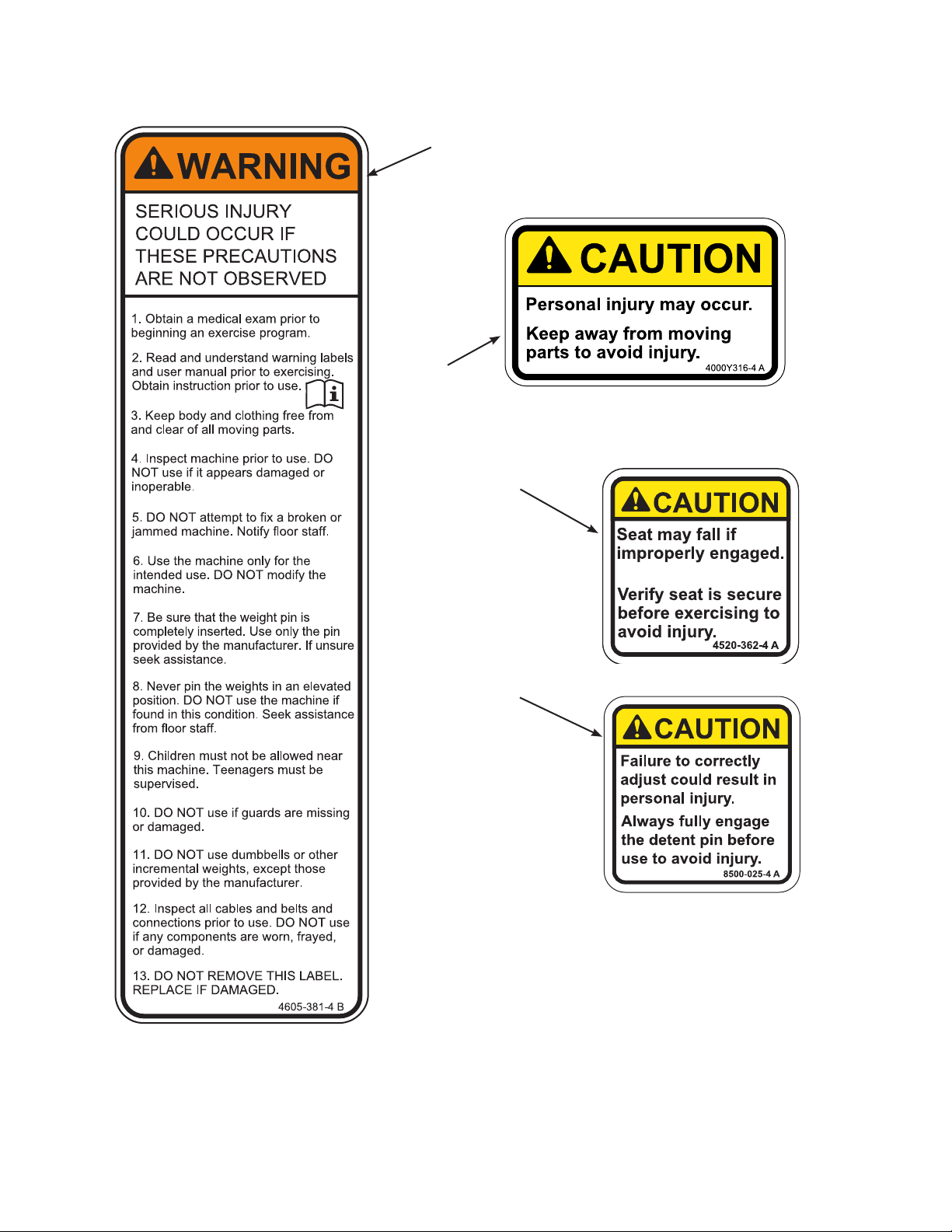

Warning/Caution Decals
Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury.
The warning and caution decals are shown on the following page. The diagrams following the decals show where each
decal is located.
Safety
Page 1-3
