Cybex Plate Loaded Smith Press
Owners Manual
Strength Systems
Part Number 16121-999-4 A
www.cybexintl.com
Table of Contents
Safety
Safety Guidelines and Practices ...............3
Anchoring Equipment .......................3
Facility Safety Precautions ...................3
User Safety Precautions . . . . . . . . . . . . . . . . . . . . . 4
Warnings and Cautions......................6
Label Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly
Machine Specications . . . . . . . . . . . . . . . . . . . . . . 8
Choosing and Preparing a Site ................8
Tools Required ............................9
Assembly Procedure ........................9
Exercise
Intended Use.............................13
Instructions ..............................13
Maintenance
Warnings ................................15
Daily Procedures..........................15
Weekly Procedures ........................17
Yearly Procedures .........................20
Cable Adjustment .........................21
Belt Adjustment ...........................22
Customer Service
Product Registration .......................23
Contacting Service ........................23
Ordering Parts............................23
Return Material Authorization (RMA)...........24
Damaged Parts ...........................24
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise
this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or
changes.
© Copyright 2013, Cybex International, Inc. All rights reserved. Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 • www.cybexintl.com • 16121-999-4 A • July 2013
Cybex Owner’s Manual
Safety
Safety Guidelines and Practices
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment.
Owner must comply with all safety guidelines in this manual. It is also the owner’s responsibility to
instruct users on the safe and proper operation of the equipment and to properly display any and
all warning labels and instructional placards. All users should read these labels and placards before
using equipment.
Death or serious injury could occur if the
following safety precautions and instructions are
WARNING
Anchoring Equipment
not followed.
• Owner should not allow equipment to be used until it is properly anchored
as described below.
• To maximize stability and eliminate rocking, tipping, or falling over,
equipment must be anchored to a solid, level surface, utilizing all
anchoring holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex
recommends .3/8” grade 2 bolts or better. A minimum pull force of
220 lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors.
Shim any leg or frame not in contact with surface using at washers.
• Due to the wide variation of ooring on which machines may be anchored
or installed, consult with a qualied and licensed contractor to ensure
proper anchoring and installation.
Facility Safety Precautions
Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the
warning labels and instructional placards located on every machine.
Do not install equipment on an uneven surface. The solid, level surface should not deviate more than
1/8” over a 10’ distance or as dened and required by local building and architectural codes.
3
Cybex Owner’s Manual
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
All equipment should be used in a supervised, access-controlled area.
Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and
older.
The owner should ensure that regular inspection and maintenance checks as detailed in this manual
are performed. Keep a log of all maintenance and repair activities.
Each day before use, the owner should inspect the equipment. If there are any loose or worn
components such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the
owner should x any deciencies before they allow the equipment to be used.
Use only Cybex components to maintain and repair the equipment.
Display the Facility Safety Sign so it is visible and prominent.
User Safety Precautions
Owners must instruct users to DO the following:
• Follow all warning labels and instructional placards when using equipment.
• Insert weight pin completely before using selectorized equipment.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician.
• Use a spotter for Free Weight equipment.
Owners must instruct users to NOT DO the following:
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if
found in this position.
• DO NOT increase weight resistance on equipment by any means other than those provided by
Cybex.
• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving
parts.
4
Cybex Owner’s Manual
• DO NOT lean or pull on machine
• DO NOT use machine for support during stretching.
• DO NOT attach resistance straps, ropes or other means to equipment, except those provided by
the manufacturer for intended use on the equipment.
• DO NOT exceed the maximum specied user weight.
• DO NOT use if equipment appears damaged or inoperable upon inspection.
• DO NOT use if guards are missing or damaged.
• DO NOT remove any labeling from equipment.
5
Cybex Owner’s Manual
WARNING
Serious injury can result if bar
catch is not hooked properly
and falls.
Make sure bar catch is fully
engaged over hook to avoid
injury.
UNHOOKED
HOOKED
16120-340-4 D
Serious injury or death may
result if the adjustable bar
stops are not set properly.
DO NOT start
an exercise
unless
adjustable bar
stops are in
place.
Proper use of adjustable bar
stops allow an immediate exit
in case of accident or
emergency.
WARNING
Warnings and Cautions
Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation that could result in minor or moderate injury
if the precautions are not observed.
The diagram following the decals show where each decal is located.
WARNING
To minimize risk
of serious injury:
Prior to use:
Obtain a medical exam
•
before beginning any
exercise program.
• Obtain instruction before
using.
• Read and understand
warning labels.
• Fully insert adjustment
pins before using.
• Inspect unit, cables, belts,
connections, and guards.
If damaged, worn, frayed,
or missing, notify floor
staff. DO NOT USE.
During use:
Use only as shown on
•
instructional placard.
• Do not use for stretching
and do not attach straps
or other devices.
• Do not modify unit.
• Do not allow children 12
or younger to be on or
near unit.
• Notify floor staff if weight
plate is raised. DO NOT
USE.
• Stop exercise if you feel
faint, dizzy, or have pain.
• Use a spotter.
Do not remove this label.
Replace if damaged or
illegible.
DE000001-4
WARNING
Serious injury or death may result
if the adjustable bar stops are set
BELOW THIS location when doing
SQUAT EXERCISE.
DO NOT start
SQUAT EXERCISE
unless adjustable
bar stops are in
place.
PROPER placement of adjustable
bar stops allow an immediate exit
in case of accident or emergency.
16120-341-4 D
6
Label Placement
DE000001-X
16120-340-X
Cybex Owner’s Manual
16120-340-X
16120-341-X
16120-341-X
16120-340-X
16120-341-X
16120-340-X
16120-341-X
7
Cybex Owner’s Manual
Assembly
Machine Specifications
Total Weight and Size:16121 Smith Press
Weight Machine Dimensions at Rest Machine Dimensions at Use
380 Lbs 84” W x 54” L x 84” H 84” W x 54” L x 84” H
173 Kg 213 cm W x 137 cm L x 213 H 213 cm W x 137 cm L x 213 H
Maximum User Weight Maximum Training Weight
N/A 800lbs/362 kg
Choosing and Preparing a Site
Before assembling the unit, verify the chosen site meets the following criteria:
• Area is well lit and well ventilated.
• Surface is structurally sound and properly leveled.
• Free area for access to unit and emergency dismount. Minimum clearance is 23.6 inches
(0.6 meters).
• Adjacent units may share the free area.
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
8
Cybex Owner’s Manual
• Area is not in the vicinity of high humidity, such as in the vicinity of a steam room, sauna, indoor
pool or outdoors. This unit is designed to function normally in an environment with a relative
humidity range of 30% to 75%.
Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as
well as other parts of the unit.
• Area maintains an ambient temperature range of 50° F (10° C) to 104° F (40° C) degrees.
Tools Required
• 9/16” Wrench
• 7/16” Allen wrench
• 7/32” Allen wrench
• 9/16” Wrench
• 5/16” Allen wrench
Assembly Procedure
Three people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.

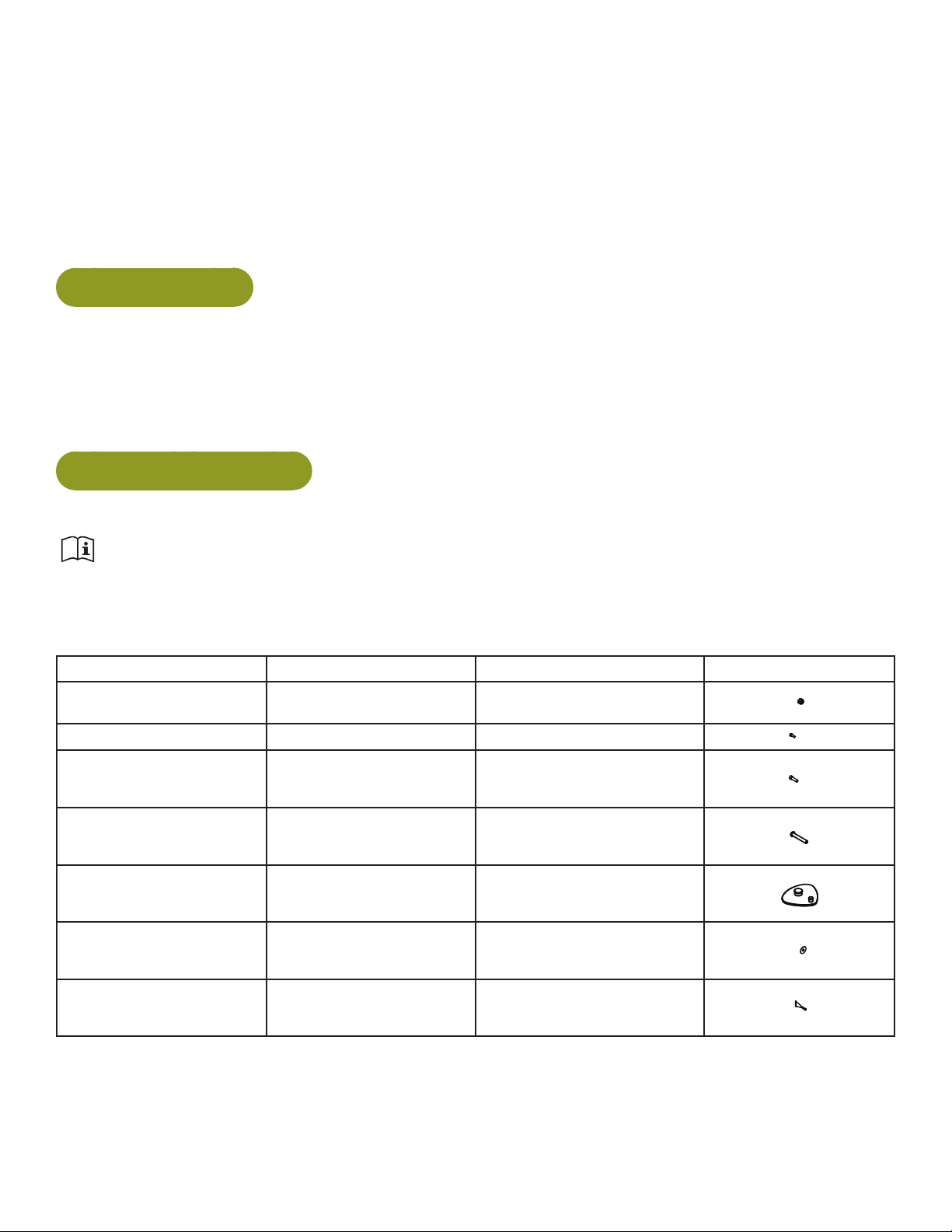

Verify parts list shown below.
Qty Part Number Description Diagram
8 HN704902 Locknut .375-16
2 HC621215 HHSC .250-20 X 2.00
8 JC702821 SHSC .375-16 X 1.25
4 HC700430 BHSCS .375-16 X 2.50
6 16010-311 Foot Pad
8 HS348300 Split Lockwasher .375
1 YA000201 Loctite 242
9
Cybex Owner’s Manual
Move to desired location
WARNING: Serious injury or death can result if the Smith Press is not removed from
the pallet correctly. Use a minimum of three people when preforming this
procedure.
1. Keep all shipping packages near area of installation.
2. Remove foam and shrink wrap securing weight bar to frame.
3. Remove the four Button Head Socket Cap Screws (BHSCS) and locknuts from the shipping
brackets securing the frame halves together using a 7/32” Allen wrench and 9/16” wrench. DO
NOT discard the BHSCS or locknuts.
4. Remove the four bolts securing the frame to the pallet using a 9/16” wrench.
Assemble frame
1. Hold frames in an upright position with the aid of assistants.
2. Place rubber feet on each foot of the frame.
3. Align front frame mount in place.
Locknut (Qty of 2 each side)
BHSCS
(Qty of 2 each side)
Front Frame Mount
4. Secure front frame in place with the four BHSCS and locknuts removed above.
5. Place back frame mount in position. Secure back frame mount to frame with the four BHSCS
and locknuts from the shipping package using a 7/32” Allen wrench and 9/16” wrench.
Locknut (Qty of 2 each side)
Back Frame Mount
BHSCS (Qty of 2
both sides)
Locknut
10
Cybex Owner’s Manual

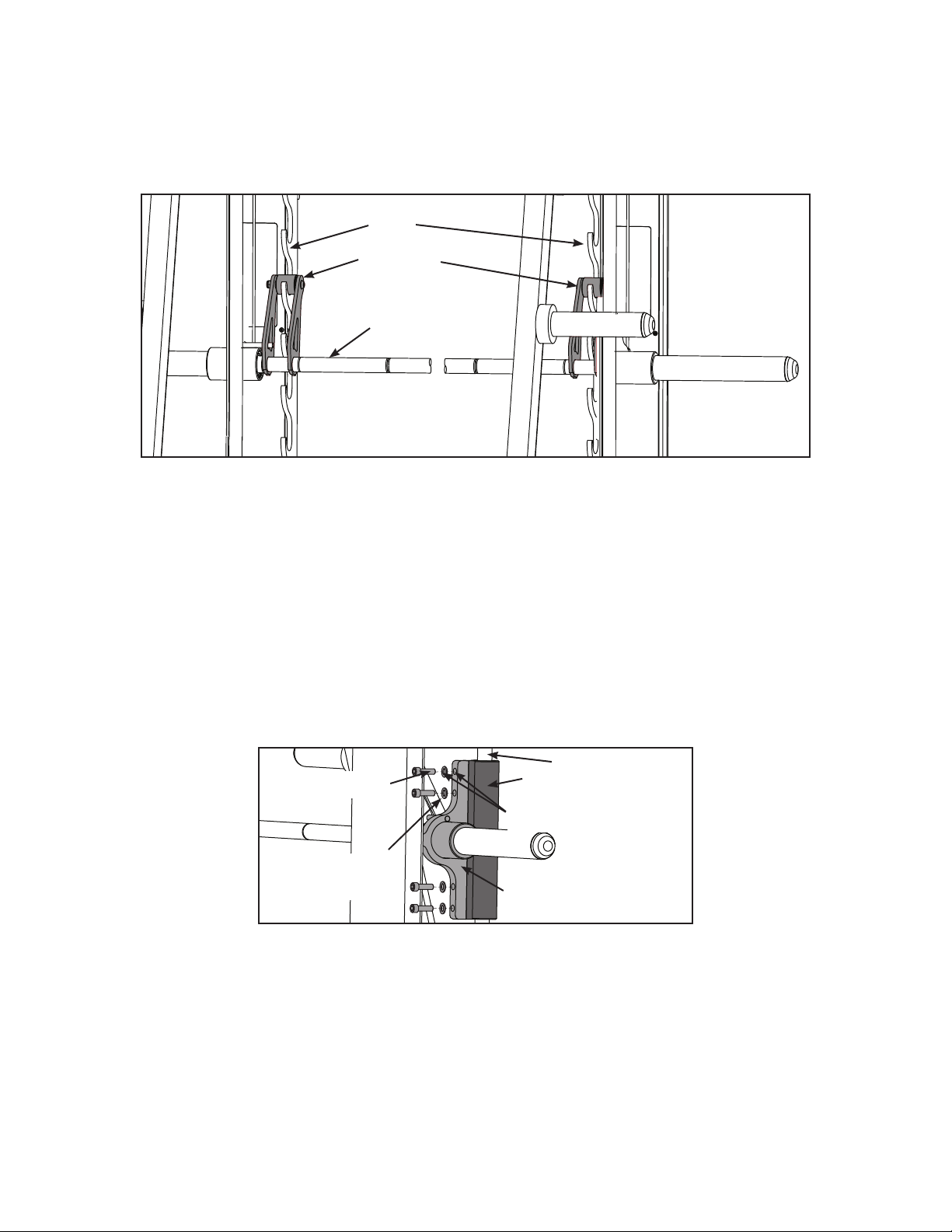

Install weight bar assembly
1. Place weight bar on frame and secure in place by latching catch bar on hooks.
2. Verify each bar catch is hooked properly on the hook.
Hook
Bar Catch
Weight Bar
3. Slide bearing housing up (located at bottom of guide shaft) and align holes with weight bar
bracket.
4. Locate four Socket Head Cap Screws (SHCS), four washers and loctite from shipping
package.
5. Place a small drop of loctite on the four SHCS and in threaded holes of weight bar bracket.
6. Place washer over SHCS.
7. Using a 5/16” Allen wrench tighten the four SHCS securing the weight bar bracket to the
bearing housing.
8. Repeat step 5 for opposite side.
Guide Shaft
SHCS (Qty 4)
Bearing Housing
Loctite
Washers
(Qty 4)
Weight Bar Bracket
Cable installation
1. Place a small amount of loctite into the threaded hole and on the two Hex Head Cap Screws
(HHCS) from shipping package.
2. Attach cable end to weight bar bracket with HHCS using a 7/16” wrench. Cable end must be
attached straight to avoid kink in cable.
11
Cybex Owner’s Manual
3. Repeat above steps for opposite end of cable.
Cable
Weight Bar Bracket
Cable
End
Cable end must be attached
straight to avoid kink in cable.
HHCS
Securelyanchormachinetotheoor
Cybex strongly recommends to maximize stability, equipment must be secured to a solid level
surface.
WARNING: Anchoring equipment:
• Cybex is not responsible for the actual anchoring of equipment. Consult with a
professional contractor.
• Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2 bolts or
better).
• If legs/frame does not contact surface, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using at washers.
Verify proper operations
12
Cybex Owner’s Manual
Exercise
Intended Use
The intended commercial use of this machine is to aid exercise and improve general physical tness.
Instructions
Read and understand all instructions and warnings prior to using this machine in the Safety
section of the Owner’s Manual.
This machine is very versatile. Exercises that can be perforned include, Squats, Bench and Incline
Press, Bent-Over Rows and Over head Press.
All adjustment points on the machine have yellow handles or knobs.
CAUTION: Use only in manner depicted
To avoid serious injury, use equipment only as describe in placards located on each
machine.
SMITH PRESS
Bench Press
Squat
13
Cybex Owner’s Manual
SET UP
1. Adjust bar to appropriate height for exercise. See Diagram A.
2. Adjust bar stops to appropriate height for exercise. See Diagram B.
3. Load bar evenly with appropriate resistance. Unloaded bar weight = 15 lbs (7kg).
Diagram A
MOVEMENT
1. Position yourself for the exercise to be perfomed and grasp bar.
2. Lift bar rotate to release catch. See Diagram A.
3. Lift/lower bar with smooth, controlled movements.
4. Lock bar by rotating until catch is fully engaged. See Diagram A. Ensure bar catch is fully
engaged over hook before releasing grip on bar.
Diagram B
14
Cybex Owner’s Manual
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine
preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex
equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your
machines. Instruct all personnel in equipment inspection and maintenance actions and also in
accident reporting/recording. Cybex representatives are available to answer any questions that you
may have.
Warnings
Read all warnings in this chapter.
WARNING: For maintenance, service and repair:
• Must be performed by trained service personnel only
• Use only Cybex replacement parts.
Observe the following warnings:
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately
and keep the equipment out of use until repair is completed.
Daily Procedures
When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to
formula changes by the product manufacturer without notice. Should you desire to use other cleaning
agents, carefully try them in an inconspicuous area to determine potential damage to the material.
Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained
or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye
protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its
vendors cannot be held responsible for damage or injuries resulting from the use or misuse of
cleaning products.
15
Clean Upholstery
If Then
Light Soiling
MoreDifcultStains
MoreDifcultStains(AlternativeMethod)
Restoring Luster
Cybex Owner’s Manual
1. Prepare a solution of 10% household
liquid soap and warm water.
2. Apply with a soft damp cloth.
3. If necessary, apply a solution of liquid
cleanser with a soft bristle brush.
4. Dampen a clean soft cloth in water and
wipe residue away.
1. Prepare a solution of 10% household
bleach (sodium hypochlorite) and 90%
water. Dampen a soft white cloth in the
solution.
2. Rub gently on the stained area.
3. Dampen a clean soft cloth in water and
rinse area.
4. If stains are still present, a full strength
household bleach may be used. Allow
bleach to puddle on the affected area
or apply with a bleached-soaked cloth
for approximately 30 minutes. Dampen
a clean soft cloth in water, and rinse
area to remove any remaining bleach
concentration.
1. Dampen a soft white cloth with rubbing
alcohol.
2. Gently rub stained area.
3. Dampen a clean soft cloth in water and
rinse area.
1. Apply a light coat of furniture wax for 30
seconds.
2. Lightly rub area using a clean white cloth.
Clean Frames
Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry
thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these
could scratch or damage the equipment.
Clean Chrome
Clean chrome tubes, rst using chrome polish and then using a car wax seal. Neutral cleaners with a
pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based
cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
16
Cybex Owner’s Manual
Guidelines for cleaning front panel:
Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. Follow
up each application with warm water rinse.
• DO NOT use abrasives or high alkaline cleaners.
• DO NOT leave cleaners on for long periods, wash immediately.
• DO NOT apply cleaners in direct sunlight or at elevated temperatures.
• DO NOT use scrapers, squeegees, or razors.
• DO NOT clean with gasoline.
Compatible Cleaners and Detergents:
• Formula 409
• Top Job
• Joy
• Palmolive
• Windex with Ammonia D
To Minimize Fine or Hairline Scratches:
Mild automotive polish applied and removed with a soft clean cloth will help ll scratches.
Suggested Polishes:
• Johnson Paste Wax
• Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)
• Novus Plastics Polish #1, #2 (By Novus Inc.)
Weekly Procedures
Inspect All Nuts and Bolts
Tighten all loose nuts and bolts as required.
17
Cybex Owner’s Manual
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately
and keep the equipment out of use until repair is completed.
Inspect cables and belts
Inspect all cables and belts for wear or damage and proper tension. When inspecting cables and
belts, run ngers on the cable or belt, paying particular attention to bends in cables and attachment
points. The following conditions may indicate a worn cable:
Cables
Condition of Cable Diagram
A tear or crack in the cable sheath
that exposes the cable
A kink in the cable
A curled sheath
Necking - A stretched cable sheath
18
Belts
Cybex Owner’s Manual
Condition of Belt 3D View 3D or Side View
Peeling of the belt’s skin.
Wave in belt
Belt is necked down (narrow section)
Cracks or splits
One or more strands of kevlar is
hanging out, or if there is a signicant
amount of frayed kevlar.
Replace belt if any
section is over 1/32”
(.03) narrower than the
rest of belt
Examine edge of belt (both sides).
Replace belt if any section is
narrower than the rest.
19
Cybex Owner’s Manual
CAUTION: Worn handles
• Do not use handles if less then 1/8” of material remains on edge.
• Replace all worn handles immediately.
Inspect bars and handles for wear, paying particular attention to tab area connection points.
Replace bar if less
than 1/8” of material
remains to the edge.
Attachment
Hole
Inspection Action
Inspect bars and handles for wear, paying
particular attention to tab area connection points.
Inspect snap links for proper latching (indicates
wear).
Inspect all labeling for readability, including
instructional placards, warning and caution
decals.
Inspect all weight stacks for proper alignment
and operation.
Inspect guide rods for lubrication.
Yearly Procedures
Replace all cables and belts annually
Replace all worn handles immediately.
Replace all loose or worn grips immediately.
Replace all worn labeling immediately.
Correct all improper alignment and operation
issues immediately.
Wipe Weight Stack Guide Rods clean over entire
length. Lubricate with a light coat of medium
weight automotive engine oil.
20
Cybex Owner’s Manual
Cable Adjustment
Tools Required
9/16” Wrench (2)
Four types of cable tension adjustment are used on Cybex Strength Systems:
Cable
Adjustment
Jam Nut
Adjustment
Rod End
Adjustment
Description Diagram
This type of adjustment uses a jam
nut and a tension adjustment nut at
the cable cam end as the primary
adjustment. The other end of the
cable usually contains a roll pin
adjustment.
This type of adjustment uses a
socket head cap screw (SHCS)
securing a cable rod end bearing to
the machine. Primary adjustment
is by turning the rod end bearing.
The other end of the cable usually
contains a roll pin cable adjustment.
Jam
Cable
End
SHCS
Nut
Tension
Adjustment
Nut
Jam Nut
Cable Rod End
Bearing
Nylon
Locknut
Roll Pin
Adjustment
Cam End
Adjustment
This type of adjustment uses a roll
pin and series of holes in the weight
stack top weight connector.
This type of adjustment uses an
adjustment bolt on the pulley
bracket. Loosen nut and rotate cam
bolt to adjust cable.
21
Roll
Pin
Nut
Top Weight
Connector
Cam Bolt
Adjustment
Cybex Owner’s Manual
Belt Adjustment
Tools Required
• 7/32” Wrench
• Torque wrench (lbs-in)
Belt Adjustment Action
1. Using a 7/32” Allen wrench loose set screws.
2. Pull belt tight.
3. Secure belt in place with set screws.
Loose Belt
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from
the top pulley bracket to the to weight belt clamp
22
Cybex Owner’s Manual
Customer Service
Product Registration
To register product do the following:
1. Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard
Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or
fax 508-533-5183. Email address internationaltechhelp@cybexintl.com
Find information on the web at www.cybexintl.com.
To contact us online go to www.cybexintl.com.
Ordering Parts
To order parts online go to www.cybexintl.com.
To speak with a customer service representative, call 888-462-9239 (for customers living within the
USA) or 508-533-4300 (for customers outside the USA).
The following information located on the serial number decal will assist our Cybex representatives in
serving you.
• Unit Serial Number, Product Name and Model Number
• Part Description and Part Number if you have it. All parts can be found on the web at
www.cybexintl.com
• Shipping Address
• Contact Name
• Include a description of the problem.
In addition to your shipping address and contact name, your account number is helpful but not
required. You may also fax orders to 508-533-5183.
23
Cybex Owner’s Manual
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement,
repair or credit. The system assures that returned materials are properly handled and analyzed.
Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will
request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment
be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with a detailed description of the problem you are having or the defect in the
item you wish to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for
evaluation and repair or replacement. The technician will assign you a RMA number and will send
you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside
of the package that contains the item(s) to be returned. Include the description of the problem, the
serial number of the equipment and the name and address of the owner in the package along with the
part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD
will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the
responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must
be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers
refusal to honor your damage claim. The carrier will provide you with the required forms for ling such
claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported
to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to
the carrier asking them to perform an inspection of the materials must be made within ten days of
the delivery date. Keep all shipping containers and packing materials as they will be needed in the
inspection process. The carrier will provide you with an inspection report and the necessary forms for
ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.
24
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.com
Loading...
