Cybex Eagle Row User Manual

Cybex® Eagle Row

Owner’s Manual

Strength Systems

Part Number 11030-999-4 B

www.cybexintl.com

Table of Contents

Safety

Safety Guidelines and Practices ...............3

Anchoring Equipment .......................3

Facility Safety Precautions ...................3

User Safety Precautions . . . . . . . . . . . . . . . . . . . . . 4

Warnings and Cautions......................6

Label Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Assembly

Machine Specications . . . . . . . . . . . . . . . . . . . . . . 8

Tools Required ............................8

Assembly Procedure ........................8

Exercise

Intended Use.............................18

Instructions ..............................18

Maintenance

Warnings ................................20

Daily Procedures..........................20

Weekly Procedures ........................22

Yearly Procedures .........................25

Cable Adjustment .........................26

Belt Adjustment ...........................27

Customer Service

Product Registration .......................28

Contacting Service ........................28

Ordering Parts............................28

Return Material Authorization (RMA)...........29

Damaged Parts ...........................29

Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
Eagle® and its mark are registered trademarks of Cybex International, Inc

DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise
this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or
changes.

© Copyright 2012, Cybex International, Inc. All rights reserved. Printed in the United States of America.

10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX [phone] www.cybexintl.com • 11030-999-4 B August 2012

Cybex Owner’s Manual

Safety

Safety Guidelines and Practices

Read the Owner’s Manual carefully before assembling, servicing, or using the equipment.
Owner must comply with all safety guidelines in this manual. It is also the owner’s responsibility to
instruct users on the safe and proper operation of the equipment and to properly display any and
all warning labels and instructional placards. All users should read these labels and placards before
using equipment.

Death or serious injury could occur if the
following safety precautions and instructions are

WARNING

Anchoring Equipment

not followed.

• Owner should not allow equipment to be used until it is properly anchored

as described below.

• To maximize stability and eliminate rocking, tipping, or falling over,

equipment must be anchored to a solid, level surface, utilizing all
anchoring holes provided.

• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex

recommends .3/8” grade 2 bolts or better. A minimum pull force of
220 lbs/100 kgs is required for each anchor position.

• If leg frames do not contact surface, DO NOT pull down with anchors.

Shim any leg or frame not in contact with surface using at washers.

• Due to the wide variation of ooring on which machines may be anchored

or installed, consult with a qualied and licensed contractor to ensure

proper anchoring and installation.

Facility Safety Precautions

Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the
warning labels and instructional placards located on every machine.

Do not install equipment on an uneven surface. The solid, level surface should not deviate more than

1/8” over a 10’ distance or as dened and required by local building and architectural codes.

3

Cybex Owner’s Manual

It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.

In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least

30 by 48 inches and be served by an accessible route for at least one of each type of exercise

equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the

clear space must be 36 by 48 inches.

All other machines must have a clear floor space of 23” for all access point on the machine, unless

shown in the Owner’s Manual.

The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.

All equipment should be used in a supervised, access-controlled area.

Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and
older.

The owner should ensure that regular inspection and maintenance checks as detailed in this manual
are performed. Keep a log of all maintenance and repair activities.

Each day before use, the owner should inspect the equipment. If there are any loose or worn
components such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the

owner should x any deciencies before they allow the equipment to be used.

Use only Cybex components to maintain and repair the equipment.

Display the Facility Safety Sign so it is visible and prominent.

User Safety Precautions

Owners must instruct users to DO the following:

• Follow all warning labels and instructional placards when using equipment.

• Insert weight pin completely before using selectorized equipment.

• Consult a physician prior to commencing an exercise program. If at any time during exercise you

feel faint, dizzy or experience pain, stop and consult your physician.

• Use a spotter for Free Weight equipment.

Owners must instruct users to NOT DO the following:

• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if

found in this position.

• DO NOT increase weight resistance on equipment by any means other than those provided by

Cybex.

• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving

parts.

4

Cybex Owner’s Manual

• DO NOT lean or pull on machine

• DO NOT use machine for support during stretching.

• DO NOT attach resistance straps, ropes or other means to equipment, except those provided by

the manufacturer for intended use on the equipment.

• DO NOT exceed the maximum specied user weight.

• DO NOT use if equipment appears damaged or inoperable upon inspection.

• DO NOT use if guards are missing or damaged.

• DO NOT remove any labeling from equipment.

5

Cybex Owner’s Manual

NOTE: See Engineering drawing 4520-362-X

MATERIAL:

EXCEPT AS NOTED

GENERAL
TOLERANCES:

REMOVE ALL BURRS
BREAK SHARP EDGES
.005/.010 R

SURFACE FINISH

DIMENSIONS
IN INCHES

WARNING

SERIOUS INJURY

COULD OCCUR IF

THESE PRECAUTIONS

ARE NOT OBSERVED

2. Read and understand warning labels

and user manual prior to exercising.

Obtain instruction prior to use.

1. Obtain a medical exam prior to

beginning an exercise program.

3. Keep body and clothing free from

and clear of all moving parts.

4. Inspect machine prior to use. DO

NOT use if it appears damaged or

inoperable.

5. DO NOT attempt to fix a broken or

jammed machine. Notify floor staff.

6. Use the machine only for the

intended use. DO NOT modify the

machine.

7. Be sure that the weight pin is

completely inserted. Use only the pin

2.25

12 PT ARIAL FONT

R .25

4 PLACES

INSET .06

WHITE

SAFETY ORANGE PMS 152

BLACK TRIANGLE W/ ORANGE

EXCLAMATION POINT, BLACK LETTERS

23 PT ARIAL BOLD FONT

8.00

8.25 PT ARIAL FONT

WHITE BACKGROUND

BLACK LETTERS

Warnings and Cautions

Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.

Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor
or moderate injury.

The diagram following the decals show where each decal is located.

CAUTION

Personal injury may occur.

Keep away from moving
parts to avoid injury.

4000Y316-4 A

CAUTION

6

Label Placement

4000Y316-X

Cybex Owner’s Manual

4000Y316-X

4000Y316-X

4605-381-X

4520-362-X

7

Cybex Owner’s Manual

Assembly

Machine Specifications

Total Weight and Size: Eagle 11030 Row

Weight Machine Dimensions at Rest Machine Dimensions at Use

736 lbs 58” W x 54” L x 72” H 58” W x 54” L x 72” H

333.84 kg 147.32 cm W x 137.16 cm L x 182.88 H 147.32 cm W x 137.16 cm L x 182.88 H

The dimensions stated in the installation instructions are the recommended minimum dimensions as
set forth by the manufacturer. The actual area for access and passage shall be the responsibility of
the facility and should take into account any required local codes or regulations.

Tools Required

• 7/32” Allen wrench

• 3/4” Allen wrench

• 9/16” Wrench

• External snap ring pliers

• Phillips screwdriver

• Medium weight automotive engine oil

• Torque Wrench

Assembly Procedure

Two people will be required for this procedure.

Read and understand all instructions thoroughly before assembling this unit. Check all items
carefully. If there is damage, see the Customer Service section of this manual for proper procedure to
return, replace, or reorder parts.

It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.

Verify parts list shown below

Qty Part Number Description Diagram

4 11090-392 Foot pad

8

Cybex Owner’s Manual

Qty Part Number Description Diagram

1 12000-560

Decal, Weight Plate

(30-290)

13 4000C101 Weight Stack Plate

Move to desired location

1. Determine if you can move your machine through the required doorway(s).

2. If the machine ts through the doorway(s), move machine to desired location.

3. Attach rubber feet to each foot of the frame.

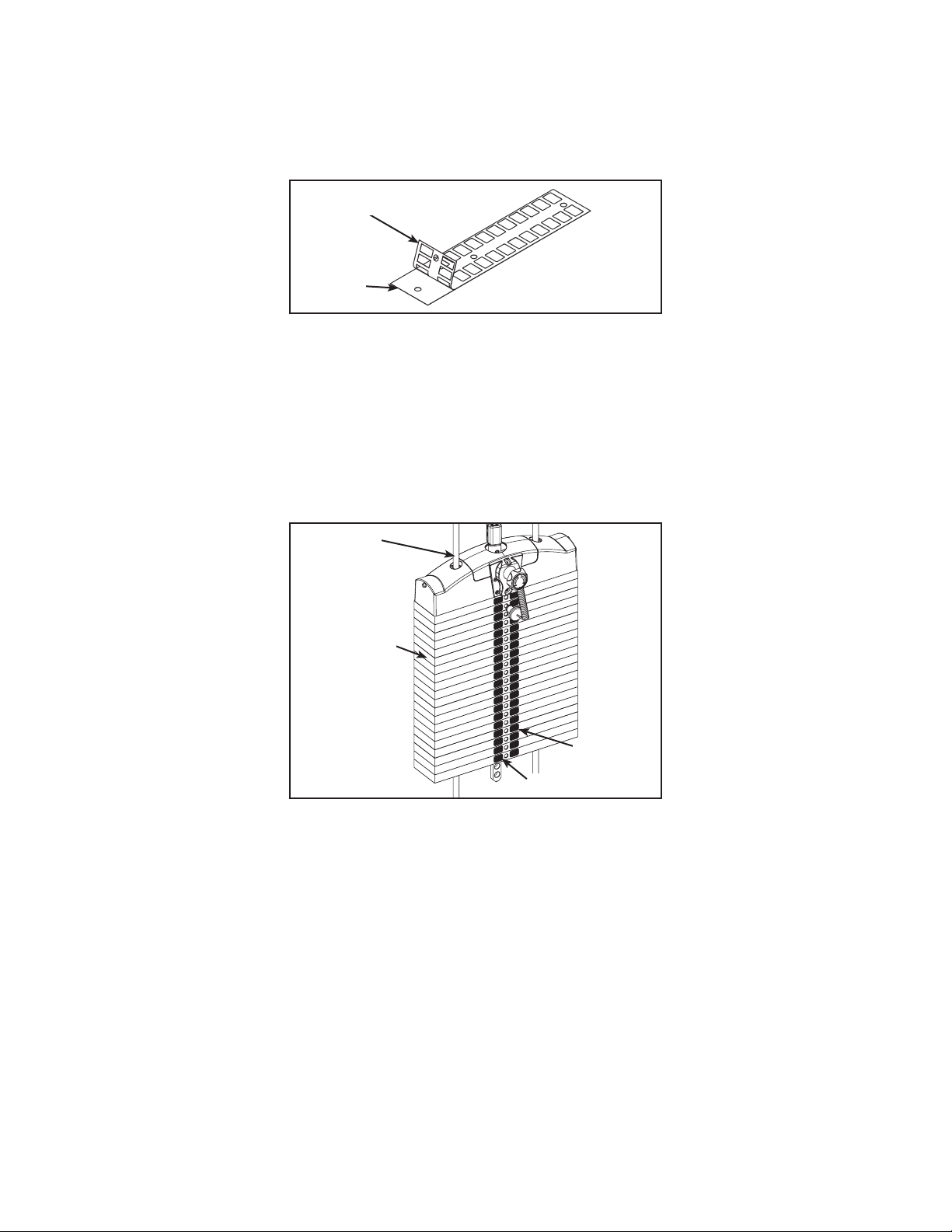

4. If weight stacks need to be installed follow procedure for installing weight stacks.

5. If the machine does not t through the doorway(s) follow doorway procedures below.

Doorway Instructions

1. Remove each (standard) cone-shaped shipping support using a 3/4” socket or wrench.

2. Make a note of the current belt routings and connections. This will assist you in reinstalling

them properly.

3. Cut shipping tie securing top weight.

4. Rotate cam and disconnect weight stack belt from cam (by loosening the two set screws on

the belt clamp with a 7/32” Allen wrench.)

Cam

Set
Screws

5. Locate the pulley bracket that is located near the cam.

Hex Nut/Washer

Pulley
Bracket

Bolt

6. Remove bolt, washer and hex nut securing the pulley to the pulley bracket.

9

Cybex Owner’s Manual

7. Remove pulley from pulley bracket.

8. Using a Phillips screwdriver, remove the two screws securing the cam cover plate (guard)

and remove the plate.

Screw

Cam Cover Plate

9. At the opposite end of the pivot shaft, locate the small plate.

BHSCS (2)

Small Plate

10. Using a 7/32” Allen wrench, remove the two BHSCS securing the small plate and remove the

plate.

11. Remove one of the two BHSCS securing the pivot shaft.

Washer

BHSCS

Pulley/Cable

Pulley Shaft

Pivot Shaft

12. Remove the pivot shaft.

CAUTION: Be extremely careful when removing shaft so you do not ruin the threads on

the shaft.

13. Rotate cam so that the at part is facing down.

14. Slide pulley shaft out of machine.

10
