Cybex Eagle NX Chest Press User Manual

Cybex Eagle® NX Chest Press
Owner’s Manual
Strength Systems
Part Number 20000-999-4 B
www.cybexintl.com

Table of Contents

Safety
Safety Guidelines and Practices ...............3
Anchoring Equipment .......................3
Facility Safety Precautions ...................3
User Safety Precautions . . . . . . . . . . . . . . . . . . . . . 4
Warnings and Cautions......................6
Label Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Assembly
Machine Specications . . . . . . . . . . . . . . . . . . . . . . 8
Choosing and Preparing a Site ................8
Tools Required ............................9
Assembly Procedure ........................9
Exercise
Intended Use.............................17
Instructions ..............................17
Maintenance
Warnings ................................18
Daily Procedures..........................18
Weekly Procedures ........................20
Yearly Procedures .........................23

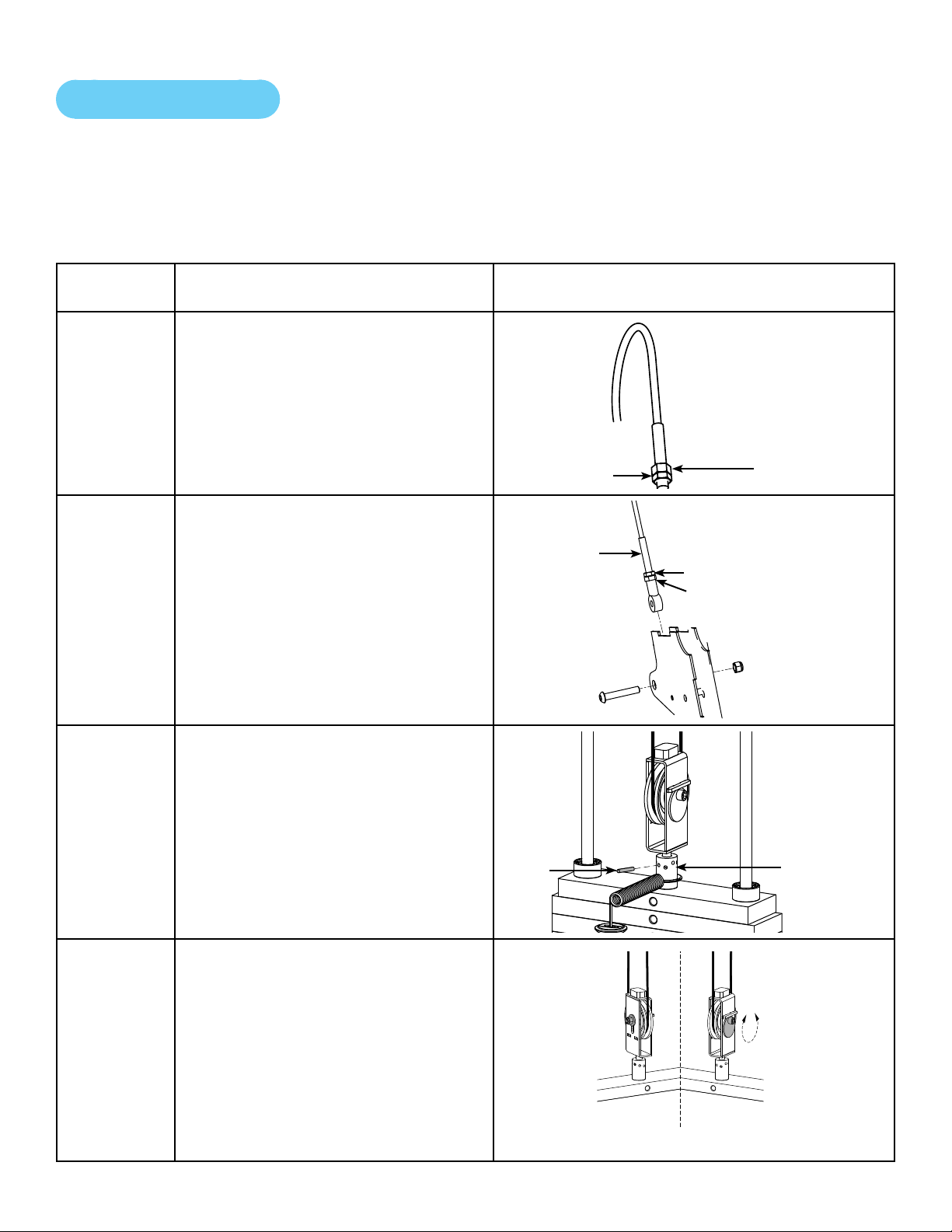

Cable Adjustment .........................24
Belt Adjustment ...........................25
Customer Service
Product Registration .......................26
Contacting Service ........................26
Ordering Parts............................26
Return Material Authorization (RMA)...........27
Damaged Parts ...........................27
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc. Eagle® and its mark are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
© Copyright 2014, Cybex International, Inc. All rights reserved. Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexintl.com • 20000-999-4 B • August 2014
Cybex Owner’s Manual

Safety

Safety Guidelines and Practices

Read the Owner’s Manual carefully before assembling, servicing, or using the equipment. Owner must comply with all safety guidelines in this manual. It is also the owner’s responsibility to instruct users on the safe and proper operation of the equipment and to properly display any and all warning labels and instructional placards. All users should read these labels and placards before using equipment.
Death or serious injury could occur if the following safety precautions and instructions are
WARNING

Anchoring Equipment

not followed.
• Owner should not allow equipment to be used until it is properly anchored
as described below.
• To maximize stability and eliminate rocking, tipping, or falling over,
equipment must be anchored to a solid, level surface, utilizing all anchoring holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex
recommends .3/8” grade 2 bolts or better. A minimum pull force of 220 lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors.
Shim any leg or frame not in contact with surface using at washers.
• Due to the wide variation of ooring on which machines may be anchored
or installed, consult with a qualied and licensed contractor to ensure
proper anchoring and installation.

Facility Safety Precautions

Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the warning labels and instructional placards located on every machine.
Do not install equipment on an uneven surface. The solid, level surface should not deviate more than
1/8” over a 10’ distance or as dened and required by local building and architectural codes.
3
Cybex Owner’s Manual
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in use) dimensions.
All equipment should be used in a supervised, access-controlled area.
Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and older.
The owner should ensure that regular inspection and maintenance checks as detailed in this manual are performed. Keep a log of all maintenance and repair activities.
Each day before use, the owner should inspect the equipment. If there are any loose or worn components such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the
owner should x any deciencies before they allow the equipment to be used.
Use only Cybex components to maintain and repair the equipment.
Display the Facility Safety Sign so it is visible and prominent.

User Safety Precautions

Owners must instruct users to DO the following:
• Follow all warning labels and instructional placards when using equipment.
• Insert weight pin completely before using selectorized equipment.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician.
• Use a spotter for Free Weight equipment.
Owners must instruct users to NOT DO the following:
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if
found in this position.
• DO NOT increase weight resistance on equipment by any means other than those provided by
Cybex.
• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving
parts.
4
Cybex Owner’s Manual
• DO NOT lean or pull on machine
• DO NOT use machine for support during stretching.
• DO NOT attach resistance straps, ropes or other means to equipment, except those provided by
the manufacturer for intended use on the equipment.
• DO NOT exceed the maximum specied user weight.
• DO NOT use if equipment appears damaged or inoperable upon inspection.
• DO NOT use if guards are missing or damaged.
• DO NOT remove any labeling from equipment.
5
Cybex Owner’s Manual

Warnings and Cautions

Warning decals indicate a potentially hazardous situation that could result in death or serious injury if the precautions are not observed.
Caution decals indicate a potentially hazardous situation that could result in minor or moderate injury if the precautions are not observed.
The diagram following the decals show where each decal is located.
6

Label Placement

Cybex Owner’s Manual
DE000023-X
DE000022-X
DE000019-X
7
Cybex Owner’s Manual

Assembly

Machine Specifications

Total Weight and Size: 20000 NX Eagle Chest Press
Weight Machine Dimensions at Rest Machine Dimensions in Use
623 Lbs 45” L x 57” W x 71” H 53” L x 57” W x 71” H
283 Kg 114 cm L x 145 cm W x 180 cm H 135 cm L x 145 cm W x 180 cm H
Maximum User Weight Maximum Training Weight
300 lbs/135 kg 305 lbs/138 kg

Choosing and Preparing a Site

Before assembling the unit, verify the chosen site meets the following criteria:
• Area is well lit and well ventilated.
• Surface is structurally sound and properly leveled.
• Free area for access to unit and emergency dismount. Minimum clearance is 23.6 inches
(0.6 meters).
• Adjacent units may share the free area.
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
8
Cybex Owner’s Manual
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in use) dimensions.
• Area is not in the vicinity of high humidity, such as in the vicinity of a steam room, sauna, indoor
pool or outdoors. This unit is designed to function normally in an environment with a relative humidity range of 30% to 75%.
Exposure to extensive water vapor, chlorine and/or bromine could adversely affect the electronics as well as other parts of the unit.
• Area maintains an ambient temperature range of 50° F (10° C) to 104° F (40° C) degrees.

Tools Required

7/32” Allen wrench
5/16” Allen wrench (2)
3/4” Socket wrench
Hammer
3/16” Pin punch
Phillips screwdriver
Loctite #242
Medium weight engine oil
Cloth

Assembly Procedure

Two people will be required for this procedure.
Read and understand all instructions thoroughly before assembling this unit. Check all items carefully. If there is damage, see the Customer Service section of this manual for proper procedure to return, replace, or reorder parts.
Securelyanchormachinetotheoor
Cybex strongly recommends to maximize stability, equipment must be secured to a solid level surface.
WARNING: Anchoring equipment:
• Cybex is not responsible for the actual anchoring of equipment. Consult with a
professional contractor.
• Use fasteners having a minimum of 500 lbs. tensile capacity (3/8’’ grade 2 bolts or
better).
• If legs/frame does not contact surface, DO NOT pull down with anchors. Shim
any leg or frame not in contact with surface using at washers.
9
Verify parts list shown below
Qty Part Number Description Diagram
3 20000-339 Foot Pad
2 20000-376 Foot Pad
3 20000-377 Foot Pad
Cybex Owner’s Manual
1 12000-560
Decal, Weight Plate
(30-290)
14 4000C101 Weight Stack Plate
IfEaglemachineCANtthroughdoorway
Two people will be required for this procedure
1. Move to desired location.
2. Remove the four shipping cones using a 3/4” socket or wrench.
3. Remove bolt from cones with hammer. Recycle cones.
4. Attach foot pads to each foot of frame.
5. If weight stack needs to be installed, follow procedure for installing weight stack and weight
plate decal.
IfEaglemachineCANNOTtthroughdoorway.
Two people will be required for this procedure
1. Remove the four shipping cones using a 3/4” socket or wrench.
2. Remove bolt from cone with hammer. Recycle cone.
Disconnect cable
1. Make a note of the current cable routings and connections.This will assist you in reinstalling
them properly.
10
Cybex Owner’s Manual
2. Remove ten screws securing top covers (front and back) to frame using a Phillips
screwdriver.
3
1
Description 1 10-32 screw (8) 2 # 8 screw (2)
2
3 Top cover (2) 4 Back panel
1
2
4
3. Guide front top cover down cable to gain access to pulley assembly.
4. Slide back panel upward and remove.
5. Squeeze sides of top weight cover together and lift up.
1
Description
1 Top weight cover
2
2 Spiral pin
6. Remove spiral pin connecting cable assembly using a hammer and a 3/16” pin punch.
Remove pulley assembly
1. Remove two button head socket cap screws (BHSCS) and two pulley shaft bolts securing top
two pulley assemblies to pulley bracket using two 5/16” Allen wrenches.
2
4
Description 1 Pulley shaft bolt (2) 2 BHSCS (2) 3 Pulley assembly (2)
3
4 Pulley bracket
1
2. Remove pulley assemblies from pulley bracket.
11
Cybex Owner’s Manual
3. Remove BHSCS and pulley shaft bolts securing lower pulley assembly to pulley bracket
using two 5/16” Allen wrenches.
2
3
Description 1 Pulley shaft bolt 2 BHSCS 3 Lower pulley assembly 4 Pulley bracket
4
1
4. Remove pulley assembly from pulley bracket.
5. Route cable up through top cover, guide rod plate, and pulley bracket.
6. Set cable aside for rerouting.
Remove weight plates
1. Turn the increment weight adjusting knob to select 0 lbs (0 kg).
2. Remove four Phillips head screws and plastic mount for guide rod access.
3
2
1
Description 1 Phillips head screw (4) 2 Plastic mount 3 Top guide rod cap (2) 4 Guide rod (2)
4
3. Remove top guide rod caps. Top guide rod cap contains a compression spring that will y if
grasp is not released slowly. Slide spring loaded top guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of top guide rod cap and set aside.
4. Repeat above step for opposite guide rod.
5. Lean guide rods slightly outward, away from machine. DO NOT put excessive pressure on
guide rods, it will damage lower guide rod caps.
6. Slide top weight up and out of the machine and set aside.
7. Remove weight plates and set aside for reinstallation later.
12
Cybex Owner’s Manual
Separate Frame
1. Remove six bolts and three connectors securing two halves of the frame using a 7/32” Allen
wrench.
Description
2
1 Bolt (6) 2 Connector (3)
1
2. Move each half through the doorway to the desired location.
Assemble Frame
1. Apply #242 Loctite to bolts.
Description
1 Bolt (6)
2
3
2 Connector (3) 3 # 242 Loctite
1
2. Secure two halves of the frame with the six bolts and three connectors, using a 7/32” Allen
wrench.
Install weight plates
1. Lean guide rods slightly outward, away from machine, DO NOT put excessive pressure on
guide rods, it will damage lower guide rod caps.
2. Wipe the entire length of the guide rods with a clean cloth.
3. Lubricate the guide rods with a light coating of medium weight oil.
13
Cybex Owner’s Manual
4. Install each weight plate, one at a time, so wide edge of bushing faces upward and narrow
edge of bushing faces downward.
WRONG
CORRECT
WIDE bushing
edge faces
upward
5. Slide top weight onto guide rods.
6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top
guide rod cap down guide rod until cap is clear of guide rod plate and install. Repeat for opposite side.
NARROW
bushing edge
1
3
7. Install four Phillips head screws securing plastic mount to guide rod plate.
Apply weight plate decal (if not already installed on weight plates)
1. Peel off half of backing from weight plate decals, making sure that the decals remain
attached to the front sheet.
Backing
5
4
2
Description 1 Top guide rod cap (2) 2 Guide rod (2) 3 Guide rod plate 4 Phillips head screw (4) 5 Plastic mount
Weight
Front sheet
2. Place decals front sheet in the correct position on weight plates.
3. Insert a guide pin through each hole of the decals front sheet. (A guide pin can be anything
that ts through the weight stack hole, such as a weight stack selector pin.)
14
decals
Cybex Owner’s Manual
4. Align decals and rub them onto weight plates.
5. Remove front sheet, do not peel decals off of weight plates.
Description
1 Weight stack selector pin
1
2 Weight plate decals
2
6. Repeat above steps for other half of the weight plate decals.
Install cable
1. Route cable through slot in top cover, through pulley bracket, and down through guide rod
plate.
2. Install two BHSCS and two pulley shaft bolts securing lower pulley assembly to pulley
bracket using two 5/16” Allen wrenches.
2
3
Description 1 Pulley shaft bolt 2 BHSCS 3 Lower pulley assembly 4 Pulley bracket
4
1
3. Install two BHSCS and two pulley shaft bolts securing top two pulley assemblies to pulley
bracket using two 5/16” Allen wrenches.
2
4
Description 1 Pulley shaft bolt (2) 2 BHSCS (2) 3 Top pulley assembly (2)
3
4 Pulley bracket
1
15
Cybex Owner’s Manual
4. Squeeze sides of top weight cover together and lift up. Pull down on cable until it is tight.
Install spiral pin connecting cable assembly to top weight.
1
Description 1 Top weight cover
2
2 Spiral pin
5. Verify the cable is moving smoothly.
6. Install back panel.
7. Install ten screws securing top covers (front and back) to frame using a Phillips screwdriver.
3
1
Description 1 10-32 screw (8) 2 # 8 screw (2)
2
3 Top cover (2) 4 Back panel
1
2
Verify proper operation
4
16
Cybex Owner’s Manual

Exercise

Intended Use

The intended commercial use of this machine is to aid exercise and improve general physical tness.

Instructions

Read and understand all instructions and warnings prior to using this machine in the Safety
section of the Owner’s Manual.
CAUTION: Use only in manner depicted
To avoid serious injury, use equipment only as describe below.
All adjustment points on the machine have yellow handles or knobs.
Set Up Motion Muscles Used
• Adjust seat bottom and back so that
handles are at mid-chest.
• Select hand position that allows
hands to nish in front of the
shoulders.
Push handles forward until arms are fully straightened.
Pectoralis Major, Anterior Deltoid, Triceps
17
Cybex Owner’s Manual
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your machines. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting/recording. Cybex representatives are available to answer any questions that you may have.
Warnings
Read all warnings in this chapter.
WARNING: For maintenance, service and repair:
• Must be performed by trained service personnel only
• Use only Cybex replacement parts.
Observe the following warnings:
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately and keep the equipment out of use until repair is completed.
Daily Procedures
When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to formula changes by the product manufacturer without notice. Should you desire to use other cleaning agents, carefully try them in an inconspicuous area to determine potential damage to the material. Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. Cybex and its
vendors cannot be held responsible for damage or injuries resulting from the use or misuse of cleaning products.
18
Clean Upholstery
If Then
Light Soiling
MoreDifcultStains
MoreDifcultStains(AlternativeMethod)
Restoring Luster
Cybex Owner’s Manual
1. Prepare a solution of 10% household liquid soap and warm water.
2. Apply with a soft damp cloth.
3. If necessary, apply a solution of liquid cleanser with a soft bristle brush.
4. Dampen a clean soft cloth in water and wipe residue away.
1. Prepare a solution of 10% household bleach (sodium hypochlorite) and 90% water. Dampen a soft white cloth in the solution.
2. Rub gently on the stained area.
3. Dampen a clean soft cloth in water and rinse area.
4. If stains are still present, a full strength household bleach may be used. Allow bleach to puddle on the affected area or apply with a bleached-soaked cloth for approximately 30 minutes. Dampen a clean soft cloth in water, and rinse area to remove any remaining bleach concentration.
1. Dampen a soft white cloth with rubbing alcohol.
2. Gently rub stained area.
3. Dampen a clean soft cloth in water and rinse area.
1. Apply a light coat of furniture wax for 30 seconds.
2. Lightly rub area using a clean white cloth.
Clean Frames
Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
Clean Chrome
Clean chrome tubes, rst using chrome polish and then using a car wax seal. Neutral cleaners with a pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based
cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
19
Cybex Owner’s Manual
Guidelines for cleaning front panel:
Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. Follow
up each application with warm water rinse.
• DO NOT use abrasives or high alkaline cleaners.
• DO NOT leave cleaners on for long periods, wash immediately.
• DO NOT apply cleaners in direct sunlight or at elevated temperatures.
• DO NOT use scrapers, squeegees, or razors.
• DO NOT clean with gasoline.
Compatible Cleaners and Detergents:
• Formula 409
• Top Job
• Joy
• Palmolive
• Windex with Ammonia D
To Minimize Fine or Hairline Scratches:
Mild automotive polish applied and removed with a soft clean cloth will help ll scratches.
Suggested Polishes:
• Johnson Paste Wax
• Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)
• Novus Plastics Polish #1, #2 (By Novus Inc.)
Weekly Procedures
Inspect All Nuts and Bolts
Tighten all loose nuts and bolts as required.
20
Cybex Owner’s Manual
WARNING: Equipment hazard.
To avoid serious injury or death replace worn or damaged components immediately and keep the equipment out of use until repair is completed.
Inspect cables and belts
Inspect all cables and belts for wear or damage and proper tension. When inspecting cables and
belts, run ngers on the cable or belt, paying particular attention to bends in cables and attachment
points. The following conditions may indicate a worn cable:
Cables
Condition of Cable Diagram
A tear or crack in the cable sheath
that exposes the cable
A kink in the cable
A curled sheath
Necking - A stretched cable sheath
21

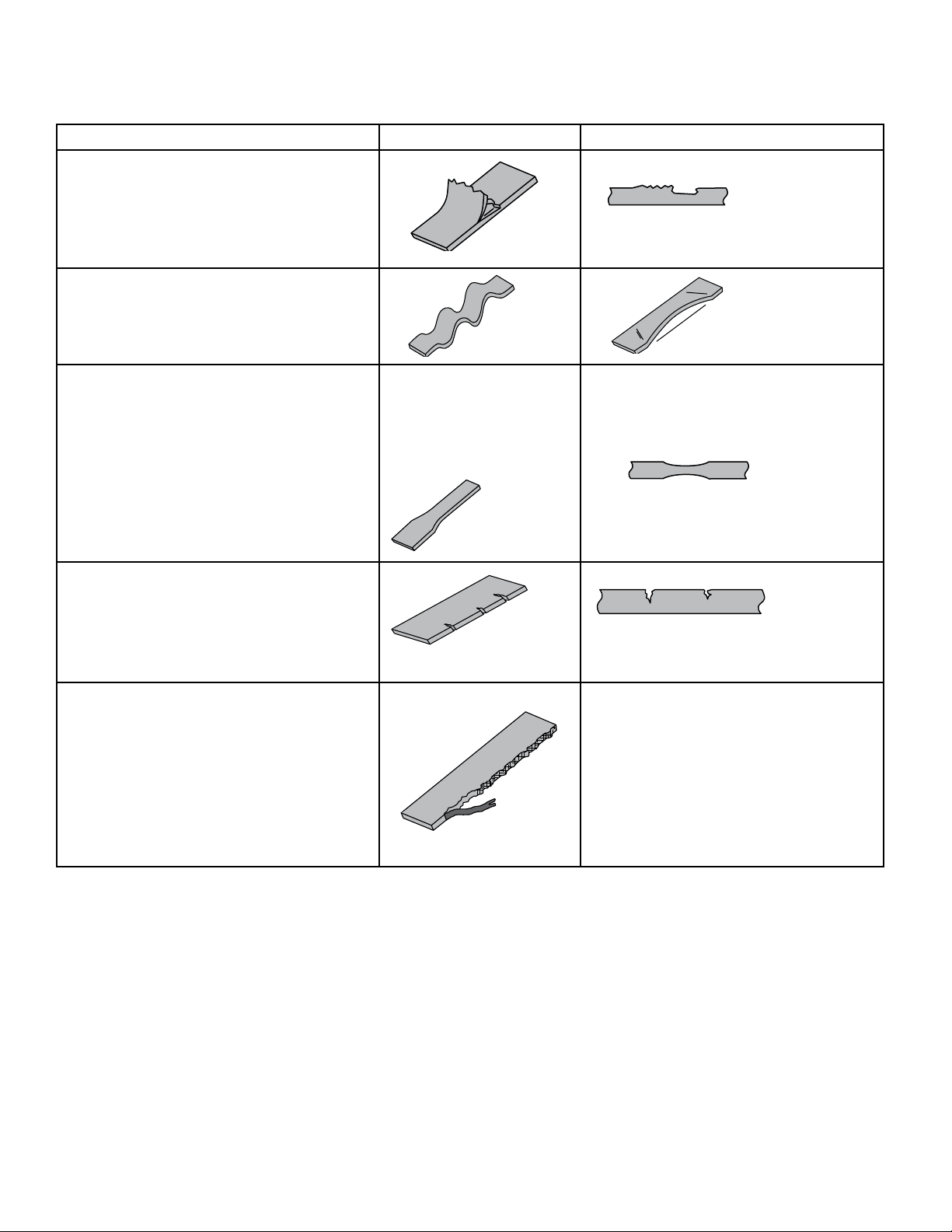

Belts
Cybex Owner’s Manual
Condition of Belt 3D View 3D or Side View
Peeling of the belt’s skin.
Wave in belt
Belt is necked down (narrow section)
Cracks or splits
One or more strands of kevlar is
hanging out, or if there is a signicant
amount of frayed kevlar.
Replace belt if any
section is over 1/32”
(.03) narrower than the rest of belt
Examine edge of belt (both sides). Replace belt if any section is narrower than the rest.
22
Cybex Owner’s Manual
CAUTION: Worn handles
• Do not use handles if less then 1/8” of material remains on edge.
• Replace all worn handles immediately.
Inspect bars and handles for wear, paying particular attention to tab area connection points.
Replace bar if less
than 1/8” of material
remains to the edge.
Attachment
Hole
Inspection Action
Inspect bars and handles for wear, paying particular attention to tab area connection points.
Inspect snap links for proper latching (indicates wear).
Inspect all labeling for readability, including instructional placards, warning and caution decals.
Inspect all weight stacks for proper alignment and operation.
Inspect guide rods for lubrication.
Yearly Procedures
Replace all cables and belts annually
Replace all worn handles immediately.
Replace all loose or worn grips immediately.
Replace all worn labeling immediately.
Correct all improper alignment and operation issues immediately.
Wipe Weight Stack Guide Rods clean over entire length. Lubricate with a light coat of medium weight automotive engine oil.
23
Cybex Owner’s Manual
Cable Adjustment
Tools Required
9/16” Wrench (2)
Four types of cable tension adjustment are used on Cybex Strength Systems:
Cable
Adjustment
Jam Nut
Adjustment
Rod End
Adjustment
Description Diagram
This type of adjustment uses a jam nut and a tension adjustment nut at the cable cam end as the primary adjustment. The other end of the cable usually contains a roll pin adjustment.
This type of adjustment uses a
socket head cap screw (SHCS)
securing a cable rod end bearing to the machine. Primary adjustment is by turning the rod end bearing. The other end of the cable usually contains a roll pin cable adjustment.
Jam
Cable
End
SHCS
Nut
Tension
Adjustment
Nut
Jam Nut
Cable Rod End
Bearing
Nylon
Locknut
Roll Pin
Adjustment
Cam End
Adjustment
This type of adjustment uses a roll pin and series of holes in the weight stack top weight connector.
This type of adjustment uses an adjustment bolt on the pulley bracket. Loosen nut and rotate cam bolt to adjust cable.
24
Roll
Pin
Nut
Top Weight
Connector
Cam Bolt
Adjustment
Cybex Owner’s Manual
Belt Adjustment
Tools Required
• 7/32” Wrench
• Torque wrench (lbs-in)
Belt Adjustment Action
1. Using a 7/32” Allen wrench loose set screws.
2. Pull belt tight.
3. Secure belt in place with set screws.
Loose Belt
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from the top pulley bracket to the to weight belt clamp
25
Cybex Owner’s Manual
Customer Service
Product Registration
To register product do the following:
1. Visit www.cybexintl.com.
2. Locate Product Registration in the Support section.
3. Fill out form completely.
4. Click the Submit button to register product.
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard
Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax 508-533-5183. Email address internationaltechhelp@cybexintl.com
Find information on the web at www.cybexintl.com.
To contact us online go to www.cybexintl.com.
Ordering Parts
To order parts online go to www.cybexintl.com.
To speak with a customer service representative, call 888-462-9239 (for customers living within the USA) or 508-533-4300 (for customers outside the USA).
The following information located on the serial number decal will assist our Cybex representatives in serving you.
• Unit Serial Number, Product Name and Model Number
• Part Description and Part Number if you have it. All parts can be found on the web at
www.cybexintl.com
• Shipping Address
• Contact Name
• Include a description of the problem.
In addition to your shipping address and contact name, your account number is helpful but not
required. You may also fax orders to 508-533-5183.
26
Cybex Owner’s Manual
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system is used when returning material for placement, repair or credit. The system assures that returned materials are properly handled and analyzed.
Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request a RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
Please contact Cybex Customer Service for the return of any item that is defective.
Provide the technician with a detailed description of the problem you are having or the defect in the item you wish to return. Provide the model and serial number of your Cybex equipment.
At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. Include the description of the problem, the serial number of the equipment and the name and address of the owner in the package along with the part(s).
Merchandise returned without an RMA number on the outside of the package or shipments sent COD will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the
responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)
Apparent Damage
Upon receipt of your shipment, check all items carefully. Any damage seen with a visual check must
be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carriers refusal to honor your damage claim. The carrier will provide you with the required forms for ling such
claims.
Concealed Damage
Damage not seen with a visual check upon receipt of a shipment but notices later must be reported to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to perform an inspection of the materials must be made within ten days of the delivery date. Keep all shipping containers and packing materials as they will be needed in the inspection process. The carrier will provide you with an inspection report and the necessary forms for
ling a concealed damage claim. Concealed damage claim is the carrier’s responsibility.
27
10 Trotter Drive Medway, MA 02053 508-533-4300 FAX 508-533-5183
www.cybexintl.com
Loading...
