Cybex CX-445T User Manual

Cybex CX-445T Treadmill
Owner’s Manual
Cardiovascular Systems
Part Number LT-19800-4 Rev B
www.cybexinternational.com
Cybex 445T Treadmill Owner’s Manual
About This Manual
• order online at www.cybexinternational.com
• fax your order to 508-533-5183
• contact Cybex Customer Service at 800-766-3211
• or contact Cybex Customer Service at 508-533-4300
To contact Cybex with comments about this manual you may send email to techpubs@ cybexintl.com.
FCC Compliance Information
! WARNING: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment off and on) the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician for help.
Page i
Cybex 445T Treadmill Owner’s Manual
August 24, 2006
DECLARATION OF CONFORMITY
This Declaration of Conformity is suitable to the European Standard EN 45014, “General criteria for supplier’s declaration of conformity.”
We,
Manufacturer: Cybex International, Inc. EU Representative: Cybex International UK
10 Trotter Drive Oaktree House Medway, MA 02053 Atherstone Road USA Measham Swadlincote, Derbyshire DE12 7EL United Kingdom (508) 533-4300 +44 (0)845 60 60 228
declare under our sole responsibility that the product(s):
Cybex 445T Treadmill
to which this declaration relates is in conformity with the EEC directives listed herein below (including any and all relevant modifications):
73/23/EEC Low Voltage Directive
89/336/EEC Electromagnetic Compatibility
2002/95/EC Restriction of Hazardous Substances (RoHS) Directive
Page ii
Art Hicks Chief Operating Officer Cybex International, Inc. 10 Trotter Drive Medway, MA 02053
Worldwide Headquarters 10 Trotter Drive + Medway, MA 02053, USA + t 508.533.4300 + f 508.533.5500
151 24th Avenue NW + Owatonna, MN 55060, USA + t 507.455.0217 + f 507.455.3446
Cybex 445T Treadmill Owner’s Manual
As a result of test reports and their evaluation by accredited laboratories, we are in possession of the following certificates for products which carry this marking:
Canada, USA CAN/CSA-C22.2 No.68-92/99
UL Std. No. 1647 FCC Part 15 Subpart B Class A
European Union 73/23/EEC, 89/336/EEC
References of harmonized standards on which this declaration of conformity is based:
EN 61000-6-1:2001 Electromagnetic Compatibility (EMC) Generic Immunity: Residential, Commercial and Light Industrial
EN 61000-4-2:1995 Electromagnetic compatibility (EMC) - Part 4-2: Testing and measurement techniques
- Electrostatic discharge immunity test
EN 61000-4-3:1996 Electromagnetic compatibility (EMC) - Part 4-3: Testing and measurement techniques
- Radiated, radio frequency, and electromagnetic field immunity test
EN 61000-4-4:1995 Electromagnetic compatibility (EMC) - Part 4: Testing and measurement techniques
- Section 4: Electrical fast transient/burst immunity test.
EN 61000-4-5:1995 Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques
- Surge immunity test
EN 61000-4-6:1996 Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques
- Immunity to conducted disturbances, induced by radio-frequency fields
EN 61000-4-8:1993 Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques – Power frequency magnetic field immunity test
Worldwide Headquarters 10 Trotter Drive + Medway, MA 02053, USA + t 508.533.4300 + f 508.533.5500
151 24th Avenue NW + Owatonna, MN 55060, USA + t 507.455.0217 + f 507.455.3446
Page iii
Cybex 445T Treadmill Owner’s Manual
EN 61000-4-11:1994 Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests
EN 61000-3-2:2000 Electromagnetic compatibility (EMC) - Part 3-2: Limits - Limits for harmonic current emissions (equipment input current <= 16A per phase)
EN 61000-3-3:1995 W/ corr. 1997 Electromagnetic compatibility (EMC) - Part 3-3: Limits - Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection
EN 55022: 1998 (CISPR 22:1997), Class A Limits and Methods of Measurement of Radio Interference Characteristics of Information Technology Equipment.
FCC Part 15, Subpart B - Class A Radiated and Conducted Emissions
EN 60335-1:2002 +A11:2004 +A1:2004 “Safety of Household and Similar Electrical Appliances”
EN 957-6:2001 Stationary training equipment: Treadmills, additional specific safety requirements and test
methods
ASTM F2115 – Standard Specification for Treadmills
CAN/CSA-C22.2 No. 68-92 (Reaffirmed 1999) “Motor-Operated Appliances (Household and
Commercial)”
ANSI / UL-1647 3rd Edition, March 28, 1997 Rev. May 9, 2006 Motor Operated Massage and Exercise Machines.
Page iv
Worldwide Headquarters 10 Trotter Drive + Medway, MA 02053, USA + t 508.533.4300 + f 508.533.5500
151 24th Avenue NW + Owatonna, MN 55060, USA + t 507.455.0217 + f 507.455.3446
Cybex 445T Treadmill Owner’s Manual
Table of Contents
Front Pages
About this Manual . . . . . . . . . . . . . . . . . . i
FCC Compliance Information . . . . . . . . . . i
Declaration of Conformity . . . . . . . . . . . . ii
Table of Contents . . . . . . . . . . . . . . . . . . . v
1 Safety
Important Voltage Information . . . . . . . 1-1
Grounding Instructions . . . . . . . . . . . . . 1-1
Important Safety Instructions . . . . . . . . 1-2
Warning Decals . . . . . . . . . . . . . . . . . . 1-4
Caution Decals . . . . . . . . . . . . . . . . . . . 1-8
Emergency Stop Key (e-stop) . . . . . . . 1-8
2 Technical Specifications
Specifications . . . . . . . . . . . . . . . . . . . . 2-1
3 Operation
Terms and Symbols Used . . . . . . . . . . 3-1
Quick Operation Guide. . . . . . . . . . . . . 3-2
Detailed Operation Guide . . . . . . . . . . . 3-2
Stopping the Treadmill . . . . . . . . . . . . . 3-4
Immobilization Method . . . . . . . . . . 3-5
Emergency Dismount . . . . . . . . . . . 3-5
Emergency Stop . . . . . . . . . . . . . . . 3-5
Safety Sentry™. . . . . . . . . . . . . . . . . . . 3-5
Control During Operation . . . . . . . . . . . 3-5
Data Readouts . . . . . . . . . . . . . . . . . . . 3-6
Displaying Heart Rate. . . . . . . . . . . . . . 3-7
Heart Rate Zone . . . . . . . . . . . . . . . . . . 3-8
Meaning of % Grade . . . . . . . . . . . . . . 3-8
Use of Programs . . . . . . . . . . . . . . . . . 3-9
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Speed Interval 1 (P-1). . . . . . . . . . . . . 3-10
Speed Interval 2 (P-2). . . . . . . . . . . . . 3-12
Hill Interval (P-3) . . . . . . . . . . . . . . . . . 3-14
Pikes Peak (P-4) . . . . . . . . . . . . . . . . . 3-16
Rolling Hills (P-5) . . . . . . . . . . . . . . . . 3-18
Hills (P-6) . . . . . . . . . . . . . . . . . . . . . . 3-20
Weight Loss (P-7) . . . . . . . . . . . . . . . . 3-22
Cardio (P-8) . . . . . . . . . . . . . . . . . . . . 3-24
4 Preventive Maintenance
Warnings/Cautions . . . . . . . . . . . . . . . . 4-1
Regular Maintenance Activities . . . . . . 4-1
Cleaning Your Treadmill . . . . . . . . . . . . 4-1
Running Belt Maintenance . . . . . . . . . . 4-3
Other Preventive Maintenance . . . . . . . 4-5
Service Schedule . . . . . . . . . . . . . . . . . 4-6
5 Setup and Assembly
Warnings/Cautions . . . . . . . . . . . . . . . . 5-1
Choosing and Preparing a Site . . . . . . 5-1
Electrical Power Requirements . . . . . . 5-2
Assembling the Treadmill . . . . . . . . . . . 5-2
Testing the Treadmill Operation. . . . . 5-10
Setting Operation Options . . . . . . . . . 5-11
6 Customer Service
Contacting Service . . . . . . . . . . . . . . . . 6-1
Serial Number and Voltage . . . . . . . . . 6-1
Return Material Authorization (RMA) . . 6-2
Damaged Parts. . . . . . . . . . . . . . . . . . . 6-2
Ordering Parts . . . . . . . . . . . . . . . . . . . 6-3
Parts List. . . . . . . . . . . . . . . . . . . . . . . . 6-4
Exploded View . . . . . . . . . . . . . . . . . . . 6-7
Schematic. . . . . . . . . . . . . . . . . . . . . . . 6-8
Page v
Cybex 445T Treadmill Owner’s Manual
1 - Safety
IMPORTANT: Read all instructions and warnings before using the treadmill.
Important Voltage Information
Before plugging the power cord into an electrical outlet, verify that the voltage requirements for your area match the voltage of the treadmill that you have received. The power requirements for the Cybex 445T treadmill include a grounded, dedicated circuit, rated for one of the following: 115 VAC ±5%, 60 Hz and 20 amps; 220 VAC, 60 Hz and 12 amps or 230 VAC ±5%, 50 Hz and 12 amps. See the serial number decal for the exact voltage requirements of your treadmill.
! WARNING: Do not attempt to use this unit with a voltage adapter. Do not attempt to
use this unit with an extension cord.
! WARNING: Do not plug more than one unit into a single circuit.
Grounding Instructions
This treadmill must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
! DANGER: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service provider if you are in doubt as to whether the treadmill is properly grounded. Seek a qualified electrician to perform any modifications to the cord or plug. Cybex is not responsible for injuries or damages
as a result of cord or plug modification.
This treadmill is for use on a nominal 115 VAC ±5%, 60 Hz and 20 amps, 220 VAC; 60 Hz, 12 amps or 230 VAC ±5%, 50 Hz and 12 amps and a grounded, dedicated circuit. Make sure that the treadmill is connected to an outlet having the same configuration as the plug. Do not use a ground plug adapter to adapt the power cord to a non-grounded outlet.
115 VAC Euro Plug 220 VAC UK NEMA 5-20 CEE 7/7 NEMA 6-15 230 VAC
Safety
Page 1-1
Cybex 445T Treadmill Owner’s Manual
Important Safety Instructions
(Save These Instructions)
! DANGER: To reduce the risk of electric shock, always unplug this treadmill from the
electrical outlet immediately after using it and before cleaning it.
! WARNING: Serious injury could occur if these precautions are not observed. To reduce
the risk of burns, fires, electric shock, or injury:
User Safety Precautions
DO NOT wear loose or dangling clothing while using.
• Use the treadmill handrails for support and to maintain balance.
• Stop exercising if you feel faint, dizzy, or experience pain at any time and consult your physician.
• Obtain a medical exam before beginning any exercise program.
• Read and understand emergency stop procedures.
• Replace any warning labels if damaged, worn or illegible.
• Report any malfunctions, damage or repairs to the facility.
• Place your feet on the two top steps when starting or stopping the treadmill.
• Stop and place the treadmill at 0 degrees incline (level) after each use.
• Keep children away from the treadmill. Teenagers and disabled persons must be supervised.
• Obtain instruction before using.
• Keep all body parts, towels, and the like free and clear of moving parts.
• Read and understand the Owner’s Manual and all warnings posted on the unit before using.
DO NOT use the unit if you exceed 350 lbs. (158 kg). This is the rated maximum user weight.
• Disconnect power before servicing.
Safety Page 1-2
Facility Safety Precautions
• Instruct all users on how to clip the e-stop clip onto their clothing and carefully test it prior to using the treadmill.
• Instruct all users to use caution when mounting and dismounting the treadmill.
Cybex 445T Treadmill Owner’s Manual
• Use a dedicated line when operating the treadmill. NOTE: A dedicated line requires one
circuit breaker per unit.
• Connect the treadmill to a properly grounded outlet only.
DO NOT operate electrically powered treadmills in damp or wet locations.
• Keep the running belt clean and dry at all times.
DO NOT leave the treadmill unattended when plugged in and running. NOTE: Before
leaving the treadmill unattended, always wait until the treadmill comes to a complete stop and is level. Then, turn all controls to the STOP or OFF position and remove the plug from the outlet. Remove the e-stop key from the treadmill.
• Immobilize the treadmill (when not in use) by removing the e-stop key.
• Inspect the treadmill for worn or loose components before each use. Do not use until worn or damaged parts are replaced.
• Maintain and replace worn parts regularly. Refer to “Preventive Maintenance” section of Owner’s Manual.
DO NOT operate the treadmill if: (1) the cord is damaged; (2) the treadmill is not working properly or (3) if the treadmill has been dropped or damaged. Seek service from a qualified technician.
DO NOT place the cord near heated surfaces or sharp edges.
DO NOT use the treadmill outdoors.
DO NOT operate the treadmill around or where aerosol (spray) or where oxygen products are being used.
• Read and understand the Owner’s Manual completely before using the treadmill.
• Ensure all users wear proper footwear on or around all Cybex equipment.
• Set up and operate the treadmill on a solid, level surface. Do not operate in recessed areas or on plush carpet.
• Provide the following clearances: 19.7 inches (0.5 m) at each side, 39 inches (1.0 m) at the back and enough room for safe access and passage at the front of the treadmill. Be sure your treadmill is clear of walls, equipment and other hard surfaces.
DO NOT attempt repairs, electrical or mechanical. Seek qualified repair personnel when servicing. If you live in the USA, contact Cybex Customer Service at 800-766-3211. If you live outside the USA, contact Cybex Customer Service at 508-533-4300.
• Use Cybex factory parts when replacing parts on the treadmill.
DO NOT modify the treadmill in any way.
DO NOT use attachments unless recommended for the treadmill by Cybex.
• Ensure all User and Facility safety precautions are observed.
Safety
Page 1-3
Cybex 445T Treadmill Owner’s Manual
• Carefully read and understand the following before using the 445T treadmill:
• Warning Decals
• Caution Decals
To replace any worn or damaged decals do one of the following: Visit www. cybexinternational.com to shop for parts online, fax your order to 508-533-5183 or contact Cybex Customer Service at 800-766-3211. If you live outside of the USA, call 508-533-4300. For location or part number of labels, see the parts list and exploded-view diagram. This information can be found in the Service chapter in this manual or on Cybex web site at www.cybexinternational.com.
Warning Decals
Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. The warning decals used on the Cybex 445T are shown below.
WARNING
1. Obtain a medical exam before beginning any exercise program.
2. Stop exercising if you feel faint, dizzy, or experience pain and consult your physician.
3. Obtain instruction before using. Lisez les instructions avant l'utilisation.
4. Read and understand the Owner’s Manual and all warnings posted on the unit before using.
5. Read and understand emergency stop procedures.
6. DO NOT wear loose or dangling clothing while using the treadmill.
7. Keep all body parts, hair, towels, water bottles and the like free and clear of moving parts.
8. Place your feet on the two top steps when starting or stopping the treadmill.
9. Use the treadmill handrails for support and to maintain balance.
10. Keep children away from the treadmill. Teenagers and disabled persons must be supervised while using. Tenez les enfants éloignés. Les adolescents et les handicapés doivent être surveilles.
11. DO NOT use the unit if you exceed 350 lbs. (158 kg). This is the rated maximum user weight.
12. Report any malfunctions, damage or repairs to the facility.
13. Replace any warning labels if damaged, worn or illegible.
14. Stop and place the treadmill at 0 degrees incline (level) after each use.
SERIOUS INJURY COULD OCCUR IF
THESE PRECAUTIONS ARE NOT OBSERVED
DE-19189-4
DE-19189-4 Warning
Safety Page 1-4
DE-19238 Warning Motor Cover
Cybex 445T Treadmill Owner’s Manual
DE-19238
Safety
Page 1-5
Cybex 445T Treadmill Owner’s Manual
Safety Page 1-6
DE-16928 Warning Motor Cover
Cybex 445T Treadmill Owner’s Manual
All maintenance activities shall be
performed by qualified personnel. Failure
DE-19730 IR Comp Adjust
Safety
Page 1-7
Cybex 445T Treadmill Owner’s Manual
Caution Decals
Caution decals indicate a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury. There are no caution decals used on this unit. However, there are caution statements listed in Chapters 5 and 6 of this manual. See Chapters 5 and 6.

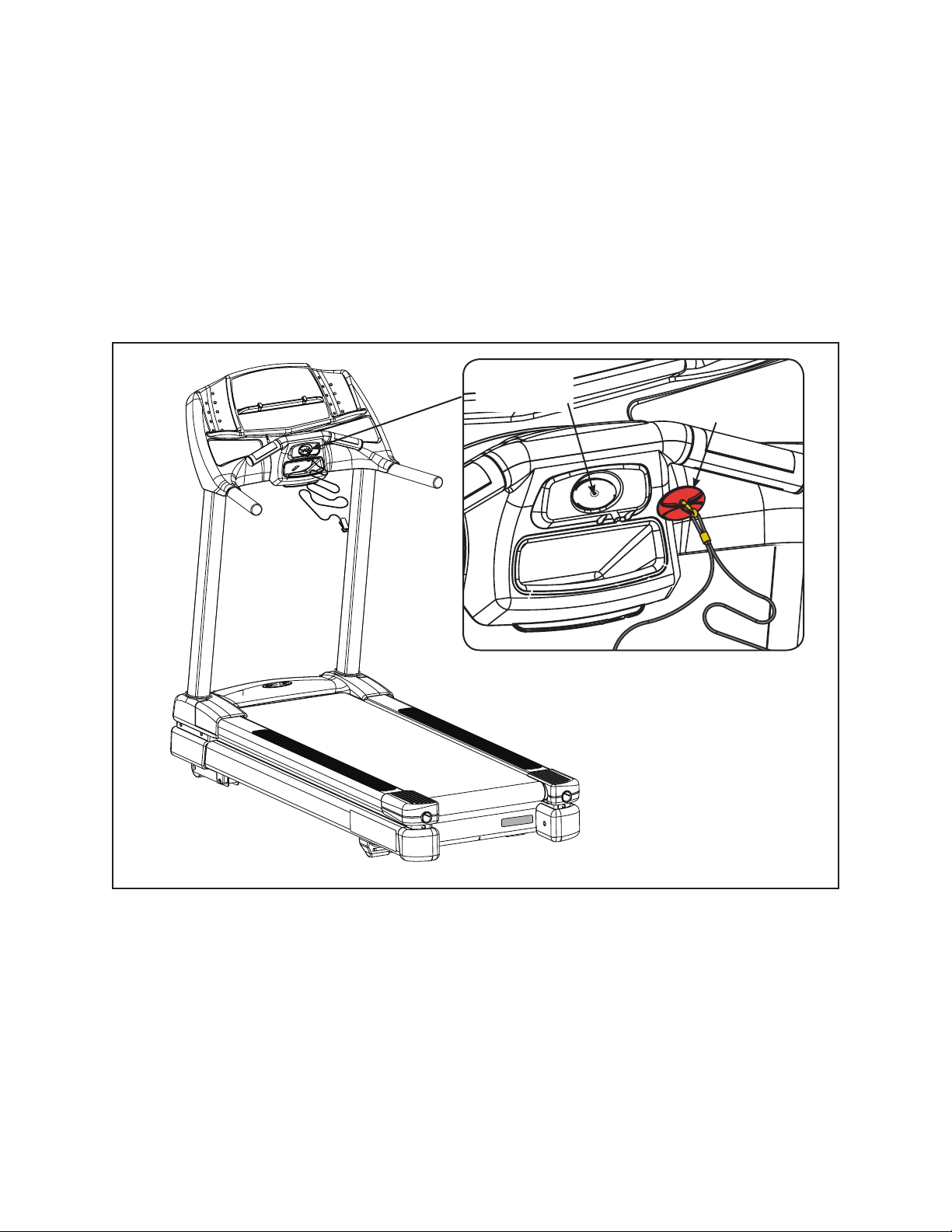

Emergency Stop Key (e-stop)
The e-stop key functions as the emergency stop. In an emergency situation, remove the e-stop key and the treadmill will come to a stop. Before using the treadmill, clip the e-stop key as described below.
1. Clip the e-stop key to your clothing. NOTE: Be sure the string is free of knots and has
enough slack for you to run comfortably with the e-stop key in place.
2. Without falling off the treadmill, carefully step backward until the e-stop falls off the treadmill. NOTE: If the e-stop clip falls off your clothing then the test has failed. Reclip the
e-stop clip to your clothing and repeat this step.
3. Replace e-stop after successfully testing the e-stop key. See the illustration shown below.
4. The treadmill is now ready to be used.
5. After use, remove the e-stop key from the treadmill.
NOTE: The e-stop key shall be removed to help prevent unauthorized use. Refer to the
Stopping the Treadmill section in the Operation chapter for more information about the e-stop key.
Safety Page 1-8
Cybex 445T Treadmill Owner’s Manual
2 - Technical Specifications
Specifications
Length: 72” (183 cm).
Width: 32” (82 cm).
Running Area: 20” x 60” (51 cm x 152 cm).
Weight of Product: 320 lbs. (145 kg).
Shipping Weight 350 lbs. (159 kg).
Speed Range: 0.5 to 11.0 mph (0.8 to 17.6 kph) in 0.1 mph or 0.1 kph increments.
Incline Range: 0 to 15% grade.
Manual Mode: Yes.
Programs: Quick Start plus Manual, HR Control, Speed Interval 1,
Speed Interval 2, Hill Interval, Pikes Peak, Rolling Hills, Hills, Weight Loss and Cardio.
®
Standard Features: Safety Sentry™, Contact Heart Rate, Polar
strap not included), CSAFE, frame color choices include white texture, black texture, silver vein, black chrome and platinum sparkle.
wireless heart rate (chest
Optional Features: Unlimited custom colors available.
Power Requirement: Grounded, dedicated circuit and one of the following:
• 115 VAC ±5, 60 Hz and 20 amps.
• 220 VAC, 60 Hz 12 amps.
• 230 VAC ±5, 50 Hz and 12 amps.
Motor: 3.0 hp, DC. continuous duty.
Emergency Stop: Pull the emergency stop key (lanyard).
Maximum User Weight: 350 lbs. (158 kg).
Options: Extension Handrails, Channel and volume controls on lower switch
membrane for embedded A/V and Video mount bracket.
32”
(82 cm)
72” (183 cm)
Specifications
Page 2-1
Cybex 445T Treadmill Owner’s Manual
3 - Operation
Read and understand all instructions and warnings prior to using the treadmill. See all of the safety related information located in chapter 1.
Terms and Symbols Used
This section lists some of the common terms and symbols used in this chapter. Other terms and symbols are listed in this chapter as appropriate.
Dormant Mode This occurs when the treadmill is plugged in, turned to the on (I) position and not in use. The control panel LEDs will flash when the treadmill is in Dormant Mode.
Program Setup Mode This begins after pressing any program key. Upon entering a program the LEDs flash, prompting the user to adjust the appropriate settings.
Active Mode Active Mode is when the running belt is moving. The beginning of Active Mode is marked by the three second countdown and running belt acceleration. Active Mode
continues until you reach the preset time limit, disengage the e-stop key or press the Pause/ Stop key.
Quick Start This begins by pressing the Quick Start key. Quick Start skips the Program Setup Mode and begins immediately in Manual Mode.
Manual Mode In this active mode you control all aspects of your workout; the running speed, the incline and the workout duration. As a program choice, Manual will prompt for time and user weight and after the 3-2-1 countdown will start the belt at the minimum speed. As Quick Start the time will count up, allowing you to quickly get moving before entering your weight by pressing the Weight key.
Workout Review This begins after pressing the Pause/Stop key once or at the end of a program or when the treadmill detects that you are not there (see Safety Sentry™ in this chapter). The workout statistics accumulated during the previous workout session will display for preset pause time or until Pause/Stop is pressed again.
Pause Mode Press the Pause/Stop key once to pause your workout. Pause Mode can occur when the treadmill detects that you are not there and enters Workout Review (see Safety Sentry™ in this chapter). While in Workout Review you can press the Quick Start key to resume your workout. All statistics are remembered and added to.
Cool Down This begins immediately after pressing the Cool Down key. The countdown timer is set to two minutes, elevation returns to 0% and speed is reduced to 50% of the MET level or 2.5 MPH (4 Km/H) whichever is lower. Repeated presses of the Cool Down key will restart the clock at two minutes indefinitely.
 These keys adjust Level or Weight up or down.
These keys adjust Incline higher or lower.
+ — — These keys adjust Speed up (+) or down (—).
Operation
Page 3-1
Cybex 445T Treadmill Owner’s Manual
Quick Operation Guide
NOTE: Maximum user weight is 350 lbs. (159 kg).
The following is a quick overview of the operation of the treadmill. For more information read Detailed Operation Guide in this chapter.
1. Place your feet on the two top steps located on each side of the running belt.
! WARNING: Do not stand on the running belt when starting the treadmill. Always
place your feet on the two top steps when beginning a workout.
2. Clip the e-stop clip onto your clothing and test it as described under Emergency Stop
in the Safety chapter.
3. Press any program key or press Quick Start to skip the settings and begin Manual
Mode immediately.
4. If you pressed a program key to select a program, you will now be prompted for
workout Time, Level and Weight as appropriate. Adjust these settings with the  arrows and press Enter to proceed.
5. The treadmill begins a countdown, “3...2...1,” after which it accelerates the belt to
0.5 mph (0.8 kph) (for Manual Mode) or the speed of the program that you selected.
6. Hold the handrails while you step onto the running belt and begin walking.
7. Press the Speed
show the current speed.
8. Press the Incline keys to change the incline at any time. The left display will
show the current incline on the first press of the key.
9. Press the Pause/Stop key at any time to stop the running belt. Press again to exit to
Dormant Mode and return the incline to 0%.
+ keys to change the belt speed at any time. The right display will
Detailed Operation Guide
NOTE: Maximum user weight is 350 lbs. (158 kg).
Operation Page 3-2
1. Plug the treadmill power cord into a power outlet from a grounded, dedicated circuit,
rated for one of the following: 115 VAC ±5%, 60 Hz and 20 amps; 220 VAC, 60 Hz, 12 amps or 230 VAC ±5%, 50 Hz and 12 amps.
2. Locate the on/off (I/O) power switch under the right side rails of the treadmill. Toggle it
to the on (I) position to supply power to the internal treadmill components and illuminate the control panel.
Cybex 445T Treadmill Owner’s Manual
! WARNING: Do not stand on the running belt when starting the treadmill. Always place
your feet on the two top steps when beginning a workout.
3. Place your feet on the two top steps located on each side of the running belt.
4. Clip the e-stop clip onto your clothing and carefully test the e-stop key to ensure it will
activate in case of an emergency. See Emergency Stop Key (e-stop) in Chapter 1 for properly testing the e-stop key. Also, see Stopping the Treadmill in this chapter for further information about the e-stop key. NOTE: Be sure the string is free of knots and has enough slack for you to run comfortably with the e-stop key in place.
5. You now have the option to select a program or enter Manual Mode.
To select a program, press the Programs key and follow the prompts. Press the
Programs key multiple times to cycle through the eight programs, or use the center 
keys. Press Enter to select.
Upon entering a program the LEDs flash, prompting you to adjust the appropriate settings.
This is referred to as Program Setup Mode. If the Quick Start key is pressed now, all defaults for that program will be accepted. After 10 seconds, if no key has been pressed, the first default will be accepted. After another 10 seconds the second default will be accepted and so on until the last default. The program will not enter Active Mode until you press the Enter or Quick Start key. If no key has been pressed for 60 seconds after displaying the last default, then the treadmill will return to the Dormant Mode.
If you choose to enter Manual Mode instead of choosing a program, press the Quick
Start or the Manual key. NOTE: No prompts will occur when you press Quick Start.
While in Manual Mode, customize your workout Speed, Incline and enter your Weight by pressing those keys.
NOTE: For the most accurate calorie count, you must set your correct weight before
beginning your workout (including clothing).
NOTE: When selecting a program you must press Enter after each adjustment of Time,
Level and Weight.
6. The treadmill begins a countdown, “3...2...1” and sounds a tone for each count. When
it reaches one (1) the treadmill gives a longer tone and then starts accelerating the belt. In Manual Mode the belt will begin accelerating to 0.5 mph (0.8 kph) and the incline will remain at zero percent. In a program the belt will begin accelerating and the incline will change to the corresponding speed and incline of the program and level you selected.
7. Hold the handrails while you step onto the running belt and begin walking.
8. Observe the three display windows. The top center window will scan (every three
seconds) through Distance
, Calories, Calories per hour, Mets, Pace and Heart Rate.
Press the Scan key to toggle this feature on or off. NOTE: Heart Rate is scanned only
when you are holding the contact heart rate grips or wearing a Polar® compatible chest strap. The left window will display the time. NOTE: During your workout the time will show in the format of minutes:seconds (after 99:59 the display will only show minutes). The right
window will display the current speed. See Figure 1.
Operation
Page 3-3
Cybex 445T Treadmill Owner’s Manual
9. Press the Speed + keys to change the belt speed at any time. The right display will
show the set speed.
10. Press the Incline keys to change the incline at any time. The left display will show the current incline only when incline keys are used, then revert to time.
manual
programs
HR
control
Cybex International, Inc. Medway, MA USA (508) 533-4300 www.CybexInternational.com Wireless HR Receiver Inside
VOLUMECHANNEL
Figure 1
11. Press the Pause/Stop key at any time to stop your workout. Press Pause/Stop once to end your workout and begin your Workout Review. As you press Pause/Stop once, the treadmill belt will stop. Press Pause/Stop a second time to clear the Workout Review, return to Dormant Mode and return incline to 0%.
12. If the e-stop key is removed during a workout, the drive motor power shuts off immediately, causing the belt to stop. The right window changes to “OFF” and the left window shows a flashing pattern of “o” and “o”. Replacement of the e-stop key causes Workout Review to begin. Pressing Quick Start will resume your workout.
13. When you complete a program the treadmill begins a countdown, “3...2...1,” and sounds a tone for each count. The belt slows to a stop and Workout Review displays in the center window for the preset time or until you press the Pause/Stop key.
14. The treadmill returns to Dormant Mode and the incline returns to 0%
Stopping the Treadmill
Operation Page 3-4
Press Pause/Stop once to pause your workout for up to 20 seconds (or time set for idle) and to enter the Workout Review. The belt will stop and workout data will remain in memory for the duration of pause. Press the Quick Start key within 20 seconds to continue your workout and add to the time you already accumulated. If the Quick Start key has not been pressed during the duration of pause, workout data will be cleared and the display will change to Dormant Mode.
Cybex 445T Treadmill Owner’s Manual
Press Pause/Stop a second time to interrupt workout data from cycling and to change the display to Dormant Mode.
The function of the immobilization method: The purpose of immobilizing the treadmill is to prevent unauthorized use. This can be accomplished by removing the e-stop key from the console, unclipping it from the cord and putting it in a non-accessible place. See Figure 2.
The emergency dismount: Follow the steps listed below if you experience pain, feel faint or need to stop your treadmill in an emergency situation:
1. Grip handrails for support.
2. Step onto the top steps.
3. Pull the e-stop key off the console.
Figure 2
The function of the emergency stop: The e-stop key functions as the emergency stop. In an emergency situation, remove the e-stop key from the console and the treadmill will come to a stop. See Figure 3.
Safety Sentry
If you step off your treadmill during a workout, it may detect that you are not there. After the pre-selected waiting period “run?” will appear in the center window for a few seconds then Safety Sentry™ will stop the belt. If you press Quick Start within the time selected you can resume your workout. NOTE: If you are less than 100 lbs. and you are not using Polar
the treadmill may not detect you are there and cause the treadmill to come to a stop. Safety Sentry is disabled above 11% grade. It can also be disabled by setting SAFE time to “none”. If changes in elevation or speed occur while you are not there (such as during a programmed workout) Safety Sentry resets its waiting period.
Control During Operation
Control keys on the display are usable during operation and may be pressed at any time to make adjustments in speed, elevation or data readouts.
Changing Speed — Press the Speed mph or 0.10 kph. Minimum to maximum speed is from 0.5 - 11.0 mph (0.8 - 17.6 kph).
Changing Incline — Press the Incline keys to change the elevation in increments of 1%. Elevation ranges from 0 to 15%. Press either arrow key once to see the current incline setting, press multiple times to change incline setting. NOTE: Elevation is defined as the ratio
of rise or fall over run of the treadmill deck.
+ keys to change the speed in increments of 0.1
Operation
Page 3-5
Cybex 445T Treadmill Owner’s Manual
Workout Time — You can workout up to the maximum time by pressing Quick Start.
Changing Data Readouts — Default setting is for scan to start automatically. Press Scan to
stop and display a set of data. Press Scan once again and it will continually review each set of data. The display shows each set of data for 3 seconds before switching to the next set.
Data Readouts
As you exercise, the treadmill keeps track of the following data:
Distance — The total accumulated distance, in miles or kilometers, during your workout. NOTE: Depending on the defaults you’ve chosen this
measurement will show in English or Metric.
Calories — The total accumulated calories burned during your workout. Your weight must be correctly set before beginning your workout for this measurement to be most accurate.
Calories Per Hour - Calculation of present workload’s energy exertion in Calories per Hour.
Metabolic Equivalent — Relates to the user’s energy expenditure. A MET is a basic unit of measurement that is used to compare relative work between individuals and activities. ‘One MET’ is the amount of oxygen consumed at rest. For example two METs would be twice that amount. If an individual were working at four METs he/she would be consuming oxygen at a rate equal to four times their resting consumption. METs can be used to compare walking on a grade with running or even to cycling and other activities.
Pace — At your current speed, how long it would take to cover a mile (or kilometer), displayed in minutes:seconds.
Heart Rate — Your current heart rate. Heart rate will appear when a signal is introduced. Use the handgrips for Contact Heart Rate or wear a Polar® compatible heart rate chest strap.
Operation Page 3-6
Cybex 445T Treadmill Owner’s Manual
Data displayed during a program: The top center display will continually review each set
of data. Each set of data is displayed for 3 seconds before the next set is displayed. The corresponding LED lights as the data is displayed.
To review accumulated data after a program: The display automatically cycles through your accumulated workout data during the Workout Review for up to 20 seconds or the preset idle time.
Displaying Heart Rate
In order for the Cybex 445T to display your heart rate, hold the handgrips to use Contact Heart Rate or wear a Polar® compatible heart rate chest strap.
Contact Heart Rate — Hold the handgrips on the console handrail until a heart rate is displayed, typically less than thirty seconds. For best results, hold the handgrips lightly and ensure that your hands contact both the front and back sensors of each grip. NOTE: Hold
your hands as steady as possible as movement can cause interference on the contacts.
Factors that can interfere with the heart rate signal include:
• excessive movement
• body composition
• hydration
• too loose grip
• too tight grip
• running
• excessive dirt, powder or oil
• leaning or resting on grips
NOTE: Cybex does not recommend continuous holding onto the contact heart rate grips
during exercise.
Contaminants, such as hand lotions, oils or body powder, may come off on the contact heart rate grips. These can reduce sensitivity and interfere with the heart rate signal. It is recommended that the user have clean hands when using the contact heart rate.
Operation
Page 3-7
Cybex 445T Treadmill Owner’s Manual
Heart Rate Zone
Heart Rate is described by the number of times your heart beats in a minute. At rest, the average adult will have a heart rate of about 72 beats per minute (bpm). As one begins to exercise, heart rate increases and continues to increase as exercise intensity or difficulty increases.
Monitoring your heart rate is an effective way to control the intensity of your workout and subsequently the results it will have. Whether you are a new participant or one with a great deal of experience, weight loss and other performance goals can be achieved by controlling the intensity of your workout.
This decal shows heart rate based on
The American College of Sports Medicine recommends that healthy adults exercise between 55 and 85% of their heart rate max. Your heart rate max can be estimated by subtracting your age from
220. Multiply that estimated heart rate max by .55 to estimate the lower end of your heart rate training zone. Then multiply your estimated heart rate max by .85 to estimate the higher end of your training zone. This heart rate training zone gives you a range of intensities at which to exercise.
percentage and age.
Heart Rate Zone
Max
Max
85%
85%
65%
65%
Beats
Per
Minute
200
180
160
140
120
100
80
60
Operation Page 3-8
20 30 40 50 60 70
NOTE: A label is located on the console
to remind you what the heart
Age
220 - Age = Max Heart Rate
rate zone is while you are working out.
DE-18556-4
See Figure 4.
Meaning of % Grade
Figure 4
A 1% grade is not the same as a 1 degree incline. The % grade is the relationship of the measurement of rise over the measurement of run (also called slope). For example, a 1 foot (meter) rise in height over a length of 100 feet (meters) is a 1% grade. Expressed as a mathematical formula, the grade is calculated as follows: 1 ft. (m) / 100 ft. (m) = 0.01 = 1%
With respect to treadmills, the percent grade is roughly equal to the increase in height (rise) of the treadmill divided by the length (run) of the treadmill.
Cybex 445T Treadmill Owner’s Manual
The degree of incline can be related to % grade by taking the Arctangent of the grade. For instance, 15% grade is equal to 8.53 Degrees (ArcTan(.15)=8.53º). The opposite is true to determine % Grade from Degree of incline (Tan (8.53º)=.15).
Use of Programs
! WARNING: Obtain a medical exam before beginning any exercise program. Begin
comfortably with a lower level and progress with higher levels as you become acclimated.
With the 445T, you may choose from eight different programs as well as Manual and HR Control. The program choices are summarized as follows:
Quick Start You control speed, elevation. Adjust time and weight. Manual Mode Enter time and weight. You control speed, elevation. Speed Interval 1 (P1) 10 Levels Select time, level and weight. Speed Interval 2 (P2) 10 Levels Select time, level and weight. Hill Interval (P3) 10 Levels Select time, level and weight. Pikes Peak (P4) 10 Levels Select time, level and weight. Rolling Hills (P5) 10 Levels Select time, level and weight. Hills (P6) 10 Levels Select time, level and weight. Weight Loss (P7) 10 Levels Select time, level and weight. Cardio (P8) 10 Levels Select time, level and weight. HR Control Select time, target heart rate and weight.
manual
programs
HR
control
Manual
Program Overview
Manual Mode is available both through Quick Start and through the Manual program where you are prompted to enter Time and Weight. NOTE: There is no diagram because incline and
speed are user-controlled.
Manual Mode allows you to choose settings as you workout. You may choose your settings
according to how you feel or your endurance level. Since you remain in control, Manual Mode may be the best choice for beginners or for those who have not worked out in a long time.
NOTE: Manual Mode is not a preprogrammed workout.
Press the Quick Start key to workout in Manual Mode. You can also begin Manual Mode by pressing the Manual program key. To increase or decrease the speed while in Manual Mode use the Speed the arrows.
+ keys. To increase or decrease the incline while in Manual Mode use
Operation
Page 3-9
Cybex 445T Treadmill Owner’s Manual
Speed Interval 1 (P-1)
Program Overview
This program is designed to introduce an individual to incorporating running into their training. The program uses exclusively 0% incline with a repeating 1:2 work to rest ratio. Each work segment lasts 30 seconds and each rest segment lasts 60 seconds. The speeds during the rest segments are at a walking pace while the speeds in the work segments are approximately double the rest speed. Figure 5.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 3.2 0% 6.5 0% 2 3.4 0% 7.0 0% 3 3.6 0% 7.5 0% 4 4.8 0% 8.0 0% 5 4.0 0% 8.5 0% 6 4.2 0% 9.0 0% 7 4.4 0% 9.5 0% 8 4.6 0% 10.0 0% 9 4.8 0% 10.5 0% 10 5.0 0% 11.0 0%
Operation Page 3-10
Speed
MPH KPH
11.0
— —
— —
— —
17.0
— —
— —
10.0
— —
16.0
— —
— —
15.0
— —
9.0
— —
— —
14.0
— —
— —
— —
8.0
13.0
— —
— —
12.0
— —
7.0
— —
11.0
— —
— —
— —
10.0
— —
6.0
— —
— —
— —
— —
— —
— —
— —
5.0
— —
— —
— —
— —
— —
4.0
— —
— —
— —
— —
3.0
— —
— —
— —
— —
— — —
2.0
— —
— —
— —
— — —
1.0
— —
— —
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
Warm Up
Cybex 445T Treadmill Owner’s Manual
Speed Interval 1
Profiles Show Level 10 at 10 Minutes
2EPEATINGSEGMENT
Program Segments in Minutes
Cool Down
Elevation %
Figure 5
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments in Minutes
Cool Down
Operation
Page 3-11
Cybex 445T Treadmill Owner’s Manual
Speed Interval 2 (P-2)
Program Overview
This program is designed for those wishing to introduce speed into their training. The program uses exclusively 0% incline with a repeating 1:3 work to rest ratio. Each work segment lasts 15 seconds and each rest segment lasts 45 seconds. The speeds during the rest segments are at a walking pace while the speeds in the work segments are approximately triple the rest speed. See table below and Figure 6.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 2.2 0% 6.5 0% 2 2.4 0% 7.0 0% 3 2.6 0% 7.5 0% 4 2.8 0% 8.0 0% 5 3.0 0% 8.5 0% 6 3.2 0% 9.0 0% 7 3.4 0% 9.5 0% 8 3.6 0% 10.0 0% 9 3.8 0% 10.5 0% 10 4.0 0% 11.0 0%
Operation Page 3-12
Speed
MPH KPH
11.0
— —
— —
— —
17.0
— —
— —
10.0
— —
16.0
— —
— —
15.0
— —
9.0
— —
— —
14.0
— —
— —
— —
8.0
13.0
— —
— —
12.0
— —
7.0
— —
11.0
— —
— —
— —
10.0
— —
6.0
— —
— —
— —
— —
— —
— —
— —
5.0
— —
— —
— —
— —
— —
4.0
— —
— —
— —
— —
3.0
— —
— —
— —
— —
— — —
2.0
— —
— —
— —
— — —
1.0
— —
— —
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
Warm Up
Cybex 445T Treadmill Owner’s Manual
Speed Interval 2
Profiles Show Level 10 at 10 Minutes
2EPEATINGSEGMENT
Program Segments in Minutes
Cool Down
Elevation %
Figure 6
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments in Minutes
Cool Down
Operation
Page 3-13
Cybex 445T Treadmill Owner’s Manual
Hill Interval (P-3)
Program Overview
This program is designed to introduce some variability into the program while maintaining a constant walking pace. The Hill Interval program varies the incline between two levels every 60 seconds. This provides for moderate variation that that elicits an improved result over steady state walking up an incline. See table below and Figure 7.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 1.7 1% 1.7 6% 2 2.0 2% 2.0 7% 3 2.3 3% 2.3 8% 4 2.6 3% 2.6 9% 5 2.9 4% 2.9 10% 6 3.2 5% 3.2 11% 7 3.5 5% 3.5 12% 8 3.8 6% 3.8 13% 9 4.1 7% 4.1 14% 10 4.4 6% 4.4 15%
Operation Page 3-14
Speed
MPH KPH
11.0
— —
— —
— —
— —
— —
— —
10.0
— —
— —
— —
— —
— —
9.0
— —
— —
— —
— —
— —
8.0
— —
— —
— —
— —
— —
7.0
— —
— —
— —
— —
— —
6.0
— —
— —
— —
— —
— —
— —
— —
5.0
— —
— —
— —
— —
— —
4.0
— —
— —
— —
— —
3.0
— —
— —
— —
— —
— — —
2.0
— —
— —
— —
— — —
1.0
— —
— —
Cybex 445T Treadmill Owner’s Manual
Hill Interval
Profiles Show Level 10 at 10 Minutes
2EPEATINGSEGMENT
17.0
16.0
15.0
14.0
13.0
12.0
11.0
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
Warm Up Program Segments
in Minutes
Cool Down
Elevation %
Figure 7
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments
in Minutes
Cool Down
Operation
Page 3-15
Cybex 445T Treadmill Owner’s Manual
Pikes Peak (P-4)
Program Overview
Pikes Peak uses a nine-minute core where the incline increases every minute for the first five minutes. As the incline increases, speed is slightly reduced in the same fashion as it would if one where hiking up an ever steeper hill. After the fifth minute of the core program, the incline is reduced each minute and the speed increases. All speeds in this program are at a walking pace. See table below and Figure 8.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 2.2 1% 3.0 6% 2 2.4 2% 3.2 7% 3 2.6 3% 3.4 8% 4 2.8 3% 3.6 9% 5 3.0 4% 3.8 10% 6 3.2 5% 4.0 11% 7 3.4 5% 4.2 12% 8 3.6 6% 4.4 13% 9 3.8 7% 4.6 14% 10 4.0 8% 4.8 15%
Operation Page 3-16
Cybex 445T Treadmill Owner’s Manual
Pikes Peak
Profiles Show Level 10 at 13 Minutes
MPH KPH
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— —
Speed
— — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — —
Elevation %
11.0
— — — — — — —
17.0
— — — — — —
10.0
— — —
16.0
— — — — — — — — —
15.0
— — —
9.0
— — — — — —
14.0
— — — — — — — —
8.0
13.0
— — — — — — — — —
12.0
— — — — —
7.0
— — — —
11.0
— — — — — — — — —
10.0
— —
6.0
— — — — — — —
9.0
— — — — — — — —
5.0
8.0
— — — — — — — — —
7.0
— — — —
4.0
— — — —
6.0
— — — — — — — — —
5.0
3.0
— — — — — — — —
4.0
— — — — — — — —
2.0
3.0
— — — — — — — — —
2.0
— — — —
1.0
— — — — —
1.0
— —
2EPEATINGSEGMENT
Warm Up Program Segments in Minutes Cool Down
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments in Minutes Cool Down
Figure 8
Operation
Page 3-17
Cybex 445T Treadmill Owner’s Manual
Rolling Hills (P5)
Program Overview
The Rolling Hills program uses a four-minute core. In the core program each minute represents a segment. Segments two and four are the “rest” intervals and use the same speed. The first and third segments also use higher speeds than the rest intervals with the first segment having the least incline and the third having the greatest. This provides for the following relative work pattern: work – rest – work harder - rest - and then repeat. See table below and Figure 9.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 1.5 0% 3.5 5% 2 2.0 0% 4.0 6% 3 2.5 0% 4.5 6% 4 3.0 1% 5.0 6% 5 3.5 1% 5.5 7% 6 4.0 2% 6.0 7% 7 4.5 2% 6.5 7% 8 5.0 3% 7.0 8% 9 5.5 3% 7.5 8% 10 6.0 4% 8.0 8%
Operation Page 3-18
Speed
MPH KPH
11.0
— —
— —
— —
17.0
— —
— —
10.0
— —
16.0
— —
— —
15.0
— —
9.0
— —
— —
14.0
— —
— —
— —
8.0
13.0
— —
— —
12.0
— —
7.0
— —
11.0
— —
— —
— —
10.0
— —
6.0
— —
— —
— —
— —
— —
— —
— —
5.0
— —
— —
— —
— —
— —
4.0
— —
— —
— —
— —
3.0
— —
— —
— —
— —
— — —
2.0
— —
— —
— —
— — —
1.0
— —
— —
Cybex 445T Treadmill Owner’s Manual
Rolling Hills
Profiles Show Level 10 at 10 Minutes
2EPEATINGSEGMENT
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
Warm Up Program Segments
in Minutes
Cool Down
Figure 9
Elevation %
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments
in Minutes
Cool Down
Operation
Page 3-19
Cybex 445T Treadmill Owner’s Manual
Hills (P-6)
Program Overview
The Hills program is a constant speed walking program that introduces incline that varies each minute to for a series of relative peaks and valleys. See table below and Figure 10.
Base Speed / Base Elevation Peak Speed / Peak Elevation mph % grade mph % grade
Level 1 2.2 0% 2.2 6% 2 2.4 0% 2.4 7% 3 2.6 1% 2.6 8% 4 2.8 2% 2.8 9% 5 3.0 3% 3.0 10% 6 3.2 4% 3.2 11% 7 3.4 5% 3.4 12% 8 3.6 6% 3.6 13% 9 3.8 7% 3.8 14% 10 4.0 8% 4.0 15%
Operation Page 3-20
Cybex 445T Treadmill Owner’s Manual
Hills
Profiles Show Level 10 at 10 Minutes
MPH KPH
11.0
— — — — — — — — —
10.0
— — — — — — — — —
9.0
— — — — — — — — —
8.0
— — — — — — — — —
7.0
— — — — — — — — —
6.0
— —
Speed
— — — — — — —
5.0
— — — — — — — — —
4.0
— — — — — — — — —
3.0
— — — — — — — — —
2.0
— — — — — — — — —
1.0
— — — — —
Elevation %
2EPEATINGSEGMENT
— — — — — — —
17.0
— — — — — — — — —
16.0
— — — — — — — — —
15.0
— — — — — — — — —
14.0
— — — — — — — — —
13.0
— — — — — — — — —
12.0
— — — — — — — — —
11.0
— — — — — — — — —
10.0
— — — — — — — — —
9.0
— — — — — — — — —
8.0
— — — — — — — — —
7.0
— — — — — — — —
6.0
— — — — — — — — —
5.0
— — — — — — — — —
4.0
— — — — — — — — —
3.0
— — — — — — — — —
2.0
— — — — — — — — —
1.0
— —
Warm Up Program Segments
in Minutes
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments
in Minutes
Cool Down
Cool Down
Figure 10
Operation
Page 3-21
Cybex 445T Treadmill Owner’s Manual
Weight Loss (P-7)
Program Overview
This program was designed to help individuals of all fitness levels achieve their weight loss goals through a protocol that incorporates both low and moderate intensity activity. Because walking has become a popular mode of exercise for those looking to lose weight, all levels of this program are performed at walking speeds.
The core of the program is made up of five one-minute segments. The first segment represents the baseline of the program and may also be considered to be a “rest” segment later. In minutes two and three, elevation will be increased. In minute four, the program returns to the first segment baseline or rest level. In the fifth minute, the speed will increase. The total number of segments used is dictated by the time selected by the user.
Higher levels of the Weight Loss program incorporate jogging speeds in short segments. This allows the advanced walker to alternate walking and jogging.
• At levels 1-6 walkers maintain walking speeds only.
• At levels 7-10, experienced walkers can jog intermittently.
By mixing the use of speed and elevation separately, the user receives the benefits of added intensity intervals but the variety does not allow for either speed or elevation to dominate and therefore overtax the user. See table below and Figure 11.
Base Speed Uphill Elevation Increased Speed Level mph % Grade mph
1 3.4 WALK 2% 3.5 WALK 2 3.4 3% 3.5 3 3.7 4% 3.8 4 3.7 6% 3.8 5 3.8 4% 4.0 6 3.8 6% 4.0 7 4.0 6% 4.5 WALK-JOG 8 4.0 8% 5.0 9 4.2 8% 5.5 10 4.2 10% 6.0
Operation Page 3-22
Cybex 445T Treadmill Owner’s Manual
Weight Loss
Profiles Show Level 10 at 10 Minutes
MPH KPH
11.0
— — — — — — — — —
10.0
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— —
Speed
— — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — —
Elevation %
2EPEATINGSEGMENT
— — — — — — —
17.0
— — — — — — — — —
16.0
— — — — — — — — —
15.0
— — —
9.0
— — — — — —
14.0
— — — — — — — —
8.0
13.0
— — — — — — — — —
12.0
— — — — —
7.0
— — — —
11.0
— — — — — — — — —
10.0
— —
6.0
— — — — — — —
9.0
— — — — — — — —
5.0
8.0
— — — — — — — — —
7.0
— — — —
4.0
— — — —
6.0
— — — — — — — — —
5.0
3.0
— — — — — — — —
4.0
— — — — — — — —
2.0
3.0
— — — — — — — — —
2.0
— — — —
1.0
— — — — —
1.0
— —
Warm Up Program Segments
Cool Down
in Minutes
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments
Cool Down
in Minutes
Figure 11
Operation
Page 3-23
Cybex 445T Treadmill Owner’s Manual
Cardio (P-8)
Program Overview
This program was designed for the exercise participant who wants to improve the overall efficiency of their cardio-respiratory system. Unlike some of the other treadmill programs that incorporate low and moderate intensity segments, the Cardio program contains overall higher intensity levels with more moderate recovery segments.
The speed range of the program includes walking speeds at the lower levels up through a moderate jog in the higher levels.
Elevation is used to emphasize the high intensity portion of this program while decreased elevation and a small increase in speed mark the recovery segment. High intensity and recovery segments are always in a one-to-one time based ratio and make up the core eight minutes of the program. See table below and Figure 12.
Base Speed / Peak Elevation Base Speed / Peak Elevation mph % grade mph % grade
Level 1 3.2 2% 3.5 0% 2 3.5 3% 3.8 0% 3 3.8 4% 4.0 0% 4 4.0 5% 4.2 0% 5 4.2 5% 5.0 2% 6 5.0 5% 5.5 2% 7 5.5 5% 5.8 2% 8 6.0 6% 6.2 2% 9 6.2 6% 6.5 2% 10 6.5 6% 6.8 2%
Operation Page 3-24
Cybex 445T Treadmill Owner’s Manual
Cardio
Profiles Show Level 10 at 12 Minutes
MPH KPH
11.0
— — — — — — — — —
10.0
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— —
Speed
— — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — — — — — —
— — — — —
Elevation %
2EPEATINGSEGMENT
— — — — — — —
17.0
— — — — — — — — —
16.0
— — — — — — — — —
15.0
— — —
9.0
— — — — — —
14.0
— — — — — — — —
8.0
13.0
— — — — — — — — —
12.0
— — — — —
7.0
— — — —
11.0
— — — — — — — — —
10.0
— —
6.0
— — — — — — —
9.0
— — — — — — — —
5.0
8.0
— — — — — — — — —
7.0
— — — —
4.0
— — — —
6.0
— — — — — — — — —
5.0
3.0
— — — — — — — —
4.0
— — — — — — — —
2.0
3.0
— — — — — — — — —
2.0
— — — —
1.0
— — — — —
1.0
— —
Warm Up Program Segments in Minutes Cool Down
15 14 13 12 11 10
9 8 7 6 5 4 3 2 1 0
Warm Up
Program Segments in Minutes Cool Down
Figure 12
Operation
Page 3-25
Cybex 445T Treadmill Owner’s Manual
4 - Preventive Maintenance
Warnings/Cautions
All warnings and cautions listed in this chapter are as follows:
! WARNING: All maintenance activities shall be performed by qualified personnel.
Failure to do so could result in serious injury.
! WARNING: To prevent electrical shock, be sure that power is shut off and the treadmill
is unplugged from the electrical outlet before performing any cleaning or maintenance procedures.
! WARNING: Keep wet items away from inside parts of the treadmill. Electrical shock
could occur even if the treadmill is unplugged. Do not touch components on the lower board. A charge can remain after unplugging the power cord and turning off the treadmill.
Regular Maintenance Activities
! WARNING: All maintenance activities shall be performed by qualified personnel.
Failure to do so could result in serious injury.
Preventive maintenance activities must be performed to maintain normal operation of your treadmill. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventive maintenance activities. See Service Schedule located at the end of this chapter.
NOTE: Worn or damaged components shall be replaced immediately or the treadmill removed
from service until the repair is made.
NOTE: Cybex is not responsible for performing regular inspection and maintenance actions
for your treadmill. Instruct all personnel in equipment inspection and maintenance actions and also in accident reporting/recording. Contact Cybex Customer Service at 800-766-3211 or 508-533-4300 for any preventive maintenance or service concerns.
Cleaning Your Treadmill
When cleaning your treadmill spray a mild cleaning agent, such as a water and dishsoap solution, on a clean cloth first and then wipe the treadmill with the damp cloth.
Preventive
Maintenance
Page 4-1
Cybex 445T Treadmill Owner’s Manual
NOTE: Do not spray cleaning solution directly on the treadmill. Direct spraying could cause
damage to the electronics and may void the warranty.
! WARNING: To prevent electrical shock, be sure that power is shut off and the treadmill
is unplugged from the electrical outlet before performing any cleaning or maintenance procedures.
After Each Use — Wipe up any liquid spills immediately. After each workout, use a cloth to wipe up any remaining perspiration from the handrails and painted surfaces.
Be careful not to spill or get excessive moisture between the edge of the display panel and the console, as this might create an electrical hazard or cause failure of the electronics.
As Needed — Vacuum any dust or dirt that might accumulate under or around the treadmill. Motors are especially susceptible to dust and dirt, and restricted airflow can prevent adequate cooling that could shorten motor life. Cleaning this area should be done as often as indicated in the Service Schedule.
! WARNING: Keep wet items away from inside parts of the treadmill. Electrical shock
could occur even if the treadmill is unplugged. Do not touch components on the lower board. A charge can remain after unplugging the power cord.
To clean the motor components, you must raise the elevation to 15% elevation. Unplug the treadmill and carefully lift the rear of the treadmill. Lift the treadmill until it rests on the top of the console. Use a vacuum attachment or hand vacuum to clean the exposed elevation assembly, drive motor, lower electronics and the surrounding areas. Wipe clean the underside of the treadmill to prevent dirt and dust build-up.
Also use a dry cloth for the areas that you can’t reach with the vacuum cleaner. If the machine has not been used for some time or is excessively dirty, use a dry cloth to wipe all exposed areas.
Carefully lower the rear of the treadmill and roll it back from its present position to vacuum the floor area underneath the unit. When finished, return the treadmill to its normal position.
Contact Heart Rate Grips — Contaminants, such as hand lotions, oils or body powder, may come off on the contact heart rate grips. These can reduce sensitivity and interfere with the heart rate signal. It is recommended that the user have clean hands when using the contact heart rate. Clean the grips using a cloth dampened with a cleaning solution containing rubbing alcohol. The grips are the only part of the treadmill you should use a cleaning solution containing rubbing alcohol.
Preventive Maintenance Page 4-2
Cybex 445T Treadmill Owner’s Manual

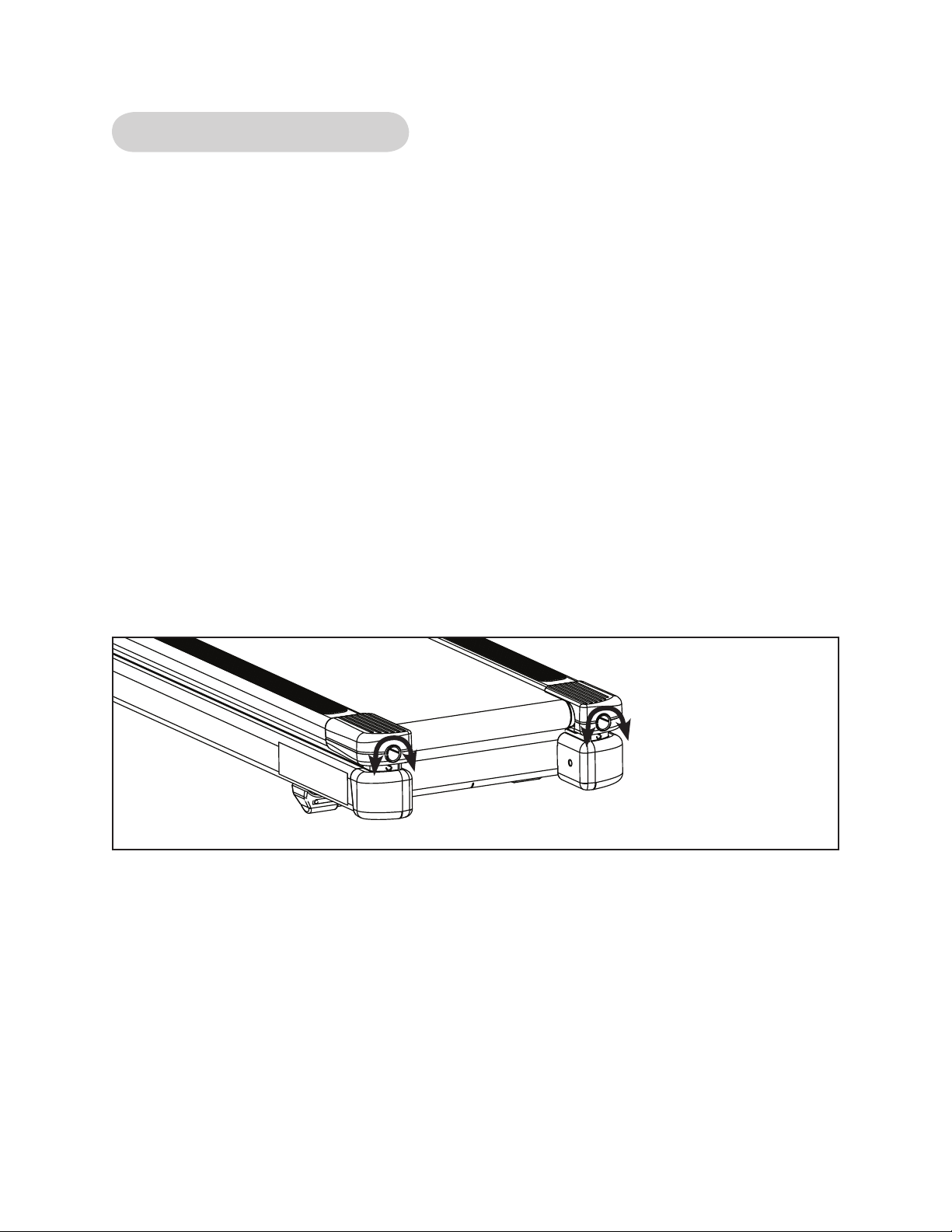

Running Belt Maintenance
Belt and Deck — Wipe the belt surface and the deck area with a clean dry towel to minimize
the effect of friction between the deck and the running belt. This should be done often to prevent premature wear of the deck, running belt, and the drive motor system. See the Service Schedule at the end of this chapter.
The running belt may become loose and slip on the drive roller with each foot plant. If it does, follow the Tensioning and Centering the Belt procedure below. See the Service Schedule in this chapter for a minimum schedule for checking the belt tension.
Tension and Center the Belt — If the belt is slipping under each step perform this procedure:
Tools Required
• 3/4” Socket wrench
1. Tension the belt.
A. Use a 3/4” socket wrench to turn each bolt 1/2 turn clockwise. See Figure 1.
NOTE: Be sure to adjust each bolt equally on each side.
Figure 1
B. Press the Quick Start key.
C. Press the Speed
+ to bring the speed up to 3.5-4 mph (5.6-6.4 kph). Allow the
treadmill to run for a minute.
D. Observe the belt to be sure it stays centered. If it is not centered follow step 2.
E. Walk on the belt to see if it still slips. If it does restart this procedure at step 1 A. If you
have to do this procedure three times and it still slips call Cybex Customer Service. Follow the next step to be sure the belt is centered.
NOTE: Be careful not to over tighten the belt. Over tightening the belt can cause the belt to
stretch and require replacement.
Preventive
Maintenance
Page 4-3
Cybex 445T Treadmill Owner’s Manual
2. Center the belt.
NOTE: While centering the belt choose one bolt to adjust. Do not adjust both bolts.
A. With the treadmill running at 5 mph (8 kph) observe the running belt. If the belt tracks
off center to the right or left the deck will become exposed. Use a 3/4” socket wrench to tighten the rear roller bolt on the side of the treadmill toward which the belt is moving. For example: If the belt moves to the right and the deck becomes exposed on the left, tighten the bolt on the right side of the frame, tighten about 1/2 of a turn (clockwise) and wait 30 seconds. If the belt does not move back to the center of the treadmill, make another adjustment to the same bolt. Once the running belt has been adjusted closer to the center of the treadmill use about 1/4 of a turn until the belt has been stabilized.
B. After the belt has been centered, check the belt tension again. Make sure the running belt
tension is tight enough so that the belt does not slip or hesitate when stepped on. Walk on the treadmill at 3.5-4 mph (5.6-6.4 kph) and every 4th to 5th step throw your weight into your step to feel if the belt is slipping. If the belt does slip, use a wrench to equally tighten both rear roller adjustment bolts 1/2 of a turn (clockwise). Adjust the belt until no further slipping is felt.
Checking the Belt and Deck Surfaces — The running belt and deck should be checked periodically for any excessive wear. In an effort to make sure that the running belt operates properly, visually inspect the belt often to make sure that there are no tears or fraying in the belt material. The running belt, deck, deck bushings and motor brushes should be replaced every 12,000 miles (19,300 km). A service prompt will appear at this interval and the parts will need to be replaced.
Inspect the edges of the belt as described below.
Tools Required
• None
1. Disconnect the external power source.
A. Turn the main power switch on the right side to the off (O) position.
B. Unplug the treadmill from the power outlet.
2. Check the belt and deck condition.
A. Look at the edges of the belt while you roll it by hand. If the belt has any rips or looks
excessively worn the belt needs to be replaced.
Preventive Maintenance Page 4-4
B. Run your hand under the belt on the top of the deck surface. If you feel excessive
ridges or cracks, or if any wood is exposed under the black surface, the deck should be replaced. In time, a worn belt and deck can cause high current draw and ultimately, motor failure.
NOTE: If the running belt and deck need replacement refer to a qualified service technician.
Cybex 445T Treadmill Owner’s Manual
Other Preventive Maintenance
Other preventive maintenance activities must be completed by a qualified service technician at the recommended intervals listed in the Service Schedule at the end of this chapter. These activities include:
• Measure the motor brushes and replace worn motor brushes
• Replace the running deck and bushings
• Replace the running belt
Elevation Motor Lubrication — In time the elevation motor pivot points may develop a squeak. Lubricate the upper and lower bolts and the spacers with a small amount of lithium grease. NOTE: You can buy lithium grease at an auto parts store.
Static Electricity — Depending upon where you live, you may experience dry air, causing a common experience of static electricity. This may be especially true in the winter time. You may notice a static build-up just by walking across a carpet and then touching a metal object. The same can hold true while working out on your treadmill. You may experience a shock due to the build-up of static electricity on your body and the discharge path of the treadmill. If you experience this type of situation, you may want to increase the humidity to a comfortable level through the use of a humidifier.
Preventive
Maintenance
Page 4-5
Cybex 445T Treadmill Owner’s Manual
Service Schedule
All maintenance activities shall be performed by qualified personnel. Failure to do so could result in serious injury.
NOTE: This is the minimum recommended service.
1. Determine mileage.
A. While in Dormant Mode enter Test Mode by pressing and holding the Pause/Stop key
for five seconds.
B. Press the Dist key. DIST appears on the display. Record Mileage. NOTE: Once the
unit exceeds 999 miles or kilometers the odometer will use both screens. Example: 12,805 miles or km would be displayed as 12 805 .
NOTE: To exit Test Mode, press the Pause/Stop key .
First 500 miles (800 km).
• Check running belt tension and tracking.
Every 5,000 miles (8,000 km).
• Check running belt tension and tracking.
• Move treadmill and vacuum underneath.
• Raise elevation to 15%, Carefully tip treadmill up on the console to clean underneath with a dry cloth and vacuum. Return to normal position when done.
Every 12,000 miles (19,300 km).
• Replace running belt and flip deck.
• Replace deck bumpers.
• Replace drive motor brushes.
• Check elevation assembly and replace worn parts.
• Lubricate elevation pivot points.
NOTE: Every 12,000 miles (19,300 km) the unit will show “SVC” on the display. The unit will
then emit a short beep every 2 minutes. This will continue until the service is performed and the service odometer is reset.
Every 24,000 miles (38,600 km).
Preventive Maintenance Page 4-6
• Replace running belt and deck.
Cybex 445T Treadmill Owner’s Manual
2. Resetting the service odometer.
A. While in Dormant Mode enter Test Mode by pressing and holding the Pause/Stop key
for five seconds.
B. Press the Cool Down key to display “SVC” and miles or kilometers on service
odometer.
C. Press the or key to display “RST”.
D. Press the Enter key to reset the service odometer to zero.
NOTE: Service may be performed before the 12,000 miles (19,300 km) service prompt appears. Perform the service on the unit and follow the above procedure to reset the service odometer to zero.
Preventive
Maintenance
Page 4-7
Cybex 445T Treadmill Owner’s Manual
5 - Setup and Assembly
Warnings/Cautions
All warnings and cautions listed in this chapter are as follows:
! WARNING: Use extreme caution when assembling the treadmill. Failure to do so could
result in injury.
! WARNING: During this procedure STAY OFF THE RUNNING BELT! Stand with your
feet on the two steps.
! CAUTION: A minimum of two people are required to lift, move and assemble this
treadmill. Always use proper lifting methods when moving heavy items.
Choosing and Preparing a Site
Before assembling the treadmill you must select a suitable site and have the proper electrical outlet power available for optimum operation and safety. See the Electrical Power Requirements section (located on the next page) for direction in locating your treadmill’s voltage requirements.
The area you select for the treadmill should be well lit and well ventilated. Locate the treadmill on a structurally sound and level surface (do not place in recessed areas or on plush carpet) a few feet away from walls and other equipment. Each side of the treadmill should have a 19.7” (0.5 m) minimum space. Behind the treadmill should be 39” (1.0 m) minimum of space. Allow enough clearance for safe access and passage during use of the machine. If the treadmill is to be located above the first floor, place it near or above major support beams. If the area has a heavy, plush carpet, the airflow around the base of the machine may be restricted or the carpeting may interfere with the moving parts. To protect the carpeting and the machinery, place a 3/4” (1.9 cm) thick wood base under the treadmill.
Do not install the treadmill in an area of high humidity, such as in the vicinity of a steam room, sauna, indoor pool, or outdoors. Exposure to extensive water vapor, chlorine, and/or bromine could adversely affect the electronics as well as other parts of the machine.
Setup
and
Assembly
Page 5-1
Cybex 445T Treadmill Owner’s Manual
Electrical Power Requirements
The power requirements for this treadmill are a grounded, dedicated circuit, rated for one of the following: 115 VAC ±5%, 60 Hz and 20 amps; 220 VAC, 60 Hz, 12 amps or 230 VAC ±5%, 50 Hz and 12 amps. Contact your electrician to ensure the power supply complies with local building codes.
Do not use a ground plug adapter to adapt the 3-prong power cord plug to a non-grounded electrical outlet. Do not use an extension cord.
Assembling the Treadmill
! WARNING: Use extreme caution when assembling the treadmill. Failure to do so could
result in injury.
! CAUTION: A minimum of two people are required to assemble this treadmill.
Tools Required
• 9/16” Socket wrench with a 4” extension
• Phillips head screwdriver
NOTE: The words “left” and “right” denote the treadmill user’s orientation.
1. Read and understand all instructions thoroughly before assembling the treadmill.
NOTE: Each step number in the assembly instructions tells you what you will be doing. The
lettered steps following each step number describe the procedure required. Do not continue with step 2 until you have carefully read all of the assembly instructions.
2. Verify you have received the correct package.
A. Read the sticker on the outside of the box and verify that the model number, color
and voltage are what you ordered. NOTE: During step 3 and 5 you will verify that the contents of the box match the sticker.
3. Unpack and verify the contents of the boxes.
A. Lift up and remove the cardboard sleeve that surrounds the treadmill.
B. Check to be sure that the following items are present. Check off ( ) each item as you
find it. See Figure 1. If any of the parts are missing contact Cybex Customer Service.
Setup and Assembly Page 5-2
Cybex 445T Treadmill Owner’s Manual
Item Qty Part Number Description
1 1 Varies Base assembly 2 1 Varies Console assembly 3 1 NA Upright assembly 4 1 AX-19027 Console back 5 1 PL-19061 Cover, console back 6 1 AX-19239 Motor cover, center 7 1 PL-18991 Motor cover, right (in box) 8 1 PL-18992 Motor cover, left (in box) 9 1 AX-19354 Hardware pack (in box) 10 1 LT-19800-4 Owner’s manual (in box) 11 1 LT-19340 Assembly poster 12 1 LT-19801 Warranty sheet 17 1 AX-19150 Assembly, E-Stop Lanyard
NA means Not Applicable
#3
#17
#9
#10
#4
#8
#11
#12
#5
#2
#6
#7
Figure 1
#1
Setup
and
Assembly
Page 5-3
Cybex 445T Treadmill Owner’s Manual
C. Check off ( ) each item in the hardware pack as you find it. See Figure 2.
Item Qty Part Number Description
13 14 HS-11977 Screw, SEMS, 8-32 x .38”, PNHD PHIL 14 9 HS-15706 Screw, 8-16 x .50”, PNHD, STL, BLK 15 6 HS-16929 Bolt, Whiz Lock, 3/8-16 x .625”, HXHD 16 4 HS-16939 Screw, SEMS, 10-32 x .75”, PNHD, BLK
Hardware
#5
#14
#13
#3
#13
#14 #15
#16
#4
#2
#13
Setup and Assembly Page 5-4
Figure 2
#16
#8
#6
#17
#15
#7
#16
#1
Cybex 445T Treadmill Owner’s Manual
! CAUTION: A minimum of two people are required to lift, move and assemble this
treadmill. Always use proper lifting methods when moving heavy items.
4. Lift and move the treadmill.
A. At least two people should lift and move the treadmill to a level location where you
intend to leave it. Use proper lifting methods.
5. Verify the model and voltage.
A. Verify that you have the correct model and voltage by looking at the serial number
label located at the rear of the unit..
6. Install the upright assembly.
A. Locate the upright assembly (#3) and six bolts, 3/8-16 x .625” (#15).
NOTE: Do not pinch or
damage display cable when installing upright
#3
assembly.
Display
B. Carefully place the upright
Cable
assembly (#3) on the base assembly (#1) as shown. See Figure 3.
C. Plug the display cable,
located at the bottom of the upright assembly (#3) into the base assembly (#1). See Figure 3.
D. Carefully lift the upright
assembly (#3) into the proper location. See Figure 4.
E. Using a 9/16” socket wrench,
secure the upright assembly (#3) to the base assembly (#1) with six bolts, 3/8-16 x .625” (#15). See Figure 4.
Figure 3
#3
#15
#1
#15
#1
#15
Figure 4
Setup
and
Assembly
Page 5-5
Cybex 445T Treadmill Owner’s Manual
7. Install the console back to the upright assembly.
A. Locate the console back (#4) and twelve screws, 8-32 x .38” (#13).
B. Place the console back (#4) in the correct position on the upright assembly (#3). See
Figure 5.
#13
#4
#13
#3
Figure 5
C. Using a Philips head screwdriver install two screws 8-32 x .38” (#13) to hold the
console back (#4) in place. Do not fully tighten at this time. See Figure 5.
D. Using a Philips head screwdriver secure the console back (#4) to the upright assembly
(#3) using ten screws 8-32 x .38” (#13). Fully tighten the two screws installed in step 7C. See Figure 6.
Setup and Assembly Page 5-6
#4
Figure 6
#3
#13
Cybex 445T Treadmill Owner’s Manual
NOTE: If installing the A/V option, refer to the 445T A/V bracket installation instructions
(supplied with the A/V bracket).
8. Install the console assembly to the console back.
A. Locate the console assembly (#2), two screws, 8-32 x .38” (#13) and nine screws 8-16
x .50” (#14).
B. Place the console assembly (#2) in position on the console back (#4). See Figure 7.
#2
#4
Figure 7
C. Connect these cables into the display board: the display cable (2 connectors), the
contact heart rate cable and the ground wire. See Figure 8.
Display
Cable
(2 Connectors)
Ground
Wire
Contact
Heart Rate
Cable
Figure 8
Setup
and
Assembly
Page 5-7
Cybex 445T Treadmill Owner’s Manual
D. Check to see that all of the cables
are connected firmly in their proper place. See Figure 8.
E. While being sure not to pinch
any cables, use a Philips head screwdriver to secure the seven screws 8-16 x .50” (#14) that hold the console assembly (#2) to the console back (#4). See Figure 9.
F. Using a Philips head screwdriver
secure the two screws (#13) securing the console assembly (#2) to the upright assembly (#3). See Figure 9.
G. Using a Philips head screwdriver
secure the two screws (#14) securing the console back cover (#5) to the console front (#4). See Figure 10.
Console
Assembly
Back
Cover
Screws
Figure 9
Console
Assembly
Console
Back
9. Attach the motor cover (three pieces).
A. Using a Phillips head
screwdriver, partially tighten each
Screws
motor cover side (left and right) with four screws, 10-32 x .75” (#16). See Figure 10.
B. Place the motor cover center (#6)
into position. See Figure 11.
Upright
Assembly
Machine Screw
Figure 10
C. Using a Phillips head screwdriver, finish tightening all four screws. Be sure the screws
are securing the motor cover’s tabs.
#6
#8
#16
Setup and Assembly Page 5-8
#7
#16
Figure 11
Cybex 445T Treadmill Owner’s Manual
NOTE: If installing the Extension Handrail option, refer to the 445T Extension Handrail
installation instructions (supplied with the Extension Handrails).
10. Level your treadmill.
A. Confirm that your treadmill is on a level surface.
11. Attach emergency stop key.
A. Confirm that the emergency stop key is in place over the e-stop button. See Figure 12.
NOTE: The treadmill will not run without the key in place.
Emergency
Stop Button
Emergency
Stop Key
Figure 12
12. Visually inspect the treadmill.
A. Carefully examine the treadmill to ensure that the assembly is correct
and complete.
Cybex 445T Treadmill Owner’s Manual
! WARNING: Be sure that all electrical requirements are met as indicated in the
specifications at the front of the manual and at the beginning of this chapter prior to proceeding.
Testing the Treadmill Operation
Use the following instructions to test the full speed and incline range of the treadmill and to check the belt for proper operation.
! CAUTION: During this procedure STAY OFF THE RUNNING BELT! Stand with your
feet on the two steps.
1. Without anyone on the treadmill, plug the power cord into a power outlet from a grounded, dedicated circuit as described under Electrical Requirements in this chapter.
2. Locate the on/off (I/O) power switch under the right side rails of the treadmill. Toggle it to the on position (I).
3. The control panel will light up and be in the Dormant Mode.
NOTE: Cybex recommends that the treadmill be unplugged or the on/off (I/O) power switch
turned off (O) when it is not in use.
4. Press the Quick Start key. The treadmill begins a countdown “3...2...1” and sounds a tone for each count. After it reaches one (1), the treadmill gives a longer tone and then begins accelerating the belt to reach 0.5 mph (0.8 kph).
5. The bottom left display will flash the time and the right display will show the actual speed.
6. Press and hold down the Speed
approximately 4 mph (6.4 kph), as indicated on the display.
7. Observe the belt to see that it is running properly; it should stay centered in the middle of the deck. If you have problems with the running belt operation, see Running Belt Adjustments in the Preventive Maintenance chapter.
8. Run the treadmill through its full speed range. First press the Speed treadmill reaches its highest speed, 11.0 mph (17.6 kph). Then press the Speed until the treadmill is back to 0.5 mph (0.8 kph).
9. As you press the Incline or Speed + - keys, the respective displays will show the actual incline or speed.
+ key until the treadmill reaches a speed of
+ key until the
- key
Setup and Assembly Page 5-10
10. When the treadmill reaches the set incline and speed, the displays will remain steadily
illuminated to indicate that the desired settings have been reached.
Cybex 445T Treadmill Owner’s Manual
11. Run the treadmill through its full % grade range. Press the Incline key until the
treadmill reaches its highest grade (15%). Then press the Incline key until the treadmill is back to 0% grade. Ensure the power cord is not being pinched under the front of the treadmill.
12. Press Stop twice to stop the running belt, end the workout review, and return the display to Dormant Mode.
Setting Operation Options
1. While in Dormant Mode enter Test Mode by holding down the Pause/Stop key for five seconds.
The display will read “445T”.
NOTE: After changing any value, you must press Enter to save that value. When you press
enter the display will read “updt” (updated) to confirm your selection.
2. Press the Time key to set options, change values with  and keys and press Enter to save your selection. Each time you press Time the next set of data is displayed in the following order:
Unit Choices are “Eng” or “Euro” measurements. English is the default.
Line This is the frequency of the power line that supplies power to your treadmill. The
default setting is 50 Hz for metric consoles and 60 Hz for English consoles. NOTE: If you have an English console and a 50 Hz power line frequency, then you must change the default setting from 60 Hz to 50 Hz for the proper elevation frequency.
Scan — This turns on or off the data readout scan (unless a specific data key is pressed during a workout). Default is on.
Def — This is the default time for time based programs if a user doesn’t re-set Time. For example, if you press Time you can decrease or increase the set workout time up to the amount that the Max time is set. Choices are between 20 minutes and 60 minutes. Default is 60.
Max — This is the maximum amount of time the treadmill can run per use. You can limit the users time or choose “none” for unlimited time. Choices are between none and 120 minutes; default is 60. NOTE: If the Max time is limited too much it may be difficult for the
user to reach their goals. For example, a user may not be able to burn 300 calories if you limit their Max time to 20 minutes.
Idle (or Workout Review/Pause Time): This is how long the treadmill retains and displays your current workout data during a pause in the workout or after a workout. Choices include: 20 seconds; 30 seconds, 40 seconds; 1 minute and 5 minutes; default is 20 seconds.
SPD — This is the maximum speed the treadmill will run. Choices are between 1 and 11 MPH (1.6 to 17.6 kph).
Setup
and
Assembly
Page 5-11
Cybex 445T Treadmill Owner’s Manual
ELV — This is the maximum elevation the treadmill will incline. Choices are between 0 and 15 percent grade.
Safety Sentry (SAFE) This is how long the running belt will keep moving if the user steps off the treadmill. Choices are between 0 seconds (none) and 60 second. Default is 20 seconds. Choosing “none” will disable this feature. NOTE: See Safety Sentry in
Chapter 3 for further detail.
Remember: You must press Enter after changing a value for that value to be stored.
3. To exit Test Mode press the Pause/Stop key once.
Your treadmill is now ready for use. Follow the instructions in the Operation chapter to learn how to operate the treadmill. You should begin with walking speeds first, to be sure everything is functioning properly.
Setup and Assembly Page 5-12
Cybex 445T Treadmill Owner’s Manual
6 - Customer Service
Contacting Service
Hours of phone service are Monday through Friday from 8:30 a.m. to 6:00 p.m. Eastern Standard Time.
For Cybex customers living in the USA, contact Cybex Customer Service at 800-766-3211.
For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax
508-533-5183.
Order parts and find information on the web at www.cybexinternational.com or by e-mail at techhelp@ cybexintl.com.
Serial Number and Voltage
Your serial number and voltage can be found on the rear of your treadmill. See Figure 1. For your convenience record your serial number and voltage below so that you will have it ready if you call Cybex Customer Service.
Serial Number Voltage
Serial
Number
Figure 1
Customer
Service
Page 6-1
Cybex 445T Treadmill Owner’s Manual
Return Material Authorization (RMA)
The Return Material Authorization (RMA) system outlines the procedures to follow when returning material for replacement, repair, or credit. The system assures that returned materials are properly handled and analyzed. Follow the following procedures carefully.
Contact your authorized Cybex dealer on all warranty-related matters. Your local Cybex dealer will request an RMA from Cybex, if applicable. Under no circumstances will defective parts or equipment be accepted by Cybex without proper RMA and an Automated Return Service (ARS) label.
1. Call the Customer Service Hotline listed above for the return of any item that is defective.
2. Provide the technician with a detailed description of the problem you are having or the defect in the item you wish to return.
3. Provide the model and serial number of your treadmill. The serial number is located on the front panel of your treadmill. The serial number begins with a letter, for example: R09-101331100.
4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you an RMA number and will send you an ARS label. The ARS label and RMA number must be clearly displayed on the outside of the package that contains the item(s) to be returned. Include a description of the problem, the serial number of the treadmill and the name and address of the owner in the package along with the part(s).
5. Forward the package through UPS to Cybex. Attn: Customer Service Department Cybex International, Inc., 10 Trotter Drive Medway, MA 02053
NOTE: Merchandise returned without an RMA number on the outside of the package or
shipments sent C.O.D. will not be accepted by the Cybex receiving department.
Damaged Parts
Materials damaged in shipment should not be returned for credit. Shipping damages are the responsibility of the carrier (UPS, Federal Express, trucking companies, etc.)
Customer Service Page 6-2
Apparent Damage — Upon receipt of your shipment, check all boxes carefully. Any damage
seen with a visual check must be noted on the freight bill and signed by the carrier’s agent. Failure to do so will result in the carrier’s refusal to honor your damage claim. The carrier will provide you with the required forms for filing such claims.
Cybex 445T Treadmill Owner’s Manual
Concealed Damage — Damage not seen with a visual check upon receipt of a shipment
but noticed later must be reported to the carrier as soon as possible. Upon discovery of the damage, a written or phone request to the carrier asking them to perform an inspection of the materials must be made within ten days of the date of delivery. Keep all shipping containers and packing materials: they will be needed as part of the inspection process. The carrier will provide you with an inspection report and the necessary forms for filing a concealed damage claim. Concealed damage is the carrier’s responsibility.
Ordering Parts
Visit www.cybexinternational.com to shop for parts online or fax your order to 508-533-5183. To speak with a customer service representative, call 800-766-3211 (for customers living within the USA) or 508-533-4300 (for customers outside the USA).
Customer
Service
Page 6-3
Cybex 445T Treadmill Owner’s Manual
Parts List
ITEM QTY. PART NO. DESCRIPTION NO.
1 1 AF-18899 Weldment, Console Back Plate 2 1 AL-18945 Front Roller, 3.0” O.D. 3 1 AL-18946 Rear Roller, 3.0” O.D. 6 1 AX-17578 Assembly, Contact Grip, Pair 7 1 AF-18394 Weldment, Elevation 8 1 AX-18729 Assembly, Idler 9 1 AX-19150 Assembly, E-Stop Lanyard 10 1 AX-19239 Assembly, Motor Cover 11 1 BD-19642 Belt, Running 12 1 BD-18917 Belt, Poly-V,320J8
15 2 DE-19360 Decal, Side Labels, “Cybex”, Black 15 2 DE-19353 Decal, Side Labels, “Cybex”, Silver
17 1 DK-19641 Deck, Running 18 1 EC-18573 Sensor, Speed 19 1 EH-00986 Wire Tie, 9” 20 1 EH-10291 Base, Wire Tie 21 1 FM-18405 Shaft, Elevation 22 4 FS-16511 Plate, Rear Rubber Foot Mounting 23 1 FS-19731 Plate, Cable Connector, 445T 24 1 FT-16825 Sleeve, Elevation Mounting, Top 25 1 FT-16826 Sleeve, Elevation Mounting, Bottom 26 2 HB-16367 Bushing, .50 I.D. x .62 O.D. x .31 LG, Flanged 27 2 HN-10029 Nut, 1/2 - 13 HEX STL ZINC 28 2 HN-17935 Nut Locking, 3/8 - 24, GRD C, STL, ZN 29 2 HS-00156 Screw, 4-40 x .62, PNHD PHIL 30 2 HS-00261 Bolt, 1/2 - 13 x 5.5, HXHD 31 6 HS-15706 Screw, 8-16 x .50, PNHD, STL, BLK ZN CLR, TYP WB 32 10 HS-16509 Screw, SLFTP, 10 x .5, PNHD, PLT, TYP B, PT-S 33 10 HS-16628 Bolt, 1/4 - 20 x 1.5, HXHD, G8 34 6 HS-16929 Bolt, Whiz Lock, 3/8 - 16 x .625, HXHD, G5 35 8 HS-16939 Screw, SEMS,10/32 x .75, PNHD, BLK ZN, EXT 36 1 HS-17936 Bolt, 3/8 - 24 x 2.0, HXHD CAP, G8, YEL ZN 37 1 HS-17937 Bolt, 3/8 - 24 x 2.75, HXHD CAP, G8, YEL ZN 38 4 HS-19108 Screw 5/16-18 x 3/4, HXHD, Whiz-Lock 39 1 HS-41006 Screw, SLFTP, 10/24 x 1.38, PNHD PHIL, SST, BLK, TT 40 2 HS-41107 Bolt, 5/16 - 18 x 1.5, BTHD, SST, BLK 41 2 HW-00165 Washer, Split Lock, 5/16, ZINC 42 8 HW-00180 Washer, Split Lock, 1/4, SST, BLK 43 2 HW-00590 Bushing, Nylon, 1/2 44 12 HW-18123 Washer, .344 I.D. x .75 O.D. x .125 Thick, Black Zinc 45 6 HX-13771 Ring, Retaining, 5/8 x .579 FR. I.D. 46 2 HX-15678 Bushing, Deck, 5/16 - 18 47 1 HX-17711 Plug, Plastic, 7/16, BLACK 48 4 HX-17788 Tape, Double Sided, .032 Thick 50 2 HX-18901 Grips, 445T Upright Handrail 51 1 HX-19052 Idler Spring 52 2 HX-19102 Rubber Foot, Rear 53 1 HX-19384 Coupling, Shaft, DBL Split 5/8 56 1 PL-18773 Plunger, E-Stop 57 1 PL-18929 Cover, Rear, Outer Right 58 1 PL-18930 Cover, Rear, Inner Right 59 1 PL-18932 Cover, Rear, Outer Left 60 1 PL-18933 Cover, Rear, Inner Left 61 1 PL-18990 Cover, Motor, Front, 445T 62 1 PL-18991 Cover, Motor, Right ,445T 63 1 PL-18992 Cover, Motor Left,445T 64 1 PL-19061 Cover, Console, Back Trim, 445T 65 1 PL-19093 Cover, Handle Lower 66 1 PL-19094 Accessory Tray, 445T Console 68 1 SW-18535 Switch, Limit 70 8 HS-11977 Screw, SEMS, 8/32 x .38, PNHD 74 2 CW-16712 Wheel, 3 Dia. x 1.25 W, Plain Bearing 75 4 HB-18768 Bearing, LF-1011-12
Customer Service Page 6-4
Cybex 445T Treadmill Owner’s Manual
ITEM QTY. PART NO. DESCRIPTION NO.
76 2 HS-60022 Bolt, 3/8 x 2.25, HXHD CAP, Black Zinc, G5 77 2 HN-60064 Nut, Jam 3/8 - 16, Black Zinc 78 1 AF-18481 Weldment, Motor Base 80 2 HB-18768 Bearing, LF-1011-12
81 1 AD-19085-Q PCA, Control Board, 115 VAC, 445T 81 1 AD-19086-Q PCA, Control Board, 230 VAC, 445T 82 1 SW-19666 Switch, Rocker, Thermal CB, 15 A 82 1 SW-19667 Switch, Rocker, Thermal CB, 20 A 83 1 EC-18896 Filter, 16 Amp 83 1 EC-15783 Filter, 20 Amp
84 4 HN-11136 KEPS, 5/16 - 18, HEX STL ZINC 85 8 HS-19111 Screw, SEMS, 8/32 x .38, PNHD EXT Black Zinc 86 8 EH-00986 Wire Tie, Nylon, 9 87 2 HN-11925 KEPS, 10-32, HEX STL ZN 88 1 HW-10856 Washer, Lock External, No. 10 ZC 89 2 HS-15732 Screw, SEMS, 8-32 UNC x .62, PNHD PHIL, ZN 90 1 EH-12260 Wire Tie, Nylon, 18 91 1 FS-19668 Plate, Circuit Breaker Mount 92 1 DE-16928 Label, Disconnect Power, Multilingual 93 1 DE-19238 Decal, Warning, Motor Plate 94 1 DE-19531 Decal, IS3 logo 95 1 AF-18728 Bracket, Idler 96 1 HB-19135 Idler Wheel, 1.88 x 1.0 97 2 HB-18056 Bushing, Flange, .375 x .469 x .25 98 1 HS-19338 Screw, 3/8 - 16 x 1.75, SCHD BTN, BLK, ZN 99 1 DE-19730-4 Decal, IR Comp Adjust, English 100 1 HX-17711 Plug, Plastec, 7/16”, Black 101 1 AF-19068 Bracket, Power Factor, Choke
102 1 MR-18402 Motor, Elevation, 115 VAC 102 1 MR-18403 Motor, Elevation, 230 VAC 103 1 MR-19643 Motor, Drive, 110 VAC 103 1 MR-19644 Motor, Drive, 220 VAC
111 1 AF-19194 Weldment, Monitor Bracket, 445T 120 1 EH-19416 Heat Sink, Silpad 121 1 EC-15004 Ferrite, Clamp-on, .40 I.D. 122 1 TR-19201 Choke 123 2 HX-19587 Strip, Motor Base, Isolation 124 1 EH-19717 Bushing, Strain Relief, .370” 200 1 AX-18765 Assembly, Top Platform, Right 201 1 AX-18764 Assembly, Top Platform, Left 202 1 AF-18486 Weldment, Upright 203 1 AF-19039 Weldment, Frame, 445T 204 2 DE-18766 Decal, Safety Walk 205 8 HS-15706 Screw, 8-16 x .50, PNHD, STL, BLK ZN CLR, TYP WB 206 1 PL-18931 Cover, Rear, Top Left 207 1 PL-19120 Cover, Rear, Bottom Left 208 1 PL-18928 Cover, Rear, Top Right 209 1 PL-19118 Cover, Rear, Bottom Right
210 1 DE-19726 Decal, “CX | 445T”, Black 210 1 DE-19727 Decal, “CX | 445T”, Silver 877
211 1 HX-18287 Plug, Hole, Plastic, 1”, Black 220 1 FM-19513 Shaft, Deck Pivot, 445T 221 2 AF-19496 Weldment, Deck Pivoting Bracket 222 1 HB-18768 Bearing, IGUS LF-1011-12 300 1 AC-19755-4 Assembly, 445T Console, English 301 1 AX-19356-4 Assembly, Cover, Top CHR, English 304 1 AD-19675-Q PCA, Display, 445T 305 1 AF-19187 Bracket, Console Anchor, Right 306 1 AF-19188 Bracket, Console Anchor, Left 308 1 DE-18556-4 Decal, Warning, Right 309 1 DE-18557-4 Decal, Warning, Left 310 1 EC-17877 Sensor, Polar Wireless Remote Mount 311 4 HS-15706 Screw, 8-16 x .50, PNHD, STL, BLK ZN CLR, TYP WB 312 7 HS-41187 Screw, SLFTP, 8-16 x .3125, Plastite 313 1 HX-17788 Tape, Double Sided, .032 Thick 314 2 PL-17686 Tab, Book Holder
Customer
Service
Page 6-5
Cybex 445T Treadmill Owner’s Manual
ITEM QTY. PART NO. DESCRIPTION NO.
315 1 PL-18548 Console, Plastic, 445T 316 1 SW-18520-4 Membrane, 445T, Top, English 317 1 SW-18523-4 Membrane, 445T, Bottom, English 318 1 DE-19189-4 Label, Warning 402 1 AX-19193-4 Assembly, TV Support 403 1 FS-19190 Controller Mount 404 1 HS-19369 Screw, 1/4-20 x 1.25”, PHL, PAN, BLK ZINC 405 1 HW-00180 Washer, Split Lock 1/4” 406 1 HS-41006 Screw, 10-24 x 1/2”, RECESS, PAN HD, TT, SS 407 1 HS-11977 Screw, SEMS, 8-32 x .38”, PNHD PHIL, EXT, STL, BLK ZN NS 1 AF-19068 Bracket, Power Factor NS 1 AW-19117 Cable, A/V Option NS 1 AW-19679 Cable, Harness, Console NS 1 AW-18256 Cable, Polar Jumper NS 1 AW-18528 Cable, Harness, Frame NS 1 AW-18530 Cable, Filter to Board, Hot, Black NS 1 AW-18531 Cable, Filter to Board, Neutral, White NS 1 AW-18532 Power Cord, 115 VAC NS 1 AW-18533 Power Cord, 230 VAC NS 1 AW-18534 Power Cord, 230 VAC, 50 Hz NS 1 AW-19525 Power Cord, 230 VAC, UK NS 1 AW-18540 Cable, Circuit Breaker to Filter, Hot, Black NS 1 AW-18541 Cable, Circuit Breaker to Filter, Neutral, White NS 1 AW-18574 Cable, Speed Signal NS 1 AW-18972 Cable, Elevation Motor NS 1 AW-19221 Cable, Contact Heart Rate Grip and Ground NS 1 AW-19235 Cable, Control Board, Ground NS 1 AX-19193 Controller Mount NS 1 AX-19354 Kit, Install Hardware NS 1 DE-18413 Decal, ETL NS 1 CN-17687 Adapter, 1/4 Plug to 1/8 Jack NS 4 EH-10291 Wire Tie, Base NS 1 EH-19220 Jacket, Corrugated Tubing, 27 Long NS 1 FS-17698 Clamp, Headphone Adapter NS 1 FS-19190 Controller Mount NS 1 FS-18771 Cover, Lower, Motor Controller NS 4 HS-19108 Screw, 5/16-18 x 3/4, LG HXHD, Whiz Lock, GR5 NS 2 HS-19369 Screw, 1/4 - 20 x 1.25, PNHD PHIL, Black Zinc NS 1 HX-19059 Plug, Tube End, 1.5 O.D. NS 1 LT-03051 Sign Facility Safety NS 1 LT-19801 Warranty Sheet, 445T NS 1 LT-19340 Poster, Installation NS 1 LT-19800-4 Owner’s Manual, 445T NS 1 SK-18553 Kit Brush, McMillan 3.0HP 110V NS 1 SK-18554 Kit Brush, McMillan 3.0HP 220V
NOTE: NS = Not Shown
Customer Service Page 6-6
Optional
Monitor Bracket
Console
Assembly
300
Console
Assembly
304
315
316
Upright
Assembly
301
48
318
56
65
202
31
68
29
31
402
404
405
403
406
66
47
39
6
50
Not Shown
Wire Tie and Base
19
20
407
50
76
35
201
74
31
38
211
61
28
77
35
102
75
28
35
35
7
35
204
24
1
70
Upright
Assembly
63
210
36
37
25
203
53
64
34
21
70
10
38
44
39
205
42
206
207
205
40
33
23
46
41
34
94
49
51
15
32
Drive Motor
Assembly
52
70
312
9
11
310
311
312
313
305
306
317
314
309
308
Idler Pulley
Assembly
33
42
46
62
17
35
210
220
2
222
221
34
12
223
45
34
34
18
8
Serial
Number
52
22
38
22
32
59
32
60
32
28
28
58
200
27
15
43
57
204
208
205
45
205
26
3
30
32
209
90
80
82
97
70
103
84
78
70
91
70
80
92
95
99
98
100
101
97
121
96
Drive Motor
Assembly
81
87
123
88
83
124
123
122
93
407
Cybex 445T Treadmill Owner’s Manual Page 6-7
S
N
HX-18537 MAGNET, ROLLER SHEAVE
CABLE, SPEED EXT
FERRITE EC-15004 (INTERNATIONAL ONLY)
RED
EC-15004 FERRITE,
CLAMP-ON
BLK
( + )
AX-19649 MOTOR, 3.0Hp PMDC, 110VDC
AX-19650 MOTOR, 3.0Hp PMDC, 220VDC
15A / 250V / SB (220/240V)
EC-18573 SENSOR, SPEED
1
2
AW-19677
( - )
20A / 250V / SB (115V)
1
2
CABLE, ELEVATION MOTOR, 445T
1
2
3
4
YELLOW
RED
BLACK
3A
GND
J1
TAC H
BW
A1 (RED)
A2 (BLK)
5V +
12
RPM SIGNAL
GND
43
GND
(DT9) AC ON
ARM VOLT
PWM M.C. SIG
CURR LIMIT
ELEV
LINE
AW-18973
1
AD-19085 CONTROLLER, 445T 115V
AD-19086 CONTROLLER, 445T 230V
DIAGNOSTIC LEDS
(DT1) DOWN
(DT13) UP
(DT5) DC VOLTAGE
-15V BOARD PWR
UP
DWN
MR-18402 GEARMOTOR, 110V MR-18403 GEARMOTOR, 220V
TOP SAFETY SW NORMALLY CLOSED OPEN >= 15.65"
ADAPTER, SERVICE PROGRAMMING CN-16924
345
7
62189
1 CD CARRIER DETECT 2 RD RECEIVE DATA 3 TD TRANSMIT DATA 4 DTR DATA TERMINAL READY 5 GND 6 DSR DATA SET READY 7 RTS REQUEST TO SEND 8 CTS CLEAR TO SEND 9 RI RING DETECT
GRAY BROWN YELLOW
GREEN RED BLACK
ORANGE
BLUE
J102
CHASSIS
8
GND
7
6
N/C
5
B+
4
TXD
3
RXD
2
N/C
1
CSAFE CONNECTOR
N/C
BLACK
RED
GREEN
WHITE
BLACK
RED
BLACK
GREEN
RED
2
3
5
6
4
BLACK
WHITE
RED
7
8
44
1
1
5
5
2
2
636
3
ZERO POSITION SWITCH
NORMALLY CLOSED OPEN <=10.24"
ELV-MOTOR
GND
THERMAL
COM
20A DOMESTIC 115V - EC-19869 (RP220-20-4.7)
3
4
GND REF
5 6 7 8
CHASSIS GND
ZERO SWITCH
ELEV UP
ELEV DOWN
ELEV NEUTRAL
21
LINE 1
LINE 2
ELEVATION
J3
AW-18530
AC
WIRE, FILTER TO BOARD, HOT
AC
AW-18531 WIRE, FILTER TO BOARD, NEUTRAL
20A DOMESTIC 220V - EC-19869 (RP220-20-4.7)
15A INTERNATIONAL - EC-18896 (DSC 1000-4-10-4.7)
BLACK
WHITE
LINE FILTER
200-250VAC 50Hz PFC CHOKE
BLACK
N
TR-19201
AW-18540 WIRE, CB TO FILTER, HOT
NON-CE JUMPER ONLY
AW-18541 WIRE, CB TO FILTER, NEUT
BLACK
SW-19667 SWITCHABLE CIRCUIT BREAKER, 20A/115V SW-19666 SWITCHABLE CIRCUIT BREAKER, 15A/240V
AW-19714 POWER CORD, 115V
AW-19715 POWER CORD, 220V
AW-19716 POWER CORD, 230V
MOTOR BASE
DISPLAY CONNECTORS
P2
5
9
7
8
1
2
3
4
P1
6
5
92
1
3
P3 J1
5
WHITE
6
8
2
4
RED
7
YELLOW
1
ORANGE
BLUE
3
GREEN
GRAY
P4
4
BROWN
5
6
BLACK
1
WHT/BLK
2
WHT/RED
3
VIOLET
AW-19678 CABLE, 445T FRAME HARNESS
P1
1
2
3
5
7
1
2
3
5
64
64
7
8
9
11 12
11 12
10
1098
CABLE, 445T CONSOLE HARNESS
WHITE
RED
YELLOW
ORANGE
BLUE
GREEN
GRAY
BROWN
BLACK
WHT/BLK
WHT/RED
VIOLET
AW-19679
RED
YELLOW
RED
SW1
SW3
YELLOW
SW-18535 SWITCH, MICRO, NO
AW-18256 CABLE, EMBEDDED POLAR
TREADMILL CHASSIS AW-19843
BLACK
RED
GREEN
1 32
GND
VCC
SIG
EC-17877 SENSOR, EMBEDDED POLAR
LEFT
LEFT FRONT SIGNAL
LEFT REAR SIGNAL
ORANGE
BLACK
AW-19221
CABLE, GRIP & GND
RED
BROWN
RIGHT
RIGHT FRONT SIGNAL
RIGHT REAR SIGNAL
BLACK
ORANGE
BROWN
RED
4
2
AD-19675 PCA, 445T 4-LAYER DISPLAY BOARD
P6
J6
3
1
4
2
3
1
GND
6
5
1 2 3 4
CHASSIS
SHIELD LEFT COMMON
J1
LEFT SIGNAL SHIELD RIGHT COMMON
J2
RIGHT SIGNAL
LEFT COMMON
SHIELD
J3 J4
LEFT SIGNAL
SHIELD
RIGHT COMMON
RIGHT SIGNAL
2ND GRIP
GND
+5
SIG
+9V UNREG
J8
EXTERNAL ACCESS
5
769
5
GND
+9V UNREG
CHASSIS
GND
8
7
J6
STD CSAFE
7
PWM
N/C
6
8
8
5
RPM
B+
1
1
ELEV UP
3
J9
AUDIO JACK
2
3
2
3
ELEV DOWN
ZERO SWITCH
LEFT
RIGHT
GND
2
1
4
5
4
5
BELT RELAY
MOTOR CURRENT
6
P7
6
J10
BRUSH WEAR
1
1
GND
POLAR
2
3
2
3
SIG
VCC
SW-18520-4 MEMBRANE, TOP SW-18522-4 MEMBRANE, BOTTOM W/AV SW-18523-4 MEMBRANE, BOTTOM W/O AV
J1
J4
J3
10
106
9
GND
RELAY PWR
RXD
RIGHT
LEFT
TXD
2
4
1
3
Page 6-8 Cybex 445T Treadmill Owner’s Manual
Loading...
