Bravo™ 8800/8810
Owner’s Manual
Strength Systems
Part Number 8800-888-4 B
www.cybexintl.com
Table of Contents
Safety
Safety Guidelines And Practices...............3
Securing Equipment ........................6
Regular Maintenance Activities ................7
Warnings and Cautions......................8
Label Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Exercise
Intended Use.............................10
Instructions ..............................10
Customer Service
Contacting Service ........................13
Maintenance
Daily Procedures..........................14
Weekly Procedures ........................17
Yearly Procedures .........................19
Cable Adjustment .........................20
Belt Adjustment ...........................21
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
Bravo® and its mark are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise
this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or
changes.
© Copyright 2013, Cybex International, Inc. All rights reserved. Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexintl.com • 8800-888-4 B • August 2013
Cybex Bravo 8800/8810 Owner’s Manual
Safety
Safety Guidelines And Practices
This product complies with the Eurpoean Mediacl Directive 93/42/EEC.
Cybex International partners with equipment owners to establish the safest and most effective setup
of Cybex equipment. Cybex International urges each facility owner to carefully follow all safety
precautions. Following theses precautions are the best protection against personal injury or damage
to equipment or facility.
The most important safety precaution is to maximize stability for every piece of equipment. The
equipment should be securely anchored to the oor. It is imperative the oor be level.
Cybex recommends that all tness equipment be used in a supervised area. It is recommended that
the equipment be located in an access controlled area. Control is the responsibility of the owner. The
extent of control is at the discretion of the owner.
It is the responsibility of the purchaser/owners of Cybex products to read and understand the owner’s
manual, and warning labels; as well as instruct all individuals, whether end users or supervising
personnel, on proper usage of the equipment.
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment. In an
institutional environment, it is the facility owner’s responsibility to properly instruct users on the proper
operation of the equipment and to warn them of the potential hazards.
Follow and enforce the User Safety Precautions to protect both the user and the equipment.
Keep children away from selectorized strength equipment. Teenagers or disabled users must be
supervised.
Do not allow anyone, including trainers, to use equipment in a manner other than shown on the
instructional placards located on every machine.
It is the responsibility of the facility owner and/or owner of the equipment to instruct users on proper
operation of the equipment and review all labels.
WARNING: Serious injury or death could occur if these safety precautions are not
followed:
User Safety Precautions
• Read all warnings posted on the machine. Warnings are posted on each machine to alert the
user to potential problems. Following warning labels will prevent injury or equipment damage.
• Read and understand warning labels and instructional placards prior to exercising. Obtain
instruction prior to use. Each machine has instructions posted on the equipment for proper
use.
3
Cybex Bravo 8800/8810 Owner’s Manual
• Use the selectorized and plate loaded machines as shown on placards. DO NOT modify the
machine.
• Never pin the weights in an elevated position. DO NOT use the machine if found in this condition.
Seek assistance from oor staff. Weights pinned up have the potential to fall if the user pulls the
pin. Floor staff should lower the weights to prevent potential problems.
• Be certain that the weight pin is completely inserted (for selectorized strength equipment that
employ weight stacks). If the pin is not completely inserted the user may accidentally drop the
weights if the pin falls out.
• Never use dumbbells or other means to incrementally increase the weight resistance. Use only
those means provided by the manufacturer for the equipment. Altering the machine design by
adding additional weight as with dumbbells or other means can injure the user, may damage the
equipment, and will void the warranty.
• Set up, anchor, and operate selectorized strength equipment on a solid level surface. If the oor is
not level the equipment is not stable.
• DO NOT wear loose or dangling clothing or jewelry while using selectorized strength equipment.
Stay clear of all moving components. Loose clothing or dangling jewelry can become entangled in
moving parts and potentially cause severe injury or damage.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician. Users must be responsible
and cautious with the condition of their own health. Consulting a physician before beginning a
program can alert the user to the personal risk if health is an issue.
• Use a spotter for Free Weight equipment. A spotter adds an additional level of safety.
• DO NOT exceed the maximum specied user weight. Too much weight on a machine may prevent
it from proper function or damage the machine.
• DO NOT use if equipment appears damaged or inoperable upon inspection. If the equipment
appears damaged or inoperable- contact the oor staff.
• DO NOT attempt to x a broken or jammed equipment. Notify oor staff. It is the owner’s
responsibility to repair broken or jammed equipment.
• DO NOT use if guards are missing or damaged. A missing or broken guard should be replaced by
a qualied technician. Guards prevent things from interfering with function.
• DO NOT remove any labeling from equipment. Replace any damaged labels. Labels give users
specic information and alerts. Replacing damaged labels ensures users can read the labels for
information provided.
4
Cybex Bravo 8800/8810 Owner’s Manual
Facility Safety Precautions
• Read the Owner’s Manual carefully before assembling, servicing or using the equipment.
• It is the sole responsibility of the user/owner or facility operator to ensure that regular maintenance
is performed.
• Inspect the equipment for worn or loose components prior to use. Tighten/replace any loose or
worn components before to using. Pay close attention to belts, cables, grips or pulleys and their
connections. Always look for potential problems in equipment condition. Loose components should
be tightened to function properly. Replacing worn components maintains the equipment is in the
best condition for regular use.
• To maximize stability, securely anchor each machine to the oor using the anchor holes provided
in each machine. Each machine must be set up, anchored, and operated on a solid level surface.
Do not install equipment on an uneven surface!
Death or serious injury will occur if the
DANGER !
following requirements are not met:
• Ensure that all users are properly trained on how to use the equipment.
• This machine does not have range limiting devices. Check range movement of patient carefully
before using equipment. Select resistance according to the individual indications. If you are unsure
then start at lowest level. Perform excercise using smooth controlled movements.
• Verify there is enough room for safe access and operation of the equipment. Spacing requirements
for each piece of equipment vary depending on placement. The Assembly section gives equipment
dimensions but it is up to the facility to verify there is clearance between and around each machine
to operate without interference.
Cybex is not able to anchor the equipment due to local building codes.
The owner is responsible for the actual anchoring of equipment.
Consult with a professional contractor.
Use fasteners having a minimum of 2,22o newtons tensile capacity.
If legs/frame does not contact surface, DO NOT pull down with
anchors. Shim any leg or frame not in contact with surface using at
washers.
• Perform regular maintenance checks on the equipment as detailed in the Maintenance section
of this manual. Inspect all areas most susceptible to wear, including, (but not limited to) cables,
pulleys, belts, and grips.
• Immediately replace worn or damaged components. If unable to immediately replace worn or
damaged components then remove from service until the repair is made.
5
Cybex Bravo 8800/8810 Owner’s Manual
• Use only Cybex supplied components to maintain/repair the equipment.
• Keep a repair log of all maintenance activities.
• Display the Facility Safety Sign so it is visible and prominent.
Securing Equipment
Do not use machine until it is properly anchored.
The machine has holes in the feet, which allow for ease in anchoring to the oor. All anchoring holes
must be used to maximize stability. Equipment must be secured to a solid, level surface to eliminate
rocking, tipping, or falling over due to incorrect usage and misuse.
The solid, level surface should not deviate more than 1/8” over a 10’ distance or as dened and
required by local building and architectural codes.
Anchoring of equipment must be completed by a qualied licensed contractor.
Due to the wide variation of ooring on which machines may be anchored or installed, verify
anchoring method and anchoring fasteners with a qualied and licensed contractor.
A minimum pull out force of 220 lbs/100 kgs is required for each anchor position.
PROPER USAGE
Use equipment only as described in the manual or on the placards located on each machine. Failing
to follow proper instructions may result in injury.
STANDARD COMPLIANCE
Cybex products meets applicable ASTM and EN Standards.
6
Cybex Bravo 8800/8810 Owner’s Manual
Regular Maintenance Activities
Preventative maintenance activities must be performed to maintain normal and safe operation of your
equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all
preventative maintenance activities. The preventative maintenance actions are described in detail in
the maintenance section of this manual. Briey, they include:
Daily
Clean upholstery.
Weekly
• Inspect all nuts and bolts for looseness. Tighten as required.
• Inspect all cables and belts for damage or wear. If a cable or belt is worn or damaged, immediately
discontinue use until cable or belt has been replaced.
• Check for worn handles, worn snap links, and worn warning labeling. Replace all worn parts
immediately.
• Inspect for loose or worn grips. Replace all loose or worn grips immediately.
• Inspect weight stacks for proper alignment and operation. Correct all improper alignment and
operation issues immediately.
• Lubricate guide rods using automotive engine oil only.
Yearly
Replace all cables and belts at least annually.
7
Cybex Bravo 8800/8810 Owner’s Manual
Warnings and Cautions
Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor
or moderate injury.
The diagram following the decals show where each decal is located.
WARNING
To minimize risk
of serious injury:
Prior to use:
Obtain a medical exam
•
before beginning any
exercise program.
• Obtain instruction before
using.
• Read and understand
warning labels.
• Fully insert adjustment
pins before using.
• Inspect unit, cables, belts,
connections, and guards.
If damaged, worn, frayed,
or missing, notify floor
staff. DO NOT USE.
During use:
Use only as shown on
•
instructional placard.
• Do not use for stretching
and do not attach straps
or other devices.
• Do not modify unit.
• Do not allow children 12
or younger to be on or
near unit.
• Notify floor staff if weight
plate is raised. DO NOT
USE.
• Stop exercise if you feel
faint, dizzy, or have pain.
• Use a spotter.
Do not remove this label.
Replace if damaged or
illegible.
DE000001-4
8
Label Placement
8810 Chin-Up Bar
Cybex Bravo 8800/8810 Owner’s Manual
DE000001-X
8800-442-X
8500-025-X
8500-025-X
DE000005-X
8500-025-X
9
Cybex Bravo 8800/8810 Owner’s Manual
Exercise
Intended Use
The intended use of this machine is to aid or improve general physical tness and exercise for
commercial use.

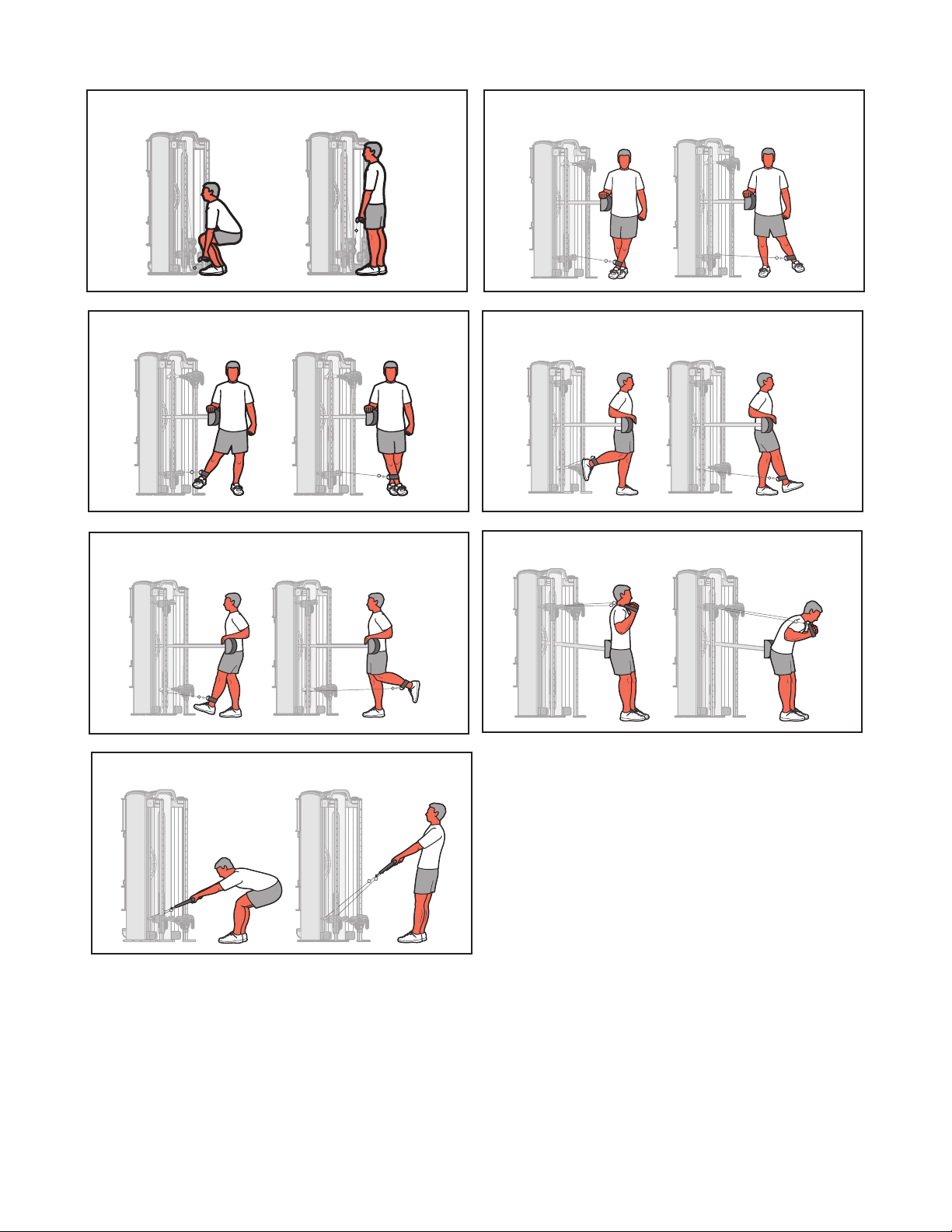

Instructions
Read an understand all instructions and warnings prior to using this machine in the Safety
section of the Owner’s Manual.
1. Select appropriate resistance.
2. Adjust handles for proper pulley height.
3. Rotate pulleys to desired angle.
4. Adjust stabilization arm to desired angle.
5. Adjust stabilization pad to desired position.
6. Ensure all adjustment knobs are locked into place.
7. Position stabilization arm and pad all the way in and all the way down when nished.
CAUTION: Serious injury can result if precautions are not followed. Use equipment
only as described in placards located on each machine. Failure to use in the
manner depicted can result in injury.
Indications:
This machine is used for muscle training or physical rehabilitation and preventive health training only.
Equipment may only be used under supervision of an authorized trainer.
A patient needs to be capable of a full motion range.
The machine is not intended for any exercises other than the ones shown in the short instruction
decal on the machine.
Contraindications:
The following conditions must be cleared by a physician beforehand: fractures, recent operations,
severe osteoporosis with less than 80% bone density, acute herniated disc with surgical indication,
tumors and severe circulatory or vascular illnesses and pulmonary functional disruptions, asthma,
severe diabetes, pregnancy shortly before delivery, detached retina.
Equipment without motion limiters may only be used by patients capable of full range of motion.
10
Cybex Bravo 8800/8810 Owner’s Manual
The equipment is not sterile and should not be used by patients with contagious diseases or open
wounds.
If weakness, dizziness or pain occurs during training, stop the training and consult your physician.
Un-controlled or forced training can lead to pain/physical overloading. Only adjust the settings/weight
intensity/number of repetitions after talking with your trainer.
Training may only be carried out after a prior instruction session by a qualied person.
CHEST PRESS
SEATED PRESS
ARM EXTENSION
ROW
ARM CURL
TRUNK ROTATION
11
Cybex Bravo 8800/8810 Owner’s Manual
HIP ABDUCTIONSQUAT
HIP ADDUCTION
HIP EXTENSION-KNEE FLEXION
TRUNK EXTENSION
HIP FLEXION-KNEE EXTENSION
TRUNK FLEXION
12
Cybex Bravo 8800/8810 Owner’s Manual
Customer Service
Contacting Service
SCHWEIZ
Leuenberger Medizintechnik AG
Industriestr. 19
CH-8304 Wallisellen
Tel.: +41 (0) 44 877 84 00
Fax: +41 (0) 44 877 84 10
Chemin du Croset 9 B
CH-1024 Ecublens
Tél.: +41 (0) 21 711 11 45
Fax: +41 (0) 21 711 11 46
lmt@lmt.ch
DEUTSCHLAND
LMT Deutschland AG
Stuttgarter Strasse 57
D-74321 Bietigheim-Bissingen
Tel.: +49 (0) 7142 99386 0
Fax: +49 (0) 7142 99386 10
info@lmt.eu
ÖSTERREICH
LMT CYBEX GmbH
Anton Hanakgasse 5
A-2103 Langenzersdorf
Tel.: +43 (0) 2244 26 755 0
Fax: +43 (0) 2244 26 755 10
info@lmt.at
13
Cybex Bravo 8800/8810 Owner’s Manual
NOTE: All inspections
and repairs must be
performed by trained
service personnel only.
Maintenance
All preventive maintenance activities must be performed on a regular basis. Performing routine
preventive maintenance actions can aid in providing safe, trouble-free operation of all Cybex Strength
Systems equipment.
Cybex is not responsible for performing regular inspection and maintenance actions for your
machines. Instruct all personnel in equipment inspection and maintenance actions and also in
accident reporting/recording. Cybex representatives are available to answer any questions that you
may have.
All inspections and repairs must be performed by trained service personnel only. Cybex will
void warranty if non-Cybex replacement parts are used.
CAUTION
Use only Cybex replacement
parts when servicing.
Failure to do so could result
in personal injury.
Daily Procedures
When using strong cleaning agents such as rubbing alcohol or bleach, it is advisable to rst test in an
inconspicuous area. Other cleaning agents may contain harsh or unknown solvents and are subject to
formula changes by the product manufacturer without notice. Should you desire to use other cleaning
agents, carefully try them in an inconspicuous area to determine potential damage to the material.
Never use harsh solvents or cleaners which are intended for industrial applications. To clean stained
or soiled areas, a soft white cloth is recommended. Avoid use of paper towels.
Cleaning products may be harmful/irritating to your skin, eyes, etc. Use protective gloves and eye
protection. Do Not inhale or swallow any cleaning product. Protect surrounding area/clothing from
exposure. Use in well ventilated area. Follow all product manufacturer’s warnings. CYBEX and
its vendors cannot be held responsible for damage or injuries resulting from the use or misuse of
cleaning products.
Clean Upholstery
14
Cybex Bravo 8800/8810 Owner’s Manual
If Then
1. Prepare a solution of 10% household
liquid soap and warm water.
2. Apply with a soft damp cloth.
Light Soiling
MoreDifcultStains
3. If necessary, apply a solution of liquid
cleanser with a soft bristle brush.
4. Dampen a clean soft cloth in water and
wipe residue away.
1. Prepare a solution of 10% household
bleach (sodium hypochlorite) and 90%
water. Dampen a soft white cloth in the
solution.
2. Rub gently on the stained area.
3. Dampen a clean soft cloth in water and
rinse area.
4. If stains are still present, a full strength
household bleach may be used. Allow
bleach to puddle on the affected area
or apply with a bleached-soaked cloth
for approximately 30 minutes. Dampen
a clean soft cloth in water, and rinse
area to remove any remaining bleach
concentration.
1. Dampen a soft white cloth with rubbing
alcohol.
MoreDifcultStains(AlternativeMethod)
2. Gently rub stained area.
3. Dampen a clean soft cloth in water and
rinse area.
15
Cybex Bravo 8800/8810 Owner’s Manual
If Then
1. Apply a light coat of furniture wax for 30
Restoring Luster
seconds.
2. Lightly rub area using a clean white cloth.
Clean Frames
Wipe down all frames using a mild solution of warm water and car wash soap. Be sure to dry
thoroughly. AVOID acid or chlorine based cleaners and also cleaners containing abrasives as these
could scratch or damage the equipment.
Clean Chrome
Clean chrome tubes, rst using chrome polish and then using a car wax seal. Neutral cleaners with a
pH between 5.5 and 8.5 are recommended. Be sure to dry thoroughly. AVOID acid or chlorine based
cleaners and also cleaners containing abrasives as these could scratch or damage the equipment.
Guidelines for cleaning front panel:
Use clean soft cloths or sponges for application of cleaners and again for washing and rinsing. Follow
up each application with warm water rinse.
• DO NOT use abrasives or high alkaline cleaners.
• DO NOT leave cleaners on for long periods, wash immediately.
• DO NOT apply cleaners in direct sunlight or at elevated temperatures.
• DO NOT use scrapers, squeegees, or razors.
• DO NOT clean with gasoline.
Compatible Cleaners and Detergents:
• Formula 409
• Top Job
• Joy
• Palmolive
• Windex with Ammonia D
To Minimize Fine or Hairline Scratches:
Mild automotive polish applied and removed with a soft clean cloth will help ll scratches.
Suggested Polishes:
• Johnson Paste Wax
• Mirror Glaze #10 Plastic Polish (by Mirror Bright Polish Co.)
• Novus Plastics Polish #1, #2 (By Novus Inc.)
16
Cybex Bravo 8800/8810 Owner’s Manual
Weekly Procedures
Inspect All Nuts and Bolts
Tighten all loose nuts and bolts as required.
WARNING: Serious injury or death may result if the following precautions are not
followed. Replace all worn cables and belts. Worn cables and belts can fail if
not replaced.
Inspect cables and belts
Inspect all cables and belts for wear or damage and proper tension. When inspecting cables and
belts, run ngers on the cable or belt, paying particular attention to bends in cables and attachment
points. The following conditions may indicate a worn cable:
Cables
Condition of Cable Diagram
A tear or crack in the cable sheath
that exposes the cable
A kink in the cable
A curled sheath
Necking - A stretched cable sheath
Belts
Condition of Belt 3D View 3D or Side View
Peeling of the belt’s skin.
Wave in belt
17
Cybex Bravo 8800/8810 Owner’s Manual
Condition of Belt 3D View 3D or Side View
Belt is necked down (narrow section)
Cracks or splits
Replace belt if any
section is over 1/32”
(.03) narrower than the
rest of belt
Examine edge of belt (both sides).
Replace belt if any section is
narrower than the rest.
One or more strands of kevlar is
hanging out, or if there is a signicant
amount of frayed kevlar.
18
Cybex Bravo 8800/8810 Owner’s Manual
CAUTION: Personal injury or property damage may occur if the following precautions
are not followed. Do not use if less than 1/8” of material remains to the edge.
Replace all worn handles immediately. Failure to replace worn handles can
result in injury or property damage.
Inspect bars and handles for wear, paying particular attention to tab area connection points.
Replace bar if less
than 1/8” of material
remains to the edge.
Attachment
Hole
Inspection Action
Inspect bars and handles for wear, paying
particular attention to tab area connection points.
Inspect snap links for proper latching (indicates
wear).
Inspect all labeling for readability, including
instructional placards, warning and caution
decals.
Inspect all weight stacks for proper alignment
and operation.
Inspect guide rods for lubrication.
Yearly Procedures
Replace all cables and belts annually
Replace all worn handles immediately.
Replace all loose or worn grips immediately.
Replace all worn labeling immediately.
Correct all improper alignment and operation
issues immediately.
Wipe Weight Stack Guide Rods clean over entire
length. Lubricate with a light coat of medium
weight automotive engine oil.
19
Cybex Bravo 8800/8810 Owner’s Manual
Cable Adjustment
Tools Required
9/16” Wrench (2)
Four types of cable tension adjustment are used on Cybex Strength Systems:
Cable
Adjustment
Jam Nut
Adjustment
Rod End
Adjustment
Description Diagram
This type of adjustment uses a jam
nut and a tension adjustment nut at
the cable cam end as the primary
adjustment. The other end of the
cable usually contains a roll pin
adjustment.
This type of adjustment uses a
socket head cap screw (SHCS)
securing a cable rod end bearing to
the machine. Primary adjustment
is by turning the rod end bearing.
The other end of the cable usually
contains a roll pin cable adjustment.
Jam
Cable
End
SHCS
Nut
Tension
Adjustment
Nut
Jam Nut
Cable Rod End
Bearing
Nylon
Locknut
Roll Pin
Adjustment
Cam End
Adjustment
This type of adjustment uses a roll
pin and series of holes in the weight
stack top weight connector.
This type of adjustment uses an
adjustment bolt on the pulley
bracket. Loosen nut and rotate cam
bolt to adjust cable.
20
Roll
Pin
Nut
Top Weight
Connector
Cam Bolt
Adjustment
Cybex Bravo 8800/8810 Owner’s Manual
Belt Adjustment
Tools Required
• 7/32” Wrench
• Torque wrench (lbs-in)
Belt Adjustment Action
1. Using a 7/32” Allen wrench loose set screws.
2. Pull belt tight.
Loose Belt
3. Secure belt in place with set screws.
4. Torque set screws to 300-350 lb-in.
5. Verify that the belt is moving smoothly and is routed straight from
the top pulley bracket to the to weight belt clamp
21
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183
www.cybexintl.com
Loading...
