Cybex® 19061/19071 Combo Rack
Owner’s Manual
Strength Systems
Part Number 19061-999-4 B
www.cybexintl.com
Table of Contents
Safety
Safety Guidelines and Practices ...............3
Anchoring Equipment .......................3
Facility Safety Precautions ...................3
User Safety Precautions . . . . . . . . . . . . . . . . . . . . . 4
Warnings and Cautions......................5
Label Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Assembly

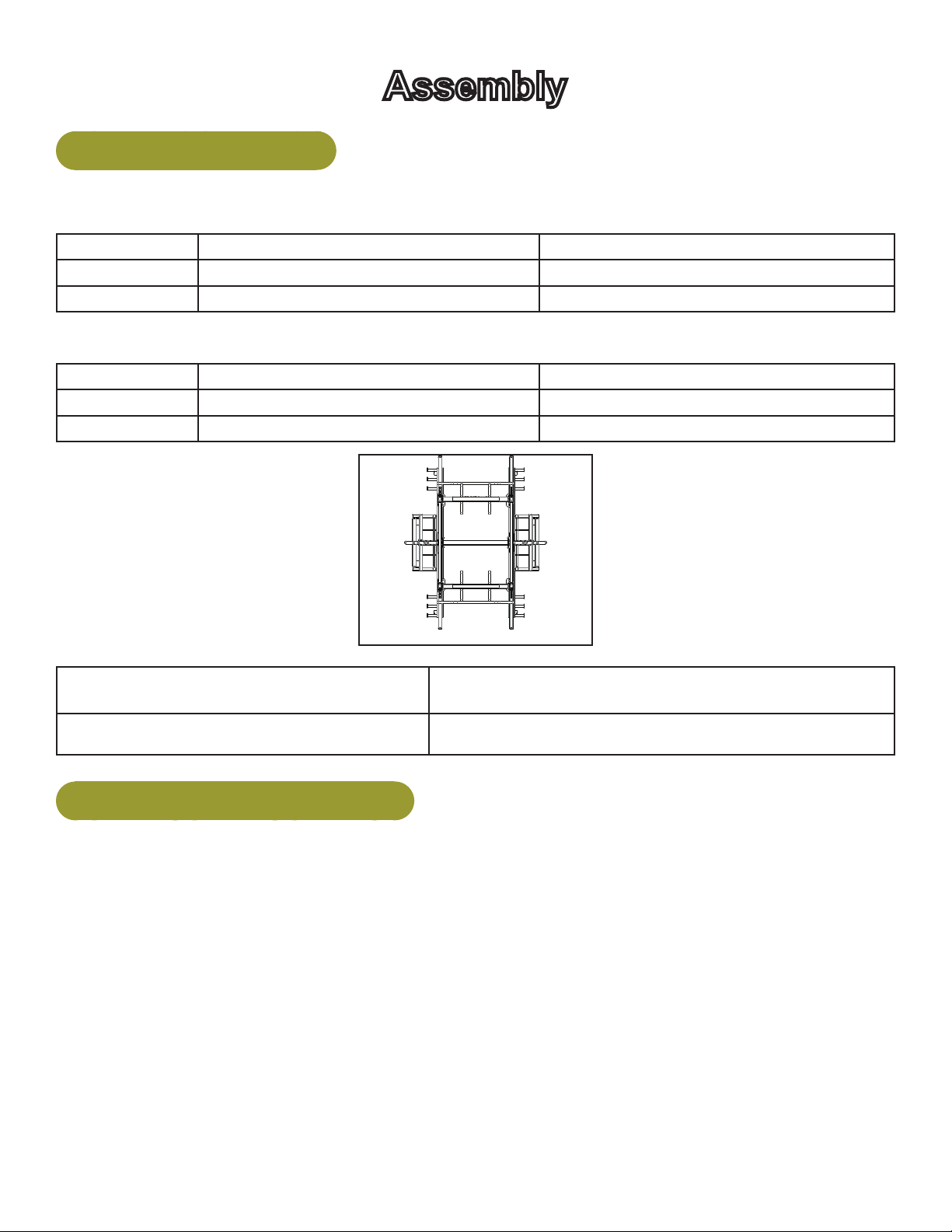

Machine Specications . . . . . . . . . . . . . . . . . . . . . . 7
Tools Required ............................7

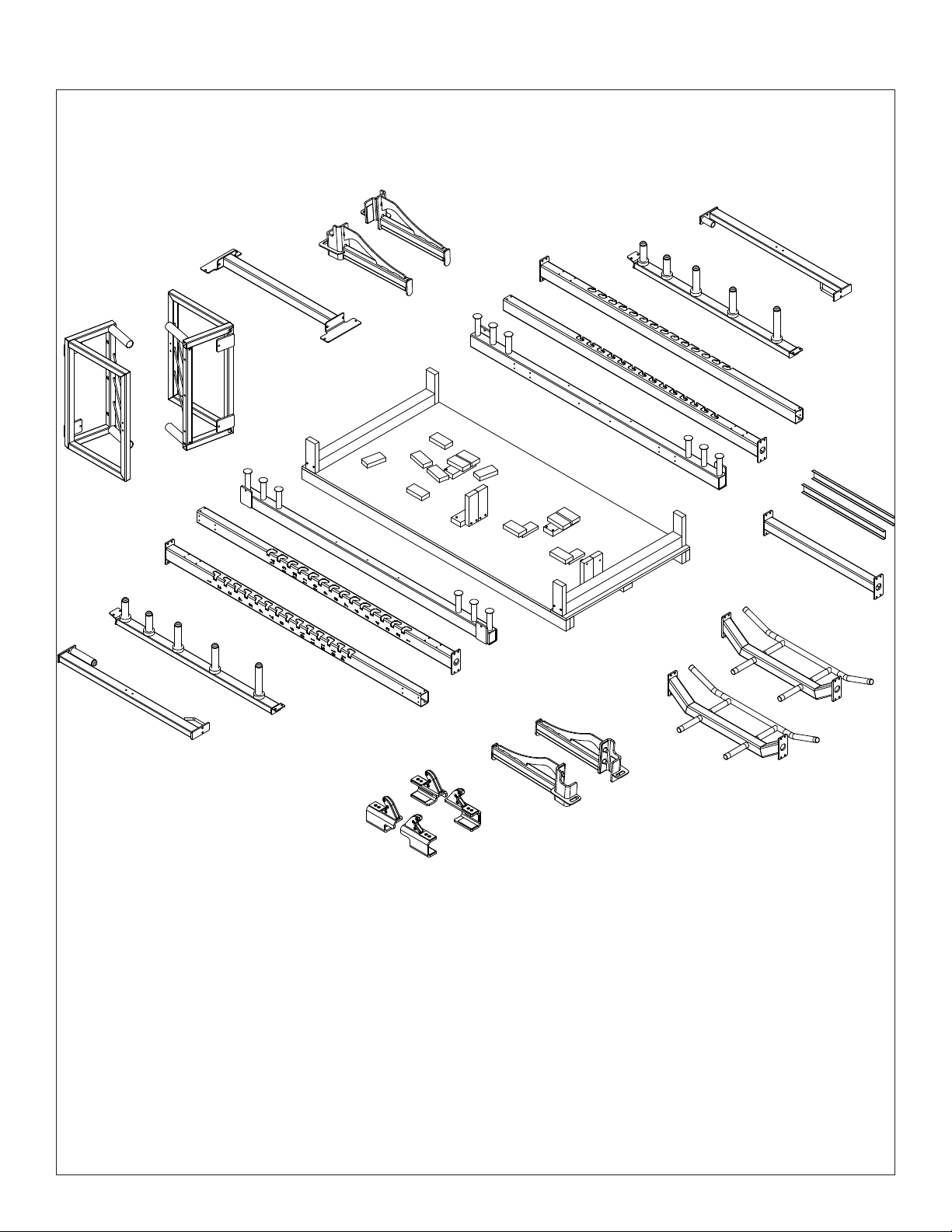

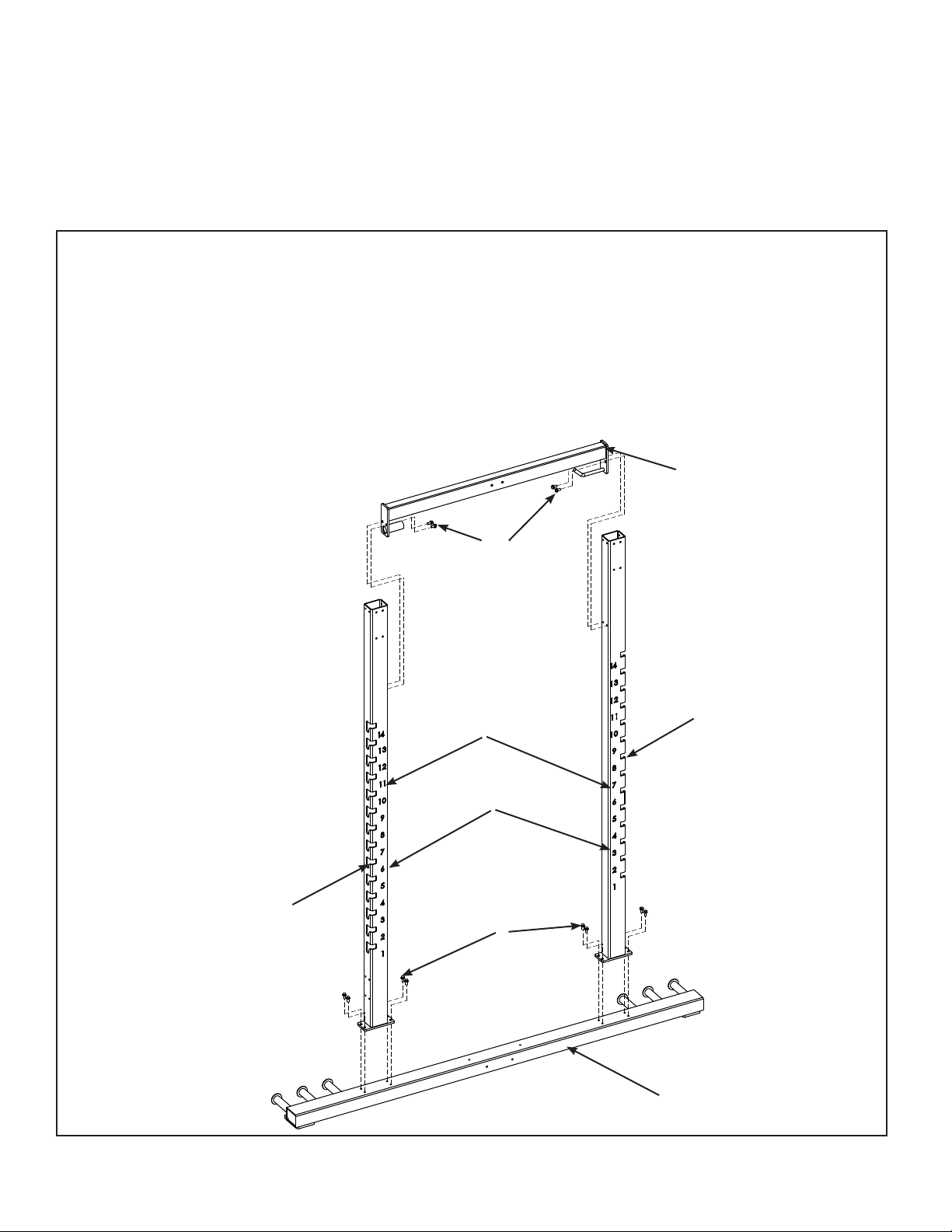

Assembly Procedure ........................7
Environment and Storage . . . . . . . . . . . . . . . . . . . 13
Exercise
Intended Use.............................14
Maintenance
Daily Procedures..........................15
Weekly Procedures ........................17
Customer Service
Product Registration .......................18
Contacting Service ........................18
Ordering Parts............................18
Return Material Authorization (RMA)...........19
Damaged Parts ...........................19
Cybex® and the Cybex logo are registered trademarks of Cybex International, Inc.
DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise
this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or
changes.
© Copyright 2013, Cybex International, Inc. All rights reserved. Printed in the United States of America.
10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexintl.com • 19061-999-4 B • October 2013
Cybex Owner’s Manual
Safety
Safety Guidelines and Practices
Read the Owner’s Manual carefully before assembling, servicing, or using the equipment.
Owner must comply with all safety guidelines in this manual. It is also the owner’s responsibility to
instruct users on the safe and proper operation of the equipment and to properly display any and
all warning labels and instructional placards. All users should read these labels and placards before
using equipment.
Death or serious injury could occur if the
following safety precautions and instructions are
WARNING
Anchoring Equipment
not followed.
• Owner should not allow equipment to be used until it is properly anchored
as described below.
• To maximize stability and eliminate rocking, tipping, or falling over,
equipment must be anchored to a solid, level surface, utilizing all
anchoring holes provided.
• Fasteners must have a minimum of 500 lbs. tensile capacity. Cybex
recommends .3/8” grade 2 bolts or better. A minimum pull force of
220 lbs/100 kgs is required for each anchor position.
• If leg frames do not contact surface, DO NOT pull down with anchors.
Shim any leg or frame not in contact with surface using at washers.
• Due to the wide variation of ooring on which machines may be anchored
or installed, consult with a qualied and licensed contractor to ensure
proper anchoring and installation.
Facility Safety Precautions
Do not allow anyone, including trainers, to use equipment in a manner other than that shown on the
warning labels and instructional placards located on every machine.
Do not install equipment on an uneven surface. The solid, level surface should not deviate more than
1/8” over a 10’ distance or as dened and required by local building and architectural codes.
3
Cybex Owner’s Manual
It is the responsibility of the facility owner/owner of the equipment to ensure that there is appropriate
clearance around each machine to allow for safe use and passage.
In compliance with the ADA (American Disabilities Act) there must be clear floor space of at least
30 by 48 inches and be served by an accessible route for at least one of each type of exercise
equipment. If the clear space is enclosed on three sides (e.g., by walls or the equipment itself), the
clear space must be 36 by 48 inches.
All other machines must have a clear floor space of 23” for all access point on the machine, unless
shown in the Owner’s Manual.
The dimensions stated in the assembly instructions of this manual include the maximum foot print (in
use) dimensions.
All equipment should be used in a supervised, access-controlled area.
Do not allow equipment to be used by children 12 and under. Supervise disabled and children 13 and
older.
The owner should ensure that regular inspection and maintenance checks as detailed in this manual
are performed. Keep a log of all maintenance and repair activities.
Each day before use, the owner should inspect the equipment. If there are any loose or worn
components such as belts, cables, grips, pulleys, or any missing, damaged labels, or placards, the
owner should x any deciencies before they allow the equipment to be used.
Use only Cybex components to maintain and repair the equipment.
Display the Facility Safety Sign so it is visible and prominent.
User Safety Precautions
Owners must instruct users to DO the following:
• Follow all warning labels and instructional placards when using equipment.
• Insert weight pin completely before using selectorized equipment.
• Consult a physician prior to commencing an exercise program. If at any time during exercise you
feel faint, dizzy or experience pain, stop and consult your physician.
• Use a spotter for Free Weight equipment.
Owners must instruct users to NOT DO the following:
• DO NOT pin weights on selectorized equipment in an elevated position or use the machine if
found in this position.
• DO NOT increase weight resistance on equipment by any means other than those provided by
Cybex.
• DO NOT wear loose or dangling clothing or jewelry while using equipment. Stay clear of moving
parts.
4
Cybex Owner’s Manual
• DO NOT lean or pull on machine
• DO NOT use machine for support during stretching.
• DO NOT attach resistance straps, ropes or other means to equipment, except those provided by
the manufacturer for intended use on the equipment.
• DO NOT exceed the maximum specied user weight.
• DO NOT use if equipment appears damaged or inoperable upon inspection.
• DO NOT use if guards are missing or damaged.
• DO NOT remove any labeling from equipment.
5
Cybex Owner’s Manual
Master Artwork
Warnings and Cautions
Warning decals indicate a potentially hazardous situation that could result in death or serious injury if
the precautions are not observed.
Caution decals indicate a potentially hazardous situation that could result in minor or moderate injury
if the precautions are not observed.
The diagram following the decals show where each decal is located.
WARNING
SERIOUS INJURY
COULD OCCUR IF
THESE PRECAUTIONS
ARE NOT OBSERVED
1. Obtain a medical exam
before beginning any
exercise program.
2. Stop exercising if feeling
faint, dizzy or
experiencing pain and
consult your physician.
3. Obtain instructions
before using. Lisez les
instructions avant
I’untilisation.
4. Read and understand the
owner’s manual and all
warnings posted on the
machine before using.
5. Keep all children (12 and
under) away. Teenagers
(13 and over) and disabled
must be supervised.
Garder tous les enfants
(de 12 ans et moins)
éloignés. Les adolescents
(de 13 ans et plus) et les
handicapés doivent être
surveillés.
6. Use a spotter.
7. Keep body and clothing
free from and clear of
all moving parts.
8. Use the machine only for
the intended use. DO NOT
modify the machine.
9. Inspect machine prior to
use. DO NOT use if it
appears damaged or
inoperable.
10. DO NOT attempt to fix
a broken or jammed
machine.
11. Report any malfunctions,
damage or repairs to the
facility.
12. Replace any warning
labels if damaged, worn
or illegible.
5220-364-4 A
WARNING
Serious injury or death
may result if the
adjustable bar stops are
set BELOW THIS
location when doing
SQUAT EXERCISE.
DO NOT start SQUAT
EXERCISE unless
adjustable bar stops
are in place.
WARNING
Serious injury or death
may result if the
adjustable bar stops are
set BELOW THIS
location when doing
.
SQUAT EXERCISE
DO NOT start SQUAT
EXERCISE unless
adjustable bar stops
are in place.
WARNING
Serious injury or death
may result if the
adjustable bar stops are
set BELOW THIS
location when doing
SQUAT EXERCISE
.
DO NOT start SQUAT
EXERCISE unless
adjustable bar stops
are in place.
WARNING
Serious injur
may result if
set BELOW T
location whe
DO
start SQUAT
EXERCISE
unless
adjustable
bar stops
are in place.
PROPER f
adjustabls
allow an i
in case of a
PROPER placement of
adjustable bar stops
allow an immediate exit
in case of accident or
emergency.
16240-329-4
PROPER placement of
adjustable bar stops
allow an immediate exit
in case of accident or
emergency.
16240-329-4 A
PROPER placement of
adjustable bar stops
allow an immediate exit
in case of accident or
emergency.
16240-329-4 A
6
Label Placement
Cybex Owner’s Manual
DE000001-X
16240-329-X
(Both Sides)
7
