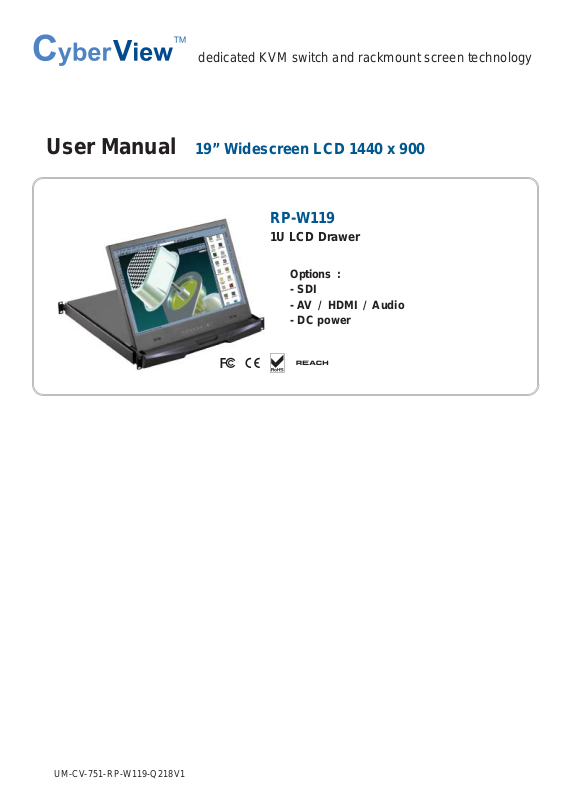

Page 1
dedicated KVM switch and rackmount screen technology
User Manual 19” Widescreen LCD 1440 x 900
RP-W119
1U LCD Drawer
Options :
- SDI
- AV / HDMI / Audio
- DC power
UM-CV-751-RP-W119-Q218V1
Page 2
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock.
■ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modified or removed.
■ Damage, deterioration or malfunction resulting from:
Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product.
Repair or attempted repair by anyone not authorized by us.
Any damage of the product due to shipment.
Removal or installation of the product.
Causes external to the product, such as electric power fluctuation or failure.
Use of supplies or parts not meeting our specifications.
Normal wear and tear.
Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
UM-CV-751-RP-W119-Q218V1
□
□
□
□
□
□
□
□
Page 3
Contents
< Part. 1 >
RP-W119
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
P.1
P.1 - 2
P.3
< Part. 2 > Specifications / OSD
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
P.4 - 5
P.6 - 7
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input

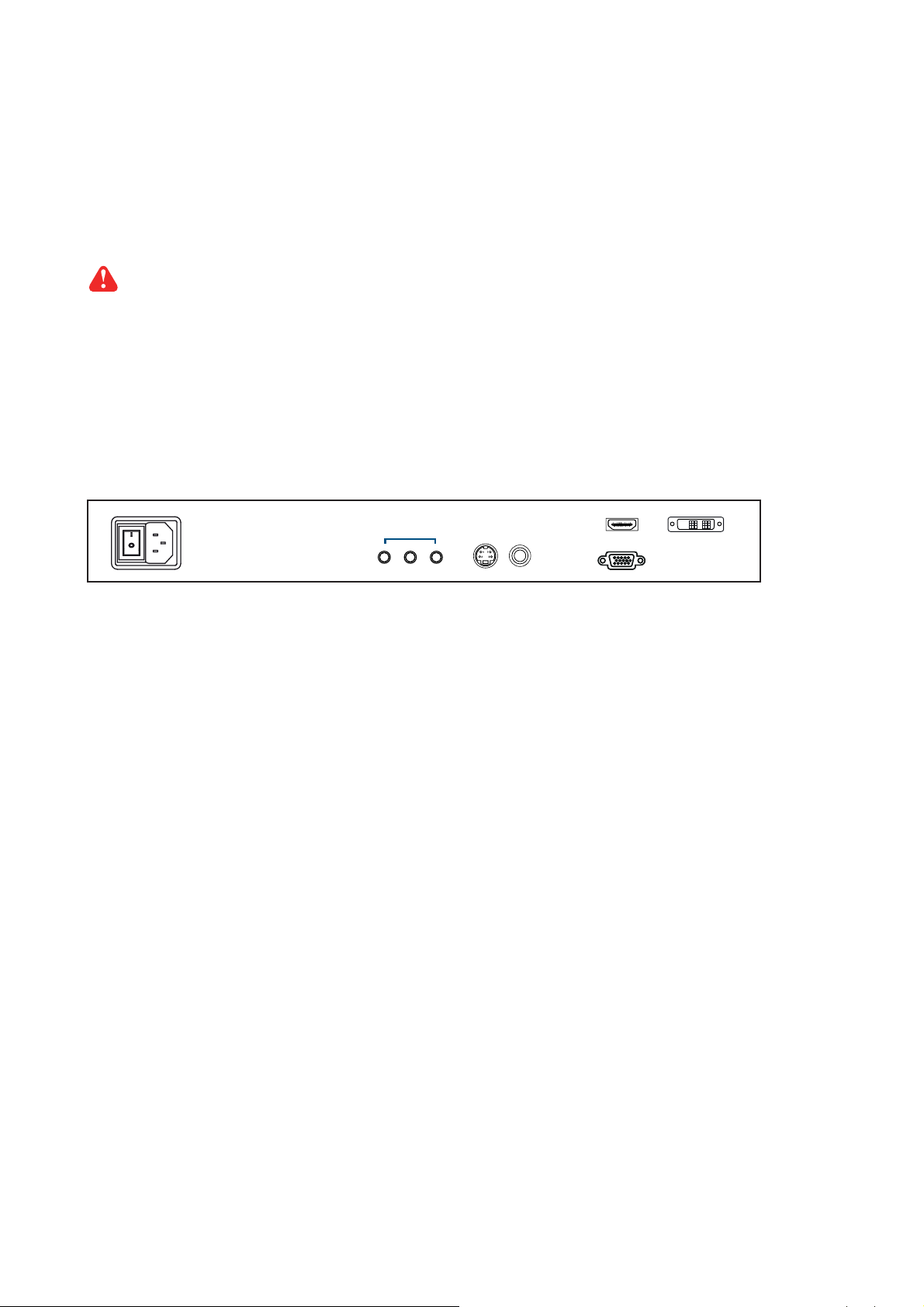

3.2 HDMI, S-Video + BNC & Audio
3.3 DC Power : 12V / 24V / 48V / 125V
P.8
P.9
P.10
UM-CV-751-RP-W119-Q218V1
Page 4
Before Installation
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the finish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfiber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfiber cloth first, not directly on the parts you are cleaning.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
UM-CV-751-RP-W119-Q218V1
1
2
1
2
3
4
Page 5
< Part 1 >

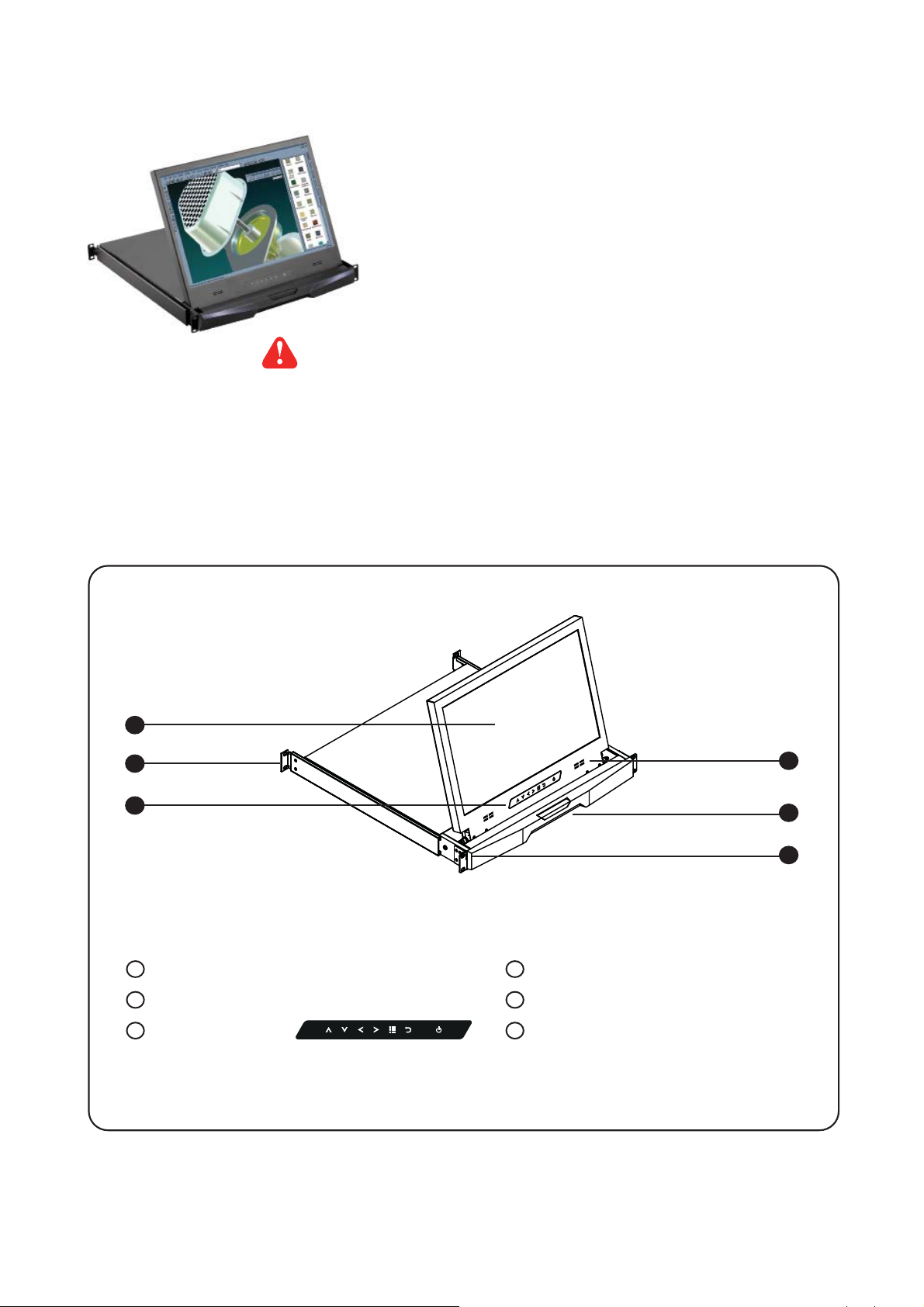

< 1.1 > Package Content
RP-W119
RP-W119 unit X 1
- 6ft VGA cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the pure model ( VGA and DVI-D only ).
It varies with options such as SDI, HDMI, AV, audio & DC power.
< 1.2 > Structure Diagram
1
2
3
4
5
1
2
3
LCD panel
Installation Slide
LCD OSD membrane
4
5
6
Audio speaker
Carry handle to release the 2-pt lock
2-point lock
UM-CV-751-RP-W119-Q218V1
P.1
Page 6

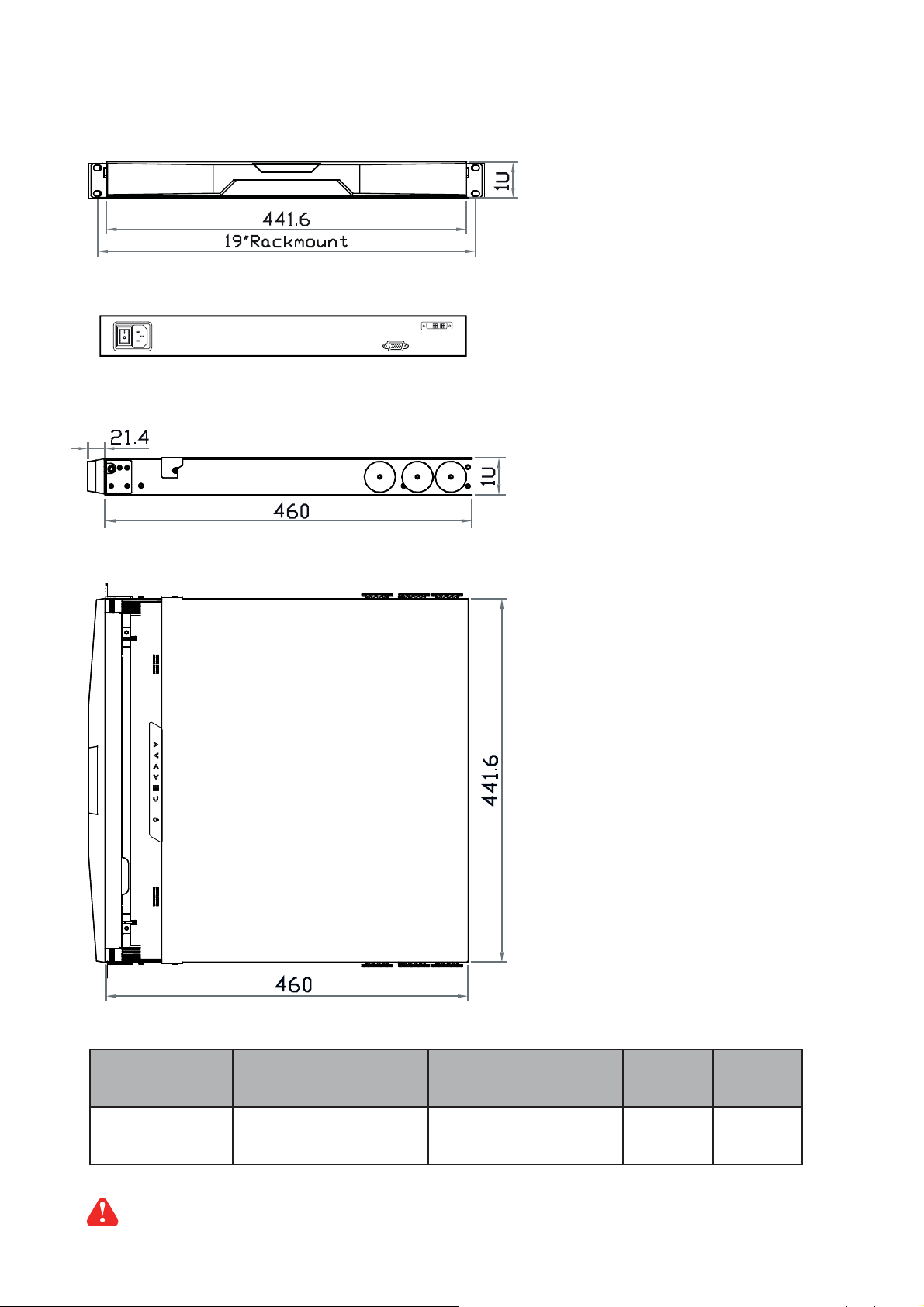

< 1.2 > Dimension
Front View
Rear View
DVI-D
Power
VGA
UNIT : mm
Side View
1mm = 0.03937 inch
Top View
Model
RP-W119
Product Dimension
(W x D x H)
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73"
Packing Dimension
(W x D x H)
588 x 758 x 120 mm
23.1 x 29.8 x 4.7”
Net
Weight
13 kg
28.6 lb
Gross
Weight
17 kg
37.4 lb
The weight is only for the pure models. It varies with accessories & options
such as SDI, HDMI, AV, audio & DC power.
UM-CV-751-RP-W119-Q218V1
P.2
Page 7

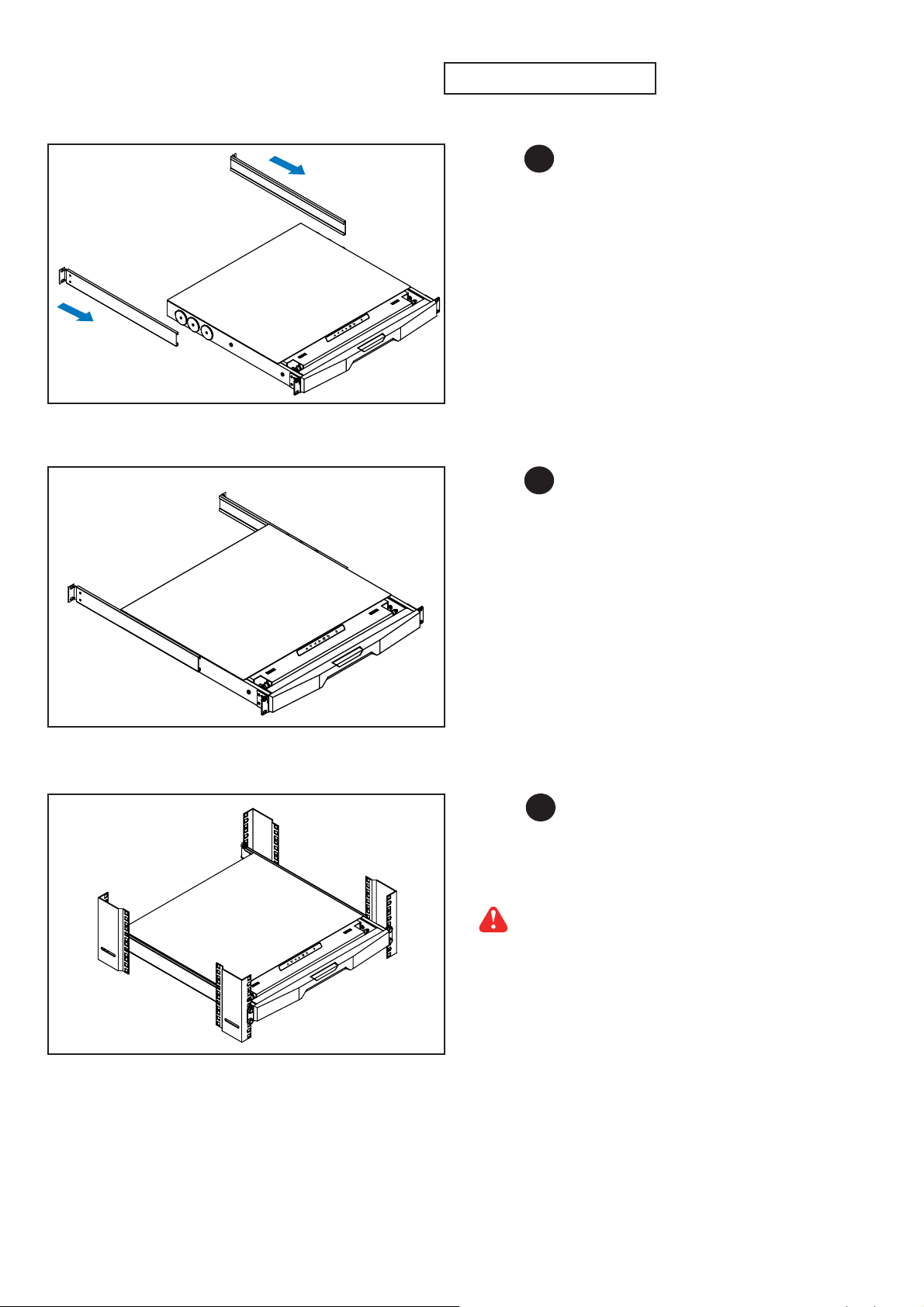

< 1.3 > Installation - How to install Installation Slides
RP-W119
Step
1
■ Insert the left and right rear mounting bracket into
the display drawer.
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
Step
3
Complete the installation
■ Fix the display drawer into the rack.
M6 screw, cage nut & cup washer x 8 are provided.
UM-CV-751-RP-W119-Q218V1
P.3
Page 8
< Part 2 >
< 2.1 > Product Specifications
LCD
Panel
Video
Connectivity
Audio
Connectivity
Panel Size ( diagonal )
19-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1440 x 900
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 85/85/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.2835
Display Area ( mm ) 408.24H x 255.15V
Surface treatment Anti-glare
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
Digital HDMI HDMI 1.2 / HDCP 1.1
DVI DVI-D, TMDS single link
Analog
VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Audio Input Connector 3.5mm stereo jack
Impedance / Power level 30kΩ / 750mV
Audio Output
Connector 3.5mm stereo jack
Resistance / Power level 30kΩ / 2.8V
Speaker Dual Stereo Speaker 2W x 2
*When the audio output is connected, speaker output is OFF
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
Screen ON Max. 25W
Power saving mode Max. 4W
Power button OFF Max. 1W
Compliance EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
UM-CV-751-RP-W119-Q218V1
P.4
Page 9
RP-W119
Environmental
Conditions
Physical
Specification
Applicable
Format
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Product ( W x D x H )
441.6 x 460 x 44 mm
17.4 x 18.1 x 1.73 inch
Packing ( W x D x H )
588 x 758 x 120 mm
23.1 x 29.8 x 4.7 inch
Net Weight 13 kgs / 28.5 lbs
Gross Weight 17 kgs / 37.4 lbs
DVI-D / VGA Input PC Signal 1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
Video Signal
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
UM-CV-751-RP-W119-Q218V1
P.5
Page 10
< 2.2 > On-screen Display Operation ( OSD )

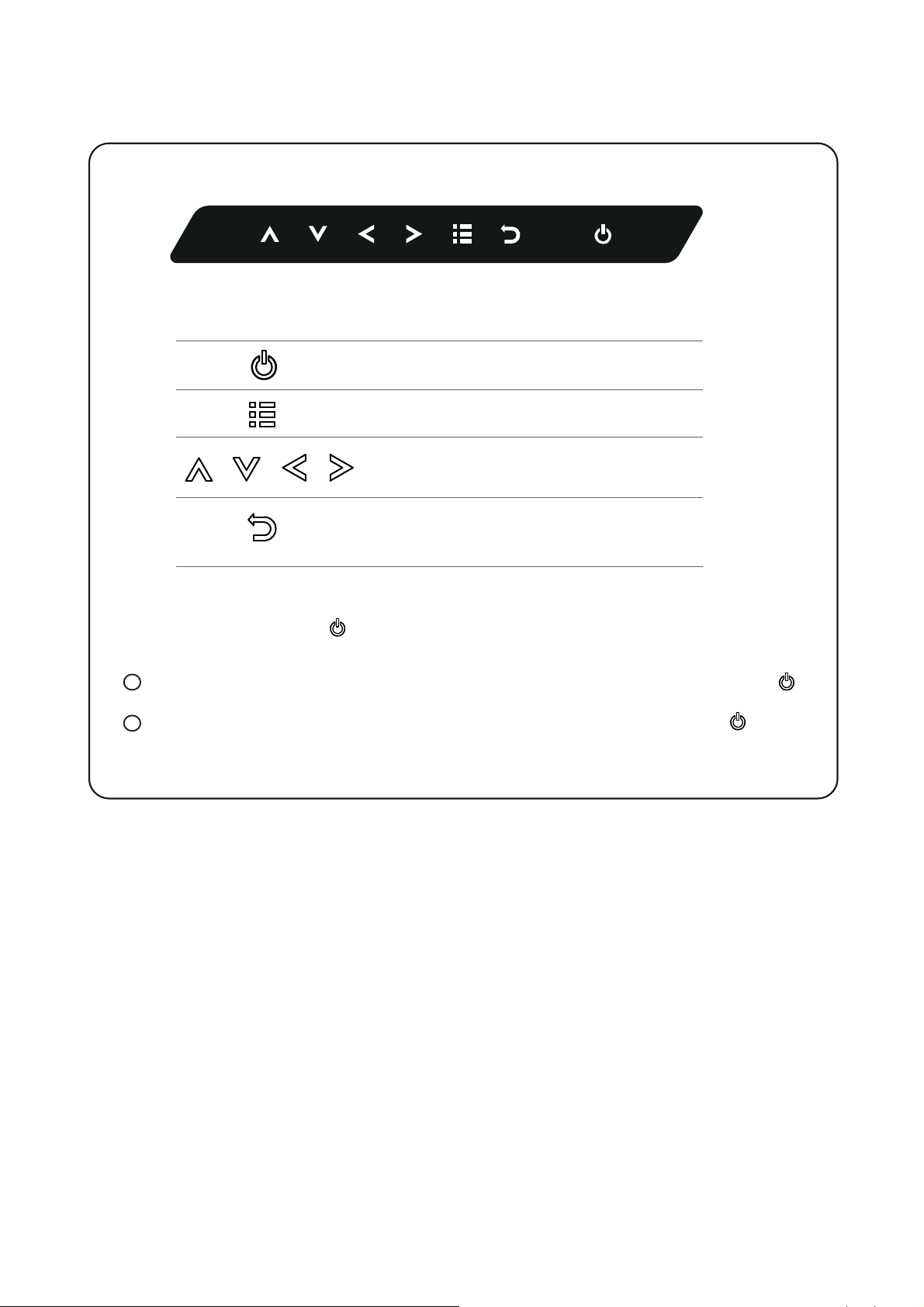

Membrane Switch Function
1
2
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
UM-CV-751-RP-W119-Q218V1
P.6
Page 11
< 2.2 > On-screen Display Operation ( OSD )
RP-W119

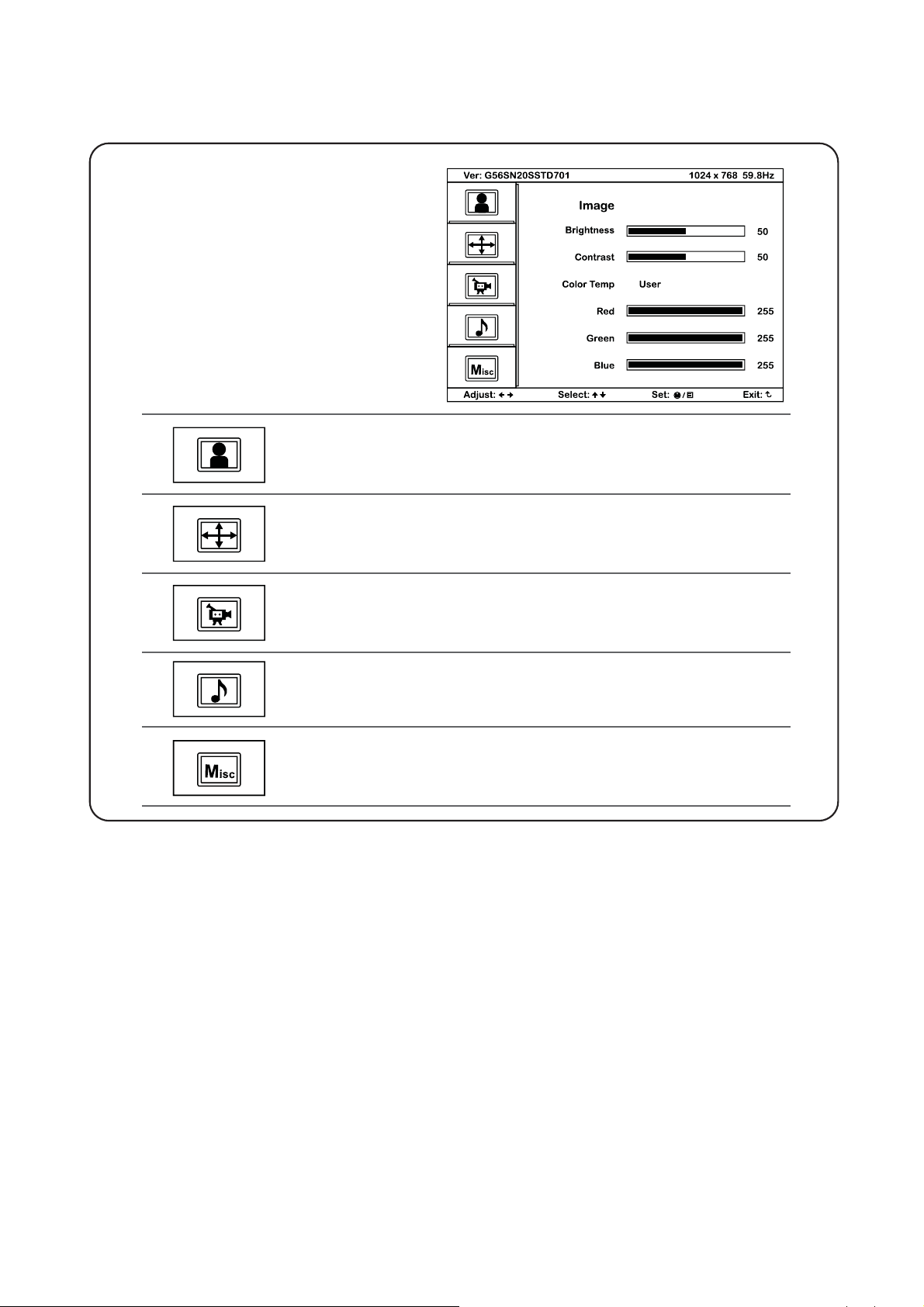

OSD Configuration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
UM-CV-751-RP-W119-Q218V1
P.7
Page 12
< Part 3 >

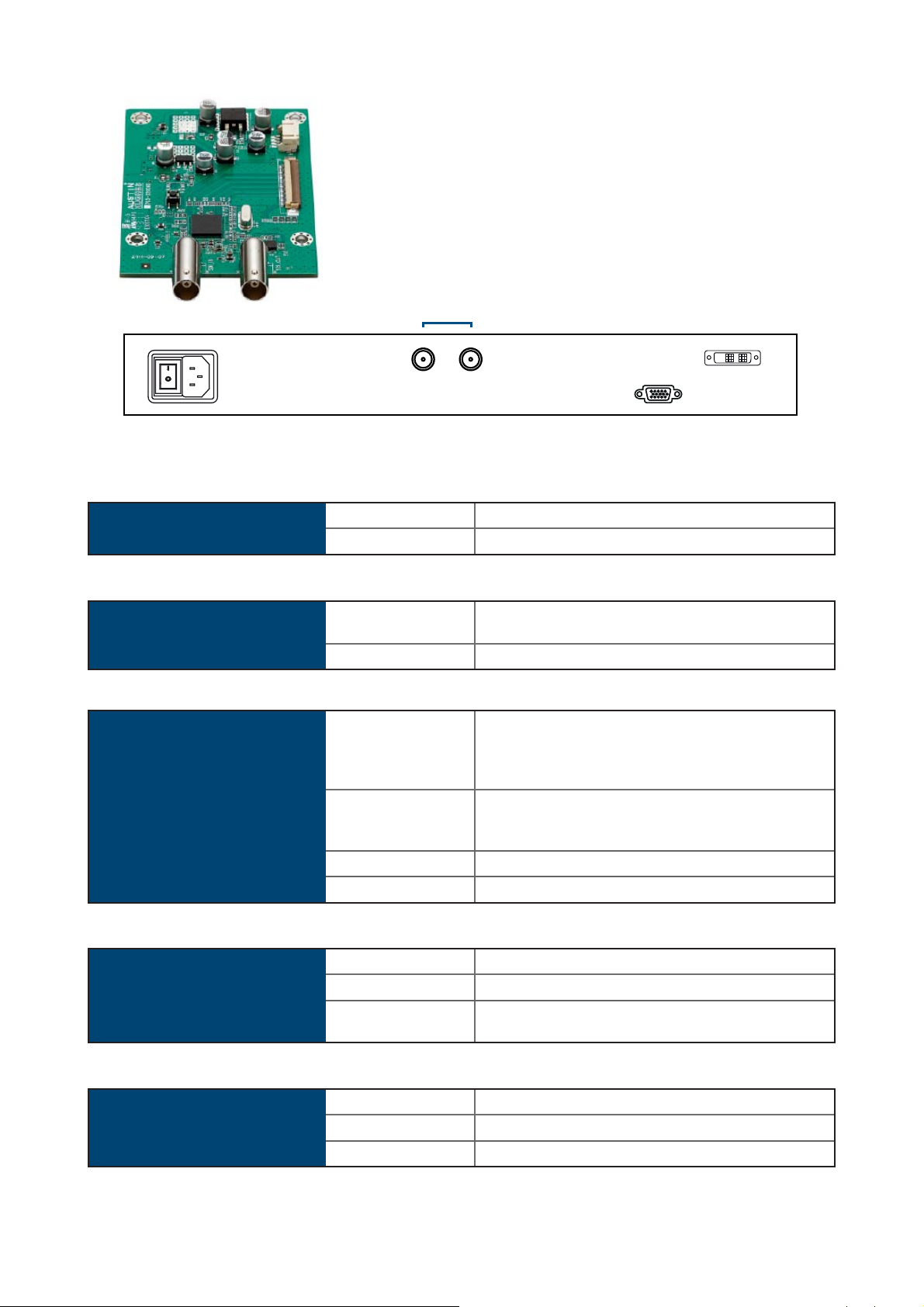

< 3.1 > Options : 3G / HD / SD-SDI input
Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
SDI
Power
in - out
DVI-D
VGA
***
For SDI option, casing depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" )
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
HD-SDI 1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
UM-CV-751-RP-W119-Q218V1
P.8
Page 13
< 3.2 > Options :
RP-W119
- HDMI
- AV
- Audio
( HDMI 1.2 / HDCP 1.1 )
( S-Video + Composite, BNC )
( Built-in Dual Stereo Speakers, 2W x 2 )
( 3.5mm audio jacks for audio in & out )
( 1 ) Either HDMI or DVI-D can be selected.
( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fix the issue.
( 3 ) For the above options, casing depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” )
Power
Audio
S-Video BNC
in - in - out
PC Video
HDMI DVI-D
VGA
UM-CV-751-RP-W119-Q218V1
P.9
Page 14

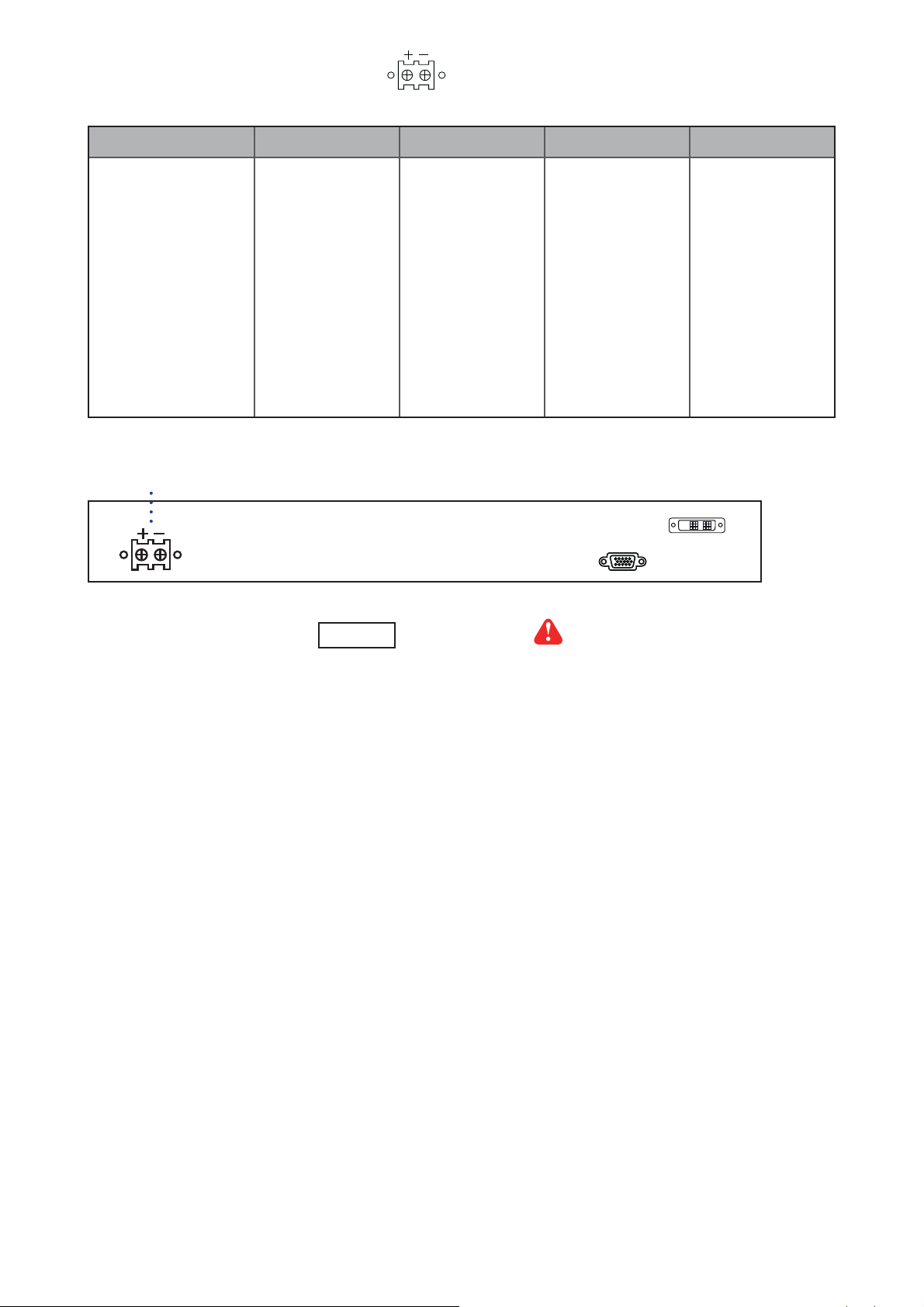

< 3.3 > Options : DC Power
Model 12V 24V 48V 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 35 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A
Efficiency 84% 85% 85% 91%
DC power
DVI-D
VGA
***
For DC power option :
( 1 ) If the unit with LCD, earthing may be required
( 2 ) DC option excludes AC power adapter and power cord.
( 3 ) Casing depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” )
UM-CV-751-RP-W119-Q218V1
P.10
Loading...
