UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
17" Ultra High Resolution 1920 x 1200 LCD
RKP2417X
Options :
- HDMI
- SDI
- Touchscreen
- DC power
User Manual
2U Dual Slide Short Depth LCD Console Drawer
751
Designed and manufactured by Austin Hughes
dedicated KVM switch and rackmount screen technology
17" / 19" 1280 x 1024 LCD
RKP2417 / RKP2419
Options :
- AV / DVI-D / HDMI
- Touchscreen
- DC power
17" FHD 1920 x 1080 LCD
RKP2417F
Options :
- HDMI
- SDI
- Touchscreen
- DC power
Page 2
Page 3
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 4
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Options
3.1 RKP2417F
- 3G / HD / SD-SDI Broadcast-grade input
- HDMI
- F17" Touchscreen : Resistive ( 1-point touch )

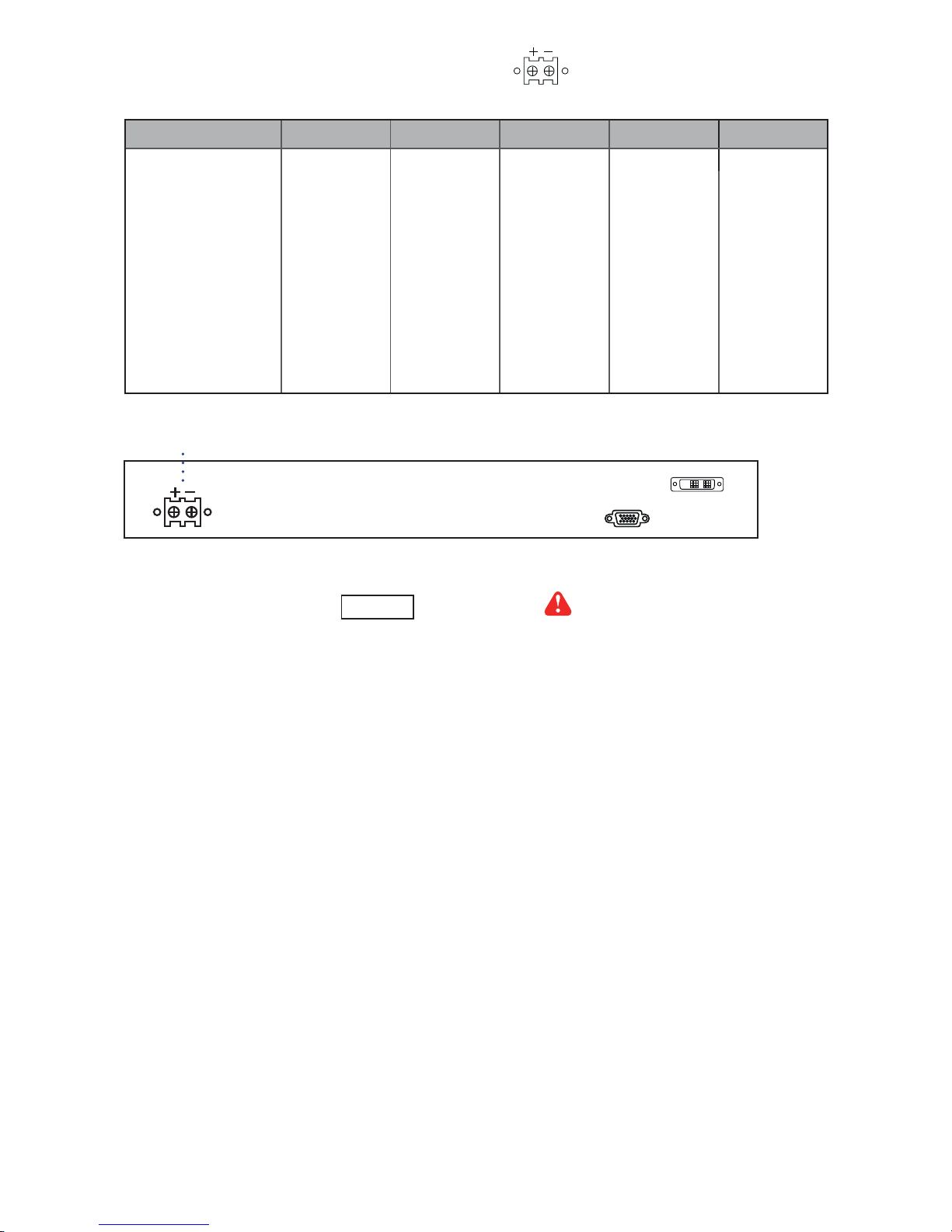

- DC Power : 12V / 24V / 48V / 125V / 250V
3.2 RKP2417X
- 3G / HD / SD-SDI Broadcast-grade input
- HDMI
- X17" Touchscreen : Capacitive, Resistive ( 1-point touch )
- DC Power : 12V / 24V / 48V / 125V / 250V
3.3 RKP2417 / 2419
- HDMI / DVI-D / S-Video + BNC
- 17" / 19" Touchscreen : Capacitive, Resistive ( 1-point touch )
- DC Power : 12V / 24V / 48V / 125V / 250V
< Part. 3 >
P.18 - 21
P.22 - 25
P.26 - 28
< Part. 2 >
Specifi cations / OSD
2.1 Product Specifi cations

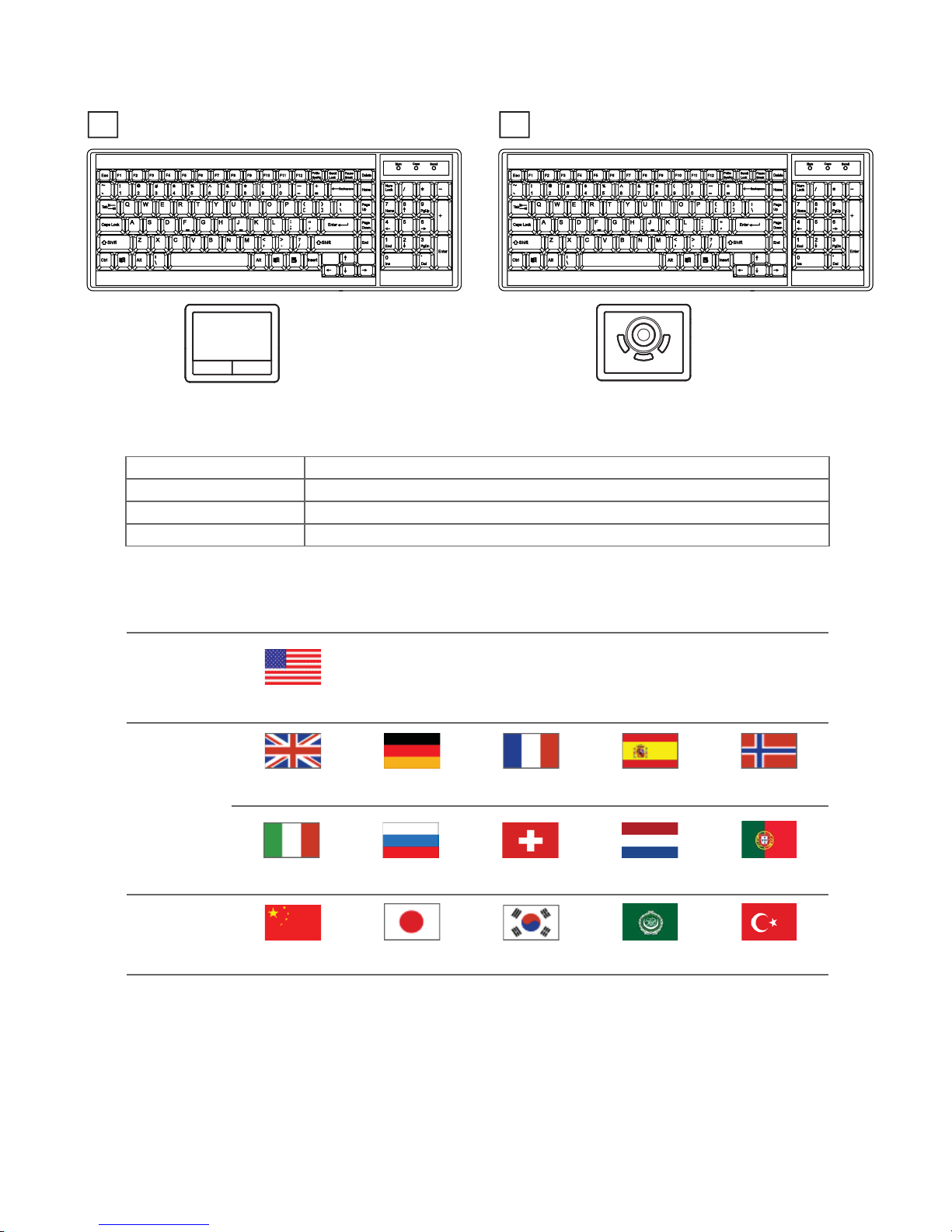

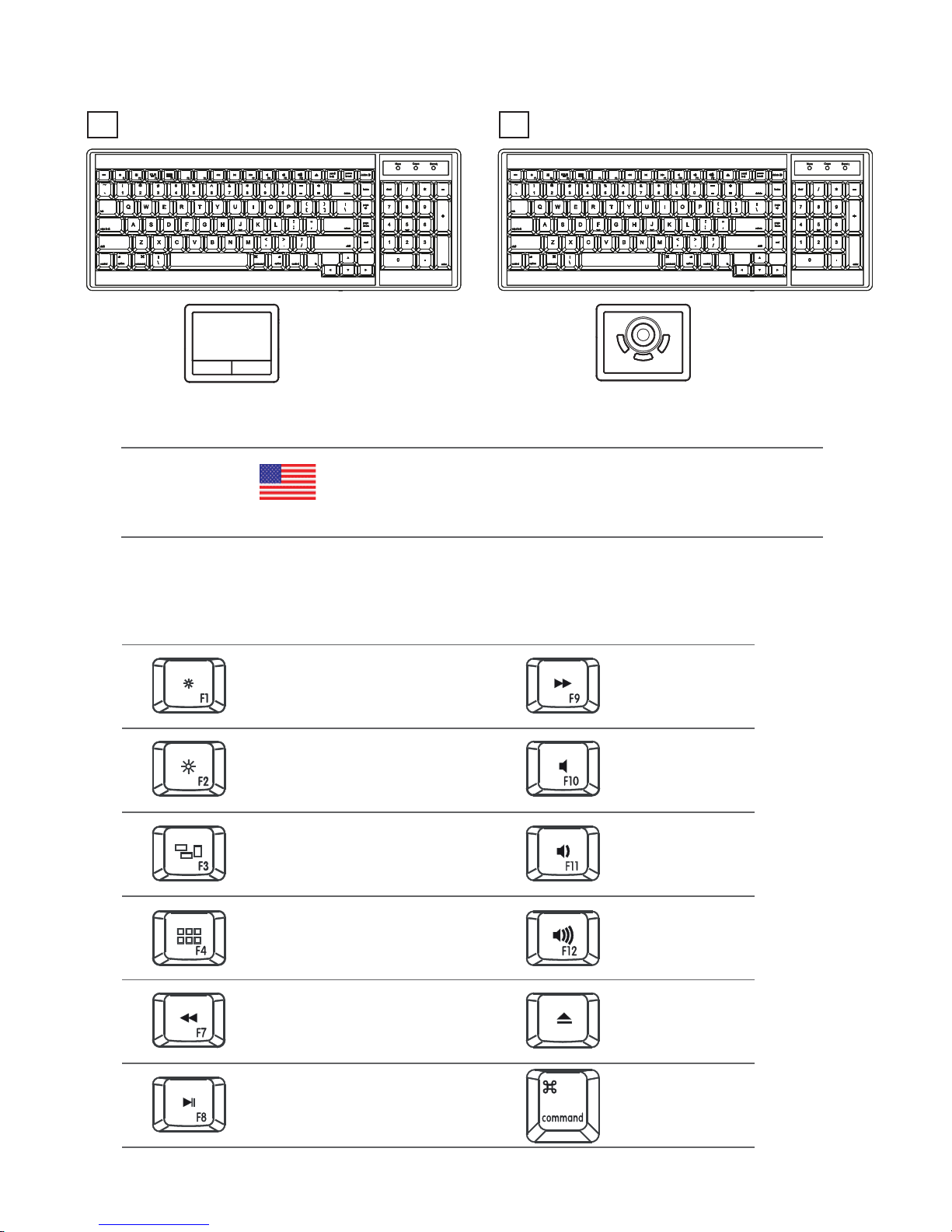

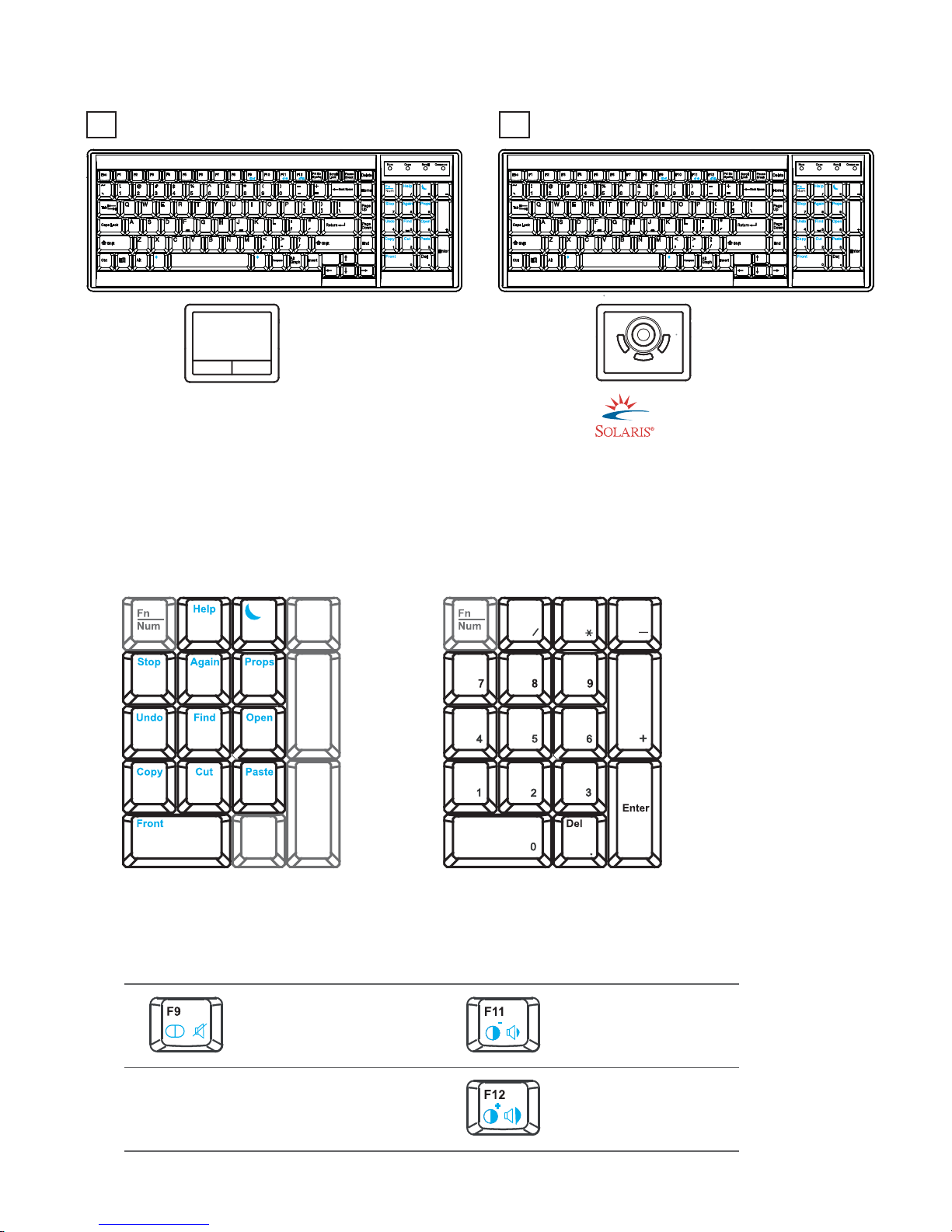

2.2 Keyboard / Mouse Specifi cations

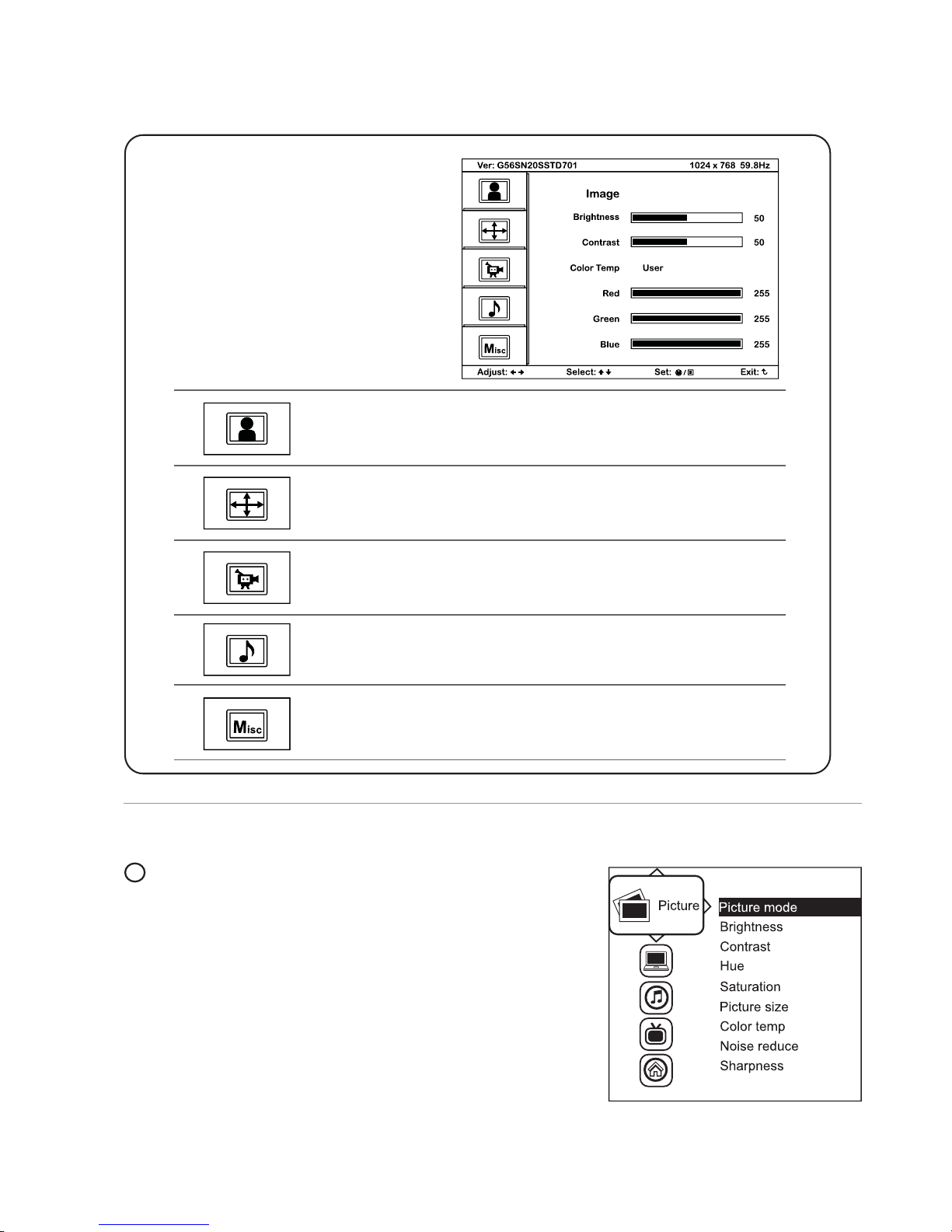

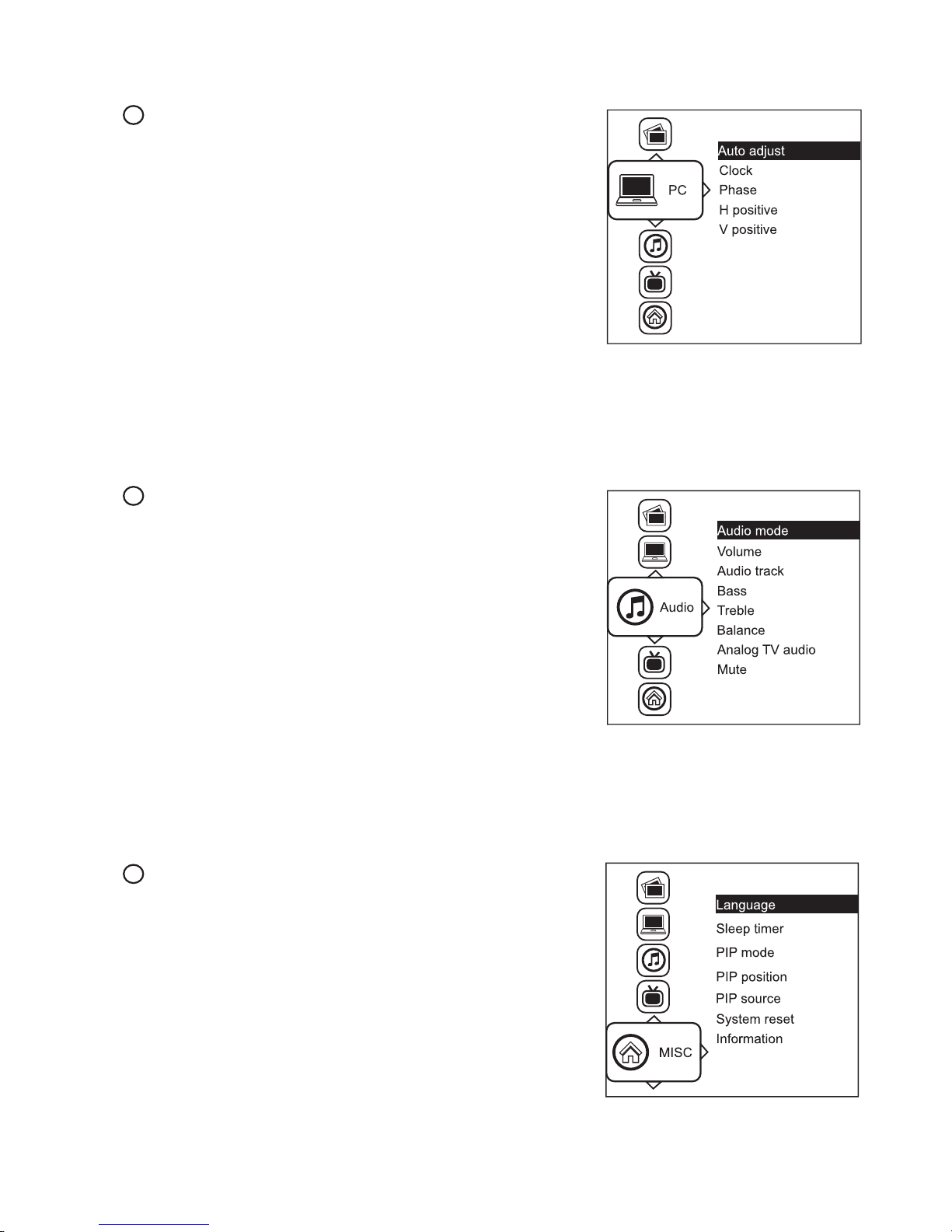

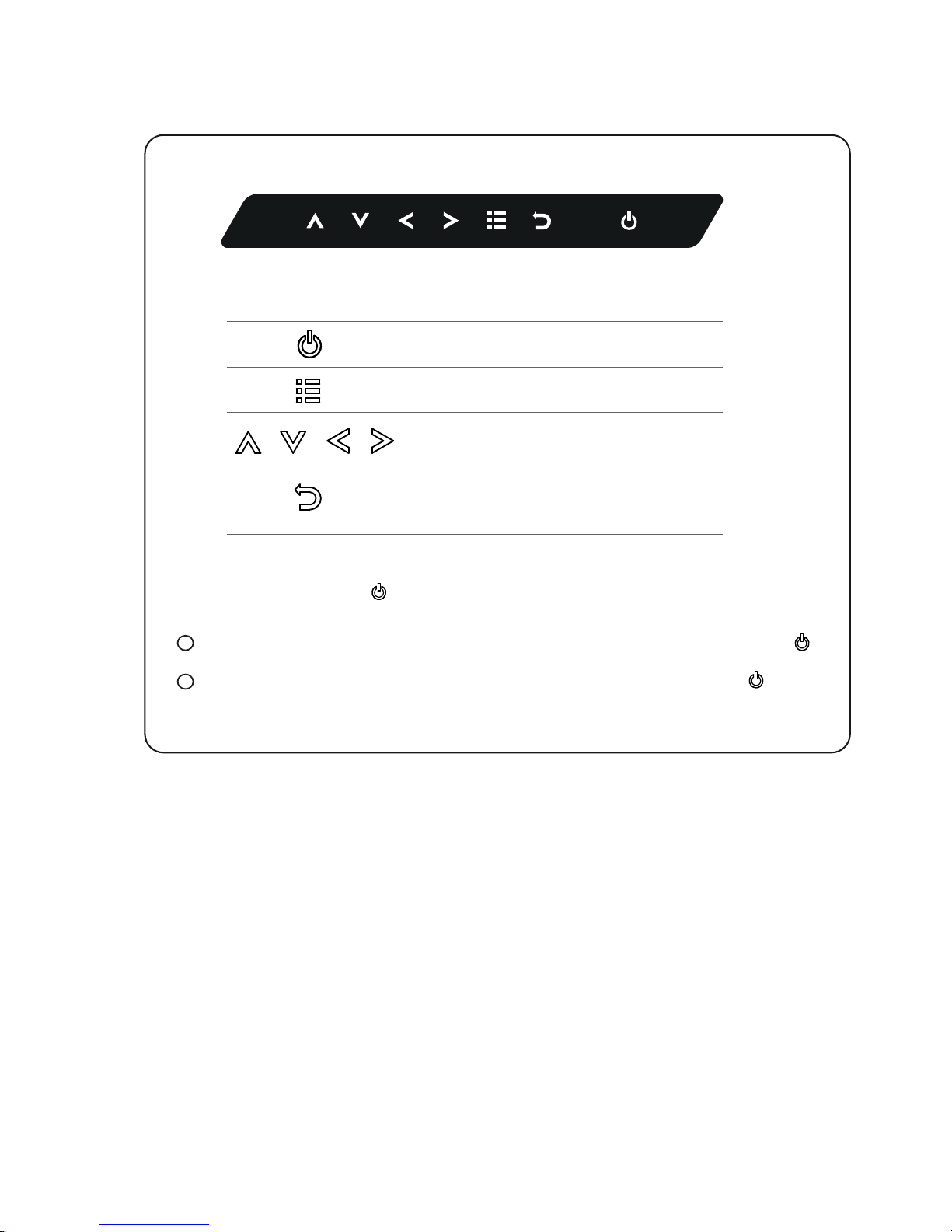

2.3 On-screen Display Operation ( OSD )
P.8 - 11
P.12 - 14
P.15 - 17
< Part. 1 >
Contents
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
P. 1
P.1 - 2
P.3 - 4
P.5 - 7
< Part. 4 >
KVM Integration
P.29
Page 5
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4
Page 6
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
RKP2417 or RKP2419 unit X 1
- CB-6 6ft VGA console cable X 1
( Alternative for PS/2 KB / MS : CE-6 6ft Combo KVM cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
1
2
LCD interchangeable module kit
Installation Slides
Carry handle to release the 2-pt lock
Audio speaker ( for SDI or HDMI option )
1
2
3
5
8
6
7
7
LCD membrane
Membrane switch (KVM option)
Keyboard interchangeable module kit
Mouse interchangeable module kit
5
< 1.1 > Package Content
P. 1
< Part 1 >

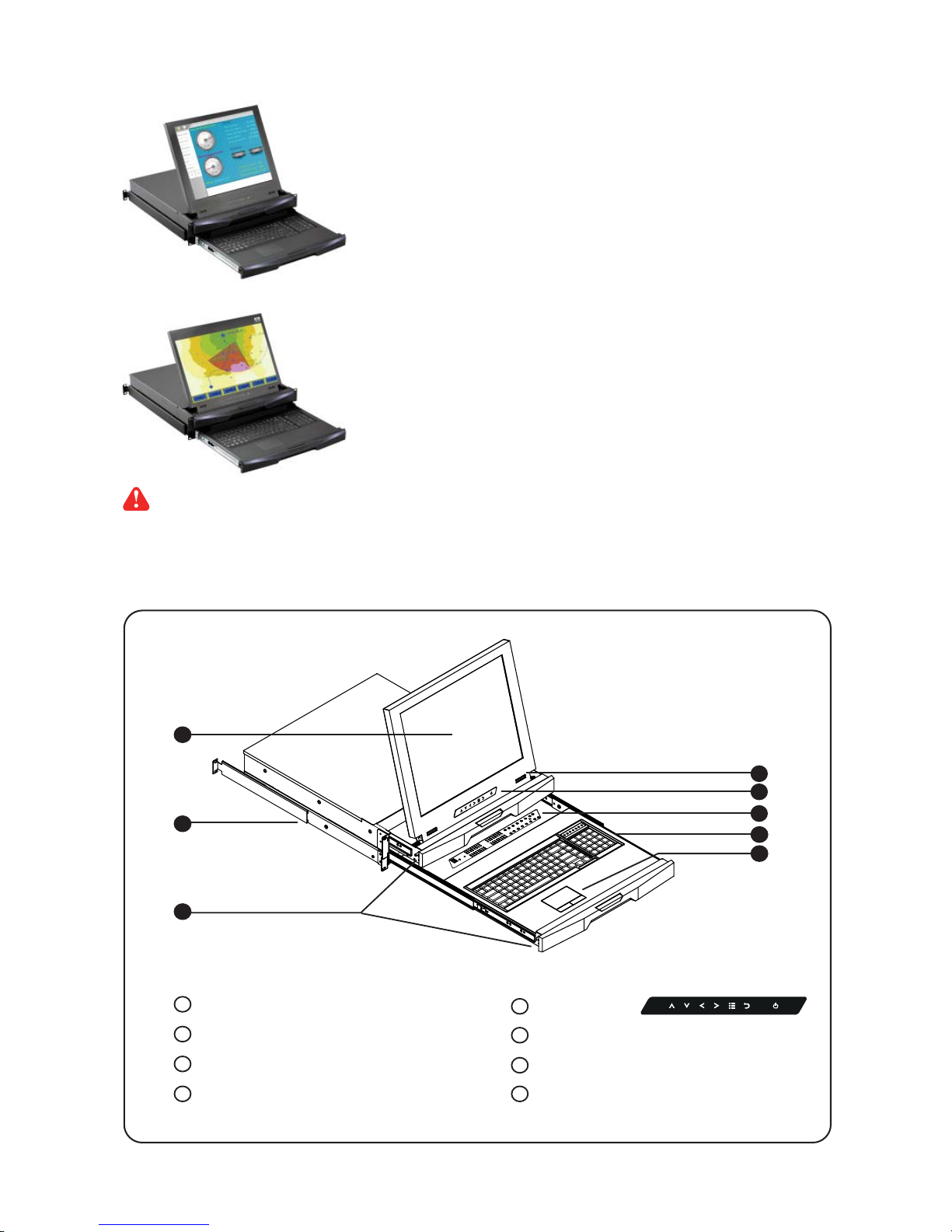

< 1.2 > Structure Diagram
3
6
4
4
8
RKP2417F or RKP2417X unit X 1
- CX-6 6ft DVI-D console cable X 1
( Alternative : CB-6 6ft VGA console cable )
- Power cord X 1
- M6 screw, cage nut & cup washer X 8
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI, DVI-D, AV, Touchscreen & DC power.
Page 7
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RKP2417
RKP2417F
RKP2417X
441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5"
585 x 620 x 190 mm
23 x 24.4 x 7.5”
20.4 kg
44.9 lb
24.8 kg
54.6 lb
RKP2419
441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5”
585 x 620 x 190 mm
23 x 24.4 x 7.5”
20.5 kg
45.1 lb
24.8 kg
54.6 lb
The weight is only for the single console models. It varies with accessories & options .

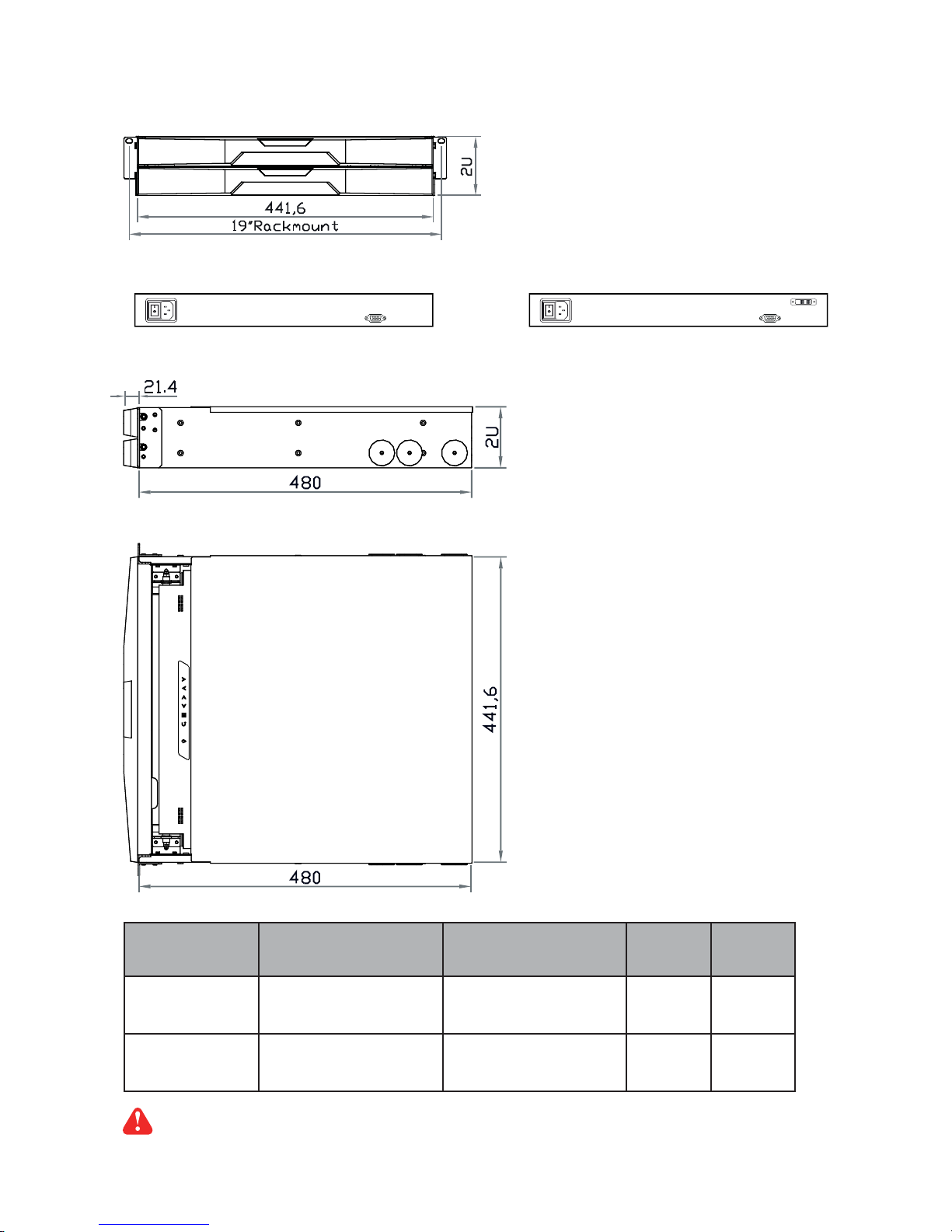

< 1.2 > Dimension
P. 2
Front View
UNIT : mm
1mm = 0.03937 inch
Top View
Side View

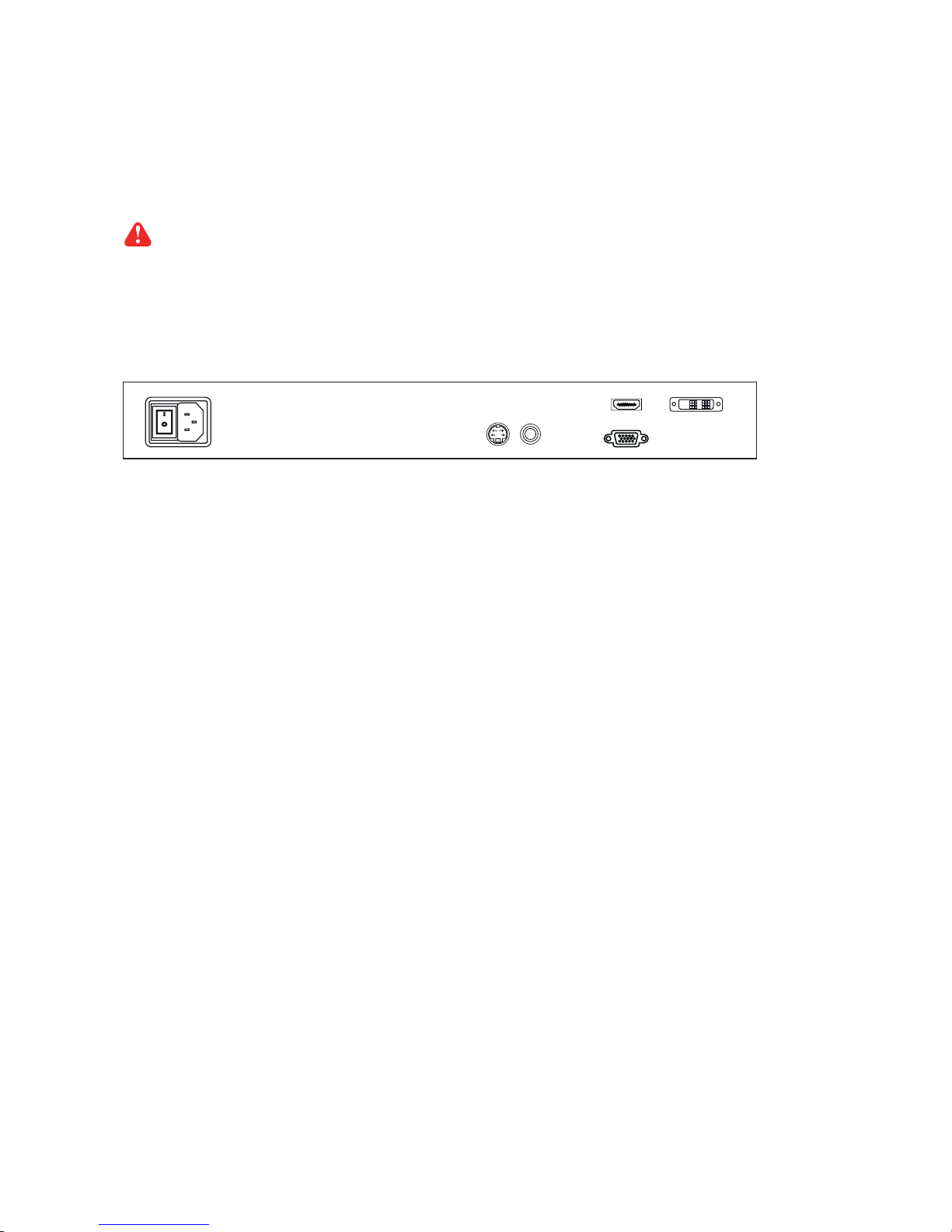

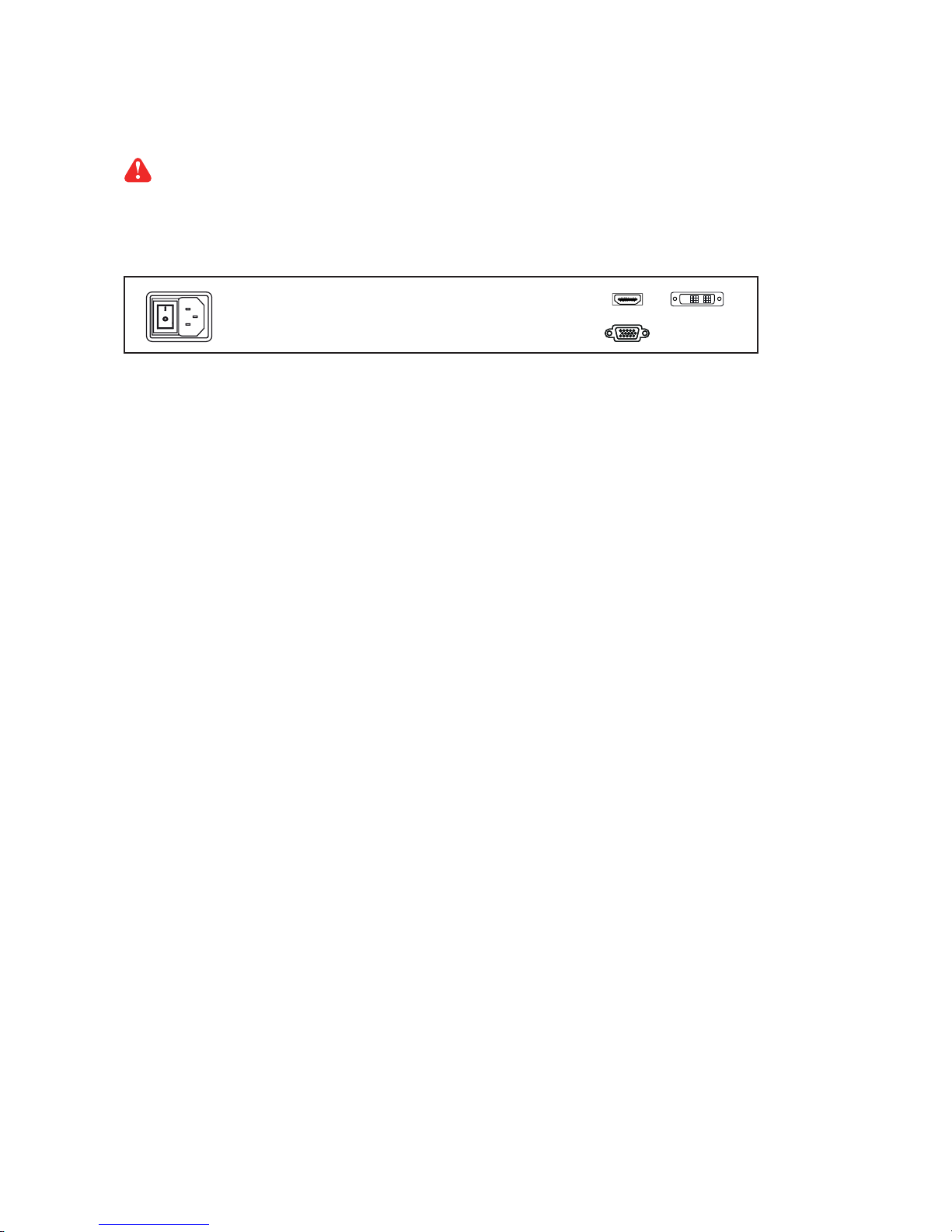

Rear View
Power
RKP2417 / RKP2419
VGA
Power
DVI-D
RKP2417F / RKP2417X
VGA
Page 8
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
■ Fix the LCD console drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
1

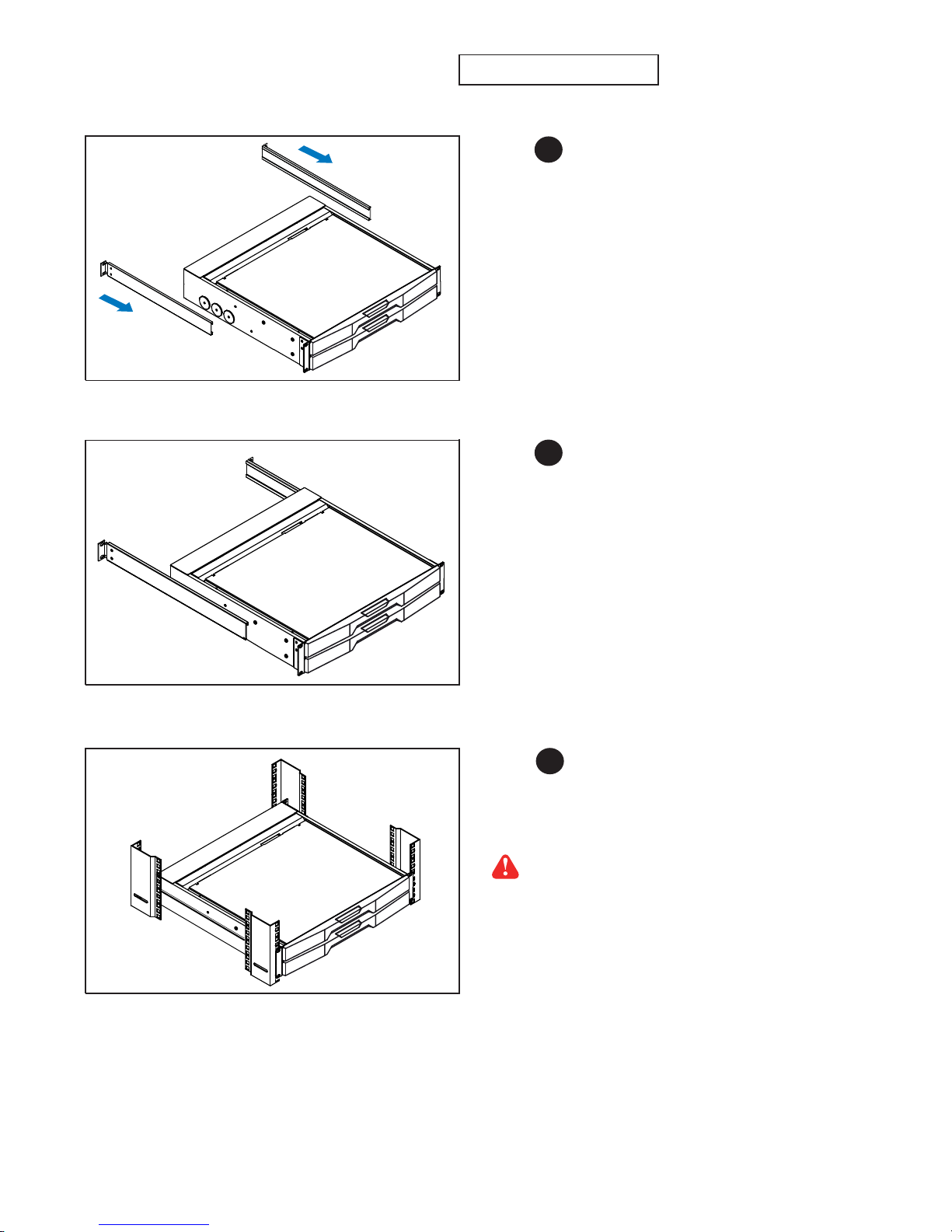

< 1.3 > Installation - How to install Installation Slides
P. 3
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
Page 9
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
P. 4
Figure 3.
Figure 2.
■ Pull and hold the black arrow button on either side
of the LCD console drawer to unlock.
(shown in Figure 2).
Figure 1.
■ A black arrow release button is located on the
front of each slide. (shown in Figure 1).
■ Push the LCD console drawer into the rack.
(shown in Figure 3).
Caution : Keep your fi ngers away from the slide
stop

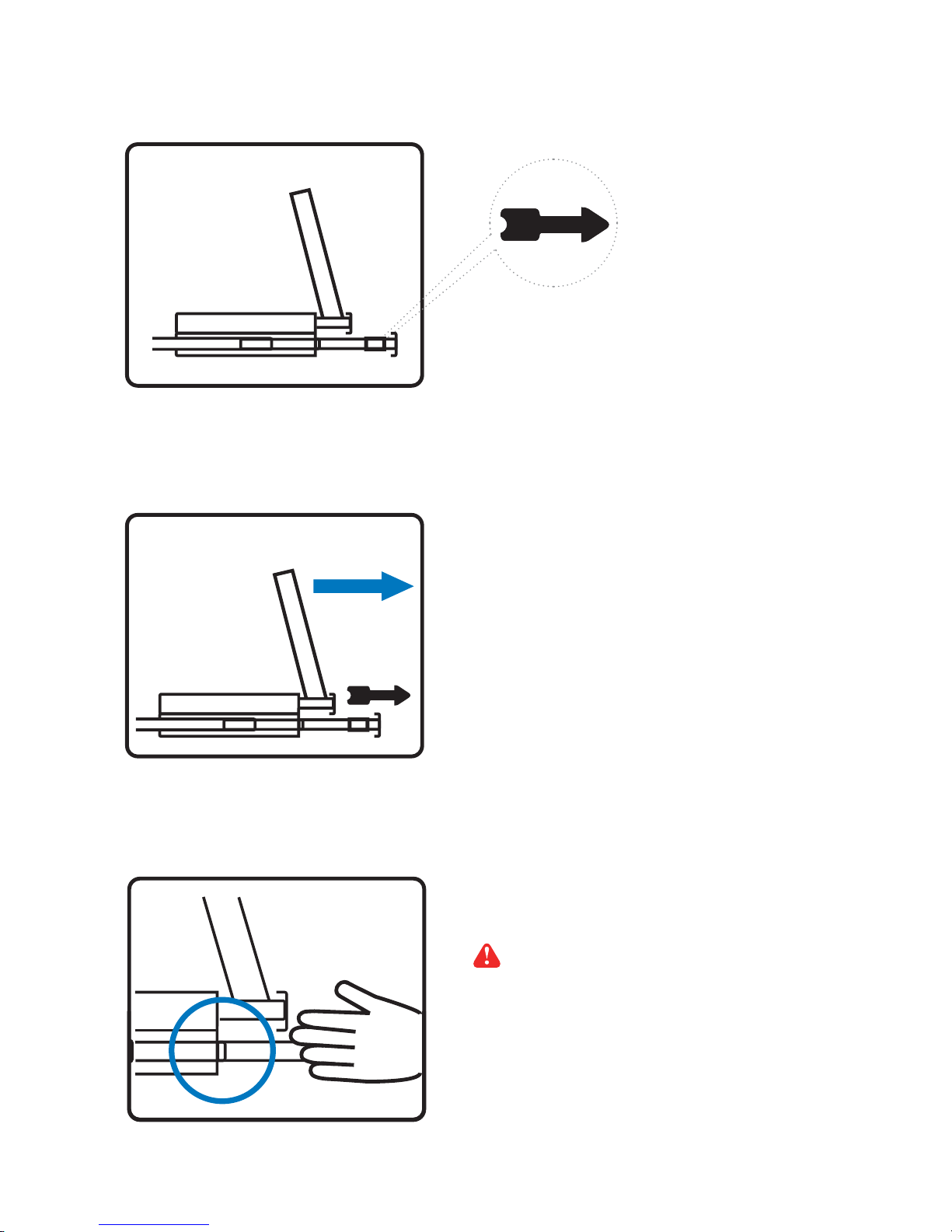

< 1.3 > Installation - How to Use the Dual Slides
Page 10
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
DVI-D KVM
LCD Console Drawer
DVI-D KVM
LCD Console Drawer
USB server
P. 5

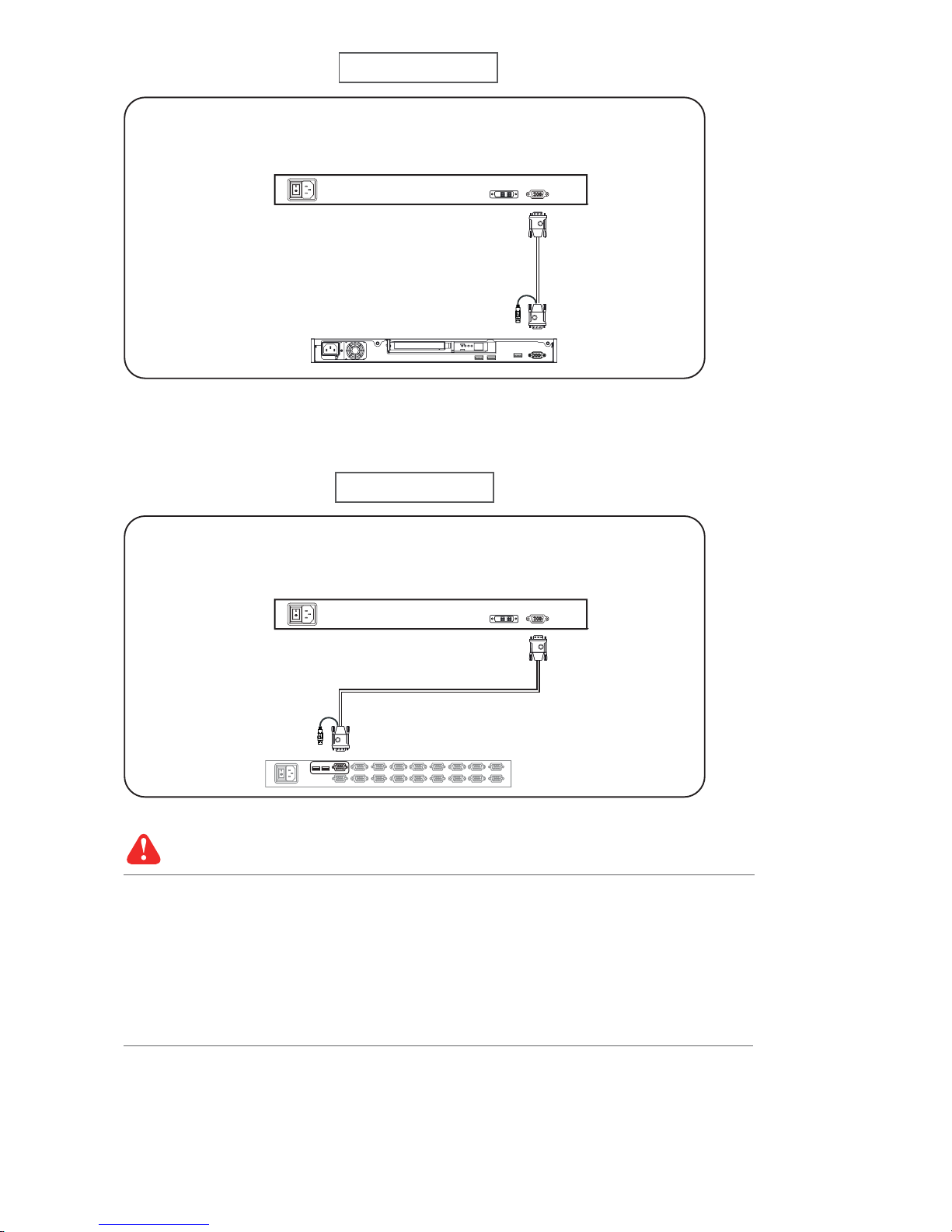

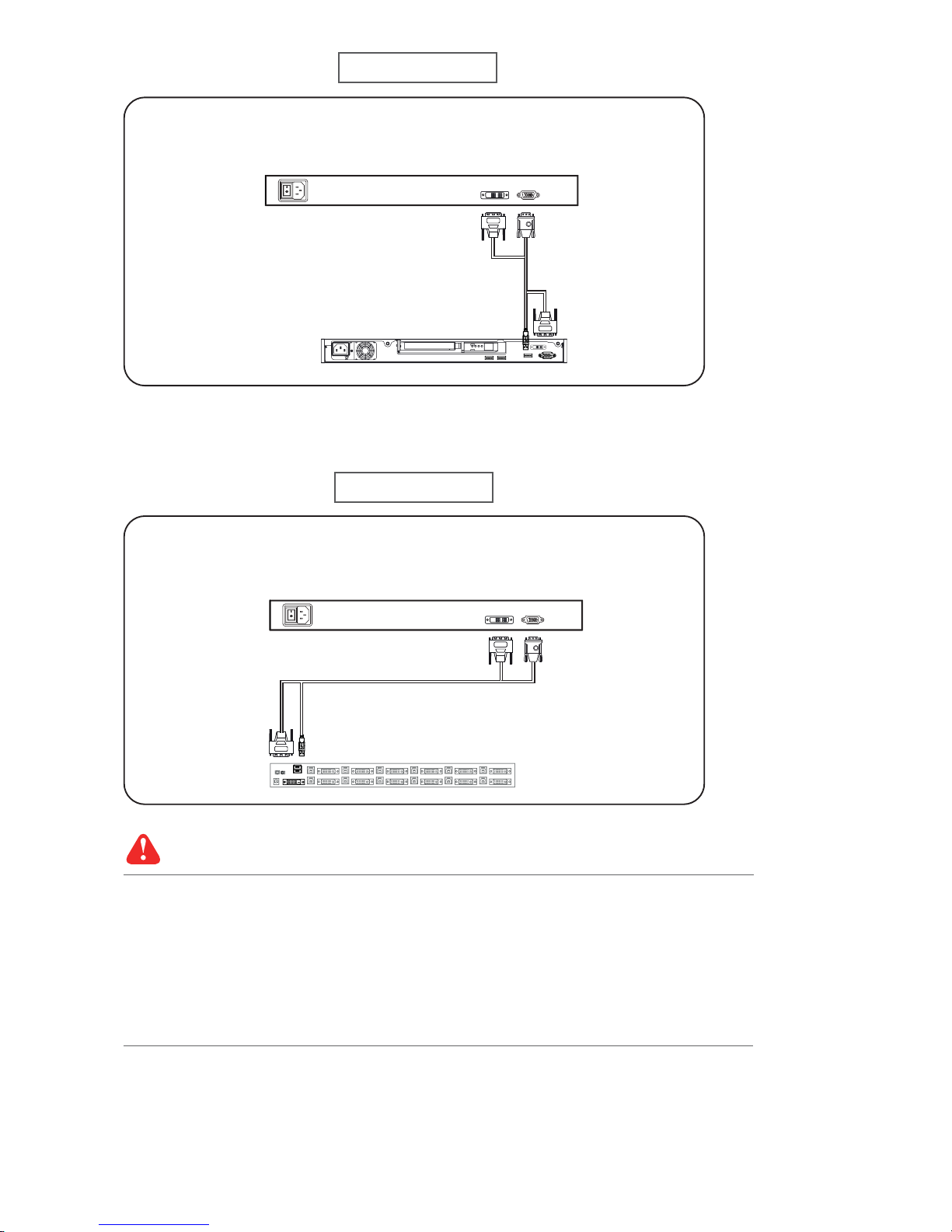

< 1.4 > Connection to USB Server via CB-6 cable
< 1.4 > Connection to external KVM via CB-6 cable
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
CB-6 VGA
console cable
USB console KVM
VGAUSB
USB VGA
CB-6 VGA
console cable
RKP2417 / RKP2419 / RKP2417F / RKP2417X
RKP2417 / RKP2419 / RKP2417F / RKP2417X
Page 11
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
P. 6

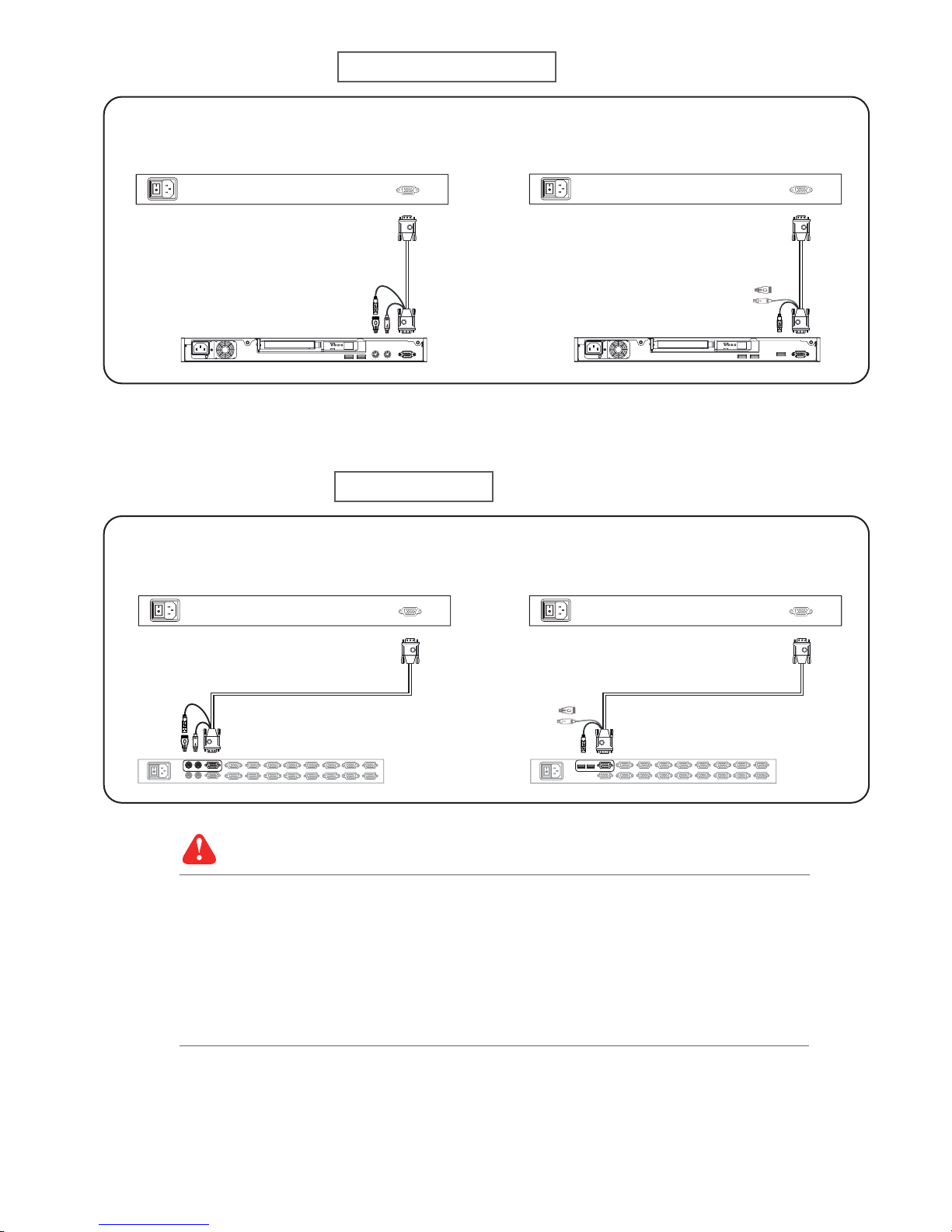

< 1.4 > Connection to PS/2 or USB Server via CE-6 cable
< 1.4 > Connection to external KVM via CE-6 cable
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
LCD console drawer LCD console drawer
KVM
CE-6 Combo
KVM cable
KVM
PS/2 server USB server
CE-6 Combo
KVM cable
CE-6 Combo
KVM cable
CE-6 Combo
KVM cable
PS/2 console KVM
LCD console drawer LCD console drawer
USB console KVM
KVM KVM
RKP2417 / RKP2419
RKP2417 / RKP2419
Page 12
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
P. 7
< 1.4 > Connection to USB Server via CX-6 cable
< 1.4 > Connection to external KVM via CX-6 cable
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
DVI-D
LCD Console Drawer
USB server
KVM
CX-6 DVI-D
console cable
Power
DVI-DUSB
DVI-D
DVI console KVM
LCD Console Drawer
Power
CX-6 DVI-D
console cable
DVI-D USB
KVM
RKP2417F / RKP2417X
RKP2417F / RKP2417X
Page 13
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
< 2.1 > Product Specifi cations - RKP2417 / 2419
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption for
Single Console
Screen ON Max. 25W
Power saving mode Max. 4W
Power button OFF Max. 1W
Power Consumption
with KVM integration
Screen ON Max. 55W
Power saving mode Max. 34W
*For details, please refer to our KVM rear kit user manuals
LCD
Panel
RKP2417 RKP2419
Manufacturer
Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD
Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024
Brightness ( typ. ) 250 250
Contrast Ratio ( typ. ) 1000:1 1000:1
Color 16.7 M 16.7 M
Viewing Angle ( L/R/U/D ) 85/85/80/80 85/85/80/80
Response Time ( ms ) 5 5
Dot pitch ( mm ) 0.264 0.294
Display Area ( mm ) 337.92H x 270.33V 376.32H x 301.06V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H 3H
Backlight Type LED LED
MTBF ( hrs ) 30,000 30,000
Regulatory Safety FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
P. 8
< Part 2 >
Video
Connectivity
Digital HDMI HDMI 1.2, CEA-861-D
DVI DVI-D, TMDS single link
Analog
VGA Analog 0.7Vp-p
Composite ( BNC ) NTSC & PAL
S-Video ( 4-pin ) NTSC & PAL
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Page 14
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Applicable
Format
DVI-D / VGA Input PC Signal 1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
Video Signal
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
Speaker Dual Stereo Speaker, 2 x 2W
Physical
Specifi cation
RKP2417 RKP2419
Product ( W x D x H )
441.6 x 480 x 88 mm 441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5 inch 17.4 x 18.9 x 3.5 inch
Packing ( W x D x H )
585 x 620 x 190 mm 585 x 620 x 190 mm
23 x 24.4 x 7.5 inch 23 x 24.4 x 7.5 inch
Net Weight 20.4 kgs / 44.9 lbs 20.5 kgs / 45.1 lbs
Gross Weight 24.8 kgs / 54.6 lbs 24.8 kgs / 54.6 lbs
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
P. 9
< 2.1 > Product Specifi cations - RKP2417 / 2419
Page 15
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Video
Connectivity
Digital HDMI HDMI 1.3, CEA-861-D
DVI DVI-D, TMDS single link
Analog VGA Analog 0.7Vp-p
Plug & Play DVI / VGA VESA EDID structure 1.3
Synchronization VGA Separate, Composite & SOG
Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
for Single Console
Screen ON Max. 25W Max. 34W
Power saving mode Max. 4W Max. 4W
Power button OFF Max. 1W Max. 1W
Power Consumption
with KVM integration
Screen ON Max. 55W Max. 59W
Power saving mode Max. 34W Max. 29W
*For details, please refer to our KVM rear kit user manuals
LCD
Panel
RKP2417F RKP2417X
Panel Size ( diagonal )
17.3-inch Widescreen TFT
color LCD
17.1-inch Widescreen TFT
color LCD
Display pixel ( dots x lines ) 1920 x 1080 1920 x 1200
Brightness ( typ. ) 400 210
Contrast Ratio ( typ. ) 600:1 600:1
Color 16.7 M, 8-bit 16.7 M, 8-bit
Viewing Angle ( L/R/U/D ) 80/80/60/80 65/65/55/55
Response Time ( ms ) 40 30
Dot pitch ( mm ) 0.1989 0.191
Display Area ( mm ) 381.888H x 214.812V 367.20H x 229.50V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H 3H
Backlight Type LED LED
MTBF ( hrs ) 50,000 20,000
< 2.1 > Product Specifi cations - RKP2417F / 2417X
P.10
Regulatory Safety FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
Page 16
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage / Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Physical
Specifi cation
RKP2417F RKP2417X
Product ( W x D x H )
441.6 x 480 x 88 mm 441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5 inch 17.4 x 18.9 x 3.5 inch
Packing ( W x D x H )
585 x 620 x 190 mm 585 x 620 x 190 mm
23 x 24.4 x 7.5 inch 23 x 24.4 x 7.5 inch
Net Weight 20.4 kgs / 44.9 lbs 20.4 kgs / 44.9 lbs
Gross Weight 24.8 kgs / 54.6 lbs 24.8 kgs / 54.6 lbs
Applicable
Format
DVI-D / VGA Input PC Signal 1920 x 1200 x 60Hz ( RKP2417X only )
1920 x 1080 x 60Hz ( RKP2417F only )
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
Video Signal
1080p : 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
Speaker Dual Stereo Speaker, 2 x 2W
P. 11
< 2.1 > Product Specifi cations - RKP2417F / 2417X
Page 17
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
OS support Windows / Linux / Unix / Mac OS
< 2.2 > Standard Keyboard / Mouse Specifi cations
G keyboard integrated with trackball
Gb
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Norway
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
G keyboard integrated with touchpad
Ge
P.12
Page 18
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
< 2.2 > MAC Keyboard / Mouse Options
F8F7 F8F8F7
F8F7 F8F8F7
MAC keyboard integrated with trackball
Mb
MAC keyboard integrated with touchpad
Me
P.13
How to Use "MAC" Keyboard
Keyboard Features
F1
Decrease display brightness
F9
Fast-forward
F2
Increase display brightness
F10
Mute sound
F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
F11
Decrease volume
F4
Dashboard
F12
Increase volume
F7
Rewind
Eject disc
F8
Play / Pause
Command
Supporting layouts
America
United States
Page 19
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
< 2.2 > SUN Keyboard / Mouse Options
P.14
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Num Caps Scroll ComposeNum Caps Scroll Compose
■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
■ US layout only
S keyboard integrated with touchpad / trackball
Num LED in Off mode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "S" Keyboard
S keyboard integrated with trackball
Sb
S keyboard integrated with touchpad
Se
Page 20
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off
Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will fl ash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2
P.15
< 2.3 > On-screen Display Operation ( OSD )
Page 21
< 2.2 > On-screen Display Operation ( OSD )
P.16
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
RKP2417 / RKP2419
RKP2417F
Picture mode : Standard / Vivid / Soft / User mode to choose
Brightness : Adjust background black level of the screen image
Contrast : Adjust the difference between the image background
(black level) and the foreground (white level)
Hue: Adjust the screen hue value
Saturation : Adjust the saturation of the image color
Picture size : Adjust the image size
Color temp : Standard / Cool / Warm / User to choose
Noise reduce : Reduce the noise of the image
Sharpness :
Adjust the image from weak to sharp
1
RKP2417X
Page 22
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
< 2.2 > On-screen Display Operation ( OSD )
PC
Auto adjust : Automatically adjust sizes, centers and fi ne tunes the
video signal to eliminate waviness and distortion.
Clock : Adjust the clock value
Phase : Adjust the phase value
H. Position : Align the screen image left or right
V. Position : Align the screen image up or down
2
MISC
Language : Select the language in which the OSD menu is
displayed - English
Sleep timer : Set the off time
PIP mode :
Adjust picture in picture setting
PIP position : Enter into PIP position
PIP source : Enter into the Sub source and sound source
System reset : Return the adjustment back to factory setting
Information : Select for Help
4
P.17
Audio
Audio mode : Movie / Voice / Normal / Music mode to choose
Volume : Adjust the volume of sound
Bass :
Set the value of bass sound
Treble : Set the value of treble sound
Balance : Set the balance value of treble and bass sound
Analog TV audio : Set the value of analog TV audio sound
Mute : Turn off the surrounding sound
3
Page 23
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
SDI
in - out
Power
KVM

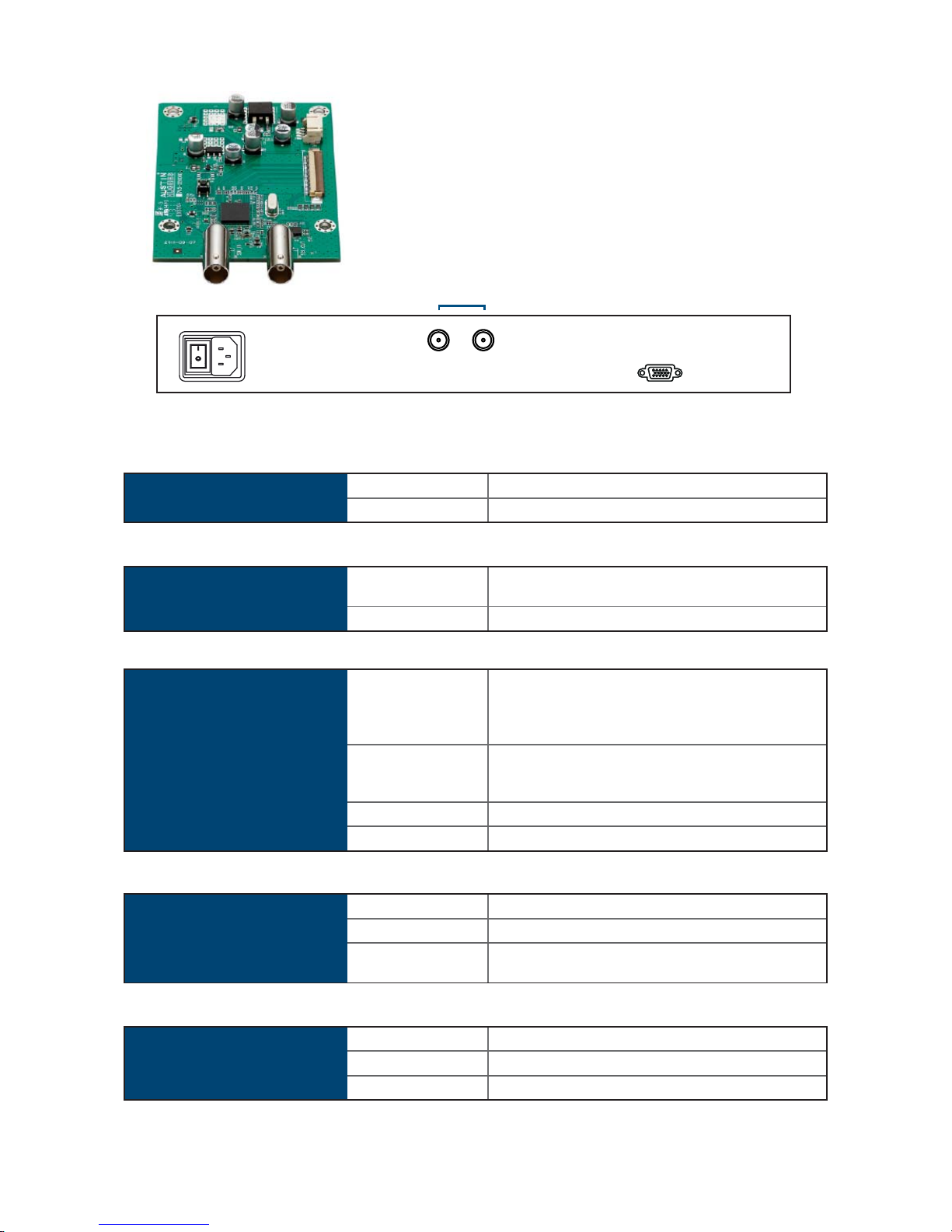

< 3.1 > RKP2417F Options : 3G / HD / SD-SDI input
P.18
< Part 3 >
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
Page 24
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fi x the issue.
Power
KVM
DVI-DHDMI
( HDMI 1.3, CEA-861-D )
- HDMI
< 3.1 > RKP2417F Options : HDMI
P.19
Page 25
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Model TRB e-Resistive
Technology
5-Wire Resistive
Touch Point
Single
Method
Stylus or Finger
Activation Force
≤ 50g / Stylus=R0.8
Durability
10 million touches
Response Time
15 ms
Optical Transmittance
80% ± 3%
Surface Hardness
3H
Haze
8% ± 3%
Glass
2.2 ±0.2 mm
Connector
USB Type A
Compatibility
Windows 7 / XP / Vista, Linux
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/software/lcd-console-drawer
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”

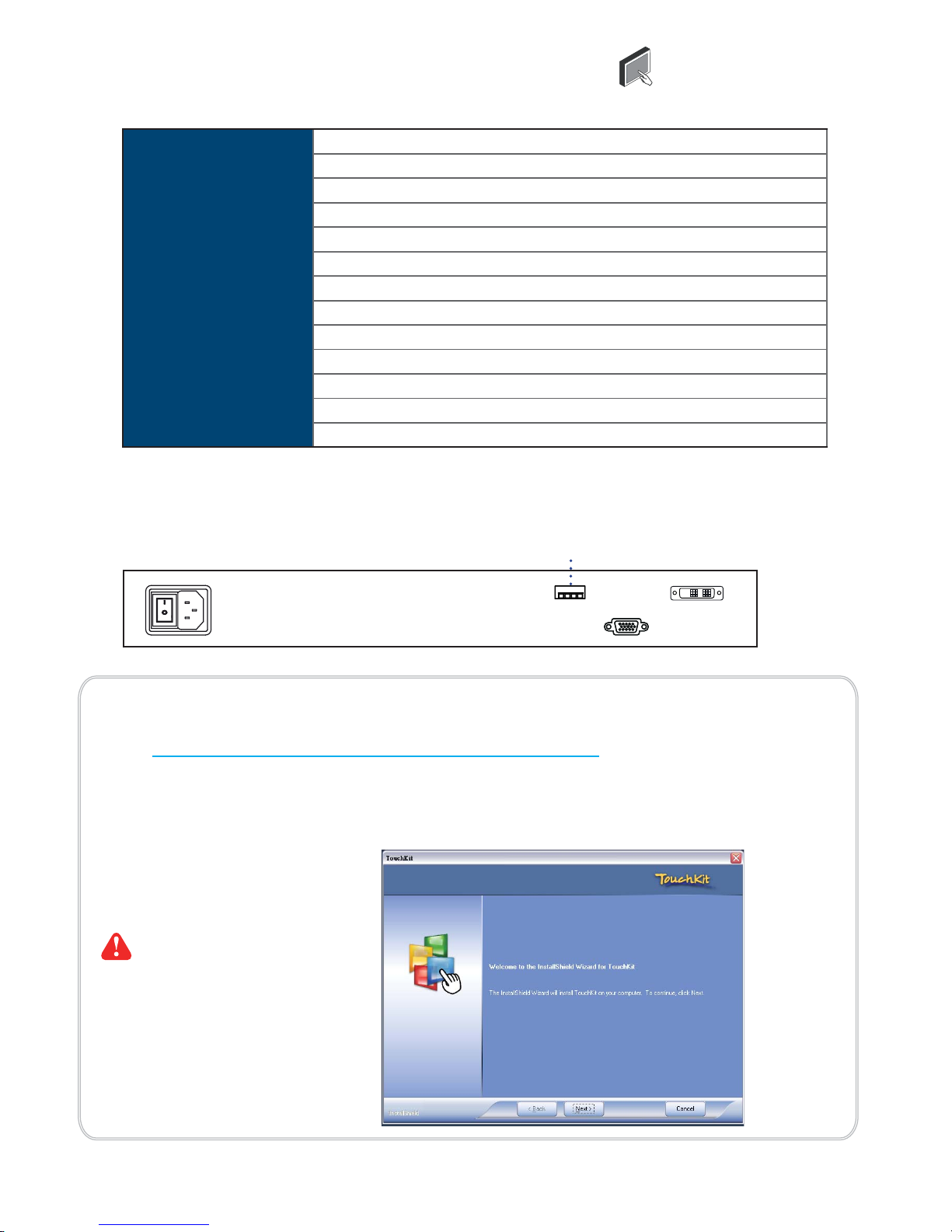

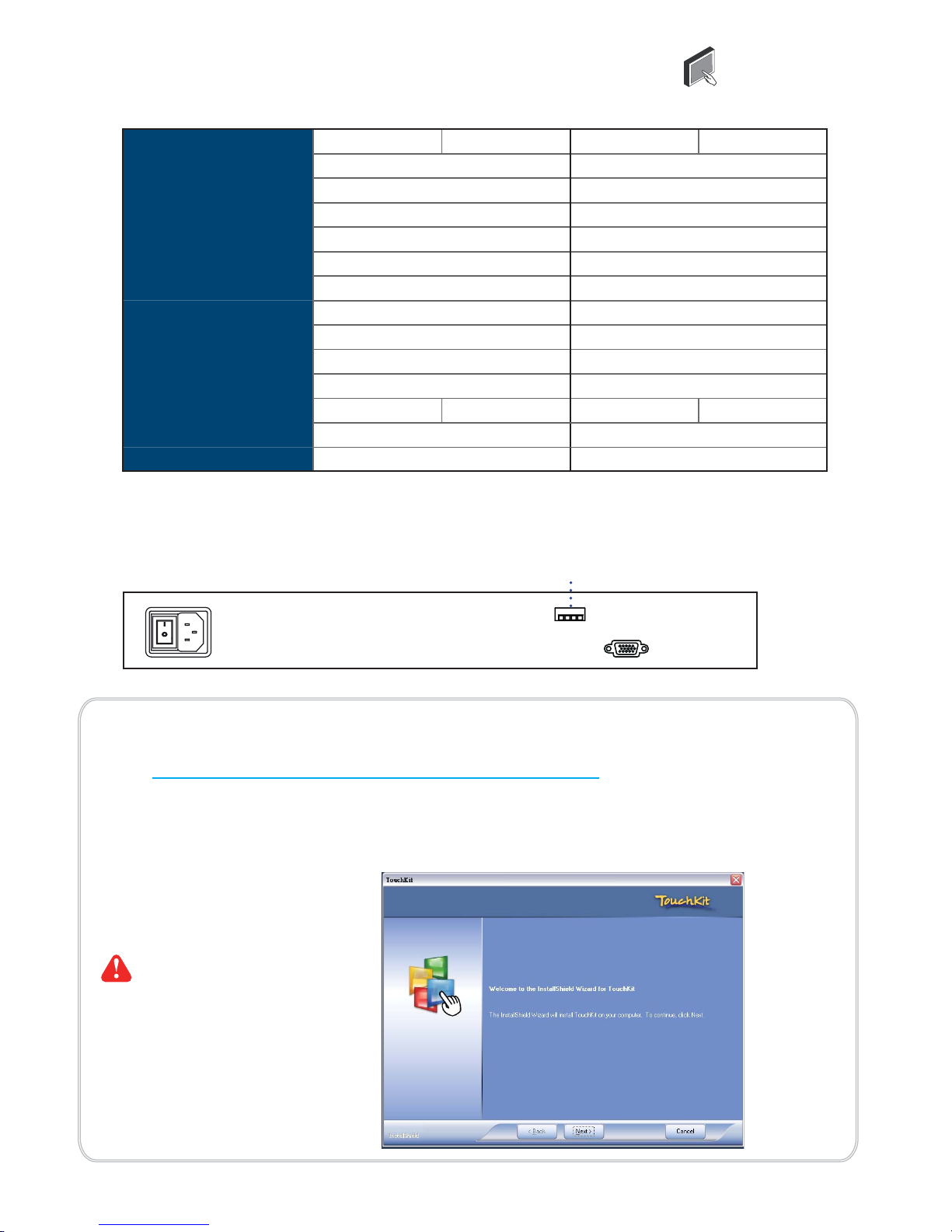

Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
USB Touchscreen
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
P.20
< 3.1 > RKP2417F Options : Touchscreen & driver
F17" USB Touchscreen Specifi cation
Power
KVM
DVI-D
Page 26
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( 1 ) If the unit with LCD, earthing may be required
( 2 ) DC option excludes AC power adapter and power cord.
For DC power option :
***
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Effi ciency 84% 85% 85% 91% 86%
KVM
DVI-D
DC power
< 3.1 > RKP2417F Options : DC Power
P.21
Page 27
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
SDI
in - out
Power
KVM
< 3.2 > RKP2417X Options : 3G / HD / SD-SDI input
P.22
Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberView displays, a SDI input
module can support up to 1080p @60Hz resolution without
using additional space or power and it comes standard with a
2-year warranty.
Page 28
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( HDMI 1.3, CEA-861-D )
- HDMI
( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fi x the issue.
Power
KVM
DVI-DHDMI
< 3.2 > RKP2417X Options : HDMI
P.23
Page 29
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Power
KVM
DVI-D
Model TRB e-Resistive
TCB e-Capacitive
Technology
5-Wire Resistive Capacitive
Touch Point
Single Single
Method
Stylus or Finger Finger
Activation Force
≤ 50g / Stylus=R0.8 ≤ 50g
Durability
10 million touches 300 million touches
Response Time
15 ms 20 ms
Optical Transmittance
80% ± 3% 92% ±2%
Surface Hardness
3H 9H
Haze
8% ± 3% 7%
Glass
2.2 ±0.2 mm 2.8 mm ±10%
Connector
USB Type A
Compatibility
Windows 7 / XP / Vista, Linux
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/software/lcd-console-drawer
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
USB Touchscreen
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
P.24
< 3.2 > RKP2417X Options : Touchscreen & driver
X17" USB Touchscreen Specifi cation
Page 30
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( 1 ) If the unit with LCD, earthing may be required
( 2 ) DC option excludes AC power adapter and power cord.
For DC power option :
***
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Effi ciency 84% 85% 85% 91% 86%
KVM
DVI-D
DC power
< 3.2 > RKP2417X Options : DC Power
P.25
Page 31
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fi x the issue.
( 2 ) For dual slide 1U / 2U LCD console drawer, the user can only select one of the above three options.
( DVI-D TMDS single link )
( HDMI 1.2, CEA-861-D )
- A V
- DVI-D
- HDMI
( S-Video + Composite, BNC )
Power
KVM
DVI-DHDMI
S-Video BNC
< 3.3 > RKP2417 / 2419 Options : HDMI / DVI-D / S-Video + BNC
P.26
Page 32
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
Power
KVM
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/resources/software/lcd-console-drawer
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
USB Touchscreen
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
Model
17’ 19”
17” 19”
TRB e-Resistive TCB e-Capacitive
Technology
5-Wire Resistive Capacitive
Touch Point
Single Single
Method
Stylus or Finger Finger
Activation Force
≤ 50g / Stylus=R0.8 ≤ 50g
Durability
35 million touches 300 million touches
Response Time
15 ms 20 ms
Optical Transmittance
80% ± 3% 93% ±2%
Surface Hardness
3H 9H
Haze
8% ± 3% 7%
Glass
1.4 ±0.2 mm 3.2 ±0.2 mm 2.8 mm ±10% 2.8 mm ±10%
Connector
USB Type A USB Type A
Compatibility
Windows 7 / XP / Vista, Linux Windows 7 / XP / Vista, Linux
P.27
< 3.3 > RKP2417 / 2419 Options : Touchscreen & driver
17” / 19" USB Touchscreen Specifi cation
Page 33
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
( 1 ) If the unit with LCD, earthing may be required
( 2 ) DC option excludes AC power adapter and power cord.
For DC power option :
***
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Effi ciency 84% 85% 85% 91% 86%
DC power
KVM
< 3.3 > RKP2417 / 2419 Options : DC Power
P.28
Page 34
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
< Part. 4 > KVM Integration
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf
Matrix
Cat6 KVM
Local Remote 8-port 16-port 32-port
111
- -MUIP1613 -MUIP3213
112
- -MUIP1624 -MUIP3224
110
- -MU1602 -MU3202
120
- -MU1603 -MU3203
1 3 0 - -MU1604 -MU3204
Combo
Cat6 KVM
Local Remote 8-port 16-port 32-port
101
-UIP802 -UIP1602 -UIP3202
110
-U802 -U1602 -U3202
1 0 0 -U801 -U1601 -U3201
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf
Combo
DB-15 KVM
Local Remote 8-port 16-port 32-port
101
-IP802 -IP1602 -
110
-802 -1602 -
1 0 0 -S801 -S1601 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf
Matrix
DB-15 KVM
Local Remote 8-port 16-port 32-port
111
-MIP813 -MIP1613 -
112
-MIP824 -MIP1624 -
110
-M802 -M1602 -
120
-M803 -M1603 -
1 3 0 -M804 -M1604 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MKVM-KIT.pdf
DVI-D
KVM
Local Remote 12-port - -
1 0 0 -1201D - -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf
P.29
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net Weight Gross Weight
RKP2417 with KVM
RKP2417F with KVM
RKP2417X with KVM
441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5"
585 x 620 x 190 mm
23 x 24.4 x 7.5”
21.1 kg
46.4 lb
27 kg
59.4 lb
RKP2419 with KVM
441.6 x 480 x 88 mm
17.4 x 18.9 x 3.5"
585 x 620 x 190 mm
23 x 24.4 x 7.5”
21.5 kg
47.3 lb
27.4 kg
60.3 lb
Cat6 KVM not applicable to the models of RKP2417X
Page 35
Page 36
UM-CV-751-RKP2417-Q317V5 www.austin-hughes.com
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2017 Austin Hughes Electronics Ltd. All rights reserved.
Loading...
