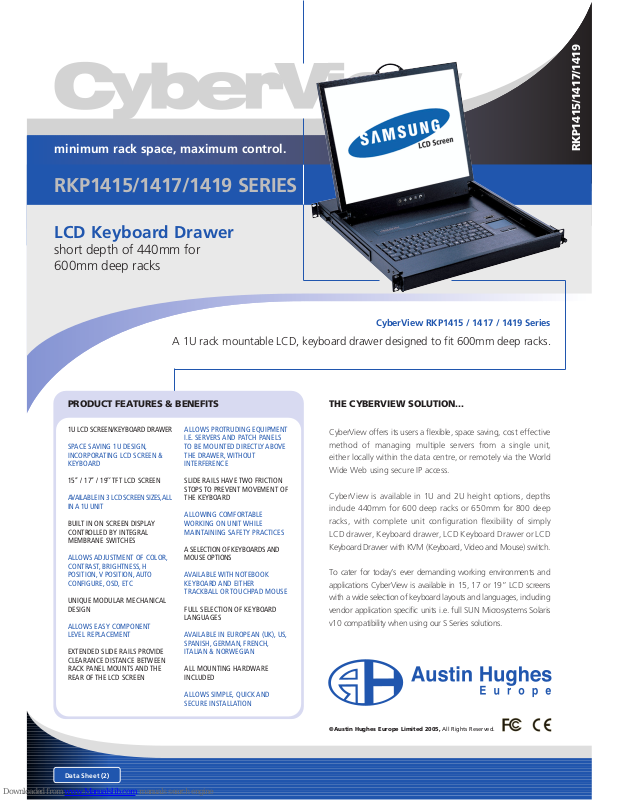

Page 1
CyberView RKP1415 / 1417 / 1419 Series
A 1U rack mountable LCD, keyboard drawer designed to fit 600mm deep racks.
RKP1415/1417/1419 SERIES
LCD Keyboard Drawer
short depth of 440mm for
600mm deep racks
minimum rack space, maximum control.
©Austin Hughes Europe Limited 2005, All Rights Reserved.
CyberView offers its users a flexible, space saving, cost effective
method of managing multiple servers from a single unit,
either locally within the data centre, or remotely via the World
Wide Web using secure IP access.
CyberView is available in 1U and 2U height options, depths
include 440mm for 600 deep racks or 650mm for 800 deep
racks, with complete unit configuration flexibility of simply
LCD drawer, Keyboard drawer, LCD Keyboard Drawer or LCD
Keyboard Drawer with KVM (Keyboard, Video and Mouse) switch.
To cater for today’s ever demanding working environments and
applications CyberView is available in 15, 17 or 19” LCD screens
with a wide selection of keyboard layouts and languages, including
vendor application specific units i.e. full SUN Microsystems Solaris
v10 compatibility when using our S Series solutions.
THE CYBERVIEW SOLUTION...
1U LCD SCREEN/KEYBOARD DRAWER
SPACE SAVING 1U DESIGN,
INCORPORATING LCD SCREEN &
KEYBOARD
15’’ / 17’’ / 19’’ TFT LCD SCREEN
AVAILABLE IN 3 LCD SCREEN SIZES,ALL
IN A 1U UNIT
BUILT IN ON SCREEN DISPLAY
CONTROLLED BY INTEGRAL
MEMBRANE SWITCHES
ALLOWS ADJUSTMENT OF COLOR,
CONTRAST, BRIGHTNESS, H
POSITION, V POSITION, AUTO
CONFIGURE, OSD, ETC
UNIQUE MODULAR MECHANICAL
DESIGN
ALLOWS EASY COMPONENT
LEVEL REPLACEMENT
EXTENDED SLIDE RAILS PROVIDE
CLEARANCE DISTANCE BETWEEN
RACK PANEL MOUNTS AND THE
REAR OF THE LCD SCREEN
ALLOWS PROTRUDING EQUIPMENT
I.E. SERVERS AND PATCH PANELS
TO BE MOUNTED DIRECTLY ABOVE
THE DRAWER, WITHOUT
INTERFERENCE
SLIDE RAILS HAVE TWO FRICTION
STOPS TO PREVENT MOVEMENT OF
THE KEYBOARD
ALLOWING COMFORTABLE
WORKING ON UNIT WHILE
MAINTAINING SAFETY PRACTICES
A SELECTION OF KEYBOARDS AND
MOUSE OPTIONS
AVAILABLE WITH NOTEBOOK
KEYBOARD AND EITHER
TRACKBALL OR TOUCHPAD MOUSE
FULL SELECTION OF KEYBOARD
LANGUAGES
AVAILABLE IN EUROPEAN (UK), US,
SPANISH, GERMAN, FRENCH,
ITALIAN & NORWEGIAN
ALL MOUNTING HARDWARE
INCLUDED
ALLOWS SIMPLE, QUICK AND
SECURE INSTALLATION
PRODUCT FEATURES & BENEFITS
RKP1415/1417/1419
Data Sheet (2)
Page 2
RKP1415/1417/1419 SERIES
LCD Keyboard Drawer
short depth of 440mm for
600mm deep racks
Data Sheet (2)
LCD SPECIFICATION RKP1415/1417/1419 SERIES
PANEL 15’’ LCD SERIES 17’’ LCD SERIES 19’’ LCD SERIES 20” LCD SERIES
DISPLAY TYPE Active matrix TFT colour LCD Active matrix TFT colour LCD Active matrix TFT colour LCD -------
MAX RESOLUTION 1024 x 768 XGA 1280 x 1024 SXGA 1280 x 1024 SXGA -------
PIXEL PITCH 0.297(H) x 0.297(W) mm 0.264(H) x 0.264(W) mm 0.294(H) x 0.294(W) mm -------
CONTRAST RATIO 300:1 500:1 700:1 -------
BRIGHTNESS 450 cd/ m2 300 cd / m2 300 cd / m2 -------
RESPONSE TIME Tr=5 / Tf=20 ms Tr=3 / Tf=10 ms Tr=15 / Tf=10ms -------
DISPLAY COLOURS 16.2M 16.2M 16.7M -------
VIEWING ANGLE (TYPICAL) 140 (Horiz.) / 115 (Vert.) 150 (Horiz.) / 135 (Vert.) 150 (Horiz.) / 135 (Vert.) -------
OPERATING TEMP (
O
C) 0 to 50 0 to 50 0 to 50 -------
STORAGE TEMP (
O
C) -25 to 60 -25 to 60 -25 to 60 -------
SIZE SPECIFICATION
UNIT TYPE 15’’ UNIT 17’’ UNIT 19’’ UNIT 20” UNIT
UNIT DIMENSIONS (CM) 44.2 x 4.45 x 44 44.2 x 4.45 x 44 44.2 x 4.45 x 48 -------
PACKAGED DIMENSIONS (CM) 69 x 18 x 57 69 x 18 x 57 69 x 18 x 57 -------
UNIT WEIGHT (KG) 14 15 17 -------
PACKAGED WEIGHT (KG) 16 17 19 -------
POWER SUPPLY
REMOTE ADAPTER 110V-220V AC Input - 12V 5A Output
ADAPTER SIZE 10.8(L) x 6.1 (W) x 3(H) cm
CABLE LENGTH (MAINS TO ADAPTER) 182cm
CABLE LENGTH (ADAPTER TO UNIT) 180cm
SAFETY APPROVAL UL / CE
OPTIONS AVAILABLE:
AV INPUT DC INPUT TOUCHSCREEN
KEYBOARDS Supporting Layouts
‘E’ TYPE KEYBOARD ‘B’ TYPE KEYBOARD ‘D’ TYPE KEYBOARD ‘T’ TYPE KEYBOARD
Notebook With Touch Pad Mouse Notebook With Trackball Mouse Compact With Integrated Trackball Compact With Integrated Touch-pad Mouse
NOT AVAILABLE NOT AVAILABLE
NOTE: Technical Information.
All information contained in this
information sheet was correct at
the time of going to press.
Images are used for illustration
purposes and are subject to
change at the manufacturers
discretion. E&OE.
