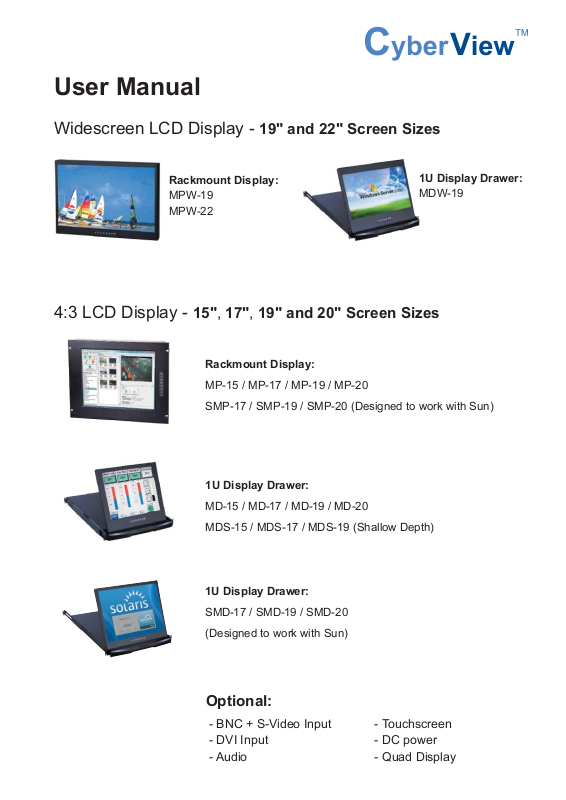

User Manual
Widescreen LCD Display - 19" and 22" Screen Sizes
Rackmount Display:
MPW-19
MPW-22
1U Display Drawer:
MDW-19
4:3 LCD Display - 15", 17", 19" and 20" Screen Sizes
Rackmount Display:
MP-15 / MP-17 / MP-19 / MP-20
SMP-17 / SMP-19 / SMP-20 (Designed to work with Sun)
1U Display Drawer:
MD-15 / MD-17 / MD-19 / MD-20
MDS-15 / MDS-17 / MDS-19 (Shallow Depth)
1U Display Drawer:
SMD-17 / SMD-19 / SMD-20
(Designed to work with Sun)
Optional:
- BNC + S-Video Input - Touchscreen
- DVI Input - DC power
- Audio - Quad Display
Contents
Chapter 1 Getting Started
1.1
1.2
1.3
1.4
1.5
1.6
Important Safeguards.........................................................1
Regulatory Notice...............................................................2
Before Installation...............................................................3
Unpacking...........................................................................3
Optional Accessories..........................................................3
Peripheral Products............................................................4
Part 1 Widescreen LCD Display
Chapter 2 MPW-19 & MPW-22
2.1
2.2
2.3
2.4
Package Contents...............................................................5
Structure Diagram...............................................................6
Installation.......................................................................7-8
Connection.........................................................................9
Chapter 3 MDW-19
3.1
3.2
3.3
3.4
3.5
Package Contents.............................................................10
Structure Diagram.............................................................11
How to Install “One Man” Installation Slides................12-13
How to Use the Slides......................................................14
Connection.......................................................................15
Chapter 4 Operation
4.1
4.2
On-6creen Display Operation............................................16
On-6creen Menu...............................................................17
Chapter 5 Optional Specifi cation
5.1
5.2
5.3
5.4
5.5
5.6
5.7
DVI-D Option.....................................................................18
BNC + S-Video Option.......................................................19
AudioOption.....................................................................20
Touchscreen Options...................................................21-22
Front NEMA / IP65 Option ................................................23
Quad Display Option.........................................................24
DC Power Options............................................................25
Part 2 4:3 LCD Display
Chapter 6 MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
6.1
6.2
6.3
6.4
Package Contents............................................................26
Structure Diagram............................................................27
Installation...................................................................28-29
Connection.......................................................................30
Chapter 7 MD-20
SMD-20
MD-15, MD-17 & MD-19
SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
7.1
7.2
7.3
7.4
7.5
Package Contents.............................................................31
Structure Diagram.............................................................32
How to Install “One Man” Installation Slides................33-34
How to Use the Slides......................................................35
Connection.......................................................................36
Chapter 8 Operation
8.1
8.2
On-6creen Display Operation............................................37
On-6creen Menu...............................................................38
Chapter 9 Optional Specifi cation
9.1
9.2
9.3
9.4
9.5
9.6
9.7
DVI-D Option.....................................................................39
BNC + S-Video Option.......................................................40
Audio Option................................................................41-42
Touchscreen Options...................................................43-44
Front NEMA / IP65 Option.................................................45
Quad Display Option.........................................................46
DC Power Options............................................................47
Chapter 10 LCD Specifi cations...............................................48-50
Chapter 11 Troubleshooting..........................................................51
Chapter 12 Dimensions.................................................................52-53
1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi -
cation, or failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
1.2 Regulatory Notice Chapter 1
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equip
ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equip-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Reposition or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
P. 2
1.5 Optional Accessories
■
It is very important to locate the Rackmount LCD Drawer / Display in a suitable environment.
■ The surface for placing and fi xing the Rackmount LCD Drawer / Display should be stable and level or mounted into a
suitable cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■ Convenience for connecting the Rackmount LCD Drawer / Display to the related facilities should be well considered
too.
The Rackmount LCD Drawer / Display comes with the standard parts shown on the package contents. Check and make
sure they are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.4 Unpacking
1.3 Before Installation
Chapter 1
P. 3
1. Power Cord
1.1 IEC power cord
1.2 NEMA 5-15 power cord (US)
1.3 BS 1363 power cord (UK)
1.4 CEE 7/4 power cord (German)
1.5 AS 3112 power cord (Australia)
1.6 Peripheral Products (Keyboard Models) Chapter 1
Item Model No. Description
16-Cat6-M2X / M3X / M4X
Matrix Cat6 KVM
Matrix DB-15 KVM
Combo Cat6 KVM
Combo DB-15 KVM
PS/2 DB-15 KVM 4 / 8 / 16 4 / 8 / 16 Port PS/2 DB-15 KVM
Keyboard Drawer
16-Cat6-M3X-IP / M4X-IP / M4X-2IP
16-Cat6-M2X / M3X / M4X
16-Cat6-M3X-IP / M4X-IP / M4X-2IP
8-M2X / M3X / M4X
8-M3X-IP / M4X-IP / M4X-2IP
16-M2X / M3X / M4X
16-M3X-IP / M4X-IP / M4X-2IP
8-Cat6 / 8-Cat6-2X / 8-Cat6-IP
16-Cat6 / 16-Cat6-2X / 16-Cat6-IP
32-Cat6 / 32-Cat6-2X / 32-Cat6-IP
8-USB / 8-2X / 8-IP
16-USB / 16-2X / 16-IP
KD1
KD2
Matrix Cat6 16Port KVM
Matrix IP Cat6 16Port KVM
Matrix Cat6 32Port KVM
Matrix IP Cat6 32Port KVM
Matrix DB-15 8Port KVM
Matrix IP DB-15 8Port KVM
Matrix DB-15 16Port KVM
Matrix IP DB-15 16Port KVM
Combo Cat6 8Port KVM
Combo Cat6 16Port KVM
Combo Cat6 32Port KVM
Combo DB-15 8Port KVM
Combo DB-15 16Port KVM
Rackmount Keyboard Drawer (With KVM Options)
Rackmount Keyboard Drawer (Short Depth)
P. 4
2.1 Package Contents Chapter 2
User
M
anual
MPW-19 & MPW-22
1
3
6
4
7
2
5
Rackmount LCD display x 1 pc
1
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
2
6’ VGA cable (male to male) x 1 pc
3
Power cord x 1 pc
4
Auto switch power adapter x 1 pc
5
M3.2*4.5mm screw x 4 pcs
6
Power adapter bracket x 1 pc
7
P.5
2.2 Structure Diagram Chapter 2
MPW-19 & MPW-22
Power adapter
Front view Rear view
3
1
2
Power cord
1
LCD interchangeable module kit
LCD membrane
2
Power adapter bracket
3
Power adapter bracket installation
M3.2*4.5mm screw x 4 pcs
P. 6
2.3 Installation Chapter 2
MPW-19
■ Install each screw shown in Figure 1.
Figure 1.
■ Fix the LCD into the rack.
* M6 screws are not provided.
Figure 2.
P. 7
2.3 Installation Chapter 2
MPW-22
1
Figure 3.
■ Install each screw shown in Figure 3.
* M6 screws are not provided.
2
Figure 4.
■ Insert the upper part of the LCD display to the rack shown
in Figure 4.
Figure 5.
■ Push the lower part of the LCD into the rack.
43
Figure 6.
■ Installation completed.
P. 8
2.4 Connection Chapter 2
MPW-19 & MPW-22
DB-15 VGA female connector Power input
Caution : The Rackmount LCD Drawer & Display are hot-pluggable, but components of
connected devices, such as the servers and KVM switch, may not be hot-pluggable. Plug-
ging and unplugging cables while servers and KVM are powered on may cause irreversible
damage of the servers, KVM and Rackmount LCD Drawer
anything to the Rackmount LCD Drawer, we suggest turning off power to all devices before
connecting them. Apply power to connected devices again only after the Rackmount LCD
Drawer is receiving power. The VXSSOLHU is not responsible for damage caused in this
way.
. Before attempting to connect
P. 9
3.1 Package Contents Chapter 3
User
Manual
MDW-19
1
5
6
32
4
7
8
LCD drawer x 1 pc
1
6’ VGA cable (male to male) x 1 pc
2
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
3
Power cord x 1 pc
4
Mounting bracket x 2 pcs
5
M6*15mm screw x 8 pcs
6
M6 cage nut x 6 pcs
7
Cup washer x 8 pcs
8
P.10
LCD interchangeable module kit
“One Man” Installation Slide
LCD membrane
1
1
2
2
3
Carry handle to release the 2-pt lock
2-point lock
3
3.2 Structure Diagram Chapter 3
4
5
4
5
P. 11
MDW-19
3.3 How to Install "One Man" Installation Slides Chapter 3
InstallLQJ into rack
Rear side
Left bracket
Right bracket
Front side
Right front
Left front
1
■ Attach the left and right mounting bracket to rack 19”
mounting rails.
■ Adjust the rear mouting bracket to fi t your rack.
■ M6 screw and cup washer x 6 pcs included.
Caution : LeavH the screws slightly loose until
you complete the installation in step
4
Black arrow button
2
Mounting bracket
■ Pick up the LCD drawer.
■ Insert the LCD drawer into the mounting bracket.
■ Pull and hold the left & right black arrow buttons on the rails.
■ Return the LCD drawer to park position.
P.12
P.13
3.3 How to Install "One Man" Installation Slides Chapter 3
4
3
■ Tighten all 8 pcs of M6 screw to complete the installation.
■ Attach front left and right mounting ears of the LCD
drawer to vertical mounting rails.
■ M6 screw and cup washer x 2 pcs included.
Complete the installation
3.4 How to Use the Slides Chapter 3
I
I
MDW-19
L
Figure 7.
■ A black arrow release button is located on the
outside of each slide. (shown in Figure 7).
Figure 8.
Figure 9.
L
■ Pull and hold the black arrow button on either
side of the LCD drawer to unlock.
(shown in Figure 8).
■ Push the LCD drawer into the rack. (shown in
Figure 9).
Caution : Keep your ngers away from the
slide stop
P.14
3.5 Connection Chapter 3
MDW-19
VGAPower
Caution : The Rackmount LCD Drawer & Display are hot-pluggable, but components of
connected devices, such as the servers and KVM switch, may not be hot-pluggable. Plug-
ging and unplugging cables while servers and KVM are powered on may cause irreversible
damage of the servers, KVM and Rackmount LCD Drawer
anything to the Rackmount LCD Drawer, we suggest turning off power to all devices before
connecting them. Apply power to connected devices again only after the Rackmount LCD
Drawer is receiving power. The VXSSOLHU is not responsible for damage caused in this
way.
. Before attempting to connect
P.15
4.1 On-6creen Display Operation Chapter 4
MPW-19 & MPW-22
LCD membrane
MDW-19/RP-W119
Membrane Switch Function
Power light
Green = On
Orange = Power saving
Power on / off LCD
Display the OSD menu
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
LCD membrane
P.16
4.2 On-6creen Menu Chapter 4
MPW-19, MPW-22 & MDW-19
OSD Confi guration Page
Image:
To open the brightness, contrast, color temp, red, green, and
blue controls
Geometry:
To open the auto adjust, H position, V position, phase and
clock controls
Video:
To open the color, tint, sharpness, noise reduction, DCDi and
TV Setup controls
Audio:
To open volume, bass, treble, balance, AVL and mute controls
Misc:
To open the language, OSD position, graphic mode, ratio,
reset and timer controls
P.17
5.1 DVI-D Option Chapter 5
MPW-19 & MPW-22
DVI-DVGA Power
MDW-19
Power
3OHDVH1RWH
■ Package includes 1 x 6ft DVI-D cable
DVI-D
VGA
P.18
5.2 BNC + S-Video Option Chapter 5
MPW-19 & MPW-22
VGA PowerS-Video BNC
MDW-19
Power
3OHDVH1RWH
■ Package includes 1 x 6ft S-Video cable
VGAS-Video BNC
P.19
5.3 Audio Option Chapter 5
MPW-19 & MPW-22
Speaker
VGA PowerAudio
MDW-19
Power
Audio
Speaker
VGA
3OHDVH1RWH:
■ Audio input is 35mm audio plug
■ The speaker is sharing the same power with LCD.
P.20
5.4 Touchscreen Options Chapter 5
MPW-19 & MPW-22
USB interface
USBVGA Power
Serial interface
SerialVGA Power
P.21
5.4 Touchscreen Options Chapter 5
P.22
e-Resistive
Model -19WTRB / -19WTRS -22WTRB / -22WTRS
Screen size 19" wide 22" wide
Interface USB / serial
Optical transmittance 80% ± 3%
Surface hardness ≥3H (JIS K5400)
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Capacitive
Model -19WTCB / -19WTCS -22WTCB / -22WTCS
Screen size 19" wide 22" wide
Interface USB / serial
Optical transmittance 93% ± 2%
Surface hardness >9H Surface hardness, withstand over 300 million touches
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
3OHDVH1RWH
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ Serial touchscreen package includes 1 x 6ft serial cable, quick reference guideline and CD disc
■ For detailed information, please refer to the CD discLQFOXGHGZLWKWKHWRXFKVFUHHQ
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
■ Touchscreen in other brands are available on request
5.5 Front NEMA 4 / IP65 Option Chapter 5
MPW-19 & MPW-22
3
1
2
4
1
Rear case
2
LCD panel
3
4mm protective glass (Front NEMA 4 / IP65 protection)
Aluminum front panel
4
3OHDVH1RWH
■ 4mmWKLFNQHVVRISURWHFWLYHJODVVLVQRWUHLQIRUFHGSOHDVHKDQGOHLWFDUHIXOO\
P.23
5.6 Quad Display Option Chapter 5
Specifi cations
RS-232
Alarm I/O
Video IN
VCR in
VCR out AV
1 ~ 4
Video Loop
BNC VGA Power
1 ~ 4
Item Description
Model Number QD (NTSC) QD (PAL)
Number of Color 16.7 M 16.7 M
Imaging System NTSC PAL
Resolution 1024 x 525 1024 x 625
Refresh Rate 60 50
Video Input
Video Output
Camera Input
VCR Input
Live Monitor
Loop Through Out
VCR Output
1.0 Vpp, 75 Ohm x 4
1.0 Vpp, 75 Ohm x 1
1.0 Vpp, 75 Ohm x 1
1.0 Vpp, 75 Ohm x 4
1.0 Vpp, 75 Ohm x 1
Auto Gain Control Yes
Time / Date Yes
On Screen Display Yes
Camera Title 8 Character Title
2 x Zoom On
Playback
Display Format
Dwell Time 0 to 99 Sec Adjustable
Built-in Buzzer Yes
Key Lock Yes
QUAD Yes
FULL
SEQUENCY
Yes
Yes
Yes
3OHDVH1RWH
■ For more LQIRUPDWLRQRQ4XDG'LVSOD\, please refer to WKHQuad Display User Manual
P.24
5.7 DC Power Options Chapter 5
MPW-19 & MPW-22
VGA DC Power input
MDW-19
VGADC Power input
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
3OHDVH1RWH
■ PRZHUFDEOLQJLVQRWLQFOXGHGZLWK'&3RZHURSWLRQ
P.25
6.1 Package Contents Chapter 6
U
ser
Manual
MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
1
3
6
4
7
2
5
Rackmount LCD display x 1 pc
1
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
2
6’ VGA cable (male to male) x 1 pc
3
Power cord x 1 pc
4
Auto switch power adapter x 1 pc
5
M3.2*4.5mm screw x 4 pcs
6
Power adapter bracket x 1 pc
7
P.26
6.2 Structure Diagram Chapter 6
MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
Front view Rear view
For 15", 17” & 19” LCD
1
2
LCD interchangeable module kit
1
LCD membrane
2
3
Power adapter bracket
Power adapter
3
Power cord
Power adapter bracket installation
M3.2*4.5mm screw x 4 pcs
P.27
6.3 Installation Chapter 6
MP-15, MP-17 & MP-19
SMP-17 & SMP-19
■ Install each screw shown in Figure 10.
Figure 10.
■ Fix the LCD into the rack.
* M6 screws are not provided.
Figure 11.
P.28
6.3 Installation Chapter 6
MP-20 & SMP-20
■ Install each screw shown in Figure 12.
Figure 12.
■ Fix the LCD into the rack.
* M6 screws are not provided.
Figure 13.
P.29
6.4 Connection Chapter 6
MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
DB-15 VGA female connector Power input
Caution : The Rackmount LCD Drawer & Display are hot-pluggable, but components of
connected devices, such as the servers and KVM switch, may not be hot-pluggable. Plug-
ging and unplugging cables while servers and KVM are powered on may cause irreversible
damage of the servers, KVM and Rackmount LCD Drawer
anything to the Rackmount LCD Drawer, we suggest turning off power to all devices before
connecting them. Apply power to connected devices again only after the Rackmount LCD
Drawer is receiving power. The VXSSOLHU is not responsible for damage caused in this
way.
. Before attempting to connect
P.30
7.1 Package Contents Chapter 7
User
M
anual
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
1
6
7
2
3
4
5
8
9
LCD drawer x 1 pc
1
6’ VGA cable (male to male) x 1 pc
2
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
3
Auto switch power adapter ( for external power version) x 1 pc
4
Power cord x 1 pc
5
Mounting bracket x 2 pcs
6
M6*15mm screw x 8 pcs
7
M6 cage nut x 6 pcs
8
Cup washer x 8 pcs
9
P.31
7.2 Structure Diagram Chapter 7
P.32
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
1
3
2
4
5
LCD interchangeable module kit
1
2
“One Man” Installation Slide
3
LCD membrane
Carry handle to release the 2-pt lock
4
5
2-point lock
7.3 How to Install "One Man" Installation Slides Chapter 7
Install into rack
Rear side
Left bracket
Right bracket
Front side
Right front
Left front
1
■ Attach the left and right mounting bracket to rack 19”
mounting rails.
■ Adjust the rear mouting bracket to fi t your rack.
■ M6 screw and cup washer x 6 pcs included.
Caution : LeavH the screws slightly loose until
you complete the installation in step
4
Black arrow button
2
Mounting bracket
■ Pick up the LCD drawer.
■ Insert the LCD drawer into the mounting bracket.
■ Pull and hold the left & right black arrow buttons on the rails.
■ Return the LCD drawer to park position.
P.33
P.34
7.3 How to Install "One Man" Installation Slides Chapter 7
4
3
■ Tighten all 8 pcs of M6 screw to complete the installation.
■ Attach front left and right mounting ears of the LCD
keyboard drawer to vertical mounting rails.
■ M6 screw and cup washer x 2 pcs included.
Complete the installation
7.4 How to Use the Slides Chapter 7
I
I
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
L
Figure 14.
■ A black arrow release button is located on the
outside of each slide. (shown in Figure 14).
Figure 15.
Figure 16.
L
■ Pull and hold the black arrow button on either
side of the LCD drawer to unlock. (shown in
Figure 15).
■ Push the LCD drawer into the rack. (shown in
Figure 16).
Caution : Keep your ngers away from the
slide stop
P.35
7.5 Connection Chapter 7
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
Internal power version
VGAPower
External power version (6KDOORZ'HSWKPRGHOV MDS-15 / 17 / 19)
Caution : The Rackmount LCD Drawer & Display are hot-pluggable, but components of
connected devices, such as the servers and KVM switch, may not be hot-pluggable. Plug-
ging and unplugging cables while servers and KVM are powered on may cause irreversible
damage of the servers, KVM and Rackmount LCD Drawer
anything to the Rackmount LCD Drawer, we suggest that turn off power to all devices be-
fore connecting them. Apply power to connected devices again only after the Rackmount
LCD Drawer receiving power. The VXSSOLHU is not responsible for damage caused in this
way.
P.36
. Before attempting to connect
8.1 On-6creen Display Operation Chapter 8
P.37
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
15" LCD membrane
17", 19" & 20" LCD membrane
Power light
Green = On
Orange = Power saving
Power on / off LCD
Display the OSD menu
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
8.2 On-6creen Menu Chapter 8
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
OSD Confi guration Page
Image:
To open the brightness, contrast, color temp, red, green, and
blue controls
Geometry:
To open the auto adjust, H position, V position, phase and
clock controls
Video:
To open the color, tint, sharpness, noise reduction, DCDi and
TV Setup controls
Audio:
To open volume, bass, treble, balance, AVL and mute controls
Misc:
To open the language, OSD position, graphic mode, ratio,
reset and timer controls
P.38
9.1 DVI-D Option Chapter 9
MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
VGA Power
3OHDVH1RWH
DVI-D
■ Package includes 1 x 6ft DVI-D cable
MD-20 & SMD-20
MD-15, MD-17, MD-19, SMD-17 & SMD-19
MDS-15, MDS-17 & MDS-19
Internal power version
External power version (6KDOORZ'HSWKPRGHOV0'6
3OHDVH1RWH
DVI-D
VGA
■ Package includes 1 x 6ft DVI-D cable
■ The depth of MDS-15 / 17 / 19 will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
P.39
9.2 BNC + S-Video Option Chapter 9
MP-15, MP-17, MP-19 & MP-20
VGA PowerS-Video BNC
MD-20
MD-15, MD-17 & MD-19
MDS-15, MDS-17 & MDS-19
Internal power version
External power version (6KDOORZ'HSWKPRGHOV0'6
3OHDVH1RWH
■ Package includes 1 x 6ft S-Video cable
VGAS-Video BNC
P.40
9.3 Audio Option Chapter 9
MP-15, MP-17, MP-19 & MP-20
Speaker
Audio
3OHDVH1RWH
VGA
■ Audio input is 35mm audio plug
■ The speaker is sharing the same power with LCD.
Power
P.41
9.3 Audio Option Chapter 9
MD-20
MD-15, MD-17 & MD-19
MDS-15, MDS-17 & MDS-19
Speaker
Internal power version
Power
External power version (6KDOORZ'HSWKPRGHOV0'6
Audio
VGA
3OHDVH1RWH:
■ Audio input is 35mm audio plug
■ The speaker is sharing the same power with LCD.
P.42
9.4 Touchscreen Options Chapter 9
MP-15, MP-17, MP-19 & MP-20
USB interface
USBVGA Power
Serial interface
SerialVGA Power
MD-20
MD-15, MD-17 & MD-19
MDS-15, MDS-17 & MDS-19
USB interface
Internal power version
(6KDOORZ'HSWKPRGHOV0'6
External power version
Serial interface
USB VGAPower
Serial VGAPower
Internal power version
External power version
(6KDOORZ'HSWKPRGHOV0'6
P.43
9.4 Touchscreen Options Chapter 9
P.44
e-Resistive
Model -15TRB / -15TRS -17TRB / -17TRS -19TRB / -19TRS -20TRB / -20TRS
Screen size 15" 17" 19" 20"
Interface USB / serial
Optical transmittance 80% ± 3%
Surface hardness ≥3H (JIS K5400)
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Capacitive
Model -15TCB / -15TCS -17TCB / -17TCS -19TCB / -19TCS -20TCB / -20TCS
Screen size 15" 17" 19" 22"
Interface USB / serial
Optical transmittance 93% ± 2%
Surface hardness >9H Surface hardness, withstand over 300 million touches
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
3OHDVH1RWH
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ Serial touchscreen package includes 1 x 6ft serial cable, quick reference guideline and CD disc
■ For detailed information, please refer to the attached CD disc
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
■ Touchscreen in other brands are available on request
9.5 Front NEMA 4 / IP65 Option Chapter 9
MP-15, MP-17, MP-19 & MP-20
1
2
1
Rear case
2
LCD panel
3
4mm protective glass (Front NEMA 4 / IP65 protection)
Aluminum front panel
4
3
4
3OHDVH1RWH
■ 4mm thickness of protective glass is not UHLQIRUFHG please handle it carefully
P.45
9.6 Quad Display Option Chapter 9
Specifi cations
RS-232
Alarm I/O
Video IN
VCR in
VCR out AV
Video Loop
1 ~ 4
BNC VGA Power
1 ~ 4
Item Description
Model Number QD (NTSC) QD (PAL)
Number of Color 16.7 M 16.7 M
Imaging System NTSC PAL
Resolution 1024 x 525 1024 x 625
Refresh Rate 60 50
Video Input
Video Output
Camera Input
VCR Input
Live Monitor
Loop Through Out
VCR Output
1.0 Vpp, 75 Ohm x 4
1.0 Vpp, 75 Ohm x 1
1.0 Vpp, 75 Ohm x 1
1.0 Vpp, 75 Ohm x 4
1.0 Vpp, 75 Ohm x 1
Auto Gain Control Yes
Time / Date Yes
On Screen Display Yes
Camera Title 8 Character Title
2 x Zoom On
Playback
Display Format
Dwell Time 0 to 99 Sec Adjustable
Built-in Buzzer Yes
Key Lock Yes
QUAD Yes
FULL
SEQUENCY
Yes
Yes
Yes
3OHDVH1RWH
■ FRUPRUHLQIRUPDWLRQRQ4XDG'LVSOD\SOHDVHUHIHUWRWKH4XDG'LVSOD\8VHU0DQXDO
■ Quad 'LVSOD\LVQRWDYDLODEOHRQ6XQVSHFLILFPRGHOV
P.46
9.7 DC Power Options Chapter 9
MP-15, MP-17, MP-19 & MP-20
SMP-17, SMP-19 & SMP-20
VGA DC Power input
MD-20 & SMD-20
0'-15, 0'-17, 0'-19, 60'-17 & S0'-19
0'6-15, 0'6-17 & 0'6-19
VGADC Power input
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
3OHDVH1RWH
■ PRZHUFDEOLQJLVQRWLQFOXGHGZLWK'&3RZHURSWLRQ
■ The depth of MDS-15 / 17 / 19 will be extended from 480mm ( 18.9" ) to 530mm ( 20.9" )
P.47
10.1 LCD Specifi cations Chapter 10
P.48
0PW19, 0PW22 & 0':-19
Item Description
LCD Manufacturer
MDW-19 MPW-19 MPW-22
Diagonal Size Wide 19" TFT Wide 19" TFT Wide 22" TFT
Max. Resolution 1440 x 990 1440 x 990 1680 x 1050
Brightness (cd/m²) 300 300 300
Color Support 16.7 M 16.7 M 16.7 M
Contrast Ratio (typ.) 1000:1 1000:1 1000:1
Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚
Display Area (mm) 408 x 255 408 x 255 474 x 296
Tr Response Time (ms) 1.3 1.3 3.6
LCD Panel MTBF (hrs) 50,000 50,000 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
720 x 400, 70 Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
Resolution
1280 x 720, 60/ 70/ 75 Hz 1280 x 720, 60/ 75 Hz
1280 x 1024, 60/ 70/ 75 Hz 1280 x 1024, 60/ 75 Hz
1440 x 900, 60 Hz 1680 x 1050, 60 Hz
Plug & Play DDC EDID 1.3
Connector DB-15 connector
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75 Hz
Options
Graphic Input DVI-D, BNC, S-Video & Quad display input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive RU capacitive
AU 35mm audio plug
NEMA 4 / IP65 4mm thickness of protective glass
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
Item Description
LCD Manufacturer
-
P.49
10.1 LCD Specifi cations Chapter 10
0'-20 0'-15,0'-17,0'-19
0'6-15, 0'6-17 & 0'6-19 0P-15, 0P-17, 0P-19 & 0P-20
Diagonal Size 15" TFT 17" TFT 19" TFT
Max. Resolution 1024 x 768 1280 x 1024 1280 x 1024
Brightness (cd/m²) 250 250 250
Color Support 16.2 M 16.7 M 16.7 M
Contrast Ratio (typ.) 700:1 1000:1 1000:1
Viewing Angle (H/V) 160° x 130° 160˚ x 160˚ 160˚ x 160˚
Display Area (mm) 304 x 228 338 x 270 376 x 301
Tr Response Time (ms) 5.7 1.3 1.3
LCD Panel MTBF (hrs) 30,000 50,000 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution
Plug & Play DDC EDID 1.3
Connector DB-15 connector
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation Approval FCC, CE5R+6
1024 x 768, 60/ 70/ 72/ 75 Hz 1024 x 768, 60/ 70/ 75 Hz
640 x 400, 70 Hz -
720 x 400, 70 Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
- 1152 x 864, 60/ 70/ 75 Hz
- 1280 x 720, 60/ 70/ 75 Hz 1280 x 720, 60/ 75 Hz
- 1280 x 1024, 60/ 70/ 72/ 75 Hz
-
-
20" TFT
1600 x 1200
300
16.7 M
800:1
178˚ x 178˚
408 x 306
7
45,000
1280 x 1024, 60/ 70/ 75 Hz
1400 x 1050, 60 Hz
1600 x 1200, 60 Hz
Options
Graphic Input DVI-D, BNC, S-Video & Quad display input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive RU capacitive
AU 35mm audio plug
NEMA 4 / IP65 4mm thickness of protective glass
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
P.50
10.1 LCD Specifi cations Chapter 10
S0'-20 S0'-17 & S0'-19
S0P-17, S0P-19 & S0P-20
Item Description
Form Factor 1U rack mounting on slide-out rails
Diagonal Size 17" TFT 19" TFT 20" TFT
Resolution
Brightness (cd/m²) 250 250 300
Color Support 16.7 M 16.7 M 16.7 M
Contrast Ratio (typ.) 1000:1 1000:1 800:1
Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 178˚ x 178˚
Display Area (mm) 338 x 270 376 x 301 408 x 306
Tr Response Time (ms) 1.3 1.3 7
LCD Panel MTBF (hrs) 50,000 50,000 45,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution
1152 x 900 (Direct) 1152 x 900 (Direct) 1152 x 900 (Direct)
1280 x 1024 (Native) 1280 x 1024 (Native) 1600 x 1200 (Native)
720 x 400, 70 Hz
640 x 480, 60 /70 /72 /75 Hz
800 x 600, 60 /70 /72 /75 Hz
1024 x 768, 60 /70 /75 Hz
1152 x 864, 60 /70 /75 Hz
1280 x 720, 60 /70 /75 Hz 1280 x 720, 60 /75 Hz
1280 x 1024, 60 /70 /72 /75 Hz 1280 x 1024, 60 /70 /75 Hz
- 1400 x 1050, 60 Hz
- 1600 x 1200, 60 Hz
Plug & Play DDC EDID 1.3
Connector DB-15 connector
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation Approval FCC, CE, RoHS
Options
Graphic Input DVI-D input
DC Power DC power input with 12V, 24V, 48V selection
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
11.1 Troubleshooting Chapter 11
1. How do I adjust the resolution?
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in
Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-
mined by the display card in your computer.
2. Is an interference signal appearing on the LCD normal when shutting down the computer?
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered
normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.
3. The membrane power light is not lit?
Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.
4. Screen image is not centered or sized properly
Press the button for two seconds to automatically adjust the image.
Adjust the H-position and V-position settings via On-screen menu.
For S0' 6eries Sun-Specific LCD Drawer
1. How can I adjust the monitor resolution to 1152 x 900 for SUN Micro systems?
The S solution LCD drawer will automatically detect the 1152 x 900 resolution, so no user confi guration should be neces-
sary.
2. How do I adjust the resolution in MS Windows operating system?
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in
Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-
mined by the display card in your computer.
6. Is the LCD drawer hot-pluggable?
The LCD drawer is hot-pluggable, but components of connected devices, such as the servers and KVMs, may not be
hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to connected devices
again only after the LCD receives power.
P.51
12.1 Dimensions Chapter 12
0PW19, 0PW22 & 0':-19
0P-15, 0P-17, 0P-19 & 0P-20
S0P-17, S0P-19 & S0P-20
Model
0PW19
0PW22
0'W19
0P-15
0P-17
0P-19
0P-20
Product Dimension
(W x D x H)
480 x 57.5 mm
18.9 x 2.3"
500.4 x 59.1 mm
19.7 x 2.3"
442 x 650 x 44 mm
17.4 x 25.6 x 1.73"
480 x 52 mm
18.9 x 2"
480 x 54 mm
18.9 x 2.1"
480 x 53 mm
18.9 x 2.1"
480 x 64 mm
18.9 x 2.5"
7U
8U
6U
7U
8U
9U
Packing Dimension
(W x D x H)
565 x 495 x 156 mm
22.2 x 19.5 x 6.1"
565 x 539 x 156 mm
22.2 x 21.2 x 6.1"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
565 x 406 x 156 mm
22.2 x 16 x 6.1"
565 x 450 x 156 mm
22.2 x 17.7 x 6.1"
565 x 495 x 156 mm
22.2 x 19.5 x 6.1"
565 x 539 x 156 mm
22.2 x 21.2 x 6.1"
Net Weight
8 kg
18 lb
12 kg
26 lb
13 kg
29 lb
6 kg
13 lb
7 kg
15 lb
8 kg
18 lb
12 kg
26 lb
Gross
Weight
10 kg
22 lb
15 kg
33 lb
18 kg
40 lb
8 kg
18 lb
8.5 kg
19 lb
10 kg
22 lb
15 kg
33 lb
S0P-17
S0P-19
S0P-20
480 x 57 mm
18.9 x 2.2"
480 x 57 mm
18.9 x 2.2"
480 x 67 mm
18.9 x 2.6"
7U
8U
9U
565 x 450 x 156 mm
22.2 x 17.7 x 6.1"
565 x 495 x 156 mm
22.2 x 19.5 x 6.1"
565 x 539 x 156 mm
22.2 x 21.2 x 6.1"
7 kg
15 lb
8 kg
18 lb
12 kg
26 lb
8.5 kg
19 lb
10 kg
22 lb
15 kg
33 lb
P.52
12.1 Dimensions Chapter 12
MD-20
SMD-20
MD-15, MD -17, MD -19
SMD-17 & SMD-19
MDS -15, MDS -17 & MDS -19
Model
MD-20
SMD-20
MD-15
MD-17
MD-19
SMD -17
SMD-19
Product Dimension
(W x D x H)
442 x 650 x 44 mm
17.4 x 25.6 x 1.73"
442 x 650 x 44 mm
17.4 x 25.6 x 1.73"
442 x 550 x 44 mm
17.4 x 21.6 x 1.73"
446 x 600 x 44 mm
17.6 x 23.6 x 1.73"
446 x 600 x 44 mm
17.6 x 23.6 x 1.73"
446 x 600 x 44 mm
17.6 x 23.6 x 1.73"
442 x 600 x 44 mm
17.4 x 23.6 x 1.73"
Packing Dimension
(W x D x H)
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8”
581 x 705 x 175 mm
22.9 x 27.8 x 6.9"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
581 x 755 x 172 mm
22.9 x 29.7 x 6.8”
581 x 755 x 172 mm
22.9 x 29.7 x 6.8"
Net Weight
14 kg
31 lb
14 kg
31 lb
10 kg
22 lb
12 kg
26 lb
13 kg
29 lb
12 kg
26 lb
13 kg
29 lb
Gross
Weight
19 kg
42 lb
19 kg
42 lb
15 kg
33 lb
17 kg
37 lb
18 kg
40 lb
17 kg
37 lb
18 kg
40 lb
MDS -15
MDS -17
MDS -19
The company reserves the right to modify product speci cations without prior notice and assumes no responsibility for any error which
may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
442 x 440 x 44 mm
17.4 x 17.3 x 1.73"
446 x 480 x 44 mm
17.6 x 18.9 x 1.73"
446 x 480 x 44 mm
17.6 x 18.9 x 1.73"
584 x 601 x 169 mm
23 x 23.7 x 6.7"
584 x 641 x 169 mm
23 x 25.2 x 6.7"
584 x 641 x 169 mm
23 x 25.2 x 6.7"
10 kg
22 lb
12 kg
26 lb
13 kg
29 lb
15 kg
33 lb
17 kg
37 lb
18 kg
40 lb
Copyright 2011 Austin Hughes Electronics Ltd. and Eclipse Rackmount, Inc. All rights reserved.
P.53
ML17V01A
Loading...
