Page 1
UM-CV-751-F121-Q416V2 www.austin-hughes.com
21.5” FHD 1920 x 1080 LCD
User Manual
Designed and manufactured by Austin Hughes
1U LCD Console Drawer
F121
Options :
- HDMI / SDI
- Full Range KVM
- DC power
dedicated KVM switch and rackmount screen technology
751
Page 2
UM-CV-751-F121-Q416V2 www.austin-hughes.com
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness
of the contents. The information in this document is subject to change without notice. We are not liable for any injury or
loss that results from the use of this equipment.
Safety Instructions
Please read all of these instructions carefully before you use the device. Save this manual for
future reference.
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
■ When the equipment is in an open position, do not cover, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service personnel.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi cation, or
failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equipment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
■ Re-position or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Page 3
UM-CV-751-F121-Q416V2 www.austin-hughes.com
< Part. 3 >
Options

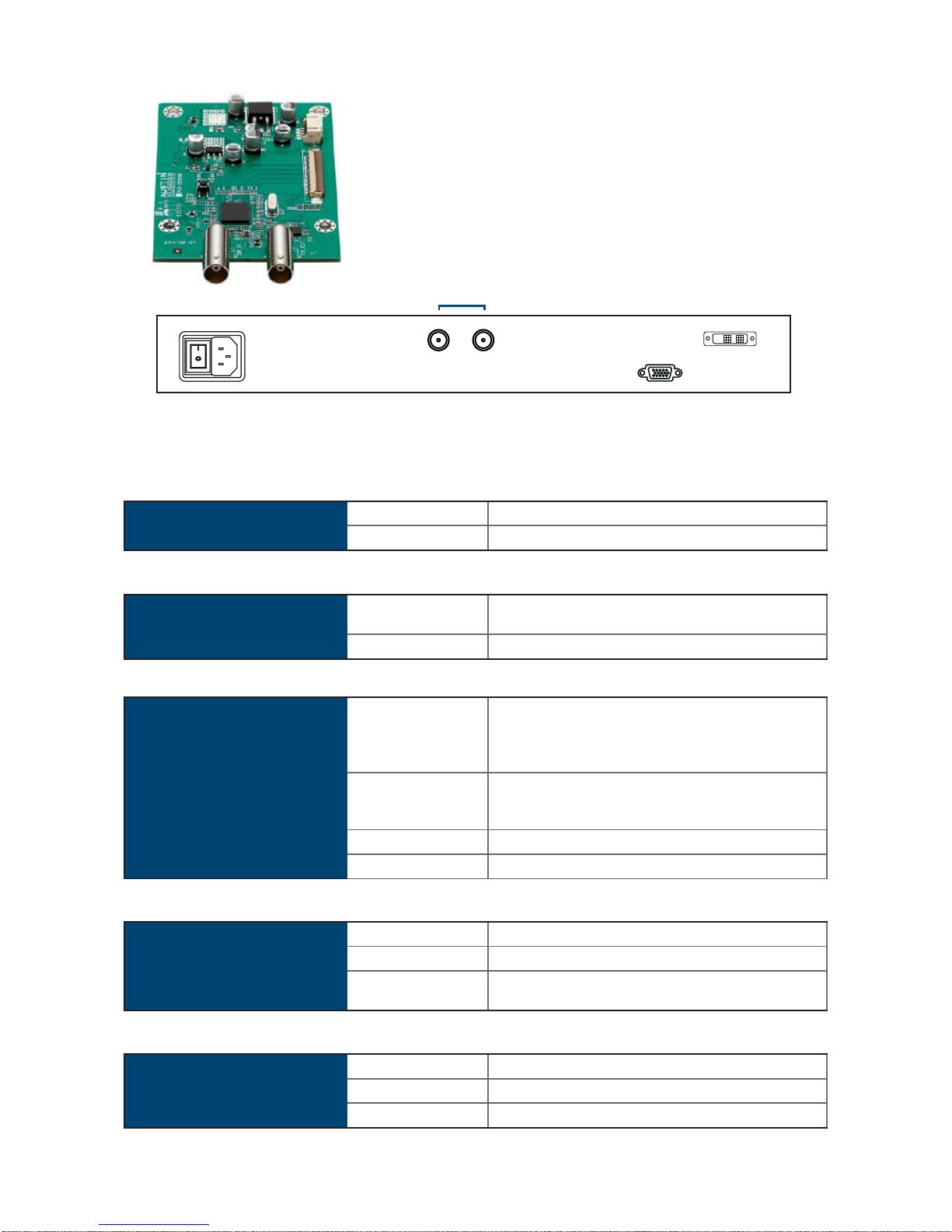

3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 HDMI

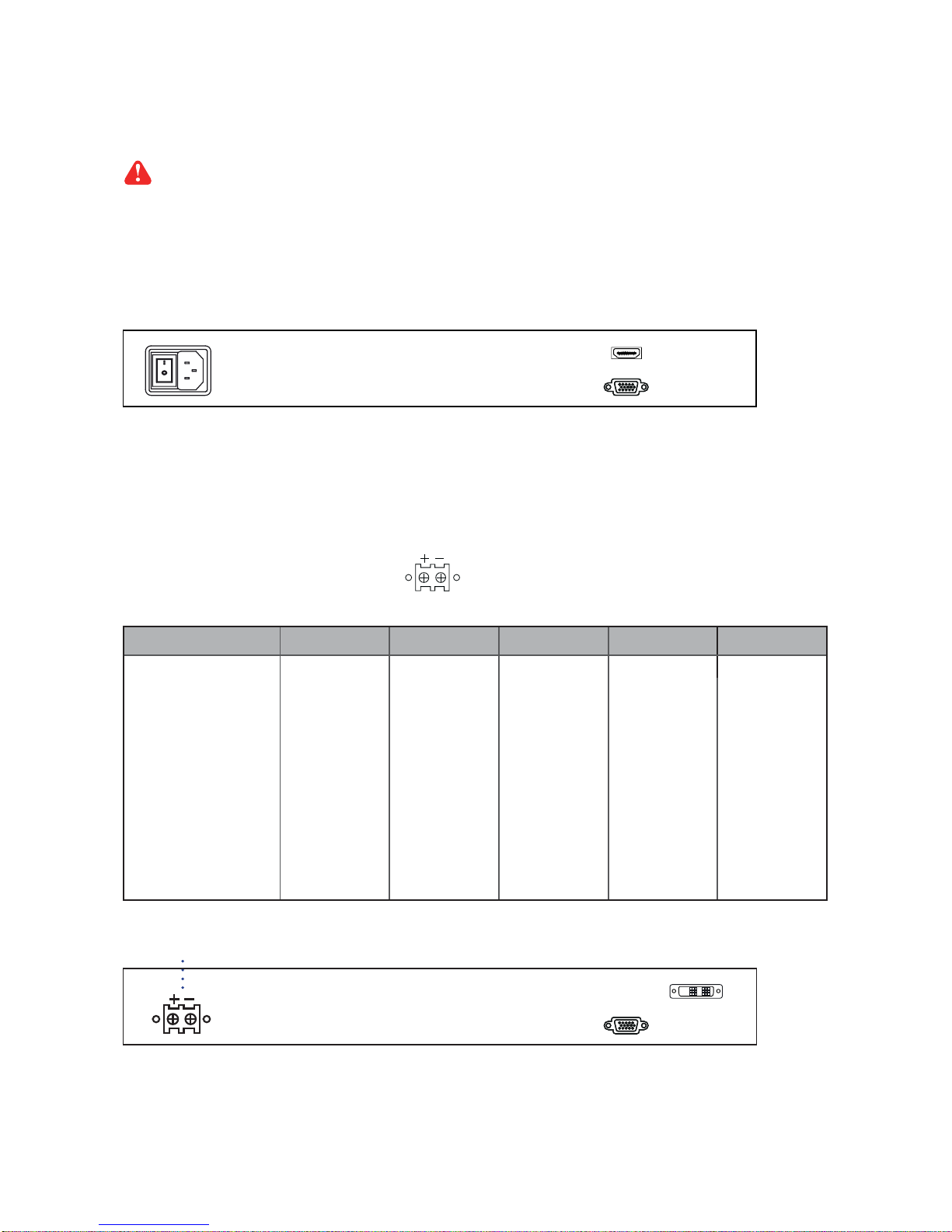

3.3 DC Power : 12V / 24V / 48V / 125V / 250V
P.13
P.14
P.14
< Part. 2 >
Specifi cations / OSD
2.1 Product Specifi cations

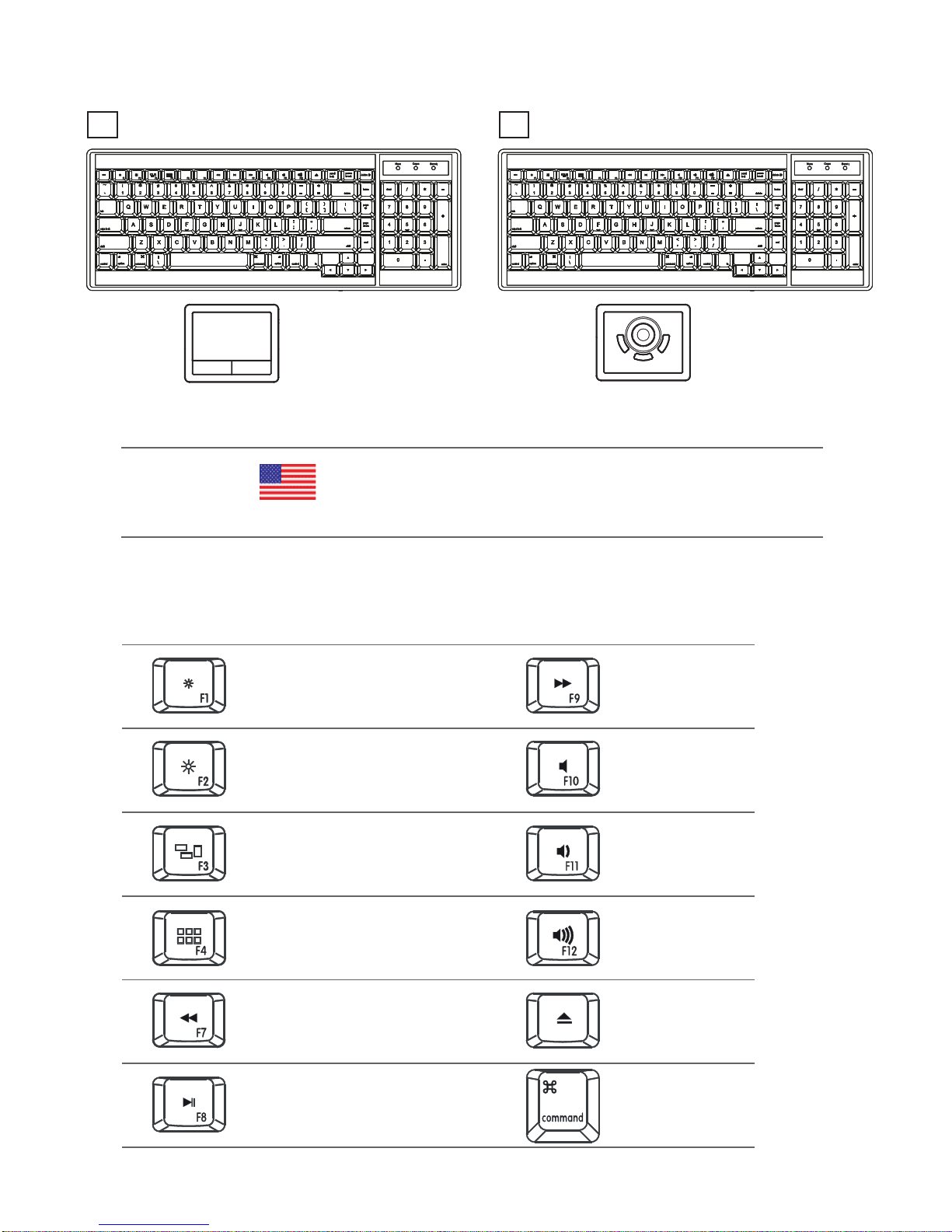

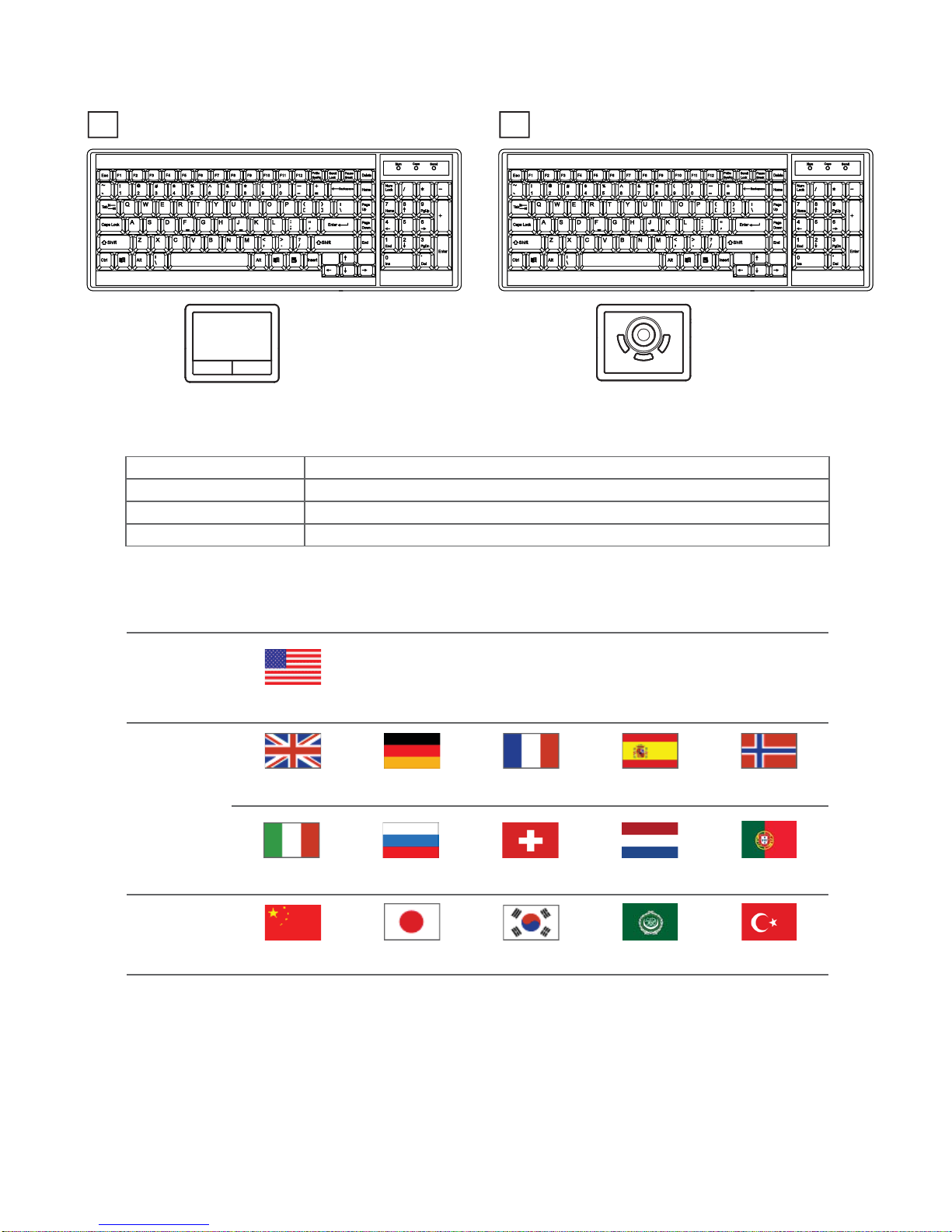

2.2 Keyboard / Mouse Specifi cations

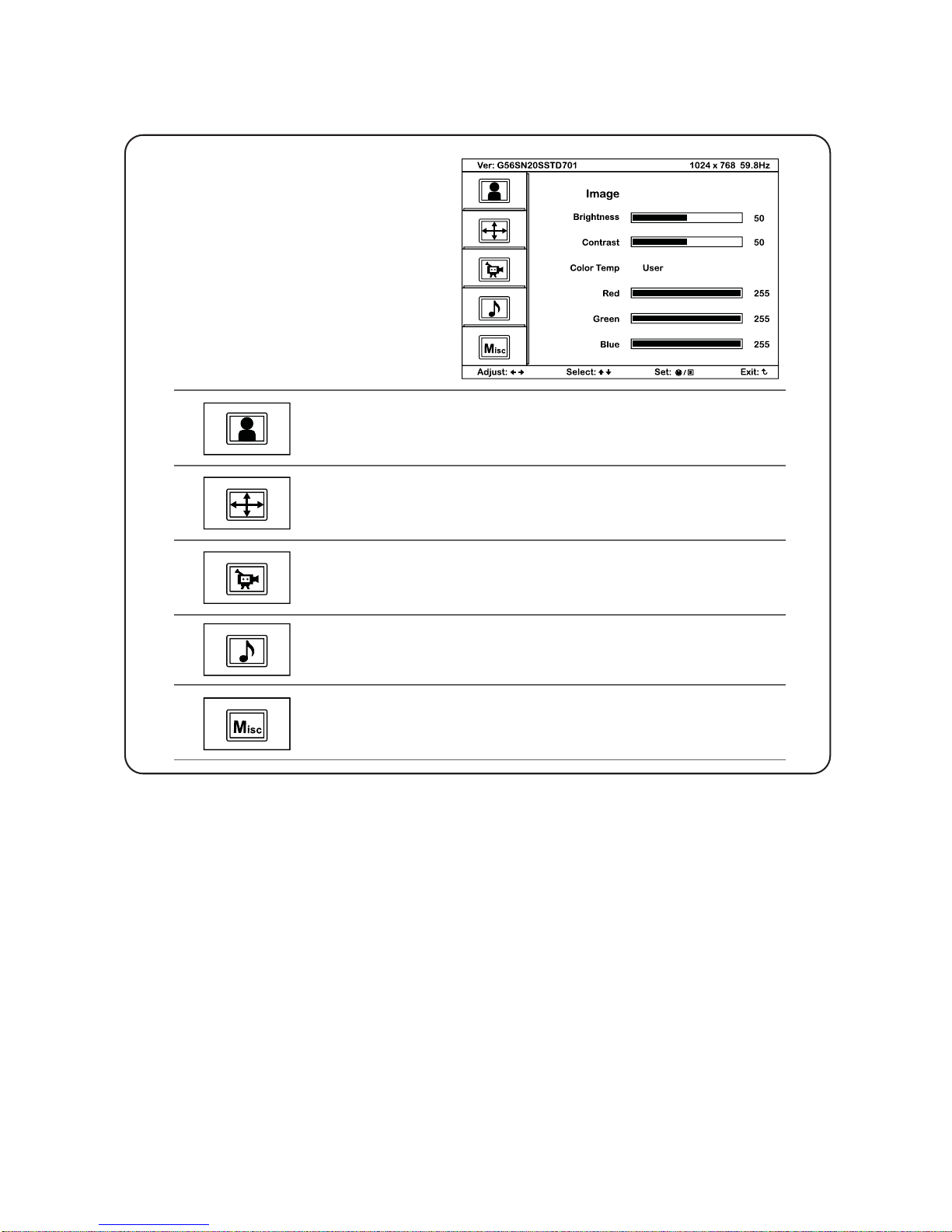

2.3 On-screen Display Operation ( OSD )
P.6 - 7
P.8 - 10
P.11 - 12
< Part. 1 >
F121
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
1.4 Connection
Contents
P. 1
P.1 - 2
P.3 - 4
P. 5
< Part. 4 >
KVM Integration
P.15
Page 4
UM-CV-751-F121-Q416V2 www.austin-hughes.com
■ It is very important to mount the equipment in a suitable cabinet or on a stable surface.
■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
The equipment comes with the standard parts shown in package content. Check and make sure they are
included and in good condition. If anything is missing, or damaged, contact the supplier immediately.
Unpacking
Before Installation
How To Clean Your LCD Monitor
Caution :
■ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
■ When you clean your monitor, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warranty.
■ Use only cleansers made specifi cally for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip off the fi nish.
■ Do not spray any kind of liquid directly onto the screen or case of your monitor. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warranty.
■ Do not use paper towels or abrasive pads to clean your monitor. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
Disconnect the power cord.
Gently wipe the surface using a clean, dry microfi ber cloth. Use as little pressure as possible.
1
2
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
Disconnect the power cord.
Spray a small amount of non-abrasive cleanser on a microfi ber cloth.
Gently wipe the surface. Use as little pressure as possible.
Wait until your monitor is completely dry before plugging it in and powering it up.
1
2
Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your
microfi ber cloth fi rst, not directly on the parts you are cleaning.
3
4
Page 5
UM-CV-751-F121-Q416V2 www.austin-hughes.com
1
4
7
LCD interchangeable module kit
LCD membrane
Micro switch for screen auto power off
Installation Slides
Keyboard interchangeable module kit
1
2
3
6
7
8
Mouse interchangeable module kit
Carry handle to release the 2-pt lock
Membrane switch (KVM option)
Audio speaker ( for SDI or HDMI option )
Front USB port for device access ( USB Hub KVM only )
4
5
< 1.1 > Package Content
P. 1
< Part 1 >
F121 unit X 1
- CX-6 6ft DVI-D console cable X 1
- Power cord X 1
- M6 screw, cage nut & cup washer X 8

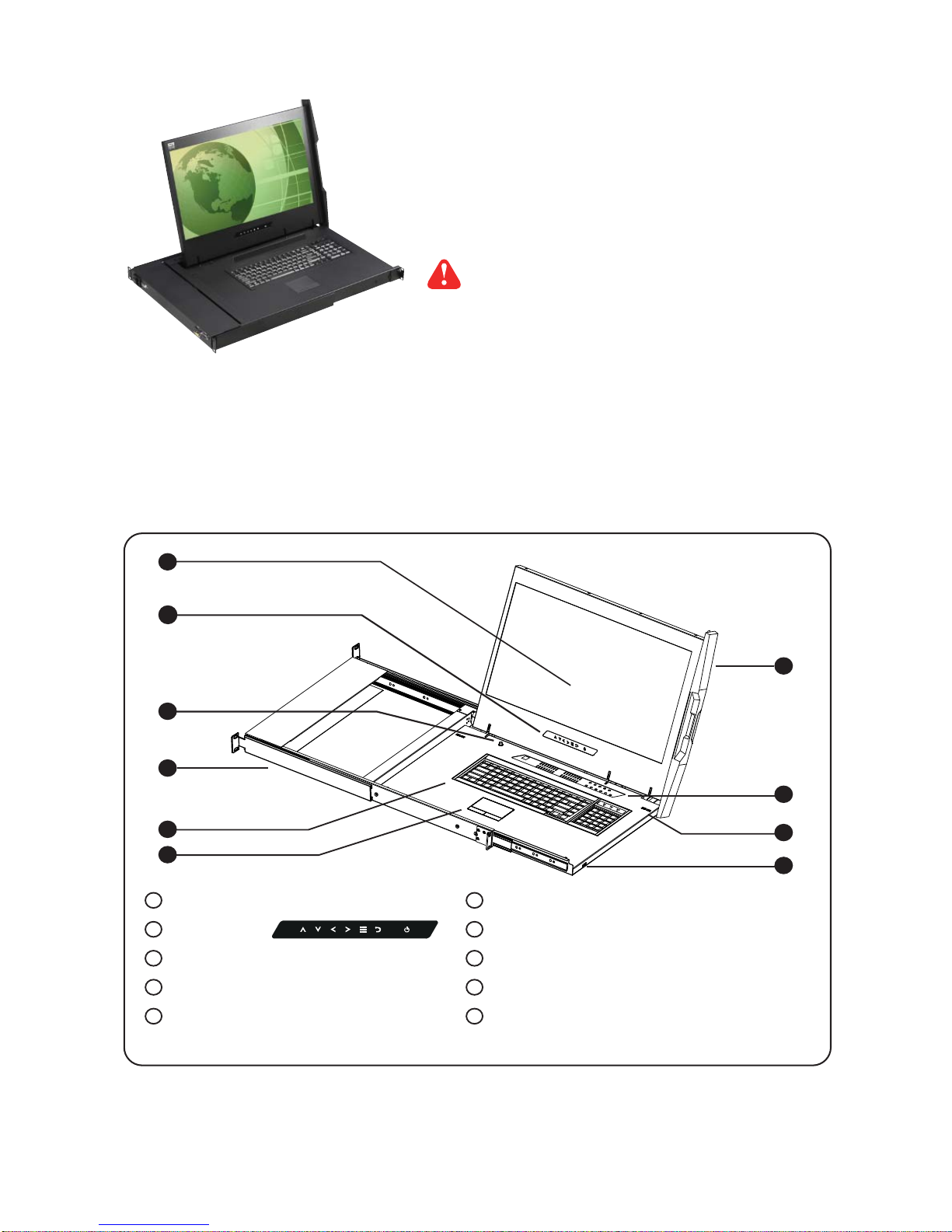

< 1.2 > Structure Diagram
The above package content is only for the single console models.
It varies with options such as KVM, SDI, HDMI & DC power.
8
9
10
6
10
5
2
9
3
F121
Page 6
UM-CV-751-F121-Q416V2 www.austin-hughes.com

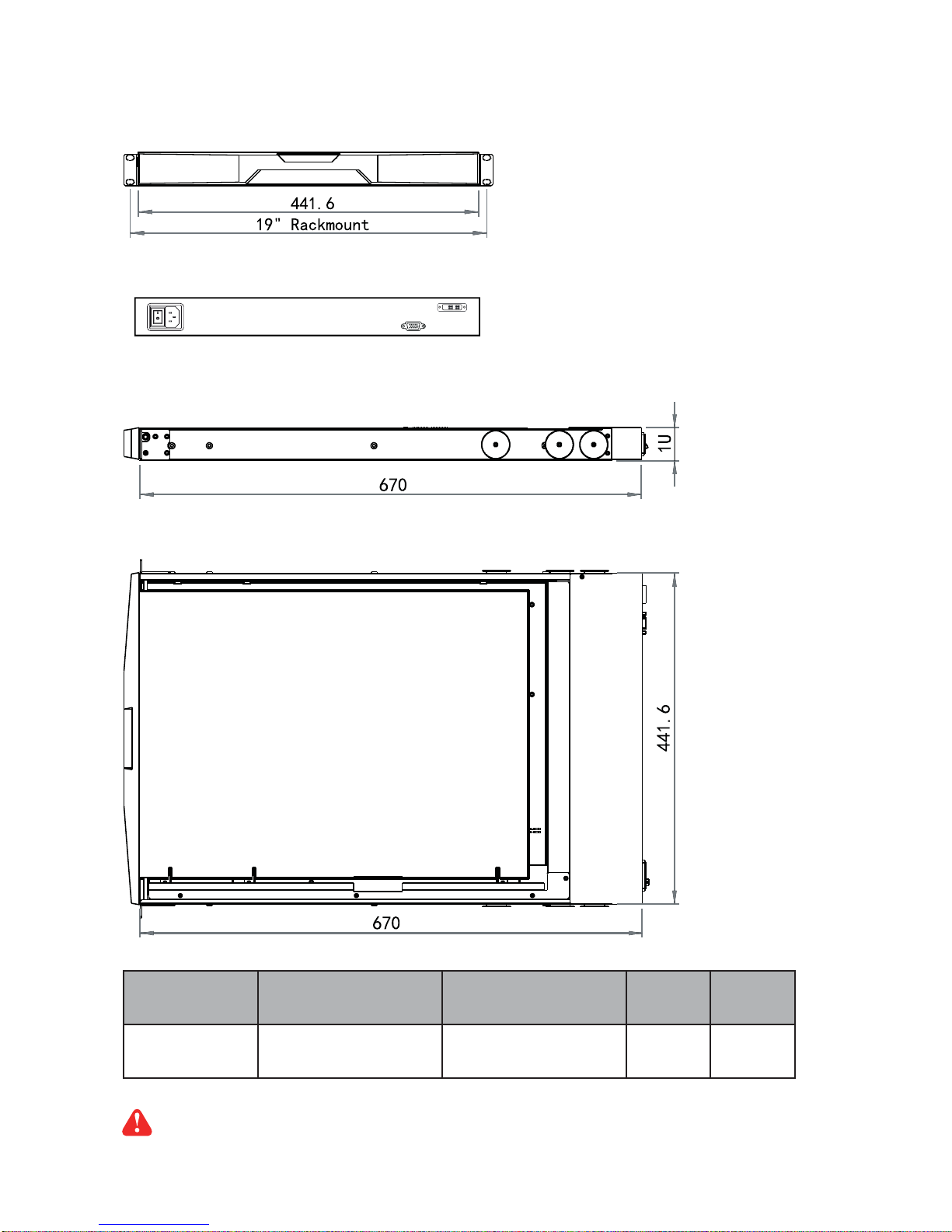

< 1.2 > Dimension
Side View
Top View
Front View
The weight is only for the single console models. It varies with accessories & options
such as KVM, SDI, HDMI & DC power.
P. 2
UNIT : mm
1mm = 0.03937 inch
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
F121
441.6 x 670 x 44 mm
17.4 x 26.4 x 1.73"
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
14.7 kg
32.3 lb
18.9 kg
41.6 lb
Power
KB / MS
DVI-D
Rear View
Page 7
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121

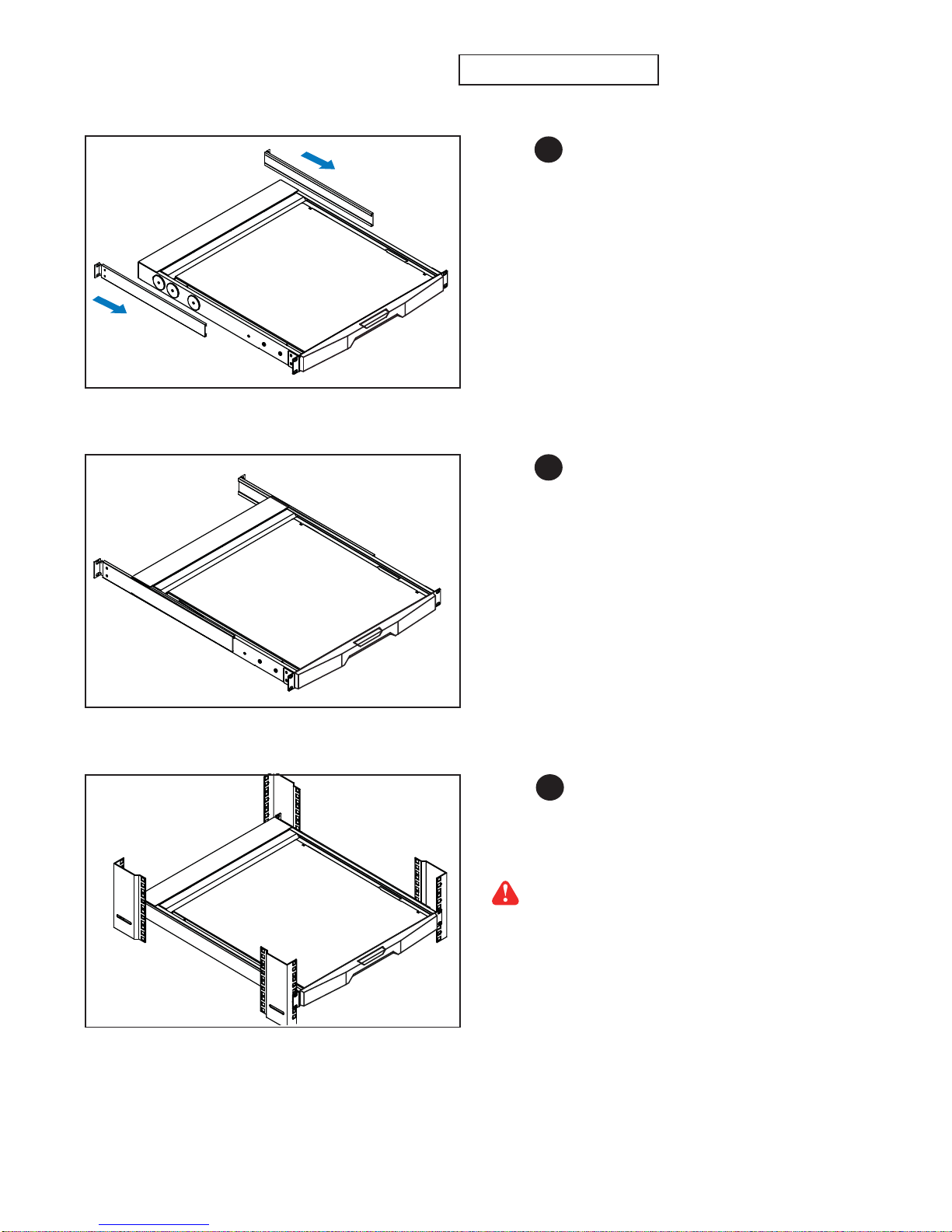

< 1.3 > Installation - How to install Installation Slides
P. 3
■ Fix the LCD console drawer into the rack.
Complete the installation
Step
3
■ Insert the left and right rear mounting brackets into
the LCD console drawer.
Step
1
Step
2
■ Measure the depth of the front and rear mounting rails.
■ Align each rear mounting bracket to a suitable length.
M6 screw, cage nut & cup washer x 8 are provided.
Page 8
UM-CV-751-F121-Q416V2 www.austin-hughes.com
P. 4

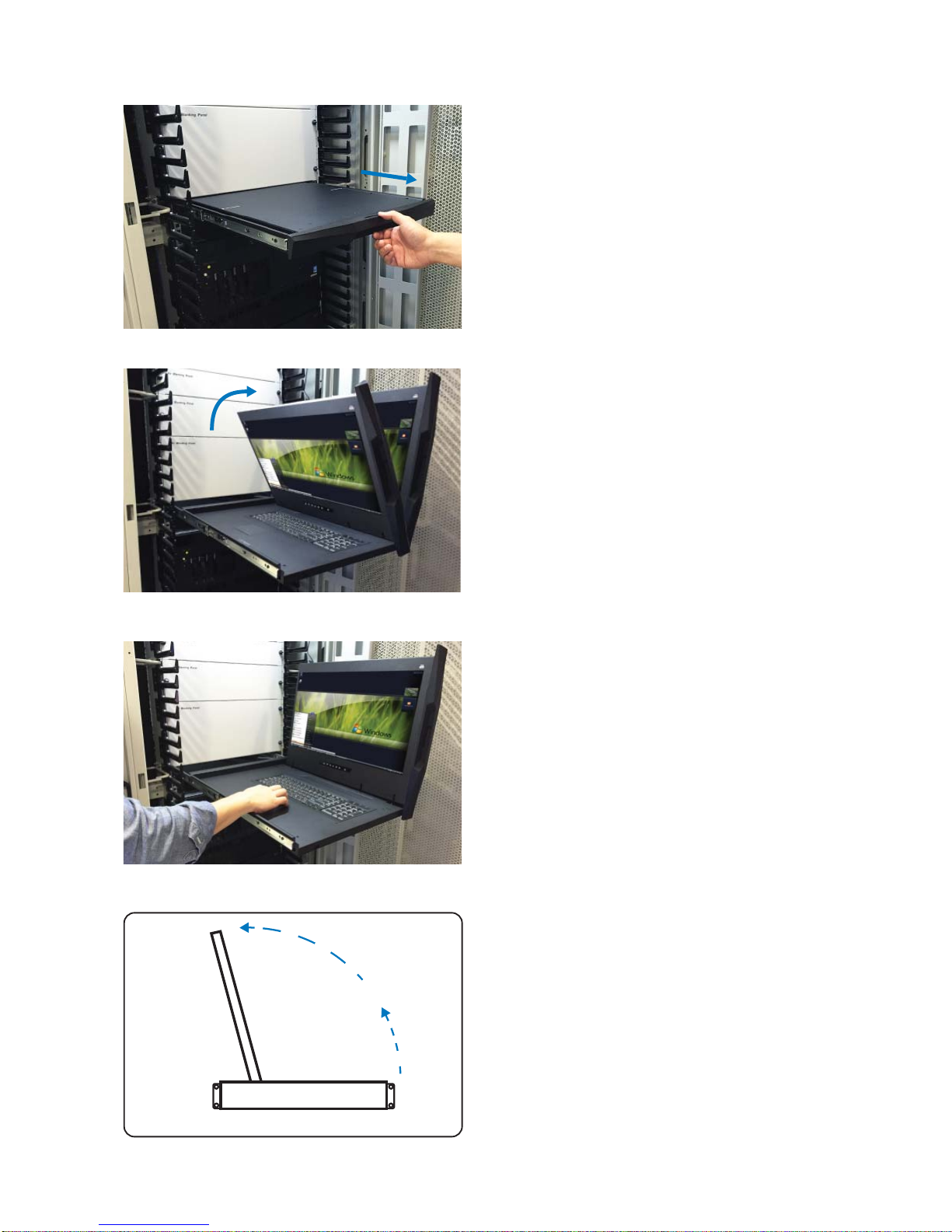

■ Operate the LCD console drawer.
< 1.3 > Installation- How to use the drawer
■ Hold the handle and slide out the drawer.
■ Flip up the LCD to a suitable angle.
i
Flip up LCD from the side
Left Right
Front Side
LCD
Panel
■ Add R at the end of the model no.
sample : F121
R
Option - Right Side Open
Page 9
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121
DVI-D
DVI-D
LCD Console Drawer
USB server
P. 5

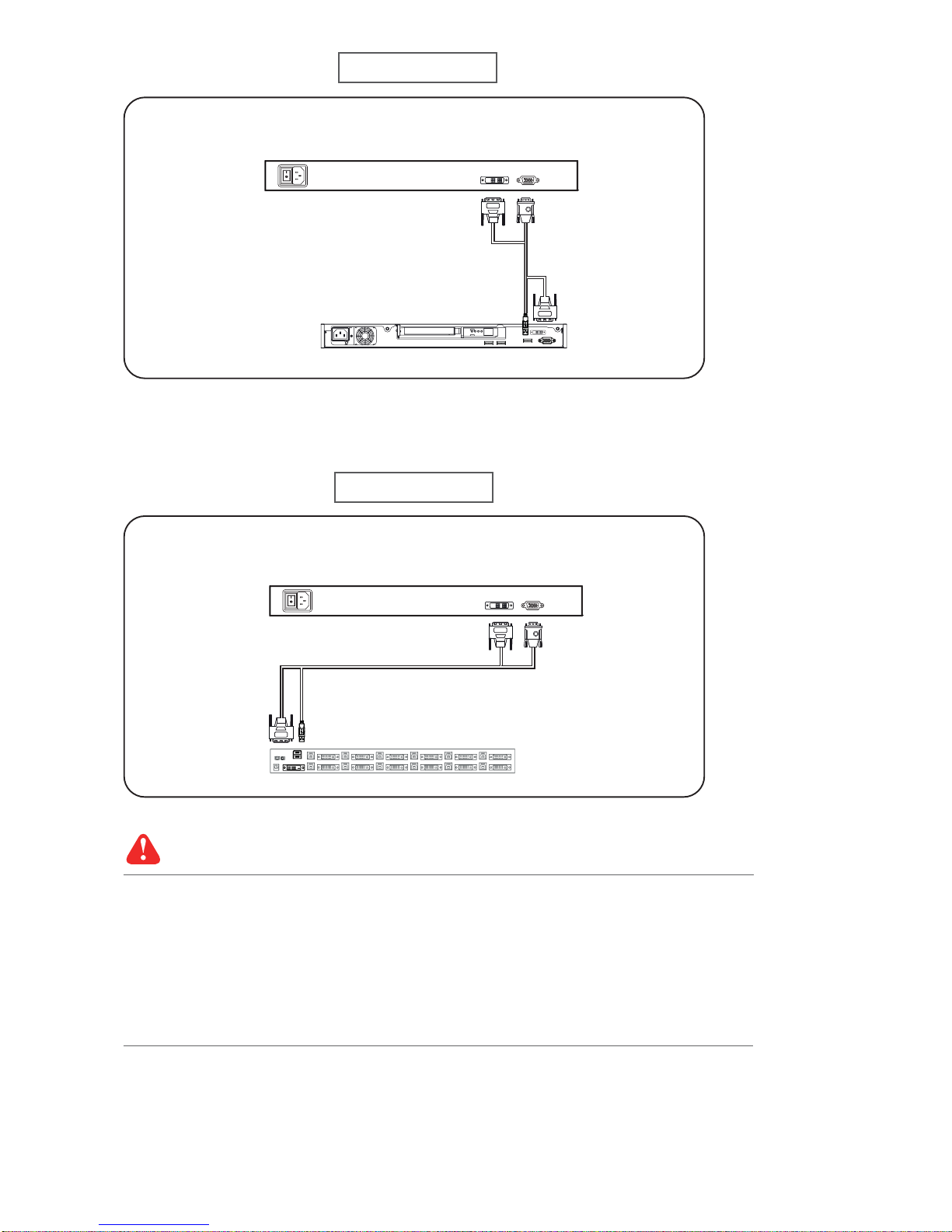

< 1.4 > Connection to USB Server via CX-6 cable
< 1.4 > Connection to external KVM via CX-6 cable
DVI console KVM
LCD Console Drawer
Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such
as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while
servers and KVM are powered on may cause irreversible damage to the servers, KVM and LCD
console drawer. Before attempting to connect anything to the LCD console drawer, we suggest
turning off the power to all devices. Apply power to connected devices again only after the LCD
console drawer is receiving power. The company is not responsible for damage caused in this way.
KB / MS
CX-6 DVI-D
console cable
Power
Power
DVI-DUSB
CX-6 DVI-D
console cable
DVI-D USB
KB / MS
Page 10
UM-CV-751-F121-Q416V2 www.austin-hughes.com
Environmental
Conditions
Operating Temperature 0 to 55°C degree
Humidity 20~90%, non-condensing
Altitude 16,000 ft
Storage /
Non-operating
Temperature -20 to 60°C degree
Humidity 5~90%, non-condensing
Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random
Power Power Supply Range Auto-sensing 100 to 240VAC,
50 / 60Hz
Power Consumption
for Single Console
Screen ON Max. 32W
Power saving mode Max. 4W
Power button OFF Max. 1W
Power Consumption
with KVM integration
Screen ON Max. 62W
Power saving mode Max. 34W
*For details, please refer to our KVM rear kit user manuals
Regulatory Safety FCC & CE certifi ed
Environmental RoHS2 & REACH compliant
< 2.1 > Product Specifi cations
LCD
Panel
Manufacturer
Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD
Display pixel ( dots x lines ) 1920 x 1080
Brightness ( typ. ) 250
Contrast Ratio ( typ. ) 1000:1
Color 16.7 M
Viewing Angle ( L/R/U/D ) 85/85/80/80
Response Time ( ms ) 5
Dot pitch ( mm ) 0.248
Display Area ( mm ) 476.64H x 268.11V
Surface treatment Haze 25%, Hard-coating
Surface hardness 3H
Backlight Type LED
MTBF ( hrs ) 30,000
Video
Connectivity
Digital HDMI HDMI 1.3, CEA-861-D
DVI DVI-D, TMDS single link
Plug & Play DVI VESA EDID structure 1.3
P. 6
< Part 2 >
Page 11
UM-CV-751-F121-Q416V2 www.austin-hughes.com
Applicable
Format
DVI-D Input PC Signal 1920 x 1080 x 60Hz
1360 x 768 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 768 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
HDMI Input
PC Signal Same as VGA
Video Signal
1080p : 50 / 60Hz
1080i : 50 / 60Hz
720p : 50 / 60Hz
480p : 60Hz
576p : 50Hz
Audio Signal 2ch Linear PCM ( 32 / 44.1 / 48 KHz )
Speaker Dual Stereo Speaker, 2 x 2W
Physical
Specifi cation
Product ( W x D x H )
441.6 x 670 x 44 mm
17.4 x 26.4 x 1.73 inch
Packing ( W x D x H )
595 x 860 x 140 mm
23.4 x 33.9 x 5.5 inch
Net Weight 14.7 kgs / 32.3 lbs
Gross Weight 18.9 kgs / 41.6 lbs
F121
P. 7
Page 12
UM-CV-751-F121-Q416V2 www.austin-hughes.com
< 2.2 > Standard Keyboard / Mouse Specifi cations
Key force 55 ± 5g
Travelling distance 3 ± 0.3mm
Switch life > 10 million life cycle time
OS support Windows / Linux / Unix / Mac OS
G keyboard integrated with trackball
Gb
Supporting layouts
America
United States
EMEA
United Kingdom Germany France Spain Norway
Italy Russia Switzerland Netherlands Portugal
Asia
China Japan Korea Arabia Turkey
G keyboard integrated with touchpad
Ge
P. 8
Page 13
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121
< 2.2 > MAC Keyboard / Mouse Options
F8F7 F8F8F7
F8F7 F8F8F7
MAC keyboard integrated with trackball
Mb
MAC keyboard integrated with touchpad
Me
P. 9
How to Use "MAC" Keyboard
Keyboard Features
F1
Decrease display brightness
F9
Fast-forward
F2
Increase display brightness
F10
Mute sound
F3
Mission control
* Only works with OS X Lion
default Keyboard Shortcuts.
F11
Decrease volume
F4
Dashboard
F12
Increase volume
F7
Rewind
Eject disc
F8
Play / Pause
Command
Supporting layouts
America
United States
Page 14
UM-CV-751-F121-Q416V2 www.austin-hughes.com
< 2.2 > SUN Keyboard / Mouse Options

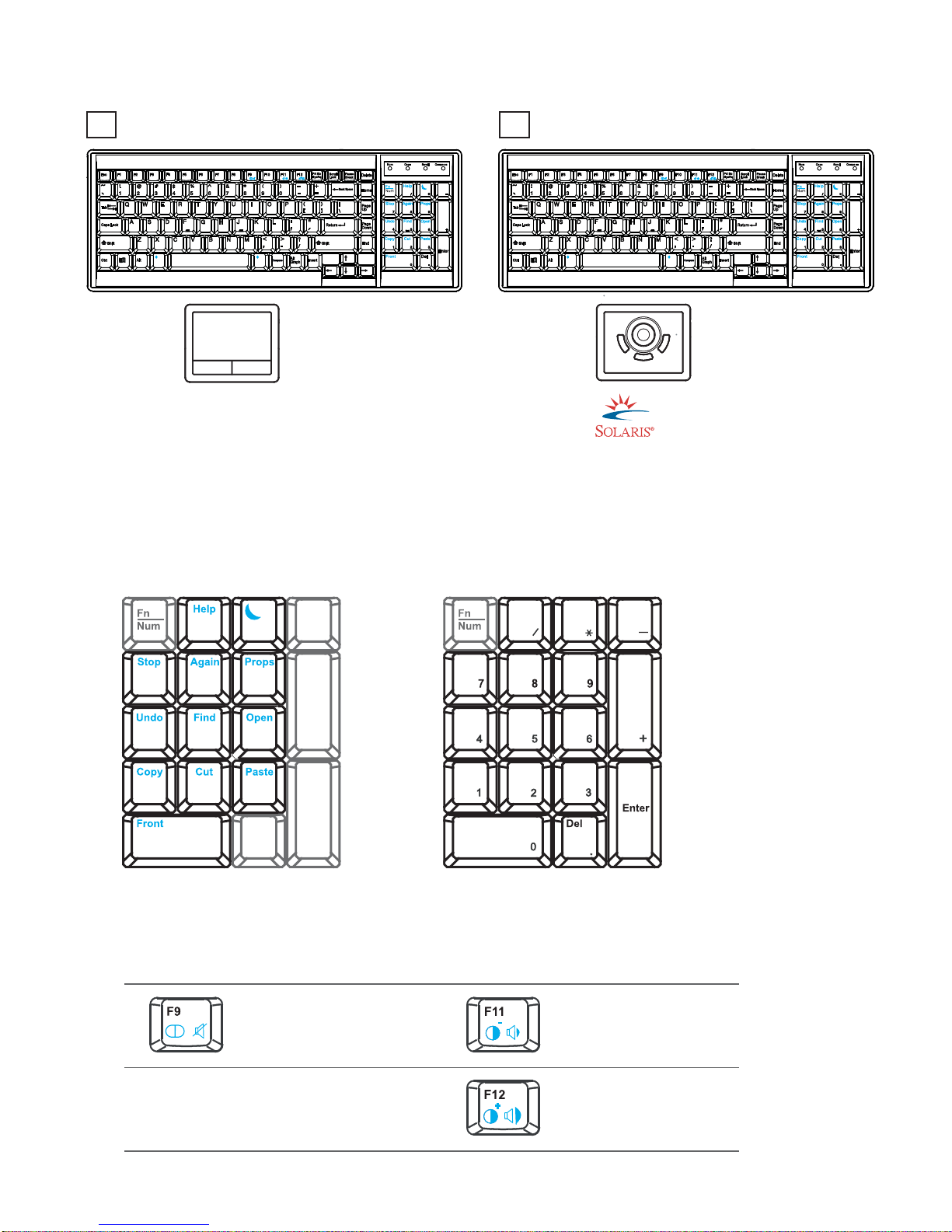

Audio / Display Keys * Please ask your supplier for full details
F9
Audio : Mute
Display : Degauss
F11
Audio : Decrease volume
Display : Decrease contrast
F12
Audio : Increase volume
Display : Increase contrast
Num LED in Green mode
Key pad behaves as a normal key
pad mode
Num Caps Scroll ComposeNum Caps Scroll Compose
■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help
■ 104 key notepad keyboard with full numerical pad and SUN function
■ USB interface
■ US layout only
S keyboard integrated with touchpad / trackball
Num LED in Off mode
Key pad behaves as a SUN Solar
system administration command mode
How to Use "S" Keyboard
S keyboard integrated with trackball
Sb
S keyboard integrated with touchpad
Se
P.10
Page 15
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121
Exit the OSD screen
Go back to the previous on-screen sub-menu or
main menu
Scroll through menu options and adjust
the displayed control
Display the OSD menu
Act as an Enter key to select screen setting options
Turn the monitor on or off

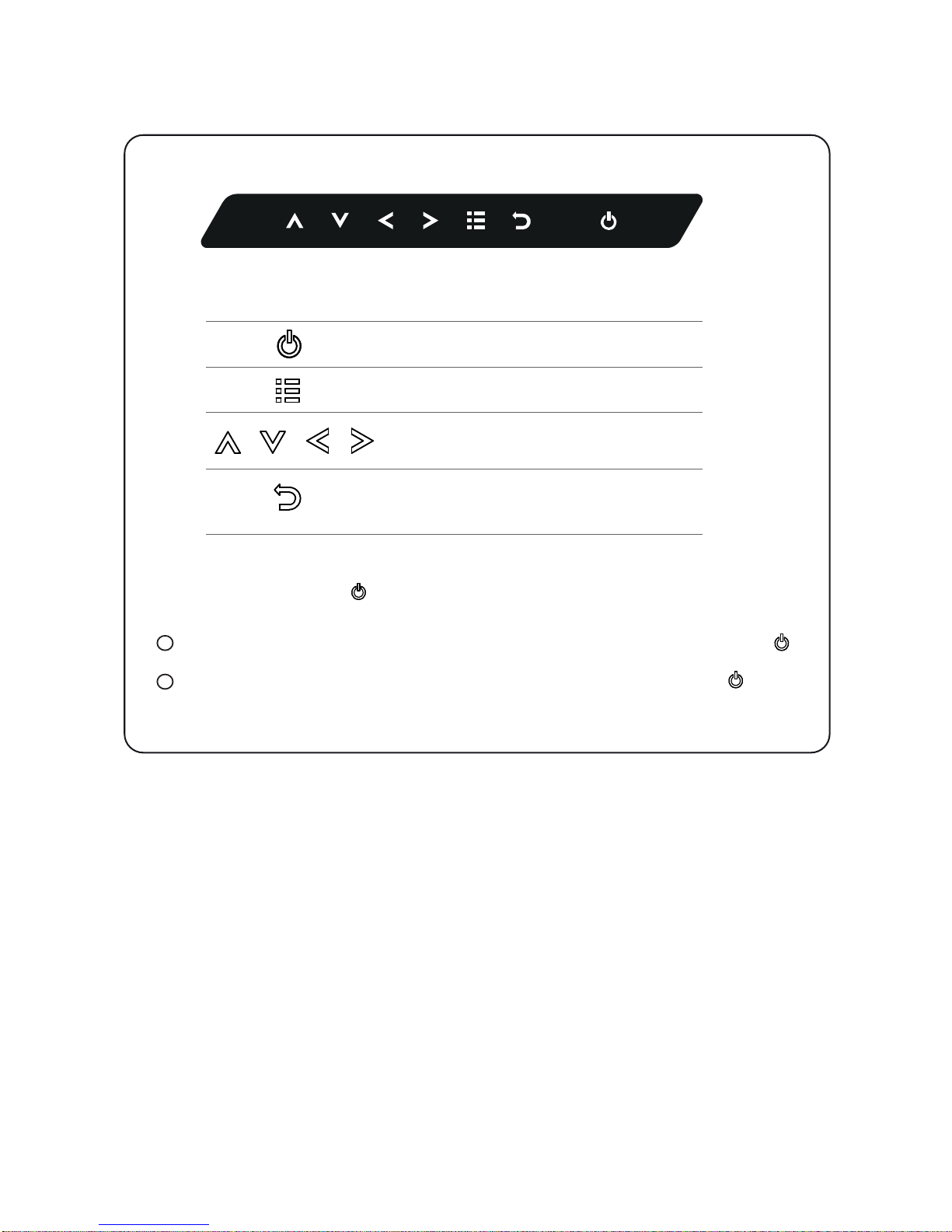

Membrane Switch Function
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will fl ash continuously when there is no signal input.
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
1
2
P. 11
< 2.3 > On-screen Display Operation ( OSD )
Page 16
UM-CV-751-F121-Q416V2 www.austin-hughes.com
< 2.3 > On-screen Display Operation ( OSD )
OSD Confi guration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
P.12
Page 17
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121
SDI
in - out
Power
KB / MS
DVI-D
< 3.1 > Options : 3G / HD / SD-SDI input
Austin Hughes’ SDI input is an ideal solution for the broadcastgrade video and high resolution CCTV market.
Designed for use with CyberView Full HD 1080p and ultra high
resolution 1920 x 1200 LCD displays, Austin Hughes provides a
SDI input module without using additional space or power and it
comes standard with a 2-year warranty.
P.13
INPUT 3G-SDI IN BNC x 1 / 0.8Vp-p ( 75 ohm )
3G-SDI OUT BNC x 1 / Active through, equalized & relocked
Standard Compliance Video SMPTE 425M / 274M / 296M / 125M
ITU-R BT.656
Audio SMPTE 299M / 272M-C
Compatible Audio Format 3G-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
HD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized Video
SD-SDI 48kHz, 16 / 20 / 24 bit, 2 CH, Synchronized /
Asynchronized Video
Compatible Video Format 3G-SDI 1080p
1080p
1080i
720p
@60 / 50Hz, 4:2:2
@30 / 25 / 24Hz, 4:4:4
@60 / 50Hz, 4:4:4
@60 / 50Hz, 4:4:4
HD-SDI 1080p
1080i
720p
@30 / 25 / 24Hz, 4:2:2
@60 / 50Hz, 4:2:2
@60 / 50Hz, 4:2:2
SD-SDI 480i @60Hz, 4:2:2
ITU-R BT.656 576i @50Hz, 4:2:2
Max. Transmission Distance
75 ohm coaxial cable
3G-SDI 150m at 2.97Gb/s
HD-SDI 250m at 1.485Gb/s
SD-SDI 480m at 270Mb/s
< Part 3 >
*** For SDI option, casing depth will be changed from 670mm ( 26.4" ) to 720mm ( 28.3" )
Page 18
UM-CV-751-F121-Q416V2 www.austin-hughes.com
Model 12V 24V 48V 125V 250V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V
Input current
- No load 50 mA 50 mA 50 mA 35 mA 10 mA
- Full load 4950 mA 2450 mA 1220 mA 749 mA 600 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 6.25A 12.5A
Effi ciency 84% 85% 85% 91% 86%
- HDMI
< 3.2 > Options :
Power
KB / MS
HDMI
( 1 ) For HDMI option, DVI-D input will be removed.
( 2 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio
signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card
setting on display size to fi x the issue.
( HDMI 1.3, CEA-861-D )
P.14
( 1 ) DC option excludes AC power adapter and power cord.
( 2 ) Casing depth will be extended from 670mm ( 26.4" ) to 720mm ( 28.3" )
***
For DC power option :
< 3.3 > Options : DC Power
DC power
KB / MS
DVI-D
Page 19
UM-CV-751-F121-Q416V2 www.austin-hughes.com
F121
< Part. 4 > KVM Integration
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MUKVM-KIT.pdf
Matrix
Cat6 KVM
Local Remote 8-port 16-port 32-port
111
- -MUIP1613 -MUIP3213
112
- -MUIP1624 -MUIP3224
110
- -MU1602 -MU3202
120
- -MU1603 -MU3203
1 3 0 - -MU1604 -MU3204
Combo
Cat6 KVM
Local Remote 8-port 16-port 32-port
101
-UIP802 -UIP1602 -UIP3202
110
-U802 -U1602 -U3202
1 0 0 -U801 -U1601 -U3201
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-UKVM-KIT.pdf
Combo
DB-15 KVM
Local Remote 8-port 16-port 32-port
101
-IP802 -IP1602 -
110
-802 -1602 -
1 0 0 -S801 -S1601 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-SKVM-KIT.pdf
For right side open - Add R at the end of the model no.
sample : F121-MUIP3224R
Matrix
DB-15 KVM
Local Remote 8-port 16-port 32-port
111
-MIP813 -MIP1613 -
112
-MIP824 -MIP1624 -
110
-M802 -M1602 -
120
-M803 -M1603 -
1 3 0 -M804 -M1604 -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-MKVM-KIT.pdf
For right side open - Add R at the end of the model no.
sample : F121-S1601R
DVI-D
KVM
Local Remote 12-port - -
1 0 0 -1201D - -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-DVIKVM-KIT.pdf
For right side open - Add R at the end of the model no.
sample : F121-1201DR
USB Hub
DB-15 KVM
Local Remote 8-port 16-port 32-port
101
-IP802H -IP1602H -
110
-802H -1602H -
1 0 0 -801H -1601H -
www.austin-hughes.com/support/usermanual/cyberview/UM-CV-USBKVM-KIT.pdf
For right side open - Add R at the end of the model no.
sample : F121-801HR
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net Weight Gross Weight
F121 with KVM
441.6 x 770 x 44 mm
17.4 x 30.3 x 1.73"
595 x 860 x 140 mm
23.4 x 33.9 x 5.5”
15.5 kg
34.1 lb
21.4 kg
47.1 lb
P.15
Page 20
UM-CV-751-F121-Q416V2 www.austin-hughes.com
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility
for any error which may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2016 Austin Hughes Electronics Ltd. All rights reserved.
Loading...
