User Manual
1U LCD Keyboard Drawers
17" and 19" Screen Sizes
- Optical Mouse
- 1U 17" or 19" Screen
ERM Series
- Desktop Style Keyboard
- 1U 17" or 19" Screen
ER1-17/19 D/T
Blank page
Chapter 1 Getting Started
1.1
Important Safeguards..........................................................1
1.2
Regulatory Notice................................................................2
1.3
Package Contents............................................................3-4
1.4
Before Installation...............................................................5
1.5
Unpacking...........................................................................5
1.6
Optional Accessories...........................................................5
1.7
Peripheral Products.............................................................6
1.8
Structure Diagram...............................................................7
1.9
How to Install “One Man” Installation Slides....................8-9
1.10
How to Use The Slides.....................................................10
1.11
ER1-17/19M (Single console)
- Use CE-6 to connect to server via PS/2 interface........................11
1.12
ER1-17/19M (Single console)
- Use CE-6 to connect to KVM via PS/2 interface..........................11
1.13
ER1-17/19M-USB (Single console)
- Use CE-6 to connect to server via USB interface........................12
1.14
ER1-17/19M-USB (Single console)
- Use CE-6 to connect to KVM via USB interface..........................12
Chapter 2 Operation
2.1
On-Screen Display Operation............................................13
2.2
On-Screen Menu...............................................................14
Chapter 3 Standard Specifi cation
3.1
Specifi cations...................................................................15
3.2
Keyboard & Mouse...........................................................16
Chapter 4 Optional Specifi cation
4.1
KVM Options.....................................................................17
4.2
DVI-D Input Option............................................................17
4.3
BNC+ S-Video Option.......................................................17
4.4
Audio Option.....................................................................18
4.5
Touchscreen Options........................................................19
4.6
DC Power Options.............................................................19
Chapter 5 Troubleshooting..........................................................20
Chapter 6 Dimensions......................................................................21
Contents
1.1 Important Safeguards Chapter 1
P. 1
Please read all of these instructions carefully before you use the device. Save this manual for future
reference.
What the warranty does not cover
■ Any product, on which the serial number has been defaced, modifi ed or removed.
■ Damage, deterioration or malfunction resulting from:
□ Accident, misuse, neglect, fi re, water, lightning, or other acts of nature, unauthorized product modifi -
cation, or failure to follow instructions supplied with the product.
□ Repair or attempted repair by anyone not authorized by us.
□ Any damage of the product due to shipment.
□ Removal or installation of the product.
□ Causes external to the product, such as electric power fl uctuation or failure.
□ Use of supplies or parts not meeting our specifi cations.
□ Normal wear and tear.
□ Any other causes which does not relate to a product defect.
■ Removal, installation, and set-up service charges.
P. 2
Legal Information
First English printing, October 2002
Information in this document has been carefully checked for accuracy; however, no guarantee is
given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions
■ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.
■ Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned envi-
ronment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
■ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and
causing damage to other equipment or injury to persons nearby.
■ When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it
and the power supply. Proper air convection is necessary to keep it from overheating.
■ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.
■ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage
and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be
higher than the one listed on the equipment’s ratings label.
■ Observe all precautions and warnings attached to the equipment.
■ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent
being damaged by transient over-voltage.
■ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to
the power supply or on other hardware may cause damage, fi re or electrical shock.
■ Only qualifi ed service personnel should open the chassis. Opening it yourself could damage the equip
ment and invalidate its warranty.
■ If any part of the equipment becomes damaged or stops functioning, have it checked by qualifi ed service
personnel.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Any changes or modifi cations made to this equipment may void the user’s authority to operate this equip-
ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
■ Reposition or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
1.2 Regulatory Notice Chapter 1
1.3 Package Contents Chapter 1
P.3
For ERM Series
LCD keyboard drawer x 1 pc
Power cord x 1 pc
CE-6 Combo 4-in-1 KVM cable x 1 pc
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
WOM-01 Mini USB optical mouse x 1 pc
Mounting bracket x 2 pcs
M6*15mm screw x 8 pcs
M6 cage nut x 6 pcs
Cup washer x 8 pcs
U
ser
Manual
1 6
5
4
3
7
8
9
5
4
2
6
1
3
7
8
9
2
1.3 Package Contents Chapter 1
P.4
LCD keyboard drawer x 1 pc
Power cord x 1 pc
User manual (As of Sept 2011, all user manuals will be download-only. Physical copies are available upon request)
Auto switch power adapter x 1 pc
CE-6 Combo 4-in-1 KVM cable x 1 pc
Mounting bracket x 2 pcs
M6*15mm screw x 8 pcs
M6 cage nut x 6 pcs
Cup washer x 8 pcs
5
4
2
6
1
3
7
User
M
anual
1
3
42
For ER1 D/T Series
6
7
8
9
5
8
9
1. Combo 4-in-1 KVM cable
1.1 CAE-6 (CE-6) 6 feet
1.2 CAE-10 (CE-10) 10 feet
1.3 CAE-15 (CE-15) 15 feet
2. Power Cord
2.1 IEC power cord
2.2 NEMA 5-15 power cord (US)
2.3 BS 1363 power cord (UK)
2.4 CEE 7/4 power cord (German)
2.5 AS 3112 power cord (Australia)
3. Wireless USB optical mouse
3.1 WOM-02
Please Note:
■ WOM-02 pertains only to the ERM Series of products
■ It is very important to locate the LCD Keyboard Drawer in a suitable environment.
■ The surface for placing and fi xing the LCD Keyboard Drawer should be stable and level or mounted into a suitable
cabinet.
■ Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,
water, moisture and vibration.
■ Position LCD Keyboard Drawer with respect to related facilities.
The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they
are included and in good condition. If anything is missing, or damage, contact the supplier immediately.
1.5 Unpacking
1.4 Before Installation
Chapter 1
P. 5
1.6 Optional Accessories
P. 6
1.7 Peripheral Products Chapter 1
Item Model No. Description
Matrix Cat6 KVM
16-Cat6-M2X / M3X / M4X
16-Cat6-M3X-IP / M4X-IP / M4X-2IP
32-Cat6-M2X / M3X / M4X
32-Cat6-M3X-IP / M4X-IP / M4X-2IP
Matrix Cat 6 16-Port KVM
Matrix IP Cat 6 16-Port KVM
Matrix Cat 6 32-Port KVM
Matrix IP Cat 6 32-Port KVM
Matrix DB-15 KVM
8-M2X / M3X / M4X
8-M3X-IP / M4X-IP / M4X-2IP
16-M2X / M3X / M4X
16-M3X-IP / M4X-IP / M4X-2IP
Matrix DB-15 8-Port KVM
Matrix IP DB-15 8-Port KVM
Matrix DB-15 16-Port KVM
Matrix IP DB-15 16-Port KVM
Combo Cat 6 KVM
8-Cat6 / 8-Cat6-2X / 8-Cat6-IP
16-Cat6 / 16-Cat6-2X / 16-Cat6-IP
32-Cat6 / 32-Cat6-2X / 32-Cat6-IP
Combo Cat 6 8-Port KVM
Combo Cat 6 16-Port KVM
Combo Cat 6 32-Port KVM
Combo DB-15 KVM
8-USB / 8-2X / 8-IP
16-USB / 16-2X / 16-IP
Combo DB-15 8-Port KVM
Combo DB-15 16-Port KVM
PS/2 DB-15 KVM 4 / 8 / 16 4 / 8 / 16-Port PS/2 DB-15 KVM
LCD interchangeable module kit
“One Man” Installation Slide
LCD membrane
Microswitch
1
1
2
2
3
3
5
4
6
5
7
7
Membrane switch (KVM option)
Mini USB optical mouse
104 key notepad keyboard with full numberical pad
Carry handle to release the 2-pt lock
P. 7

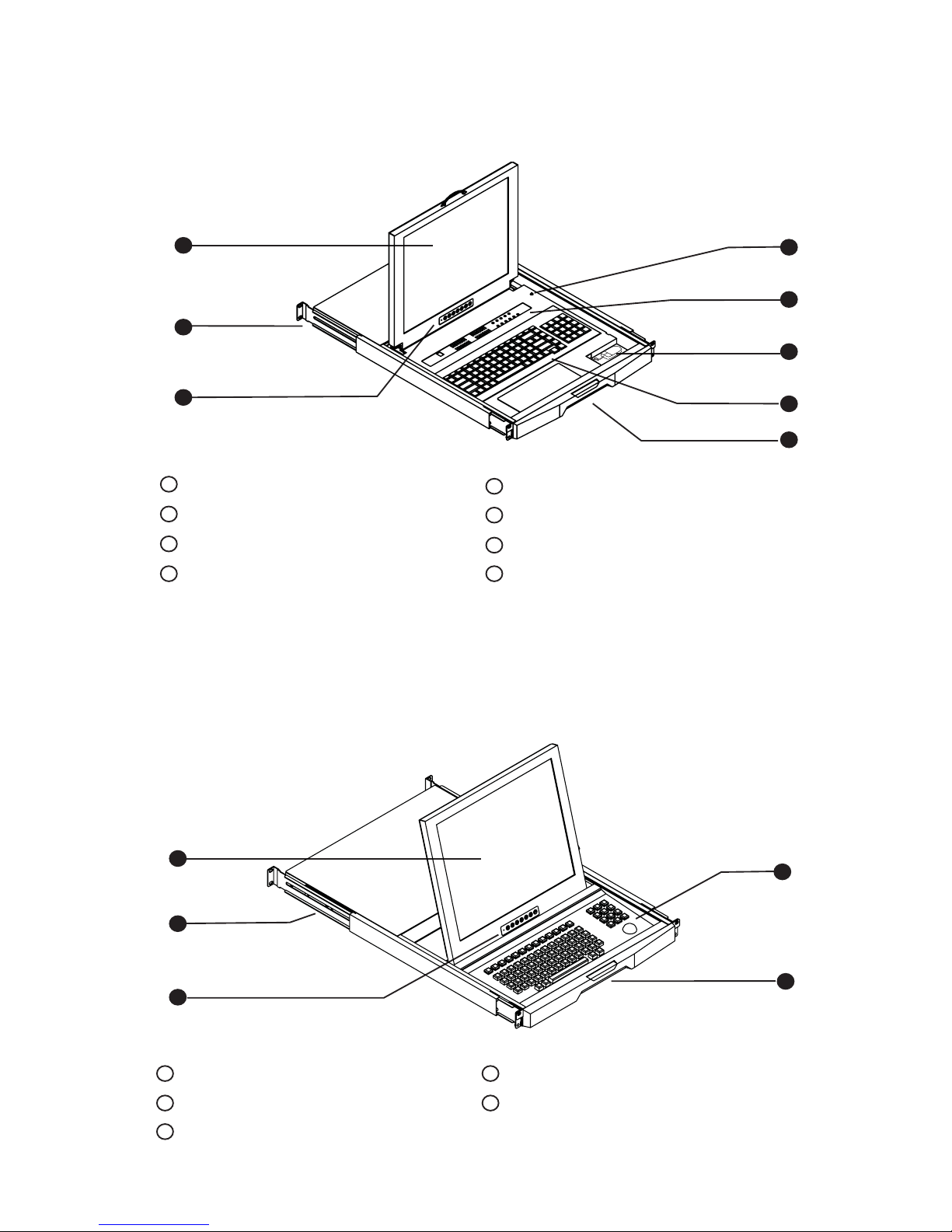

1.8 Structure Diagram Chapter 1
LCD interchangeable module kit
“One Man” Installation Slide
LCD membrane
1
1
2
2
3
5
Full “Unix style” keyboard with numerial pad
Carry handle to release the 2-pt lock
4
4
For ER1 D/T Series
For ERM Series
4
6
8
8
5
3
P. 8

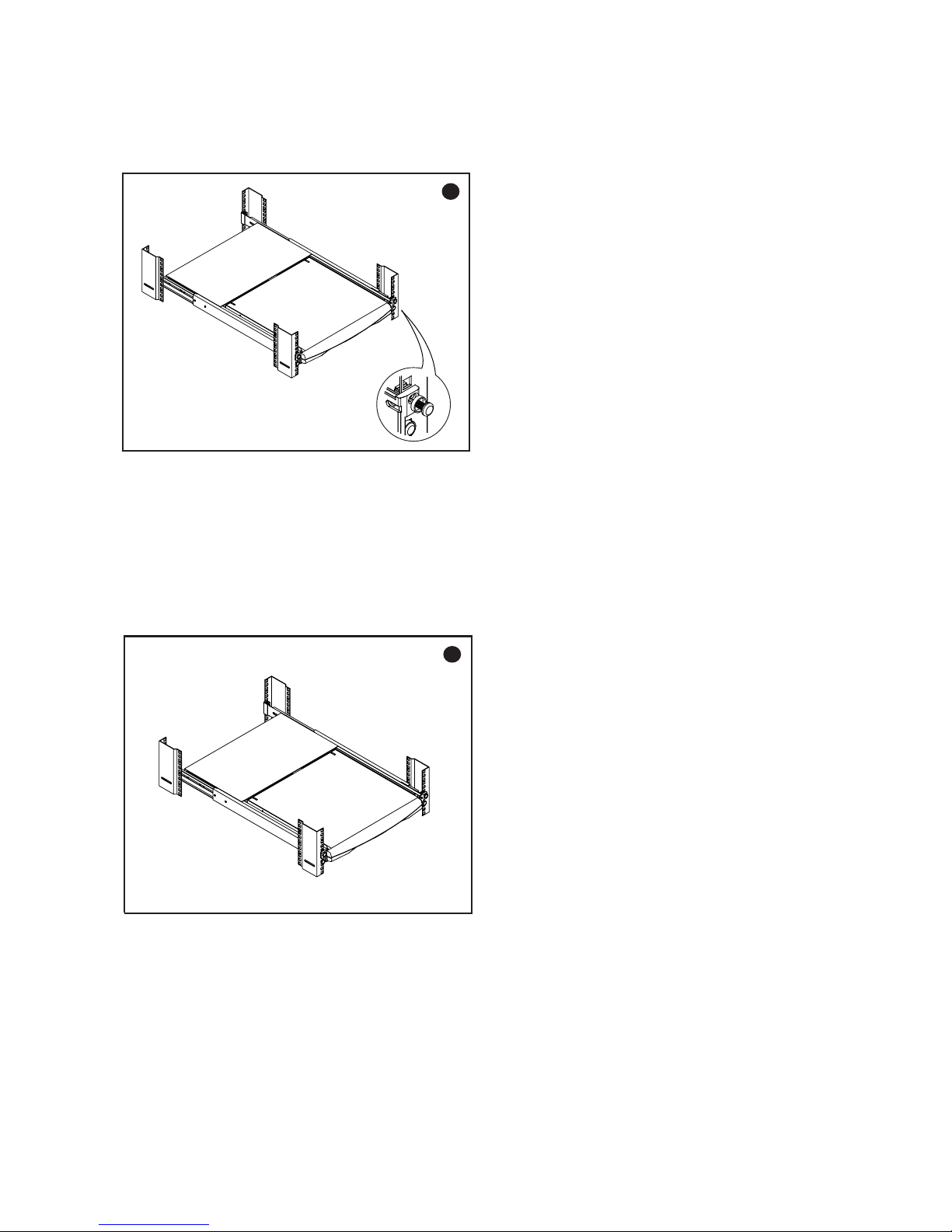

1.9 How to Install "One Man" Installation Slides Chapter 1
Install into rack
1
■ Attach the left and right mounting bracket to rack 19”
mounting rails.
■ Adjust the rear mouting bracket to fi t your rack.
■ M6 screw and cup washer x 6 pcs included.
Caution : Leave the screws slightly loose until
you complete the installation in step
2
■ Pick up the LCD keyboard drawer.
■ Insert the LCD keyboard drawer into the mounting bracket.
■ Pull and hold the left & right black arrow buttons on the rails.
■ Return the LCD keyboard drawer to park position.
Left front
Right front
4
Mounting bracket
Black arrow button
Left bracket
Right bracket
Front side
Rear side
P. 9
1.9 How to Install “One Man” Installation Slides Chapter 1
4
3
■ Tighten all 8 pcs of M6 screw to complete the installation.
■ Attach front left and right mounting ears of the LCD
keyboard drawer to vertical mounting rails.
■ M6 screw and cup washer x 2 pcs included.
Complete the installation
P.10
1.10 How to Use the Slides Chapter 1
■ Push the LCD keyboard drawer into the rack.
(shown in Figure 3).
Figure 3.
Figure 2.
■ Pull and hold the black arrow button on either
side of the LCD keyboard drawer to unlock.
(shown in Figure 2).
Figure 1.
L
L
I
L
I
■ A black arrow release button is located on the
outside of each slide. (shown in Figure 1).
Caution : Keep your fi ngers away from the
slide stop.
P. 11
Please Note:
■ ERM Series uses internal power via C13 (ER1 D/T models include an external power brick)
■ The above diagrams pertain only to the single console LCD keyboard drawer
■ For integrated KVM LCD keyboard drawers, please refer to the "All KVM" user manual
Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-
vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage of
the servers, KVM and LCD keyboard drawer
. Before attempting to connect anything to the
LCD keyboard drawer, we suggest turning off the power to all devices before connecting
them. Apply power to connected devices again only after the LCD keyboard is receiving
power. The supplier is not responsible for damage caused in this way.

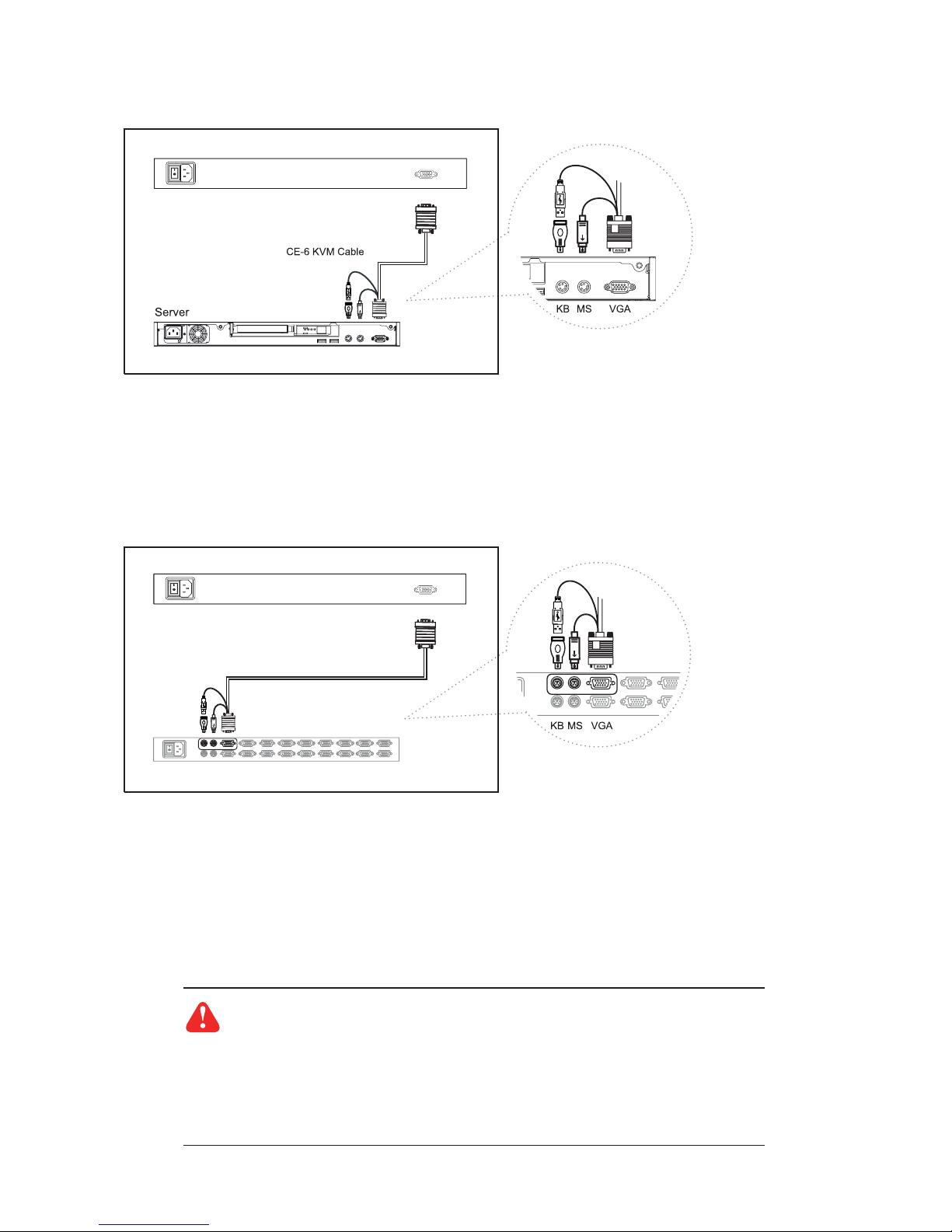

Figure 5. Example of connecting CE-6 4-in-1 Combo KVM cable to KVM via PS/2 interface
Figure 4. Example of connecting CE-6 4-in-1 Combo KVM cable to server via PS/2 interface
CE-6 KVM Cable
KVM
1.12 ERM Series (Single Console)
- Use CE-6 to connect to KVM via PS/2 interface
1.11 ERM Series (Single Console) Chapter 1
- Use CE-6 to connect to server via PS/2 interface
P.12
Please Note:
■ ERM Series uses internal power via C13 (ER1 D/T models include an external power brick)
■ The above diagrams pertain only to the single console LCD keyboard drawer
■ For integrated KVM LCD keyboard drawers, please refer to the "All KVM" user manual
Caution : The LCD keyboard drawer is hot-pluggable, but components of connected de-
vices, such as the servers and KVM switch, may not be hot-pluggable. Plugging and unplugging cables while servers and KVM are powered on may cause irreversible damage of
the servers, KVM and LCD keyboard drawer
. Before attempting to connect anything to the
LCD keyboard drawer, we suggest turning off the power to all devices before connecting
them. Apply power to connected devices again only after the LCD keyboard is receiving
power. The supplier is not responsible for damage caused in this way.
Figure 6. Example of connecting CE-6 4-in-1 Combo KVM cable to server via USB interface
Figure 7. Example of connecting CE-6 4-in-1 Combo KVM cable to KVM via USB interface
CE-6 KVM Cable
KVM
1.13 ERM Series (Single Console) Chapter 1
- Use CE-6 to connect to server via USB interface
1.14 ERM Series (Single Console)
- Use CE-6 to connect to KVM via USB interface
2.1 On-Screen Display Operation Chapter 2
P.13
LCD membrane
ERM-17/19 ER1-17/19 D/T
Exit the OSD screen
Toggle analog, digital & video connection (DVI-D and video options only)
Scrolls through menu options and adjusts the displayed control
(To auto adjustment by pressing the button for 5 seconds)
Display the OSD menu
Power on / off LCD
Power light
Green = On
Orange = Power saving
Membrane Switch Function
P.14
2.2 On-Screen Menu Chapter 2
OSD Confi guration Page
Image:
To enter into the brighness, contrast, color temp, red, green, and
blue
Geometry:
To enter into the auto adjust, H position, V position, phase and
clock
Video:
To enter into the colour, tint, sharpness, noise reduction, DCDi and
TV Setup
Audio:
To enter into volume, bass, treble, balance, AVL and mute
Misc:
To enter into the language, OSD position, graphic mode, ratio,
reset and timer
P.15
3.1 Specifi cations Chapter 3
Item Description
Form Factor 1U rack mounting on slide-out rails
LCD Manufacturer
Mod ERM-17 ERM-19 ER1-17 D/T ER1-19 D/T
Diagonal Size 17" TFT 19" TFT 17" TFT 19" TFT
Max. Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024
Brightness (cd/m²) 250 250 250 250
Color Support 16.7 M 16.7 M 16.7 M 16.7 M
Contrast Ratio (typ.) 1000:1 1000:1 1000:1 1000:1
Viewing Angle (H/V) 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚ 160˚ x 160˚
Display Area (mm) 338 x 270 376 x 301 338 x 270 376 x 301
Tr Response Time (ms) 1.3 1.3 1.3 1.3
LCD Panel MTBF (hrs) 50,000 50,000 50,000 50,000
VGA Signal Input Analog RGB, 0.7Vp-p
Sync. Type Separate H/V, Composite, SOG
Resolution
720 x 400, 70 Hz
640 x 480, 60/ 70/ 72/ 75 Hz
800 x 600, 60/ 70/ 72/ 75 Hz
1024 x 768, 60/ 70/ 75 Hz
1152 x 864, 60/ 70/ 75 Hz
1280 x 720, 60/ 70/ 75 Hz
1280 x 1024, 60/ 70/ 72/ 75 Hz
Plug & Play DDC EDID 1.3
Console Port (Combo) DB-15 connector for VGA / keyboard / mouse (Combo interface)
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption Max. 48 Watt, Standby 5 Watt
Compatibility Multi-platform - Mix PCs, SUNs, IBMs, HPs & DELLs.
Regulation Approval FCC, CE, RoHS
Options
KVM Integration
Matrix & combo KVM with IP console and
2 console selection
-
Keyboard & mouse
Full size keyboard built-in
touch-pad / trackball
Desk top size keyboard with touchpad / trackball
Graphic Input DVI-D, BNC & S-Video input
DC Power DC power input with 12V, 24V, 48V selection
Touchscreen Resistive & capacitive
Environmental
Operation 0˚ to 50˚C Degree
Storage -5˚ to 60˚C Degree
Relative Humidity 5~90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz 1G RMS random vibration
P.16
3.2 Keyboard & Mouse Chapter 3
■ Standard : WOM-01 Wired mini USB optical mouse
■ Optional : WOM-02 Wireless optical mouse
■ Multiple keyboard language selections
N keyboard
N
WOM-01
Wired Mini USB Optical Mouse
WOM-02
Wireless USB Optical Mouse
Optional:
t
Compact keyboard integrated
with touch-pad mouse
d
Compact keyboard integrated
with trackball
Supporting layouts only
For ERM Series
For ER1-17/19 D/T Series
Supporting layouts only
Supporting layouts
4.3 BNC + S-Video Option
ERM-17/19
ER1-17/19 D/T
3-in-1
VGA KB mouse
console port
S-Video BNC
Please Note:
■ Package includes 1 x 6ft S-Video cable
P.17
4.1 KVM Options Chapter 4
4.2 DVI-D Option
ERM-17/19
ER1-17/19 D/T
Please Note:
■ Package includes 1 x 6ft DVI-D cable
■ The depth will be extended from 700mm ( 27.6" ) to 750mm ( 29.5" )
DVI-D
3-in-1
VGA KB mouse
console port
Our KVM is designed to seamlessly integrate into the rear of our full range of LCD drawer solutions:
■ For KVM operation, please refer to KVM user manual
■ Options available for multiple consoles via Matrix KVM
■ Options available for high density & cost effi cient Combo KVM integration with either 8 / 16 / 32 ports
■ Options available for low cost PS/2 KVM
■ Please ask your supplier for full KVM details
Please Note:
■ Matrix & Combo KVM options are not available for ER1 D/T models
Please Note:
■ Audio input is 35mm audio plug
■ The speaker is sharing the same power with LCD.
Power Audio
Speaker
4.4 Audio Option Chapter 4
ER1-17/19M
ER1-17/19 D/T
3-in-1
VGA KB mouse
console port
ERM-17/19
ER1-17/19 D/T
P.18
P.19
4.5 DC Power Options Chapter 4
Remarks:
■ Power cabling is not included with DC Power option
■ The depth of ER1-17/19 D/T series will be extended from 700mm ( 27.6" ) to 750mm ( 29.5" )
Model 12V 24V 48V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V
Input current
- No load 50 mA 50 mA 50 mA
- Full load 4950 mA 2450 mA 1220 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A
Effi ciency 84% 85% 85%
4.6 Touchscreen Options
Model -17TRB / -17TRS -19TRB / -19TRS
Screen size 17" 19"
Interface USB / serial
Optical transmittance 80% ± 3%
Surface hardness ≥3H (JIS K5400)
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Capacitive
Model -17TCB / -17TCS -19TCB / -19TCS
Screen size 17" 19"
Interface USB / serial
Optical transmittance 93% ± 2%
Surface hardness >9H Surface hardness, withstand over 300 million touches
Operating system Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux
e-Resistive
Please Note:
■ The height of ERM-17/19 & ER1-19 D/T will be increased from 1U to 1.5U
■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc
■ Serial touchscreen package includes 1 x 6ft serial cable, quick reference guideline and CD disc
■ For detailed information, please refer to the CD disc included with the touchscreen
■ As the touchscreen unit is not made of toughened glass, please handle it carefully
■ Touchscreens in other brands are available on request
1. How do I adjust the resolution?
P.20
5.1 Troubleshooting Chapter 5
To change monitor resolution, click Start -> Control Panel -> Display. Select Setting tab to adjust the monitor resolution in
Desktop Area. The available resolutions, "640 x 480", "800 x 600", "1024 x 768", "1152 x 864", "1280 x 1024", are deter-
mined by the display card in your computer.
2. Is interference signal appeared on LCD normal when shutting down the computer?
In rare cases, interference may appear on the monitor. This may be caused by signal rate of VGA card and is considered
normal. The image quality can be improved by adjusting the phase or pixel rate automatically or manually.
3. The membrane power light is not lit?
Press the power On / Off on LCD membrane to check if the monitor is in the ON mode.
Check the power cord is properly connected to the LCD keyboard drawer and power outlet.
5. Is the LCD keyboard drawer hot-pluggable?
The LCD keyboard drawer is hot-pluggable, but components of connected devices such as the servers and KVMs may
not be hot-pluggable. We suggest turning off the power to all devices before connecting them. Apply power to connected
devices again only after the LCD keyboard receives power.
4. Screen image is not centered or sized properly
Press the button for two seconds to automatically adjust the image.
Adjust the H-position and V-position settings via On-screen menu.
6.1 Dimensions Chapter 6
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which
may appear in this publication.
All brand names, logo and registered trademarks are properties of their respective owners.
Copyright 2010 Austin Hughes Electronics Ltd. and Eclipse Rackmount, Inc. All rights reserved.
CV-RKP3-1010V8
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
ERM-17
442 x 650 x 44 mm
17.4 x 25.6 x 1.73"
589 x 826 x 168 mm
23.2 x 32.5 x 6.6"
17 kg
37 lb
23 kg
51 lb
ERM-19
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
18 kg
40 lb
24 kg
53 lb
ER1-17 D/T
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
18 kg
40 lb
24 kg
53 lb
ER1-19 D/T
442 x 700 x 44 mm
17.4 x 27.6 x 1.73"
589 x 856 x 168 mm
23.2 x 33.7 x 6.6"
19 kg
42 lb
25 kg
55 lb
P.21
Loading...
