Introduction
Congratulations on your purchase of this Advanced W ireless 1 1g Router . This router is
the perfect design product combining wireless and Ethernet network technology
together. Fully compatible with IEEE 802.11g wireless standard, this device not only
allows you to take advantage of mobility, but also to have fast Ethernet connection
with built-in four 10/100 auto-sensing switch Ethernet ports. Users on wireless LAN
and Ethernet LAN can share files, printers, and other networking resource each other
at a blazing speed. Best of all, with NAT technology , all users can share single account
of Internet access by having this device connect to a DSL/Cable modem.
Integrated 802.11g wireless AP and 4-port 10/100 Mbps switch, it is quick and easy to
deploy wireless and wire LAN without spending extra cost of a wireless access point,
hub or switch. All LAN users are able to share internal network data, like files, printers,
and other networking resources in a blazing speed. The wireless Router’s efficient
antenna offers a covered range up to 30 meters indoor (150 meters outdoor) and
seamless roaming throughout wireless LAN infrastructure. More over, the wireless
operation provides 64 bit key and 128 bit WEP data encryption for high-level security.
With built-in NAT, this device not only provides natural firewall, protecting your
network from access by outside users but also extends your LAN connection. Users on
the LAN can share a single account of Internet access by having this device connect to
a DSL/Cable modem. This Firewall Router allows up to 253 users on the Ethernet
LAN simultaneously but makes IP configuration simple and easy. Configured as a
DHCP server, the Advanced Wireless 11g Router assigns an IP Address to every
connected PC on Ethernet LAN automatically. Also, DHCP client helps WAN port
obtain IP address dynamically assigned by ISP.
With a web-based UI (User Interface), this Advanced Wireless 11g Router is easy to
setup and maintain. With this exclusive user friendly interface, all functions can be
configured easily via a web browser such as Netscape Communicator and Internet
Explorer.
About this Guide
This guide contains information about installing and configuring your Advanced
Wireless 11g Router. It is designed to guide users through the correct setup procedures
for appropriate hardware installation and basic configuration. Later, it shows how to
complete advanced configurations to get the best operating performance from this
Advanced Wireless 11g Router.
Chapter 1: Get to know your Advanced Wireless 11g Router
This chapter describes the package contents and provides a list of features and
applications illustrations of the Advanced Wireless 11g Router.
Chapter 2: Hardware Installation & Setup
This chapter describes the steps for the hardware installation of the Advanced W ireless
11g Router.
- 1 -
Broadband Wireless Router User Guide
Chapter 3: Internet Access
This chapter describes the steps for the basic configuration and start up of the
Advanced Wireless 11g Router.
Chapter 4: Advanced Applications
This chapter describes how to configure advanced functions in order to get the most
from your Advanced Wireless 11g Router.
Chapter 5: Macintosh Setup
This Chapter provides instructions on how to set up your Macintosh computers in your
network.
Chapter 6: Trouble Shooting
This chapter describes any potential problems you may encounter and the suggested
remedies.
Conventions
The following explains the conventions used throughout this document.
Italics New words, terms, or special emphasis. E.g. Getting to know your
Advanced Wireless 11g Router.
“Boldface” Buttons, checkboxes, or items that you can select from screens,
menus, or dialog boxes. E.g. Click “OK” to restart
Boldface Italics Items in Bold Italics are samples only and you should enter other
names, numbers, or words to substitute.
- 2 -
Broadband Wireless Router User Guide
Chapter 1: Getting to know your Advanced Wireless 11g Router
This chapter describes the package contents and provides a list of features and
application illustrations of the Advanced Wireless 11g Router.
1-1 About The Advanced Wireless 11g Router
The Advanced Wireless 11g Router is a hybrid design product which combines
Ethernet technology and wireless access into a single stand-alone unit. The device
allows you take advantages of both mobility and fast connection. All PCs whenever on
wireless LAN or Ethernet LAN can share files, printers and other network resource.
Moreover, all users can share single account of Internet access by having this device
connect to a DSL/Cable modem.
Ethernet / Fast Ethernet
Ethernet is the most widely-used network access method, especially in a Local Area
Nnetwork (LAN) and is defined by the IEEE as the 802.3 standard. Normally , Ethernet
is a shared media LAN. All stations on the segment share the total bandwidth, which
could be 10Mbps (Ethernet), 100Mbps (Fast Ethernet), or 1000Mbps (Gigabit
Ethernet). With a switched Ethernet, each sender and receiver has the full bandwidth.
Fast Ethernet is defined as IEEE 802.3u standard, a high-speed version of Ethernet
with 100Mbps transmission rate.
Wireless LAN
Wireless Local Area Network systems (WLANs) transmit and receive data through the
air by using radio frequency (RF). This offers some advantages like mobility, ease of
installation, and scalability over traditional wired systems.
Mobility: WLANs combine data connectivity with user mobility. This
provides users with access to network anywhere in their organization. For
example, users can roam from a conference room to their office without
being disconnected from the LAN. This is impossible with wired networks.
Ease of Installation: Eliminating the need to deploy network cable in walls
and ceilings, Installing WLANs is easy for novice and expert users alike.
Scalability: WLAN topologies are easy to change in various ways from
peer-to-peer networks for a small group of users to full infrastructure
networks for hundreds of users roaming over a broad area.
Wireless LAN is suitable for difficult-to-wire and frequently changing environments.
It’s also an ideal solu tion for mobile workers to access network resource and f or setting
a temporary LAN when necessary
Wireless LANs can be set as “Aad-hoc” network and “Infrastructure” network. Unlike
the “Aad-hoc network”, where users on the LAN send data directly to each other, the
“Infrastructure” network includes an access point and users on the “Infrastructure”
network send data to that dedicated access point. Advanced Wireless 11g Router uses
- 3 -
Broadband Wireless Router User Guide
“Infrastructure” network as Wireless LANs. Each wireless LAN PC within the range
of the access point can communicate with other wireless LAN PCs within the range.
1-2 Contents of the Advanced Wireless 11g Router Package
After carefully unpacking the shipping carton, check the contents listed below.
1. Advanced Wireless 11g Router.
2. Power Adapter.
3. User’s Manual
1-3 Features of the Advanced Wireless 11g Router
Your Advanced Wireless 11g Router contains the following features that make it
excellent for network connections.
Allows multiple users to access the Internet at the same time by providing
maximum Internet utilization to multiple users sharing a single public IP
Address.
Allows users on Ethernet LAN and Wireless LAN to transfer data to each
other through wireless-to-wire bridge.
Provides wireless access roaming, best access point selection, loading
balance, network traffic filtering included in wireless roaming function.
Provides 64bits/128bits key WEP (Wired Equivalent Privacy) wireless data
encryption to secure wireless communication.
Fully supports 802.11 open and shared key authentications.
Integrates four 10/100BASE-T/TX auto-sensing switch ports.
Uses NA T to allow your entire network’s PCs to connect to the Internet using
only one (purchased) IP address.
Supports PPPoE that enable user to seamlessly connect to ISPs with the
familiar “dial-up” connection interface.
Built-in web-based user interface for easy configuration and management
through common web browsers such as Netscape Communication 6.0 or
later and Internet Explorer 5.0 or later.
Built-in firewall to protect your PCs from outside intruders (NAT).
- 4 -
Broadband Wireless Router User Guide
Supports DHCP client to receive both a dynamic IP Address and a fixed IP
Address from ISP.
Built-in DHCP server to automatically assign and manage LAN IP
addresses.

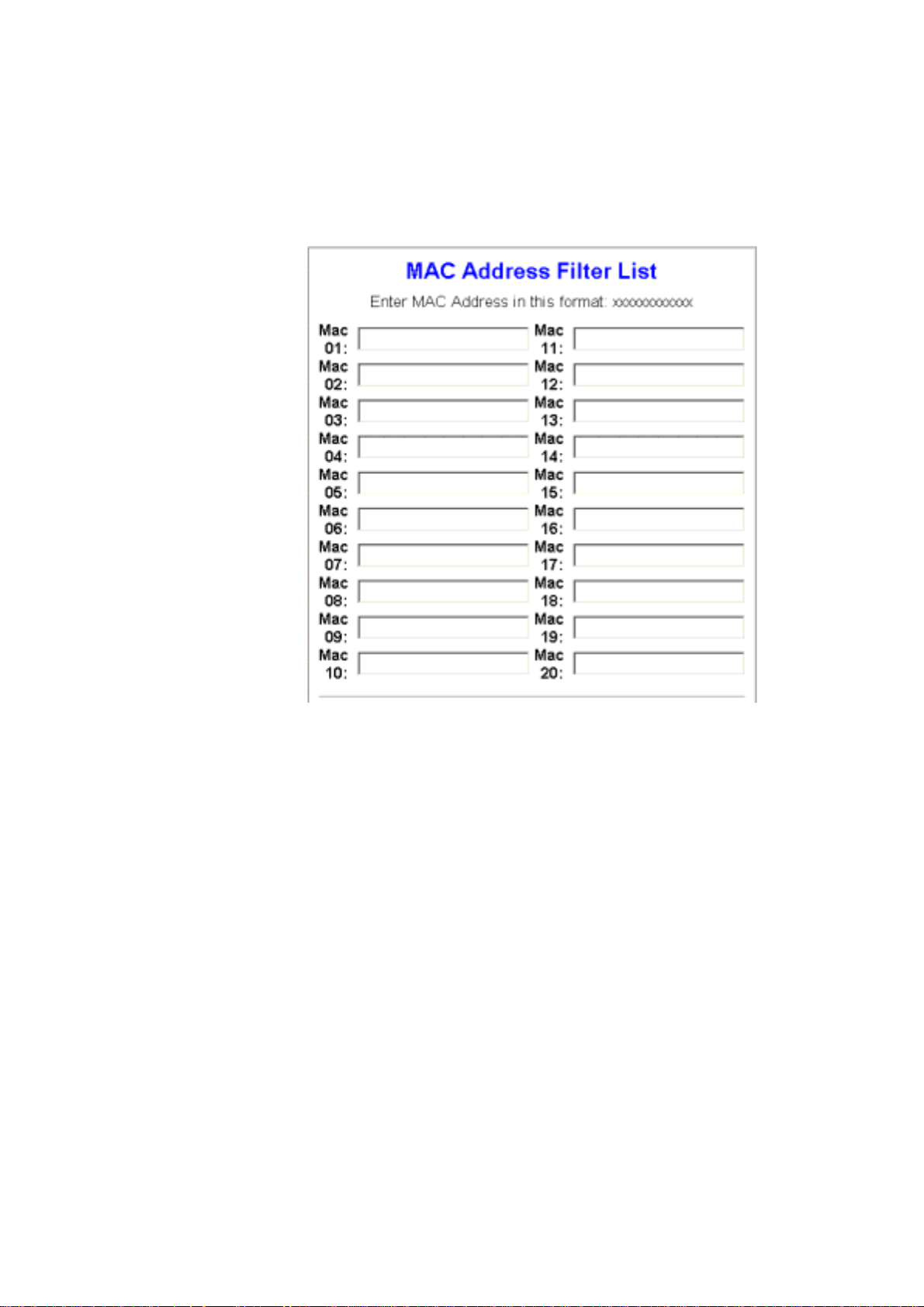

Allow administrators to block specific internal users from accessing
specified applications or services.

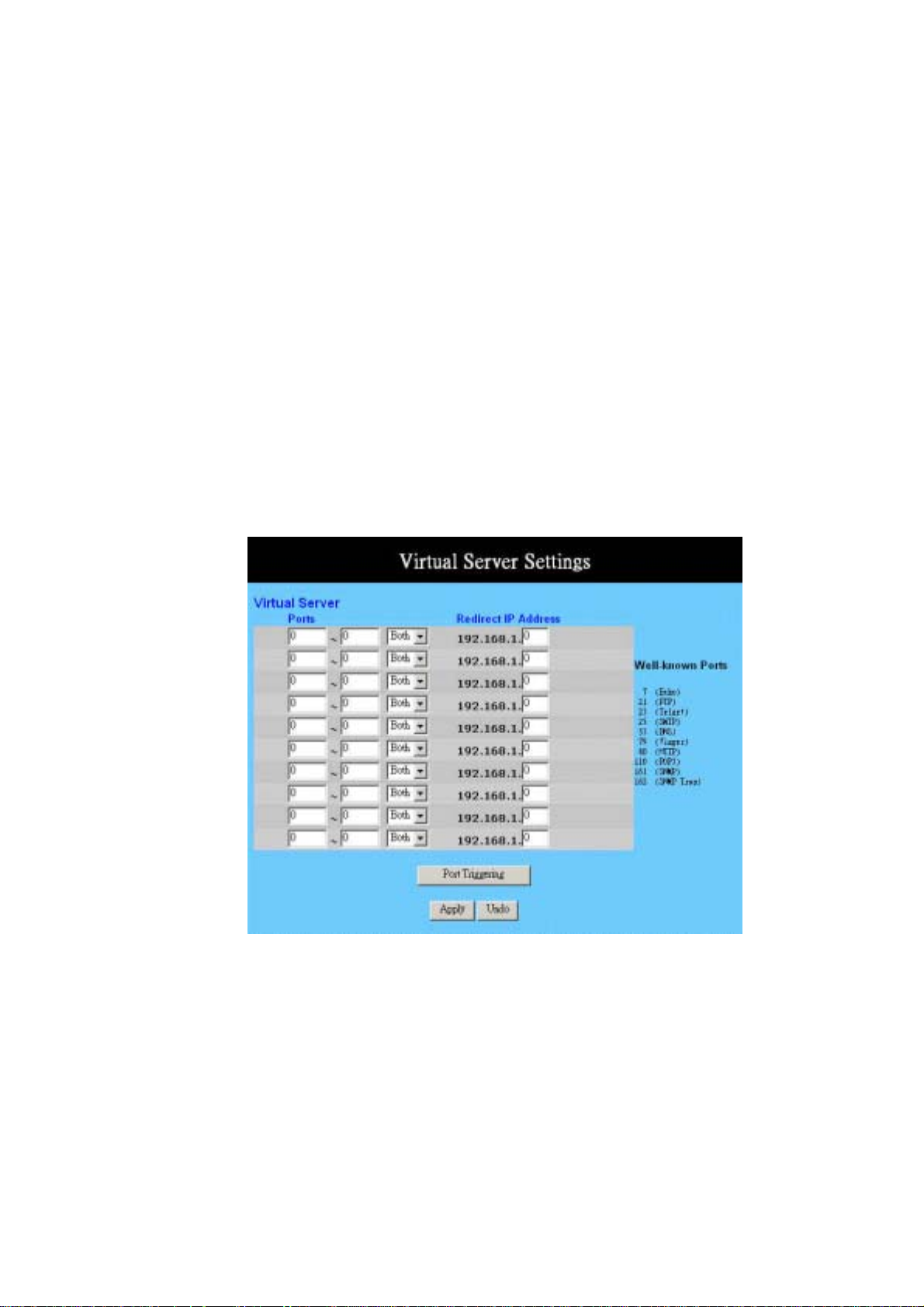

Allows external Internet users to access information from the internal target
host by setting the Virtual Server.
Provides unrestricted two-way communication between one PC on your
LAN and certain Internet services such as conferencing, video and gaming
applications.
Enhances routing performance by using Dynamic and Static routing settings.
Allow administrators to change the WAN MAC address of the router.
Compatible with all popular Internet applications.
- 5 -
Broadband Wireless Router User Guide
Chapter 2: Hardware Installation & Setup
This chapter provides information about your Advanced Wireless 11g Router’s
physical features and gives step-by-step installation instructions.
2-1 Rear Panel & Connections
The following figure shows the rear view of the Advanced Wireless 11g Router and
illustrates how the cables connect to the interfaces on the rear panel.
Plug one end of the UTP cable into the WAN port, the other into the RJ45
Ethernet jack on your ADSL or Cable modem.
Connect a PC, which must have an Ethernet NIC (Network Interface Card)
installed, to one of the LAN Ports.
Connect the external power supply to the Advanced Wireless 11g Router.
The Reset button is used to reboot and re-initialize the device (press once
quickly), or for clearing configuration settings back to factory default values
(press for longer than 3 seconds).
2-2 Front Panel LEDs
The following figure shows the front view of the Advanced Wireless 11g Router.
The LEDs on the front panel indicate the status of the unit. You can easily view the
operation of your Advanced Wireless 11g Router from this panel.
- 6 -
Broadband Wireless Router User Guide
Power: Green Steady on when power is on.
DMZ: Green Steady on when dedicated DMZ port is enabled.
Diag: Red Lights up during system checking connections and
internal operation when the power is first switched on.
If the device works properly, the light should switch
off automatically.
Wireless LAN
Enable: Green Steady on when AP (Access Point) is ready.
Activity: Green Blinking when data is flowing through AP.
LAN / WAN ports
Link/Act: Green Steady on when ADSL/Cable Modem is properly
connected and it operates at 100Mbps.
Blinking when data is flowing through this LAN port.
FD/Col: Green Steady on when operating at full duplex mode.
Off at half duplex mode.
Blinking when a collision has occurred on this port.
100 Yellow Steady on when it operates at 100Mbps.
2-3 System Requirements and Setup
To connect to the Internet, an external ADSL or Cable modem and an Internet access
account from an ISP is required. In order to operate with the Advanced Wireless 11g
Router, each PC that is to be connected to the Advanced Wireless 11g Router should
have the following things installed:
1. Ethernet NIC (Network Interface Card: a 10Base-T or 10/100Base-T/TX
Ethernet card), or wireless client card for wireless connection.
2. Standard twisted-pair Ethernet cable (UTP network cable) with RJ-45
connectors.
3. System OS: Windows 95/98, Windows NT4.0, or Windows 2000/XP
4. TCP/IP network protocol.
5. Web browser, such as Microsoft Internet Explorer 5.0 or later, or Netscape
Navigator 6.0 or later.
Installing the TCP/IP Protocol
If you are not sure whether the TCP/IP Protocol has been installed, follow these steps
to check, and if necessary, install TCP/IP onto your PCs.

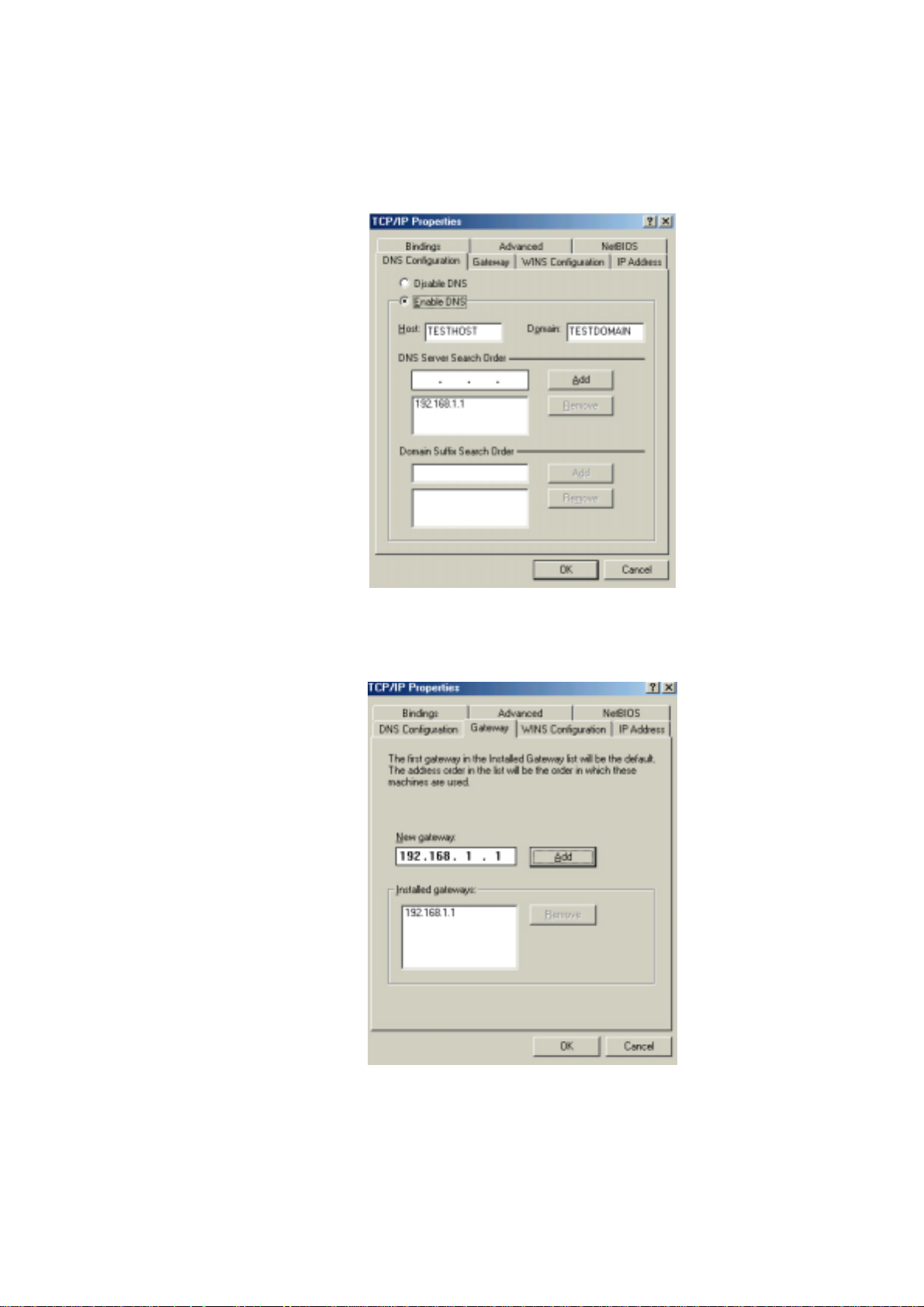

1. Click the “Start” button. Choose “Settings”, then “Control Panel”.
Double-click the “Network” icon. Your Network window should appear.
- 7 -
Broadband Wireless Router User Guide
Select the “Configuration” tab.
Note: For Windows 2000 & Windows XP Setting
Click the “Local Area Connection” icon on the lower right hand side of
your desktop screen.
In the “Local Area Connection Status” window , click the “Properties”
button then your Network window will appear.
- 8 -
Broadband Wireless Router User Guide
There is only one tab, “General”, in the Network window.
2. Check whether the TCP/IP Protocol has already been installed onto your
computer’s Ethernet card. Note that TCP/IP Protocol can be installed for a
computer’s Dial-Up Adapter as well as for the Ethernet card.
- If yes, go to step 7.
- If no, click the “Add” button.
3. Double-click “Protocol” in the Select Network Component Type or
highlight “Protocol” then click “Add”.
- 9 -
Broadband Wireless Router User Guide
4. Highlight “Microsoft” under the list of manufacturers.
Double-click “TCP/IP” from the list on the right or highlight “TCP/IP”
then click “OK” to install TCP/IP.
5. After a few seconds, you will be returned to the Network window. The
TCP/IP Protocol should now be on the list of installed network components
(see 2 above).
6. Click the “Properties” button.
The TCP/IP Properties window consists of several tabs. Choose the “IP
Address” tab.
7. Select “Obtain an IP address automatically”. Click “OK”. Restart your
PC to complete the TCP/IP installation.
- 10 -
Broadband Wireless Router User Guide
Fixed IP Addresses Configuration
Fixed IP addresses may be assigned to network devices for many reasons, such as the
server PCs or printers which are consistently accessed by multiple users. To set up
computers with fixed IP Addresses, go to the “IP Address” tab of the “TCP/IP
Properties” window as shown above.
Select “Specify an IP address” and enter “192.168.1.***” in the “IP Address”
location (where *** is a number between 2 and 254 used by the Advanced Wireless
11g Router to identify each computer), and the default “Subnet Mask”
255.255.255.0”. Note that no two computer on the same LAN can have the same IP
address.
- 11 -
Loading...
